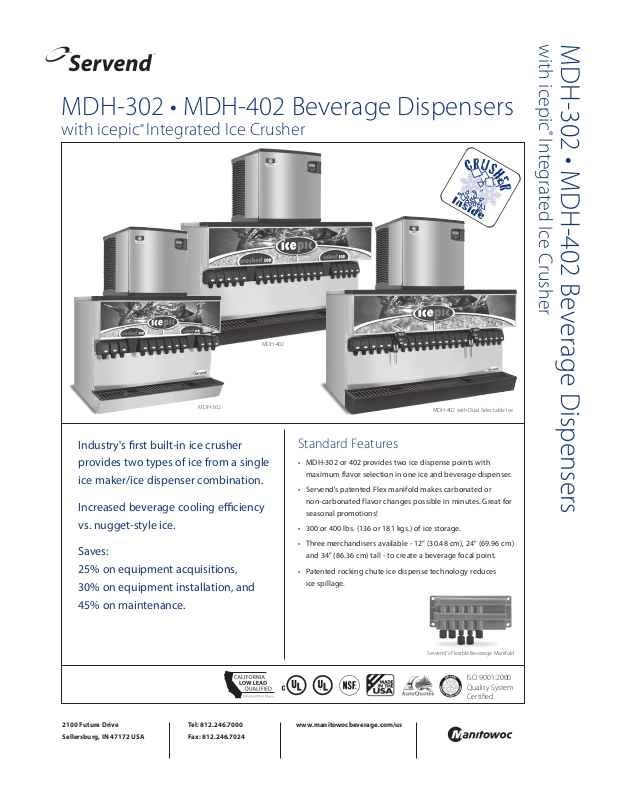

Servend MDH-302HHE User Manual

MDH-302 • MDH-402 Beverage Dispensers

with icepic® Integrated Ice Crusher

MDH-302 • MDH-402 Beverage Dispensers

with icepic

Integrated Ice Crusher

MDH-402

MDH-302

Industry's rst built-in ice crusher

provides two types of ice from a single

ice maker/ice dispenser combination.

Increased beverage cooling eciency

vs. nugget-style ice.

Saves:

25% on equipment acquisitions,

30% on equipment installation, and

45% on maintenance.

MDH-402 with Dual Selectable Ice

Standard Features

• MDH-302 or 402 provides two ice dispense points with

maximum flavor selection in one ice and beverage dispenser.

• Servend's patented Flex manifold makes carbonated or

non-carbonated flavor changes possible in minutes. Great for

seasonal promotions!

• 300 or 400 lbs. (136 or 181 kgs.) of ice storage.

• Three merchandisers available - 12" (30.48 cm), 24" (69.96 cm)

and 34" (86.36 cm) tall - to create a beverage focal point.

• Patented rocking chute ice dispense technology reduces

ice spillage.

2100 Future Drive

Sellersburg, IN 47172 USA

Tel: 812.246.7000

Fax: 812.246.7024

www.manitowocbeverage.com/us

Servend's Flexible Beverage Manifold

ISO 9001:2000 Quality System Certied

MDH-302 • MDH-402 Beverage Dispensers

with icepic

Specications

Standard Features

Integrated Ice Crusher

Shipping Weights 448 lbs. / 203 kgs. 543 lbs. / 246 kgs.

Countertop Weight (w/o ice)

Ice Storage Capacity Up to 300 lbs. / 136 kgs. Up to 400 lbs. / 182 kgs.

Electrical Requirements

Compatibility

MDH-302 MDH-402 MDH-402 Dual Selectable

Left side ice crusher, key switch, drain kits, 12" tall lighted

merchandiser, timed agitation, Flomatic 464 beverage valves

Ice Crusher Left side ice crusher Dual selectable ice crusher

397 lbs. / 180 kgs. 481 lbs. / 218 kgs.

Dispenser 12T: 120/60Hz/5.25FLA 24T: 120/60Hz/5.25FLA 34T: 120/60Hz/5.75FLA

Drain

Ice Machine

3/8" x 1-1/8" x 7/8" or smaller. Hoshizaki America, Inc., ice machines with crescent-style shape

ice cubes are not compatible with MDH-302 or MDH-402 dispensers with integrated Ice Crusher.

12T: 42.625" W x 11" H / 108.3 W x 27.94 H (cm)

24T: 42.5" W x 23.813" H / 108.3 W x 60.49 H (cm)

Graphic Area

Dimensions

Manifold 2-1-1-2 Flexible left to right

Options

34T: 42.5" W x 33.813" H / 108 W x 85.89 H (cm)

12T: 41.745" W x 10" H / 106 W x 25.4 H (cm)

24T: 41.624" W x 22.875" H / 105.7 W x 58.1 H (cm)

34T: 41.875" W x 33.188" H / 106.4 W x 84.3 H (cm)

Two 3/4" (1.91 cm) PVC (N.P.T.) drain fittings extend from drain pan.

Ice bin drains directly into drain pan for front clean out, no hook up necessary.

Performance optimized with Manitowoc half-dice cube size. Top-mount with

Manitowoc half-dice size ice cube machine or manual fill with hard cubed ice

Physical trim

Visual area

Other options include; water lever, carbonator, regulator and installation kits,

Ice machine adaptor kits, 24" (60.96 cm) and 34" (86.36 cm) extended merchandiser,

Americans with Disabilities Act (ADA) compliant selection touchpads.

12T: 59.75" W x 11" H / 151.8 W x 108.3 H (cm)

24T: 59.75" W x 23.813" H / 151.8 W x 60.49 H (cm)

34T: 59.75" W x 33.813" H / 151.8 W x 85.89 H (cm)

12T: 59.125" W x 10.375" H / 150.2 W x 26.35 H (cm)

24T: 59.125" W x 23.188" H / 150.2 W x 23.188 H (cm)

34T: 59.125" W x 32.813" H / 150.2 W x 83.35 H (cm)

16 Valve 2-1-1-1-3 Flexible left to right

20 Valve 3-1-2-1-3 Flexible left to right

High Humidity Enhancements available for tropical regions.

Physical trim

Visual area

2100 Future Drive

Sellersburg, IN 47172 USA

Width

Depth

Tel: 812.246.7000

Fax: 812.246.7024

www.manitowocbeverage.com/us

Height

Width

Depth

Height*

*Add 1" (2.54 cm) for full lid.

MDH-302 MDH-402

42.75" 60.00" 60.00" 45.25" 60.00"

108.6 cm 152.4 cm 152.4 cm 114.9 cm 152.4 cm

30.50" 30.50" 30.50" 30.63" 30.63"

77.5 cm 77.5 cm 77.5 cm 77.8 cm 77.8 cm

33.00" 32.25" 33.25" 33.13" 32.25"

83.8 cm 81.9 cm 84.5 cm 84.1 cm 81.9 cm

MDH-402

SCI

MDH-302

HHE

MDH-402

HHE
