Servend G4 Parts List

Download
Page 1

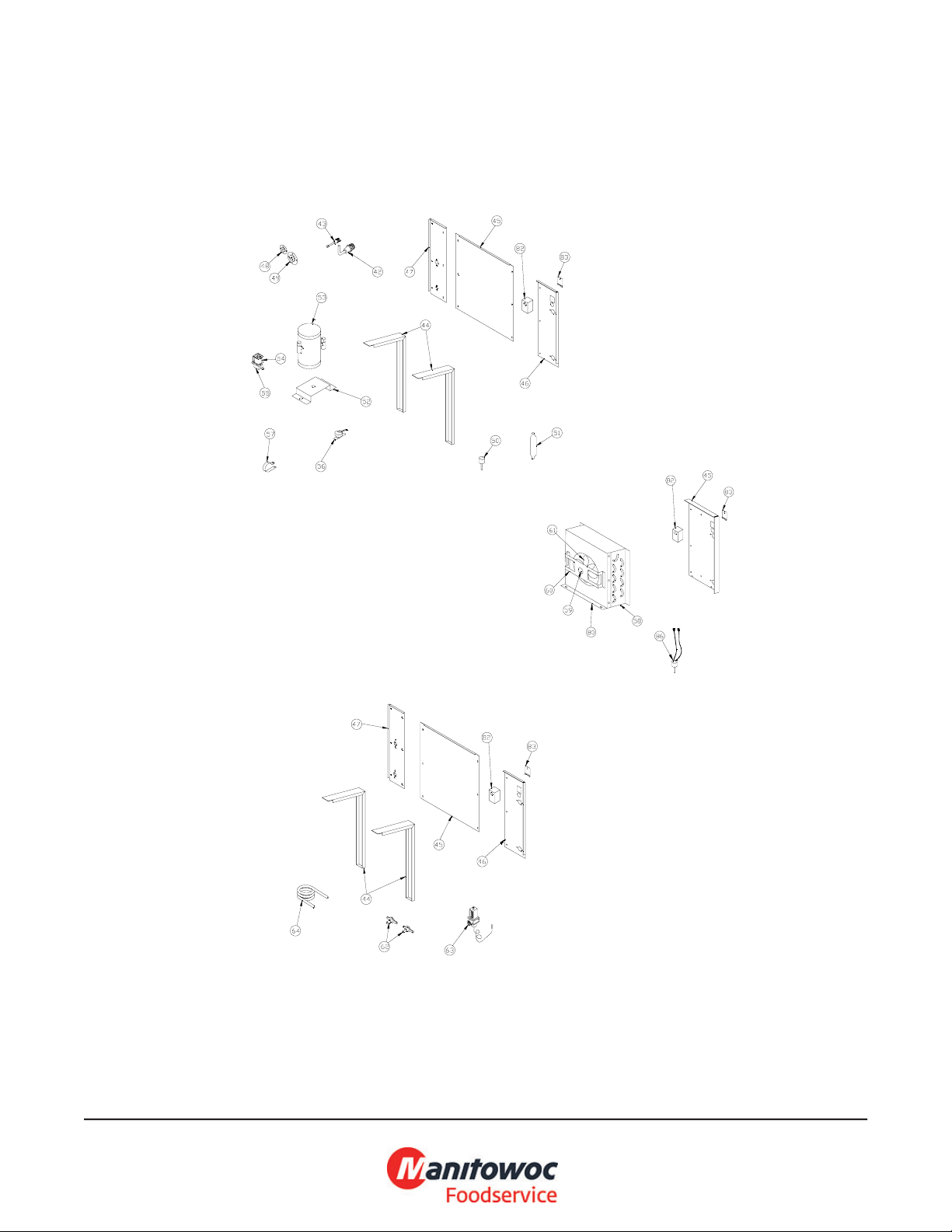

30" WIDE REMOTE CONDENSER EXPLODED VIEW
30" WIDE AIR CONDENSER EXPLODED VIEW
30" WIDE WATER CONDENSER EXPLODED VIEW
G Series Cuber

30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G10 - A

30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G10 - A
G_parts_sii_1-3.pdf
Page 2
G Series Cuber
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G10 - A
AIR COOLED 1 9200594 Enclosure 2 5004340 Bottom assembly 3 5006416 Compressor 208 / 230 V. 60 Hz. 3 5006415 Compressor alternate for 208 / 230 V. 60 Hz 3 5006414 Compressor 220 / 240 V. 50 Hz 3 5006413 Compressor alternate for 220 / 240 V. 50 Hz 4 5003899 Wiring harness 5 5006045 Distributor tube 6 88294948 Distributor tube clip 7 5005797 Evaporator MINI [1] 7 5005798 Evaporator FULL [1] 7 5005796 Evaporator JUMBO [1] 8 9200990 Curtain 9 5002463 Water Pan Assembly 10 88296419 Solenoid coil 11 88296418 Hot gas solenoid body only 12 88296420 Drier 13 5006291 Expansion valve 13 5001389 Expansion valve alternate 14 9200506 Water dump solenoid 15 5005030 Circuit board 16 5004245 Compressor relay 208 / 230 V. 60 Hz. 16 5003872 Compressor relay 17 9201097 Manual water purge switch 18 88917953 Toggle switch 19 High pressure cut out [2] 20 9200639 Guide pin nut plate 21 5006292 Start capacitor 208 / 230 V. 60 Hz. 21 5003870 Start capacitor 220 / 240 V. 50 Hz. 22 5006293 Run capacitor 208 / 230 V. 60 Hz. 22 5006294 Run capacitor 220 / 240 V. 50 Hz. 23 5000609 Transformer 24 5005853 Thermistor kit 25 9200520 Hall switch 26 88295947 Contactor 27 88295943 Refrigerant Service Valve 28 9200010 Water supply tube 29 5001410 Curtain shim Full thickness 29 5001413 Curtain shim Half thickness 30 9201026 Water inlet fitting 31 9200661 Water drain fitting 32 88297693 Retractable curtain guide pin bracket 33 9200508 Water purge solenoid to drain fitting tubing 34 9200530 Water pump to tee tubing 35 9200507 1/2 x 1/2 x 1/2 Tee
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G10 - A
G_parts_sii_1-3.pdf
Page 3
G Series Cuber
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G10 - A
36 9200541 Tee to water dump solenoid tubing 37 9200518 Tee to distributor tube tubing 38 9200591 Water flow restrictor 39 9200377 Float assembly 40 88297691 Float bracket 41 88295931 Retractable curtain guide pin 42 Quick connect outlet fitting [2] 43 Quick connect inlet fitting [2] 44 Frame support [2] 45 5004341 Rear panel 46 Rear fitting panel [2] 47 Condenser fitting panel [2] 48 Liquid coupling bracket [2] 49 Outlet fitting bracket [2] 50 Low pressure control [2] 51 Check valve [2] 52 Receiver bracket [2] 53 Receiver tank [2] 54 88296419 Solenoid coil 55 Pump down solenoid valve body [2] 56 Therm-O-disc [2] 57 Drier bracket [2] 58 88291188 Condenser 59 5006074 Fan motor 208 / 230 V. 60 Hz. 59 5006073 Fan motor 220 / 240 V. 50 Hz. 60 88292895 Fan bracket 61 5006071 Fan blade 62 Condenser water fitting [2] 63 Water regulating valve [2] 64 Water condenser [2] 65 88297628 Front panel assembly painted 66 88295904 Component box cover painted 67 88292969 Right side panel painted 68 88292264 Top panel painted 69 88296413 Left side panel painted 70 88298871 Front panel screw brass (painted) 71 88297617 Front panel assembly stainless 72 88365111 Component box cover stainless 73 88298863 Right side panel stainless 74 88296432 Top panel stainless 75 88296440 Left side panel stainless 76 88130485 Front panel screw stainless 77 9200695 Water pan to pump tube 78 5004771 Water pump assembly 79 88294994 Horizontal brace 80 88292933 Fan shroud
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G10 - A
G_parts_sii_1-3.pdf
Page 4
G Series Cuber
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G10 - A
81 5003918 3/8" nipple 82 1000501 Electric junction box 83 5003245 Electric box cover 84 9201034 Water pan support 85 5003728 Water pan support gasket 86 Fan cycle control
5003252 Ice deflection baffle when placed on dispensers 9200358 Air deflection baffle 5003399 Hartell water pump impeller kit 5004352 Curtain stop 5003897 Universal capacitor strap
PART NOTES:
[1] - does not include thermistor [2] - N / A
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G10 - A
G_parts_sii_1-3.pdf
Page 5
30" WIDE REMOTE CONDENSER EXPLODED VIEW
30" WIDE AIR CONDENSER EXPLODED VIEW
30" WIDE WATER CONDENSER EXPLODED VIEW
G Series Cuber

30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G10 - R

30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G10 - R
G_parts_sii_2-3.pdf
Page 6
G Series Cuber
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G10 - R
REMOTE COOLED 1 9200594 Enclosure 2 5004356 Bottom assembly 3 5006415 Compressor alternate for 208 / 230 V. 60 Hz 3 5006415 Compressor alternate for 208 / 230 V. 60 Hz 3 5006413 Compressor alternate for 220 / 240 V. 50 Hz 3 5006413 Compressor alternate for 220 / 240 V. 50 Hz 4 5004247 Wiring harness 5 5006045 Distributor tube 6 88294948 Distributor tube clip 7 5005797 Evaporator MINI [1] 7 5005798 Evaporator FULL [1] 7 5005796 Evaporator JUMBO [1] 8 9200990 Curtain 9 5002463 Water Pan Assembly 10 88296419 Solenoid coil 11 88296418 Hot gas solenoid body only 12 9200536 Drier 13 5001389 Expansion valve alternate 13 5001389 Expansion valve alternate 14 9200506 Water dump solenoid 15 5005030 Circuit board 16 5004245 Compressor relay 208 / 230 V. 60 Hz. 16 5003872 Compressor relay 17 9201097 Manual water purge switch 18 88917953 Toggle switch 19 5004941 High pressure cut out [2] 20 9200639 Guide pin nut plate 21 5006292 Start capacitor 208 / 230 V. 60 Hz. 21 5003870 Start capacitor 220 / 240 V. 50 Hz. 22 5006293 Run capacitor 208 / 230 V. 60 Hz. 22 5006294 Run capacitor 220 / 240 V. 50 Hz. 23 5000609 Transformer 24 5005853 Thermistor kit 25 9200520 Hall switch 26 88295947 Contactor 27 88295943 Refrigerant Service Valve 28 9200010 Water supply tube 29 5001410 Curtain shim Full thickness 29 5001413 Curtain shim Half thickness 30 9201026 Water inlet fitting 31 9200661 Water drain fitting 32 88297693 Retractable curtain guide pin bracket 33 9200508 Water purge solenoid to drain fitting tubing 34 9200530 Water pump to tee tubing 35 9200507 1/2 x 1/2 x 1/2 Tee
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G10 - R
G_parts_sii_2-3.pdf
Page 7
G Series Cuber
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G10 - R
36 9200541 Tee to water dump solenoid tubing 37 9200518 Tee to distributor tube tubing 38 9200591 Water flow restrictor 39 9200377 Float assembly 40 88297691 Float bracket 41 88295931 Retractable curtain guide pin 42 5000052 Quick connect outlet fitting 43 5000053 Quick connect inlet fitting 44 88299744 Frame support 45 5004361 Rear panel 46 5004360 Rear fitting panel 47 5004476 Condenser fitting panel 48 5000054 Line coupling bracket 49 5000055 Outlet fitting bracket 50 9201078 Low pressure control 51 5000048 Check valve 52 5000045 Receiver bracket 53 5000049 Receiver tank 54 88296419 Solenoid coil 55 5000086 Pump down solenoid valve body 56 88296841 Therm-O-disc 57 9200719 Drier bracket 58 Air condenser [2] 59 Fan motor 208 / 230 V. 60 Hz. [2] 59 Fan motor 220 / 240 V. 50 Hz. [2] 60 Fan bracket [2] 61 Fan blade [2] 62 Condenser water fitting [2] 63 Water regulating valve [2] 64 Water condenser [2] 65 88297628 Front panel assembly painted 66 88295904 Component box cover painted 67 88292969 Right side panel painted 68 88292264 Top panel painted 69 88296413 Left side panel painted 70 88298871 Front panel screw brass (painted) 71 88297617 Front panel assembly stainless 72 88365111 Component box cover stainless 73 88298863 Right side panel stainless 74 88296432 Top panel stainless 75 88296440 Left side panel stainless 76 88130485 Front panel screw stainless 77 9200695 Water pan to pump tube 78 5004771 Water pump assembly 79 88294994 Horizontal brace 80 Fan shroud [2]
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G10 - R
G_parts_sii_2-3.pdf
Page 8
G Series Cuber
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G10 - R
81 5003918 3/8" nipple 82 1000501 Electric junction box 83 5003245 Electric box cover 84 9201034 Water pan support 85 5003728 Water pan support gasket 86 Fan cycle control [3]
5003252 Ice deflection baffle when placed on dispensers 9200358 Air deflection baffle 5003399 Hartell water pump impeller kit 5004352 Curtain stop 5003897 Universal capacitor strap
PART NOTES:
[1] - does not include thermistor [2] - N / A [3] - N/A
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G10 - R
G_parts_sii_2-3.pdf
Page 9
30" WIDE REMOTE CONDENSER EXPLODED VIEW
30" WIDE AIR CONDENSER EXPLODED VIEW
30" WIDE WATER CONDENSER EXPLODED VIEW
G Series Cuber

30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G10 - W

30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G10 - W
G_parts_sii_3-3.pdf
Page 10
G Series Cuber
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G10 - W
WATER COOLED 1 9200594 Enclosure 2 5004340 Bottom assembly 3 5006416 Compressor 208 / 230 V. 60 Hz. 3 5006415 Compressor alternate for 208 / 230 V. 60 Hz 3 5006414 Compressor 220 / 240 V. 50 Hz 3 5006413 Compressor alternate for 220 / 240 V. 50 Hz 4 5003899 Wiring harness 5 5006045 Distributor tube 6 88294948 Distributor tube clip 7 5005797 Evaporator MINI [1] 7 5005798 Evaporator FULL [1] 7 5005796 Evaporator JUMBO [1] 8 9200990 Curtain 9 5002463 Water Pan Assembly 10 88296419 Solenoid coil 11 88296418 Hot gas solenoid body only 12 88296420 Drier 13 5006291 Expansion valve 13 5001389 Expansion valve alternate 14 9200506 Water dump solenoid 15 5005030 Circuit board 16 5004245 Compressor relay 208 / 230 V. 60 Hz. 16 5003872 Compressor relay 17 9201097 Manual water purge switch 18 88917953 Toggle switch 19 High pressure cut out [2] 20 9200639 Guide pin nut plate 21 5006292 Start capacitor 208 / 230 V. 60 Hz. 21 5003870 Start capacitor 220 / 240 V. 50 Hz. 22 5006293 Run capacitor 208 / 230 V. 60 Hz. 22 5006294 Run capacitor 220 / 240 V. 50 Hz. 23 5000609 Transformer 24 5005853 Thermistor kit 25 9200520 Hall switch 26 88295947 Contactor 27 88295943 Refrigerant Service Valve 28 9200010 Water supply tube 29 5001410 Curtain shim Full thickness 29 5001413 Curtain shim Half thickness 30 9201026 Water inlet fitting 31 9200661 Water drain fitting 32 88297693 Retractable curtain guide pin bracket 33 9200508 Water purge solenoid to drain fitting tubing 34 9200530 Water pump to tee tubing 35 9200507 1/2 x 1/2 x 1/2 Tee
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G10 - W
G_parts_sii_3-3.pdf
Page 11
G Series Cuber
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G10 - W
36 9200541 Tee to water dump solenoid tubing 37 9200518 Tee to distributor tube tubing 38 9200591 Water flow restrictor 39 9200377 Float assembly 40 88297691 Float bracket 41 88295931 Retractable curtain guide pin 42 Quick connect outlet fitting [2] 43 Quick connect inlet fitting [2] 44 88299744 Frame support 45 5004361 Rear panel 46 5004360 Rear fitting panel 47 5006339 Condenser fitting panel 48 Liquid coupling bracket [2] 49 Outlet fitting bracket [2] 50 Low pressure control [2] 51 Check valve [2] 52 Receiver bracket [2] 53 Receiver tank [2] 54 88296419 Solenoid coil 55 Pump down solenoid valve body [2] 56 Therm-O-disc [2] 57 Drier bracket [2] 58 Air condenser [2] 59 Fan motor 208 / 230 V. 60 Hz. [2] 59 Fan motor 220 / 240 V. 50 Hz. [2] 60 Fan bracket [2] 61 Fan blade [2] 62 88297642 Condenser water fitting 63 88048125 Water regulating valve 64 5006290 Water condenser 65 88297628 Front panel assembly painted 66 88295904 Component box cover painted 67 88292969 Right side panel painted 68 88292264 Top panel painted 69 88296413 Left side panel painted 70 88298871 Front panel screw brass (painted) 71 88297617 Front panel assembly stainless 72 88365111 Component box cover stainless 73 88298863 Right side panel stainless 74 88296432 Top panel stainless 75 88296440 Left side panel stainless 76 88130485 Front panel screw stainless 77 9200695 Water pan to pump tube 78 5004771 Water pump assembly 79 88294994 Horizontal brace 80 Fan shroud [2]
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G10 - W
G_parts_sii_3-3.pdf
Page 12
G Series Cuber
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G10 - W
81 5003918 3/8" nipple 82 1000501 Electric junction box 83 5003245 Electric box cover 84 9201034 Water pan support 85 5003728 Water pan support gasket 86 Fan cycle control [3]
5003252 Ice deflection baffle when placed on dispensers 9200358 Air deflection baffle 5003399 Hartell water pump impeller kit 5004352 Curtain stop 5003897 Universal capacitor strap
PART NOTES:
[1] - does not include thermistor [2] - N / A [3] - N/A
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G10 - W
G_parts_sii_3-3.pdf
Page 13
30" WIDE REMOTE CONDENSER EXPLODED VIEW
30" WIDE AIR CONDENSER EXPLODED VIEW
30" WIDE WATER CONDENSER EXPLODED VIEW
G Series Cuber

30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G5 - A

30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G5 - A
G_parts_sii_4-3.pdf
Page 14
G Series Cuber
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G5 - A
AIR COOLED 1 5002868 Enclosure 2 5006530 Bottom assembly 3 5006625 Compressor 115 V 60 Hz. 4 5003899 Wiring harness 5 5006045 Distributor tube 6 88294948 Distributor tube clip 7 5004098 Evaporator assembly MINI 7 5004099 Evaporator assembly FULL 7 5004100 Evaporator assembly JUMBO 8 9200989 Curtain 9 5002463 Water Pan Assembly 10 88295934 Solenoid coil 11 88295936 Hot gas solenoid body only 12 88295938 Drier 13 5006541 Expansion valve 13 5006511 Expansion valve alternate 14 9201097 Manual water purge switch 15 5005030 Circuit board 16 5003872 Compressor relay 17 9201097 Manual water purge switch 18 88917953 Toggle switch 19 High pressure cut out [1] 20 9200639 Guide pin nut plate 21 5006538 Start capacitor 22 5006536 Run capacitor 23 5000609 Transformer 24 5005853 Thermistor kit 25 9200520 Hall switch 26 88295942 Contactor 27 88295943 Refrigerant Service Valve 28 9200009 Water supply tube 29 5001410 Curtain shim Full thickness 29 5001413 Curtain shim Half thickness 30 9201026 Water inlet fitting 31 9200661 Water drain fitting 32 88297693 Retractable curtain guide pin bracket 33 9200508 Water purge solenoid to drain fitting tubing 34 9200540 Water pump to tee tubing 35 9200507 1/2 x 1/2 x 1/2 Tee 36 9200519 Tee to water purge solenoid tubing 37 9200518 Tee to distributor tube tubing 38 9200591 Water flow restrictor 39 9200377 Float assembly 40 88297691 Float bracket 41 88295931 Retractable curtain guide pin
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G5 - A
G_parts_sii_4-3.pdf
Page 15
G Series Cuber
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G5 - A
42 Quick connect outlet fitting [1] 43 Quick connect inlet fitting [1] 44 Frame support [1] 45 Rear panel [1] 46 5004342 Rear fitting panel 47 Condenser fitting panel [1] 48 Line coupling bracket [1] 49 Outlet fitting bracket [1] 50 Low pressure control [1] 51 Check valve [1] 52 Receiver bracket [1] 53 Receiver tank [1] 54 88295934 Solenoid coil 55 Pump down solenoid valve body [1] 56 Therm-O-disc [1] 57 Drier bracket [1] 58 88291187 Air condenser 59 88295994 Fan motor 60 88296461 Fan bracket 61 88292271 Fan blade 62 Condenser water fitting [1] 63 Water regulating valve [1] 64 Water condenser [1] 65 5000733 Front panel assembly stainless 66 88298865 Component box cover stainless 67 88298861 Right side panel stainless 68 88296432 Top panel stainless 69 88296435 Left side panel stainless 70 88130485 Front panel screw stainless 71 5000733 Front panel assembly stainless 72 88298865 Component box cover stainless 73 88298861 Right side panel stainless 74 88296432 Top panel stainless 75 88296435 Left side panel stainless 76 88130485 Front panel screw stainless 77 9200695 Water pan to pump tube 78 5004772 Water pump assembly 79 9201092 Horizontal brace 80 5006535 Fan shroud 81 5003918 3/8" nipple 82 1000501 Electric junction box 83 5003245 Electric box cover 84 9201034 Water pan support 85 5003728 Water pan support gasket 86 5000056 Fan cycle control
5003252 Ice deflection baffle when placed on dispensers
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G5 - A
G_parts_sii_4-3.pdf
Page 16
G Series Cuber
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G5 - A
9200358 Air deflection baffle 5003399 Hartell water pump impeller kit 5004352 Curtain stop
Compressor heater [1]
5003897 Universal capacitor strap
PART NOTES:
[1] - N/A
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G5 - A
G_parts_sii_4-3.pdf
Page 17
30" WIDE REMOTE CONDENSER EXPLODED VIEW
30" WIDE AIR CONDENSER EXPLODED VIEW
30" WIDE WATER CONDENSER EXPLODED VIEW
G Series Cuber

30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G5 - R

30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G5 - R
G_parts_sii_5-3.pdf
Page 18
G Series Cuber
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G5 - R
REMOTE COOLED 1 5002868 Enclosure 2 5006529 Bottom assembly 3 5006625 Compressor 115 V 60 Hz. 4 5004247 Wiring harness 5 5006045 Distributor tube 6 88294948 Distributor tube clip 7 5004098 Evaporator assembly MINI 7 5004099 Evaporator assembly FULL 7 5004100 Evaporator assembly JUMBO 8 9200989 Curtain 9 5002463 Water Pan Assembly 10 88295934 Solenoid coil 11 88295936 Hot gas solenoid body only 12 88295938 Drier 13 5006511 Expansion valve alternate 13 5006511 Expansion valve alternate 14 9201097 Manual water purge switch 15 5005030 Circuit board 16 5003872 Compressor relay 17 9201097 Manual water purge switch 18 88917953 Toggle switch 19 5004941 High pressure cut out 20 9200639 Guide pin nut plate 21 5006538 Start capacitor 22 5006536 Run capacitor 23 5000609 Transformer 24 5005853 Thermistor kit 25 9200520 Hall switch 26 88295942 Contactor 27 88295943 Refrigerant Service Valve 28 9200009 Water supply tube 29 5001410 Curtain shim Full thickness 29 5001413 Curtain shim Half thickness 30 9201026 Water inlet fitting 31 9200661 Water drain fitting 32 88297693 Retractable curtain guide pin bracket 33 9200508 Water purge solenoid to drain fitting tubing 34 9200540 Water pump to tee tubing 35 9200507 1/2 x 1/2 x 1/2 Tee 36 9200519 Tee to water purge solenoid tubing 37 9200518 Tee to distributor tube tubing 38 9200591 Water flow restrictor 39 9200377 Float assembly 40 88297691 Float bracket 41 88295931 Retractable curtain guide pin
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G5 - R
G_parts_sii_5-3.pdf
Page 19
G Series Cuber
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G5 - R
42 5000052 Quick connect outlet fitting 43 5000053 Quick connect inlet fitting 44 88299743 Frame support 45 5004358 Rear panel 46 5004357 Rear fitting panel 47 5004359 Condenser fitting panel 48 5000054 Line coupling bracket 49 5000055 Outlet fitting bracket 50 9201078 Low pressure control 51 5000048 Check valve 52 5000045 Receiver bracket 53 5000049 Receiver tank 54 88295934 Solenoid coil 55 5000086 Pump down solenoid valve body 56 88296841 Therm-O-disc 57 9200719 Drier bracket 58 Air condenser [1] 59 Fan motor [1] 60 Fan bracket [1] 61 Fan blade [1] 62 Condenser water fitting [1] 63 Water regulating valve [1] 64 Water condenser [1] 65 5000733 Front panel assembly stainless 66 88298865 Component box cover stainless 67 88298861 Right side panel stainless 68 88296432 Top panel stainless 69 88296435 Left side panel stainless 70 88130485 Front panel screw stainless 71 5000733 Front panel assembly stainless 72 88298865 Component box cover stainless 73 88298861 Right side panel stainless 74 88296432 Top panel stainless 75 88296435 Left side panel stainless 76 88130485 Front panel screw stainless 77 9200695 Water pan to pump tube 78 5004772 Water pump assembly 79 9201092 Horizontal brace 80 Fan shroud [1] 81 5003918 3/8" nipple 82 1000501 Electric junction box 83 5003245 Electric box cover 84 9201034 Water pan support 85 5003728 Water pan support gasket 86 Fan cycle control [1]
5003252 Ice deflection baffle when placed on dispensers
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G5 - R
G_parts_sii_5-3.pdf
Page 20
G Series Cuber
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G5 - R
9200358 Air deflection baffle 5003399 Hartell water pump impeller kit 5004352 Curtain stop 5006613 Compressor heater 5003897 Universal capacitor strap
PART NOTES:
[1] - N/A
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G5 - R
G_parts_sii_5-3.pdf
Page 21
30" WIDE REMOTE CONDENSER EXPLODED VIEW
30" WIDE AIR CONDENSER EXPLODED VIEW
30" WIDE WATER CONDENSER EXPLODED VIEW
G Series Cuber

30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G5 - W

30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G5 - W
G_parts_sii_6-3.pdf
Page 22
G Series Cuber
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G5 - W
WATER COOLED 1 5002868 Enclosure 2 5006529 Bottom assembly 3 5006625 Compressor 115 V 60 Hz. 4 5003899 Wiring harness 5 5006045 Distributor tube 6 88294948 Distributor tube clip 7 5004098 Evaporator assembly MINI 7 5004099 Evaporator assembly FULL 7 5004100 Evaporator assembly JUMBO 8 9200989 Curtain 9 5002463 Water Pan Assembly 10 88295934 Solenoid coil 11 88295936 Hot gas solenoid body only 12 88295938 Drier 13 5006541 Expansion valve 13 5006511 Expansion valve alternate 14 9201097 Manual water purge switch 15 5005030 Circuit board 16 5003872 Compressor relay 17 9201097 Manual water purge switch 18 88917953 Toggle switch 19 5004941 High pressure cut out 20 9200639 Guide pin nut plate 21 5006538 Start capacitor 22 5006536 Run capacitor 23 5000609 Transformer 24 5005853 Thermistor kit 25 9200520 Hall switch 26 88295942 Contactor 27 88295943 Refrigerant Service Valve 28 9200009 Water supply tube 29 5001410 Curtain shim Full thickness 29 5001413 Curtain shim Half thickness 30 9201026 Water inlet fitting 31 9200661 Water drain fitting 32 88297693 Retractable curtain guide pin bracket 33 9200508 Water purge solenoid to drain fitting tubing 34 9200540 Water pump to tee tubing 35 9200507 1/2 x 1/2 x 1/2 Tee 36 9200519 Tee to water purge solenoid tubing 37 9200518 Tee to distributor tube tubing 38 9200591 Water flow restrictor 39 9200377 Float assembly 40 88297691 Float bracket 41 88295931 Retractable curtain guide pin
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G5 - W
G_parts_sii_6-3.pdf
Page 23
G Series Cuber
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G5 - W
42 Quick connect outlet fitting [1] 43 Quick connect inlet fitting [1] 44 88299743 Frame support 45 5004358 Rear panel 46 5004357 Rear fitting panel 47 5004359 Condenser fitting panel 48 Line coupling bracket [1] 49 Outlet fitting bracket [1] 50 Low pressure control [1] 51 Check valve [1] 52 Receiver bracket [1] 53 Receiver tank [1] 54 88295934 Solenoid coil 55 Pump down solenoid valve body [1] 56 Therm-O-disc [1] 57 Drier bracket [1] 58 Air condenser [1] 59 Fan motor [1] 60 Fan bracket [1] 61 Fan blade [1] 62 88297642 Condenser water fitting 63 88048125 Water regulating valve 64 88296454 Water condenser 65 5000733 Front panel assembly stainless 66 88298865 Component box cover stainless 67 88298861 Right side panel stainless 68 88296432 Top panel stainless 69 88296435 Left side panel stainless 70 88130485 Front panel screw stainless 71 5000733 Front panel assembly stainless 72 88298865 Component box cover stainless 73 88298861 Right side panel stainless 74 88296432 Top panel stainless 75 88296435 Left side panel stainless 76 88130485 Front panel screw stainless 77 9200695 Water pan to pump tube 78 5004772 Water pump assembly 79 9201092 Horizontal brace 80 Fan shroud [1] 81 5003918 3/8" nipple 82 1000501 Electric junction box 83 5003245 Electric box cover 84 9201034 Water pan support 85 5003728 Water pan support gasket 86 Fan cycle control [1]
5003252 Ice deflection baffle when placed on dispensers
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G5 - W
G_parts_sii_6-3.pdf
Page 24
G Series Cuber
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G5 - W
9200358 Air deflection baffle 5003399 Hartell water pump impeller kit 5004352 Curtain stop
Compressor heater [1]
5003897 Universal capacitor strap
PART NOTES:
[1] - N/A
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G5 - W
G_parts_sii_6-3.pdf
Page 25
30" WIDE REMOTE CONDENSER EXPLODED VIEW
30" WIDE AIR CONDENSER EXPLODED VIEW
30" WIDE WATER CONDENSER EXPLODED VIEW
G Series Cuber

30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G7 - A

30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G7 - A
G_parts_sii_11-3.pdf
Page 26
G Series Cuber
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G7 - A
AIR COOLED 1 9200595 Enclosure 2 5004340 Bottom assembly 3 5006021 Compressor 208 / 230 V. 60 Hz 3 5006022 Compressor 208 / 230 V. 60 Hz 3 5006023 Compressor 220 / 240 V. 50 Hz 3 5006024 Compressor 220 / 240 V. 50 Hz 4 5003899 Wiring harness 5 5000790 Distributor tube 6 88294948 Distributor tube clip 7 5004098 Evaporator assembly MINI [1] 7 5004099 Evaporator assembly FULL [1] 7 5004100 Evaporator assembly JUMBO [1] 8 9200989 Curtain 9 5002463 Water Pan Assembly 10 88296419 Solenoid coil 11 88295936 Hot gas solenoid body only 12 88295938 Drier 13 5005851 Expansion valve 13 5001390 Expansion valve alternate 14 9200506 Water dump solenoid 15 5005030 Circuit board 16 5003872 Compressor relay 16 5004234 Relay 208 / 230 V. 60 Hz. 17 9201097 Manual water purge switch 18 88917953 Toggle switch 19 N/A Trans 75VA 120V W/breaker 20 9200639 Guide pin nut plate 21 5003870 Start capacitor 220 / 240 V. 50 Hz. 21 5004837 Start capacitor 220 / 240 V. 50 Hz. 22 5003871 Run capacitor 220 / 240 V. 50 Hz 22 5003871 Run capacitor 220 / 240 V. 50 Hz 23 5000609 Transformer 24 5005853 Thermistor kit 25 9200520 Hall switch 26 88295947 Contactor 27 88295943 Refrigerant Service Valve 28 9200009 Water supply tube 29 5001410 Curtain shim Full thickness 29 5001413 Curtain shim Half thickness 30 9201026 Water inlet fitting 31 9200661 Water drain fitting 32 88297693 Retractable curtain guide pin bracket 33 9200508 Water purge solenoid to drain fitting tubing 34 9200540 Water pump to tee tubing 35 9200507 1/2 x 1/2 x 1/2 Tee
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G7 - A
G_parts_sii_11-3.pdf
Page 27
G Series Cuber
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G7 - A
36 9200519 Tee to water purge solenoid tubing 37 9200518 Tee to distributor tube tubing 38 9200591 Water flow restrictor 39 9200377 Float assembly 40 88297691 Float bracket 41 88295931 Retractable curtain guide pin 42 Quick connect outlet fitting [2] 43 Quick connect inlet fitting [2] 44 Frame support [2] 45 5004342 Rear fitting panel 46 Rear fitting panel [2] 47 Condenser fitting panel [2] 48 Line coupling bracket [2] 49 Outlet fitting bracket [2] 50 Low pressure control [2] 51 Check valve [2] 52 Receiver bracket [2] 53 Receiver tank [2] 54 88296419 Solenoid coil 55 Pump down solenoid valve body [2] 56 Therm-O-disc [2] 57 Drier bracket [2] 58 88291187 Air condenser 59 88294922 Fan motor 208 / 230 V. 60 Hz. 59 88296003 Fan motor 220 / 240 V. 50 Hz. 60 88296461 Fan bracket 61 88292272 Fan blade 62 Condenser water fitting [2] 63 Water regulating valve [2] 64 Water condenser [2] 65 88297629 Front panel assembly painted 66 88294992 Component box cover painted 67 88294970 Right side panel painted 68 88292264 Top panel painted 69 88292267 Left side panel painted 70 88298871 Front panel screw brass (painted) 71 88297621 Front panel assembly stainless 72 88298865 Component box cover stainless 73 88298861 Right side panel stainless 74 88296432 Top panel stainless 75 88296435 Left side panel stainless 76 88130485 Front panel screw stainless 77 9200695 Water pan to pump tube 78 5004771 Water pump assembly 79 88294994 Horizontal brace 80 88292932 Fan shroud
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G7 - A
G_parts_sii_11-3.pdf
Page 28
G Series Cuber
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G7 - A
81 5003918 3/8" nipple 82 1000501 Electric junction box 83 5003245 Electric box cover 84 9201034 Water pan support 85 5003728 Water pan support gasket 86 5000056 Fan cycle control
5003252 Ice deflection baffle when placed on dispensers 9200358 Air deflection baffle 5003399 Hartell water pump impeller kit 5004352 Curtain stop 5003897 Universal capacitor strap
PART NOTES:
[1] - does not include thermistor [2] - N/A
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G7 - A
G_parts_sii_11-3.pdf
Page 29
30" WIDE REMOTE CONDENSER EXPLODED VIEW
30" WIDE AIR CONDENSER EXPLODED VIEW
30" WIDE WATER CONDENSER EXPLODED VIEW
G Series Cuber

30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G7 - R

30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G7 - R
G_parts_sii_12-3.pdf
Page 30
G Series Cuber
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G7 - R
REMOTE COOLED 1 9200595 Enclosure 2 5004356 Bottom assembly 3 5006022 Compressor 208 / 230 V. 60 Hz 3 Compressor alternate for 208 / 230 V. 60 Hz [1] 3 5006024 Compressor 220 / 240 V. 50 Hz 3 Compressor alternate for 220 / 240 V. 50 Hz. [1] 4 5004247 Wiring harness 5 5000790 Distributor tube 6 88294948 Distributor tube clip 7 5004098 Evaporator assembly MINI [2] 7 5004099 Evaporator assembly FULL [2] 7 5004100 Evaporator assembly JUMBO [2] 8 9200989 Curtain 9 5002463 Water Pan Assembly 10 88296419 Solenoid coil 11 88295936 Hot gas solenoid body only 12 9200536 Drier 13 5001390 Expansion valve alternate 13 Expansion valve alternate [1] 14 9200506 Water dump solenoid 15 5005030 Circuit board 16 5003872 Compressor relay 16 5004234 Relay 208 / 230 V. 60 Hz. 17 9201097 Manual water purge switch 18 88917953 Toggle switch 19 5004941 High pressure cut out 20 9200639 Guide pin nut plate 21 5003870 Start capacitor 220 / 240 V. 50 Hz. 21 5004837 Start capacitor 220 / 240 V. 50 Hz. 22 5003871 Run capacitor 220 / 240 V. 50 Hz 22 5003871 Run capacitor 220 / 240 V. 50 Hz 23 500609 Transformer 24 5005853 Thermistor kit 25 9200520 Hall switch 26 88295947 Contactor 27 88295943 Refrigerant Service Valve 28 9200009 Water supply tube 29 5001410 Curtain shim Full thickness 29 5001413 Curtain shim Half thickness 30 9201026 Water inlet fitting 31 9200661 Water drain fitting 32 88297693 Retractable curtain guide pin bracket 33 9200508 Water purge solenoid to drain fitting tubing 34 9200540 Water pump to tee tubing 35 9200507 1/2 x 1/2 x 1/2 Tee
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G7 - R
G_parts_sii_12-3.pdf
Page 31
G Series Cuber
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G7 - R
36 9200519 Tee to water purge solenoid tubing 37 9200518 Tee to distributor tube tubing 38 9200591 Water flow restrictor 39 9200377 Float assembly 40 88297691 Float bracket 41 88295931 Retractable curtain guide pin 42 5000052 Quick connect outlet fitting 43 5000053 Quick connect inlet fitting 44 88299743 Frame support 45 5004358 Rear panel 46 5004357 Rear fitting panel 47 5004359 Condenser fitting panel 48 5000054 Line coupling bracket 49 5000055 Outlet fitting bracket 50 9201078 Low pressure control 51 5000048 Check valve 52 5000045 Receiver bracket 53 5000049 Receiver tank 54 88296419 Solenoid coil 55 5000086 Pump down solenoid valve body 56 88296841 Therm-O-disc 57 9200719 Drier bracket 58 Air condenser [1] 59 Fan motor 208 / 230 V. 60 Hz. [1] 59 Fan motor 220 / 240 V. 50 Hz. [1] 60 Fan bracket [1] 61 Fan blade [1] 62 Condenser water fitting [1] 63 Water regulating valve [1] 64 Water condenser [1] 65 88297629 Front panel assembly painted 66 88294992 Component box cover painted 67 88294970 Right side panel painted 68 88292264 Top panel painted 69 88292267 Left side panel painted 70 88298871 Front panel screw brass (painted) [3] 71 88297621 Front panel assembly stainless 72 88298865 Component box cover stainless 73 88298861 Right side panel stainless 74 88296432 Top panel stainless 75 88296435 Left side panel stainless 76 88130485 Front panel screw stainless 77 9200695 Water pan to pump tube 78 5004771 Water pump assembly 79 88294994 Horizontal brace 80 Fan shroud [1]
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G7 - R
G_parts_sii_12-3.pdf
Page 32
G Series Cuber
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G7 - R
81 5003918 3/8" nipple 82 1000501 Electric junction box 83 5003245 Electric box cover 84 9201034 Water pan support 85 5003728 Water pan support gasket 86 Fan cycle control [1]
5003252 Ice deflection baffle when placed on dispensers 9200358 Air deflection baffle 5003399 Hartell water pump impeller kit 5004352 Curtain stop 5003897 Universal capacitor strap
PART NOTES:
[1] - N/A [2] - does not include thermistor [3] - painted
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G7 - R
G_parts_sii_12-3.pdf
Page 33
30" WIDE REMOTE CONDENSER EXPLODED VIEW
30" WIDE AIR CONDENSER EXPLODED VIEW
30" WIDE WATER CONDENSER EXPLODED VIEW
G Series Cuber

30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G7 - W

30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G7 - W
G_parts_sii_10-3.pdf
Page 34
G Series Cuber
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G7 - W
WATER COOLED 1 9200595 Enclosure 2 5004356 Bottom assembly 3 5006021 Compressor 208 / 230 V. 60 Hz 3 5006022 Compressor 208 / 230 V. 60 Hz 3 5006023 Compressor 220 / 240 V. 50 Hz 3 5006024 Compressor 220 / 240 V. 50 Hz 4 5003899 Wiring harness 5 5000790 Distributor tube 6 88294948 Distributor tube clip 7 5004098 Evaporator assembly MINI [1] 7 5004099 Evaporator assembly FULL [1] 7 5004100 Evaporator assembly JUMBO [1] 8 9200989 Curtain 9 5002463 Water Pan Assembly 10 88296419 Solenoid coil 11 88295936 Hot gas solenoid body only 12 88295938 Drier 13 5005851 Expansion valve 13 5001390 Expansion valve alternate 14 9200506 Water dump solenoid 15 5005030 Circuit board 16 5003872 Compressor relay 16 5004234 Relay 208 / 230 V. 60 Hz. 17 9201097 Manual water purge switch 18 88917953 Toggle switch 19 5004941 High pressure cut out 20 9200639 Guide pin nut plate 21 5003870 Start capacitor 220 / 240 V. 50 Hz. 21 5004837 Start capacitor 220 / 240 V. 50 Hz. 22 5003871 Run capacitor 220 / 240 V. 50 Hz 22 5003871 Run capacitor 220 / 240 V. 50 Hz 23 5000609 Transformer 24 5005853 Thermistor kit 25 9200520 Hall switch 26 88295947 Contactor 27 88295943 Refrigerant Service Valve 28 9200009 Water supply tube 29 5001410 Curtain shim Full thickness 29 5001413 Curtain shim Half thickness 30 9201026 Water inlet fitting 31 9200661 Water drain fitting 32 88297693 Retractable curtain guide pin bracket 33 9200508 Water purge solenoid to drain fitting tubing 34 9200540 Water pump to tee tubing 35 9200507 1/2 x 1/2 x 1/2 Tee
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G7 - W
G_parts_sii_10-3.pdf
Page 35
G Series Cuber
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G7 - W
36 9200519 Tee to water purge solenoid tubing 37 9200518 Tee to distributor tube tubing 38 9200591 Water flow restrictor 39 9200377 Float assembly 40 88297691 Float bracket 41 88295931 Retractable curtain guide pin 42 Quick connect outlet fitting [2] 43 Quick connect inlet fitting [2] 44 88299743 Frame support 45 5004358 Rear panel 46 5004357 Rear fitting panel 47 5004359 Condenser fitting panel 48 Line coupling bracket [2] 49 Outlet fitting bracket [2] 50 Low pressure control [2] 51 Check valve [2] 52 Receiver bracket [2] 53 Receiver tank [2] 54 88296419 Solenoid coil 55 Pump down solenoid valve body [2] 56 Therm-O-disc [2] 57 Drier bracket [2] 58 Air condenser [2] 59 Fan motor 208 / 230 V. 60 Hz. [2] 59 Fan motor 220 / 240 V. 50 Hz. [2] 60 Fan bracket [2] 61 Fan blade [2] 62 88297642 Condenser water fitting 63 88048125 Water regulating valve 64 88296454 Water condenser 65 88297629 Front panel assembly painted 66 88294992 Component box cover painted 67 88294970 Right side panel painted 68 88292264 Top panel painted 69 88292267 Left side panel painted 70 88298871 Front panel screw brass (painted) [3] 71 88297621 Front panel assembly stainless 72 88298865 Component box cover stainless 73 88298861 Right side panel stainless 74 88296432 Top panel stainless 75 88296435 Left side panel stainless 76 88130485 Front panel screw stainless 77 9200695 Water pan to pump tube 78 5004771 Water pump assembly 79 88294994 Horizontal brace 80 Fan shroud [2]
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G7 - W
G_parts_sii_10-3.pdf
Page 36
G Series Cuber
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G7 - W
81 5003918 3/8" nipple 82 1000501 Electric junction box 83 5003245 Electric box cover 84 9201034 Water pan support 85 5003728 Water pan support gasket 86 Fan cycle control [2]
5003252 Ice deflection baffle when placed on dispensers 9200358 Air deflection baffle 5003399 Hartell water pump impeller kit 5004352 Curtain stop 5003897 Universal capacitor strap
PART NOTES:
[1] - does not include thermistor [2] - N/A [3] - painted
30 WIDE AIR, WATER, REMOTE CONDENSER EXPLODED VIEW G7 - W
G_parts_sii_10-3.pdf
Page 37

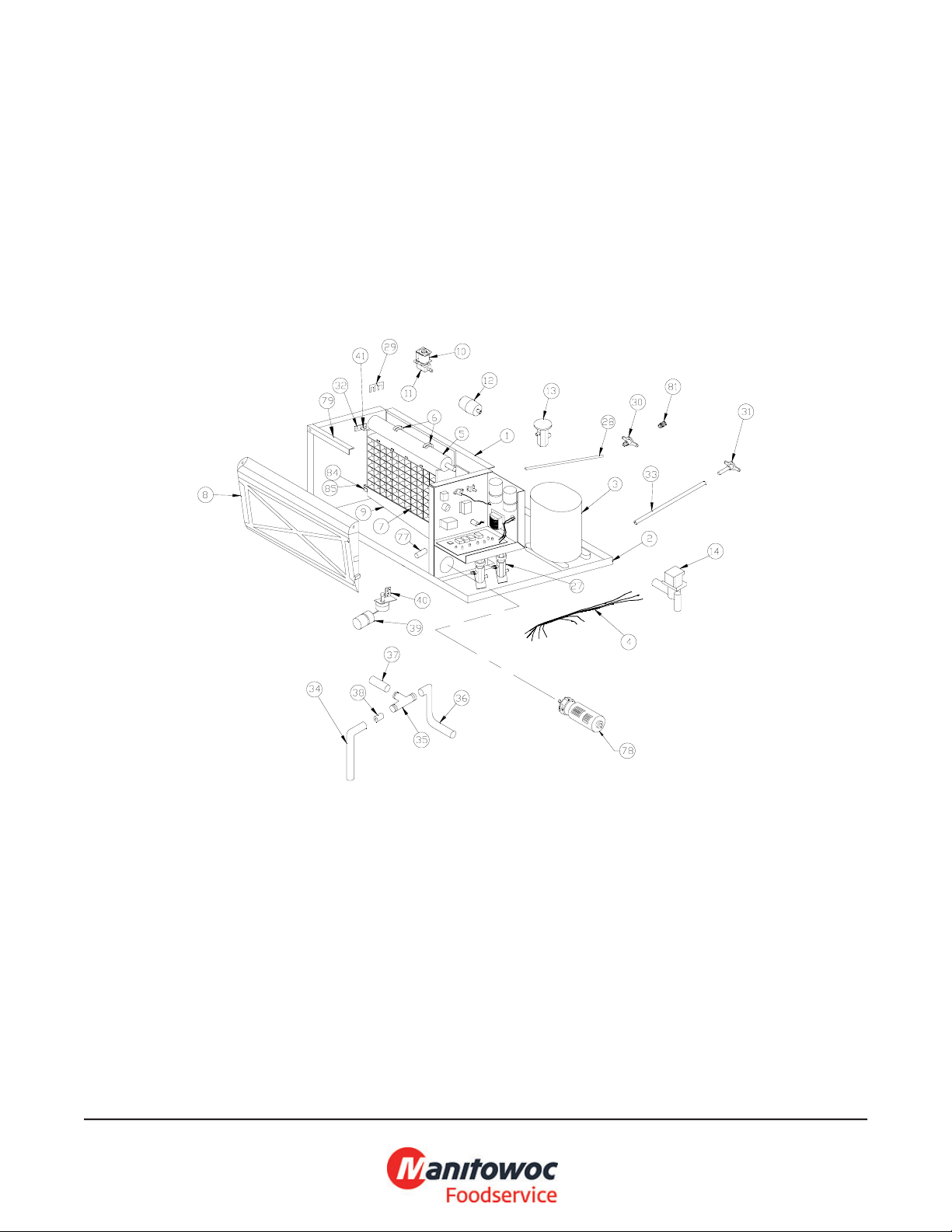

30" WIDE BASE EXPLODED VIEW
G Series Cuber

30 WIDE BASE EXPLODED VIEW G10 - A

30 WIDE BASE EXPLODED VIEW G10 - A
G_parts_sii_1-1.pdf
Page 38
G Series Cuber
30 WIDE BASE EXPLODED VIEW G10 - A
AIR COOLED 1 9200594 Enclosure 2 5004340 Bottom assembly 3 5006416 Compressor 208 / 230 V. 60 Hz. 3 5006415 Compressor alternate for 208 / 230 V. 60 Hz 3 5006414 Compressor 220 / 240 V. 50 Hz 3 5006413 Compressor alternate for 220 / 240 V. 50 Hz 4 5003899 Wiring harness 5 5006045 Distributor tube 6 88294948 Distributor tube clip 7 5005797 Evaporator MINI [1] 7 5005798 Evaporator FULL [1] 7 5005796 Evaporator JUMBO [1] 8 9200990 Curtain 9 5002463 Water Pan Assembly 10 88296419 Solenoid coil 11 88296418 Hot gas solenoid body only 12 88296420 Drier 13 5006291 Expansion valve 13 5001389 Expansion valve alternate 14 9200506 Water dump solenoid 15 5005030 Circuit board 16 5004245 Compressor relay 208 / 230 V. 60 Hz. 16 5003872 Compressor relay 17 9201097 Manual water purge switch 18 88917953 Toggle switch 19 High pressure cut out [2] 20 9200639 Guide pin nut plate 21 5006292 Start capacitor 208 / 230 V. 60 Hz. 21 5003870 Start capacitor 220 / 240 V. 50 Hz. 22 5006293 Run capacitor 208 / 230 V. 60 Hz. 22 5006294 Run capacitor 220 / 240 V. 50 Hz. 23 5000609 Transformer 24 5005853 Thermistor kit 25 9200520 Hall switch 26 88295947 Contactor 27 88295943 Refrigerant Service Valve 28 9200010 Water supply tube 29 5001410 Curtain shim Full thickness 29 5001413 Curtain shim Half thickness 30 9201026 Water inlet fitting 31 9200661 Water drain fitting 32 88297693 Retractable curtain guide pin bracket 33 9200508 Water purge solenoid to drain fitting tubing 34 9200530 Water pump to tee tubing 35 9200507 1/2 x 1/2 x 1/2 Tee
30 WIDE BASE EXPLODED VIEW G10 - A
G_parts_sii_1-1.pdf
Page 39
G Series Cuber
30 WIDE BASE EXPLODED VIEW G10 - A
36 9200541 Tee to water dump solenoid tubing 37 9200518 Tee to distributor tube tubing 38 9200591 Water flow restrictor 39 9200377 Float assembly 40 88297691 Float bracket 41 88295931 Retractable curtain guide pin 42 Quick connect outlet fitting [2] 43 Quick connect inlet fitting [2] 44 Frame support [2] 45 5004341 Rear panel 46 Rear fitting panel [2] 47 Condenser fitting panel [2] 48 Liquid coupling bracket [2] 49 Outlet fitting bracket [2] 50 Low pressure control [2] 51 Check valve [2] 52 Receiver bracket [2] 53 Receiver tank [2] 54 88296419 Solenoid coil 55 Pump down solenoid valve body [2] 56 Therm-O-disc [2] 57 Drier bracket [2] 58 88291188 Condenser 59 5006074 Fan motor 208 / 230 V. 60 Hz. 59 5006073 Fan motor 220 / 240 V. 50 Hz. 60 88292895 Fan bracket 61 5006071 Fan blade 62 Condenser water fitting [2] 63 Water regulating valve [2] 64 Water condenser [2] 65 88297628 Front panel assembly painted 66 88295904 Component box cover painted 67 88292969 Right side panel painted 68 88292264 Top panel painted 69 88296413 Left side panel painted 70 88298871 Front panel screw brass (painted) 71 88297617 Front panel assembly stainless 72 88365111 Component box cover stainless 73 88298863 Right side panel stainless 74 88296432 Top panel stainless 75 88296440 Left side panel stainless 76 88130485 Front panel screw stainless 77 9200695 Water pan to pump tube 78 5004771 Water pump assembly 79 88294994 Horizontal brace 80 88292933 Fan shroud
30 WIDE BASE EXPLODED VIEW G10 - A
G_parts_sii_1-1.pdf
Page 40
G Series Cuber
30 WIDE BASE EXPLODED VIEW G10 - A
81 5003918 3/8" nipple 82 1000501 Electric junction box 83 5003245 Electric box cover 84 9201034 Water pan support 85 5003728 Water pan support gasket 86 Fan cycle control
5003252 Ice deflection baffle when placed on dispensers 9200358 Air deflection baffle 5003399 Hartell water pump impeller kit 5004352 Curtain stop 5003897 Universal capacitor strap
PART NOTES:
[1] - does not include thermistor [2] - N / A
30 WIDE BASE EXPLODED VIEW G10 - A
G_parts_sii_1-1.pdf
Page 41
30" WIDE BASE EXPLODED VIEW
G Series Cuber

30 WIDE BASE EXPLODED VIEW G10 - R

30 WIDE BASE EXPLODED VIEW G10 - R
G_parts_sii_2-1.pdf
Page 42
G Series Cuber
30 WIDE BASE EXPLODED VIEW G10 - R
REMOTE COOLED 1 9200594 Enclosure 2 5004356 Bottom assembly 3 5006415 Compressor alternate for 208 / 230 V. 60 Hz 3 5006415 Compressor alternate for 208 / 230 V. 60 Hz 3 5006413 Compressor alternate for 220 / 240 V. 50 Hz 3 5006413 Compressor alternate for 220 / 240 V. 50 Hz 4 5004247 Wiring harness 5 5006045 Distributor tube 6 88294948 Distributor tube clip 7 5005797 Evaporator MINI [1] 7 5005798 Evaporator FULL [1] 7 5005796 Evaporator JUMBO [1] 8 9200990 Curtain 9 5002463 Water Pan Assembly 10 88296419 Solenoid coil 11 88296418 Hot gas solenoid body only 12 9200536 Drier 13 5001389 Expansion valve alternate 13 5001389 Expansion valve alternate 14 9200506 Water dump solenoid 15 5005030 Circuit board 16 5004245 Compressor relay 208 / 230 V. 60 Hz. 16 5003872 Compressor relay 17 9201097 Manual water purge switch 18 88917953 Toggle switch 19 5004941 High pressure cut out [2] 20 9200639 Guide pin nut plate 21 5006292 Start capacitor 208 / 230 V. 60 Hz. 21 5003870 Start capacitor 220 / 240 V. 50 Hz. 22 5006293 Run capacitor 208 / 230 V. 60 Hz. 22 5006294 Run capacitor 220 / 240 V. 50 Hz. 23 5000609 Transformer 24 5005853 Thermistor kit 25 9200520 Hall switch 26 88295947 Contactor 27 88295943 Refrigerant Service Valve 28 9200010 Water supply tube 29 5001410 Curtain shim Full thickness 29 5001413 Curtain shim Half thickness 30 9201026 Water inlet fitting 31 9200661 Water drain fitting 32 88297693 Retractable curtain guide pin bracket 33 9200508 Water purge solenoid to drain fitting tubing 34 9200530 Water pump to tee tubing 35 9200507 1/2 x 1/2 x 1/2 Tee
30 WIDE BASE EXPLODED VIEW G10 - R
G_parts_sii_2-1.pdf
Page 43
G Series Cuber
30 WIDE BASE EXPLODED VIEW G10 - R
36 9200541 Tee to water dump solenoid tubing 37 9200518 Tee to distributor tube tubing 38 9200591 Water flow restrictor 39 9200377 Float assembly 40 88297691 Float bracket 41 88295931 Retractable curtain guide pin 42 5000052 Quick connect outlet fitting 43 5000053 Quick connect inlet fitting 44 88299744 Frame support 45 5004361 Rear panel 46 5004360 Rear fitting panel 47 5004476 Condenser fitting panel 48 5000054 Line coupling bracket 49 5000055 Outlet fitting bracket 50 9201078 Low pressure control 51 5000048 Check valve 52 5000045 Receiver bracket 53 5000049 Receiver tank 54 88296419 Solenoid coil 55 5000086 Pump down solenoid valve body 56 88296841 Therm-O-disc 57 9200719 Drier bracket 58 Air condenser [2] 59 Fan motor 208 / 230 V. 60 Hz. [2] 59 Fan motor 220 / 240 V. 50 Hz. [2] 60 Fan bracket [2] 61 Fan blade [2] 62 Condenser water fitting [2] 63 Water regulating valve [2] 64 Water condenser [2] 65 88297628 Front panel assembly painted 66 88295904 Component box cover painted 67 88292969 Right side panel painted 68 88292264 Top panel painted 69 88296413 Left side panel painted 70 88298871 Front panel screw brass (painted) 71 88297617 Front panel assembly stainless 72 88365111 Component box cover stainless 73 88298863 Right side panel stainless 74 88296432 Top panel stainless 75 88296440 Left side panel stainless 76 88130485 Front panel screw stainless 77 9200695 Water pan to pump tube 78 5004771 Water pump assembly 79 88294994 Horizontal brace 80 Fan shroud [2]
30 WIDE BASE EXPLODED VIEW G10 - R
G_parts_sii_2-1.pdf
Page 44
G Series Cuber
30 WIDE BASE EXPLODED VIEW G10 - R
81 5003918 3/8" nipple 82 1000501 Electric junction box 83 5003245 Electric box cover 84 9201034 Water pan support 85 5003728 Water pan support gasket 86 Fan cycle control [3]
5003252 Ice deflection baffle when placed on dispensers 9200358 Air deflection baffle 5003399 Hartell water pump impeller kit 5004352 Curtain stop 5003897 Universal capacitor strap
PART NOTES:
[1] - does not include thermistor [2] - N / A [3] - N/A
30 WIDE BASE EXPLODED VIEW G10 - R
G_parts_sii_2-1.pdf
Page 45
30" WIDE BASE EXPLODED VIEW
G Series Cuber

30 WIDE BASE EXPLODED VIEW G10 - W

30 WIDE BASE EXPLODED VIEW G10 - W
G_parts_sii_3-1.pdf
Page 46
G Series Cuber
30 WIDE BASE EXPLODED VIEW G10 - W
WATER COOLED 1 9200594 Enclosure 2 5004340 Bottom assembly 3 5006416 Compressor 208 / 230 V. 60 Hz. 3 5006415 Compressor alternate for 208 / 230 V. 60 Hz 3 5006414 Compressor 220 / 240 V. 50 Hz 3 5006413 Compressor alternate for 220 / 240 V. 50 Hz 4 5003899 Wiring harness 5 5006045 Distributor tube 6 88294948 Distributor tube clip 7 5005797 Evaporator MINI [1] 7 5005798 Evaporator FULL [1] 7 5005796 Evaporator JUMBO [1] 8 9200990 Curtain 9 5002463 Water Pan Assembly 10 88296419 Solenoid coil 11 88296418 Hot gas solenoid body only 12 88296420 Drier 13 5006291 Expansion valve 13 5001389 Expansion valve alternate 14 9200506 Water dump solenoid 15 5005030 Circuit board 16 5004245 Compressor relay 208 / 230 V. 60 Hz. 16 5003872 Compressor relay 17 9201097 Manual water purge switch 18 88917953 Toggle switch 19 High pressure cut out [2] 20 9200639 Guide pin nut plate 21 5006292 Start capacitor 208 / 230 V. 60 Hz. 21 5003870 Start capacitor 220 / 240 V. 50 Hz. 22 5006293 Run capacitor 208 / 230 V. 60 Hz. 22 5006294 Run capacitor 220 / 240 V. 50 Hz. 23 5000609 Transformer 24 5005853 Thermistor kit 25 9200520 Hall switch 26 88295947 Contactor 27 88295943 Refrigerant Service Valve 28 9200010 Water supply tube 29 5001410 Curtain shim Full thickness 29 5001413 Curtain shim Half thickness 30 9201026 Water inlet fitting 31 9200661 Water drain fitting 32 88297693 Retractable curtain guide pin bracket 33 9200508 Water purge solenoid to drain fitting tubing 34 9200530 Water pump to tee tubing 35 9200507 1/2 x 1/2 x 1/2 Tee
30 WIDE BASE EXPLODED VIEW G10 - W
G_parts_sii_3-1.pdf
Page 47
G Series Cuber
30 WIDE BASE EXPLODED VIEW G10 - W
36 9200541 Tee to water dump solenoid tubing 37 9200518 Tee to distributor tube tubing 38 9200591 Water flow restrictor 39 9200377 Float assembly 40 88297691 Float bracket 41 88295931 Retractable curtain guide pin 42 Quick connect outlet fitting [2] 43 Quick connect inlet fitting [2] 44 88299744 Frame support 45 5004361 Rear panel 46 5004360 Rear fitting panel 47 5006339 Condenser fitting panel 48 Liquid coupling bracket [2] 49 Outlet fitting bracket [2] 50 Low pressure control [2] 51 Check valve [2] 52 Receiver bracket [2] 53 Receiver tank [2] 54 88296419 Solenoid coil 55 Pump down solenoid valve body [2] 56 Therm-O-disc [2] 57 Drier bracket [2] 58 Air condenser [2] 59 Fan motor 208 / 230 V. 60 Hz. [2] 59 Fan motor 220 / 240 V. 50 Hz. [2] 60 Fan bracket [2] 61 Fan blade [2] 62 88297642 Condenser water fitting 63 88048125 Water regulating valve 64 5006290 Water condenser 65 88297628 Front panel assembly painted 66 88295904 Component box cover painted 67 88292969 Right side panel painted 68 88292264 Top panel painted 69 88296413 Left side panel painted 70 88298871 Front panel screw brass (painted) 71 88297617 Front panel assembly stainless 72 88365111 Component box cover stainless 73 88298863 Right side panel stainless 74 88296432 Top panel stainless 75 88296440 Left side panel stainless 76 88130485 Front panel screw stainless 77 9200695 Water pan to pump tube 78 5004771 Water pump assembly 79 88294994 Horizontal brace 80 Fan shroud [2]
30 WIDE BASE EXPLODED VIEW G10 - W
G_parts_sii_3-1.pdf
Page 48
G Series Cuber
30 WIDE BASE EXPLODED VIEW G10 - W
81 5003918 3/8" nipple 82 1000501 Electric junction box 83 5003245 Electric box cover 84 9201034 Water pan support 85 5003728 Water pan support gasket 86 Fan cycle control [3]
5003252 Ice deflection baffle when placed on dispensers 9200358 Air deflection baffle 5003399 Hartell water pump impeller kit 5004352 Curtain stop 5003897 Universal capacitor strap
PART NOTES:
[1] - does not include thermistor [2] - N / A [3] - N/A
30 WIDE BASE EXPLODED VIEW G10 - W
G_parts_sii_3-1.pdf
Page 49
30" WIDE BASE EXPLODED VIEW
G Series Cuber

30 WIDE BASE EXPLODED VIEW G5 - A

30 WIDE BASE EXPLODED VIEW G5 - A
G_parts_sii_4-1.pdf
Page 50
G Series Cuber
30 WIDE BASE EXPLODED VIEW G5 - A
AIR COOLED 1 5002868 Enclosure 2 5006530 Bottom assembly 3 5006625 Compressor 115 V 60 Hz. 4 5003899 Wiring harness 5 5006045 Distributor tube 6 88294948 Distributor tube clip 7 5004098 Evaporator assembly MINI 7 5004099 Evaporator assembly FULL 7 5004100 Evaporator assembly JUMBO 8 9200989 Curtain 9 5002463 Water Pan Assembly 10 88295934 Solenoid coil 11 88295936 Hot gas solenoid body only 12 88295938 Drier 13 5006541 Expansion valve 13 5006511 Expansion valve alternate 14 9201097 Manual water purge switch 15 5005030 Circuit board 16 5003872 Compressor relay 17 9201097 Manual water purge switch 18 88917953 Toggle switch 19 High pressure cut out [1] 20 9200639 Guide pin nut plate 21 5006538 Start capacitor 22 5006536 Run capacitor 23 5000609 Transformer 24 5005853 Thermistor kit 25 9200520 Hall switch 26 88295942 Contactor 27 88295943 Refrigerant Service Valve 28 9200009 Water supply tube 29 5001410 Curtain shim Full thickness 29 5001413 Curtain shim Half thickness 30 9201026 Water inlet fitting 31 9200661 Water drain fitting 32 88297693 Retractable curtain guide pin bracket 33 9200508 Water purge solenoid to drain fitting tubing 34 9200540 Water pump to tee tubing 35 9200507 1/2 x 1/2 x 1/2 Tee 36 9200519 Tee to water purge solenoid tubing 37 9200518 Tee to distributor tube tubing 38 9200591 Water flow restrictor 39 9200377 Float assembly 40 88297691 Float bracket 41 88295931 Retractable curtain guide pin
30 WIDE BASE EXPLODED VIEW G5 - A
G_parts_sii_4-1.pdf
Page 51
G Series Cuber
30 WIDE BASE EXPLODED VIEW G5 - A
42 Quick connect outlet fitting [1] 43 Quick connect inlet fitting [1] 44 Frame support [1] 45 Rear panel [1] 46 5004342 Rear fitting panel 47 Condenser fitting panel [1] 48 Line coupling bracket [1] 49 Outlet fitting bracket [1] 50 Low pressure control [1] 51 Check valve [1] 52 Receiver bracket [1] 53 Receiver tank [1] 54 88295934 Solenoid coil 55 Pump down solenoid valve body [1] 56 Therm-O-disc [1] 57 Drier bracket [1] 58 88291187 Air condenser 59 88295994 Fan motor 60 88296461 Fan bracket 61 88292271 Fan blade 62 Condenser water fitting [1] 63 Water regulating valve [1] 64 Water condenser [1] 65 5000733 Front panel assembly stainless 66 88298865 Component box cover stainless 67 88298861 Right side panel stainless 68 88296432 Top panel stainless 69 88296435 Left side panel stainless 70 88130485 Front panel screw stainless 71 5000733 Front panel assembly stainless 72 88298865 Component box cover stainless 73 88298861 Right side panel stainless 74 88296432 Top panel stainless 75 88296435 Left side panel stainless 76 88130485 Front panel screw stainless 77 9200695 Water pan to pump tube 78 5004772 Water pump assembly 79 9201092 Horizontal brace 80 5006535 Fan shroud 81 5003918 3/8" nipple 82 1000501 Electric junction box 83 5003245 Electric box cover 84 9201034 Water pan support 85 5003728 Water pan support gasket 86 5000056 Fan cycle control
5003252 Ice deflection baffle when placed on dispensers
30 WIDE BASE EXPLODED VIEW G5 - A
G_parts_sii_4-1.pdf
Page 52
G Series Cuber
30 WIDE BASE EXPLODED VIEW G5 - A
9200358 Air deflection baffle 5003399 Hartell water pump impeller kit 5004352 Curtain stop
Compressor heater [1]
5003897 Universal capacitor strap
PART NOTES:
[1] - N/A
30 WIDE BASE EXPLODED VIEW G5 - A
G_parts_sii_4-1.pdf
Page 53
30" WIDE BASE EXPLODED VIEW
G Series Cuber

30 WIDE BASE EXPLODED VIEW G5 - R

30 WIDE BASE EXPLODED VIEW G5 - R
G_parts_sii_5-1.pdf
Page 54
G Series Cuber
30 WIDE BASE EXPLODED VIEW G5 - R
REMOTE COOLED 1 5002868 Enclosure 2 5006529 Bottom assembly 3 5006625 Compressor 115 V 60 Hz. 4 5004247 Wiring harness 5 5006045 Distributor tube 6 88294948 Distributor tube clip 7 5004098 Evaporator assembly MINI 7 5004099 Evaporator assembly FULL 7 5004100 Evaporator assembly JUMBO 8 9200989 Curtain 9 5002463 Water Pan Assembly 10 88295934 Solenoid coil 11 88295936 Hot gas solenoid body only 12 88295938 Drier 13 5006511 Expansion valve alternate 13 5006511 Expansion valve alternate 14 9201097 Manual water purge switch 15 5005030 Circuit board 16 5003872 Compressor relay 17 9201097 Manual water purge switch 18 88917953 Toggle switch 19 5004941 High pressure cut out 20 9200639 Guide pin nut plate 21 5006538 Start capacitor 22 5006536 Run capacitor 23 5000609 Transformer 24 5005853 Thermistor kit 25 9200520 Hall switch 26 88295942 Contactor 27 88295943 Refrigerant Service Valve 28 9200009 Water supply tube 29 5001410 Curtain shim Full thickness 29 5001413 Curtain shim Half thickness 30 9201026 Water inlet fitting 31 9200661 Water drain fitting 32 88297693 Retractable curtain guide pin bracket 33 9200508 Water purge solenoid to drain fitting tubing 34 9200540 Water pump to tee tubing 35 9200507 1/2 x 1/2 x 1/2 Tee 36 9200519 Tee to water purge solenoid tubing 37 9200518 Tee to distributor tube tubing 38 9200591 Water flow restrictor 39 9200377 Float assembly 40 88297691 Float bracket 41 88295931 Retractable curtain guide pin
30 WIDE BASE EXPLODED VIEW G5 - R
G_parts_sii_5-1.pdf
Page 55
G Series Cuber
30 WIDE BASE EXPLODED VIEW G5 - R
42 5000052 Quick connect outlet fitting 43 5000053 Quick connect inlet fitting 44 88299743 Frame support 45 5004358 Rear panel 46 5004357 Rear fitting panel 47 5004359 Condenser fitting panel 48 5000054 Line coupling bracket 49 5000055 Outlet fitting bracket 50 9201078 Low pressure control 51 5000048 Check valve 52 5000045 Receiver bracket 53 5000049 Receiver tank 54 88295934 Solenoid coil 55 5000086 Pump down solenoid valve body 56 88296841 Therm-O-disc 57 9200719 Drier bracket 58 Air condenser [1] 59 Fan motor [1] 60 Fan bracket [1] 61 Fan blade [1] 62 Condenser water fitting [1] 63 Water regulating valve [1] 64 Water condenser [1] 65 5000733 Front panel assembly stainless 66 88298865 Component box cover stainless 67 88298861 Right side panel stainless 68 88296432 Top panel stainless 69 88296435 Left side panel stainless 70 88130485 Front panel screw stainless 71 5000733 Front panel assembly stainless 72 88298865 Component box cover stainless 73 88298861 Right side panel stainless 74 88296432 Top panel stainless 75 88296435 Left side panel stainless 76 88130485 Front panel screw stainless 77 9200695 Water pan to pump tube 78 5004772 Water pump assembly 79 9201092 Horizontal brace 80 Fan shroud [1] 81 5003918 3/8" nipple 82 1000501 Electric junction box 83 5003245 Electric box cover 84 9201034 Water pan support 85 5003728 Water pan support gasket 86 Fan cycle control [1]
5003252 Ice deflection baffle when placed on dispensers
30 WIDE BASE EXPLODED VIEW G5 - R
G_parts_sii_5-1.pdf
Page 56
G Series Cuber
30 WIDE BASE EXPLODED VIEW G5 - R
9200358 Air deflection baffle 5003399 Hartell water pump impeller kit 5004352 Curtain stop 5006613 Compressor heater 5003897 Universal capacitor strap
PART NOTES:
[1] - N/A
30 WIDE BASE EXPLODED VIEW G5 - R
G_parts_sii_5-1.pdf
Page 57
30" WIDE BASE EXPLODED VIEW
G Series Cuber

30 WIDE BASE EXPLODED VIEW G5 - W

30 WIDE BASE EXPLODED VIEW G5 - W
G_parts_sii_6-1.pdf
Page 58
G Series Cuber
30 WIDE BASE EXPLODED VIEW G5 - W
WATER COOLED 1 5002868 Enclosure 2 5006529 Bottom assembly 3 5006625 Compressor 115 V 60 Hz. 4 5003899 Wiring harness 5 5006045 Distributor tube 6 88294948 Distributor tube clip 7 5004098 Evaporator assembly MINI 7 5004099 Evaporator assembly FULL 7 5004100 Evaporator assembly JUMBO 8 9200989 Curtain 9 5002463 Water Pan Assembly 10 88295934 Solenoid coil 11 88295936 Hot gas solenoid body only 12 88295938 Drier 13 5006541 Expansion valve 13 5006511 Expansion valve alternate 14 9201097 Manual water purge switch 15 5005030 Circuit board 16 5003872 Compressor relay 17 9201097 Manual water purge switch 18 88917953 Toggle switch 19 5004941 High pressure cut out 20 9200639 Guide pin nut plate 21 5006538 Start capacitor 22 5006536 Run capacitor 23 5000609 Transformer 24 5005853 Thermistor kit 25 9200520 Hall switch 26 88295942 Contactor 27 88295943 Refrigerant Service Valve 28 9200009 Water supply tube 29 5001410 Curtain shim Full thickness 29 5001413 Curtain shim Half thickness 30 9201026 Water inlet fitting 31 9200661 Water drain fitting 32 88297693 Retractable curtain guide pin bracket 33 9200508 Water purge solenoid to drain fitting tubing 34 9200540 Water pump to tee tubing 35 9200507 1/2 x 1/2 x 1/2 Tee 36 9200519 Tee to water purge solenoid tubing 37 9200518 Tee to distributor tube tubing 38 9200591 Water flow restrictor 39 9200377 Float assembly 40 88297691 Float bracket 41 88295931 Retractable curtain guide pin
30 WIDE BASE EXPLODED VIEW G5 - W
G_parts_sii_6-1.pdf
Page 59
G Series Cuber
30 WIDE BASE EXPLODED VIEW G5 - W
42 Quick connect outlet fitting [1] 43 Quick connect inlet fitting [1] 44 88299743 Frame support 45 5004358 Rear panel 46 5004357 Rear fitting panel 47 5004359 Condenser fitting panel 48 Line coupling bracket [1] 49 Outlet fitting bracket [1] 50 Low pressure control [1] 51 Check valve [1] 52 Receiver bracket [1] 53 Receiver tank [1] 54 88295934 Solenoid coil 55 Pump down solenoid valve body [1] 56 Therm-O-disc [1] 57 Drier bracket [1] 58 Air condenser [1] 59 Fan motor [1] 60 Fan bracket [1] 61 Fan blade [1] 62 88297642 Condenser water fitting 63 88048125 Water regulating valve 64 88296454 Water condenser 65 5000733 Front panel assembly stainless 66 88298865 Component box cover stainless 67 88298861 Right side panel stainless 68 88296432 Top panel stainless 69 88296435 Left side panel stainless 70 88130485 Front panel screw stainless 71 5000733 Front panel assembly stainless 72 88298865 Component box cover stainless 73 88298861 Right side panel stainless 74 88296432 Top panel stainless 75 88296435 Left side panel stainless 76 88130485 Front panel screw stainless 77 9200695 Water pan to pump tube 78 5004772 Water pump assembly 79 9201092 Horizontal brace 80 Fan shroud [1] 81 5003918 3/8" nipple 82 1000501 Electric junction box 83 5003245 Electric box cover 84 9201034 Water pan support 85 5003728 Water pan support gasket 86 Fan cycle control [1]
5003252 Ice deflection baffle when placed on dispensers
30 WIDE BASE EXPLODED VIEW G5 - W
G_parts_sii_6-1.pdf
Page 60
G Series Cuber
30 WIDE BASE EXPLODED VIEW G5 - W
9200358 Air deflection baffle 5003399 Hartell water pump impeller kit 5004352 Curtain stop
Compressor heater [1]
5003897 Universal capacitor strap
PART NOTES:
[1] - N/A
30 WIDE BASE EXPLODED VIEW G5 - W
G_parts_sii_6-1.pdf
Page 61
30" WIDE BASE EXPLODED VIEW
G Series Cuber

30 WIDE BASE EXPLODED VIEW G7 - A

30 WIDE BASE EXPLODED VIEW G7 - A
G_parts_sii_11-1.pdf
Page 62
G Series Cuber
30 WIDE BASE EXPLODED VIEW G7 - A
AIR COOLED 1 9200595 Enclosure 2 5004340 Bottom assembly 3 5006021 Compressor 208 / 230 V. 60 Hz 3 5006022 Compressor 208 / 230 V. 60 Hz 3 5006023 Compressor 220 / 240 V. 50 Hz 3 5006024 Compressor 220 / 240 V. 50 Hz 4 5003899 Wiring harness 5 5000790 Distributor tube 6 88294948 Distributor tube clip 7 5004098 Evaporator assembly MINI [1] 7 5004099 Evaporator assembly FULL [1] 7 5004100 Evaporator assembly JUMBO [1] 8 9200989 Curtain 9 5002463 Water Pan Assembly 10 88296419 Solenoid coil 11 88295936 Hot gas solenoid body only 12 88295938 Drier 13 5005851 Expansion valve 13 5001390 Expansion valve alternate 14 9200506 Water dump solenoid 15 5005030 Circuit board 16 5003872 Compressor relay 16 5004234 Relay 208 / 230 V. 60 Hz. 17 9201097 Manual water purge switch 18 88917953 Toggle switch 19 N/A Trans 75VA 120V W/breaker 20 9200639 Guide pin nut plate 21 5003870 Start capacitor 220 / 240 V. 50 Hz. 21 5004837 Start capacitor 220 / 240 V. 50 Hz. 22 5003871 Run capacitor 220 / 240 V. 50 Hz 22 5003871 Run capacitor 220 / 240 V. 50 Hz 23 5000609 Transformer 24 5005853 Thermistor kit 25 9200520 Hall switch 26 88295947 Contactor 27 88295943 Refrigerant Service Valve 28 9200009 Water supply tube 29 5001410 Curtain shim Full thickness 29 5001413 Curtain shim Half thickness 30 9201026 Water inlet fitting 31 9200661 Water drain fitting 32 88297693 Retractable curtain guide pin bracket 33 9200508 Water purge solenoid to drain fitting tubing 34 9200540 Water pump to tee tubing 35 9200507 1/2 x 1/2 x 1/2 Tee
30 WIDE BASE EXPLODED VIEW G7 - A
G_parts_sii_11-1.pdf
Page 63
G Series Cuber
30 WIDE BASE EXPLODED VIEW G7 - A
36 9200519 Tee to water purge solenoid tubing 37 9200518 Tee to distributor tube tubing 38 9200591 Water flow restrictor 39 9200377 Float assembly 40 88297691 Float bracket 41 88295931 Retractable curtain guide pin 42 Quick connect outlet fitting [2] 43 Quick connect inlet fitting [2] 44 Frame support [2] 45 5004342 Rear fitting panel 46 Rear fitting panel [2] 47 Condenser fitting panel [2] 48 Line coupling bracket [2] 49 Outlet fitting bracket [2] 50 Low pressure control [2] 51 Check valve [2] 52 Receiver bracket [2] 53 Receiver tank [2] 54 88296419 Solenoid coil 55 Pump down solenoid valve body [2] 56 Therm-O-disc [2] 57 Drier bracket [2] 58 88291187 Air condenser 59 88294922 Fan motor 208 / 230 V. 60 Hz. 59 88296003 Fan motor 220 / 240 V. 50 Hz. 60 88296461 Fan bracket 61 88292272 Fan blade 62 Condenser water fitting [2] 63 Water regulating valve [2] 64 Water condenser [2] 65 88297629 Front panel assembly painted 66 88294992 Component box cover painted 67 88294970 Right side panel painted 68 88292264 Top panel painted 69 88292267 Left side panel painted 70 88298871 Front panel screw brass (painted) 71 88297621 Front panel assembly stainless 72 88298865 Component box cover stainless 73 88298861 Right side panel stainless 74 88296432 Top panel stainless 75 88296435 Left side panel stainless 76 88130485 Front panel screw stainless 77 9200695 Water pan to pump tube 78 5004771 Water pump assembly 79 88294994 Horizontal brace 80 88292932 Fan shroud
30 WIDE BASE EXPLODED VIEW G7 - A
G_parts_sii_11-1.pdf
Page 64
G Series Cuber
30 WIDE BASE EXPLODED VIEW G7 - A
81 5003918 3/8" nipple 82 1000501 Electric junction box 83 5003245 Electric box cover 84 9201034 Water pan support 85 5003728 Water pan support gasket 86 5000056 Fan cycle control
5003252 Ice deflection baffle when placed on dispensers 9200358 Air deflection baffle 5003399 Hartell water pump impeller kit 5004352 Curtain stop 5003897 Universal capacitor strap
PART NOTES:
[1] - does not include thermistor [2] - N/A
30 WIDE BASE EXPLODED VIEW G7 - A
G_parts_sii_11-1.pdf
Page 65
30" WIDE BASE EXPLODED VIEW
G Series Cuber

30 WIDE BASE EXPLODED VIEW G7 - R

30 WIDE BASE EXPLODED VIEW G7 - R
G_parts_sii_12-1.pdf
Page 66
G Series Cuber
30 WIDE BASE EXPLODED VIEW G7 - R
REMOTE COOLED 1 9200595 Enclosure 2 5004356 Bottom assembly 3 5006022 Compressor 208 / 230 V. 60 Hz 3 Compressor alternate for 208 / 230 V. 60 Hz [1] 3 5006024 Compressor 220 / 240 V. 50 Hz 3 Compressor alternate for 220 / 240 V. 50 Hz. [1] 4 5004247 Wiring harness 5 5000790 Distributor tube 6 88294948 Distributor tube clip 7 5004098 Evaporator assembly MINI [2] 7 5004099 Evaporator assembly FULL [2] 7 5004100 Evaporator assembly JUMBO [2] 8 9200989 Curtain 9 5002463 Water Pan Assembly 10 88296419 Solenoid coil 11 88295936 Hot gas solenoid body only 12 9200536 Drier 13 5001390 Expansion valve alternate 13 Expansion valve alternate [1] 14 9200506 Water dump solenoid 15 5005030 Circuit board 16 5003872 Compressor relay 16 5004234 Relay 208 / 230 V. 60 Hz. 17 9201097 Manual water purge switch 18 88917953 Toggle switch 19 5004941 High pressure cut out 20 9200639 Guide pin nut plate 21 5003870 Start capacitor 220 / 240 V. 50 Hz. 21 5004837 Start capacitor 220 / 240 V. 50 Hz. 22 5003871 Run capacitor 220 / 240 V. 50 Hz 22 5003871 Run capacitor 220 / 240 V. 50 Hz 23 500609 Transformer 24 5005853 Thermistor kit 25 9200520 Hall switch 26 88295947 Contactor 27 88295943 Refrigerant Service Valve 28 9200009 Water supply tube 29 5001410 Curtain shim Full thickness 29 5001413 Curtain shim Half thickness 30 9201026 Water inlet fitting 31 9200661 Water drain fitting 32 88297693 Retractable curtain guide pin bracket 33 9200508 Water purge solenoid to drain fitting tubing 34 9200540 Water pump to tee tubing 35 9200507 1/2 x 1/2 x 1/2 Tee
30 WIDE BASE EXPLODED VIEW G7 - R
G_parts_sii_12-1.pdf
Page 67
G Series Cuber
30 WIDE BASE EXPLODED VIEW G7 - R
36 9200519 Tee to water purge solenoid tubing 37 9200518 Tee to distributor tube tubing 38 9200591 Water flow restrictor 39 9200377 Float assembly 40 88297691 Float bracket 41 88295931 Retractable curtain guide pin 42 5000052 Quick connect outlet fitting 43 5000053 Quick connect inlet fitting 44 88299743 Frame support 45 5004358 Rear panel 46 5004357 Rear fitting panel 47 5004359 Condenser fitting panel 48 5000054 Line coupling bracket 49 5000055 Outlet fitting bracket 50 9201078 Low pressure control 51 5000048 Check valve 52 5000045 Receiver bracket 53 5000049 Receiver tank 54 88296419 Solenoid coil 55 5000086 Pump down solenoid valve body 56 88296841 Therm-O-disc 57 9200719 Drier bracket 58 Air condenser [1] 59 Fan motor 208 / 230 V. 60 Hz. [1] 59 Fan motor 220 / 240 V. 50 Hz. [1] 60 Fan bracket [1] 61 Fan blade [1] 62 Condenser water fitting [1] 63 Water regulating valve [1] 64 Water condenser [1] 65 88297629 Front panel assembly painted 66 88294992 Component box cover painted 67 88294970 Right side panel painted 68 88292264 Top panel painted 69 88292267 Left side panel painted 70 88298871 Front panel screw brass (painted) [3] 71 88297621 Front panel assembly stainless 72 88298865 Component box cover stainless 73 88298861 Right side panel stainless 74 88296432 Top panel stainless 75 88296435 Left side panel stainless 76 88130485 Front panel screw stainless 77 9200695 Water pan to pump tube 78 5004771 Water pump assembly 79 88294994 Horizontal brace 80 Fan shroud [1]
30 WIDE BASE EXPLODED VIEW G7 - R
G_parts_sii_12-1.pdf
Page 68
G Series Cuber
30 WIDE BASE EXPLODED VIEW G7 - R
81 5003918 3/8" nipple 82 1000501 Electric junction box 83 5003245 Electric box cover 84 9201034 Water pan support 85 5003728 Water pan support gasket 86 Fan cycle control [1]
5003252 Ice deflection baffle when placed on dispensers 9200358 Air deflection baffle 5003399 Hartell water pump impeller kit 5004352 Curtain stop 5003897 Universal capacitor strap
PART NOTES:
[1] - N/A [2] - does not include thermistor [3] - painted
30 WIDE BASE EXPLODED VIEW G7 - R
G_parts_sii_12-1.pdf
Page 69
30" WIDE BASE EXPLODED VIEW
G Series Cuber

30 WIDE BASE EXPLODED VIEW G7 - W

30 WIDE BASE EXPLODED VIEW G7 - W
G_parts_sii_10-1.pdf
Page 70
G Series Cuber
30 WIDE BASE EXPLODED VIEW G7 - W
WATER COOLED 1 9200595 Enclosure 2 5004356 Bottom assembly 3 5006021 Compressor 208 / 230 V. 60 Hz 3 5006022 Compressor 208 / 230 V. 60 Hz 3 5006023 Compressor 220 / 240 V. 50 Hz 3 5006024 Compressor 220 / 240 V. 50 Hz 4 5003899 Wiring harness 5 5000790 Distributor tube 6 88294948 Distributor tube clip 7 5004098 Evaporator assembly MINI [1] 7 5004099 Evaporator assembly FULL [1] 7 5004100 Evaporator assembly JUMBO [1] 8 9200989 Curtain 9 5002463 Water Pan Assembly 10 88296419 Solenoid coil 11 88295936 Hot gas solenoid body only 12 88295938 Drier 13 5005851 Expansion valve 13 5001390 Expansion valve alternate 14 9200506 Water dump solenoid 15 5005030 Circuit board 16 5003872 Compressor relay 16 5004234 Relay 208 / 230 V. 60 Hz. 17 9201097 Manual water purge switch 18 88917953 Toggle switch 19 5004941 High pressure cut out 20 9200639 Guide pin nut plate 21 5003870 Start capacitor 220 / 240 V. 50 Hz. 21 5004837 Start capacitor 220 / 240 V. 50 Hz. 22 5003871 Run capacitor 220 / 240 V. 50 Hz 22 5003871 Run capacitor 220 / 240 V. 50 Hz 23 5000609 Transformer 24 5005853 Thermistor kit 25 9200520 Hall switch 26 88295947 Contactor 27 88295943 Refrigerant Service Valve 28 9200009 Water supply tube 29 5001410 Curtain shim Full thickness 29 5001413 Curtain shim Half thickness 30 9201026 Water inlet fitting 31 9200661 Water drain fitting 32 88297693 Retractable curtain guide pin bracket 33 9200508 Water purge solenoid to drain fitting tubing 34 9200540 Water pump to tee tubing 35 9200507 1/2 x 1/2 x 1/2 Tee
30 WIDE BASE EXPLODED VIEW G7 - W
G_parts_sii_10-1.pdf
Page 71
G Series Cuber
30 WIDE BASE EXPLODED VIEW G7 - W
36 9200519 Tee to water purge solenoid tubing 37 9200518 Tee to distributor tube tubing 38 9200591 Water flow restrictor 39 9200377 Float assembly 40 88297691 Float bracket 41 88295931 Retractable curtain guide pin 42 Quick connect outlet fitting [2] 43 Quick connect inlet fitting [2] 44 88299743 Frame support 45 5004358 Rear panel 46 5004357 Rear fitting panel 47 5004359 Condenser fitting panel 48 Line coupling bracket [2] 49 Outlet fitting bracket [2] 50 Low pressure control [2] 51 Check valve [2] 52 Receiver bracket [2] 53 Receiver tank [2] 54 88296419 Solenoid coil 55 Pump down solenoid valve body [2] 56 Therm-O-disc [2] 57 Drier bracket [2] 58 Air condenser [2] 59 Fan motor 208 / 230 V. 60 Hz. [2] 59 Fan motor 220 / 240 V. 50 Hz. [2] 60 Fan bracket [2] 61 Fan blade [2] 62 88297642 Condenser water fitting 63 88048125 Water regulating valve 64 88296454 Water condenser 65 88297629 Front panel assembly painted 66 88294992 Component box cover painted 67 88294970 Right side panel painted 68 88292264 Top panel painted 69 88292267 Left side panel painted 70 88298871 Front panel screw brass (painted) [3] 71 88297621 Front panel assembly stainless 72 88298865 Component box cover stainless 73 88298861 Right side panel stainless 74 88296432 Top panel stainless 75 88296435 Left side panel stainless 76 88130485 Front panel screw stainless 77 9200695 Water pan to pump tube 78 5004771 Water pump assembly 79 88294994 Horizontal brace 80 Fan shroud [2]
30 WIDE BASE EXPLODED VIEW G7 - W
G_parts_sii_10-1.pdf
Page 72
G Series Cuber
30 WIDE BASE EXPLODED VIEW G7 - W
81 5003918 3/8" nipple 82 1000501 Electric junction box 83 5003245 Electric box cover 84 9201034 Water pan support 85 5003728 Water pan support gasket 86 Fan cycle control [2]
5003252 Ice deflection baffle when placed on dispensers 9200358 Air deflection baffle 5003399 Hartell water pump impeller kit 5004352 Curtain stop 5003897 Universal capacitor strap
PART NOTES:
[1] - does not include thermistor [2] - N/A [3] - painted
30 WIDE BASE EXPLODED VIEW G7 - W
G_parts_sii_10-1.pdf
Page 73

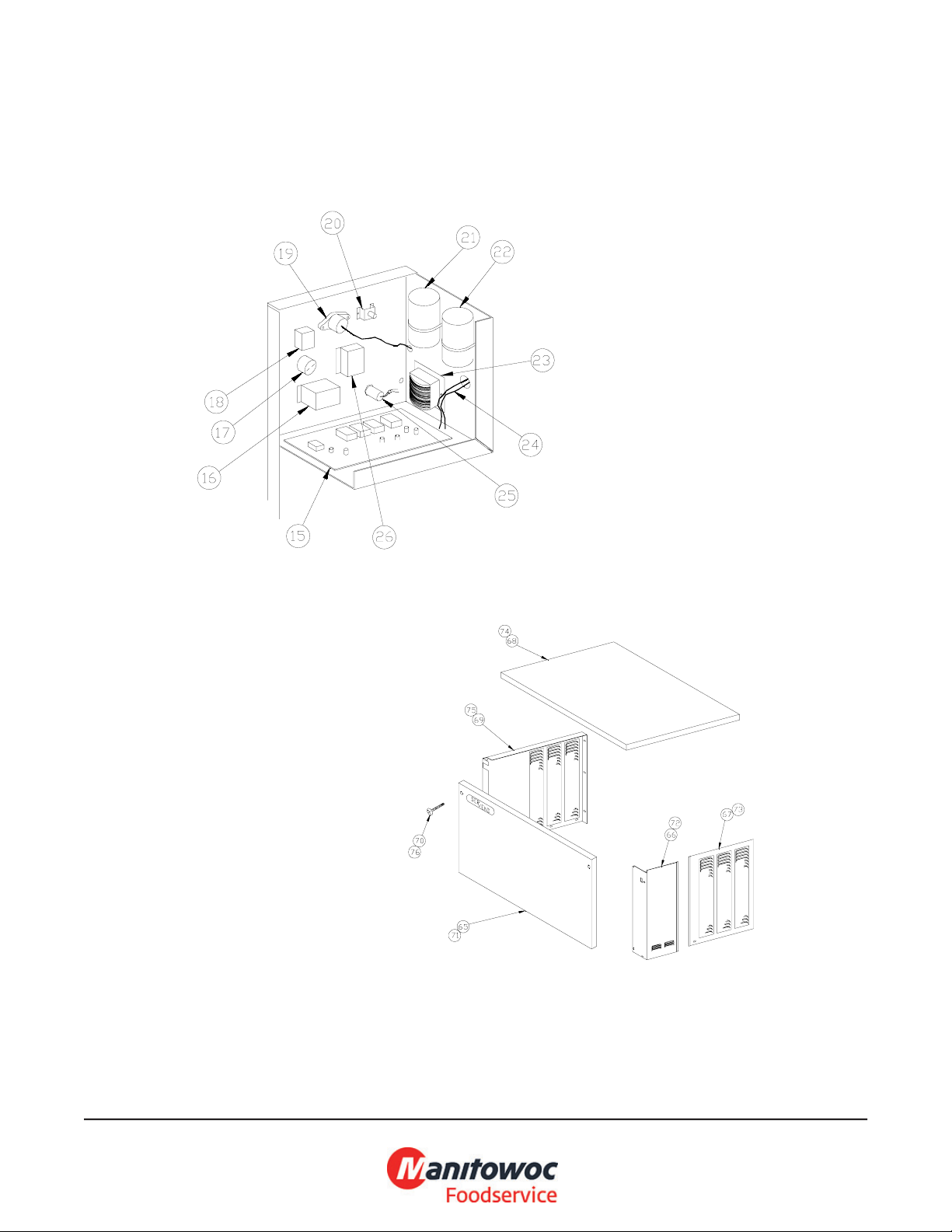

30" WIDE CONTROL BOX EXPLODED VIEW
30" WIDE PANEL EXPLODED VIEW
G Series Cuber

30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G10 - A

30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G10 - A
G_parts_sii_1-2.pdf
Page 74
G Series Cuber
30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G10 - A
AIR COOLED 1 9200594 Enclosure 2 5004340 Bottom assembly 3 5006416 Compressor 208 / 230 V. 60 Hz. 3 5006415 Compressor alternate for 208 / 230 V. 60 Hz 3 5006414 Compressor 220 / 240 V. 50 Hz 3 5006413 Compressor alternate for 220 / 240 V. 50 Hz 4 5003899 Wiring harness 5 5006045 Distributor tube 6 88294948 Distributor tube clip 7 5005797 Evaporator MINI [1] 7 5005798 Evaporator FULL [1] 7 5005796 Evaporator JUMBO [1] 8 9200990 Curtain 9 5002463 Water Pan Assembly 10 88296419 Solenoid coil 11 88296418 Hot gas solenoid body only 12 88296420 Drier 13 5006291 Expansion valve 13 5001389 Expansion valve alternate 14 9200506 Water dump solenoid 15 5005030 Circuit board 16 5004245 Compressor relay 208 / 230 V. 60 Hz. 16 5003872 Compressor relay 17 9201097 Manual water purge switch 18 88917953 Toggle switch 19 High pressure cut out [2] 20 9200639 Guide pin nut plate 21 5006292 Start capacitor 208 / 230 V. 60 Hz. 21 5003870 Start capacitor 220 / 240 V. 50 Hz. 22 5006293 Run capacitor 208 / 230 V. 60 Hz. 22 5006294 Run capacitor 220 / 240 V. 50 Hz. 23 5000609 Transformer 24 5005853 Thermistor kit 25 9200520 Hall switch 26 88295947 Contactor 27 88295943 Refrigerant Service Valve 28 9200010 Water supply tube 29 5001410 Curtain shim Full thickness 29 5001413 Curtain shim Half thickness 30 9201026 Water inlet fitting 31 9200661 Water drain fitting 32 88297693 Retractable curtain guide pin bracket 33 9200508 Water purge solenoid to drain fitting tubing 34 9200530 Water pump to tee tubing 35 9200507 1/2 x 1/2 x 1/2 Tee
30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G10 - A
G_parts_sii_1-2.pdf
Page 75
G Series Cuber
30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G10 - A
36 9200541 Tee to water dump solenoid tubing 37 9200518 Tee to distributor tube tubing 38 9200591 Water flow restrictor 39 9200377 Float assembly 40 88297691 Float bracket 41 88295931 Retractable curtain guide pin 42 Quick connect outlet fitting [2] 43 Quick connect inlet fitting [2] 44 Frame support [2] 45 5004341 Rear panel 46 Rear fitting panel [2] 47 Condenser fitting panel [2] 48 Liquid coupling bracket [2] 49 Outlet fitting bracket [2] 50 Low pressure control [2] 51 Check valve [2] 52 Receiver bracket [2] 53 Receiver tank [2] 54 88296419 Solenoid coil 55 Pump down solenoid valve body [2] 56 Therm-O-disc [2] 57 Drier bracket [2] 58 88291188 Condenser 59 5006074 Fan motor 208 / 230 V. 60 Hz. 59 5006073 Fan motor 220 / 240 V. 50 Hz. 60 88292895 Fan bracket 61 5006071 Fan blade 62 Condenser water fitting [2] 63 Water regulating valve [2] 64 Water condenser [2] 65 88297628 Front panel assembly painted 66 88295904 Component box cover painted 67 88292969 Right side panel painted 68 88292264 Top panel painted 69 88296413 Left side panel painted 70 88298871 Front panel screw brass (painted) 71 88297617 Front panel assembly stainless 72 88365111 Component box cover stainless 73 88298863 Right side panel stainless 74 88296432 Top panel stainless 75 88296440 Left side panel stainless 76 88130485 Front panel screw stainless 77 9200695 Water pan to pump tube 78 5004771 Water pump assembly 79 88294994 Horizontal brace 80 88292933 Fan shroud
30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G10 - A
G_parts_sii_1-2.pdf
Page 76
G Series Cuber
30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G10 - A
81 5003918 3/8" nipple 82 1000501 Electric junction box 83 5003245 Electric box cover 84 9201034 Water pan support 85 5003728 Water pan support gasket 86 Fan cycle control
5003252 Ice deflection baffle when placed on dispensers 9200358 Air deflection baffle 5003399 Hartell water pump impeller kit 5004352 Curtain stop 5003897 Universal capacitor strap
PART NOTES:
[1] - does not include thermistor [2] - N / A
30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G10 - A
G_parts_sii_1-2.pdf
Page 77
30" WIDE CONTROL BOX EXPLODED VIEW
30" WIDE PANEL EXPLODED VIEW
G Series Cuber

30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G10 - R

30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G10 - R
G_parts_sii_2-2.pdf
Page 78
G Series Cuber
30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G10 - R
REMOTE COOLED 1 9200594 Enclosure 2 5004356 Bottom assembly 3 5006415 Compressor alternate for 208 / 230 V. 60 Hz 3 5006415 Compressor alternate for 208 / 230 V. 60 Hz 3 5006413 Compressor alternate for 220 / 240 V. 50 Hz 3 5006413 Compressor alternate for 220 / 240 V. 50 Hz 4 5004247 Wiring harness 5 5006045 Distributor tube 6 88294948 Distributor tube clip 7 5005797 Evaporator MINI [1] 7 5005798 Evaporator FULL [1] 7 5005796 Evaporator JUMBO [1] 8 9200990 Curtain 9 5002463 Water Pan Assembly 10 88296419 Solenoid coil 11 88296418 Hot gas solenoid body only 12 9200536 Drier 13 5001389 Expansion valve alternate 13 5001389 Expansion valve alternate 14 9200506 Water dump solenoid 15 5005030 Circuit board 16 5004245 Compressor relay 208 / 230 V. 60 Hz. 16 5003872 Compressor relay 17 9201097 Manual water purge switch 18 88917953 Toggle switch 19 5004941 High pressure cut out [2] 20 9200639 Guide pin nut plate 21 5006292 Start capacitor 208 / 230 V. 60 Hz. 21 5003870 Start capacitor 220 / 240 V. 50 Hz. 22 5006293 Run capacitor 208 / 230 V. 60 Hz. 22 5006294 Run capacitor 220 / 240 V. 50 Hz. 23 5000609 Transformer 24 5005853 Thermistor kit 25 9200520 Hall switch 26 88295947 Contactor 27 88295943 Refrigerant Service Valve 28 9200010 Water supply tube 29 5001410 Curtain shim Full thickness 29 5001413 Curtain shim Half thickness 30 9201026 Water inlet fitting 31 9200661 Water drain fitting 32 88297693 Retractable curtain guide pin bracket 33 9200508 Water purge solenoid to drain fitting tubing 34 9200530 Water pump to tee tubing 35 9200507 1/2 x 1/2 x 1/2 Tee
30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G10 - R
G_parts_sii_2-2.pdf
Page 79
G Series Cuber
30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G10 - R
36 9200541 Tee to water dump solenoid tubing 37 9200518 Tee to distributor tube tubing 38 9200591 Water flow restrictor 39 9200377 Float assembly 40 88297691 Float bracket 41 88295931 Retractable curtain guide pin 42 5000052 Quick connect outlet fitting 43 5000053 Quick connect inlet fitting 44 88299744 Frame support 45 5004361 Rear panel 46 5004360 Rear fitting panel 47 5004476 Condenser fitting panel 48 5000054 Line coupling bracket 49 5000055 Outlet fitting bracket 50 9201078 Low pressure control 51 5000048 Check valve 52 5000045 Receiver bracket 53 5000049 Receiver tank 54 88296419 Solenoid coil 55 5000086 Pump down solenoid valve body 56 88296841 Therm-O-disc 57 9200719 Drier bracket 58 Air condenser [2] 59 Fan motor 208 / 230 V. 60 Hz. [2] 59 Fan motor 220 / 240 V. 50 Hz. [2] 60 Fan bracket [2] 61 Fan blade [2] 62 Condenser water fitting [2] 63 Water regulating valve [2] 64 Water condenser [2] 65 88297628 Front panel assembly painted 66 88295904 Component box cover painted 67 88292969 Right side panel painted 68 88292264 Top panel painted 69 88296413 Left side panel painted 70 88298871 Front panel screw brass (painted) 71 88297617 Front panel assembly stainless 72 88365111 Component box cover stainless 73 88298863 Right side panel stainless 74 88296432 Top panel stainless 75 88296440 Left side panel stainless 76 88130485 Front panel screw stainless 77 9200695 Water pan to pump tube 78 5004771 Water pump assembly 79 88294994 Horizontal brace 80 Fan shroud [2]
30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G10 - R
G_parts_sii_2-2.pdf
Page 80
G Series Cuber
30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G10 - R
81 5003918 3/8" nipple 82 1000501 Electric junction box 83 5003245 Electric box cover 84 9201034 Water pan support 85 5003728 Water pan support gasket 86 Fan cycle control [3]
5003252 Ice deflection baffle when placed on dispensers 9200358 Air deflection baffle 5003399 Hartell water pump impeller kit 5004352 Curtain stop 5003897 Universal capacitor strap
PART NOTES:
[1] - does not include thermistor [2] - N / A [3] - N/A
30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G10 - R
G_parts_sii_2-2.pdf
Page 81
30" WIDE CONTROL BOX EXPLODED VIEW
30" WIDE PANEL EXPLODED VIEW
G Series Cuber

30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G10 - W

30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G10 - W
G_parts_sii_3-2.pdf
Page 82
G Series Cuber
30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G10 - W
WATER COOLED 1 9200594 Enclosure 2 5004340 Bottom assembly 3 5006416 Compressor 208 / 230 V. 60 Hz. 3 5006415 Compressor alternate for 208 / 230 V. 60 Hz 3 5006414 Compressor 220 / 240 V. 50 Hz 3 5006413 Compressor alternate for 220 / 240 V. 50 Hz 4 5003899 Wiring harness 5 5006045 Distributor tube 6 88294948 Distributor tube clip 7 5005797 Evaporator MINI [1] 7 5005798 Evaporator FULL [1] 7 5005796 Evaporator JUMBO [1] 8 9200990 Curtain 9 5002463 Water Pan Assembly 10 88296419 Solenoid coil 11 88296418 Hot gas solenoid body only 12 88296420 Drier 13 5006291 Expansion valve 13 5001389 Expansion valve alternate 14 9200506 Water dump solenoid 15 5005030 Circuit board 16 5004245 Compressor relay 208 / 230 V. 60 Hz. 16 5003872 Compressor relay 17 9201097 Manual water purge switch 18 88917953 Toggle switch 19 High pressure cut out [2] 20 9200639 Guide pin nut plate 21 5006292 Start capacitor 208 / 230 V. 60 Hz. 21 5003870 Start capacitor 220 / 240 V. 50 Hz. 22 5006293 Run capacitor 208 / 230 V. 60 Hz. 22 5006294 Run capacitor 220 / 240 V. 50 Hz. 23 5000609 Transformer 24 5005853 Thermistor kit 25 9200520 Hall switch 26 88295947 Contactor 27 88295943 Refrigerant Service Valve 28 9200010 Water supply tube 29 5001410 Curtain shim Full thickness 29 5001413 Curtain shim Half thickness 30 9201026 Water inlet fitting 31 9200661 Water drain fitting 32 88297693 Retractable curtain guide pin bracket 33 9200508 Water purge solenoid to drain fitting tubing 34 9200530 Water pump to tee tubing 35 9200507 1/2 x 1/2 x 1/2 Tee
30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G10 - W
G_parts_sii_3-2.pdf
Page 83
G Series Cuber
30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G10 - W
36 9200541 Tee to water dump solenoid tubing 37 9200518 Tee to distributor tube tubing 38 9200591 Water flow restrictor 39 9200377 Float assembly 40 88297691 Float bracket 41 88295931 Retractable curtain guide pin 42 Quick connect outlet fitting [2] 43 Quick connect inlet fitting [2] 44 88299744 Frame support 45 5004361 Rear panel 46 5004360 Rear fitting panel 47 5006339 Condenser fitting panel 48 Liquid coupling bracket [2] 49 Outlet fitting bracket [2] 50 Low pressure control [2] 51 Check valve [2] 52 Receiver bracket [2] 53 Receiver tank [2] 54 88296419 Solenoid coil 55 Pump down solenoid valve body [2] 56 Therm-O-disc [2] 57 Drier bracket [2] 58 Air condenser [2] 59 Fan motor 208 / 230 V. 60 Hz. [2] 59 Fan motor 220 / 240 V. 50 Hz. [2] 60 Fan bracket [2] 61 Fan blade [2] 62 88297642 Condenser water fitting 63 88048125 Water regulating valve 64 5006290 Water condenser 65 88297628 Front panel assembly painted 66 88295904 Component box cover painted 67 88292969 Right side panel painted 68 88292264 Top panel painted 69 88296413 Left side panel painted 70 88298871 Front panel screw brass (painted) 71 88297617 Front panel assembly stainless 72 88365111 Component box cover stainless 73 88298863 Right side panel stainless 74 88296432 Top panel stainless 75 88296440 Left side panel stainless 76 88130485 Front panel screw stainless 77 9200695 Water pan to pump tube 78 5004771 Water pump assembly 79 88294994 Horizontal brace 80 Fan shroud [2]
30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G10 - W
G_parts_sii_3-2.pdf
Page 84
G Series Cuber
30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G10 - W
81 5003918 3/8" nipple 82 1000501 Electric junction box 83 5003245 Electric box cover 84 9201034 Water pan support 85 5003728 Water pan support gasket 86 Fan cycle control [3]
5003252 Ice deflection baffle when placed on dispensers 9200358 Air deflection baffle 5003399 Hartell water pump impeller kit 5004352 Curtain stop 5003897 Universal capacitor strap
PART NOTES:
[1] - does not include thermistor [2] - N / A [3] - N/A
30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G10 - W
G_parts_sii_3-2.pdf
Page 85
30" WIDE CONTROL BOX EXPLODED VIEW
30" WIDE PANEL EXPLODED VIEW
G Series Cuber

30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G5 - A

30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G5 - A
G_parts_sii_4-2.pdf
Page 86
G Series Cuber
30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G5 - A
AIR COOLED 1 5002868 Enclosure 2 5006530 Bottom assembly 3 5006625 Compressor 115 V 60 Hz. 4 5003899 Wiring harness 5 5006045 Distributor tube 6 88294948 Distributor tube clip 7 5004098 Evaporator assembly MINI 7 5004099 Evaporator assembly FULL 7 5004100 Evaporator assembly JUMBO 8 9200989 Curtain 9 5002463 Water Pan Assembly 10 88295934 Solenoid coil 11 88295936 Hot gas solenoid body only 12 88295938 Drier 13 5006541 Expansion valve 13 5006511 Expansion valve alternate 14 9201097 Manual water purge switch 15 5005030 Circuit board 16 5003872 Compressor relay 17 9201097 Manual water purge switch 18 88917953 Toggle switch 19 High pressure cut out [1] 20 9200639 Guide pin nut plate 21 5006538 Start capacitor 22 5006536 Run capacitor 23 5000609 Transformer 24 5005853 Thermistor kit 25 9200520 Hall switch 26 88295942 Contactor 27 88295943 Refrigerant Service Valve 28 9200009 Water supply tube 29 5001410 Curtain shim Full thickness 29 5001413 Curtain shim Half thickness 30 9201026 Water inlet fitting 31 9200661 Water drain fitting 32 88297693 Retractable curtain guide pin bracket 33 9200508 Water purge solenoid to drain fitting tubing 34 9200540 Water pump to tee tubing 35 9200507 1/2 x 1/2 x 1/2 Tee 36 9200519 Tee to water purge solenoid tubing 37 9200518 Tee to distributor tube tubing 38 9200591 Water flow restrictor 39 9200377 Float assembly 40 88297691 Float bracket 41 88295931 Retractable curtain guide pin
30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G5 - A
G_parts_sii_4-2.pdf
Page 87
G Series Cuber
30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G5 - A
42 Quick connect outlet fitting [1] 43 Quick connect inlet fitting [1] 44 Frame support [1] 45 Rear panel [1] 46 5004342 Rear fitting panel 47 Condenser fitting panel [1] 48 Line coupling bracket [1] 49 Outlet fitting bracket [1] 50 Low pressure control [1] 51 Check valve [1] 52 Receiver bracket [1] 53 Receiver tank [1] 54 88295934 Solenoid coil 55 Pump down solenoid valve body [1] 56 Therm-O-disc [1] 57 Drier bracket [1] 58 88291187 Air condenser 59 88295994 Fan motor 60 88296461 Fan bracket 61 88292271 Fan blade 62 Condenser water fitting [1] 63 Water regulating valve [1] 64 Water condenser [1] 65 5000733 Front panel assembly stainless 66 88298865 Component box cover stainless 67 88298861 Right side panel stainless 68 88296432 Top panel stainless 69 88296435 Left side panel stainless 70 88130485 Front panel screw stainless 71 5000733 Front panel assembly stainless 72 88298865 Component box cover stainless 73 88298861 Right side panel stainless 74 88296432 Top panel stainless 75 88296435 Left side panel stainless 76 88130485 Front panel screw stainless 77 9200695 Water pan to pump tube 78 5004772 Water pump assembly 79 9201092 Horizontal brace 80 5006535 Fan shroud 81 5003918 3/8" nipple 82 1000501 Electric junction box 83 5003245 Electric box cover 84 9201034 Water pan support 85 5003728 Water pan support gasket 86 5000056 Fan cycle control
5003252 Ice deflection baffle when placed on dispensers
30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G5 - A
G_parts_sii_4-2.pdf
Page 88
G Series Cuber
30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G5 - A
9200358 Air deflection baffle 5003399 Hartell water pump impeller kit 5004352 Curtain stop
Compressor heater [1]
5003897 Universal capacitor strap
PART NOTES:
[1] - N/A
30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G5 - A
G_parts_sii_4-2.pdf
Page 89
30" WIDE CONTROL BOX EXPLODED VIEW
30" WIDE PANEL EXPLODED VIEW
G Series Cuber

30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G5 - R

30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G5 - R
G_parts_sii_5-2.pdf
Page 90
G Series Cuber
30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G5 - R
REMOTE COOLED 1 5002868 Enclosure 2 5006529 Bottom assembly 3 5006625 Compressor 115 V 60 Hz. 4 5004247 Wiring harness 5 5006045 Distributor tube 6 88294948 Distributor tube clip 7 5004098 Evaporator assembly MINI 7 5004099 Evaporator assembly FULL 7 5004100 Evaporator assembly JUMBO 8 9200989 Curtain 9 5002463 Water Pan Assembly 10 88295934 Solenoid coil 11 88295936 Hot gas solenoid body only 12 88295938 Drier 13 5006511 Expansion valve alternate 13 5006511 Expansion valve alternate 14 9201097 Manual water purge switch 15 5005030 Circuit board 16 5003872 Compressor relay 17 9201097 Manual water purge switch 18 88917953 Toggle switch 19 5004941 High pressure cut out 20 9200639 Guide pin nut plate 21 5006538 Start capacitor 22 5006536 Run capacitor 23 5000609 Transformer 24 5005853 Thermistor kit 25 9200520 Hall switch 26 88295942 Contactor 27 88295943 Refrigerant Service Valve 28 9200009 Water supply tube 29 5001410 Curtain shim Full thickness 29 5001413 Curtain shim Half thickness 30 9201026 Water inlet fitting 31 9200661 Water drain fitting 32 88297693 Retractable curtain guide pin bracket 33 9200508 Water purge solenoid to drain fitting tubing 34 9200540 Water pump to tee tubing 35 9200507 1/2 x 1/2 x 1/2 Tee 36 9200519 Tee to water purge solenoid tubing 37 9200518 Tee to distributor tube tubing 38 9200591 Water flow restrictor 39 9200377 Float assembly 40 88297691 Float bracket 41 88295931 Retractable curtain guide pin
30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G5 - R
G_parts_sii_5-2.pdf
Page 91
G Series Cuber
30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G5 - R
42 5000052 Quick connect outlet fitting 43 5000053 Quick connect inlet fitting 44 88299743 Frame support 45 5004358 Rear panel 46 5004357 Rear fitting panel 47 5004359 Condenser fitting panel 48 5000054 Line coupling bracket 49 5000055 Outlet fitting bracket 50 9201078 Low pressure control 51 5000048 Check valve 52 5000045 Receiver bracket 53 5000049 Receiver tank 54 88295934 Solenoid coil 55 5000086 Pump down solenoid valve body 56 88296841 Therm-O-disc 57 9200719 Drier bracket 58 Air condenser [1] 59 Fan motor [1] 60 Fan bracket [1] 61 Fan blade [1] 62 Condenser water fitting [1] 63 Water regulating valve [1] 64 Water condenser [1] 65 5000733 Front panel assembly stainless 66 88298865 Component box cover stainless 67 88298861 Right side panel stainless 68 88296432 Top panel stainless 69 88296435 Left side panel stainless 70 88130485 Front panel screw stainless 71 5000733 Front panel assembly stainless 72 88298865 Component box cover stainless 73 88298861 Right side panel stainless 74 88296432 Top panel stainless 75 88296435 Left side panel stainless 76 88130485 Front panel screw stainless 77 9200695 Water pan to pump tube 78 5004772 Water pump assembly 79 9201092 Horizontal brace 80 Fan shroud [1] 81 5003918 3/8" nipple 82 1000501 Electric junction box 83 5003245 Electric box cover 84 9201034 Water pan support 85 5003728 Water pan support gasket 86 Fan cycle control [1]
5003252 Ice deflection baffle when placed on dispensers
30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G5 - R
G_parts_sii_5-2.pdf
Page 92
G Series Cuber
30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G5 - R
9200358 Air deflection baffle 5003399 Hartell water pump impeller kit 5004352 Curtain stop 5006613 Compressor heater 5003897 Universal capacitor strap
PART NOTES:
[1] - N/A
30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G5 - R
G_parts_sii_5-2.pdf
Page 93
30" WIDE CONTROL BOX EXPLODED VIEW
30" WIDE PANEL EXPLODED VIEW
G Series Cuber

30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G5 - W

30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G5 - W
G_parts_sii_6-2.pdf
Page 94
G Series Cuber
30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G5 - W
WATER COOLED 1 5002868 Enclosure 2 5006529 Bottom assembly 3 5006625 Compressor 115 V 60 Hz. 4 5003899 Wiring harness 5 5006045 Distributor tube 6 88294948 Distributor tube clip 7 5004098 Evaporator assembly MINI 7 5004099 Evaporator assembly FULL 7 5004100 Evaporator assembly JUMBO 8 9200989 Curtain 9 5002463 Water Pan Assembly 10 88295934 Solenoid coil 11 88295936 Hot gas solenoid body only 12 88295938 Drier 13 5006541 Expansion valve 13 5006511 Expansion valve alternate 14 9201097 Manual water purge switch 15 5005030 Circuit board 16 5003872 Compressor relay 17 9201097 Manual water purge switch 18 88917953 Toggle switch 19 5004941 High pressure cut out 20 9200639 Guide pin nut plate 21 5006538 Start capacitor 22 5006536 Run capacitor 23 5000609 Transformer 24 5005853 Thermistor kit 25 9200520 Hall switch 26 88295942 Contactor 27 88295943 Refrigerant Service Valve 28 9200009 Water supply tube 29 5001410 Curtain shim Full thickness 29 5001413 Curtain shim Half thickness 30 9201026 Water inlet fitting 31 9200661 Water drain fitting 32 88297693 Retractable curtain guide pin bracket 33 9200508 Water purge solenoid to drain fitting tubing 34 9200540 Water pump to tee tubing 35 9200507 1/2 x 1/2 x 1/2 Tee 36 9200519 Tee to water purge solenoid tubing 37 9200518 Tee to distributor tube tubing 38 9200591 Water flow restrictor 39 9200377 Float assembly 40 88297691 Float bracket 41 88295931 Retractable curtain guide pin
30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G5 - W
G_parts_sii_6-2.pdf
Page 95
G Series Cuber
30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G5 - W
42 Quick connect outlet fitting [1] 43 Quick connect inlet fitting [1] 44 88299743 Frame support 45 5004358 Rear panel 46 5004357 Rear fitting panel 47 5004359 Condenser fitting panel 48 Line coupling bracket [1] 49 Outlet fitting bracket [1] 50 Low pressure control [1] 51 Check valve [1] 52 Receiver bracket [1] 53 Receiver tank [1] 54 88295934 Solenoid coil 55 Pump down solenoid valve body [1] 56 Therm-O-disc [1] 57 Drier bracket [1] 58 Air condenser [1] 59 Fan motor [1] 60 Fan bracket [1] 61 Fan blade [1] 62 88297642 Condenser water fitting 63 88048125 Water regulating valve 64 88296454 Water condenser 65 5000733 Front panel assembly stainless 66 88298865 Component box cover stainless 67 88298861 Right side panel stainless 68 88296432 Top panel stainless 69 88296435 Left side panel stainless 70 88130485 Front panel screw stainless 71 5000733 Front panel assembly stainless 72 88298865 Component box cover stainless 73 88298861 Right side panel stainless 74 88296432 Top panel stainless 75 88296435 Left side panel stainless 76 88130485 Front panel screw stainless 77 9200695 Water pan to pump tube 78 5004772 Water pump assembly 79 9201092 Horizontal brace 80 Fan shroud [1] 81 5003918 3/8" nipple 82 1000501 Electric junction box 83 5003245 Electric box cover 84 9201034 Water pan support 85 5003728 Water pan support gasket 86 Fan cycle control [1]
5003252 Ice deflection baffle when placed on dispensers
30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G5 - W
G_parts_sii_6-2.pdf
Page 96
G Series Cuber
30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G5 - W
9200358 Air deflection baffle 5003399 Hartell water pump impeller kit 5004352 Curtain stop
Compressor heater [1]
5003897 Universal capacitor strap
PART NOTES:
[1] - N/A
30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G5 - W
G_parts_sii_6-2.pdf
Page 97
30" WIDE CONTROL BOX EXPLODED VIEW
30" WIDE PANEL EXPLODED VIEW
G Series Cuber

30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G7 - A

30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G7 - A
G_parts_sii_11-2.pdf
Page 98
G Series Cuber
30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G7 - A
AIR COOLED 1 9200595 Enclosure 2 5004340 Bottom assembly 3 5006021 Compressor 208 / 230 V. 60 Hz 3 5006022 Compressor 208 / 230 V. 60 Hz 3 5006023 Compressor 220 / 240 V. 50 Hz 3 5006024 Compressor 220 / 240 V. 50 Hz 4 5003899 Wiring harness 5 5000790 Distributor tube 6 88294948 Distributor tube clip 7 5004098 Evaporator assembly MINI [1] 7 5004099 Evaporator assembly FULL [1] 7 5004100 Evaporator assembly JUMBO [1] 8 9200989 Curtain 9 5002463 Water Pan Assembly 10 88296419 Solenoid coil 11 88295936 Hot gas solenoid body only 12 88295938 Drier 13 5005851 Expansion valve 13 5001390 Expansion valve alternate 14 9200506 Water dump solenoid 15 5005030 Circuit board 16 5003872 Compressor relay 16 5004234 Relay 208 / 230 V. 60 Hz. 17 9201097 Manual water purge switch 18 88917953 Toggle switch 19 N/A Trans 75VA 120V W/breaker 20 9200639 Guide pin nut plate 21 5003870 Start capacitor 220 / 240 V. 50 Hz. 21 5004837 Start capacitor 220 / 240 V. 50 Hz. 22 5003871 Run capacitor 220 / 240 V. 50 Hz 22 5003871 Run capacitor 220 / 240 V. 50 Hz 23 5000609 Transformer 24 5005853 Thermistor kit 25 9200520 Hall switch 26 88295947 Contactor 27 88295943 Refrigerant Service Valve 28 9200009 Water supply tube 29 5001410 Curtain shim Full thickness 29 5001413 Curtain shim Half thickness 30 9201026 Water inlet fitting 31 9200661 Water drain fitting 32 88297693 Retractable curtain guide pin bracket 33 9200508 Water purge solenoid to drain fitting tubing 34 9200540 Water pump to tee tubing 35 9200507 1/2 x 1/2 x 1/2 Tee
30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G7 - A
G_parts_sii_11-2.pdf
Page 99
G Series Cuber
30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G7 - A
36 9200519 Tee to water purge solenoid tubing 37 9200518 Tee to distributor tube tubing 38 9200591 Water flow restrictor 39 9200377 Float assembly 40 88297691 Float bracket 41 88295931 Retractable curtain guide pin 42 Quick connect outlet fitting [2] 43 Quick connect inlet fitting [2] 44 Frame support [2] 45 5004342 Rear fitting panel 46 Rear fitting panel [2] 47 Condenser fitting panel [2] 48 Line coupling bracket [2] 49 Outlet fitting bracket [2] 50 Low pressure control [2] 51 Check valve [2] 52 Receiver bracket [2] 53 Receiver tank [2] 54 88296419 Solenoid coil 55 Pump down solenoid valve body [2] 56 Therm-O-disc [2] 57 Drier bracket [2] 58 88291187 Air condenser 59 88294922 Fan motor 208 / 230 V. 60 Hz. 59 88296003 Fan motor 220 / 240 V. 50 Hz. 60 88296461 Fan bracket 61 88292272 Fan blade 62 Condenser water fitting [2] 63 Water regulating valve [2] 64 Water condenser [2] 65 88297629 Front panel assembly painted 66 88294992 Component box cover painted 67 88294970 Right side panel painted 68 88292264 Top panel painted 69 88292267 Left side panel painted 70 88298871 Front panel screw brass (painted) 71 88297621 Front panel assembly stainless 72 88298865 Component box cover stainless 73 88298861 Right side panel stainless 74 88296432 Top panel stainless 75 88296435 Left side panel stainless 76 88130485 Front panel screw stainless 77 9200695 Water pan to pump tube 78 5004771 Water pump assembly 79 88294994 Horizontal brace 80 88292932 Fan shroud
30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G7 - A
G_parts_sii_11-2.pdf
Page 100
G Series Cuber
30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G7 - A
81 5003918 3/8" nipple 82 1000501 Electric junction box 83 5003245 Electric box cover 84 9201034 Water pan support 85 5003728 Water pan support gasket 86 5000056 Fan cycle control
5003252 Ice deflection baffle when placed on dispensers 9200358 Air deflection baffle 5003399 Hartell water pump impeller kit 5004352 Curtain stop 5003897 Universal capacitor strap
PART NOTES:
[1] - does not include thermistor [2] - N/A
30 WIDE CONTROL BOX & PANEL EXPLODED VIEW G7 - A
G_parts_sii_11-2.pdf
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
