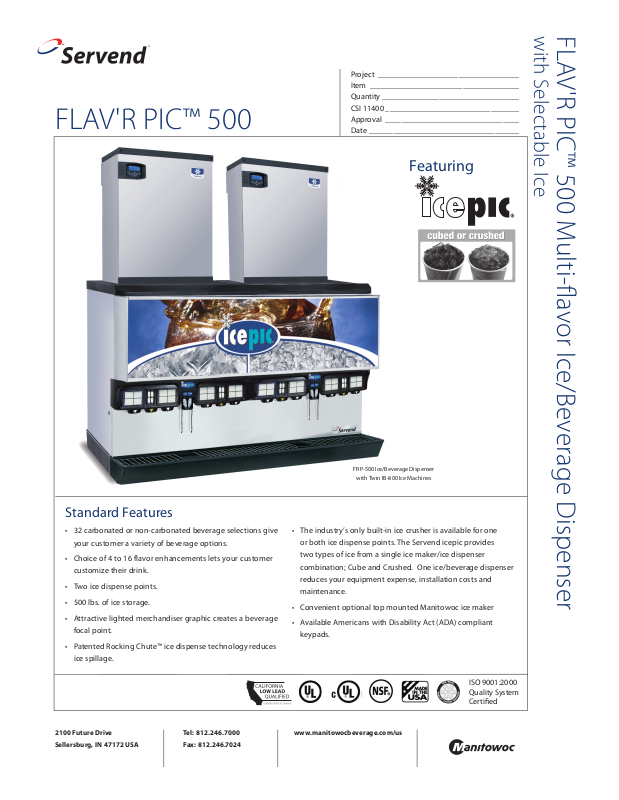

Servend FRP-500 User Manual
FLAV'R PIC™ 500
Project ___________________________________
Item _____________________________________
Quantity __________________________________
CSI 11400 _________________________________
Approval _________________________________
Date _____________________________________
Featuring
FLAV'R PIC™ 500 Multi-fl avor Ice/Beverage Dispenser
with Selectable Ice
Standard Features
• 32 carbonated or non-carbonated beverage selections give
your customer a variety of beverage options.
• Choice of 4 to 16 flavor enhancements lets your customer
customize their drink.
• Two ice dispense points.
• 500 lbs. of ice storage.
• Attractive lighted merchandiser graphic creates a beverage
focal point.
• Patented Rocking Chute™ ice dispense technology reduces
ice spillage.
2100 Future Drive
Sellersburg, IN 47172 USA
Tel: 812.246.7000
Fax: 812.246.7024
FRP-500 Ice/Beverage Dispenser
with Twin IB-800 Ice Machines
• The industry’s only built-in ice crusher is available for one
or both ice dispense points. The Servend icepic provides
two types of ice from a single ice maker/ice dispenser
combination; Cube and Crushed. One ice/beverage dispenser
reduces your equipment expense, installation costs and
maintenance.
• Convenient optional top mounted Manitowoc ice maker
• Available Americans with Disability Act (ADA) compliant
keypads.
ISO 9001:2000
Quality System
Certi ed
www.manitowocbeverage.com/us
FLAV'R PIC™ 500 Multi-fl avor Ice/Beverage Dispenser
with Selectable Ice
Speci cations
Approx. Shipping Weights 756 lbs. / 343 kgs.
Electrical Requirements Dispenser: 120V/60Hz/3.0FLA
Ice Machine Compatibility
Dimensions
Standard Features
Approx. Countertop
Weight (w/o ice)
Ice Storage Capacity (2) 250 lbs. / (2) 113 kgs. bins
Drain
Number of Valves
Manifold Carb/Non-carb exibility across all dispense points.
Options
Internal carbonation, lighted merchandiser, Flav'rpic graphics,
key switch, and drain kit.
686 lbs. / 311 kgs.
Single 0.75 (1.91 cm) PVC (N.P.T.) drain fitting extends from drain pan.
Dispenser can be drained from the bottom or back of unit.
32 flavor capable (all syrups chilled) with 8 dispense points,
Up to 16 flavor shots/enhancements, with 4 dispense points.
Manual fill or top-mount with compatible ice machines.
Contact factory for adapter kit requirements for
top-mounted ice machine applications.
Selectable icepic® feature, side splash panels, installation and backroom
packages/kits.
Dispenser available with ADA-compliant keypads.
Width
Depth
Height*
*Height dimension without full lid and with
included leg kit.
>Add .5" (1.27 cm) for full lid.
>Subtract 4" (10.2 cm) if not using the leg kit.
This unit has been tested at conditions of 90oF (32.2oC / 65% Relative Humidity with no noticeable condensation.
Conditions in excess of those listed may result in condensation on the outside of the dispenser.
2100 Future Drive
Sellersburg, IN 47172 USA
Tel: 812.246.7000
Fax: 812.246.7024
www.manitowocbeverage.com/us
FRP-500
60.00"
152.40 cm
31.13"
79.07 cm
40.88"
103.80 cm
5208A ©2015 Servend 6/15 Continuing product improvement may necessitate change of specifications without notice.
