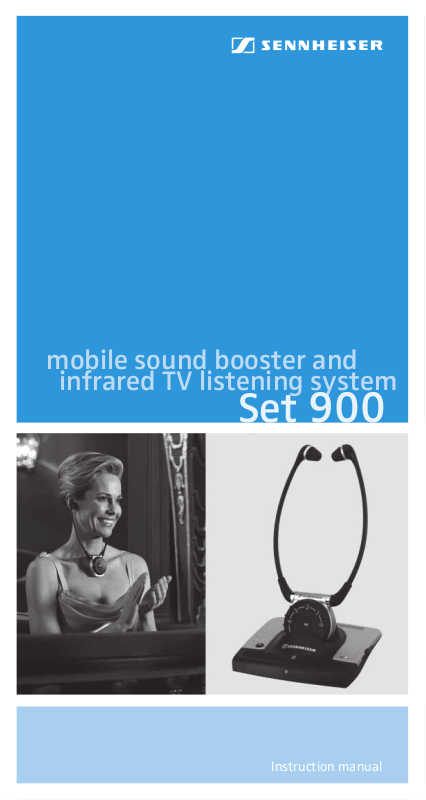

Sennheiser BW Set 900 User Manual

mobile sound booster and

infrared TV listening system

Set 900

Instruction manual

Contents

Safety instructions ................................................................. 2

Delivery includes ..................................................................... 4

Product overview .................................................................... 5

Putting the Set 900 into operation .................................... 6

Setting up the transmitter ............................................... 6

Connecting the transmitter to a sound source ............ 7

Connecting the transmitter to the mains ................... 10

Using the Set 900 ................................................................. 10

Switching the transmitter on/off ................................. 11

Switching the receiver on/off ........................................ 11

Searching for a sound source ......................................... 12

Adjusting the volume ...................................................... 14

Adjusting the balance .................................................... 14

Switching between mono and stereo operation ........ 14

Individually enhancing the speech intelligibility ....... 15

Switching the microphones on/off ............................... 16

Storing and charging the receiver ................................ 17

Charging a rechargeable battery

in the transmitter’s charging compartment .............. 18

Folding up the receiver for transportation ................. 19

What if... ................................................................................. 20

...this indicator lights up? ............................................... 20

...you press this button? ................................................. 21

...you change the position of this control/switch? .... 21

...you hear acoustic signals or warning signals? ........ 22

Cleaning the Set 900 ............................................................ 23

Cleaning the transmitter and the receiver .................. 23

Cleaning the earpads ....................................................... 23

If a problem occurs ... ........................................................... 24

Additional technical information ...................................... 27

Fine adjusting the speech intelligibility ........................ 27

Changing the operating mode ........................................ 28

Accessories and spare parts ............................................... 30

Specifications ........................................................................ 31

Manufacturer declarations ................................................. 33

Index ........................................................................................ 34

Safety instructions

y Please read this instruction manual carefully and completely before

using the devices.

y Make this instruction manual easily accessible to all users at all

times. Always include this instruction manual when passing the devices on to third parties.

y Do not use the devices in situations which require special attention

(e.g. when performing skilled jobs).

y Always keep the devices dry and do not expose them to extreme

temperatures.

y Use the devices with care and set them up in a clean, dust-free

environment.

y Varnish or furniture polish may degrade the feet of the transmitter,

which could stain your furniture. You should therefore place the transmitter on a non-slip pad to avoid potential staining of furniture.

y This receiver allows you to set higher volumes than conventional

headphones. This can cause hearing damage in persons with healthy hearing and especially in children.

y Refer all servicing to qualified service personnel. Servicing is

required if the devices have been damaged in any way, such as mains cable or plug damage, liquid has been spilled, objects have fallen inside, the devices have been exposed to rain or moisture, do not operate properly or have been dropped.

y WARNING: To reduce the risk of fire or electric shock, do not expose

the device and the mains unit to rain or moisture.

y Use only the supplied mains unit. y Disconnect the mains connector from the wall socket

– to completely disconnect the device from the mains, – during lightning storms or when unused for long periods of time.

y Ensure that the mains unit is:

– always readily operable and easily accessible, – properly plugged into the wall socket, – not covered or exposed to direct sunlight for longer periods of

time in order to prevent heat accumulation,

– only operated within the permissible temperature range (see

“Specifications” on page 31),

– not operated near heat sources.

Safety instructions

Intended use of the devices

Intended use includes: y having read this instruction manual, especially the chapter “Safety

instructions”,

y using the devices within the operating conditions and limitations

described in this instruction manual.

“Improper use” means using the devices other than as described in this instructions, or under operating conditions which differ from those described herein.

Safety instructions for the Lithium-Ion rechargeable battery

The BA 300 is a Lithium-Ion rechargeable battery. If abused or misused, this rechargeable battery may be damaged. Please understand that Sennheiser does not accept liability for damage arising from abuse or misuse.

WARNING! In extreme cases, the rechargeable battery may even

present a

y heat hazard y fire hazard y explosion hazard y smoke and gas hazard

Do not heat above 70°C/158°F, e.g. do not expose to sunlight or throw into a fire.

Do not expose to moisture.

Do not short-circuit. Only charge rechargeable

Do not mutilate or dismantle.

Store the devices/ rechargeable batteries

in a cool and dry place at room temperature.

Only charge rechargeable batteries with the appropriate Sennheiser chargers.

When not using the rechargeable battery for extended periods of time, charge it regularly (every six months for about one hour).

batteries at ambient temperatures between 10°C and 40°C.

Do not charge the rechargeable battery if the device is obviously defective.

Return defective devices or devices with defective rechargeable batteries to your specialist dealer.

Delivery includes

Delivery of the Set 900 system includes:

1 RI 900 receiver

with BA 300 Lithium-Ion rechargeable battery

1 TI 900 transmitter

with integrated charging compart-ments

1 NT 13 mains unit

with 3 country adapters (EU, UK, US)

1 connection cable

with two 3.5 mm stereo jack plugs for connection to a headphone socket

3 audio adapters:

1 adapter 3.5 mm to ¼“ (6.3 mm) jack plug

1 adapter for RCA socket

1 SCART adapter for SCART socket

2 pairs of spare earpads

1 transport case for receiver

1 hand strap for transport case 1 instruction manual

Product overview

Receiver (see inside cover)

Product overview

1 Channel indicator 2 Microphone indicator 3 Volume control 4 Microphone button

Transmitter (see inside cover)

9 Charging compartment for receiver 0 Charging compartment for optional spare

rechargeable battery

A Charging indicator for optional spare rechargeable

battery

B Charging indicator for receiver’s rechargeable

battery

C Operation indicator D “Speech intelligibility” button E Indicator for the selected speech intelligibility

5 Microphone openings

(at the sides)

6 Balance control 7 Channel search button 8 Battery compartment

F Socket (marked blue) for connection of sound source or

external microphone

G Mono/stereo slide switch H Treble adjustment control I DC socket (marked yellow) for connection of mains unit

Putting the Set 900 into operation

Setting up the transmitter

왘 Place the transmitter so that:

– there are no obstacles in the light path between trans-

mitter and receiver and

– transmitter and receiver are not exposed to direct

sunlight. Direct sunlight may interfere with the reception and may damage the transmitter.

If you are using a plasma TV screen: Plasma TV screens radiate an infra-red signal that can

adversely affect the transmission quality.

왘 Make sure that the transmitter is placed as far as

possible from your plasma TV screen.

왘 If necessary, use a standard extension cable (3.5 mm

stereo jack plug) to reduce the distance between transmitter and receiver. This extension cable is available from your Sennheiser dealer.

Note:

One transmitter can be used to transmit to several receivers on the same frequency.

Putting the Set 900 into operation

ABC

Connecting the transmitter to a sound source

왘 Switch your sound source (e.g. TV) off before connecting

the transmitter.

왘 Plug one end of the connection cable L into the blue

socket F on the transmitter.

왘 Check the connection possibilities of your sound source

(e.g. TV).

Connection possibility

Socket on sound source

Name of connection possibility

왘 Select one of the four connection possibilities , ,

or and follow the instructions in the corresponding chapter.

Note:

If there are several connections ( , or ) available, select the SCART socket .

Headphone socket

RCA socket

SCART socket

–

MKE 800 TV-N external

microphone*

The MKE 800 TV-N microphone is available as an

accessory (see page 30).

Putting the Set 900 into operation

Connecting the transmitter to a headphone socket

왘 Plug the other end of the connec-

tion cable L into the headphone socket on your sound source.

Is the plug on the connection cable too small for the headphone socket?

왘 Plug the adapter to ¼“ (6.3 mm)

jack socket M onto the connection cable.

왘 Adjust the volume of the headphone socket on your

sound source to a medium level. This improves the quality of cordless sound transmission. For detailed information, please refer to the instruction manual of your sound source (e.g. TV).

Note:

With most TVs, the headphone socket is located at the front or sides.

Connecting the transmitter to an RCA socket

왘 Plug the adapter for RCA

socket N onto the connection cable L.

왘 Connect the red connector of

the adapter to the red RCA socket R of your sound source.

왘 Connect the white connector of

the adapter N to the white or black RCA socket L of your sound source.

Note:

With most TVs, the RCA socket is located at the rear.
