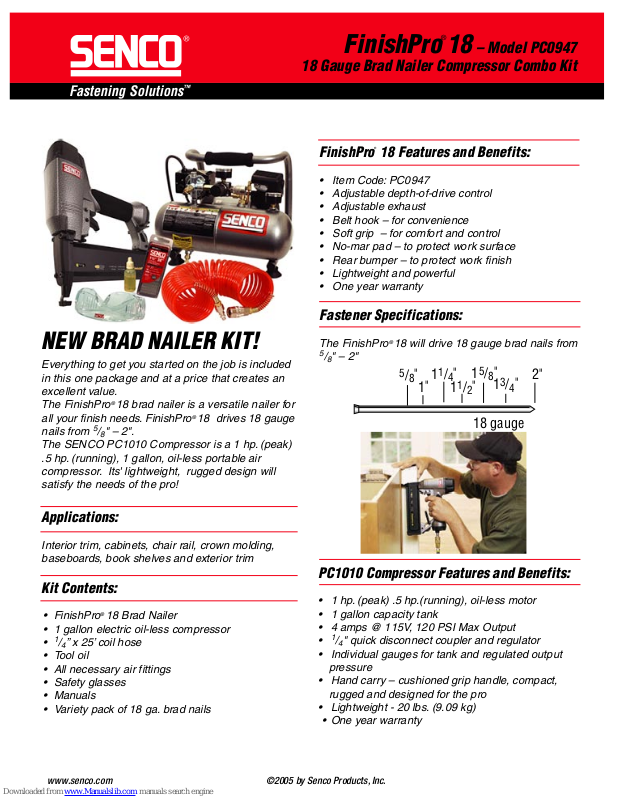

Senco Brad Nailer Compressor Combo Kit PC0947, FinishPro 18, PC0947 Specification Sheet
FinishPro®18 – Model PC0947
18 Gauge Brad Nailer Compressor Combo Kit
Fastening Solutions
™
NEW BRAD NAILER KIT!
Everything to get you started on the job is included
in this one package and at a price that creates an
excellent value.
®
The FinishPro
all your finish needs. FinishPro
nails from 5/8" – 2".
The SENCO PC1010 Compressor is a 1 hp. (peak)
.5 hp. (running), 1 gallon, oil-less portable air
compressor. Its' lightweight, rugged design will
satisfy the needs of the pro!
18 brad nailer is a versatile nailer for
®
18 drives 18 gauge
FinishPro® 18 Features and Benefits:
• Item Code: PC0947
• Adjustable depth-of-drive control
• Adjustable exhaust
• Belt hook – for convenience
• Soft grip – for comfort and control
• No-mar pad – to protect work surface
• Rear bumper – to protect work finish
• Lightweight and powerful
• One year warranty
Fastener Specifications:
®
The FinishPro
5
/8" – 2"
18 will drive 18 gauge brad nails from
5
"
/
8
1
"
11/
"
4
11/
2
15/
"
8
"
13/
"
4
18 gauge
2"
Applications:
Interior trim, cabinets, chair rail, crown molding,
baseboards, book shelves and exterior trim
Kit Contents:
®
• FinishPro
• 1 gallon electric oil-less compressor
• 1/4” x 25’ coil hose
• Tool oil
• All necessary air fittings
• Safety glasses
• Manuals
• Variety pack of 18 ga. brad nails
www.senco.com ©2005 by Senco Products, Inc.
18 Brad Nailer
PC1010 Compressor Features and Benefits:
• 1 hp. (peak) .5 hp.(running), oil-less motor
• 1 gallon capacity tank
• 4 amps @ 115V, 120 PSI Max Output
• 1/4" quick disconnect coupler and regulator
• Individual gauges for tank and regulated output
pressure
• Hand carry – cushioned grip handle, compact,
rugged and designed for the pro
• Lightweight - 20 lbs. (9.09 kg)
• One year warranty
Fastening Solutions
™
FinishPro®18 – Model PC0947
18 Gauge Brad Nailer Compressor Combo Kit
For additional information on how Senco Power Fastening Systems will save you time, reduce costs and increase quality, call our toll-free
Action Line: 1-800-543-4596 or visit our website @ www.senco.com to locate the dealer nearest you.
www.senco.com ©2005 by Senco Products, Inc.
1 gal Tank
1/4" Quick
Disconnect
Coupler
Tank Pressure
Gauge
Regulator & Outlet
Pressure Gauge
120 PSI Max Output
Easy Grip Handle
Adjustable
Depth-of-Drive
No-Mar Pad
Adjustable
Exhaust
Full Comfort Grip
Belt Hook
Rear Bumper
FinishPro® 18 Brad Nailer
PC1010 1 hp (peak) .5 (running), 1 gal, Oil-Less
1 hp peak,
Oil-Less Motor
4 amps @ 115V
Specifications:
Tool Weight: 3 lbs (1.6 kg)
Height: 9.3" (238 mm)
Length: 9.75" (248 mm)
Nail Capacity: 110
Nail Range:
5
/8" – 2"
Nail Gauge: 18
Reg. Operating Pressure: 70-95 psig
Warranty: 1 year
Specifications:
Power source: Electric
Max. amp: 4 amps @115V
Horsepower: 1 hp. (peak) .5 hp.(running)
Pump: Oil-less
SCFM @ 90 psi: 0.7
Pump-up time: 0 - 120 psi 128 seconds
Recovery time: 90 - 120 psi 35 seconds
Max pressure: 120 psi
Tank storage: 1 gallon
Weight: 20 lbs. (9.09 kg)
Dimensions: length 14", height 13", width 10"
Warranty: 1 year
Lightweight
3 lbs.
Lightweight
20 lbs.
