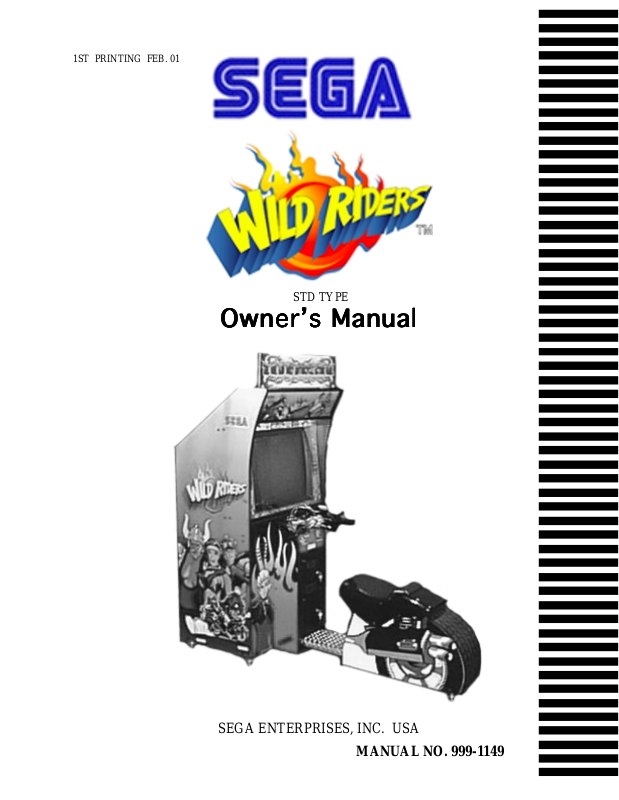

Sega WILD RIDER STANDARD TYPE User Manual
1ST PRINTING FEB. 01
STD TYPE
Owner’s ManualOwner’s Manual
Owner’s Manual
Owner’s ManualOwner’s Manual
SEGA ENTERPRISES, INC. USA
MANUAL NO. 999-1149
Warranty
Your new Sega Product is covered for a period of 90 days from the date of shipment. This certifies
that the Printed Circuit Boards, Power Supplies and Monitor are to be free of defects in workmanship or materials under normal operating conditions. This also certifies that all Interactive Control
Assemblies are to be free from defects in workmanship and materials under normal operating conditions. No other product in this machine is hereby covered.
Sellers sole liability in the event a warranted part described above fails shall be, at its option, to
replace or repair the defective part during the warranty period. For Warranty claims, contact your
Sega Distributor.
Should the Seller determine, by inspection that the product was caused by Accident, Misuse, Neglect, Alteration, Improper Repair, Installation or Testing, the warranty offered will be null and void.
Under no circumstances is the Seller responsible for any loss of profits, loss of use, or other damages.
This shall be the exclusive written Warranty of the original purchaser expressed in lieu of all other
warranties expressed or implied. Under no circumstance shall it extend beyond the period of time
listed above.
BEFORE USING THE PRODUCT, BE SURE TO READ THE FOLLOWING:
To maintain the safety:
To ensure the safe usage of the product, be sure to read the following before using the product. The following
instructions are intended for the users, operators and the personnel in charge of the operation of the product.
After carefully reading and sufficiently understanding the warning displays and cautions, handle the product
appropriately. Be sure to keep this manual nearby the product or elsewhere convenient for referring to it
when necessary .
Herein, explanations which require special attention are enclosed with dual lines. Depending on the potentially hazardous degrees, the terms of WARNING, CAUTION, etc. are used. Be sure to understand the
contents of the displays before reading the text.
Indicates that mishandling the
product by disregarding this
warning will cause a potentially
hazardous situation which can
result in death or serious injury.
For the sage usage of the product, the following pictographs are used:
Indicates “HANDLE WITH CARE.” In order to protect the human body an equipment, this
display is attached to places where the Owner’s Manual and or Service Manual should be referred
to.
Perform work in accordance with the instructions herein stated.
Instructions for work are explained by paying attention to the aspect of accident prevention. Failing to
perform work as per the instructions can cause accidents. In the case where only those who have technical expertise should perform the work to avoid hazardous situation, the instructions herein state that the
serviceman should perform such work.
Be sure to turn off power before working on the machine.
To prevent electric shock, be sure to turn off power before starting the work in which the worker touches
the interior of the product. If the work is to be performed in the power-on status, the Instruction Manual
herein always states to that effect.
Indicates that mishandling the product
by disregarding this caution will cause
a slight hazardous situation which can
result in personal injury and or material
damage.
Be sure to ground the Earth Terminal (this, however, is not required in the case where a power cord
with earth is used).
This product is equipped with the Earth Terminal. When installing the product, Connect the Earth Terminal to the “accurately grounded indoor earth terminal” by using an earth wire. Unless the product is
grounded appropriately, the user can be subject to electric shock. After performing repair, etc. for the
Control equipment, ensure that the Earth Wire is firmly connected to the Control equipment.
Ensure that the Power Supply used is equipped with an Earth Leakage Breaker.
This product does not incorporate the Earth Leakage Breaker. Using a power supply which is not
equipped with the Earth Leakage Breaker can cause a fire when earth leakage occurs.
Be sure to use fuses which meet the specified rating. (only for the machines which use fuses).
Using fuses exceeding the specified rating can cause a fire and electric shock.
Specification changes (removal of equipment, conversion and addition) not designated by SEGA
are not allowed.
The parts of the product include warning labels for safety, covers for personal protection, etc. It is very
hazardous to operate the product by removing parts and or modifying the circuits. Should doors, lids
and protective parts be damaged or lost, refrain from operating the product, and contact where the
product was purchased from or the office herein stated. SEGA shall not be held responsible for any
accidents, compensation for damage to a third party, resulting from the specifications not designated by
SEGA.
Ensure that the product meets the requirements of appropriate Electrical Specifications.
Before installing the product, check for Electrical Specifications. SEGA products have a nameplate on
which Electrical Specifications are described. Ensure that the product is compatible with the power
supply voltage and frequency requirements of the location. Using any Electrical Specifications different
from the designated Specifications can cause a fire and electric shock.
Install and operate the product in places where appropriate lighting is available, allowing warning
labels to be clearly read.
To ensure safety for the customers, labels and printed instructions describing potentially hazardous
situation are applied to places where accidents can be caused. Ensure that where the product is operated
has sufficient lighting allowing the warnings to be read. If any label is peeled off, apply it again immediately. Please place an order with where the product was purchased from or the office herein stated.
When handling the Monitor, be very careful. (Applies only to the product w/monitor.)
Some of the monitor (TV) parts are subject to high tension voltage. Even after running off power, some
portions are still subject to high tension voltage sometimes. Monitor repair and replacement should be
performed only be those technical personnel who have knowledge of electricity and technical expertise.
Be sure to adjust the monitor (projector) properly. (Applies only to the product w/monitor.)
Do not operate the product leaving on-screen flickering or blurring as it is. Using the product with the
monitor not properly adjusted may cause dizziness or a headache to an operator, a player, or the customers.
When transporting or reselling this product, be sure to attach this manual to the product.
In the case where commercially available monitors and printers are used in this product, only the
contents relating to this product are explained herein. Some commercially available equipment has
functions and reactions not stated in this manual. Read this manual together with the specific Instruction Manual of such equipment.
•
Descriptions herein contained may be subject to improvement changes without notice.
•
The contents described herein are fully prepared with due care. However, should any question arise or
errors be found, please contact SEGA.
INSPECTIONS IMMEDIATELY AFTER TRANSPORTING THE PRODUCT TO THE LOCATION.
Normally, at the time of shipment, SEGA products are in a status allowing for usage immediately after
transporting to the location. Nevertheless, an irregular situation may occur during transportation. Before
turning on power, check the following points to ensure that the product has been transported in a satisfactory status.
Are there any dented portions or defects (cuts, etc.) on the external surfaces of the cabinet?
Are Casters and Adjusters, damaged?
Do the power supply voltage and frequency requirements meet with those of the location?
Are all wiring connectors correctly and securely connected? Unless connected in the correct direction,
connector connections can not be made accurately. Do not insert connectors forcibly.
Do power cords have cuts and dents?
Do the fuses used meet specified rating? Is the Circuit Protector in an energized status?
Are all accessories available?
Can all Doors and Lids be opened with the Accessory keys? Can Doors and Lids be firmly closed?
TABLE OF CONTENTS
BEFORE USING THE PRODUCT, BE SURE TO READ THE FOLLOWING:
TABLE OF CONTENTS
INTRODUCTION OF THE OWNER’S MANUAL
1. HANDLING PRECAUTIONS ..........................................................................................
2. PRECAUTIONS CONCERNING INSTALLATION LOCATION ...................................
3. OPERATION .....................................................................................................................
4. ACCESSORIES .................................................................................................................
5. ASSEMBLING AND INSTALLATION ............................................................................
6. PRECAUTIONS TO BE HEEDED WHEN MOVING THE MACHINE ........................
7. CONTENTS OF GAME ....................................................................................................
8. EXPLANATION OF TEST AND DATA DISPLAY .........................................................
8 - 1 SWITCH UNIT AND COIN METER ............................................................
8 - 2 SYSTEM TEST MODE ..................................................................................
8 - 3 GAME TEST MODE ......................................................................................
9. CONTROL PANEL .............................................................................................................
9 - 1 ADJUSTING/REPLACING THE HANDLBAR VOLUME ...........................
9 - 2 ADJUSTING/REPLACING THE ACCELERATOR VOLUME .....................
9 - 3 REPLACING THE CONTROL STICK’S MICROSWITCH ..........................
9 - 4 GREASING ......................................................................................................
9 - 5 REPLACING THE SPRING ............................................................................
10. REAR BRAKE..................................................................................................................
10 - 1 REMOVING THE BRAKE UNIT .................................................................
10 - 2 ADJUSTING/REPLACING THE REAR BRAKE VOLUME ......................
10 - 3 GREASING ....................................................................................................
11. MONITOR ........................................................................................................................
11 - 1 CAUTIONS AND WARNINGS CONCERNING THE SAFETY FOR
HANDLING THE MONITORS .....................................................................
11 -2 CAUTIONS TO BE HEEDED WHEN CLEANING THE CRT
SURFACES ....................................................................................................
12. COIN SELECTOR ............................................................................................................
13. PERIODIC INSPECTION TABLE ..................................................................................
14. TROUBLESHOOTING ....................................................................................................
15. GAME BOARD ................................................................................................................
15 - 1 TAKING OUT THE GAME BOARD ...........................................................
15 - 2 COMPOSITION OF GAME BOARD ...........................................................
15 - 3 REPAIR/SERVICING AND CARTON BOX ...............................................
16. DESIGN RELATED PARTS ............................................................................................
17. PARTS LIST .....................................................................................................................
18. WIRE COLOR CODE TABLE .........................................................................................
19. WIRING DIAGRAM ........................................................................................................
1 -2
3 - 4
5 - 7
8
9 - 15
16
17 - 20
21 - 43
22
23 - 35
36 - 43
44 - 54
45 - 47
48
49
50 - 53
54
55 - 58
55 - 56
56
57 - 58
59 - 61
59 - 61
61
62 - 66
67
68 - 71
72 - 76
72 - 73
74
75 - 76
77
78 - 95
96
97 - 98
SPECIFICATIONS
Length : 74 inches
Height : 65 inches.
Width : 31 inches
Weight : Approx. 400 lbs.
MONITOR : 29 INCH COLOR MONITOR
INTRODUCTION OF THE OWNERS MANUAL
This Owner's Manual is intended to provide detailed descriptions together with all
the necessary information covering the general operation of electronic assemblies,
electromechanicals, servicing control, spare parts, etc. as regards the product,
WILD RIDER STD TYPE.
This manual is intended for the owners, personnel and managers in charge of
operation of the product. Operate the product after carefully reading and sufficiently
understanding the instructions. If the product fails to function satisfactorily, nontechnical personnel should under no circumstances touch the internal system. Please
contact where the product was purchased from.
Use of this product is unlikely to cause physical injuries or damages to property. However,
where special attention is required this is indicated by a thick line, the word "IMPORTANT"
and its sign in this manual.
STOP
Indicates that mishandling the product by disregarding this display can cause the
product's intrinsic performance not to be obtained, resulting in malfunctioning.
IMPORTANT
SEGA ENTERPRISES, INC. (U.S.A.)/CUSTOMER SERVICE
45133 Industrial Drive, Fremont, California 94538, U.S.A.
Phone : (415) 701-6580
Fax : (415) 701-6594
DEFINITION OF LOCATION MAINTENANCE MAN AND SERVICEMAN
Non-technical personnel who do not have technical knowledge and expertise should
refrain from performing such work that this manual requires the location's
maintenance man or a serviceman to carry out, or work which is not explained in
this manual. Failing to comply with this instruction can cause a severe accident
such as electric shock.
Ensure that parts replacement, servicing & inspections, and troubleshooting are performed by the
location's maintenance man or the serviceman. It is instructed herein that particularly hazardous
work should be performed by the serviceman who has technical expertise and knowledge.
The location's maintenance man and serviceman are herein defined as follows:
"Location's Maintenance Man" :
Those who have experience in the maintenance of amusement equipment and vending machines,
etc., and also participate in the servicing and control of the equipment through such routine work
as equipment assembly and installation, servicing and inspections, replacement of units and
consumables, etc. within the Amusement Facilities and or locations under the management of the
Owner and Owner's Operators of the product.
Activities of Location's Maintenance Man :
Assembly & installation, servicing & inspections, and replacement of units & consumables as
regards amusement equipment, vending machines, etc.
Serviceman :
Those who participate in the designing, manufacturing, inspections and maintenance service of
the equipment at an amusement equipment manufacturer.
Those who have technical expertise equivalent to that of technical high school graduates as regards electricity, electronics and or mechanical engineering, and daily take part in the servicing &
control and repair of amusement equipment.
Serviceman's Activities :
Assembly & installation and repair & adjustments of electrical, electronic and mechanical parts of
amusement equipment and vending machines.
LISTED
U
®
L
5K92
AMUSEMENT MACHINE
1. HANDLING PRECAUTIONS
When installing or inspecting the machine, be very careful of the following points and pay
attention to ensure that the player can enjoy the game safely.
Non-compliance with the following points or inappropriate handling running counter to the
cautionary matters herein stated can cause personal injury or damage to the machine.
Before performing work, be sure to turn power off. Performing the work
without turning power off can cause an electric shock or short circuit. In the
case work should be performed in the status of power on, this manual always
states to that effect.
To avoid electric shock or short circuit, do not plug in or unplug quickly.
To avoid electric shock, do not plug in or unplug with a wet hand.
Do not expose Power Cords and Earth Wires on the surface, (floor, passage,
etc.). If exposed, the Power Cords and Earth Wires are susceptible to damage.
Damaged cords and wires can cause electric shock or short circuit.
To avoid causing a fire or electric shock, do not put things on or damage
Power Cords.
When or after installing the product, do not unnecessarily pull the power cord.
If damaged, the power cord can cause a fire or electric shock.
In case the power cord is damaged, ask for replacement through where the
product was purchased from or the office herein stated. Using the cord as is
damaged can cause fire, electric shock or leakage.
Be sure to perform grounding appropriately. Inappropriate grounding can
cause an electric shock.
Be sure to use fuses meeting specified rating. Using fuses exceeding the
specified rating can cause a fire or electric shock.
Completely make connector connections for IC BD and others. Insufficient
insertion can cause an electric shock.
Specification changes, removal of equipment, conversion and/or addition, not
designated by SEGA are not permitted.
• Failure to observe this may cause a fire or an electric shock. Non-compliance
with this instruction can have a bad influence upon physical conditions of the
players or the lookers-on, or result in injury during play.
• SEGA shall not be held responsible for damage, compensation for damage to
a third party, caused by specification changes not designated by SEGA.
Be sure to perform periodic maintenance inspections herein stated.
1
STOP
IMPORTANT
For the IC board circuit inspections, only the logic tester is allowed. The use
of a multiple-purpose tester is not permitted, so be careful in this regard.
When cleaning the CRT surfaces, use a soft, dry cloth. Do not apply
chemicals such as thinner, benzine, etc.
The electronic parts on the IC Board could be damaged due to human body's
static electricity. Before performing IC Board related work, be sure to
discharge physically accumulated statics by touching grounded metallic
surfaces, etc.
Some parts are the ones designed and manufactured not specifically for this
game machine. The manufacturers may discontinue, or change the
specifications of, such general-purpose parts. If this is the case, Sega cannot
repair or replace a failed game machine whether or not a warranty period has
expired.
2
2. PRECAUTIONS CONCERNING INSTALLATION
LOCATION
This product is an indoor game machine. Do not install it outside. Even indoors,
avoid installing in places mentioned below so as not to cause a fire, electric shock,
injury and or malfunctioning.
Places subject to rain or water leakage, or places subject to high humidity in
the proximity of an indoor swimming pool and or shower, etc.
Places subject to direct sunlight, or places subject to high temperatures in the
proximity of heating units, etc.
Places filled with inflammable gas or vicinity of highly inflammable/volatile
chemicals or hazardous matter.
Dusty places.
Sloped surfaces.
Places subject to any type of violent impact.
Vicinity of anti-disaster facilities such as fire exits and fire extinguishers.
The operating (ambient) temperature range is from 5 Celsius to 40 Celsius.
Only in the case a projector is employed, the temperature range is from 5
Celsius to 30 Celsius.
LIMITATIONS OF USAGE REQUIREMENTS
Be sure to check the Electrical Specifications.
Ensure that this product is compatible with the location's power supply,
voltage and frequency requirements.
A plate describing Electrical Specifications is attached to the product.
Non-compliance with the Electrical Specifications can cause a fire and
electric shock.
This product requires the Breaker and Earth Mechanisms as part of the
location facilities. Using them in a manner not independent can cause a fire
and electric shock.
Ensure that the indoor wiring for the power supply is rated at 7A or higher
(AC single phase 100 ~ 120V area), and 4A or higher (AC 220 ~ 240V area).
Non-compliance with the Electrical Specifications can cause a fire and
electric shock.
Be sure to independently use the power supply equipped with the Earth
Leakage Breaker. Using a power supply without the Earth Leakage Breaker
can cause an outbreak of fire when earth leakage occurs.
Putting many loads on one electrical outlet can cause generation of heat and a
fire resulting from overload.
When using an extension cord, ensure that the cord is rated at 7A or higher
(AC 100 ~ 120V area) and 4A or higher (AC 220 ~ 240V area). Using a cord
rated lower than the specified rating can cause a fire and electric shock.
3
OPERATION AREA
For the operation of this machine, secure a minimum area of 1.3m (W) X
1.6m (D). In order to prevent injury resulting from the falling down accident
during game play, be sure to secure the minimum area for operation.
Be sure to provide sufficient space so as to allow this product's ventilation fan
to function efficiently. To avoid machine malfunctioning and a fire, do not
place any obstacles near the ventilation opening.
SEGA shall not be held responsible for damage, compensation for damage to
a third party, resulting from the failure to observe this instruction.
STOP
For transporting the machine into the location's building, the minimum necessary
dimensions of the opening (of doors, etc.) are 0.8m(W) and 1.8m(H).
IMPORTANT
Electric current consumption
MAX. 3.66 A (AC 110V 50 Hz)
MAX. 3.57 A (AC 110V 60 Hz)
MAX. 3.25 A (AC 120V 60 Hz)
MAX. 1.83 A (AC 220V 50 Hz)
MAX. 1.82 A (AC 220V 60 Hz)
MAX. 1.77 A (AC 230V 50 Hz)
MAX. 1.73 A (AC 230V 60 Hz)
MAX. 1.70 A (AC 240V 50 Hz)
MAX. 1.68 A (AC 240V 60 Hz)
MAX. 3.70 A (For TAIWAN)
4
3. OPERATION
PRECAUTIONS TO BE HEEDED BEFORE STARTING THE OPERATION
To avoid injury and trouble, be sure to constantly give careful attention to the behavior and
manner of the visitors and players.
In order to avoid accidents, check the following before starting the operation:
To ensure maximum safety for the players and the customers, ensure that
where the product is operated has sufficient lighting to allow any warnings to
be read. Operation under insufficient lighting can cause bodily contact with
each other, hitting accident, and or trouble between customers.
Be sure to perform appropriate adjustment of the monitor (projector). For
operation of this machine, do not leave monitor's flickering or deviation as is.
Failure to observe this can have a bad influence upon the players' or the
customers' physical conditions.
It is suggested to ensure a space allowing the players who feel sick while
playing the game to take a rest.
Check if all of the adjusters are in contact with the surface. If they are not, the
Cabinet can move and cause an accident.
5
Do not put any heavy item on this product. Placing any heavy item on the
product can cause a falling down accident or parts damage.
Do not climb on the product. Climbing on the product can cause falling down
accidents. To check the top portion of the product, use a step.
To avoid electric shock, check to see if door & cover parts are damaged or
omitted.
To avoid electric shock, short circuit and or parts damage, do not put the
following items on or in the periphery of the product.
Flower vases, flowerpots, cups, water tanks, cosmetics, and receptacles/
containers/vessels containing chemicals and water.
To avoid injury, be sure to provide sufficient space by considering the potentially
crowded situation at the installation location. Insufficient installation space can
cause making bodily contact with each other, hitting accidents, and or trouble
between customers.
PRECAUTIONS TO BE HEEDED DURING OPERATION (PAYING ATTENTION TO CUSTOMERS)
To avoid injury and trouble, be sure to constantly give careful attention to the behavior and
manner of the visitors and players.
To avoid injury and accidents, those who fall under the following categories
are not allowed to play the game.
• Those who need assistance such as the use of an apparatus when walking.
• Those who have high blood pressure or a heart problem.
• Those who have experienced muscle convulsion or loss of consciousness when
playing video game, etc.
• Those who have a trouble in the neck and or spinal cord.
• Intoxicated persons.
• Pregnant women or those who are in the likelihood of pregnancy.
• Persons susceptible to motion sickness.
• Persons whose act runs counter to the product's warning displays.
A player who has never been adversely affected by light stimulus might
experience dizziness or headache depending on his physical condition when
playing the game. Especially, small children can be subject to those
conditions. Caution guardians of small children to keep watch on their
children during play.
Instruct those who feel sick during play to have a medical examination.
To avoid injury resulting from falling down and electric shock due to spilled
drinks, instruct the player not to place heavy items or drinks on the product.
To avoid electric shock and short circuit, do not allow customers to put hands
and fingers or extraneous matter in the openings of the product or small
openings in or around the doors.
To avoid falling down and injury resulting from falling down, immediately
stop the customer's leaning against or climbing on the product, etc.
6
To avoid electric shock and short circuit, do not allow the customers to
unplug the power plug without a justifiable reason.
Caution lookers-on so as not to touch the operating unit while in play. Failure
to observe this may cause bodily contact with the player and trouble between
the customers.
Immediately stop such violent acts as hitting and kicking the product. Such
violent acts can cause parts damage or falling down, resulting in injury due to
fragments and falling down.
Persons other than the player must
not touch the device during play. If
this is violated, their hands or fingers
may be pinched by the handlebar,
causing them to be injured.
Instruct the player to watch his/her
step when getting on the Floor Base
so as to avoid stumbling over.
7
4. ACCESSORIES
When transporting the machine, make sure that the following parts are supplied.
TABLE 4 ACCESSORIES
CARTON BOX
601-11044 (1)
Used for transporting the Game Board.
Refer to 15-3.
TAMPERPROO WRENCH
M4 540-0006-01 (1)
M6 540-0015-01 (1)
TOOL
8
5. ASSEMBLING AND INSTALLATION
Perform assembly work by following the procedure herein stated. Failing to
comply with the instructions can cause electric shock hazard.
Perform assembling as per this manual. Since this is a complex machine,
erroneous assembling can cause an electric shock, machine damage and or not
functioning as per specified performance.
When assembling, be sure to use plural persons. Depending on the assembly
work, there are some cases in which working by one person alone can cause
personal injury or parts damage.
Ensure that connectors are accurately connected. Incomplete connections can
cause electric shock hazard.
Be careful so as not to damage wirings. Damaged wiring can cause electric
shock and short circuit hazards.
This work should be performed by the Location's Maintenance Man or
Serviceman. Performing work by non-technical personnel can cause a severe
accident such as electric shock. Failing to comply with this instruction can
cause a severe accident such as electric shock to the player during operation.
Provide sufficient space so that assembling can be performed. Performing
work in places with narrow space or low ceiling may cause an accident and
assembly work to be difficult.
To perform work safely and avoid serious accident such as the cabinet's
falling down, do not perform work in places where step-like grade
differences, a ditch, or slope exist.
When handling plastic parts, use care. Do not give a shock or apply excessive
load to the fluorescent lamps and plastic parts. Failure to observe this can
cause parts damage, resulting in injury due to fragments, cracks and broken
pieces.
To perform work safely and securely, be sure to prepare a step which is in a
secure and stable condition. Performing work without using the step can
cause violent falling down accidents.
9
When carrying out the assembling and installation, follow the following 5-item sequence.
1
SECURING IN PLACE (ADJUSTER ADJUSTMENT)
2
REMOVING THE SHIPPING BRACKET
3
POWER SUPPLY, AND EARTH CONNECTION
4
TURNING POWER ON
5
ASSEMBLY CHECK
10
1
SECURING IN PLACE (ADJUSTER ADJUSTMENT)
Make sure that all of the adjusters are in contact with the floor. If they are not, the
cabinet can move and cause an accident.
This product has 2 Adjusters at the bottom front part of cabinet and 4 Casters in the rear. When
the installation position is determined, let the Adjusters make direct contact with the floor and
adjust to ensure the product position is level.
Move the product to the
1
installation position.
Let the Adjusters make contact
2
with the floor. Adjust the height of
the 2 Adjusters by using a wrench
to ensure the product position is
level. If the floor surfaces are
level, the product will be level
when the front casters are raised
approximately 7mm above the
floor.
CASTERS
ADJUSTERS
Have adjusters make contact
with the floor.
ADJUSTER
FIG. 5. 4 a BOTTOM VIEW
Approx.7mm
Ensure that the 2 Rear Casters are
in contact with the surface (floor).
FIG. 5. 4 b ADJUSTER
11
2
REMOVING THE SHIPPING BRACKET
The mechanism of equipment is fastened for transportation at shipping. Remove the shipping
bracket and screws.
1
Remove the front lid (see Section 9-1).
2
Take out the 2 screws and remove the shipping braket. (FIG. 5. 5)
MECHA SHIPPING BRKT
WRD-0003
SCREW (2)
M4 X 8, w/flat & spring washers
FIG. 5. 5
12
3
POWER SUPPLY, AND EARTH CONNECTION
Be sure to independently use the power supply socket outlet equipped with an
Earth Leakage Breaker. Using a power supply without an Earth Leakage
Breaker can cause a fire when electric leakage occurs.
Ensure that the "accurately grounded indoor earth terminal" and the earth wire
cable are available (except in the case where a power cord plug with earth is
used). This product is equipped with the earth terminal. Connect the earth
terminal and the indoor earth terminal with the prepared cable. If the
grounding work is not performed appropriately, customers can be subjected to
an electric shock, and the product's functioning may not be stable.
Ensure that the power cord and earth wire are not exposed on the surface
(passage, etc.). If exposed, they can be caught and are susceptible to damage.
If damaged, the cord and wire can cause electric shock and short circuit
accidents. Ensure that the wiring position is not in the customer's passage
way or the wiring has protective covering.
After wiring power cord on the floor, be sure to protect the power cord.
Exposed power cord is susceptible to damage and causes an electric shock
accident.
The AC Unit is mounted on the rear of the machine. The AC Unit has Main SW, Circuit
Protector, Earth Terminal and the Inlet which connects the Power Cord.
1
Ensure that the Main SW is OFF.
INLET
Main SW off
EARTH TERMINAL
Connect with the
indoor earth terminal.
MAIN SW
CIRCUIT PROTECTOR
FIG. 5. 6 a AC unit
13
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
4
TURNING POWER ON
In this product, the Main SW is in the AC
Unit and the SUB POWER SW is inside
the SERVICE DOOR. The power is not
turned on unless the above two switches
are on. When the power is turned on, the
two fluorescent lamps inside light up,
images are outputted on the monitor, and
the Advertise mode appears on the
screen.
Once the power is turned off, the inserted
coin(s) less than one credit and the
BONUS ADDER data are cleared.
5
ASSEMBLY CHECK
In the TEST MODE, ascertain that the assembly has been
made correctly and IC BD. is satisfactory
(refer to Section 8).
In the test mode, perform the following test:
Fluorescent lamps
Image output on the monitor.
Emits sounds.
SUB POWER SW
FIG. 5. 7
(2) C.R.T. TEST
In the system test mode menu, selecting
C.R.T. TEST allows the screen (on which
the monitor is tested) to be displayed.
(1) MEMORY TEST
Selecting the RAM TEST on the system test mode menu
screen causes the on-board memory to be tested
automatically. The game board is satisfactory if the
display beside each IC No. shows GOOD.
RAM TEST
TESTING NOW
IC29 GOOD
IC35 GOOD
IC09 GOOD IC10 GOOD
IC11 GOOD IC12 GOOD
IC16 GOOD IC18 GOOD
IC20 GOOD IC22 GOOD
IC17 GOOD IC19 GOOD
IC21 GOOD IC23 GOOD
IC106 GOOD IC107 GOOD
IC108 GOOD IC109 GOOD
IC111 GOOD IC113 GOOD
IC115 GOOD IC117 GOOD
IC112 GOOD IC114 GOOD
IC116 GOOD IC118 GOOD
PRESS TEST BUTTON TO EXIT
14
C.R.T. TEST 1/2
1 32
RED
GREEN
BLUE
WHITE
PRESS TEST BUTTON TO CONTINUE
234567890123456789012
C.R.T. TEST 2/2
234567890123456789012
234567890123456789012
234567890123456789012
234567890123456789012
234567890123456789012
234567890123456789012
234567890123456789012
234567890123456789012
234567890123456789012
234567890123456789012
234567890123456789012
234567890123456789012
234567890123456789012
234567890123456789012
234567890123456789012
234567890123456789012
PRESS TEST BUTTON TO EXIT
(3) SOUND TEST
SOUND TEST
RIGHT SPEAKER OFF
LEFT SPEAKER OFF
-> EXIT
SELECT WITH SERVICE BUTTON
AND
PRESS TEST BUTTON
(4) INPUT TEST
INPUT TEST
HANDLEBAR 80
ACCELERATOR 00
FRONT BRAKE 00
REAR BRAKE 00
PUSH OFF
PULL OFF
START OFF
SERVICE OFF
TEST OFF
In the system test mode, selecting SOUND
TEST causes the screen (on which sound
related BD and wiring connections are tested)
to be displayed.
Check if the sound is satisfactorily emitted from
each speaker and the sound volume is
appropriate.
Selecting the INPUT TEST on the game test
mode menu screen causes the screen (on which
each switch is tested) to be displayed. Press
each switch. If the display beside each switch
indicates "ON," the switch and wiring
connections are satisfactory.
PRESS TEST AND SERVICE BUTTON TO EXIT
(5) OUTPUT TEST
OUTPUT TEST
START BUTTON LAMP OFF
->EXIT
SELECT WITH SERVICE BUTTON
AND PRESS TEST BUTTON
Select OUTPUT TEST from the menu in the
game test mode to cause the screen (on which
each lamp and wiring connections are tested) to
appear. Ensure that lamp light up satisfactorily.
Perform the above inspections also at the time of monthly inspection.
15
6.
PRECAUTIONS TO BE HEEDED WHEN MOVING THE MACHINE
When moving the machine, be sure to unplug the power plug. Moving the
machine with the plug as is inserted can damage the power cord and cause fire
and electric shock hazards.
When moving the machine on the floor, retract the Adjusters and ensure that
Casters make contact with the floor. During transportation, pay careful
attention so that Casters do not tread power cords and earth wires. Damaging
the power cords can cause electric shock or short circuit.
When moving the product, do not push the Front Glass. The Glass part could
be damaged and glass fractions may cause injury.
When lifting the cabinet, be sure to hold the grip portions or bottom part.
Failure to observe this may damage parts and cause injury.
Do not push the Billboard. Failure to observe this may damage the installation
portions and cause unexpected accidents.
Have casters make contact with the floor.
FIG. 6
16
7. CONTENTS OF GAME
The following explanations apply to the case the product is functioning satisfactorily. Should
there be any moves different from the following contents, some sort of faults may have
occurred. Immediately look into the cause of the fault and eliminate the cause thereof to ensure
satisfactory operation.
The 2 Fluorescent Lamps of the product are always lit when the product is energized. During
Advertise, the 2 Speakers and SUPERWOOFER output Advertise sounds, and Advertise images
are outputted on to the monitor. Note that setting to NO SOUND OUTPUT during Advertise is
possible (refer to the SERVICE MANUAL).
Fluorescent lamps is always on.
Image output on the monitor.
Emits sounds.
Coin Inlet
Rear Brake Pedal
Steering Wheel(Handlebar)
START button
Front Brake
Accelerator Grip
17
FIG. 7 a
HOW TO PLAY
• WILD RIDERS is a motorbike action game, where you play the ace rider of motorbike team
who should run away to the goal without being caught by the Police Inspector who is
chasing you.
• Throw coins for one play session into the slot. Then, press the START button to display the
Select Screen.
Select either character from the two riders (man and woman).
Selection of the character determines the motorbike type. Each motorbike has its specific
characteristics; the key to success in runaway is to take full advantage of its characteristics.
• By determining the character while stepping on the rear brake pedal, the instructions about
operating the handlebar will be skipped in the game session.
• Once the Select Screen closes, the Game Screen displays.
Once the game session starts, the Police Inspector (on a patrol car) begins to chase you. Run
away toward the goal according to the arrows being displayed along the road.
• The distance meter located at the top of the screen indicates the distance from the Police
Inspector. If it indicates 0, the game is over.
• You encounter several action points and should clear them by your motorbike action.
Two types of motorbike actions are available: Jump and Slide.
At a Jump point (orange), jump it by pulling off the handlebar. At a Slide point (green), push
the handlebar inward for sliding.
If you succeed in each of the actions, you can enlarge the spacing from the Police Inspector.
If you fail in it, this spacing reduces reversely.
• If you reach the goal without being caught by the Police Inspector, you get Game Clear and
see the Ending view.
• After the game ends, you can view the whole course map to examine to what point you have
been able to run away.
• If you acquire a high score at the end of the game, you may go to the Name Entry and be
able to enter the initials of your name and so on.
18
INSTRUCTIONS ON OPERATIONS
Basic operations include using the accelerator for accelerating the speed, using the brake for
reducing the speed, and using the handlebar for cornering to the left or right.
Nothing short of this game enables the following special operations:
HANDLE BAR
FRONT BRAKE LEVER
ACCELERATOR
"Pull off Handlebar": The motorbike is jumped by
pulling off the handlebar at a
Jump point, indicated by an
orange line. In addition, pulling
off the handlebar during usual
running allows you to enjoy a
wheelie of the motorbike.
"Push Handlebar": When you push the handlebar
at a Slide point, indicated by a
green line, the motorbike slides.
Pushing the handlebar during
usual running also slides the
motorbike.
REAR BRAKE PEDAL
FIG. 7 b
19
DESCRIPTION OF GAME SCREEN
Police Inspector Window
Your current ranking
Distance Meter
Score (Wild Points)
FIG. 7 c
FIG. 7 d US version screen
Speedometer
Distance Meter: Indicates the distance from the Police Inspector. When it
indicates 0, the game is over. <In the US version, the value is
indicated in ft (feet).>
Ranking: Indicates your current ranking. As you get a higher score, your
ranking rises.
Speedometer: Indicates the speed of the motorbike. <In the US version, the
value is indicated in mph (miles per hour).>
Score (Wild Points): Each time you succeed a motorbike action or send a small
object (e.g., flowerpot) flying, this is counted as an score added.
Police Inspector Window: Displays when the distance from the Police Inspector reduces
within the predetermined value, in order to notify you that he is
just behind you.
20
8. EXPLANATION OF TEST AND DATA DISPLAY
By operating the switch unit, periodically perform the tests and data check. When installing the
machine initially or collecting cash, or when the machine does not function correctly, perform
checking in accordance with the explanations given in this section.
The following shows tests and modes that should be utilized as applicable.
NAOMI 2 GAME BOARD is used for the product. The system of this game board allows
another game to be played by replacing the ROM Board Case mounted on the NAOMI 2 CASE.
As such, the Test Mode of this system consists of the System Test Mode for the system to
execute SELF-TEST, COIN ASSIGNMENTS, etc. used in common for the machines
employing the NAOMI 2 BOARD, and the Game Test Mode for the specific product to execute
Input/Output test for the operation equipment, difficulty setting, etc.
TABLE 8 EXPLANATION OF TEST MODE
ITEMS DESCRIPTION
REFERENCE
SECTIONS
INSTALLATION
OF MACHINE
MEMORY
PERIODIC
SERVICING
CONTROL
SYSTEM
MONITOR
When the machine is installed, perform the following:
1. Check to ensure each is the standard setting at shipment.
2. Check each Input equipment in the INPUT TEST mode.
3. Check each Output equipment in the OUTPUT TEST mode.
4. Test on-IC-Board IC's in the SELF-TEST mode.
This test is automatically executed by selecting RAM TEST, or
ROM BOARD TEST in the Menu mode.
Periodically perform the following:
1. MEMORY TEST
2. Ascertain each setting.
3. To test each Input equipment in the INPUT TEST mode.
4. To test each Output equipment in the OUTPUT TEST mode.
1. To check each Input equipment in the INPUT TEST mode.
2. Adjust or replace each Input equipment.
3. If the problem still remains unsolved, check each equipment's
mechanism movements.
In the Monitor Adjustment mode, check to see if Monitor
(Projector) adjustments are appropriate.
8-2E,8-2F,8-3D
8-3B
8-3C
8-2A, 8-2J
8-2A, 8-2J
8-2A, 8-2J
8-3D
8-3B
8-3C
8-3B
8-3E
9,10
8-2D
11
IC BOARD
DATA CHECK
1. MEMORY TEST
2. In the SOUND TEST mode, check the sound related ROMs.
Check such data as game play time and histogram to adjust the
difficulty level, etc.
21
8-2A, 8-2J
8-2C
8-2G
8-3F
8 - 1 SWITCH UNIT AND COIN METER
Never touch places other than those specified. Touching places not specified can
cause electric shock and short circuit hazards.
STOP
IMPORTANT
SWITCH UNIT
Open the coin chute door, and the switch
unit shown will appear. The function of
each SW is as follows:
1
SPEAKER VOLUME: Sound volume can be adjusted for the 2 Speakers.
2
WOOFER VOLUME: Sound volume can be adjusted for the WOOFER.
TEST BUTTON: For the handling of the TEST BUTTON, refer to the
3
Adjust to the optimum sound volume by considering the environmental
requirements of the installation location.
If the COIN METER and the game board are electrically disconnected, game
play is not possible.
1
4
SPEAKER VOL
WOOFER VOL
TEST
3
FIG. 8. 1 a SWITCH UNIT
following pages.
2
SERVICE BUTTON: Gives credits without registering on the coin meter.
4
SERVICE
22
8 - 2 SYSTEM TEST MODE
STOP
The contents of setting changes in SYSTEM ASSIGNMENTS, COIN
ASSIGNMENTS, and GAME TEST MODE are stored when the test mode is
EXITed. If the power is turned off before EXITing, the contents of setting
IMPORTANT
TEST ITEM SELECT
changes are ineffective. Be very careful of this point.
This test mode mainly allows the IC Board to be checked for accurate functioning, monitor
color to be adjusted as well as COIN ASSIGNMENTS and GAME ASSIGNMENTS to be
adjusted.
After turning power on, press the TEST button to have the following test item menu displayed.
1
SYSTEM MENU
RAM TEST
JVS TEST
SOUND TEST
C.R.T. TEST
SYSTEM ASSIGNMENTS
COIN ASSIGNMENTS
BOOKKEEPING
BACKUP DATA CLEAR
CLOCK SETTING
ROM BOARD TEST
GAME TEST MODE
[WILD RIDERS XXXXXXXXX]
-> EXIT
SELECT WITH SERVICE BUTTON
AND PRESS TEST BUTTON
2
Press the SERVICE button to move the arrow. Bring the arrow to the desired item and press the
TEST button.
3
Upon finishing the test, bring the arrow to EXIT and press the TEST button to return to the
Game mode.
23
