Sega VIRTUA NBA U R NAOMI CABINET TYPE User Manual
1st PRINTING JAN 00
NAOMI CABINET VERSION
OWNER’S MANUAL
SEGA ENTERPRISES, INC. USA
MANUAL NO. 999-0891
Warranty
Your new Sega Product is covered for a period of 90 days from the date of shipment. This certifies
that the Printed Circuit Boards, Power Supplies and Monitor are to be free of defects in workmanship or materials under normal operating conditions. This also certifies that all Interactive Control
Assemblies are to be free from defects in workmanship and materials under normal operating conditions. No other product in this machine is hereby covered.
Sellers sole liability in the event a warranted part described above fails shall be, at its option, to
replace or repair the defective part during the warranty period. For Warranty claims, contact your
Sega Distributor.
Should the Seller determine, by inspection that the product was caused by Accident, Misuse, Neglect, Alteration, Improper Repair, Installation or Testing, the warranty offered will be null and void.
Under no circumstances is the Seller responsible for any loss of profits, loss of use, or other damages.
This shall be the exclusive written Warranty of the original purchaser expressed in lieu of all other
warranties expressed or implied. Under no circumstance shall it extend beyond the period of time
listed above.
TABLE OF CONTENTS
INTRODUCTION OF THE OWNERS MANUAL
GENERAL PRECAUTIONS
1. PRECAUTIONS TO BE HEEDED FOR OPERATION
2. NAME OF PARTS
3. ACCESSORIES
4. ASSEMBLY AND INSTALLATION
5. PRECAUTIONS TO BE HEEDED WHEN MOVING MACHINE
6. CONTENTS OF GAME
7. EXPLANATION OF TEST AND DATA DISPLAY
7-1 SWITCH UNIT AND COIN METER
7-2 SYSTEM TEST MODE
7-3 GAME TEST MODE
7-4 INPUT TEST
7-5 SOUND TEST
7-6 C.R.T. TEST
7-7 OUTPUT TEST
7-8 GAME ASSIGNMENTS
7-9 COIN ASSIGNMENTS
7-10 BOOKKEEPING
7-11 BACKUP DATA CLEAR
8. CONTROL PANEL
8-1 REPLACING THE CONTROL PANEL
8-2 REPLACING THE INSTRUCTION SHEET
9. COIN SELECTOR
10. MONITOR
10-1 MONITOR ADJUSTMENT
10-2 VERTICAL/HORIZONTAL TRANSPOSITION
11. REPLACEMENT OF FLUORESCENT LAMP
11-1 REPLACEMENT OF FLUORESCENT LAMP
14. PERIODIC INSPECTION TABLE
15. TROUBLESHOOTING
16. GAME BOARD
16-1 REMOVING THE GAME BOARD
16-2 COMPOSITION OF THE GAME BOARD
18. DESIGN RELATED PARTS
19. PARTS LIST
20. WIRING DIAGRAMS
1
2~3
4~5
6
7~8
9~14
15
16
17~27
18
19
19
20
20
21
21
22
23~25
26~27
27
28~29
28~29
29
30~32
33~38
34
35~38
39~40
39~40
41
42
43~44
43
44
45
46~64
XXX
1
SPECIFICATIONS
Installation space: 38 in.(L) x 30 in.(W)
Height: 82 in.
Weight: Approx. 274 lbs.
Power maximum current: 2.24 Amp AC 120V 60 Hz
MONITOR: 29” NANAO MONITOR
SEGA ENTERPRISES, LTD., has for more than 30 years been supplying various innovative and
popular amusement products to the world market. This Owners Manual is intended to provide
detailed descriptions together with all the necessary installation, game settings and parts ordering
information related to VIRTUA NBA U/R Naomi Cabinet type, a new SEGA product.
This manual is intended for those who have knowledge of electricity and technical expertise, especially in ICs, CRTs, microprocessors, and circuit boards. Read this manual carefully to acquire
sufficient knowledge before working on the machine. Should there be a malfunction, non-technical
personnel should under no circumstances touch the interior system. Should the need arise, contact
our main office, or the closest branch office listed below.
SEGA ENTERPRISES, INC. (USA)
Customer Service
45133 Industrial Drive
Fremont, CA 94538
Phone 415-701-6580
Fax 415-701-6594
7:30 am - 4:00 pm, Pacific Standard Time
Monday thru Friday
INTRODUCTION OF THE OWNERS MANUAL
2
General Precautions
Follow Instructions: All operating and use instructions should be followed.
Attachments: Do not use attachments not recommended by the product manufacturer as they may cause hazards.
Accessories: Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall,
causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or
table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the
manufacturer’s instructions, and should use only mounting accessories recommended by the manufacturer.
Moving the Product: This product should be moved with care. Quick stops, excessive force, and uneven surfaces
may cause the product to overturn.
Ventilation: Slots and openings in the cabinet are provided for ventilation, to ensure reliable operation of the product
and to protect it from overheating; these openings must not be blocked or covered. The openings should never be blocked
by placing the product in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the
manufacturer’s instructions have been adhered to.
Power Sources: This product should be operated only from the type of power source indicated on the marking label.
If you are not sure of the type of power supply to your location, consult your local power company. For products intended
to operate from battery power or other sources, refer to the operating instructions.
Grounding or Polarization: This product is equipped with a three-wire grounding-type plug, a plug having a third
(grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to
insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the
grounding-type plug.
Power Cord Protection: Power-supply cords should be routed so that they are not likely to be walked on or pinched
by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point
where they exit from the product.
Overloading: Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in
a risk of fire or electric shock.
Object and Liquid Entry: Never push objects of any kind into this product through openings as they may touch
dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the
product.
Servicing: Do not attempt to service this product yourself as opening or removing covers may expose you to danger-
ous voltage or other hazards. Refer all servicing to qualified service personnel.
Damage Requiring Service: Unplug this product from the wall outlet and refer servicing to qualified service person-
nel under the following conditions:
a) If the power cord or plug is damaged;
b) If liquid has been spilled, or objects have fallen into the product;
c) If the product has been exposed to rain or water;
d) If the product does not operate normally when following the operating instructions. Adjust only those controls that
are explained in the operating instructions. An improper adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to restore the product to its normal operation;
e) If the product has been dropped or damaged in any way;
f) When the product exhibits a distinct change in performance; this indicates a need for service.
Replacement Parts: When replacement parts are required, be sure the service technician has used replacements parts
specified by the manufacturer or that have the same characteristics as the original part. Unauthorized substitutions may
result in fire, electric shock, or other hazards.
3
Safety Check: Upon completion of any service or repairs to this product, ask the service technician to perform safety
checks to determine that the product is in proper operating condition.
Heat: The product should be situated away from heat sources such as radiators, heat registers, stoves, or other prod-
ucts (including amplifiers) that produce heat.
Lithium Battery- Dispose of batteries only in accordance with the battery manufacturer’s recommendations.
Do not dispose in an open flame condition, since the battery may explode.
Cleaning: When cleaning the monitor glass, use water or glass cleaner and a soft cloth. Do not apply chemicals such
as benzine, thinner, etc.
Location: This an indoor game machine, DO NOT install it outside. To ensure proper usage, avoid installing indoors
in the places mentioned below:
• Places subject to rain/water leakage, or condensation due to humidity;
• In close proximity to a potential wet area;
• Locations receiving direct sunlight;
• Places close to heating units or hot air;
•In the vicinity of highly inflammable/volatile chemicals or hazardous matter;
• On sloped surfaces;
• In the vicinity of emergency response facilities such as fire exits and fire extinguishers;
• Places subject to any type of violent impact;
• Dusty places.
INSTALLATION PRECAUTIONS
• Verify the amperage of the branch circuit outlet before plugging in the power plug. Do not overload the circuit.
• Avoid using an extension cord. If one is required, use an extension cord of type SJT, 16/3 AWG
rated min. 120 VAC, 7A.
• Moving this unit requires a minimum clearance (of doors, etc.) of 32” (W) by 77” (H).
• For the operation of this machine, secure a minimum area of 32” (W) by 42”(D).
REGULATORY APPROVALS
This game has been tested and found to comply with the Federal Communications Commission Rules.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
This game has been tested and listed by Underwriters Laboratories, Inc., to ANSI/UL22.
4
In order to avoid accidents, check the following before starting the operation:
Check if all of the adjusters are in contact with the surface. If they are not,
the cabinet can move and cause an accident.
Do not climb on the product. Climbing on the product can cause falling down
accidents. To check the top portion of the product, use a step.
To avoid electric shock, check to see if door & cover parts are closed.
To avoid electric shock, short circuit and or parts damage, do not put the
following items on or in the periphery of the product:
Flower vases, flower pots, cups, water tanks, cosmetics, and receptacles/
containers/vessels containing chemicals and water.
1 . PRECAUTIONS TO BE HEEDED FOR OPERATION
PRECAUTIONS TO BE HEEDED FOR OPERATION BEFORE STARTING THE OPERATION
In order to prevent accidents, be sure to comply with the following points before and during operation.
To avoid injury, be sure to provide sufficient space by considering the
potentially crowded situation at the installation location. Insufficient installation space can cause the player to come into contact with or hit others
and result in injury or trouble.
5
PRECAUTIONS TO BE HEEDED DURING OPERATION
To avoid injury and accidents, those who fall under the following catagories are not
allowed to play the game:
* Intoxicated persons
* Those who have high blood pressure or heart problems.
* Those who have experienced muscle convulsion or loss of consciousness when playing
video games, etc.
* Persons susceptible to motion sickness.
* Persons whose acts runs counter to the products warning displays.
* Instruct those who wear high-heeled shoes to refrain from
playing the game by explaining that playing the game with highheeled shoes is very dangerous and likely to cause a potentially
hazardous situation.
To avoid electric shock and short circuit, do not allow customers to put hands and fingers
or extraneous matter in openings of the product or small openings in or around doors.
To avoid electric shock and short circuit, do not allow the customers to unplug the power
plug without a justifiable reason.
Although this product has the accident preventive covering attached to potentially hazardous places where hand and fingers could be caught, small children are unable to perceive
hazards. Use care so that small children do not come close to the product when in play.
Immediately stop such violent acts as hitting and kicking the product. Such violent acts can
cause parts damage and/or falling down, resulting in injury due to fragments and falling
down.
6

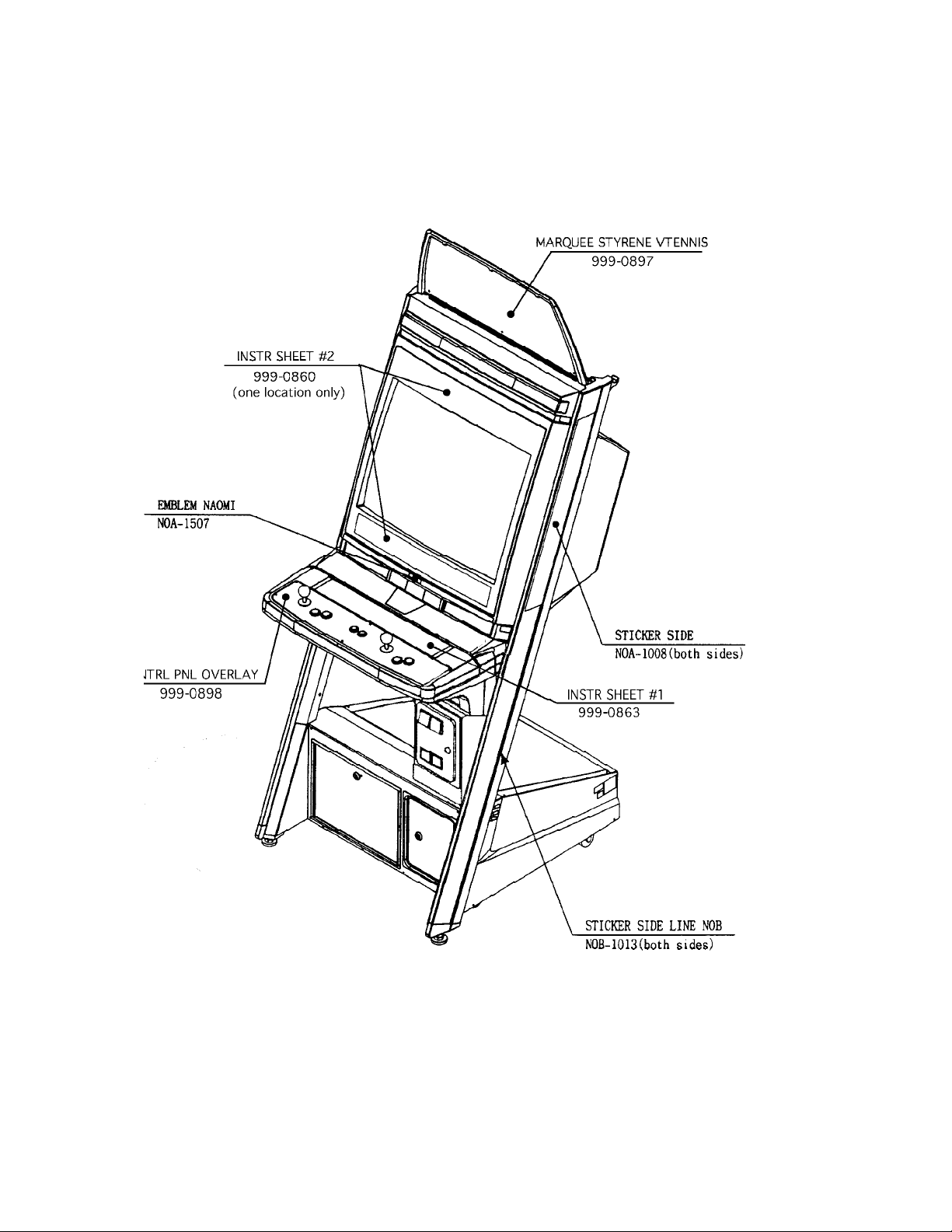

2 . NAME OF PARTS
GAME SPECIFICATIONS
WHEN ASSEMBLED
WIDTH in. LENGTH in. HEIGHT in.
WEIGHT lbs.
380 LBS.
~ 425 LBS.
30” X 58” X 88”
40” X 70” X 100”
DURING SHIPPING
CABINET
BILLBOARD
30” X 41” X 71”
30” X 0.5” X 12” 2 LBS.
325 LBS.
7
3 . ACCESSORIES
8
“CHECK SIDE” Display
FILTER BOARD
CARTON BOX
601-8928 (1)
Used for transporting the GAME BOARD.
{SUPPLIED WITH YOUR GAME}
DO NOT SHIP GAME BOARD WITHOUT
THIS BOX AS IT MAY DAMAGE THE GAME
BOARD AND VOID YOUR WARRANTY.
!!!!NNEEVVEERR SSHHIIPP MMOODDEELL 33 // NNAAOOMMII GGAAMME
E
BBOOAARRDDSS OOUUTTSSIIDDEE OOFF CCAAGGEE!!!
!
THE SHIPMENT METHOD DESCRIBED BELOW APPLIES
TO ALL ‘MODEL 3’ OR ‘NAOMI’ BOARDS CONTAINED
IN THE FOLLOWING GAMES:
NO OTHER GAMES BOARDS ARE TO BE SHIPPED IN THE CAGE AS
THEY MAY BE DAMAGED BEYOND REPAIR. PLEASE SHIP THEM
WITHOUT CAGE PROPERLY PROTECTED DURING SHIPPING.
LOST WORLD, VIRTUA FIGHTER 3, SUPER GT, SEGA BASS FISHING, STRIKER 2 HARLEY DAVIDSON,
RALLY 2, DAYTONA 2, DIRT DEVILS, HOUSE OF THE DEAD 2, OCEAN HUNTER, STAR WARS TRILOGY,
ZOMBIE REVENGE, CRAZY TAXI, JAMBO SAFARI, F355, VIRTUA TENNIS, VIRTUA NBA
9
4 . ASSEMBLING AND INSTALLATION
Note that the tools such as a phillips screwdriver and wrench for M16 hexagon bolt w/24 mm width
across flats are required for the assembly work.
When carrying out the assembly work, follow the procedure in the following 5-item sequence:
ASSY OF BILLBOARD
SECURING IN PLACE (ADJUSTER ADJUSTMENT)
POWER SUPPLY
ASSEMBLING CHECK
Assembling should be performed as per this manual. Since this is a
complex machine, erroneous assembling may cause damage to the
machine, or malfunctioning to occur.
When assembling, be sure to perform work by plural persons.
Depending on the assembly work, there are some cases in which
performing the work by a single person can cause personal injury or
parts damage.
1
2
3
4
Perform conector connection securely. Insufficient insertin can cause
electrical shock or short circuit.
Be careful so as not to damage wirings. Damaged wiring can cause
electric shock or short circuit.
10
Mount Billboard on cabinet by ensuring the front lip of the Billboard is securely placed under the mounting bracket
already installed on the cabinet. Fasten with the 3 hexagon bolts.
Connect all of the 4 connectors inside the Billboard box (This needs to be done prior to final installation of
Billboard Assy).
Due to its large size, it is very difficult for one person alone to install the billboard,
Make sure 2 or more persons are available to perform this work. Attempting to
perform the installation alone can cause an accident.
1
2
1
ASSY OF BILLBOARD
11
SECURING IN PLACE (ADJUSTER ADJUSTMENT)
Move the machine to the installation position.
Cause all of the leg levelers to make contact
with the floor. By using a wrench, make
adjustments in the height of the leg adjusters to
ensure that the machine's position is level.
After making adjustments, fasten the leg
adjuster nut upward and secure the height of the
leg adjuster.
This machine has 4 each of casters and adjusters (shown below). When the installation position is determined, cause
the adjusters to come into contact with the floor directly, make adjustments in a manner so that the casters will be
raised approximately 5mm. from the floor and make sure that the machine position is level.
Be sure to have all the Adjusters make contact with the surface. Unless the Adjusters come into contact with the surface, the Cabinet
can move of itself, causing an accident.
3
2
1
2
12
POWER SUPPLY
Turning the AC unit’s main switch on will cause the machine
to start the power check and network check automatically.
Connect the game to the power supply and turn on power to the game. Before connecting power supply be sure that
power switch is off
Ensure that the power cord is not exposed on the surface (passage,
etc.). If exposed, they can be caught and are susceptible to damage.
If damaged, the cord can cause an electric shock or short circuit.
Ensure that the wiring position is not in the customer's passage way
or the wiring has protective covering.
1
3
13
Selecting the MEMORY TEST on the test mode menu screen causes the on-board memory to be tested automatically.
The game board is satisfactory if the display beside each IC No. shows GOOD.
ASSEMBLING CHECK
The TEST MENU allows for each part of the cabinet to be checked, the Monitor to be adjusted, and the coin and game
related various functions to be performed.
Selecting the INPUT TEST on the Test Mode menu screen
causes the screen (on Which each switch adnV.R. are tested)
to be displayed. Press each switch. For the coin switch test,
insert a coin from the coin inlet with the coin chute door
being open. If the display beside each switch indicates
“ON”, the switch and wiring connections are satisfactory.
Check the display of V.R. value for steering wheel and
accelerator & brake. If the V.R. values are not satisfactory,
make adjustments as neccesary.
In the OUTPUT TEST mode, carry out lamp test to ensure
that each lamp lights up satisfactory.
4
14
C.R.T. TEST 1/2
RED
GREEN
BLUE
WHITE
PRESS TEST BUTTON TO CONTINUE
In the TEST mode menu, selecting C.R.T. TEST allows the
screen (on which the projector is tested) to be displayed.
Although the projector adjustments have been made at the
same time of shipment from the factory, color deviation,
etc., may occur due to the effect caused by geomagnitism,
the location building’s steel frames and other game machines in the periphery. By watching the test mode screen,
make judgement as to whether an adjustment is needed. If it
is neccessary, adjust the projector by refering to Section 9.
In the TEST mode, selecting SOUND TEST causes the
screen, on which sound related BD and wiring connections are tested, to be displayed. Be sure to check if the
sound is satisfactorily emitted from each of speaker and
the sound volume is appropriate.
Perform the above inspections also at the time of monthly inspection.
C.R.T. TEST 2/2
PRESS TEST BUTTON TO CONTINUE
SOUND TEST
VOICE
EFFECT
B.G.M.
>EXIT
SELECT WITH SERVICE BUTTON AND
PRESS TEST BUTTON TO EXIT
15
When moving the machine, be sure to pull out the plug from
the power supply. Moving the machine with the plug as is
inserted can damage the power cord and cause a fire or electric shock.
When moving the machine on the floor, retract the Adjusters
and ensure that Casters make contact with the floor. During
transportation, pay careful attention so that Casters do not
tread power cords. Damaging the power cords can cause an
electric shock and/or short circuit.
When lifting the cabinet, be sure to hold the catch portions or
bottom part. Lifting the cabinet by holding other portions can
damage parts and installation portions, due to the empty
weight of the cabinet, and cause personal injury.
Use care when handling glass made parts. When the glass is damaged, fragments of glass can cause injury
5 . PRECATIONS TO BE HEEDED WHEN MOVING THE MACHINE
16
6 . CONTENTS OF GAME
The following explanations apply to the case the product is functioning satisfactorily. Should there be any moves
different from the following contents, some sort of faults may have occured. Immediately look into the cause of the
fault and eliminate the cause thereof to ensure satisfactory operation.
FROM AMONG THE 29 NBA TEAMS, SELECT YOU R FAVORITE TEAM
When a single play mode is selected, you battle against the computer controlled players in a tournament imagined
real NBA playoffs.
If the score you have earned is greater than that of the opposing team at the game end, you can proceed to the next
stage. In case of a tie score or less the game is over.
A player can buy into play a versus game, and the game can be continued up to the 4th quater. Upon finishing a
quarter, the player who has earned greater score can proceed to the next game. The player who lost the game can
also play the game by executing a continue.
In case that a quarter ends in a tie, the player who has earned greater score in that quarter can proceed to the next
quarter.
OUTLINE OF GAME
HOW TO OPERATE
Operate the lever and the 2 buttons to play the game.
LEVER: movement
BLUE BUTTON: (offense) pass
(defense) steal
RED BUTTON: (offense) shoot
(defense) block shot/rebound
OFFENSE:
JUMP SHOT
When standing still, keep pressing down the shoot button to jump. Release the shoot button to shoot
the ball.
RUNNING JUMPER
Press the shoot button to do a running jumper while dribbling.
If the defense stops your dribble, you will shoot a regular jump shot. You can perform a dunk shot
depending on the distance to the goal or the timing of a shot.
PASS:
You can pass to any of your teammates by inclining the Lever in the direction of the intended player,
and then pressing the pass button.
DEFENSE:
BLOCK SHOT
You can interrupt an opposing player’s shot if you press the block button timely in accordance to his
jump. You can decrease the probability of making the shot, even if you can not block the shot.
STEAL
When you are very close to the opposing player dribbling, if you press the steal button timely, you
can steal the ball. You can also steal the ball if you timely press the steal button at a certain position
when an opposing player is passing the ball.
HOW TO PLAY
17
INSTALLATION
OF MACHINE
7 - 6
2. In the INPUT TEST mode, check each SW and VR.
3. In the OUTPUT TEST mode, check each of lamps.
4. In the MEMORY TEST mode, check ICs on the IC Board.
Choose MEMORY TEST in the MENU mode to allow the
MEMORY test to be performed. In this test, PROGRAM
RAMs, ROMs, and ICs on the IC Board are checked.

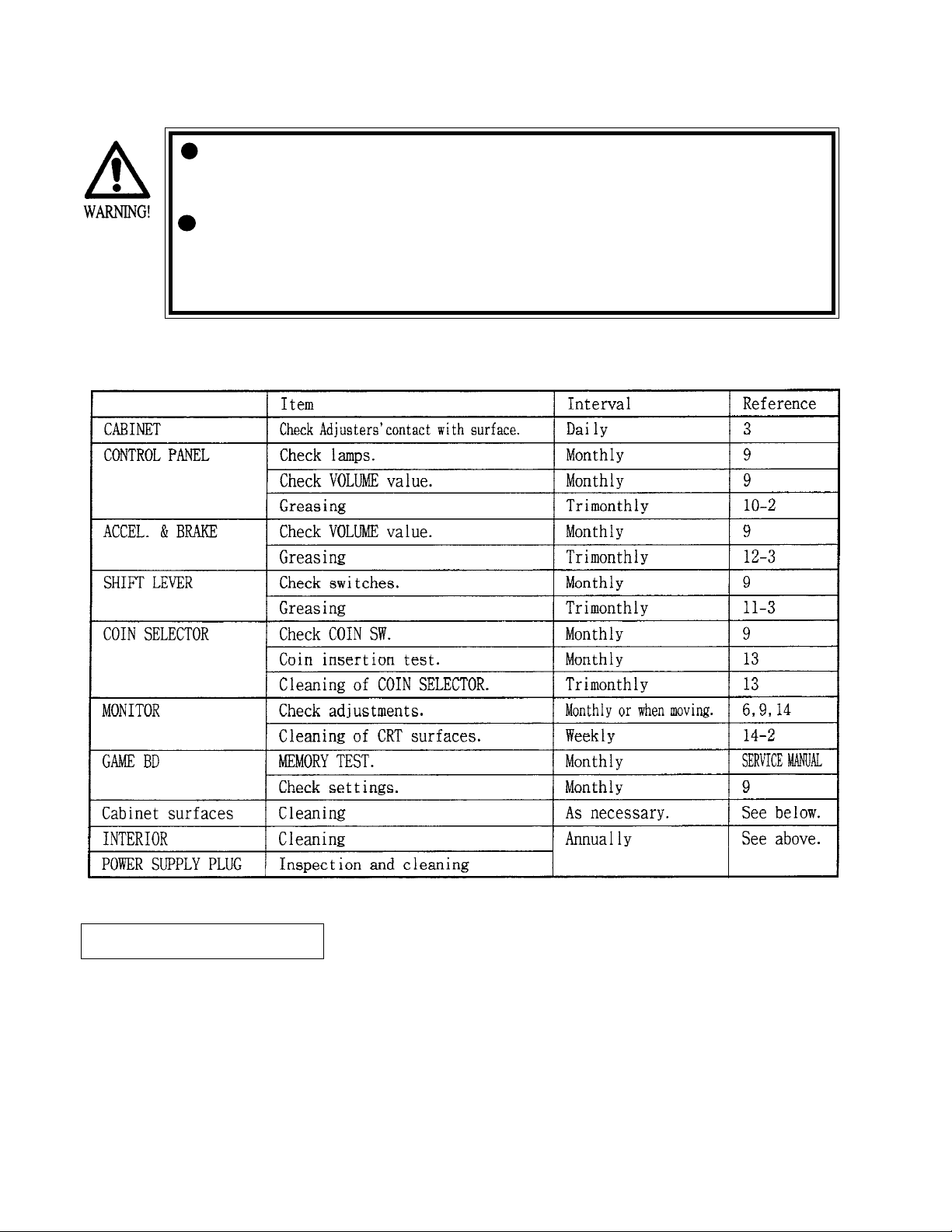

Periodically perform the following:
1. MEMORY TEST
2. Ascertain each setting.
3. In the INPUT TEST mode, test the CONTROL device
4. In the OUTPUT TEST mode, check each of lamps.
1. In the INPUT TEST mode, check each SW and VR.
2. Adjust or replace each SW and VR.
3. If the problem can not be solved yet, check the CONTROL’s moves.
In the MONITOR ADJUSTMENT mode, check to see if the
MONITOR adjustment is appropriately made.
1. MEMORY TEST
2. In the SOUND TEST mode, check the sound related ROMs.
Check such data as game play time and histogram to adjust the
difficulty level, etc
1. Check to see that each setting is as per standard setting made
at the time of shipment.
MEMORY
MONITOR
DATA CHECK
CONTROL
SYSTEM
7 - 10, 7 - 11
7 - 6
7 - 7
7 - 3, 7 - 4
7 - 3, 7 - 4
7 - 10, 7 - l1
7 - 7
When the machine is installed, perform the following:
IC BOARD
7 - 6
8
TABLE 7 EXPLANATION OF TEST MODE
7 - 2
7 - 8
7 - 15
12
7 . EXPLANATION OF TEST AND DATA DISPLAY
ITEMS DESCRIPTION SECTIONS
By operating the switch unit, periodically perform the tests and data check. When installing the machine initially or
collecting cash, or when the machine does not function correctly, perform checking in accordance with the explanations
given in this section. The following shows tests and modes that should be utilized as applicable.
18
Open COIN CHUTE DOOR, and the
switch unit shown appears. The function
of each switch is as follows:
7 - 1 SWITCH UNIT AND COIN METER
Never touch places other than those specified. Touching places not
specified can cause electric shock and short circuit.
Adjust to the optimum sound volume by considering the environmental
requirements of the installation location.
If the COIN METER and the game board are electrically disconnected,
game play is not possible.
2
1
3
SWITCH UNIT
4
5
SPEAKER VOLUME: Sound Volume can be adjusted for the 2 Speakers.
WOOFER VOLUME: Sound Voume can be adjusted for the WOOFER.
TEST BUTTON: For the handling of the TEST BUTTON, refer to the following pages.
SERVICE BUTTON: Gives credits without registering on the coin meter.
DEMAG. SWITCH: Eliminates the on-screen color unevenness due to magnetization of CRT. First use this
SW before performing the monitor’s color adjustment.
19
7 - 2 SYSTEM TEST MODE
The contents of setings chnaged in the TEST mode are stored when the TEST mode
is finished from EXIT in the MENU mode. If the power is turned off before the TEST
mode is finished, the contents of setting chnage become ineffective.
Executing “BACKUP DATA CLEAR” in the SYSTEM TEST MODE does not clear the
BOOKKEEPING data in the GAME TEST MODE.
Entering the TEST mode clears fractional number of coins less than one credit and
BONUS ADDER data.
The SYSTEM TEST mode mainly allows for IC Board functioning check, monitor adjustment, coin assignments, etc.
For details, refer to NAOMI SERVICE MANUAL. The following assignments, however, should be designated for this
product.
CABINET TYPE: 1 PLAYER (S)
MONITOR TYPE: HORIZONTAL
COIN CHUTE TYPE: COMMON
7 - 3 GAME TEST MODE
Press the TEST button to display the SYSTEM TEST MODE MENU.
By pressing the SERVICE button, move the arrow (->) to select the GAME TEST MODE.
Press the TEST button to enter GAME TEST MODE. The screen displays the GAME TEST MODE MENU.
By pressing the SERVICE button, move the arrow (->) to select the desired item. Press the TEST button to execute
the selected item.
Select EXIT and press the TEST button to exit from the GAME TEST MODE and return to the SYSTEM TEST
MODE MENU. Further, select EXIT and press the TEST button to finish SYSTEM TEST MODE and return to the
normal mode.
SOUND TEST
VOICE
EFFECT
B.G.M
>EXIT
SELECT WITH SERVICE BUTTON
PRESS TEST BUTTON TO EXIT
SOUND TEST
VOICE
EFFECT
B.G.M
>EXIT
SELECT WITH SERVICE BUTTON
PRESS TEST BUTTON TO EXIT
Loading...
