Sega VIRTUA FIGHTER 4 User Manual

1ST PRINTING SEPT 01

www.seuservice.com

Universal Kit

Kit Installation Instructions

& Service Manual

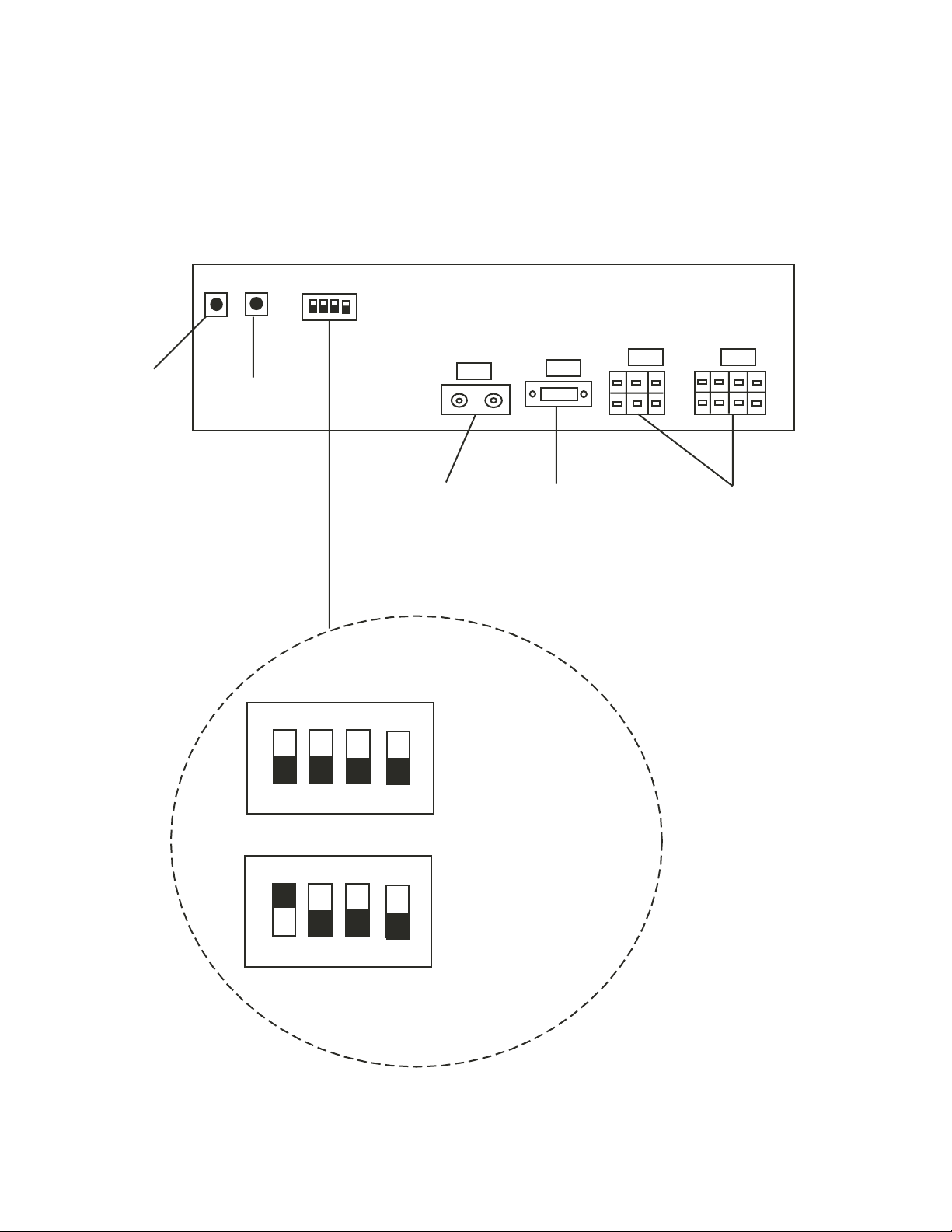

Switchable FROM High Resolution 31K
TO Standard (Low) Resolution 15.75K.

1 - 2 PLAYER GAME

SEGA ENTERPRISES, INC. USA

MANUAL NO. 999-1310

VISIT OUR WEBSITE!

Virtua Fighter 4

Sega Naomi System

Kit Contains List

Part #

400-5397-01

838-13616

560-5407-UL

838-13683-93CV1

600-7141-200

600-7009-2500

840-0080D-01

600-7247-500

LOC. PURCHASE

LOC. PURCH. HAPP

LOC. PURCH. HAPP

Desc

NAOMI POWER SUPPLY

AUDIO POWER AMP 2 CH

AUDIO XFORMER 120V

JAMMA I/O BD (NAOMI)

USB CABLE

VGA VIDEO CABLE

ASSY CASE NAT VF4 USA

CABLE SCSI TYPE 2 500MM

SERVICE SWT BRKT ASSY

JOYSTICK, COMP. GR

SWITCH, PB LARGE

Qty

1

1

1

1

1

1

1

1

1

2

2

LOC. PURCH. HAPP

LOC. PURCH. HAPP

LOC. PURCH. HAPP

999-1312

999-1313

999-1314

999-1315

999-1316

999-1310

999-1317

999-1319

BUTTON, COMP. GR

BUTTON, COMP. BLU

BUTTON, COMP. RED

MARQUEE ART

INSTRUCTION SHEET

SIDE DECALS

CONTROL PANEL OVERLAY (DED)

CONTROL PANEL OVERLAY (GEN)

VF4 MANUAL

(METALPLATE) CONTROL PNL VS3

INSTRUCTION FOR CHARACTERS

2

2

2

1

1

2

1

1

1

1

1

1

www.seuservice.com

Virtua Fighter 4

Sega Naomi System

Kit Contains List

Part #

999-1320

999-1321

999-1322

Desc

DECAL FOR DEFENSE (GREEN)

DECAL FOR PUNCH (BLUE)

DECAL FOR KICK (RED)

Qty

2

2

2

www.seuservice.com

2

DESIGNED RELATED PARTS

MARQUEE ART ----- 999-1312

INSTRUCTION SHEET FOR CHARACTERS ----- 999-1319

INSTRUCITON SHEET ---- 999-1313

NOT PICTURED ARE DECAL DEFENSE (GREEN) ---- 999-1320

PUNCH (BLUE) ---- 999-1321
KICK (RED) ---- 999-1322

3

www.seuservice.com

DECAL SIDE ART ---- 999-1314

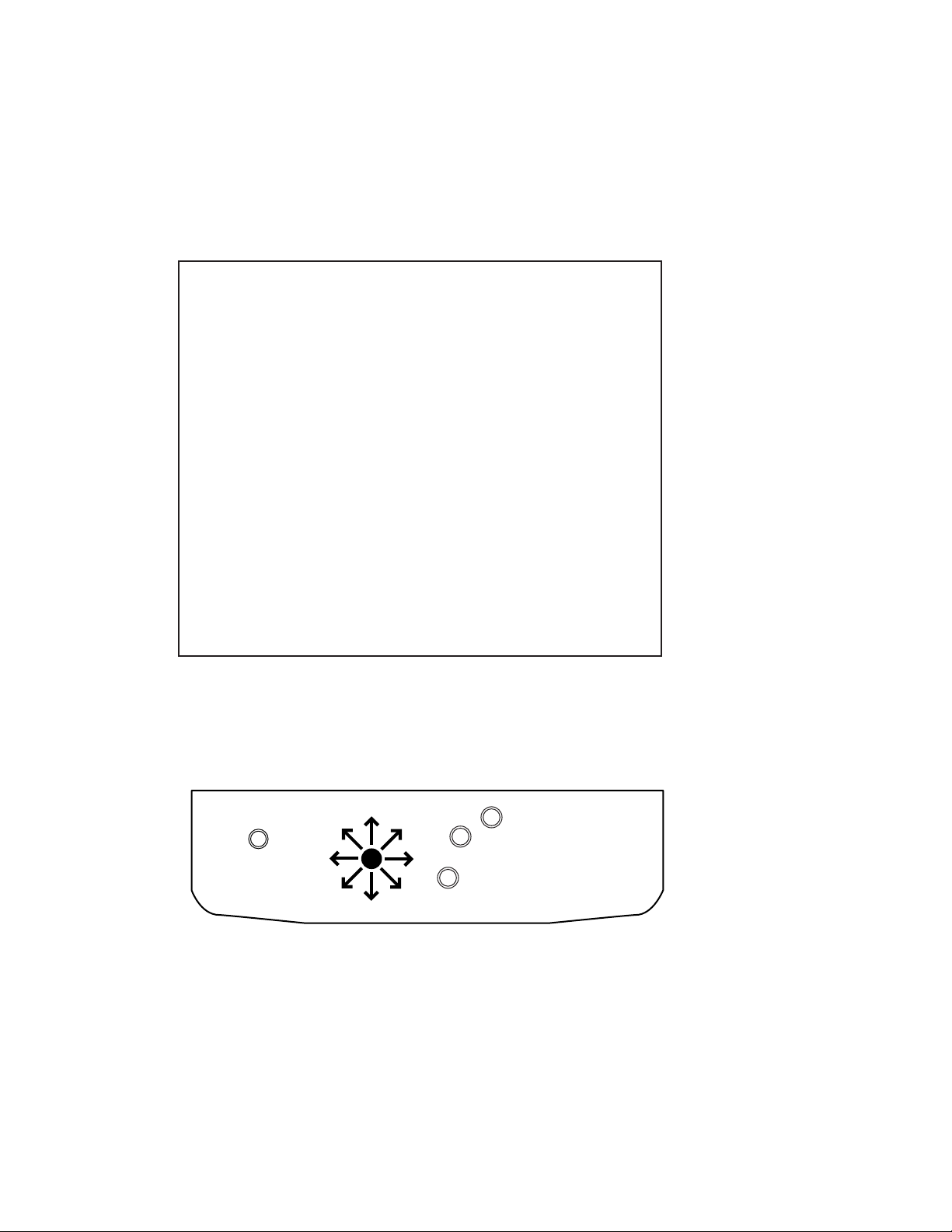

CONTROL PANEL ---- 999-1315

CONTROL PANEL ---- 999-1316

www.seuservice.com

4

Feb 9. 2000

120

SERVICE BULLETIN

SEGA Service Department http://www.seuservice.com
45133 Industrial Drive Phone: [phone]
Fremont, Ca. 94538 Fax: [phone]

SPECIAL NOTICE FOR

ALL SEGA NAOMI KITS

PROBLEM:

The SEGA Naomi Game kits are actually ‘JAMMA Dependent’. What this means exactly is they will only
install into existing JAMMA Cabinets. If an operator tries to install these kits into a Non-JAMMA cabinet,
they will first have to bring the wiring up to JAMMA Standards.

SOLUTION:

° Step 1 Disconnect the games original DC Power Supply. You may only use the power supply provided

with your kit. Be sure to set the voltages going to your Game BD to 5.1 and 3.3 volts DC to assure proper
operation ( Measure on Square Connector at Game BD. Yellow = 5vdc / Brown = 3.3vdc / White = Gnd )

° Step 2 You MUST USE THE COIN METER SUPPLIED WITH YOUR KIT to assure proper Coin

acceptance. A minimum 18 Gauge wire should be used from the Coin Meter 1 output line on your
JAMMA Harness. The 5vdc ( Yellow ) wire found in the wiring bag of your kit MUST BE USED for the
supply voltage to the meter.

Not following the directions provided herein may cause your game to malfunction.
All electrical work should be performed by the site’s Serviceman or Technician.

In order to prevent an electric shock and short circuit, be sure to turn power off before performing

work or touching the interior parts of the product.

Be careful so as not to damage wirings. Damaged wiring can cause an electric shock or short circuit

accident.

Do not touch places other than those specified. Touching places not specified can cause an electric

shock or short circuit accident.

If you have any questions please contact the SEGA Service Department at the numbers given above.

5

www.seuservice.com

INSTALLATION INSTRUCTIONS

1) First. Remove all access panels from the game. Locate the original game Logic PCB’s & Power
Supply and remove from the Cabinet by first disconnecting all harnesses from the boards. (You need
only to splice in the Main Power (110v AC) into the 3-Pin Connector (GRN/WHT/BLK).)

2) Remove all existing game harnesses (we suggest using New Jamma Harnesses (NOT contained in the
kit) to ensure reliability).

3) Locate the most convenient and open area of the cabinet to mount the Virtua Fighter 4 Naomi
System Assembly. Make sure this area is free and clear of all cable harnesses and grounds, cable
clamps, etc.

Vacuum out or clean bottom of cabinet of dirt & miscellaneous parts (e.g.
screws, loose coins / tokens, etc.).

Remove all exterior decals and repair any cabinet damage. Repaint
cabinet if necessary. Remove the Monitor Plexi or if your game plexi has
Silk-screened artwork, you will need to strip it off.

4) Connect the JAMMA Harnesses to the JVS-JAMMA Interface Boards. Separate the wires from each
other (i.e. Control Panel, Video, Speaker, Power Supply). Run the various harnesses to the part of the
cabinet they go to ensuring they are dressed properly & secured to the cabinet. Locate the Volume/
Speaker/Coin Meter Cable and connect to your existing Switch Bracket or use the new one included
with the kit. Note: If you are using a VGA Compatible Monitor you can run your VGA Cable directly

to the monitor or connect it to your JVS JAMMA Interface for RGB Conversion to your JAMMA
Cables.

5) Remove Marquee from cabinet and cut to fit the new Virtua Fighter 4 Marquee in place.

REPLACE old Joysticks & Buttons with the NEW ones supplied in Kit.

6) First remove all Joystick and Button assemblies from the Control Panel. Remove Lexan and Control
Panel Overlay. Proceed to clean surface of the Control Panel by removing all adhesive and dirt. Fill
in or plug up existing button holes to set up a blank work area for your new controls.

7) Install the new Control Panel Overlay by carefully peeling off the paper backing and laying down on
the panel. Smooth it out, starting in the center and working your way to the edges (removing all of
the trapped air pockets). If necessary, cut the edges of the overlay excess and fold under panel.

8) Cut out the button and Joystick Holes. Install Joystick and buttons from kit into the Control Panel
and tighten down. Connect all game harness wires to switches and buttons.

www.seuservice.com

6

INSTALLATION INSTRUCTIONS

9) Proceed to place new decals on the sides of the cabinet. Locate a new monitor bezel, if needed, and

replace glass, if required (due scratches). Install Instruction Placard to the back of the Monitor Glass.

NOTE: As a precaution, disconnect the JAMMA Harness from the I/O Boards and turn power on. With a

Multi-Meter, measure the 5v and 3.3v. Adjust if necessary to 5.15v DCand 3.3vDC. Measure the +12 to

ensure the wires and voltages are in the correct position. Turn power off. Plug in the JAMMA Harness once

again to the I/O Boards. The Attract Mode should appear on the screen.

Adjust the SIZE, CONTRAST, BRIGHTNESS, and COLORS on the
Monitor for optimum appearance. Adjust VERTICAL/HORIZONTAL
Hold to get a stable picture, if required.

Enter DIAGNOSTICS and adjust the Volume Level, test all Buttons &
Joystick for proper operation & wiring. Adjust Pricing. Coin-Up and
test out a game to ensure proper play functions are as they should be.

7

www.seuservice.com

To CN1 of
Amplifier Board

Pin 1

Pin 4

Pin 5

Sega Naomi System Switch

Bracket and Speaker

Installation Diagrams

(Figure 3)

JAMMA Pin 8

Yellow Wire from Extra
Harness (+5v)

YEL/RED

WHT/RED

GRN/RED

Volume

From CN2 of
Amplifier Board

From CN4 of
Amplifier Board

Test

_

+

Coin Meter

Service

GRY/RED
ORG/RED

GRY/BLUE
ORG/BLUE

JAMMA Pin R
JAMMA Pin 1
JAMMA Pin 15

Left
Speaker

Right
Speaker

www.seuservice.com

8

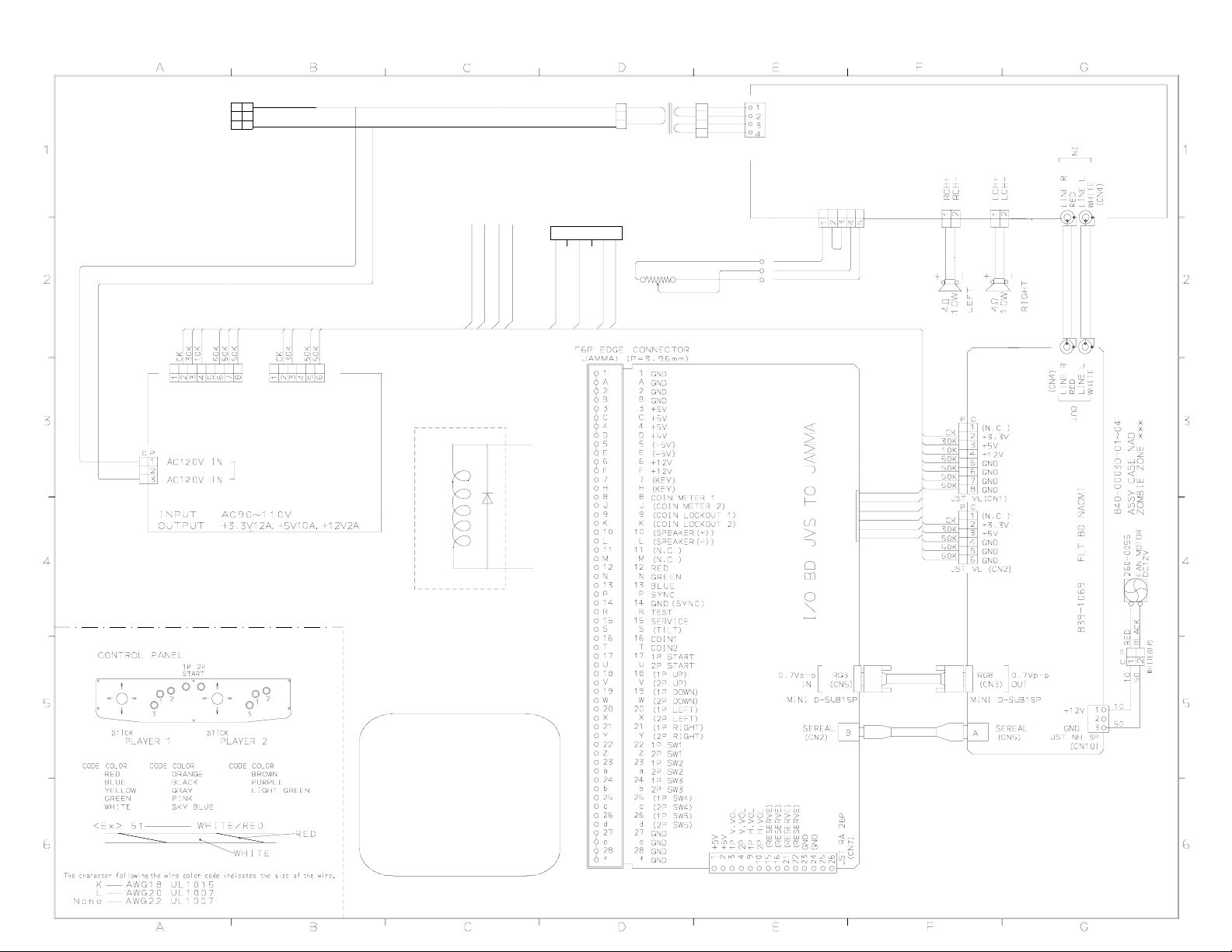

Sega Naomi System

JAMMA Harness Wiring

(JAMMA I/O BD)

(Figure 4)

Ground
Ground

+5v (Not Used)

+5v (Not Used)

(Not Used)

+12v (Not Used)

Key

Coin Meter 1

(Not Used)

(Not Used)
(Not Used)

Video Red

Video Blue

Video Ground

Test

Coin 1

1P Start

10
11

12

13

14
15

16
17

1

A

2

B

3

C
D

4

E

5

6

F

7

H
J

8
9

K
L

M
N
P

R
S
T
U

Ground
Ground
+5v (Not Used)
+5v (Not Used)
(Not Used)

+12v (Not Used)

Key

Coin Meter 2

(Not Used)

(Not Used)
(Not Used)

Video Green

Video Sync

Service

(Not Used)

Coin 2

2P Start

1P UP

1P Down

1P Left

1P Right

Attack 1P (1P SW1)

Grapple 1P (1P SW2)

Support 1P (1P SW3)

(Not Used)
(Not Used)

Ground
Ground

1
19

20
21

22

23
24

25
26

27
28

8

V
W

X
Y
Z

a
b

c
d

e

f

4

9

2P UP
2P Down
2P Left

2P Right
Attack 2P (2P SW1)
Grapple 2P (2P SW2)

Support 2P (2P SW3)
(Not Used)
(Not Used)

Ground
Ground
