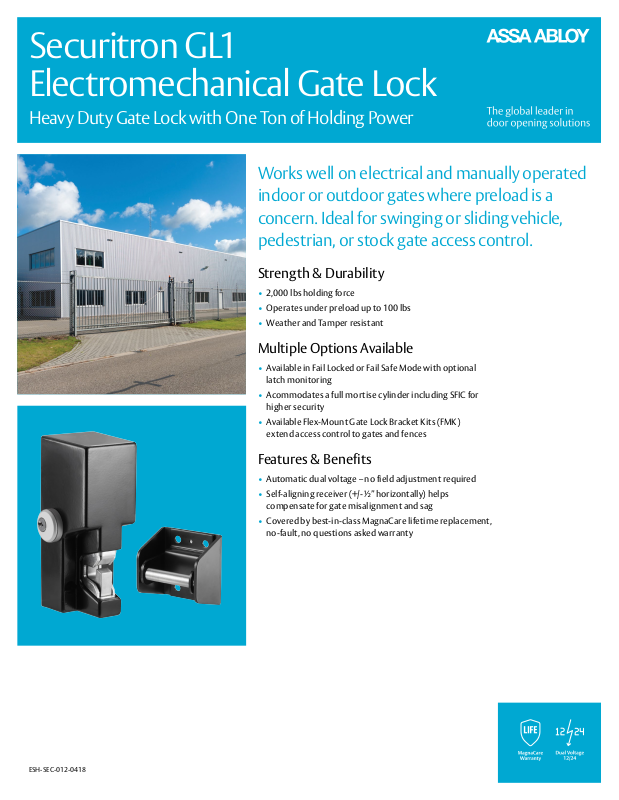

Securitron GL1-FS, GL1-FLM, GL1-FSM, GL1-FL Specsheet

Securitron GL1
Electromechanical Gate Lock

Heavy Duty Gate Lock with One Ton of Holding Power

Works well on electrical and manually operated
indoor or outdoor gates where preload is a
concern. Ideal for swinging or sliding vehicle,
pedestrian, or stock gate access control.

Strength & Durability

• 2,000 lbs holding force

• Operates under preload up to 100 lbs

• Weather and Tamper resistant

Multiple Options Available

• Available in Fail Locked or Fail Safe Mode with optional

latch monitoring

• Acommodates a full mortise cylinder including SFIC for

higher security

• Available Flex-Mount Gate Lock Bracket Kits (FMK)

extend access control to gates and fences

Features & Benefits

• Automatic dual voltage – no field adjustment required

• Self-aligning receiver (+/- ½” horizontally) helps

compensate for gate misalignment and sag

• Covered by best-in-class MagnaCare lifetime replacement,

no-fault, no questions asked warranty

ESH-SEC-012-0418

Strong | Preload Capable | Flexible

2-11/16 "
[69m m]

Specifications

Features

7-1/4 "

[184m m]

3-3/16"

[81mm]

Mortise Spacer Guide

Cylinder Length Spacer Required

1" 1/4"

1-1/8" 3/8"

2-1/8"

[54 mm]

2-13/ 16"
[71mm]

2-3/4"

[70mm]

Dimensions

• 2-3/4"L x 7-1/4"W x 3-1/4"D

Electrical

• 12 Volts Initial (Peak): (~1.0 sec.)

at 870 mA - Reduced: 290 mA

• 24 Volts Initial (Peak): (~1.0 sec.)

at 720 mA - Reduced: 170 mA

Holding Force

• 2,000 lbs [907kg]

Operating Temperature

• -58 to +167F [-50 to +75C]

• Indoor or outdoor use

Shipping Weight

• 6 lbs [2.72kg]

Standard Features

• 2,000 lbs holding force

• Operates under preload up to 100 lbs

• Automatic dual-voltage—no

field adjustment required

• Accepts a standard mor tise cylinder

with Adams Rite MS cam for
manual key override (not included,
see spacer guide below)

• Self-aligning receiver (+/- 1/2"

horizontally) helps compensate
for gate misalignment and sag

• Tamper resistant cast housing

• Optional latch status monitor

• Surface mount

• MagnaCare

no fault, no questions asked warranty

®

lifetime replacement,

Optional Features

• FL Fail locked

• FS Fail safe

• M Monitoring option

1-1/4" 1/2"

GL1 with FMK-SL for sliding gates

How To Order

Model Series Lock Fail State Monitoring Options

GL1 – FS M

GL1 FL Fail Locked (Fail Secure) (blank) No Monitoring

FS Fail Safe M Monitored

GL1 with FMK-SW for swinging gates
