168
EEB2
Request to
Exit
Device
MagLock
168

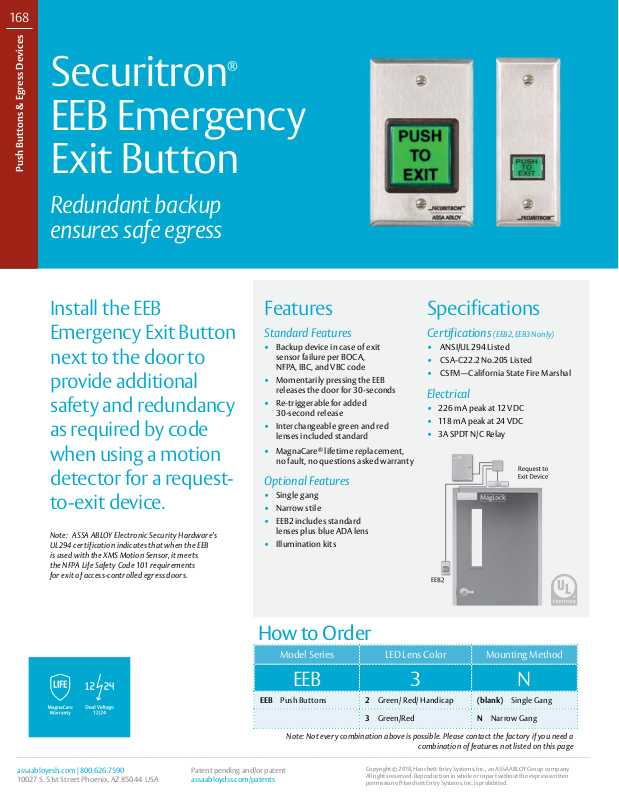

Securitron®
EEB Emergency
Push Buttons & Egress Devices
Push Buttons & Egress Devices
Exit Button
Redundant backup
ensures safe egress
Install the EEB
Emergency Exit Button
next to the door to
provide additional
safety and redundancy
as required by code
when using a motion
detector for a requestto-exit device.
Note: ASSA ABLOY Electronic Security Hardware’s
UL294 certification indicates that when the EEB
is used with the XMS Motion Sensor, it meets
the NFPA Life Safety Code 101 requirements
for exit of access-controlled egress doors.
Features
Standard Features
• Backup device in case of exit
sensor failure per BOCA,
NFPA, IBC, and VBC code
• Momentarily pressing the EEB
releases the door for 30-seconds
• Re-triggerable for added
30-second release
• Interchangeable green and red
lenses included standard
• MagnaCare
no fault, no questions asked warranty
Optional Features
• Single gang
• Narrow stile
• EEB2 includes standard
lenses plus blue ADA lens
• Illumination kits
®
lifetime replacement,
Specifications
Certifications (EEB2, EEB3N only)
• ANSI/UL 294 Listed
• CSA-C22.2 No.205 Listed
• CSFM—California State Fire Marshal
Electrical
• 226 mA peak at 12 VDC
• 118 mA peak at 24 VDC
• 3A SPDT N/C Relay
assaabloyesh.com | 800.626.7590
10027 S. 51st Street Phoenix, AZ 85044 USA
How to Order
EEB Push Buttons 2 Green/ Red/ Handicap (blank) Single Gang
Patent pending and/or patent
assaabloydss.com/patents
Model Series LED Lens Color Mounting Method
EEB 3 N
3 Green/Red N Narrow Gang
Note: Not every combination above is possible. Please contact the factor y if you need a
combination of features not listed on this page
