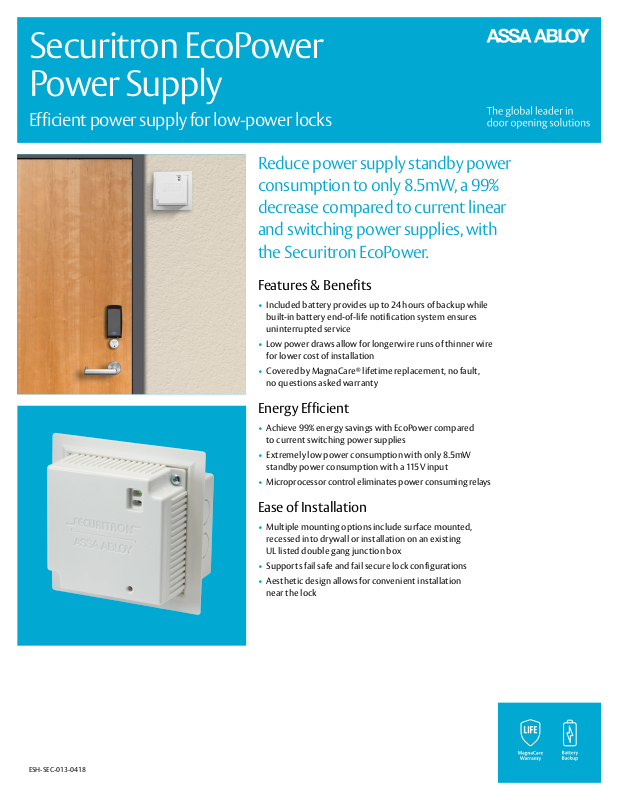

Securitron EPS-05B, EPS-05 Specsheet

Securitron EcoPower
Power Supply

Efficient power supply for low-power locks

Reduce power supply standby power
consumption to only 8.5mW, a 99%
decrease compared to current linear
and switching power supplies, with
the Securitron EcoPower.

Features & Benefits

• Included battery provides up to 24 hours of backup while

built-in battery end-of-life notification system ensures
uninterrupted service

• Low power draws allow for longerwire runs of thinner wire

for lower cost of installation

• Covered by MagnaCare

no questions asked warranty

®

lifetime replacement, no fault,

Energy Efficient

• Achieve 99% energy savings with EcoPower compared

to current switching power supplies

• Extremely low power consumption with only 8.5mW

standby power consumption with a 115V input

• Microprocessor control eliminates power consuming relays

Ease of Installation

• Multiple mounting options include surface mounted,

recessed into drywall or installation on an existing
UL listed double gang junction box

• Supports fail safe and fail secure lock configurations

• Aesthetic design allows for convenient installation

near the lock

ESH-SEC-013-0418

Energy Efficient | Reliable | Flexible

4"

[101.6 mm]

4"

[101.6 mm]

3-3/4 "

[95.25mm]

Specifications

Certifications

• UL 294 (6th Edition) listed

• UL 603 Listed

• ULC S533 Listed

• CE Certified

— EN 60950-1:2006 + A11:2009 +
A1:2010 + A12:2011 + A2:2013
— EN 55022: 2010
— EN 55024: 2010
— EN61000-3-2: 2014
— EN61000-3-3: 2013

• RoHS Compliant

• REACH Compliant

• Environmental Product Declaration

Electrical

• Input voltage: 100-240V

• Output voltage: 12V-14 V

• Standby power: <10mW at

115V, <20mW at 230V

• Output current: 0.5A peak,

0.1A continuous

• Includes one (1) 800 mAh sealed

AGM lead acid battery*

Operating Temperature

• -4˚ to 122˚F [-20˚ to 50˚C]

Features

Standard Features

• Extremely low power consumption,

only 8.5mW standby power
consumption with a 115V input

• Included battery provides 24

hours of backup or more

• Universal input voltage

capabilities (100-240 VAC)

• Multiple mounting options

— Surface mounted
— Recessed into drywall
— Use either the factory box
or an existing UL Listed
double gang junction box

• Low power draws allow for

longer wire runs of thinner wire
for lower cost of installation

• Fire alarm input dr y contact (NO or NC)

• Access control input dr y

contact (NO or NC)

• Supports fail secure and fail

safe lock configurations

• LED troubleshooting

• Built in battery end-of-life

notification system

• MagnaCare

no-fault, no questions asked warranty

®

lifetime replacement,

Shipping Weight

• 1.7 lbs [0.77kg]

* Battery not covered under

MagnaCare® warranty.

How to Order

Model Series Output Power Optio n (s)

EPS – 05 B

EPS 05 0.5 Amps (blank) PS, Enclosure, Battery

B Circuit Board Only
