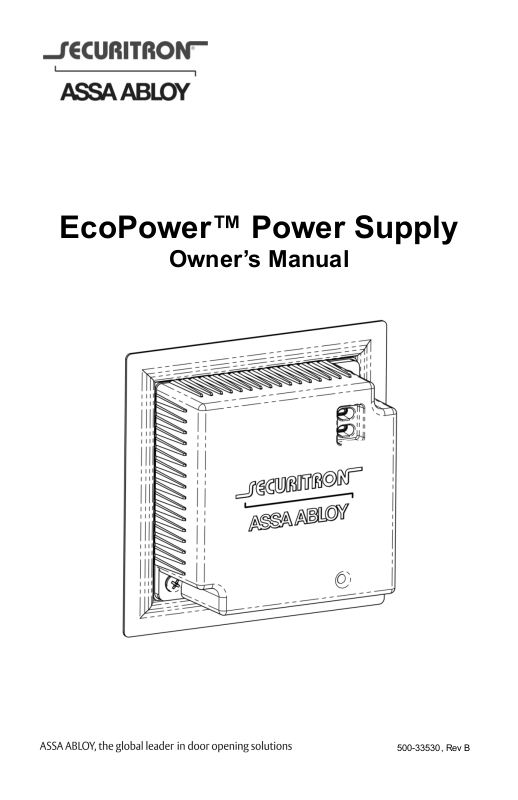

Securitron EPS-05 User Manual
EcoPower™ Power Supply
Owner’s Manual
1 500-33530, Rev B
Table of Contents
Warranty....................................................................................................2
Models.......................................................................................................3
Structure....................................................................................................3
Block Diagram...........................................................................................4
Specifications............................................................................................4
Environmental ....................................................................................... 4
Mechanical ............................................................................................ 5
Electrical ................................................................................................ 5
Regulatory Certifications ....................................................................... 6
Regulatory Compliance ......................................................................... 7
UL294 Access Control Performance Levels for Model EPS-05
Power Supply ........................................................................................ 7

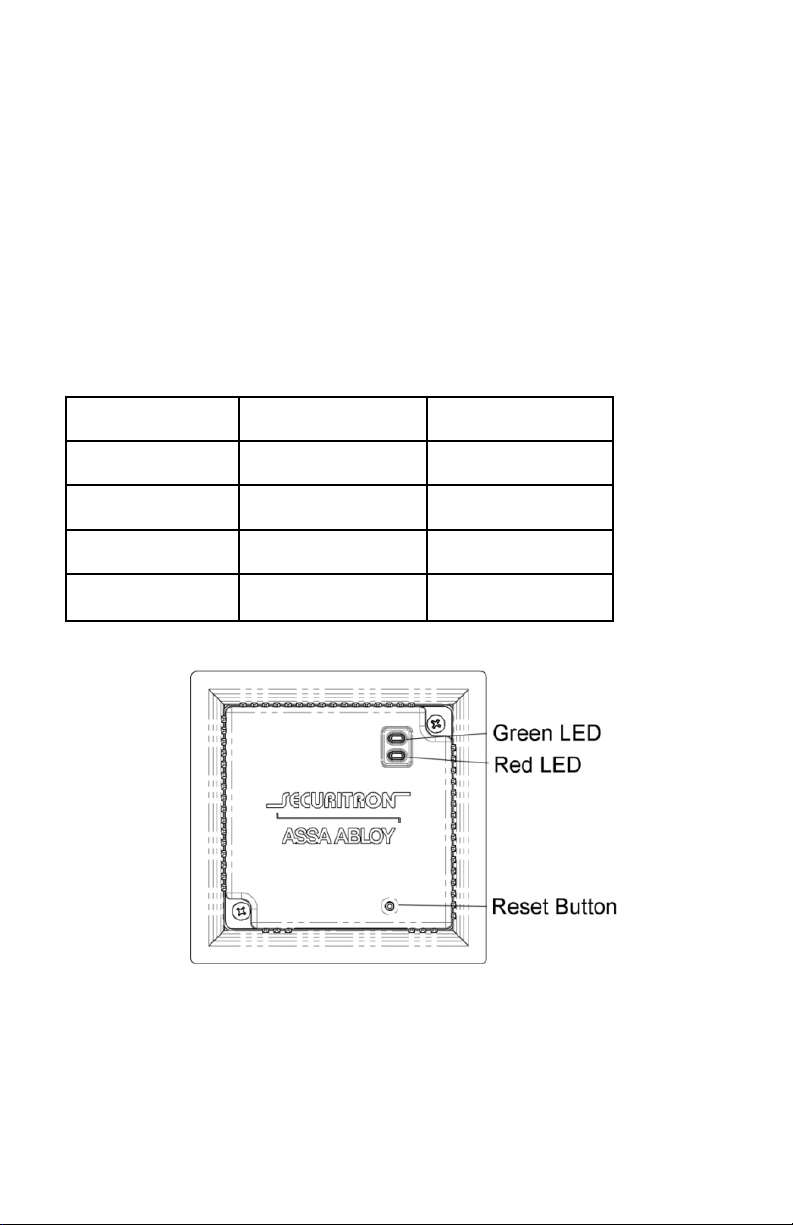

Status Signaling .................................................................................... 8
Access Control and FAI Operations

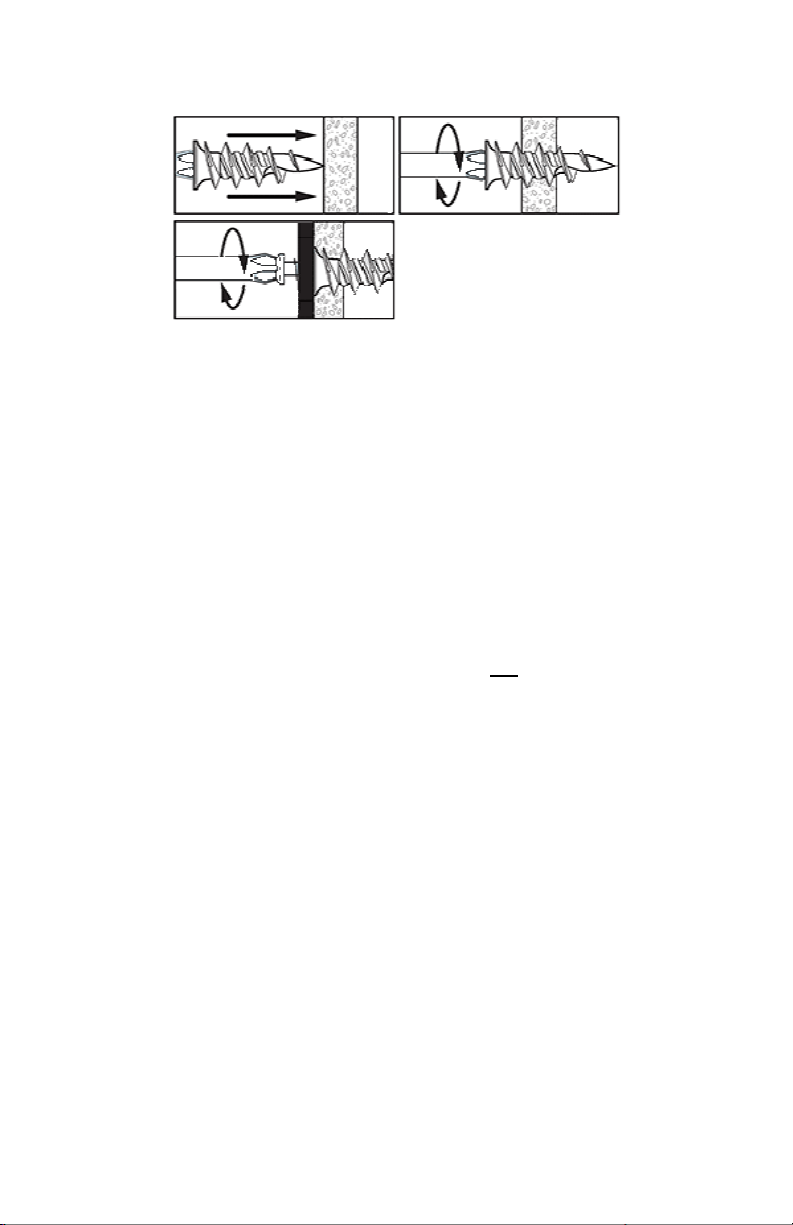

Installing the EcoPower Power Supply...................................................11

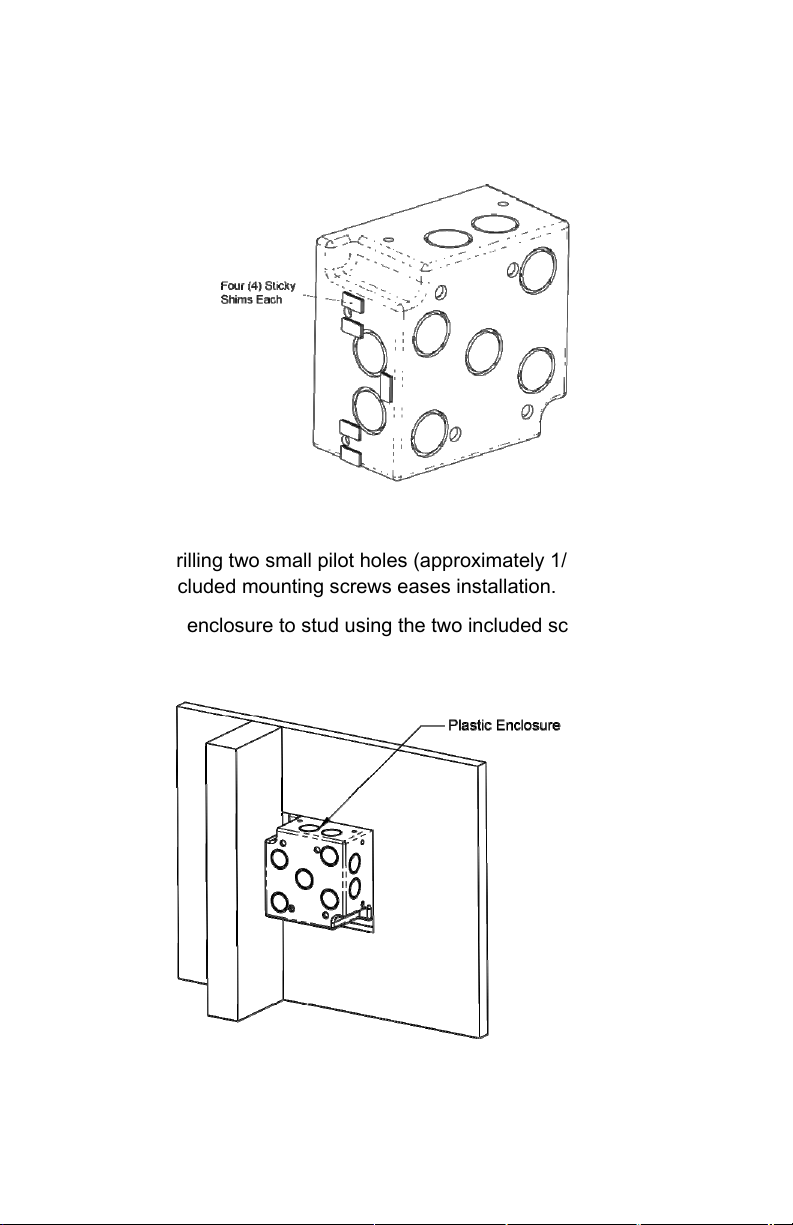

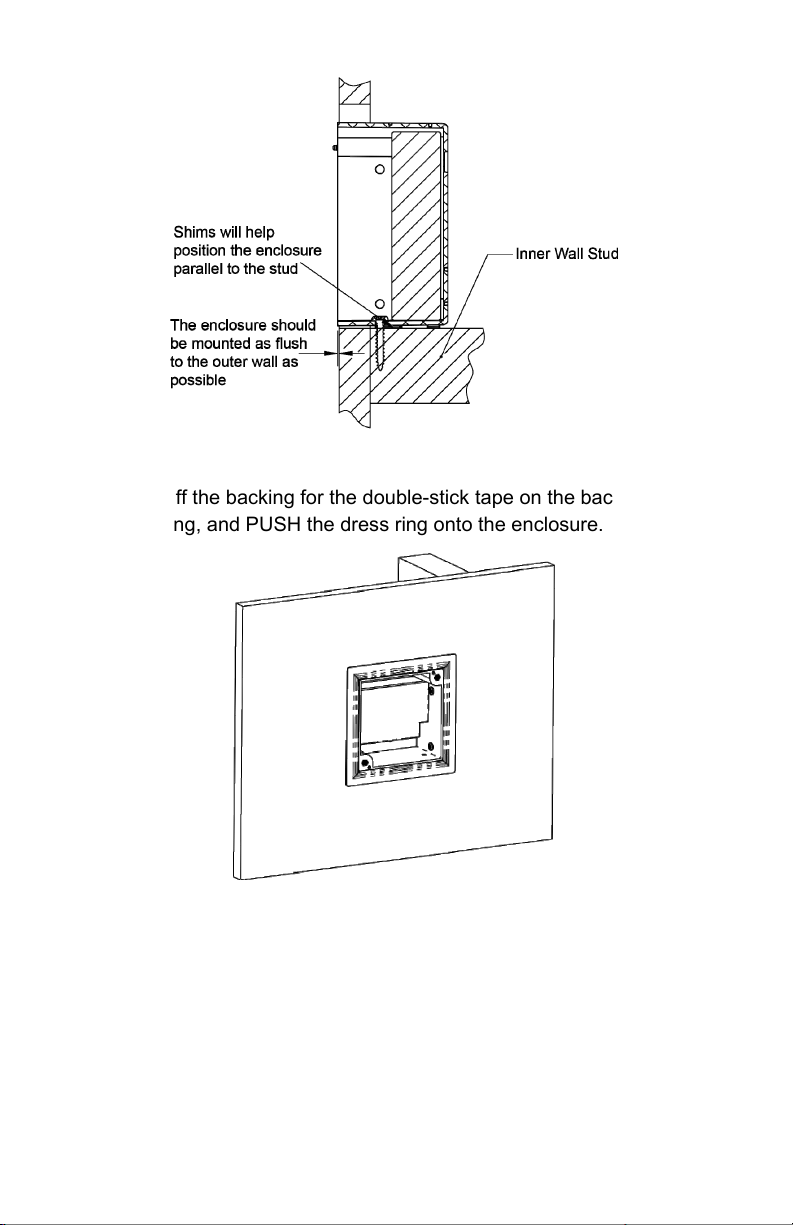

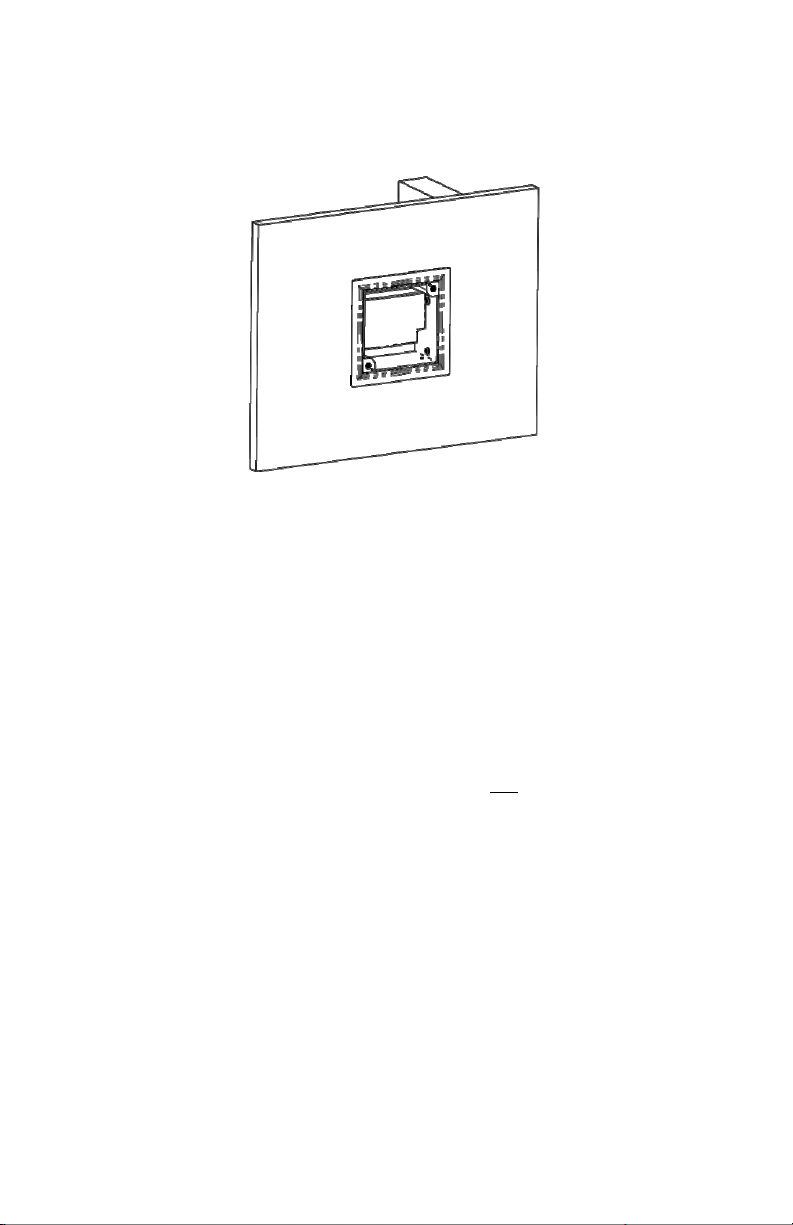

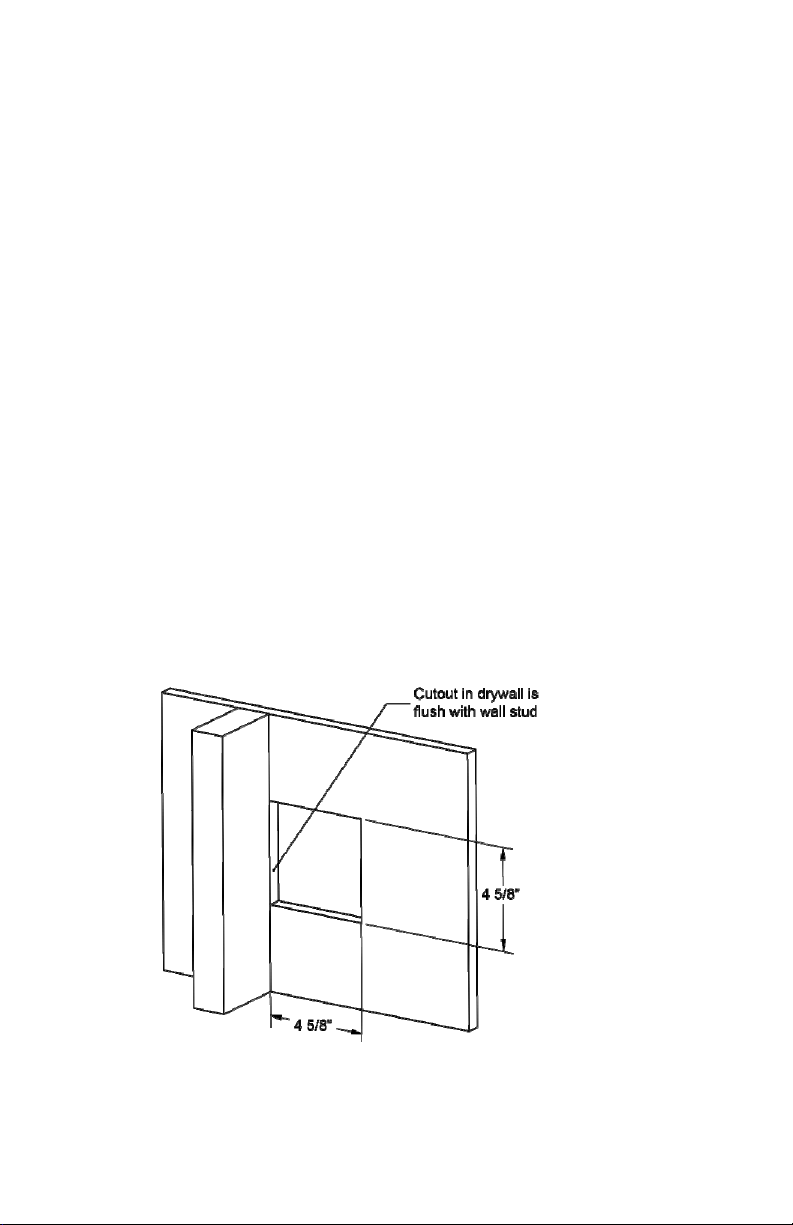

Install the EcoPower Power Supply using the included enclosure
box (flush with the wall stud and wall surface) .................................... 11

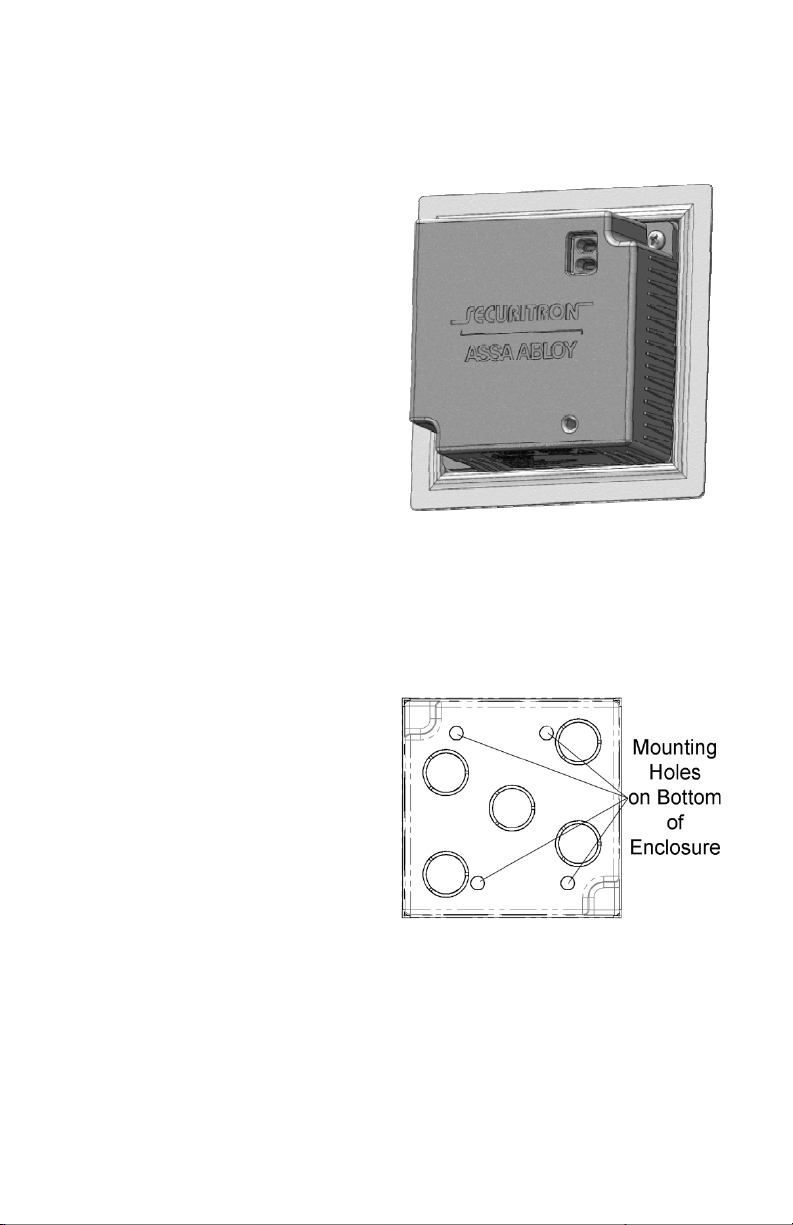

Install the EcoPower Power Supply using the included enclosure
box and surface mounted .................................................................... 15
Install the EcoPower Power Supply flush with the stud in an
existing 2-gang junction box ................................................................ 17
..........................................................8
Warranty
The EcoPower™ Power Supply is covered by the MagnaCare® lifetime
replacement no fault warranty. No registration is required. Product will
be replaced forever, for any reason, including but not limited to installation
error, vandalism, or act of God. Replacement product is shipped at
Securitron’s expense next day air if needed.
For more information, visit www.securitron.com
2 500-33530, Rev B
Models
EPS-05 EcoPower Power Supply in Enclosure
EPS-05B EcoPower Power Supply PCB only
Structure
3 500-33530, Rev B
Block Diagram
Specifications
Environmental
Parameter Value
Operating Ambient Temperature 0 to +49° Celsius (C)
Design Product Life 10 years, +49°C ambient,
continuous full load
Storage Temperature -25 to +85°C
Operating Humidity 5 to 90%, non-condensing
4 500-33530, Rev B
Mechanical
Parameter Value
Enclosure Polycarbonate, UL294 Level 1
Enclosure dimensions 4 1/8” X 4 1/8” X 3 13/16”
AC input wiring 3-wire with strain relief

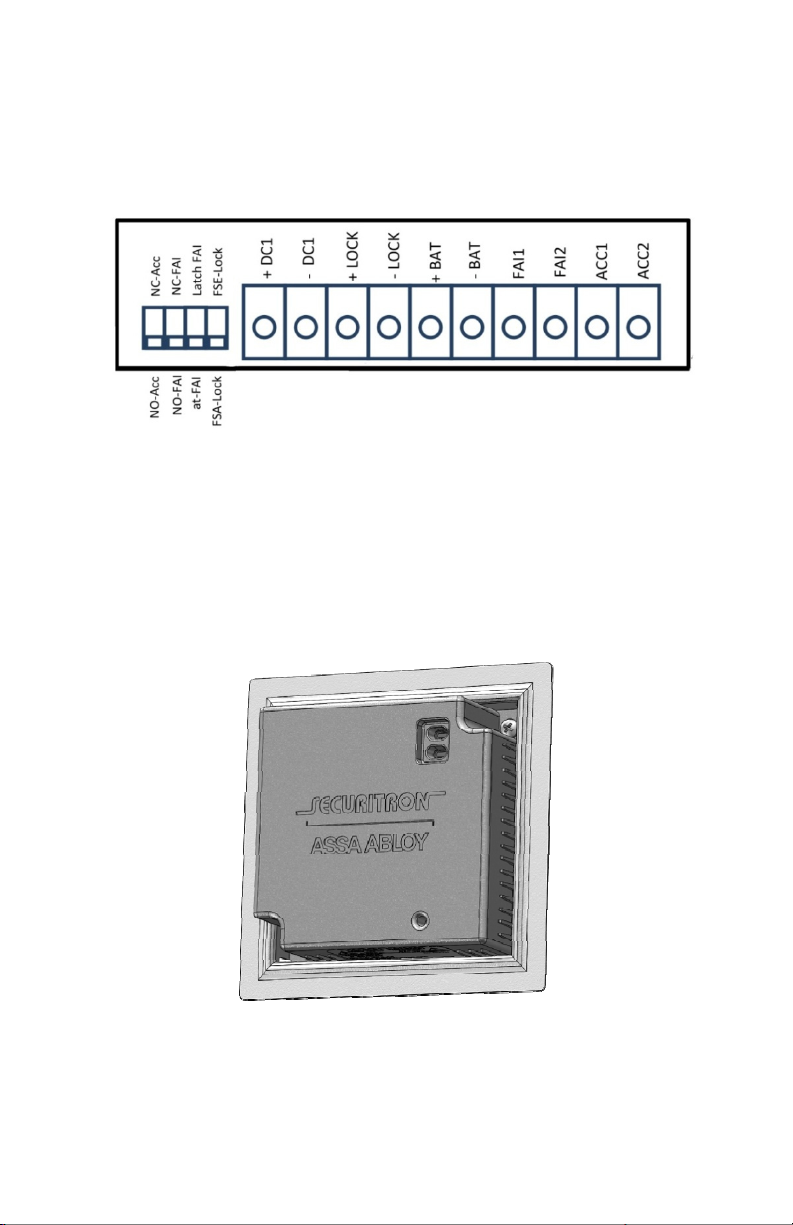

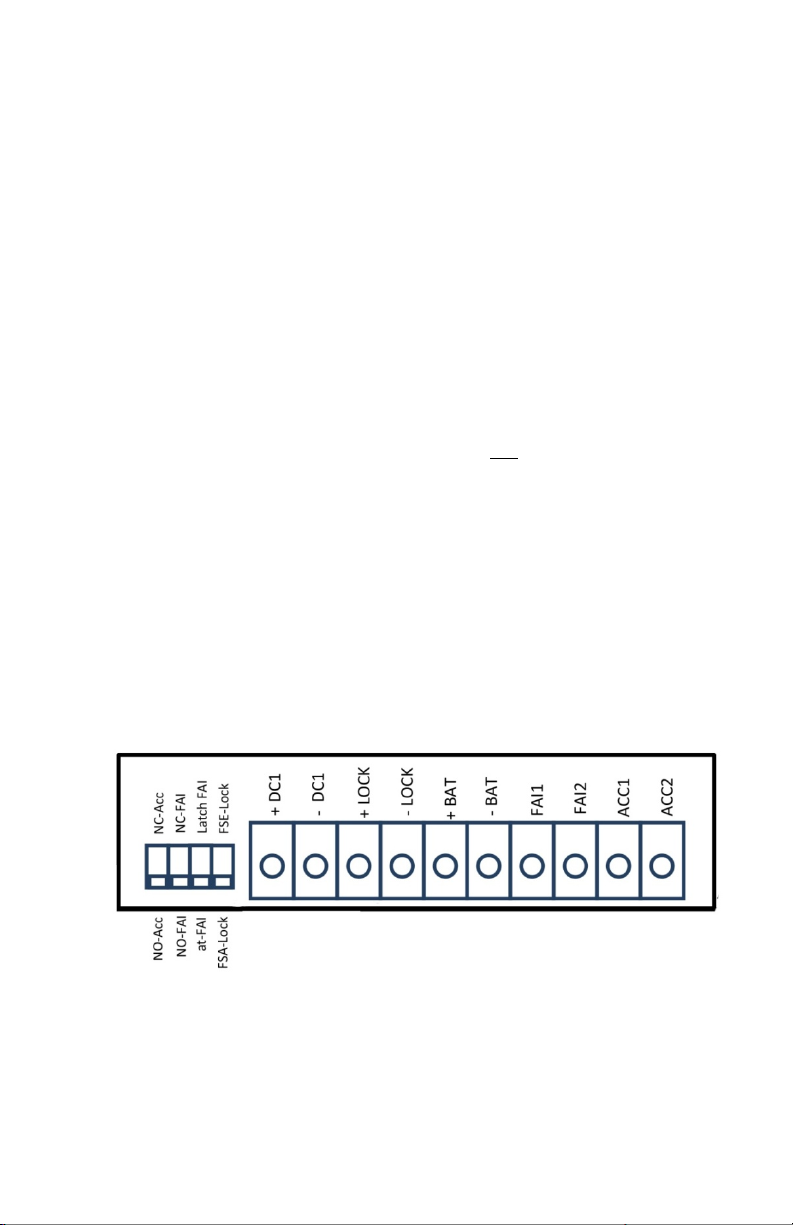

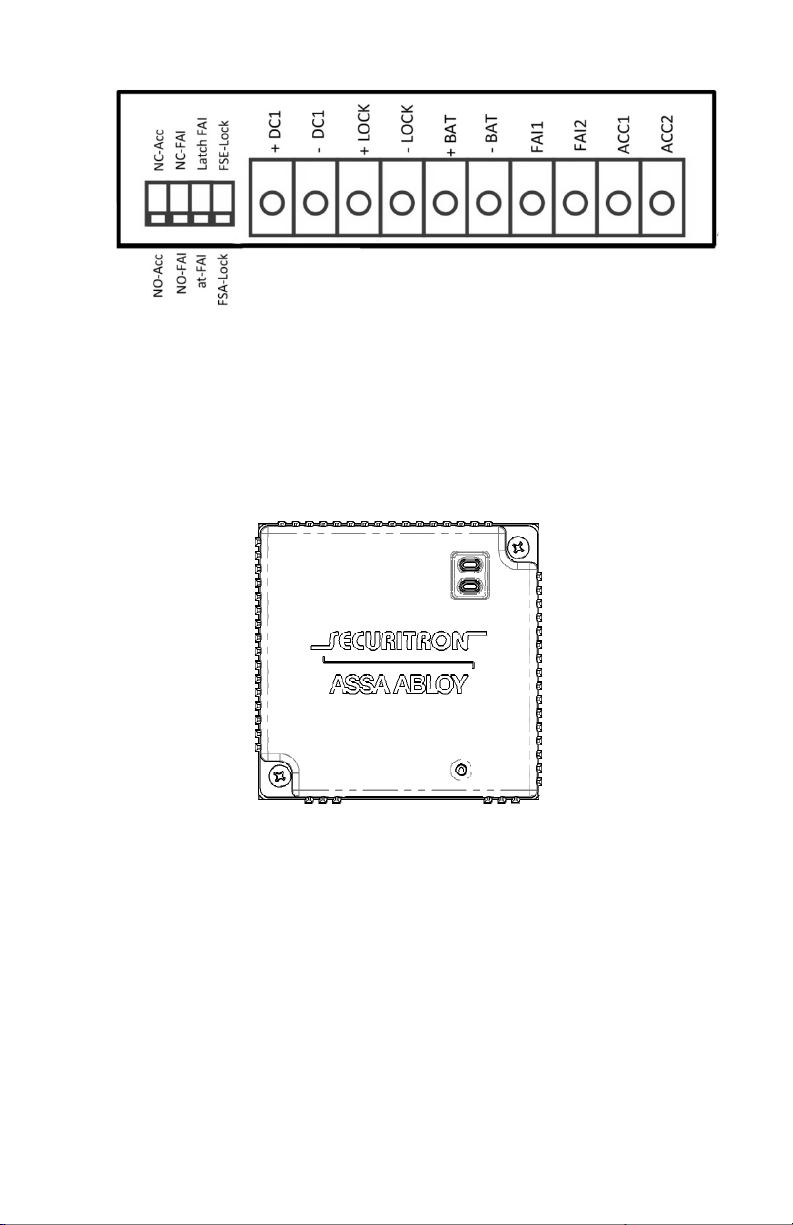

DC1, LOCK, BAT, FAI, ACC wiring 10-position terminal strip
Electrical
Parameter Value
Input Voltage Range 100–240 VAC, ±10%
Input Frequency 50–60 Hz
Input Surge Resistance 6000 Vpk
Access Control Input Dry Contact, NO or NC; 32
VDC, 0.02A minimum
Fire Alarm Interface Input Dry Contact, NO or NC; 32
VDC, 0.02A minimum
Hi-Pot Test 2500 VAC or 3535 VDC
Leakage Current < 0.5 mA
Output Voltage at No Load Set to 14.0 VDC, ± 0.2%
Number of Outputs Two (2) Outputs:
DC1 (Reader): 12 VDC nominal
(9.4–14.6 VDC for compatibility)
LOCK: 12 VDC nominal (9.4–
14.6 VDC for compatibility)
If the battery is discharged
below 9.4V, the lock output is
de-energized
Total Peak Output Current 0.5A (Total current from both
outputs for at least 1 second)
Total Continuous Output Current 0.1A (Total continuous current
from both outputs)
Charging Current (BAT) 12 VDC nominal, 0.1A
maximum continuous, 0.34A
peak (< 2 seconds)
Standby Power < 20 mW at 230V, < 10mW
at115V
Load Regulation < 2.5% at 100 mA
Line Regulation < 0.2%
5 500-33530, Rev B
Output Voltage Ripple and Noise < 0.14 Vpp (20 MHz bandwidth
limit measurement)
Output Surge Resistance 2400 Vpk
Output Over Voltage Protection Under any single point
condition, output voltage shall
not exceed 120% of nominal
voltage
Battery Type and Capacity Sealed Lead Acid (SLA), 12V,
0.8 Ah
Battery Standby Time 20.5 hours dependent on lock
type (FSA or FSE) and usage.
Battery standby time is
designed for EcoFlex lock with
optional H1 controller only (not
for 100 mA load). H1 controller
draws an average of 5 mA.
The two total current draw is
about 20 mA.
Total Load Current 0.8 Ah Battery Backup Time
20 mA 20.5 hours
50 mA 6.5 hours
100 mA 2 hours
NOTE: 50% - battery discharge time from fully charged
condition.
Regulatory Certifications
• UL294, "Access Control System Unit," 6th Edition
• UL603, "Power supply for use with Burglar Alarm System," 5th
Edition
• CAN/ULC-S533, "Egress Door Securing and Releasing Devices,"
3rd Edition
• GreenCircle Certified (99% Energy Savings)
6 500-33530, Rev B
