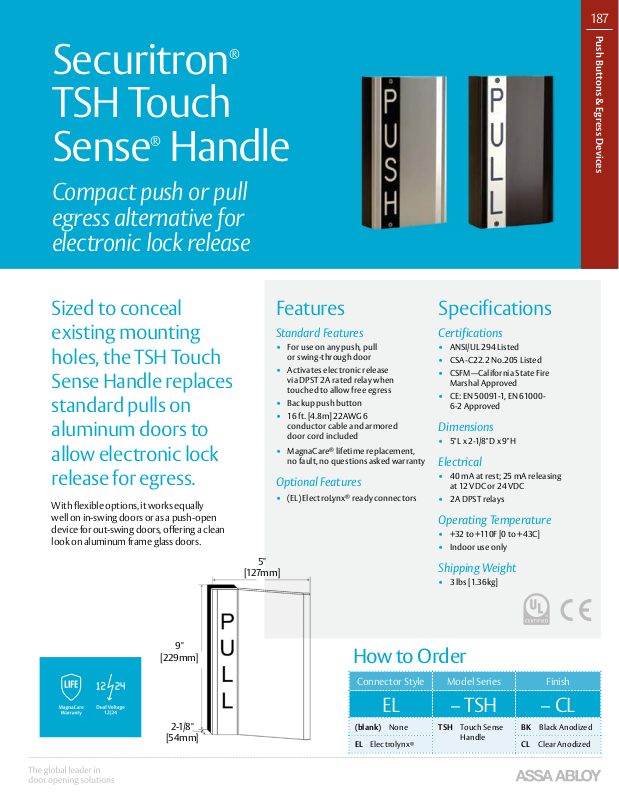

Securitron EL-TSH-BK, EL-TSH-CL Specsheet

Securitron®
TSH Touch

®

Sense

Compact push or pull
egress alternative for
electronic lock release

Handle

187

Push Buttons & Egress Devices

Sized to conceal
existing mounting
holes, the TSH Touch
Sense Handle replaces
standard pulls on
aluminum doors to
allow electronic lock
release for egress.

With flexible options, it works equally
well on in-swing doors or as a push-open
device for out-swing doors, offering a clean
look on aluminum frame glass doors.

5"

[127mm]

Features

Standard Features

• For use on any push, pull

or swing-through door

• Activates electronic release

via DPST 2A rated relay when
touched to allow free egress

• Backup push button

• 16 ft. [4.8m] 22AWG 6

conductor cable and armored
door cord included

• MagnaCare

no fault, no questions asked warranty

Optional Features

• (EL) ElectroLynx

®

lifetime replacement,

®

ready connectors

Specifications

Certifications

• ANSI/UL 294 Listed

• CSA-C22.2 No.205 Listed

• CSFM— California State Fire

Marshal Approved

• CE: EN 50091-1, EN 61000-

6-2 Approved

Dimensions

• 5"L x 2-1/8"D x 9"H

Electrical

• 40 mA at rest; 25 mA releasing

at 12 VDC or 24 VDC

• 2A DPST relays

Operating Temperature

• +32 to +110F [0 to +43C]

• Indoor use only

Shipping Weight

• 3 lbs [1.36kg]

9"

[229mm]

2-1/8"

[54mm]

How to Order

Connector Style Model Series Finish

EL – TSH – CL

(blank) None TSH Touch Sense

EL Electrolynx

®

Handle

BK Black Anodized

CL Clear Anodized
