Securitron EL-DSB-BK Brochure

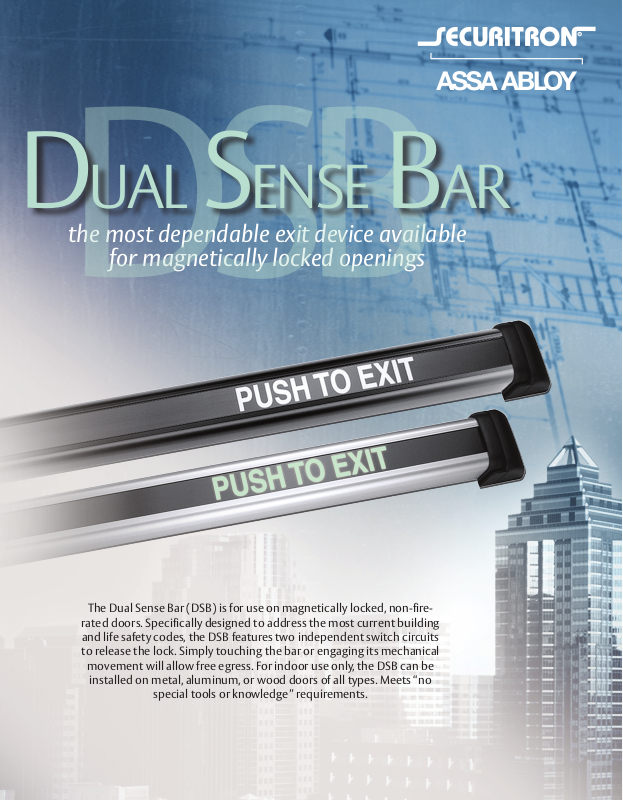

DSB

Dual SenSe Bar

the most dependable exit device available

for magnetically locked openings

The Dual Sense Bar (DSB) is for use on magnetically locked, non-fire-
rated doors. Specifically designed to address the most current building
and life safety codes, the DSB features two independent switch circuits
to release the lock. Simply touching the bar or engaging its mechanical

movement will allow free egress. For indoor use only, the DSB can be

installed on metal, aluminum, or wood doors of all types. Meets “no

special tools or knowledge” requirements.

Features and Benefits

• 1/8” mechanical movement and ultra-reliable touch sense technology working
together in a single exit bar

• Touch sensing and redundant movement-activated switches complies with current
fire and life safety egress codes

• Uses same mounting pattern as the TSB-3

• Circuit board is immune to electrostatic discharge - switching power supplies,

proximity and garment readers and neon signs

• Bounce resistant to false triggering from outside impact

• 3 standard lengths: 36”, 42”, or 48”

• All metal construction will handle the toughest interior environments

• Like the TSB-3, the DSB allows field cutting to fit non-standard door widths

• DSB options include illuminated “Push To Exit” via internal fiber optic strip and

™

MicroShield

anti-microbial coating for superior germ resistance

• 16 ft. [4.8m] 22AWG 6 conductor cable and stainless steel armored door cord are
included

™

• Available ElectroLynx

ready

• Operates on either 12 or 24 VDC

• Tested to 27,000 volts electrostatic discharge

• UL Listed

Specification Data

Current Draw:
Dual Sense Bar Only - 24mA
Dual Sense Bar with Illumination - 44mA
Voltage: 12 or 24 VDC
Operating Temperature: +32 to +120F [0 to +49C]
Shipping Weight: 6 to 8 lbs. depending on length
Warranty: MagnaCare Lifetime Replacment Warranty

3”

[76mm]

ElectroLynx™, a system of universal Molex™ plug-in connectors and
standardized color-coded wiring, makes installing electrified doorway
components a snap! Pre-wired doors, frames and hardware mean
that installation is fool-proof and future-proof.

ASSA ABLOY, the global leader
in door opening solutions

34.19”, 40.19”, 46.19”

[868mm, 1021mm, 1173mm]

MicroShield
permanently suppresses the growth of bacteria, algae, fungus, mold
and mildew. MicroShield
where vigilance in the war against bacteria and mold is critical,
including healthcare facilities, laboratories, restaurants, offices,
schools, and daycare facilities. MicroShield
other high touch hardware, and lasts for the life of the hardware.

SECURITRON MAGNALOCK CORPORATION

550 Vista Blvd. Sparks, NV 89434

1-800-MAGLOCK www.securitron.com

3”

[76mm]

™

is a revolutionary new hardware finish coating that

™

is ideal for countless hardware applications

™

is available on locks and

Securitron, Magnalock and MagnaCare

are all ® registered trademarks of

Securitron Magnalock Corporation.
