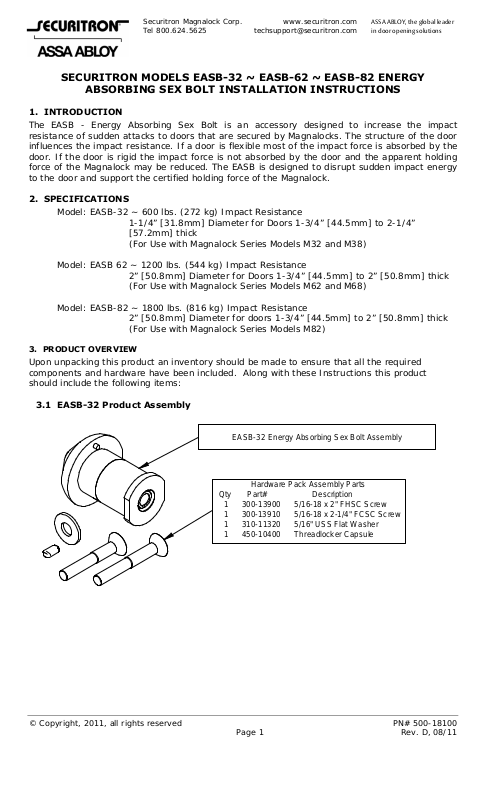

SECURITRON MODELS EASB-32 ~ EASB-62 ~ EASB-82 ENERGY
ABSORBING SEX BOLT INSTALLATION INSTRUCTIONS
1. INTRODUCTION
The EASB - Energy Absorbing Sex Bolt is an accessory designed to increase the impact
resistance of sudden attacks to doors that are secured by Magnalocks. The structure of the door
influences the impact resistance. If a door is flexible most of the impact force is absorbed by the
door. If the door is rigid the impact force is not absorbed by the door and the ap parent holding
force of the Magnalock may be reduced. The EASB is designed to disrupt sudd en impact energy
to the door and support the certified holding force of the Magnalock.
2. SPECIFICATIONS
Model: EASB-32 ~ 600 lbs. (272 kg) Impact Resistance
1-1/4” [31.8mm] Diameter for Doors 1-3/4” [44.5mm] to 2-1/4”
[57.2mm] thick
(For Use with Magnalock Series Models M32 and M38)
Model: EASB 62 ~ 1200 lbs. (544 kg) Impact Resistance
2” [50.8mm] Diameter for Doors 1-3/4” [44.5mm] to 2” [50.8mm] thick
(For Use with Magnalock Series Models M62 and M68)
Model: EASB-82 ~ 1800 lbs. (816 kg) Impact Resistance
2” [50.8mm] Diameter for doors 1-3/4” [44.5mm] to 2” [50.8mm] thick
(For Use with Magnalock Series Models M82)
3. PRODUCT OVERVIEW
Upon unpacking this product an inventory should be made to ensure that all the required
components and hardware have been included. Along with these Instruction s this product
should include the following items:
3.1 EASB-32 Product Assembly
EASB-32 Energy Absorbing Sex Bolt Assembly
Hardware Pack Assembly Parts
Qty Part# Description
1 300-13900 5/16-18 x 2" FHSC Screw
1 300-13910 5/16-18 x 2-1/4" FCSC Screw
1 310-11320 5/16" USS Flat Washer
1 450-10400 Threadlocker Capsule
© Copyright, 2011, all rights reserved PN# 500-18100
Page 1 Rev. D, 08/11
3.2 EASB-62/82 Product Assembly
4. RECOMMENDED TOOLS:
EASB-62/82 Energ y Absorbing Sex Bolt Asse m b ly
Hardware Pack Assembly Parts
Qty Part# Description
1 300-13600 5/16-18 x 1-3/4" FHSC Screw
1 310-11320 5/16" USS Flat Washer
1 450-10400 Threadlocker Capsule
Suggested Tool List
EASB-32 EASB-62/82
#2 Phillips Screwdriver ●
Ball Pein Hammer ● ●
12” [300mm] Adjustable Wrench ●
1-9/32” [33mm] Combination Wrench (optional) ●
Drill bit: - 1/8” [3.2mm] Diameter ● ●
Drill or Hole Saw - 1-1/4” [32mm] Diameter ●
Drill or Hole Saw - 2” [50.8mm] ●
5. INSTALLATION INSTRUCTIONS
5.1 Door Preparation and Strike Mounting
5.1.1 EASB-32 Door Preparation
Locate and mark the position of the EASB-32 on the door. The strike location is determined by
the center position of the lock face. Drill through the door using a 1-1/4” [32mm] Drill or Hole
Saw. Remove the mounting cap from the front of the main housing. Insert the main housing
through the door until the anti-rotation pins touch the door face. Place a protective material over
the crown of the housing, to prevent damage to the housing, tap with a hammer to make cen ter
mark drilling locations in the door for the anti-ro tation pins. Remove the main housing from the
door and drill the two (2) holes using a 1/8” [3.2mm] drill approximately 1/4” [6.4mm] deep.
Note: See Figure 1 for a concept of a completed installation.
DOOR HEADER
ANTI-ROTATION PIN HOLES (2)
1/8" [3.2mm] x 1/4" [6.4mm] Deep
1-3/4" [4 4.5m m ]
EASB - 32
DRIL L 1-1/4 " [31. 8m m ]
HOLE THROUGH DOOR
to
2-1/4" [5 7.2m m ]
THICK DOOR
APPLY THREAD LOCK
TO MOUNTING
MOUNTING CAP
AND STRIKE SCREW
DOOR STOP
EASB-32
MOUNTING
CAP
MODEL 32
STRIKE
MAGNET
WASHER STACK :
STEE L WASHER NEXT TO
EASB FOL LOWED BY
ONE ( 1) or TW O (2)
RUBBER W ASHERS
Figure 1
PN# 500-18100
Page 2 Rev. D, 08/11
5.1.2 EASB-32 Strike Assembly
Re-insert the main housing into the door and insert the anti-rotation pins into the alignment
holes. Install the mounting cap onto the housing using the thread locker compound provided and
tighten thoroughly using an adjustable wrench with a minimum jaw opening of 1-5/16” [33mm].
Install the strike assembly hardware as shown in the Figure 1 Illustration and the Magnalock
Installation Manual.
5.1.3 EASB-62/82 Door Preparation
Locate and mark the position of the EASB-62/82 on the door. The strike location is determined
by the center position of the lock face. Drill through the door using a 2” [50.8mm] Drill or Hole
Saw. Remove the two (2) screws and Base Plate from the front of the main housing. Insert the
main housing through the door until the anti-rotation pins touch the door face. Place a protective
material over the crown of the housing, to prevent damage to the housing, tap with a hammer
to make center mark drilling locations in the door for the anti-rota tion pins. Remove the main
housing from the door and drill the two (2) holes using a 1/8” [3.2mm] drill appro ximately 1/4”

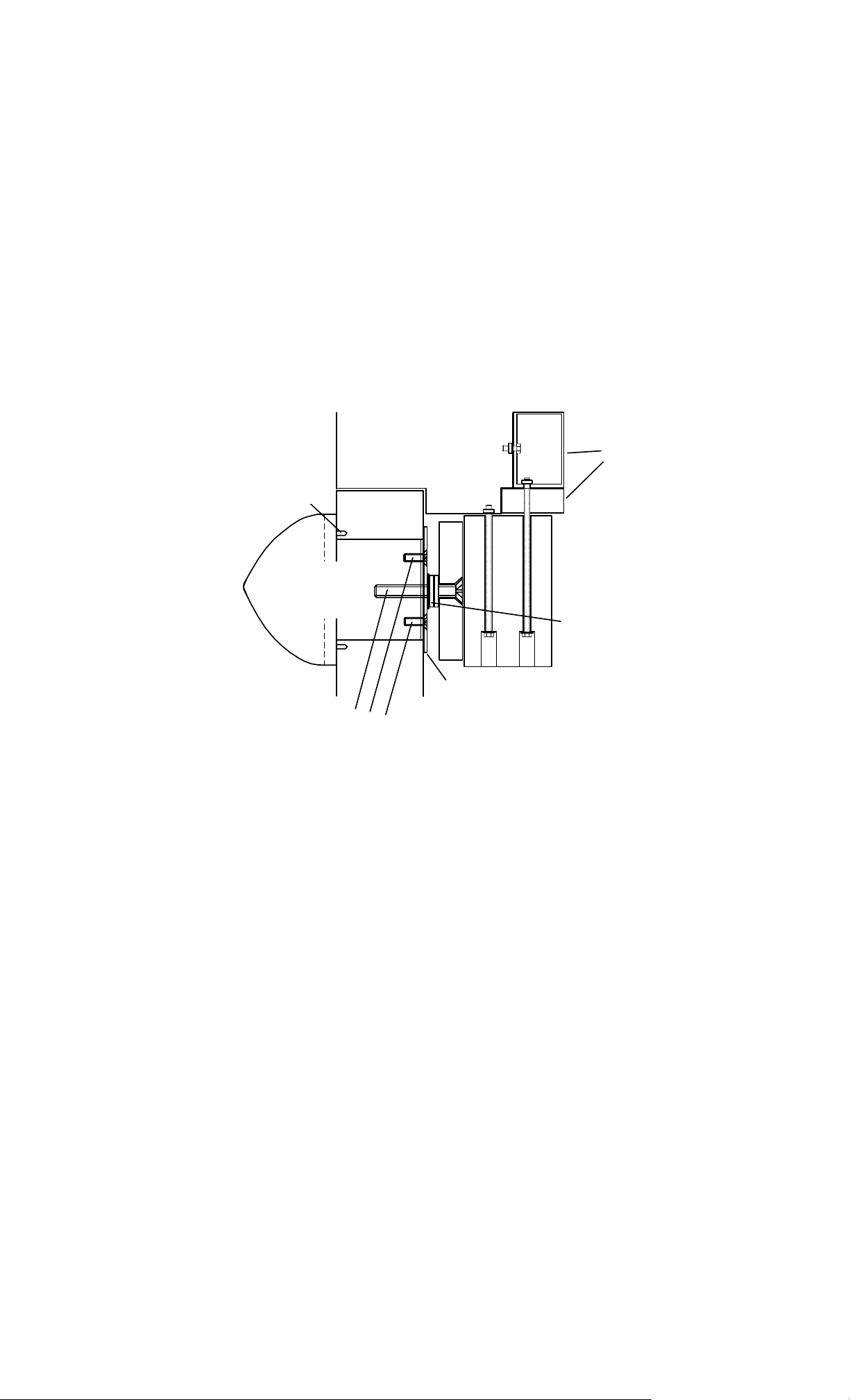

[6.4mm] deep. Note: See Figure 2 for a concept of a completed installation.
OPTIONAL
BRACKETS:
UHB
SFP
ANTI-ROTATION PIN HOLES (2)
1/8" [3.2mm] x 1/4" [6.4mm] Deep
ANTI-ROTATION
PIN
1 3/4"
(44.5MM)
THICK
DOOR
DOOR HEADER
STOP
STRIKE
MAGNET
EASB
EASB-62/82
BASE
PLATE
APPLY THREAD LOCK
TO ALL THREE
SCREWS
WASHER STACK:
WASHER STACK:
STEEL WASHER NEXT TO
STEEL WASHER NEXT TO
EASB FOLLOWED BY
EASB FOLLOWED BY TWO
ONE (1) or TWO (2)
RUBBER WASHERS
RUBBER WASHERS
Figure 2
5.1.4 EASB-62/82 Strike Assembly
Reinstall the base plate back and two (2) mounting screws onto the housing using the thread
locker compound provided. Tighten thoroughly using a Phillips screwdriver. Install the strike
assembly hardware as shown in Figure 2 and the Magnalock Installation Manual.
6. Thinner and Thicker Door Applications
6.1 EASB-32 Strike Assembly
The EASB-32 is dimensioned to fit a door thickness range from 1.700” [43.2mm] to 21/4” [57.2mm]. The mounting cap has a threaded body which allows for the variation. The
remaining threads should have a thread locker a pplied to maintain the installation of the EAS B32 assembly. The strike mounting screws supplied w ith the unit come in two ( 2) lengths. The 2”
[50.8mm] long screw is used for door thicknesses from 1-3/4” to 2” [50. 8mm]. The 2-1/4” long
screw is for door thicknesses from 2” to 2-1/4”.
6.2 EASB-62 Strike Assembly
The EASB-62 and EASB-82 have the same body type for installation. It is designed strictly for 13/4” thick doors. If the door is a different thickness, contact the factory. Consider the lock
model, the door type and door thickness when ordering an EASB device.
Note: For thinner doors, Securitron will furnish, upon request, an anti-rotation washer. The
washer installs under the mounting head and keys up to the anti-rotation pins. For thicker
doors, Securitron will furnish, upon request, longer Base Plate mounting screws, an adaptor
bushing and a longer strike mounting screw.
PN# 500-18100
Page 3 Rev. D, 08/11
7. Hole Drilling Difficulty
If there is an obstruction, which doesn’t allow proper drilling of the mounting hole in the door,
reposition the Magnalock and the EASB further back from the door stop. If lowering the
Magnalock is necessary, Securitron manufactures two (2) t ypes of 1/2” [12.7mm] thick spacer
brackets (Models: ASB or CWB).
Contact the factory
8. Retrofit An Existing Installation
Remove the strike and remove the sex bolt from the door installation. To enlarge the original sex
bolt hole, use a block of wood as a template. Drill the desired size hole, 1-1/4” [31.8mm]
diameter for EASB-32 or 2” [50.8mm] diameter for the EASB-62/82 into the block of wood.
Carefully position and clamp the template block into place over the center of the existing hole or
in the desired center mounting location for the EASB. Using the Hole Saw desired, enlarge the
mounting hole.
Note: Be cautious to maintain alignment when drilling the hole into the door.
9. MAGNACARE
LIFETIME REPLACEMENT WARRANTY
For warranty information visit: www.securitron.com/en/site/securitron/About/MagnaCare-Warranty/
