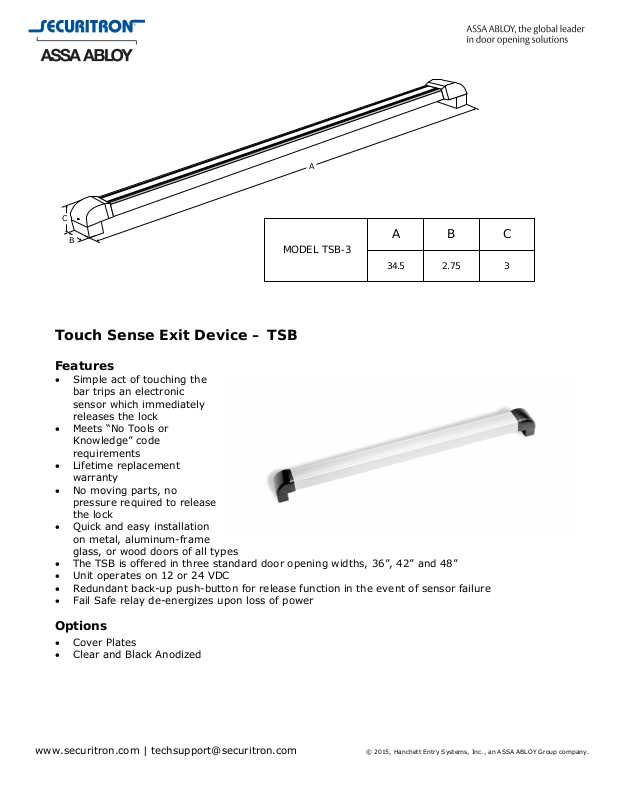

Touch Sense Exit Device – TSB

Features

mple act of touching the

• Si
bar trips an electronic
sensor which i
releases the lock

• Meets “No Tools or
Knowledge” code
requirements

• Lifetime replacement
warranty

• No moving parts, no
pressure required to release
the lock

• Quick and easy installation
on metal, aluminum-frame
glass, or wood doors of all types

• The TSB is offered in three standard door opening widths, 36”, 42” and 48”

• Unit operates on 12 or 24 VDC

• Redundant back-up push-button for release function in the event of sensor failure

• Fail Safe relay de-energizes upon loss of power

mmediately

C

3

Options

• Cover Plates

• Clear and Black Anodized

Touch Sense Exit Device – TSB (cont’d)

Operating Temperature

0 to 43C [32 to 110F]

How to Order

Part Number
TSB-3CL Touch Sense Bar Clear Anodized 36 in.
TSB-3BK Touch Sense Bar Anodized Black 36 in.
TSB-3CL-42 Touch Sense Bar Clear Anodized 42 in.
TSB-3BK-42 Touch Sense Bar Black Anodized 42 in.
TSB-3CL-48 Touch Sense Bar Clear Anodized 48 in.
TSB-3BK-48 Touch Sense Bar Black Anodized 48 in.
CAB-6 16ft 6 Conductor Cable With Connector
TCP-CL Cover Plates For Touch Bar Mounting, Set of 2 Clear
TCP-BK Cover Plates For Touch Bar Mounting, Set of 2 Satin Black

Product Description

ARCHITECTURAL SPECIFICATION – Touch Sense Exit
Device

2.x Touch Sense Exit Device – TSB

A. The digital keypad shall be produced by an ISO 9001 certified manufacturer.
B. Th
C. The exit device shall employ anodized aluminum finish and shall be of a length

D. Exit devices for non standard door openings shall be accommodated up to 48”.
E. It shall activate a DP/ST 1Amp rated relay when touched (no mechanical

F. A backup push button, 16’ ft. of 20AWG 6 conductor cable, and a stainless steel
G. The device shall operate on either 12 or 24 VDC.

e digital keypad shall have a limited replacement warranty.

intended for 36” openings (standard).

movement) which will allow free egress or initiate the delay on a exit delay timer.

armored door cord shall be included with the bar.
