compensates
•
Features:

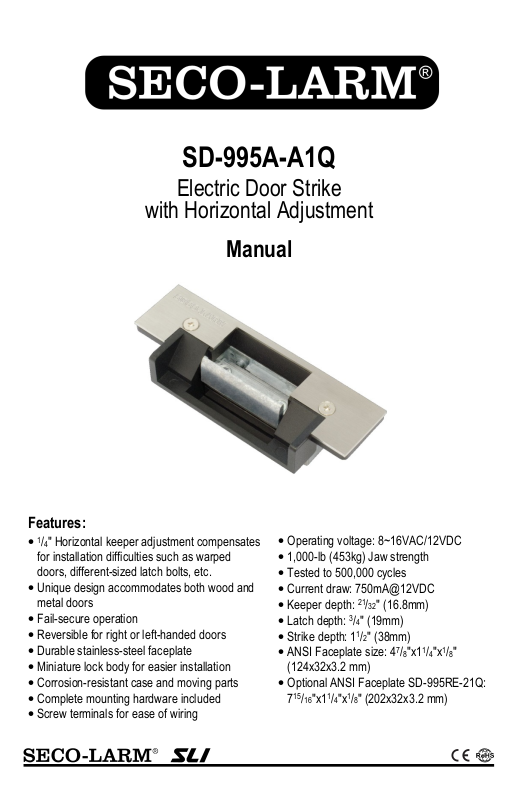

SD-995A-A1Q
Electric Door Strike
with Horizontal Adjustment
Manual
1/4" Horizontal keeper adjustment
for installation difficulties such as warped
doors, different-sized latch bolts, etc.
• Unique design accommodates both wood and
metal doors
• Fail-secure operation
• Reversible for right or left-handed doors
• Durable stainless-steel faceplate
• Miniature lock body for easier installation
• Corrosion-resistant case and moving parts
• Complete mounting hardware included
• Screw terminals for ease of wiring
Operating voltage: 8~16VAC/12VDC
• 1,000-lb (453kg) Jaw strength
• Tested to 500,000 cycles
• Current draw: 750mA@12VDC
• Keeper depth: 21/32" (16.8mm)
• Latch depth: 3/4" (19mm)
• Strike depth: 11/2" (38mm)
• ANSI Faceplate size: 47/8"x11/4"x1/8"
(124x32x3.2 mm)
• Optional ANSI Faceplate SD-995RE-21Q:
715/16"x11/4"x1/8" (202x32x3.2 mm)
SECO-LARM® Electric Door Strike with Horizontal Adjustment
Parts List:
1x Door strike
1x Mounting plate
1x Mounting t
emplate
Dimensions:
Specifications:
Optional Faceplate
SD-
995RE
-21Q:
Model
SD-
995RE
-21Q
Dimensions
715/16"x11/4"x1/8" (202x32x3.2 mm)
Construction
Stainless Steel
Model
SD-
995A-A1Q
Operation
Fail-secure
Front
11/4"
)
11/4"
)
111/16"
(43mm)
Side
3
/4"
)
13/8"
)
219/32"
)
Operating voltage 8~16 VAC/12VDC
Current
draw
Operating temperature 14°~113° F (-10°~45° C)
Weight 10.3-oz (292g)
Max. latch throw
Strike depth 11/2" overall (38mm)
16VAC 800mA
12VDC 750mA
5
/8" (16mm)
Design Reversible Non-Handed
Adjustable keeper Max. 1/4" (6mm)
Faceplate dimensions 47/8"x11/4"x1/8" (124x32x3.2 mm)
2x Mounting tabs 2x Wood screws 4x Machine screws
2x Machine screws (narrow) 2x Black anchor nuts 1x Manual
Front
(32mm
(with optional
SECO-LARM
(35mm
SD-995RE-21Q faceplate)
33/8"
(86mm)
47/8"
(124mm)
(66mm
721/64"
(186mm)
(19.3mm
(32mm
2 SECO-LARM® U.S.A., Inc.
715/16"
(202mm)
SECO-LARM®
Electric Door Strike with Horizontal Adjustment
1. Measure the latch line (see fig. 1).
Installation:
Door
jamb
distance
L
atch line
Door
latch
Deadlatch pin
a. Measure the distance between the face of
the door jamb and the face of the door latch.
This is the vertical latch distance.
b. Measure the vertical latch distance on the
door jamb from the face of the door jamb. At
that point, draw a vertical line. This is the
X
Vertical latch
Fig.1
latch line.
2. Measure the center line (see fig. 2).
a. Measure the distance from the floor to the
center of the door latch. Ignore the location
of the deadlatch pin when taking
measurements.
b. Measure the same distance as above along
the inside of the door jamb. This is the
Fig.2
center line.
3. Align the included mounting template to the latch
and center lines (see fig. 3)
4. Using the template as a guide, cut into the door
jamb to a depth of 3/4” (19mm).
NOTE: If cutting into a wooden door, use a chisel
to knock out a 1/8” (3mm) deep cut as shown on
the template.
5. Using two of the included machine screws
(narrow) and black clips, affix the mounting tabs
to the inside of the door jamb (see fig. 4).
Fig.3
6. Adjust keeper to correct position (see pg. 4).
7. Connect the two wires from the access control or
egress device, e.g. keypad, push-button switch,
push-bar, etc. to the Door Strike terminals.
Polarity is not important.
8. Conceal all wires in the door frame. Use two of
Fig.4
the included machine screws to mount the unit to
the mounting tabs. Adjust as needed to ensure
4
the door closes smoothly (see fig. 5).
SECO-LARM® U.S.A., Inc.
Fig.5
3
SECO-LARM® Electric Door Strike with Horizontal Adjustment
Keeper Adjustment
:
Electric strike does not activate
•
Door does not open when the
•
Troubleshooting:
Installation Jig
Stainless Steel ANSI
Faceplate
WARRANTY:
used in normal
LARM’s obligation is limited to the repair or
is void if
damage is caused by or attributed to acts of God, physical or electrical misuse or abuse, neglect, repair or alteration,
LARM determines that such equipment is
The sole obligation of
LARM’s
LARM be liable for any special, collateral, incidental, or consequential personal or property
NOTICE
:
However, the
LARM reserves the right to
This material may not be reproduced or copied, in whole or
SECO
-
LARM
®
16842 Millikan Avenue, Irvine, CA 92606
Website:
www.seco
-
larm.com
Phone: (949) 261
-
2999 | (800) 662
-
0800 Email: sales@seco
-
larm.com
Optional Accessories:
The keeper can be easily adjusted horizontally to
Keeper Adjustment
SECO-LARM
account for various installation anomalies. To adjust
the keeper:
1.
Loosen the two keeper adjustment screws.
2.
Move the keeper horizontally to the desired
position.
3.
Retighten the two keeper adjustment screws.
SD-995JA-11Q
Remove the strike and check that the wires are
connected properly
• Use a multimeter to test that the strike is receiving
the proper voltage and amperage.
If it is not, it may be necessary to use heavier gauge
wires, or increase the output of the power supply
• Make sure the activation device (keypad or
pushbutton switch) is working properly
Screws
SD-995RE-21Q
Check that the door latch is operating properly, and
electric strike is activated
replace if necessary
• The position of the electric strike may need to be
adjusted by moving it or adding washers or shims
service for three (3) years from the date of sale to the original customer. SECOreplacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM. This Warranty
improper or abnormal usage, or faulty installation, or if for any other reason SECOnot operating properly as a result of causes other than defects in material and workmanship.
SECO-LARM and the purchaser’s exclusive remedy, shall be limited to the replacement or repair only, at SECOoption. In no event shall SECOdamage of any kind to the purchaser or anyone else.
SECO-LARM policy is one of continual development and improvement. For this reason, SECOchange specifications without notice. SECO-LARM is also not responsible for misprints or typographical errors.
Copyright © 2015 SECO-LARM U.S.A., Inc. All rights reserved.
in part, without the written permission of SECO-LARM.
This SECO-LARM product is warranted against defects in material and workmanship while
The information and specifications printed in this manual are current at the time of publication.
U.S.A., Inc.
MI_SD-995A-A1Q_151109.docx
PITGW1
4 SECO-LARM® U.S.A., Inc.
