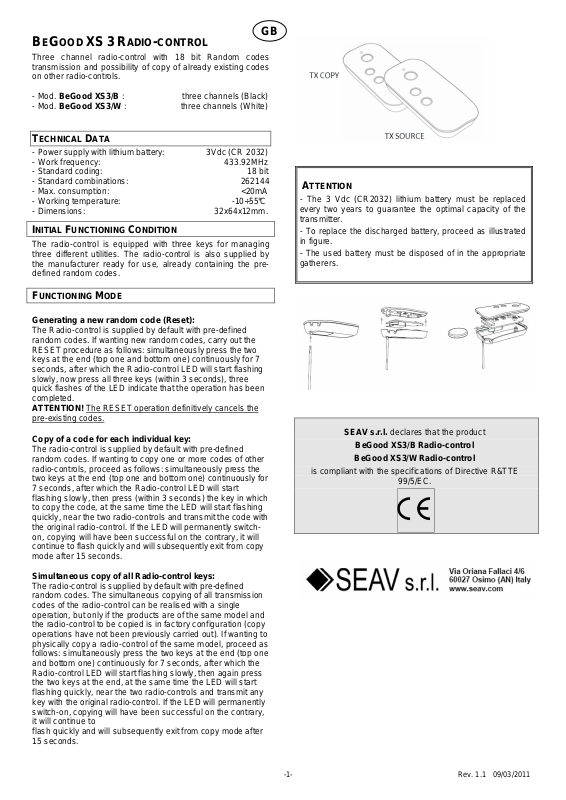

OOD XS 3 RADIO-CONTROL

Three channel radio-control with 18 bit Random codes
transmission and possibility of copy of already existing codes
on other radio-controls.

- Mod. BeGood XS3/B : three channels (Black)

- Mod. BeGood XS3/W : three channels (White)

T

ECHNICAL DATA

- Power supply with lithium battery: 3Vdc (CR 2032)

- Work frequency: 433.92MHz

- Standard coding: 18 bit

- Standard combinations: 262144

- Max. consumption: <20mA

- Working temperature: -10÷55°C

- Dimensions: 32x64x12mm.

I

NITIAL FUNCTIONING CONDITION

The radio-control is equipped with three keys for managing
three different utilities. The radio-control is also supplied by
the manufacturer ready for use, already containing the pre­defined random codes.

F

UNCTIONING MODE

Generating a new random code (Reset):

The Radio-control is supplied by default with pre-defined
random codes. If wanting new random codes, carry out the
RESET procedure as follows: simultaneously press the two
keys at the end (top one and bottom one) continuously for 7
seconds, after which the Radio-control LED will start flashing
slowly, now press all three keys (within 3 seconds), three
quick flashes of the LED indicate that the operation has been
completed.
ATTENTION! The RESET operation definitively cancels the
pre-existing codes.

Copy of a code for each individual key:

The radio-control is supplied by default with pre-defined
random codes. If wanting to copy one or more codes of other
radio-controls, proceed as follows: simultaneously press the
two keys at the end (top one and bottom one) continuously for
7 seconds, after which the Radio-control LED will start
flashing slowly, then press (within 3 seconds) the key in which
to copy the code, at the same time the LED will start flashing
quickly, near the two radio-controls and transmit the code with
the original radio-control. If the LED will permanently switch­on, copying will have been successful on the contrary, it will
continue to flash quickly and will subsequently exit from copy
mode after 15 seconds.

Simultaneous copy of all Radio-control keys:

The radio-control is supplied by default with pre-defined
random codes. The simultaneous copying of all transmission
codes of the radio-control can be realised with a single
operation, but only if the products are of the same model and
the radio-control to be copied is in factory configuration (copy
operations have not been previously carried out). If wanting to
physically copy a radio-control of the same model, proceed as
follows: simultaneously press the two keys at the end (top one
and bottom one) continuously for 7 seconds, after which the
Radio-control LED will start flashing slowly, then again press
the two keys at the end, at the same time the LED will start
flashing quickly, near the two radio-controls and transmit any
key with the original radio-control. If the LED will permanently
switch-on, copying will have been successful on the contrary,
it will continue to
flash quickly and will subsequently exit from copy mode after
15 seconds.

A

TTENTION

- The 3 Vdc (CR2032) lithium battery must be replaced
every two years to guarantee the optimal capacity of the
transmitter.

- To replace the discharged battery, proceed as illustrated
in figure.

- The used battery must be disposed of in the appropriate
gatherers.

is compliant with the specifications of Directive R&TTE

SEAV s.r.l. declares that the product

BeGood XS3/B Radio-control

BeGood XS3/W Radio-control

99/5/EC.
