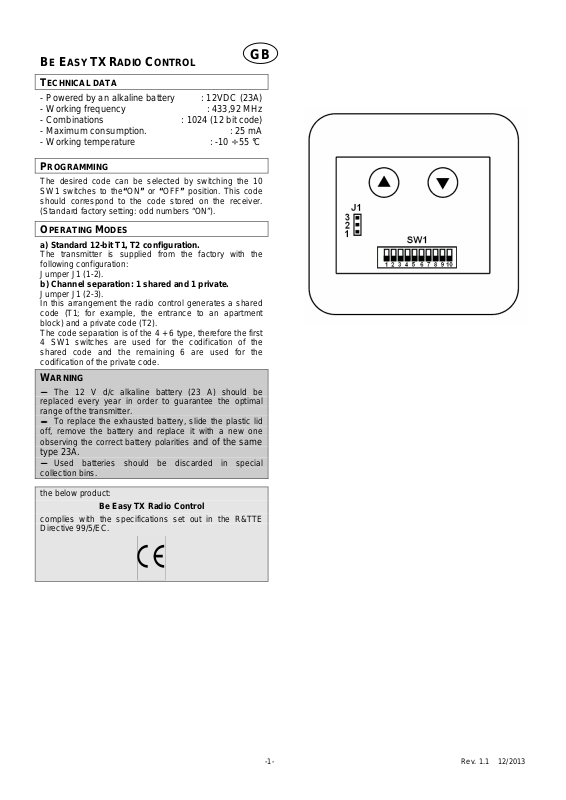

ASY TX RADIO CONTROL
T
ECHNICAL DATA
- Powered by an alkaline battery : 12VDC (23A)
- Working frequency : 433,92 MHz
- Combinations : 1024 (12 bit code)
- Maximum consumption. : 25 mA
- Working temperature : -10 ÷ 55 °C
P
ROGRAMMING

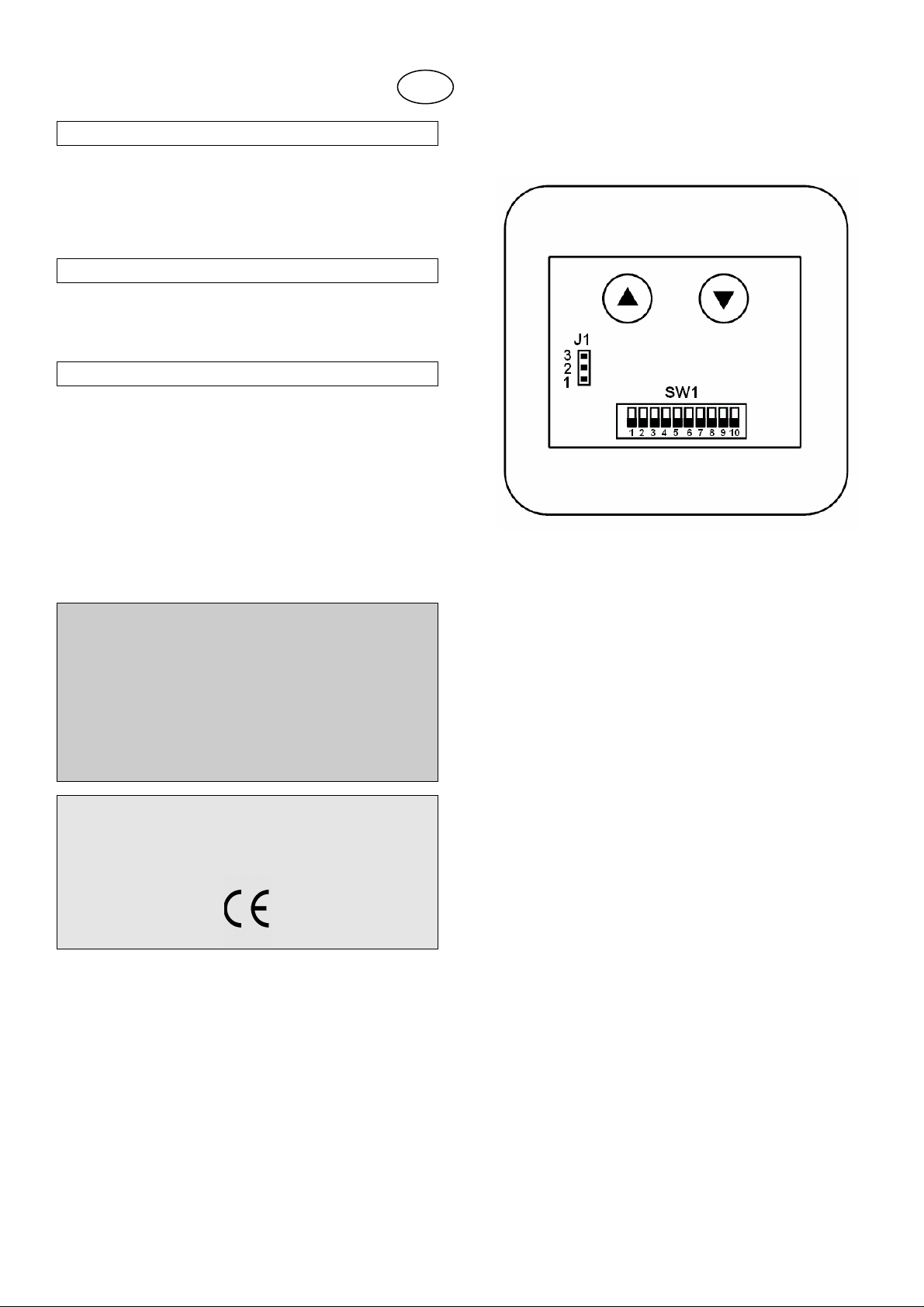

The desired code can be selected by switching the 10
SW1 switches to the“ON” or “OFF” position. This code
should correspond to the code stored on the receiver.
(Standard factory setting: odd numbers “ON”).
O
PERATING MODES
a) Standard 12-bit T1, T2 configuration.
The transmitter is supplied from the factory with the
following configuration:
Jumper J1 (1-2).
b) Channel separation: 1 shared and 1 private.
Jumper J1 (2-3).
In this arrangement the radio control generates a shared
code (T1; for example, the entrance to an apartment
block) and a private code (T2).
The code separation is of the 4 + 6 type, therefore the first
4 SW1 switches are used for the codification of the
shared code and the remaining 6 are used for the
codification of the private code.
W
ARNING
−−−− The 12 V d/c alkaline battery (23 A) should be
replaced every year in order to guarantee the optimal
range of the transmitter.
−−−− To replace the exhausted battery, slide the plastic lid
off, remove the battery and replace it with a new one
observing the correct battery polarities
type 23A.
−−−− Used batteries should be discarded in special
collection bins.
the below product:
complies with the specifications set out in the R&TTE
Directive 99/5/EC.
and of the same
Be Easy TX Radio Control
