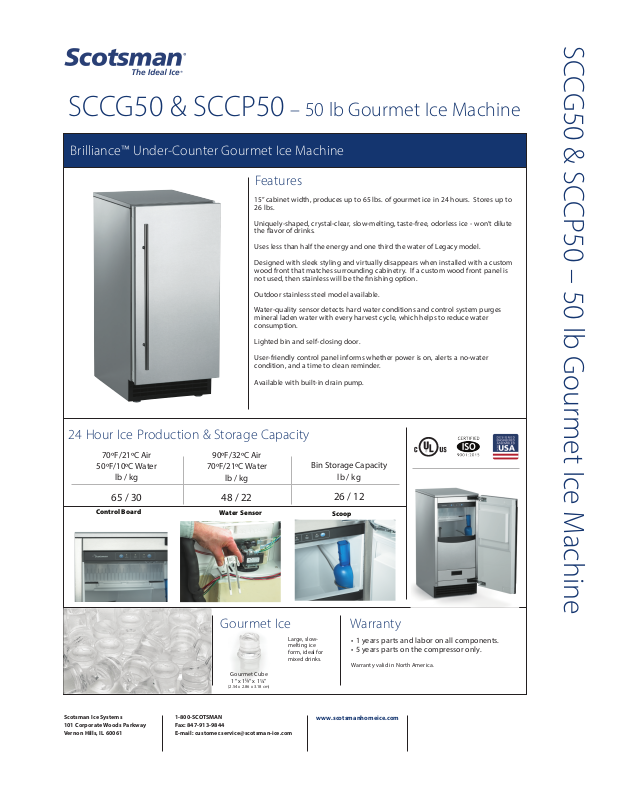

SCOTSMAN SCCG50, SCCP50 Datasheet

SCCG50 & SCCP50 – 50 lb Gourmet Ice Machine

Brilliance™ Under-Counter Gourmet Ice Machine

Features

15” cabinet width, produces up to 65 lbs. of gourmet ice in 24 hours. Stores up to 26 lbs.

Uniquely-shaped, crystal-clear, slow-melting, taste-free, odorless ice - won’t dilute the avor of drinks.

Uses less than half the energy and one third the water of Legacy model.

Designed with sleek styling and virtually disappears when installed with a custom wood front that matches surrounding cabinetry. If a custom wood front panel is not used, then stainless will be the nishing option.

Outdoor stainless steel model available.

Water-quality sensor detects hard water conditions and control system purges mineral laden water with every harvest cycle, which helps to reduce water consumption.

Lighted bin and self-closing door.

User-friendly control panel informs whether power is on, alerts a no-water condition, and a time to clean reminder.

SCCG50 & SCCP50 – 50 lb Gourmet Ice Machine

Available with built-in drain pump.

24 Hour Ice Production & Storage Capacity

70ºF/21ºC Air

50ºF/10ºC Water

lb / kg

65 / 30

Control Board

90ºF/32ºC Air

70ºF/21ºC Water

lb / kg

48 / 22

Water Sensor

Gourmet Ice

Large, slowmelting ice form, ideal for mixed drinks.

Gourmet Cu be

” x 1¼”

1” x 1

(2.54 x 2.86 x 3.18 cm)

Bin Storage Capacity

lb / kg

26 / 12

Scoop

Warranty

• 1 years parts and labor on all components.

• 5 years parts on the compressor only.

Warranty valid in North America.

Scotsman Ice Sys tems 101 Corporate Woods Parkway Vernon Hills, IL 60061

1-800-SCOTSMAN Fax: 847-913-9844 E-mail: customer.servi ce@scotsman-ice.com

www.scotsmanhomeice.com

7 3/8"

Power Cord

20 3/8"

3 7/8"

Air Out

Floor Drain Access Hole

14 7/8"

Air In

29 1/4"

2 3/4"

22"

.75 Sheet Metal Door Front .63 Min Cabinet Door

1” Leg Adjustment

(4) Places

Door & Handle add 1 5/8”

33 3/8" Min. 34 3/8" Max.

115 V

Drain Flexible Tubing

3/8 I.D. Pump Model (Included)

5/8 I.D. Gravity Model (Not Included)

Potable Water Inlet

1/4" Compression Fitting

3 1/4"

2 1/2"

1 1/2"

3 3/4"

Supply Hose Not Included

SCCG50 & SCCP50 – 50 lb Gourmet Ice Machine

All Models

24 Hour Ice Production:

(70 deg. Air /50 deg. Water)

65 lb / 30 kg

(90 deg. Air / 70 Deg. Water)

50 lb / 23 kg Bin Storage Capacity:

26 lb / 12 kg Condenser Type:

Air Basic Electrical:

(Volts/Hz/Ph ase)

115/60/1 Amps:

5 Maximum Fuze Size:

15 Refrigerant:

R-134A Dimensions (W x D x H):

Unit (without legs adjusted):

14.875” x 22” x 33.375” (37.8 x 55.9 x 84.78 cm)

Shipping Carton: 18” x 28” x 38” (45.7 x 71.1 x 96.5 cm)

Operating Requirements

Minimum Maximum

Air Temperatures

Water Temperatures

Water Pressures

Electrical Voltage

50°F (10°C) 100°F (38°C) 40°F (4.4°C) 100°F (38°C) 20 PSIG (1 bar) 80 PSIG (5 bar)

-10% +10%

Specications

Model

SCCG50MA-1SU

SCCP50MA-1SU

IndoorOutdoor

SCCG50MA-1SS SCCP50MA-1SS

Accessories

Model

KDFS KKPF KATB KDFR

KSSKP

Description

Stainless Steel door front kit

Anti-tip bracket kit

Stainless Steel Kick Plate Cover

Machine requires voltage indicated on rating name plate. Failures caused by improper voltage are not considered factory defects. Scotsman products, except model SCCG50MA-1SS & SCCP5050MA-1SS, are not designed for outdoor installations nor for installation where air temperatures fall below 50ºF. or exceed 100ºF., nor where water temperatures fall below 40ºF. or exceed 100ºF. Extended periods of operation at temperatures e Manufacturer ’s Limited Warranty, resulting in a loss of warranty coverage. Refer to owner’s manual for all installation requirements. Please note: when installed in a corner, the door swing may be limited due to handle contact with the wall or cabinet face.

Finish

Cabinet / Front

Drain

Type

Gravity

Pump

Stainless Steel / Stainless Steel Stainless Steel / Stainless Steel

xceeding these limitations constitute misuse under the terms of Scotsman

Gravity

Pump

SCCP: Built-in pump to expel drain water which includes 10’ drain tube

Shipping

Weight

lb / kg

12 / 5.5 1 / 0.45

2 / 0.9 8 / 3.6 5 / 2.3

Shipping

Weight

lb / kg

113 / 51 118 / 54

122 / 55 127 / 58

Scotsman Ice Systems 101 Corporate Woods Parkway Vernon Hills, IL 60061

1-800-SCOTSMAN Fax: 847-913-9844 E-mail: customer.service @scotsman-ice.com

www.scotsmanhomeice.com

01-21
