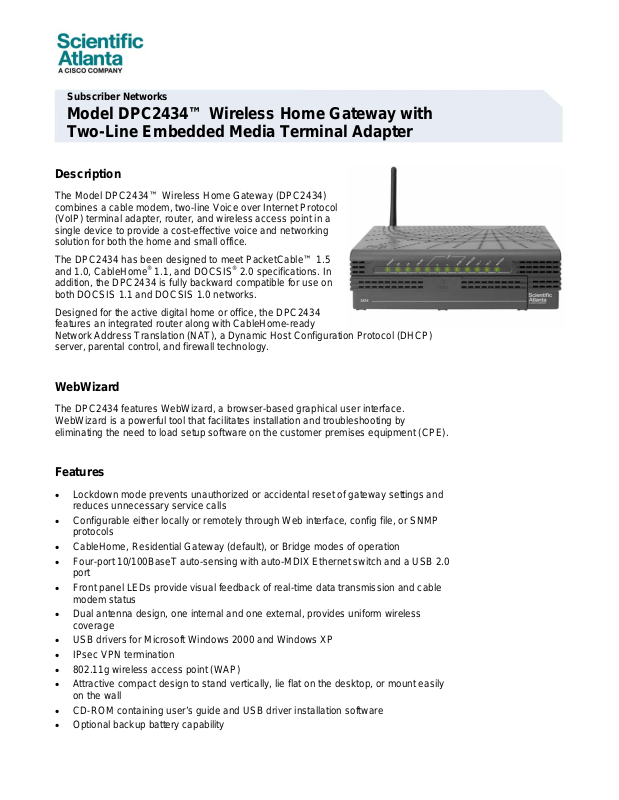

Subscriber Networks

Model DPC2434™ Wireless Home Gateway with
Two-Line Embedded Media Terminal Ada

Description

The Model DPC2434™ Wireless Home Gateway (DPC2434)
combines a cable modem, two-line Voice over Internet Protocol
(VoIP) terminal adapter, router, and wireless access point in a
single device to provide a cost-effective voice and networking
solution for both the home and small office.

The DPC2434 has been designed to meet PacketCable™ 1.5
and 1.0, CableHome
addition, the DPC2434 is fully backward compatible for use on
both DOCSIS 1.1 and DOCSIS 1.0 networks.

Designed for the active digital home or office, the DPC2434
features an integrated router along with CableHome-ready
Network Address Translation (NAT), a Dynamic Host Configuration Protocol (DHCP)
server, parental control, and firewall technology.

WebWizard

The DPC2434 features WebWizard, a browser-based graphical user interface.
WebWizard is a powerful tool that facilitates installation and troubleshooting by
eliminating the need to load setup software on the customer premises equipment (CPE).

®

1.1, and DOCSIS® 2.0 specifications. In

Features

• Lockdown mode prevents unauthorized or accidental reset of gateway settings and

reduces unnecessary service calls

•

Configurable either locally or remotely through Web interface, config file, or SNMP
protocols

CableHome, Residential Gateway (default), or Bridge modes of operation

•

•

Four-port 10/100BaseT auto-sensing with auto-MDIX Ethernet switch and a USB 2.0
port

Front panel LEDs provide visual feedback of real-time data transmission and cable

•

modem status

•

Dual antenna design, one internal and one external, provides uniform wireless
coverage

•

USB drivers for Microsoft Windows 2000 and Windows XP
IPsec VPN termination

•

•

802.11g wireless access point (WAP)

•

Attractive compact design to stand vertically, lie flat on the desktop, or mount easily
on the wall

•

CD-ROM containing user’s guide and USB driver installation software

•

Optional backup battery capability

Model DPC2434 Wireless Home Gateway with
Two-Line Embedded Media Terminal Adapter

DPC2434 Back Panel

Model with internal power supply

Back Panel Connections

POWER or 15 VDC Connects the wireless home gateway to the AC power cord or to the AC power

adapter
CABLE F-connector connects to an active cable signal from your service provider
RESET Resets the EMTA. Pressing this switch for more than ten seconds resets the

device to factory default values and resets the EMTA
USB USB 2.0 port connects to the USB port on your PC
ETHERNET (1 – 4) Four RJ-45 Ethernet ports connect to the Ethernet port on your PC or your home

network
TELEPHONE 1 and 2 RJ-11 telephone ports connect to home telephone wiring and to conventional

telephones or fax machines
ANTENNA Provides a communication connection for the built-in WAP

Model with external power supply

Ordering Information

Contact your Sales Representative for product availability in your area.

Description Part Number

DPC2434-2200 Wireless Home Gateway with 2-line EMTA. Includes:

• North American tuning plan

• Internal 100-240 V AC / 50-60 Hz universal power supply

• Power cord, North America, NEMA 1-15 to C7

• 2200 mAh battery cartridge

• Ethernet and USB cables

• CD-ROM containing user’s guide and USB driver

DPC2434C2-2200 Wireless Home Gateway with 2-line EMTA. Includes:

• North American tuning plan

• 120 V AC / 50-60 Hz, 15 V DC / 1 A wall-mount linear switching power sup ply

• 2200 mAh battery cartridge

• Ethernet and USB cables

• CD-ROM containing user’s guide and USB driver

4013345

4015327
