Schneider Electric SRT2200, SRT3000 User Guide

Installation Guide Smart-UPS
On-Line
SRT2200/SRT3000 XLA Tower/Rack-Mount

Important Safety Messages

Read the instructions carefully to become familiar with the equipment before attempting to install, operate, service or maintain the UPS. The following special messages may appear throughout this manual or on the equipment to warn of poten t ia l ha zards or to ca l l at te n ti o n to in f o rm at i on th a t cl ar i fi e s or sim p l if i es a pr oc ed u r e.
The addition of this symbol to a Wa rning or Caution product safet y label indicates that a hazard exists that can result in injury and product damage if the instructions are not followed.
WARNING
WARNING indicates a potentially hazardous situation which, if not avoided, can result in death or serious inj ury.
Information
CAUTION
CAUTION indicates a potentially hazardous situat ion which, if not avoided, can result in minor or moderate injury.
NOTICE
NOTICE used to address practices not related to physical injury. The safety alert symbol is not used wit h thi s signal word.

Safety and General Information

• Adhere to all national and local electrical codes.
•All wiring must be performed by a qualified electrician. hanges and modifications to this unit not expressly approved by APC could void the warranty.
C
•This UPS is intended for indoor use only o not operate this UPS in direct sunlight, in contact with fluids, or where there is excessive dust or humidity.
• D
•Be sure the air vents on the UPS are not blocked. Allow adequate space for proper ventilation.
a UPS with a fa ct or y ins t a ll ed po we r cor d, c onnect the UPS powe r cable directly t o a w all outl e t . Do not us e s urge
For
protectors or extension cords.
•The battery typically lasts for two to five years. Environmental factors impact battery life. Elevated ambien
te
mperatures, poor quality mains pow er, and frequent short duration discharges will shorten battery lif e.
place the battery immediately whe n the UPS in dicates battery replacement is necessary.
Re
•The equipment is heavy. Always practice safe lifting techniques adequate for the weight of the equipment.
he batteries are heavy . Remove the batteries before installing the UPS and external battery packs (XLBPs), in a rack.
T
A
lways install XLBPs at the bottom in rack-mount configurations. The UPS must be installed above the XLBPs. lways install peripheral equipment above the UPS in rack-mount configurations.
A
•Additional safety information can be fo u nd in the Saf ety Guid e s upplied with this unit.
.
t

Deenergizing safety

The UPS contains internal batteries and may present a shock hazard even when disconnected from the branch circuit (mains). Before installing or servicing the equipment check that the:
• input circuit breaker is in the OFF position.
• inte rnal UPS th e b at teries ar e re m o v e d.
• XLBP battery modules are disconnected.

Electrical safety

• For models with a hardwired input, the connection to the branch circuit (mains) must be performed by a qualif ied electrician.
• The protective earth conductor for the UPS carries the leakage current from the load devices (computer equipment) . An ins ulated ground conductor is to be installed as part of the branch circuit that supplies the UPS. The conductor must have the same size and insulation material as the grounded and ungrounded branch circuit supply conduc tors. The conductor will typically be green and with or without a yel low st ripe.
• The UPS input ground conduct or must be properly bonded to protective earth at the service panel.
• If the UPS input power is supplied by a separately derived sys tem, the ground conductor must be properly bonded at the supply transformer or motor generator set.

Battery safety

• Before installing or repl acing the batter ies, remove jewelry such as wristwatches and rings. High short circuit current through conductive materials could cause severe burns.
• Do not dispose of batter ies by burning them. The batteries may explode.
• Do not open or mutilate bat teries. Released electrolyte is harmful to the ski n and eyes, and may be toxic.

General information

• The UPS will recognize as many as 10 external battery packs connected to the UPS.
Note: For each XLBP added, increased recharge time will be required.
• The model and serial numbers are located on a small, rear panel label. For some models, an additional label is located on the chassis under the front bezel.
• Always recycle used batteries .
• Recycle the package materials or save them for reuse.

FCC Class A radio frequency warning

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are intended to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment g enerates , u ses, and can r ad iate radi o f requency energy and, if not in stalle d and used in acco rdance with the instruc tion manual , may cause harmful interfer ence to ra dio communication s. Operation of this equipment in a re si dential area is likely to cause harmful interfere nce in which case the user will b e required to correct the interference at his own expense.
Smart-UPS On-Line SRT2200XLA/SRT3000XLA Tow er/ R ack-Mount 2U2

Package Contents

x4
su04
x4
x6

Inspect the contents upon receipt. Notify the carrier and dealer if the unit is damaged.

Included with all models NC models only
Front bezel RJ45 to DB9 cable
USB cable
EPO Terminal block
User Documentation CD.
User Docume ntation
PCBE Software CD
Temperature sensor probe
Serial configurat ion cable
Network Management Utility CD
Include d w ith Tower models onl y
• 2 pairs st ab ilizer b rackets
• 4 flat head screws to secure tower stabilizer brackets to the UPS
Included with Rack-Mount models only
Rail Kit wi th instr uctions and h ardware for installing rails in a rack.
34a
• 1 pair rack-mount brackets
• 6 flat head screws to secure rack -mo unt bra cke ts to the UPS
• 4 ornamental screws to secure rack-mount bracket s to t he rai ls
Smart-UPS On-Line SRT2200XLA/SRT3000XLA Tow er/Rack-Mount 2U 3

Specifications

For additional sp ecifications refer to the APC by Schne ider Electric web site, www.apc.com.

Environmental

Temperature
Operating Storage Operating
Elevation
Storage Humidity Protection Class
Note: Charge the battery modules every six months during storage.
Environmental factors impact b attery life. Elevated ambient tem peratures, high humidity, poor quality mains power, and frequent short duration discharges will shorten battery life.
0% to 95% relative hum idity, non-condensing
IP 20 rating
0º to 40º C (32º to 104º F)
-15º to 45º C (5º to 113º F) 0 - 3,000 m (0 - 10,000 ft) 0 - 15,000 m (50,000 ft)

Physical

SRT2200XLA/SRT2200RMXLA/SRT2200RMXLA-NC model
The UPS is heavy. Follow all lifting g uidelines.
Lifting guidelines 18 - 32 kg (40 - 70 lb) 32 - 55 kg (70 - 120 lb)
Unit weight batteries included, without packaging 26.5 kg (58.4 lb) Unit weight batteries included, with packaging Rack-Mount models: 34.6 kg (76.2 lb)
Unit dimensions without packaging Height x Width x Depth
Unit dimensions with packaging Height x Width x Depth
The model and serial numbers are on a small label located on the rear pan el.
Tower models: 31.6 kg (69.7 lb) 85 (2U) mm x 432 mm x 560 mm
3.35 (2U) in x 17 in x 22 in 245 mm x 600 mm x 810 mm
9.7 in x 23.6 in x 31.9 in
SRT3000XLA/SRT3000RMXLA/SRT3000RMXLA-NC model
The UPS is heavy. Follow all lifting g uidelines.
Lifting guidelines 18 - 32 kg (40 - 70 lb) 32 - 55 kg (70 - 120 lb)
Unit weight batteries included, without packaging 32 kg (70.5 lb) Unit weight batteries included, with packaging Rack-Mount models : 41 kg (90.4 lb)
Unit dimensions without packaging Height x Width x Depth
Unit dimensions with packaging Height x Width x Depth
The model and serial numbers are on a small label located on the rear pan el.
Smart-UPS On-Line SRT2200XLA/SRT3000XLA Tow er/ R ack-Mount 2U4
Tower models: 38 kg (83.8 lb) 85 (2U) mm x 432 mm x 611 mm
3.35 (2U) in x 17 in x 24 in 245 mm x 600 mm x 870 mm
9.7 in x 23.6 in x 34.3 in

Battery

NOTICE
RISK OF EQUIPMENT DAMAGE
• Replace the battery at least every 5 years.
• Replace the battery immediately when the UPS indicates battery replacement is necessary.
Failure to follow these instructions can result in equipment damage
SRT2200 models SRT3000 models Battery type Replacem e nt ba tt ery module
This UPS has swappable battery modules. Refer to the appropriat e replacement battery user manua l for
installation instructions. Contact your dealer or go the APC by Schneider Electric web site,
www.apc.com for information on replacement batteries.
Number of battery modules 1 battery module Voltag e f or each battery module 72 VDC 96 VDC Total battery voltage for the UPS 72 VDC 96 VDC Ah rating 5 Ah per battery module XLBP ca b l e length 500 mm (19.7 in)
Sealed, maintenance-free, Valve Regulated
Lead-Acid battery
APCRBC141 APCRBC152
Smart-UPS On-Line SRT2200XLA/SRT3000XLA Tow er/Rack-Mount 2U 5

Electrical

Models Rating
Online Green Mode
Branch Circuit
Overcurrent Rating /
Building C ircuit Breaker
(CB) C u rrent Rating
SRT2200XLA 2200 VA / 1800 W 1800 VA 20 A SRT2200RMXLA/SRT2200RMXLA-NC SRT3000XLA 3000 VA / 2700 W 2700 VA 30 A SRT3000RMXLA/SRT3000RMXLA-NC
CAUTION
RISK OF FIRE, RISK OF DAMAGE TO EQUIPMENT OR PERSONNEL
Connect the UPS models onl y to a ci rcuit provided with recommend ed ma ximum branch circuit overcur rent protection in accordance with the National Electrical Code, ANSI/NFPA 70 and the Canadian Electrical Code, Part I, C22.1.
Failure to follow these instructions can result in fire, equi pm ent damage and m inor or moderate injury.
Output
Output Frequency 50 Hz / 60 Hz (Selectable) Nominal Output Voltage 120 V
Input
Input Frequency 40 Hz - 70 Hz Nominal Input Voltage 120 V Nominal Input Current SRT2200 models: 16 A
SRT3000 models: 24 A
Smart-UPS On-Line SRT2200XLA/SRT3000XLA Tow er/ R ack-Mount 2U6

Remove Battery Module

x3
CAUTION
DAMAGE TO EQUIPMENT OR PERSONNEL
• The equipment is heavy. Each APCRBC152 battery module weighs 16.4 kg (36.2 lb) and each APCRBC141 battery module weighs 12.5 kg (27.6lb).
• Always practice safe lifting techniques adequate for the weight of the equipment.
• Remove the battery modules before ins talling the UPS.
• Use the battery module handle to slide the battery modules in or out of the UPS.
• Do not use the battery module handle to lift or carry the battery module.
Failure to follow these instructions can result in equipment damage and minor or moderate injury.

b
9
4
8
SRT2200 models
0
o
u
s
c
0
5
8
0
o
u
s
SRT3000 models
c
8
5
8
0
o
u
s
b
1
5
8
0
o
u
s
Smart-UPS On-Line SRT2200XLA/SRT3000XLA Tow er/Rack-Mount 2U 7

Rack-Mount Installation

x3
x4
Refer to the Rail Kit Installation Guide for instructions on rail installation.
CAUTION
DAMAGE TO EQUIPMENT OR PERSONNEL
• The equipment is heavy. Alway s practice safe liftin g techniques adequate for the weight of the equi pm ent.
• Always use the recomm ended num ber of screws to secure brackets to the UPS.
• Always use the recomm ended number of screws to secure the UPS to the rack.
• Always instal l the UPS at the bottom of the rack.
• Always instal l the XLBP below the UPS in the rack.
Failure to follow these ins tructions can result in equipment damag e and minor or m oderate injury

c
6
6
8
0
o
u
s
x3
b
7
6
8
0
o
u
s

b
5
6
8
0
o
u
s
6
8
0
o
u
s
b
8
Smart-UPS On-Line SRT2200XLA/SRT3000XLA Tow er/ R ack-Mount 2U8

x3
x4
b
9
6
8
0
o
u
s
0
7
8
0
o
u
s

a
9
5
8
0
u
s
a
1
6
0
1
o
u
s
b
Smart-UPS On-Line SRT2200XLA/SRT3000XLA Tow er/Rack-Mount 2U 9

Tower Installation

CAUTION
DAMAGE TO EQUIPMENT OR PERSONNEL
• The equipment is heavy. Each APCRBC152 battery module weighs 16.4 kg (36.2 lb) and each APCRBC141 batt ery module weighs 12.5 kg (27.6lb).
• Always practic e safe lifting techniques adequate for the weight of the equipm ent.
• Remove the battery modules before installi ng the UPS.
• Use the battery modul e handle to slide the battery modules in or out of the UPS.
• Do not use the battery module handle to lift or carry the battery module.
Failure to follow these ins tructions can result in equipment damag e and minor or m oderate injury
c
5
4
8
0
u

s
c
1
7
8
0
o
u
s

suo0872c
suo0873c
x3

x4
suo0874c
suo1062a
Smart-UPS On-Line SRT2200XLA/SRT3000XLA Tow er/ R ack-Mount 2U10
suo0875c

Rear Panel Features

Note: Refer to the table “Key to identify rear panel features” on page 12, that provides a key to the callout numbers for the rear panel graphics depicted in this manual.
SRT2200XLA/SRT2200RMXLA
SRT2200RMXLA-NC
U
P
1
R
G
O M
P
A
M
X
2
0
A
suo1092b
U
P
1
G
R
O M
P
A
M
X
2
0
A
suo1093b
Smart-UPS On-Line SRT2200XLA/SRT3000XLA Tow er/Rack-Mount 2U 11
SRT3000XLA/SRT3000RMXLA
SRT3000RMXLA-NC
U
P
1
G
O
R
P
1
R
O
G
U
M
P
A
M
X
2
0
A
M
P
M
A
X
A
2
0
X A
3
M
P U
P
O
M
R
A
G
0 3
U
R
O
P
2
G
A
X
2
0
A
P
M
M
suo1094b
1
P
U
O
R
G
P
1
R
G
U
O
X
P
A
M
M
2
A
0
A
P
M
M
X
2
A
0

Key to identify rear panel features

SmartSlot
AC input power cable
or hardwire input box
External battery
power and communication connector
Controllable
outlet group 1 Chassis ground screw
Controllable
outlet group 2
The SmartSlot can be us ed to connect optional manage ment accessories.
All models have factory installed input power cables. Hardwired input box is an optional accessory.
Use the external battery cable on the XLBP to connect the UPS and XLBP. XLBPs provide extended runtime during power outages. The UPS will automatically recognize up to 10 external battery packs.
Connect electronic devices to these out lets.
The UPS and XLBPs have ground screws for conne cting the gr ound lea ds. Pri or to conne cting a ground lead, disconnect the UPS from mains power.
Connect electronic devices to these out lets.
X A
3
M
P U
P
O
M
R
A
G
0 3
R
2
P
U
O
G
A
X
2
A
0
M
P
M
suo1095b
EPO terminal
Serial Com
The Emergency Power Off (EPO) terminal allows the user to connect the UPS to a central EPO sy stem.
The Serial Com port is used to communicate with the UPS.
Use only interface kits supplied or approved by APC by Schneider Electric. Any other seria l in te rf a c e ca b l e w il l be incompati b l e w it h th e U PS co n ne ct o r.
Smart-UPS On-Line SRT2200XLA/SRT3000XLA Tow er/ R ack-Mount 2U12
USB port
su0870f
Output
120.0
v
LOAD
Main outlet
The USB port is used to connect either a server for native operating system communications , or for software to communicate with the UPS. Note: Serial and USB communication should not be used simultaneously. Use either the Serial Com or the USB port.
Connect el ectronic devices to the main outlet.

UPS Configuration

Connect Emergency Power Off feature

For instructions on how to con nec t the Emergency Power Off (EPO) switch, refer to the Operation and Maintena nce manual on the User Documentation CD (supplied).

Verify input connection

UPS displays Site Wiring Fault if the line and neutra l connec tions are inte rchang ed or if gr ound connec tion is missing. Correct the input conne ctions and press the UPS operation manual for de tails.

Configure controllable outlet groups

OK butto n to clear the Site Wiring Alert. See the Config Menu UPS s ection in
The outlets on the UPS are grouped. To configure the controlled outlet features, use the Advanced menus on the display inte rfac e and navigate to: Main Menu > Configuration > Outlets > Outlet Group.

UPS Display Interface

POWER ON/OFF button
Butt on il lu mination indi cations :
-No illumination, the UPS and the output power are off
-White illumi nation, the UPS and the output power are on
-Red illumination, the UPS is on and the output power is of f
Load icon
Disable/mute audible alarm icon UPS status information
Operation mode icons
ESCAPE button
OK button
On-Line
12
UP/DOWN buttons
Controllable outlet group status icons
Battery stat u s ic on s
Smart-UPS On-Line SRT2200XLA/SRT3000XLA Tow er/Rack-Mount 2U 13

Display interface operatio n

LOAD
Use the UP/DOWN buttons to scroll through the options. Press the OK button to accept the selected option. Press the
ESC button to return to the previous menu.
The icons on the LCD displ ay interface screen may vary depending on the installed firmwar e version.

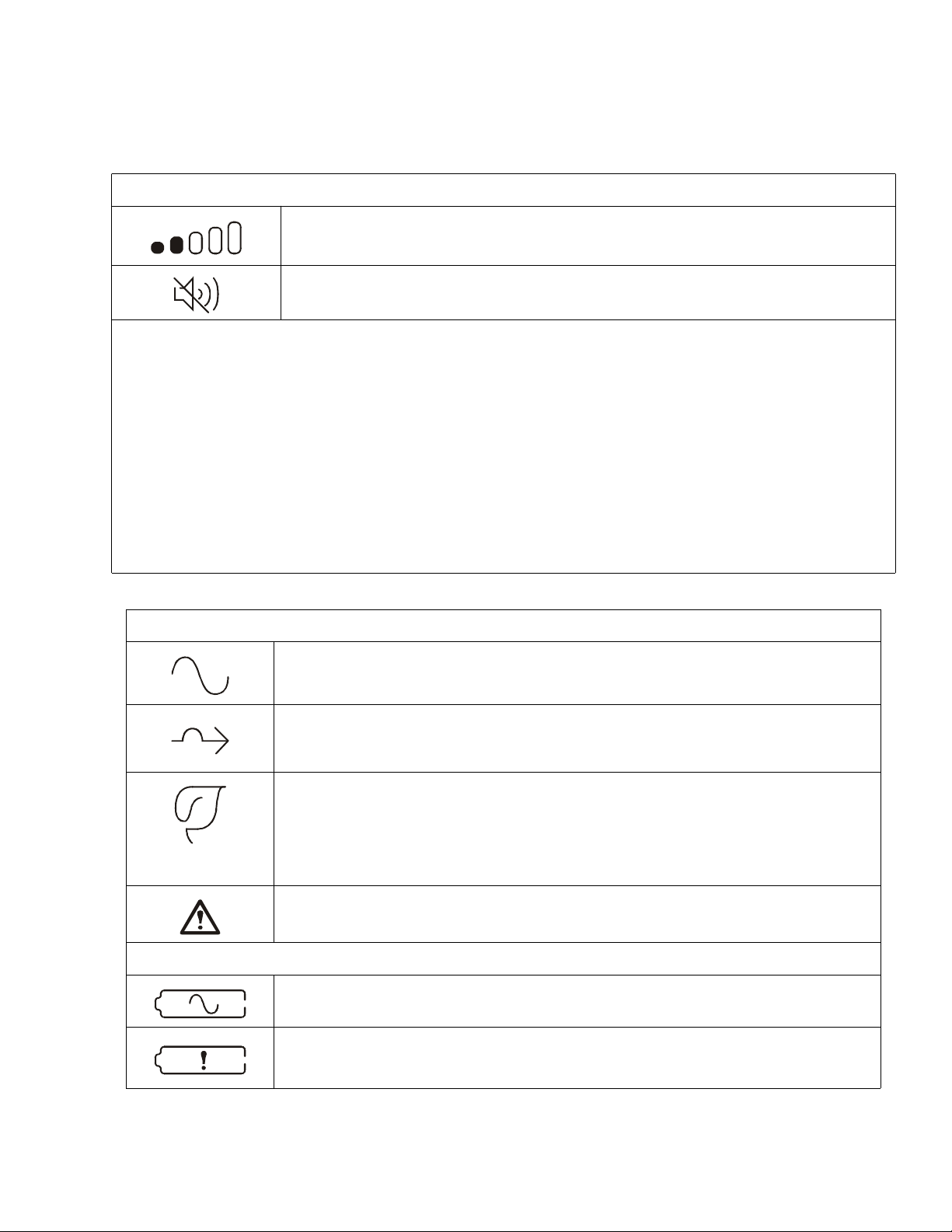

Load icon: The approximate load capacity percentage is indicated by the number of load bar sections illuminated. Each bar represents 16% of the load capacity .
Mute icon: Indicates the audible alar m is disabled/mute.
UPS Status Information
The status inform ation field provides key information on the status of the UPS. The Standard menu will allow the user to select one of t he five screens listed below. Use the through the screens. The Advanced menu will scroll thr ough the five scree n s automatically.
Input Voltage
Output Voltage
Output Frequency
Load
Runtime In the case of a UPS event, status updates will be displa yed defining the event or condit ion that has occurred.
The display scree n illum inate s amber to in dic ate a Messa ge and red to in dicat e an Alert de pending on the severit y of the event or condition.
UP/DOWN buttons to scroll
Oper ation Mode I cons
UPS Status Icon
On-Line mode: The UPS is supplying conditioned mains power to connected equipment.
Bypass mode: The UPS is in Bypass mode and the connected equipment will receive mains
power as long as the input voltage and frequency are within the configured limits.
Green mode: When in Green mode mains power is sent directly to the load. In the event of a mains power outage, there will be an interruption in power to the load of up to
10 ms wh il e the UPS sw i tc hes to On-Line or Battery mode. When enabling Green mode consideration should be given to devices that may be sensitive to
power fluctuations. Indicates a UPS alert that requires attention.
Battery mode: The UPS is supplying battery power to connected equipment.
The UPS has detected an internal fault with the battery. Follow the instructions on the screen.
Smart-UPS On-Line SRT2200XLA/SRT3000XLA Tow er/ R ack-Mount 2U14
The UPS has detected a crit ical fault wit h the battery. The battery is at the end of its life and has
X
Controllable Outlet Group Icons
Battery Status Icons
to be replaced.
Controllable Outlet Group Power A vailable: The number next to the icon identifies the specific outlet gr oups that have available power.
Flashing icon indi cates the outlet group is turning from OFF to ON with delay. Controllable Outlet Group Power Not Available: The numbe r next to the icon identifies
specific outlet g roups that do not have available power. Flashing icon indi cates the outlet group is turning from ON to OFF with delay.
Battery Charge S t atu s : Indica te s th e ba tt e ry ch arge status.
Battery Charge In Progre ss: Indicates the battery is charging.

Menu overview

The display interface has Standard and Advanced menu screens. The preference for Standard or Advanced menu selections is made during initial installation and can be changed at any time through the Configuration menu.
The Standard menus include the most commonly us ed options. The Advanced menus provide additio nal options. Note: Actual menu screens may differ by model and firmware version. Refer to the UPS Operation Manual for menu configuration details .
Smart-UPS On-Line SRT2200XLA/SRT3000XLA Tow er/Rack-Mount 2U 15

LCD display interface angle adjustment

The angle of the LCD display inte rface can be adjusted for ease in viewi ng the displayed messages.
1. Remove the front bezel.
2. Locate the button on the b ottom of the display interface panel.
3. Press the button and slide the bottom of the LCD display in terface screen out. An audibl e cl ick will be heard when the screen reach es the maximum angle.
Select models are ENERGY STAR® qualified
a
6
2
9
0
u
s
.
© 2015 APC by Schneider Electric. APC, the APC logo, and Smart-UPS are owned by Schneider Electric Industries S.A.S. or their affiliated companies. All other trademarks are property of their respective owners.
EN 990-9738
10/2015
Loading...
