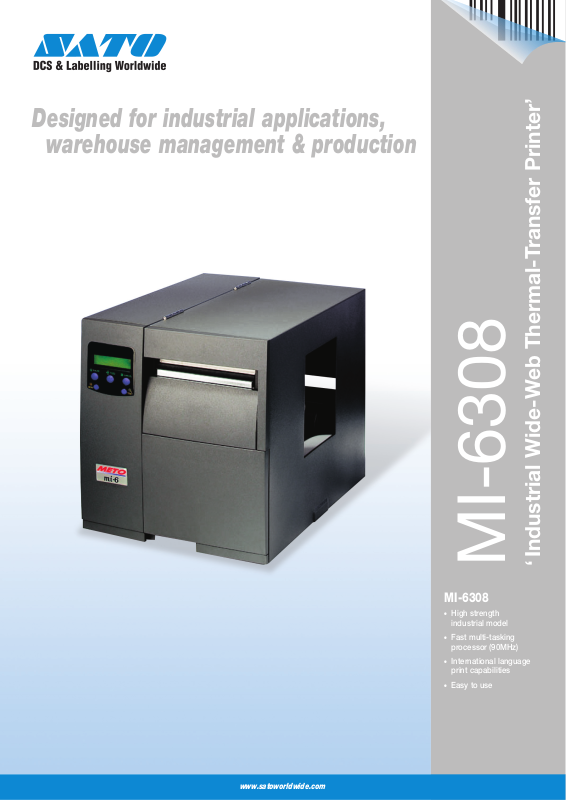

SATO MI-6308 User Manual
MI-6308
Designed for industrial applications,
warehouse management & production
‘Industrial Wide-Web Thermal-Transfer Printer’
MI-6308
●
High strength
industrial model
●
Fast multi-tasking
processor (90MHz)
●
International language
print capabilities
●
Easy to use
www.satoworldwide.com
AUSTRALIA CHINA INDIA JAPAN MALAYSIA NEW ZEALAND SINGAPORE THAILAND BELGIUM FRANCE GERMANY POLAND SPAIN UK USA
MI-6308
General Specifications:
Ref: Mi6308/01/AUGUST/06
SATO AUSTRALIA Pty Ltd.
P.O. Box 1364,
Glen Waverley, Victoria, 3150
Melbourne, Australia
email : sales@satoaustralia.com
Phone Toll Free : 1800 624 654
SATO NEW ZEALAND Ltd.
P.O. Box 305-031,
North Shore, Auckland
New Zealand
email : sales@satonewzealand.com
Phone Toll Free : 0800 784 578
Model
Print Method
Print Resolution
Print Area
Print Speed
Media Type
Media Size
Ribbon
Sensor Type
Interface
Barcode Symbologies
Matrix Fonts
Dimensions
Weight
Power
Environment
Options
Width
Length
Other
Width
Length
Other
Expansion
Rotation
MI-6208 MI-6308
Thermal Direct / Thermal Transfer (Option)
203 dpi (8 dot / mm) 300 dpi (12 dot / mm)
Max Width 165.1mm x Length 304mm (Width 6.5” x Length 12”)
Max 203mm (8”/sec)
Roll-fed, Fan-fold, Die-cut, Continuous, Perforated Label and Tag / Ticket media
51mm - 170mm (3.0”-6.7”)
304.8mm (12”)
Max roll outer diameter 203mm (8”), Wound Face Out
Max 170mm (6.69”)
Max 460m (1509ft)
Ink Out, 25mm Inner Diameter Core
Reflective Sensor for Pre-printed sensor mark (Adjustable)
Transmissive sensor for die cut media (Adjustable)
Parallel : Centronics
Serial : RS232
USB : Version 1.1 (Option)
Codabar, Code 128 (Subsets A, B, and C), Code 39, Code 93, EAN 8, EAN 13, EAN 128, EAN/UCC 128,
UPC-A, UPC-E, Interleaved 2 of 5, MaxiCode, PDF417, POSTNET
All fonts expandable vertically and horizontally up to 24x
0˚ , 90˚, 180˚, 270˚
H 376mm x W 350mm x D 470mm (H 14.8” x W 13.8” x D 18.5”)
25kg (55Ib)
115VAC, 230VAC, 50/60Hz
Operating : 4 - 35˚C (10 - 95% RH, non-condensing)
Present Sensor, Cutter, External media supply, Internal Rewind, Network Connectivity, Thermal Transfer Kit
