SATO CX410, CX400 Programming Manual

CX400 / 410
DESKTOP PRINTER

PROGRAMMING

REFERENCE

PN 9001106(B)
SATO America, Inc.
10350A Nations Ford Road
Charlotte, NC 28273
Technical Support: (704) 644.1660
Technical Support Fax: (704) 644.1661
E-Mail: satosales@satoamerica.com
techsupport@satoamerica.com
www.satoamerica.com
Copyright 2009 SATO America, Inc. All rights reserved

TABLE OF CONTENTS

SECTION 1. PROGRAMMING CONCEPTS

Introduction................................................................................................................................... 1-1
The SATO Programming Language ............................................................................................. 1-1
Selecting Protocol Control Codes................................................................................................. 1-2
Using Basic ................................................................................................................................... 1-2
The Print Area............................................................................................................................... 1-4
Rotated Fields ............................................................................................................................... 1-7
Command Default Settings ........................................................................................................... 1-8
Printer Configuration .................................................................................................................... 1-9
Label Sensing.............................................................................................................................. 1-10

SECTION 2. COMMAND CODES

Bar Codes...................................................................................................................................... 2-2
Bar Codes, Expansion................................................................................................................... 2-7
Bar Codes, Variable Ratio ........................................................................................................... 2-8
Base Reference Point ................................................................................................................. 2-10
Characters,Custom-Designed......................................................................................................2-12
Character Expansion ................................................................................................................... 2-14
Character, Fixed Spacing ............................................................................................................ 2-15
Character Pitch ........................................................................................................................... 2-16
Character, Proportional Spacing ................................................................................................2-18
Clear Print Job(s) & Memory ..................................................................................................... 2-19
Continuous Forms Printing ........................................................................................................ 2-20
Copy Image Area ....................................................................................................................... 2-21
Cut .............................................................................................................................................. 2-23
Cut Job ....................................................................................................................................... 2-24
Cut Last ...................................................................................................................................... 2-25
Fonts U, S, M, OA, OB, XU, XS & XM ................................................................................... 2-26
Font, Vector ................................................................................................................................ 2-28
Fonts WB, WL, XB & XL .......................................................................................................... 2-30
Form Feed .................................................................................................................................. 2-32
Form Overlay, Recall.................................................................................................................. 2-33
SATO CX400 / CX410 PN 9001106(B) Page iii
Table of Contents
Form Overlay, Store ................................................................................................................... 2-34
Graphics, Custom ....................................................................................................................... 2-35
Graphics, PCX............................................................................................................................. 2-37
Journal Print ............................................................................................................................... 2-38
Lines and Boxes ......................................................................................................................... 2-39
Line Feed .................................................................................................................................... 2-41
Media Size................................................................................................................................... 2-42
Off-Line/Pause ........................................................................................................................... 2-43
Postnet ........................................................................................................................................ 2-44
Print Darkness ............................................................................................................................ 2-45
Print Length, Expanded .............................................................................................................. 2-46
Print Position............................................................................................................................... 2-47
Print Quantity ............................................................................................................................. 2-49
Print Speed .................................................................................................................................. 2-50
Repeat Label................................................................................................................................ 2-51
Replace Data (Partial Edit) ......................................................................................................... 2-52
Reverse Image ............................................................................................................................ 2-54
Rotate, Fixed Base Reference Point ........................................................................................... 2-56
Sequential Numbering ................................................................................................................ 2-57
Start/Stop Label........................................................................................................................... 2-59

SECTION 3. EXPANDED MEMORY

Clear Expanded Memory .............................................................................................................. 3-2
Graphics, Custom Recall............................................................................................................... 3-3
Graphics, Custom Store ............................................................................................................... 3-4
Graphics, PCX Recall ................................................................................................................... 3-6
Graphics, PCX Store ..................................................................................................................... 3-7
Initialize ........................................................................................................................................ 3-8
Memory Area Select ..................................................................................................................... 3-9
Status .......................................................................................................................................... 3-10
Page iv PN 9001106(B) SATO CX400 / CX410

SECTION 4. TWO-DIMENSIONAL SYMBOLS

Maxicode....................................................................................................................................... 4-2
PDF417 ......................................................................................................................................... 4-4

SECTION 5. CONFIGURATION COMMANDS

Backfeed Enable ........................................................................................................................... 5-2
Calibrate Sensor ............................................................................................................................ 5-3
Custom Protocol Command Codes Download ............................................................................. 5-4
Label Tear-Off .............................................................................................................................. 5-6
Print Darkness Range.................................................................................................................... 5-7
Sensor Select ................................................................................................................................. 5-8
Serial Interface Parameters .......................................................................................................... 5-9
Test Label.................................................................................................................................... 5-10
Table of Contents
SATO CX400 / CX410 PN 9001106(B) Page v
Table of Contents
Page vi PN 9001106(B) SATO CX400 / CX410
SECTION 1.
PROGRAMMING CONCEPTS

INTRODUCTION

This section presents the commands that are used with the SATO CX400 / CX410 printers to produce labels with logos, bar codes and alphanumeric data. All of the SATO Programming Language commands use the same syntax. All of the CX400 / CX410 commands are compatible with their larger SATO industrial printer cousins. Exceptions include commands that are dependent upon the print width and resolution of the printers. In these instances, the allowable ranges are specified in the commands.
The following information is presented in this section:
• The SATO Programming Language
• Selecting Protocol Control Codes
• Using Basic
• The Print Area
• Command Codes

THE SATO PROGRAMMING LANGUAGE

A programming language for a printer is a familiar concept to most programmers. It is a group of commands that are designed to use the internal intelligence of the printer. The commands, which are referred to as SATO Command Codes, contain non-printable ASCII characters (such as <STX>, <ETX>, <ESC>) and printable characters. These commands must be assembled into an organized block of code to be sent as one data stream to the printer, which in turn interprets the command codes and generates the desired label output. The programmer is free to use any programming language available to send the desired data to the printer.
The command codes used by the printers are based upon “Escape” (1B hexadecimal) sequences. Typically there are four types of command sequences:
<ESC>{Command}
These commands generally tell the printer to perform a specific action, like “clear the memory.”
<ESC>{Command} {Data}
Commands with this format tell the printer to perform a specific action which is dependent upon the following data, like “print X labels”, where the value for X is contained in the data.
<ESC>{Command} {Parameter}
These commands set the operational parameters of the printer, like “set the print speed to 3.”
<ESC> {Command} {Parameter} {Data}
SATO CX400 / CX410 PN 9001106(B) Page 1-1
Section1. Programming Concepts
Some commands can contain both Parameter and Data elements, such as “print a Code 39 symbol containing the data.”

SELECTING PROTOCOL CONTROL CODES

Protocol codes are the special control characters that prepare the printer to receive instructions. For example, the <ESC> character tells the printer that a command code will follow and the <ENQ> character asks for the printer status. There are two pre-defined different sets of Protocol Control codes to choose from. Each set is made up of six special characters. The Standard Protocol Control codes are non-printable characters, and the Non-Standard Protocol Control codes are printable characters. The Non-Standard set may be useful on host computers using protocol converters or in an application where non-printable ASCII characters cannot be sent from the host. This manual uses the Standard Protocol Control codes for all of the examples.
If Protocol Control codes other than the standard set are desired, they must be downloaded from the host using the <ESC>LD command. Once they are downloaded, the printer will not respond to standard protocol codes. The current protocol codes active in a printer can be determined by printing a Test Label (see CX400 / 410 User’s Guide, page 9)..

USING BASIC

It may be useful to test your printer using a BASIC program on a PC. You may also write your actual production programs in BASIC. Whatever the reason, if you will be working in BASIC, some of the following hints may help you get started:
1. Set the WIDTH of the output device to 255 characters to avoid automatically sending
CONTROL
CHARACTER
STX 02 Hex Start of Data
ETX 03 Hex End of Data
ESC 1B Hex 5 Command code to follow
ESC 1B Hex Command code to follow
ENQ 05 Hex Get printer status, Bi-Com mode
CAN 18 Hex Cancel print job, Bi-Com mode
Off-Line 40 Hex Take printer Off-Line
STANDARD HEX VALUE
DESCRIPTION
<CR> and <LF> characters after every line. The command string should be continuous and uninterrupted by <CR> and/or <LF> commands. The examples given in this manual are printed on separate lines because they will not fit on one line and do not contain any <CR> and/or <LF> characters. If these characters are needed, they are explicitly noted by the inclusion of <CR> and<LF> notations.
2. If you are using the printer’s RS232C interface, it is necessary to set the COM porton on the PC such that the CTS and DSR signals will be ignored. Send your OPEN “COM” statement in the following way:
Page 1-2 PN 9001106(B) SATO CX400 / CX410
Section1. Programming Concepts
OPEN “COM1:9600,E,8,1,CS,DS”AS #1
This sets the RS232C communication parameters of the host PC’s COM1 port for 9600 baud, Even parity, 8 Data bits, 1 Stop bit and directing the port to ignore the CTS and DSR control signals.
3. You may want to minimize keystrokes and program size by assigning the <ESC>character to a string variable since this character is used quite often.
The following two examples in BASIC show a typical example using thesehints. Both of these examples use the Standard Protocol codes.
PRINTING WITH THE PARALLEL PORT
5 REM Parallel Example Identifies the program as a parallel port
print label. The “REM” prevents this data from being sent to the printer and displays it only on thescreen.
10 E$=CHR$(27) Sets the “E$” string as an <ESC>character
20 WIDTH “LPT1”255 Sets the width of the output to 255
characters
30 LPRINT E$;"A"; Sends an “<ESC>A” command code tothe
LPT1 parallel port
40 LPRINT E$;"H400";E$;"V100";E$;"WL1SATO"; Sends the data “SATO” to be to be placed
400 dots horizontally and 100dots vertically on the label and printed in the “WL” font.
50 LPRINT E$;"Q1"; Instructs the printer to print one label.
60 LPRINT E$; “Z”; Tells the printer that the last commandhas
been sent. The printer can nowcreate and print the job.
PRINTING WITH THE RS232C PORT
REM RS232 Example Identifies the program as an RS232C
port print label. The “REM” prevents this data from being sent to the printer and displays it only on the screen.
10 E$=CHR$(27) Sets the“E$”string as an
<ESC>character.
OPEN COM1:9600,N,8,1,CS,DS AS #1 Opens the COM1 port for output and
sets the parameters as 9600 baud, No parity, 8 Data bits, 1 Stop bit and instructs the port to ignore the CTS and DSR control signals.
SATO CX400 / CX410 PN 9001106(B) Page 1-3
Section1. Programming Concepts
30 PRINT #1,CHR$ (2); Sends an <STX> (ASCII Code a
50 PRINT #1,E$;"A"; Sends an “<ESC>A” command code to
decimal “2”) to the printer instructing it to prepare to receive a message.
Print Port #1 opened by statement 20 above.
60 PRINT #1, E$;"H400";E$;"V100";E$;"XL1SATO";
50 PRINT #1, E$;"Q1"; Instructs the printer to print a quantity of
60 PRINT #1, E$; “Z”; Tells the printer that the last
70 PRINT #1,CHR$ (3); Sends an <ETX> (ASCII Code decimal

THE PRINT AREA

The maximum print area for the CX400 / CX410 is 45 inches long. Many of your label applications may not require labels that fill the entire print area, therefore it is important to understand how to work with labels that do not use the entire print area. The goal is to help you avoid printing where no label exists, which may lead to print head damage, not to mention frustration when you cannot see the printed output.
Sends the data “SATO” to be placed 400 dots horizontally and 100 dots vertically on the label and printed in the“XL” autosmoothed font.
one label.
commandhas been sent. The printer can nowcreate and print the job.
“3”) to the printer telling it that this is the end of the message. Identifies the program as a CL612e RS232C port print label. The “REM” prevents this data from being sent to the printer and displays it only on the screen.
The diagram below illustrates the maximum print area and a sample 2 inch wide by 3 inch long label placed within this area. As can be seen, your label will be oriented against the inside left edge of the printer as viewed from the front of the printer. The normal reference point is located at the H1, V1 position of the print area in the normal print orientation (no rotation).
Page 1-4 PN 9001106(B) SATO CX400 / CX410
Section1. Programming Concepts
4.1”
Print
Width
4.1” Max Print Width minus
2” Label Width
Print
Length
l
The base reference point is always to the right edge of the print head as you face the front (label exit) of the printer. If you are using a label narrower than the maximum print width, you may have to adjust the base reference point to correctly position the label in the print area. There are three methods available to make sure your printed output will appear correctly on your label. They are as follows:
1. Media Size Command. Use the <ESC>A1 Media Size Command. This command speci­fies the width and length of the label. The printer will automatically calculate the correct offsets for printing labels of that size. However, if you specify a label size with this com­mand, the labels loaded should match the size specified to correctly position the label.
2. Base Reference Point Command. Send the <ESC>A3 Base Reference Point command as part of your data to the printer to set a new base reference point for your label.
Calculate the distance (in dots) from the normal base reference point to the closest edge of the label.
For a CX400 8 dpmm printer , this would be:

LABEL WIDTH = 2" X 25.4 MM/IN X 8 DPMM = 406 DOTS

The new Base Reference Point then becomes:

NEW BASE REFERENCE POINT = MAXIMUM PRINT WIDTH - LABEL WIDTH

= (832 DOTS) - (406 DOTS) = 426 DOTS

Issue the Base Reference Point command <ESC>A3 after the Start command in your data stream.
<ESC>A<ESC>A3H0426V0001. . . . . .
SATO CX400 / CX410 PN 9001106(B) Page 1-5
Section1. Programming Concepts
This resets the reference point for all the following data.
3. Add the correct offset to all horizontal commands. Use the normal base reference point from the print area and use the horizontal position for each field to properly locate it on the label.
Calculate the distance (in dots) from the normal base reference point to the closest edge of the label.
For a CX400 8 dpmm printer:
Label Width = 2" x 25.4 mm/in x 8 dpmm = 406 dots
New Base Reference Point = Maximum Print Width - Label Width
Each <ESC>H command would have the value “426” added to it to correctly position each field.
Note: The <ESC>A3 Base Reference Point command can also shift the reference point in a negative direction (toward the outside edge of the label).
The Command Code subsection contains a sample label output for each command code. These samples reflect how the printed information would appear on a five inch wide label. If you want to test any of the sample label outputs and are using labels less than five inches in width, we suggest that you add the Base Reference Point command to the data stream in order for the images to print on your labels.
= (832 dots) - (406 dots) = 426 dots
You must be careful not to print off the label surface as the label provides a heat sink for the print head elements. Doing so will cause irrepairable damage to the head. This damage is not covered under the print head warranty. The addition of the Base Reference Point command to the sample data stream may help to adjust the print for your labels. See the following two examples or refer to the Base Reference Point command description.
For example, the following illustrates a sample data stream for a CX400 printer and the resulting label assuming a 4 inch wide label:
<ESC>A <ESC>H0050<ESC>V0100<ESC>L0303<ESC>XMSATO <ESC>H0050<ESC>V0200<ESC>B103100*SATO* <ESC>H0070<ESC>V0310<ESC>L0101<ESC>XUSATO <ESC>Q1<ESC>Z
If you are using a 2 inch wide label, the entire image may not appear on your label. By adding the following Base Reference Point command to the second line of the data stream, the base reference point will be changed, causing the image to be shifted over toward the inside of the printer where it can beprinted on the narrower label.

<ESC>A

<ESC>A3H0406V0001 <ESC>H0050<ESC>V0100<ESC>L0303<ESC>XMSATO <ESC>H0050<ESC>V0200<ESC>B103100*SATO* <ESC>H0170<ESC>V0310<ESC>L0101<ESC>XUSATO <ESC>Q1 <ESC>Z
Page 1-6 PN 9001106(B) SATO CX400 / CX410
Section1. Programming Concepts
4.1”
4.1”
The image is moved horizontally to the right 2 inches (406 dots) so that itcan be printed on a 2 inch wide label. For more information, see the Base Reference Point command description.
ROTATED FIELDS
The CX400 / CX410 printer can rotate each print field in 90° increments using the Rotate command.
• <ESC>% - The field rotates, but the base reference point for the field remains the same.
The following data stream will rotate the print field but will not change the base reference point of the field:
SATO CX400 / CX410 PN 9001106(B) Page 1-7
Section1. Programming Concepts

<ESC>A<ESC>%1<ESC>V800<ESC>H200<ESC>L0202<ESC>XB1E<ESC>Q1<ESC>Z

COMMAND DEFAULT SETTINGS
There are some types of commands that must have a value specified before a label can be printed. If the data stream does not contain these commands, a default value is assumed. The commands and the corresponding default values are:

COMMAND DEFAULT NOTE

Print Rotation (1)
Vertical Reference Point 0 (1)
Horizontal Reference Point 0 (1)
Character Pitch 2 (1)
Base Reference Point H=0, V=0 (2)
Character Expansion 1 (1)
Print Darkness 200 (1)
Print Speed 3 ips (2)
NOTES:
1. The settings for these commands will revert to the default value when the printer receives an <ESC>Z or an <ESC>*.
Page 1-8 PN 9001106(B) SATO CX400 / CX410
2. The values transmitted with these commands will remain in effect until a new command is received.
PRINTER CONFIGURATION
The CX400 / CX410 printers are different from other SATO printers in that they do not use DIP switches for printer configuration. Instead, all printer configuration is done via software commands. The parameters that can be configured are:
• Sensor Calibration
• Protocol Control Codes
• Print Darkness Range
•Sensor Type
• RS232 Parameters
• Label Tear-Off Position
• Backfeed Enable/Disable
Because there are no DIP switches to indicate the current printer settings, a Test Label must be printed to list the active printer settings. This Test Label lists all of the information a user needs to ascertain the printer configuration. Test Labels can be printed using the <ESC>CT command or by simultaneously pressing the FEED button while turning the printer on.
Section1. Programming Concepts
SATO CX400 / CX410 PN 9001106(B) Page 1-9
Section1. Programming Concepts
LABEL SENSING
The CX400 / CX410 printers can use an eye-mark (black bar) label gap or label notch sensing. The gap and notch sensor is a transmissive or see-thru type with an infrared light source directed through the label from above and detected by a separate receiving sensor underneath the label liner or tag. A reflective sensor is used to detect eye-marks printed on the bottom of the label liner or tag. The eye-mark must not reflect more than 12% of the light. Since the same receiving sensor is used for all three types of sensing, it must be calibrated with the media that will be used. For thermal transfer printing, the ribbon must be installed while the calibration is performed.
When calibrating the printer sensors, the gap or eye-mark sensor type must be selected first using the <ESC>CI command and then the Direct Thermal or Thermal Transfer print mode must be specified with an <ESC>CP command. These two commands are followed by an <ESC>CA Calibrate command to instruct the printer to perform the calibration procedure. The resulting calibration values are stored in the printer and used until the unit is recalibrated. A separated value is stored for direct thermal or thermal transfer modes because the settings will differ significantly because of the inclusion of the ribbon for thermal transfer. For example, the following command string will calibrate the printer in the thermal transfer mode for gap sensing:
<ESC>A<ESC>CP1<ESC>CI2<ESC>CA<ESC>Z
Page 1-10 PN 9001106(B) SATO CX400 / CX410
SECTION 2.
COMMAND CODES
This section contains the basic Command Codes for the SATO CX400 / CX410 printers. Commands for the oprions and specialized functions are provided in the following sections. Commands must be sent to the printer in an organized fashion in order for the label(s) to print.
The purpose of this section is to:
• Explain the different commands and provide examples of their usage.
• To provide a detailed reference for programming the printers.
Each command begins on a separate page with its own heading. A uniform layout is used to help you find key information about each command. For each Command Code in this section, there will be a sample data input stream to the printer and the expected print output. By studying the examples, you can learn how to use the particular command within a whole block of printer code. Pay particular attention to the “Special Notes” with each command to learn other important information.
The subject commands are highlighted in bold letters in the Reference Sheets. There are two parts of most, but not all, commands. The first is the command character which immediately follows the <ESC> code. It is always an upper case alpha or a special character (such as an “&” or a “%”). It is never a lower case alpha character. If the command requires additional variable information, it is represented by a group of lower case alpha characters immediately following the command character. For example, if an aaaabb is listed following the basic command, the printer will look for six characters immediately following the command. The first four would represent the value of aaaa and the next two the value of bb.
The maximum number of characters defined in a parameter is represented by the number of characters shown in the command structure. For example, a command followed by an aaaa can have up to four characters. In general, commands with only one parameter following the command can be entered without the leading zeroes. However, certain commands require the exact number of matching characters. A command with two parameters listed following the command code without a comma delimiter, such as aaaabbbb require the exact number of digits to be entered. If the value of aaaa is “800” and the value of bbbb is “300”, then the parameters must be entered as “08000300”. It is recommended that you make it a practice to always enter leading zeros to prevent any mistakes.
NOTE: These examples assume the use of the Standard Protocol Command
Codes, a parallel interface and a 4 inch wide label in a CX400 / CX410 printer.
An alphabetical listing of the command codes is contained in Appendix A:Command Code Quick Reference.
SATO CX400 / CX410 PN 9001106(B) Page 2-1

Bar Codes

Command Structure 1:3 narrow/wide bar ratio: <ESC>Babbcccd
2:5 narrow/wide ratio: <ESC>BDabbcccd
1:2 narrow/wide bar ratio: <ESC>Dabbcccd
a= 0 Codabar
1 Code 39 2 Interleaved 2 of 5 (I 2/5) 3 UPC-A / EAN-13 4 EAN-8 5 Industial 2 of 5 6 Matrix 2 of 5 7 reserved 8 reserved 9 reserved A MSI B reserved C Code 93 D reserved E UPC-E F Bookland G Code 128 I UCC 128
Section 2: Command Codes
bb = Number of dots (01-12) for narrow bar and narrow
space
ccc = Bar height in dots (001-999)
d = UCC 128 only. Not used for other bar code types
0 No human readable text 1 Human readable at top 2 Human readable at bottom
Example: <ESC>BD103200
Placement: Immediately preceding data to be encoded
Default: None
Command Function To print bar code images on a label. With this command, there are 13
standard bar code symbologies available to be printed and two 2­dimensional symbols
Page 2-2 PN 9001106(B) SATO CX400 / CX410
Section 2: Command Codes
Input to Printer
<ESC>A<ESC>H025<ESC>V0025<ESC>B103100*CODE 39* <ESC>H0205<ESC>V0130<ESC>XS*CODE 39* <ESC>H025<ESC>V0175<ESC>BD20310045676567 <ESC>H0190<ESC>V0285<ESC>XM45676567 <ESC>H025<ESC>V0325<ESC>BD30215001234567890 <ESC>H025<ESC>V0525<ESC>BD50310012345 <ESC>H0225<ESC>V0635<ESC>XS12345 <ESC>H025<ESC>V0675<ESC>BD60310012345 <ESC>H0205<ESC>V0785<ESC>XS12345 <ESC>H025<ESC>V0825<ESC>BA03100123455 <ESC>H0145<ESC>V935<ESC>XS12345 <ESC>H025<ESC>V980<ESC>BC03100081234ABCD <ESC>H0130<ESC>V1095<ESC>XS1234ABCD <ESC>H450<ESC>V0980<ESC>B002100A12345B <ESC>H500<ESC>V1090<ESC>XS12345 <ESC>H0505<ESC>V0025<ESC>BD303100123456789012 <ESC>H0565<ESC>V0525<ESC>BD4031001234567 <ESC>H0550<ESC>V175<ESC>DE03100123456 <ESC>H0525<ESC>V0225<ESC>OB0 <ESC>H0558<ESC>V0280<ESC>OB123456 <ESC>H0300<ESC>V0325<ESC>D30315009827721123 <ESC>L0101<ESC>H0275<ESC>V0400<ESC>OB0 <ESC>H0315<ESC>V0478<ESC>OB98277 <ESC>H0455<ESC>V0478<ESC>OB21123 <ESC>H605<ESC>V0365<ESC>BF0313021826 <ESC>H620<ESC>V0335<ESC>OB21826 <ESC>H0425<ESC>V0675<ESC>D30315000633895260 <ESC>L0101<ESC>H0400<ESC>V0750<ESC>OB0 <ESC>H0440<ESC>V0828<ESC>OB06338 <ESC>H0580<ESC>V0828<ESC>OB95260 <ESC>H0730<ESC>V0705<ESC>BF0314024 <ESC>H0745<ESC>V0675<ESC>OB24 <ESC>H0025<ESC>V1130<ESC>BG03100>GAB>B789>C123456 <ESC>H0265<ESC>V1235<ESC>XSAB789123456<ESC>Q1 <ESC>Q1<ESC>Z
Note: Carriage Returns and Line Feeds have been added to the command listing for
clarity and should not be included in the actual data stream.
SATO CX400 / CX410 PN 9001106(B) Page 2-3
Printer Output
Section 2: Command Codes
Page 2-4 PN 9001106(B) SATO CX400 / CX410
Section 2: Command Codes
UCC-128 Without Incrementing
<EXC>A<EXC>H0100<EXC>V0100 <EXC>B107150101234567000000001 <ESC>Q2<ESC>Z
With Incrementing
<ESC>A<ESC>H0100<ESC>V0100 <ESC>F001+001<ESC>B107150101234567000000001 <ESC>Q2<ESC>Z
SATO CX400 / CX410 PN 9001106(B) Page 2-5
Section 2: Command Codes
Special Notes 1. UPC and EAN bar codes are not affected by the different types of
narrow to wide ratios. Instead, the <ESC>D command adds descender bars to these codes where needed to meet UPC specifi­cations. The <ESC>BD command puts desender bars and human readable text below the symbol.

2. The Code 128, UCC 128, MSI, and Code 93 bar codes are not affected by the narrow to wide ratios.

3. The Codabar, Code 39, Industrial 2 of 5, and Matrix 2 of 5 bar codes are affected by the Character Pitch command. This command must be placed before the Bar Code command.

4. Because of their unique characteristics, two-dimensional (2D) sym­bols are covered separately.

5. For UCC128, the FNC1 code is automatically inserted and the Mod 10 and Mod 103 check digits are automatically calculated. For the MSI bar code, the check digit is not automatically calculated.

6. The <ESC>D and <ESC>BD commands are not valid for the MSI, Code 128, Code 93, UPC-E, Bookland, UCC128 and Postnet sym­bologies.
7. To select UPC-A, 11 digits of data are sent. The printer adds a “0” and automatically generates the check digit. If 12 digits of data are sent, the printer assumes an EAN-13 symbol and automatically generates the check digit. If 13 digits of data are sent, the check digit is not cre­ated and must be supplied by the programmer. It must be the last digit in the 13 digit string.

8. See SATO Programming Reference: Appendix A PN 9001096 for symbology specific formatting information.

Page 2-6 PN 9001106(B) SATO CX400 / CX410
Section 2: Command Codes

Bar Codes, Expansion

Command Structure <ESC>BWaabbb
aa = Expansion factor by which the width of all bars and
spaces will be increased (01-12)
bbb = Bar height by dot (004-999 dots)
Example: <ESC>BW02100
Placement: Immediately follows the <ESC>BT command and
precedes data to be encoded.
Default: None
Command Function This command works together with the <ESC>BT command to specify an
expansion factor and the bar code height for the particular symbol being printed.
Input to Printer
Printer Output
Special Notes 1. This command must be preceded by the Variable Ratio Bar Codes
<ESC>A
<ESC>H0050<ESC>V0050<ESC>BT101030103 <ESC>BW04100*1234* <ESC>Q1<ESC>Z
<ESC>BT command.
2. The following bar codes will be affected by the Character Pitch com­mand: Codabar, Code 39, Interleaved 2 of 5, Matrix 2 of 5.
SATO CX400 / CX410 PN 9001106(B) Page 2-7

Bar Codes, Variable Ratio

Command Structure <ESC>BTabbccddee
a = Bar Code Symbol:
bb = Narrow space in dots (01-99)
cc = Wide space in dots (01-99)
dd = Narrow bar in dots (01-99)
ee = Wide bar in dots (01-99)
Section 2: Command Codes
0 Codabar 1 Code 39 2 Interleaved 2 of 5 5 Industrial 2 of 5 6 Matrix 2 of 5
Example: <ESC>BT101030103
Placement: Following print position commands and preceding
<ESC>BW
Default: Current setting
Command Function To print a bar code with a ratio other than those specified through the
standard bar code commands (B,BD, and D). This is done through individual control of each of the bar code elements (bars, spaces) as shown above. Remember that this command only applies to the five bar code types shown.
Input to Printer <ESC>A
<ESC>H0050<ESC>V0050<ESC>BT101030103 <ESC>BW03100*1234* <ESC>Q1<ESC>Z
Printer Output
Page 2-8 PN 9001106(B) SATO CX400 / CX410
Section 2: Command Codes
Special Notes 1. This command must be immediately followed by the <ESC>BW Bar
Code Expansion command.

2. You may use only one variable ratio bar code per label.

3. If the data specified in this command is incorrect, the command is ignored and the ratio used will be based on the previous setting.

SATO CX400 / CX410 PN 9001106(B) Page 2-9

Base Reference Point

Command Structure <ESC>A3H-aaaa-Vbbbb
Section 2: Command Codes
-
aaaa
bbbb
Example:
Placement: Preceding all images that are based on the new base
Default: Current V and H offset setting in the printer
Command Function To establish a new base reference point for the current label. The base
reference point is the top left corner or ìoriginî from where all print position commands are based. This command may be very helpful when using labels less than four inches wide to place images on the printable label surface. It may also be used to move images past preprinted fields on a label.
Input to Printer <ESC>A
<ESC>H0025<ESC>V0025<ESC>WB0MNORMAL REFERENCE POINT <ESC>A3H0300V0075 <ESC>H0100<ESC>V0050<ESC>WB0MNEW REFERENCE POINT <ESC>Q1<ESC>Z
This character is optional. When present, it specifies
=
that The horizontal offset is in the negative direction. If it is left out the offset direction is positive.
Horizontal Print Offset (-0832 to 0832)
=
Vertical Print Offset (-9999 to 9999)
=
<ESC>A3H100V0050
reference point
configuration
Printer Output
Page 2-10 PN 9001106(B) SATO CX400 / CX410
Section 2: Command Codes
Special Notes 1. Use of this command will set the Vertical/Horizontal Offset setting of
the printer configuration until a new Base Reference Point command is issued or the setting is changed from the operator panel.

2. This command may be used more than once in a print job.

3. An alternative to using this command is to make changes to your cur­rent Horizontal and Vertical Print Position commands.
Example: Let us say the current base reference point is H=1, V=1 and you wish to move all the fields on your label downward vertically by 150 dots. You could either (1) add the Base Reference Point command or (2) change all the vertical position commands by an additional 150 dots.

4. For a more detailed example of the Base Reference Point command, see Section 1. Print Area.

5. The CX400 / CX410 print engines can print as close as 2 mm to the inside edge of the label.

6. The printers will not “wrap” (i.e. if any part of a character or image extends beyond the last print dot position, it will disappear and not be visible on any part of the label).

SATO CX400 / CX410 PN 9001106(B) Page 2-11

Characters,Custom-Designed

Command Structure Store Command: <ESC>Tabc c
Recall Command: <ESC>Kab90cc
a = 1 16x16 matrix
2 24x24 matrix
b= Specifies the character encoding method for the data
stream H Hexadecimal characters B Binary characters
cc = Memory location to store/recall the character. Valid
memory locations are 21
(data) = Data to describe the character in either Hex or Binary
format.
Section 2: Command Codes
to 52H or “!” or “R” in Binary.
H
Example: <ESC>T1H3F
<ESC>K1H903F See Appendix C for a more detailed explanation
Placement: The Store command is typically sent in its own data
stream to the printer, between the Start/Stop commands. The Recall command is sent in a secondary data stream to print the character, and follows any necessary position or size commands.
Default: None
Command Function To allow for the creation, storage, and printing of custom characters, such
as special fonts or logos. Up to 50 individual characters may be stored in the custom character volatile memory.
Printer Input See Appendix C for a detailed explanation.
<ESC>A <ESC>T1H3F0100038007C00FE01FF03FF87FFCFFFE
07C007C007C007C007C007C007C007C0
<ESC>Z
<ESC>A <ESC>H150<ESC>V100<ESC>L0505<ESC>K1H903F <ESC>H350<ESC>V100<ESC>L1010<E SC>K1H903F <ESC>Q1 <ESC>Z
Page 2-12 PN 9001106(B) SATO CX400 / CX410
Section 2: Command Codes
Printer Output
Special Notes 1. When printing the custom character using the Recall command, the
character is affected by the following commands: Character Expansion Character Pitch Line Feed, Rotate, Fixed Base Reference Point

2. The characters are stored in volatile memory and must be reloaded if the printer power is lost.

3. Do not use ASCII <CR> or <LF> characters (carriage return or line feed) as line delimiters within the graphic data or the actual image will not be printed as specified.

SATO CX400 / CX410 PN 9001106(B) Page 2-13
Section 2: Command Codes

Character Expansion

Command Structure <ESC>Laabb
aa = Multiple to expand horizontally (01-12)
bb = Multiple to expand vertically (01-12)
Example: <ESC>L0305
Placement: Preceding the data to be expanded
Default: <ESC>L0101
Command Function To expand characters independently in both the horizontal and vertical
directions. The command allows you to enlarge the base size of each font (except the vector font) up to 12 times in either direction. Expanded characters are typically used for added emphasis or for long distance readability.
Input to Printer <ESC>A<ESC>H0100<ESC>V0100<ESC>XMSATO
<ESC>H0100<ESC>V0200<ESC>L0402<ESC>XMSATO <ESC>H0100<ESC>V0300<ESC>L0204<ESC>XMSATO <ESC>Q1<ESC>Z
Printer Output
Special Notes 1. This command will expand the following fonts: Fonts U, S, M, XU,
XS, XM, OA & OB and fonts WB, WL, XB and XL.

2. This command will also affect the following commands: Character Pitch and Characters, Custom-Designed

3. The Character Expansion value is in effect for the current print job until a new expansion command is specified.

4. The Line and Box command, if used within the data stream, may return all subsequent text to the default expansion of 1 x 1. There­fore, either send the Character Expansion command before all printed data, or send Line and Box commands last, preceding the <ESC>Q Quantity command.
Page 2-14 PN 9001106(B) SATO CX400 / CX410
Section 2: Command Codes

Character, Fixed Spacing

Command Structure <ESC>PR
Example: See Above
Placement: Preceding the data
Default: The default is Proportional Spacing.
Command Function To reset proportional spacing and place the printer back to fixed
spacing.
Printer Input <ESC>A
<ESC>H0050<ESC>V0050<ESC>PS <ESC>L0202<ESC>XMPROPORTIONAL SPACING <ESC>H0050<ESC>V0180<ESC>PR <ESC>L0202<ESC>XMFIXED SPACING <ESC>Q1<ESC>Z
Printer Output
Special Notes 1. This command only works with the proportionally spaced fonts XU,
XM, XS, XL and XB.
SATO CX400 / CX410 PN 9001106(B) Page 2-15
Section 2: Command Codes

Character Pitch

Command Structure <ESC>Paa
aa = Number of dots between characters (00-99)
Example: <ESC>P03
Placement: Preceding the text to be printed
Default: <ESC>P02
Command Function To designate the amount of spacing (in dots) between characters. This
command provides a means of altering character spacing for label constraints or to enhance readability.
Input to Printer ESC>A
<ESC>H0025<ESC>V0025<ESC>L0202<ESC>XB1SATO <ESC>H0025<ESC>V0125<ESC>L0202<ESC>P20<ESC>XB1SATO <ESC>H0025<ESC>V0225<ESC>L0202<ESC>P40<ESC>XB1SATO <ESC>Q1<ESC>Z
Printer Output
Page 2-16 PN 9001106(B) SATO CX400 / CX410
Section 2: Command Codes
Special Notes 1. This command is affected by the <ESC>L Character Expansion com-
mand. The character pitch is actually the product of the current hori­zontal expansion multiple and the designated pitch value. Example:
<ESC>L0304 <ESC>P03 Pitch = (03) x (03) = 9 dots

2. To avoid confusion, you may want to include the <ESC>L Character Expansion command and this command together in your program.

3. This command affects fonts U, S, M, XU, XS, XM, OA & OB, WB, WL, XB and XL, and the vector font.

4. Character Pitch will always revert to the default value unless it is spec­ified before each new font command in the data stream.

5. This command also affects Codabar, Code 39 and Industrial 2 of 5 bar codes.

SATO CX400 / CX410 PN 9001106(B) Page 2-17
Section 2: Command Codes

Character, Proportional Spacing

Command Structure <ESC>PS Set to proportional spacing
Example: See above
Placement: Preceding the data to be proportional spaced
Default: <ESC>PS
Command Function To specify the printing of proportional or fixed spacing for proportionally
spaced fonts.
Printer Input <ESC>A
<ESC>H0025<ESC>V0050<ESC>PS <ESC>L0202<ESC>XMPROPORTIONAL SPACING <ESC>H0025<ESC>V0130<ESC>PR <ESC>L0202<ESC>XMFIXED SPACING <ESC>Q1<ESC>Z
Printer Output
Special Notes 1. Once this command is sent in the data stream, it is in effect until the
end of the print job unless an <ESC>PR Fixed Spacing command is sent.
Page 2-18 PN 9001106(B) SATO CX400 / CX410
Section 2: Command Codes

Clear Print Job(s) & Memory

Command Structure
Command Function To clear individual memory or buffer areas of the printer.
Input to Printer: <ESC>A
Printer Output: There is no printer output as a result of this command. The current print
<ESC>*a
a = If the “a” parameter is not included with this command
and the printer is in the multi-buffer mode, this command clears all print jobs in the printer memory, including the current print job.
a = If “a” is included with this command, it specifies the
internal memory section to be cleared. T To clear the custom character memory & To clear the form overlay memory X To clear all internal memory
Example: <ESC>*
<ESC>*&
Placement: This command should be sent to the printer as an
independent data stream.
Default: None
<ESC>* <ESC>Z
job in the buffer will be terminated and all other print jobs in the buffer cleared.
Special Note 1. See Expanded Memory Functions for variations of this command
used to clear data from the optional Expanded Memory.

2. It is not necessary to clear the printer’s memory between each print job.

3. When the “a” parameter is used, the section of memory specified will not be cleared until the label is printed.

4. When the “a” parameter is not included, all sections of memory will be cleared (same as <EXC>*X).

SATO CX400 / CX410 PN 9001106(B) Page 2-19
Section 2: Command Codes

Continuous Forms Printing

Command Structure None
Command Function The printer locates the end of an adhesive label by sensing the backing
between labels or through the use of an eye-mark (black rectangle on the reverse side of the backing). It locates the end of a tag from a notch, eye­mark, or a hole between tags. Both sensors should be disabled when printing continuous forms by sending the <ESC>CI0 command to disable the sensor.
Input to Printer <ESC>A
<ESC> CI0 <ESC>H100<ESC>V50<ESC>XMContinuous Forms Printing <ESC>Q3<ESC>Z
Printer Output
Special Notes 1. If you will be using continuous labels or tags, the printer must be told
to stop feeding in another manner. The length is determined by the position of the last printed image on the label or tag. The printer will stop feeding when this last field is finished printing. The length may be increased with printed spaces (20
mand code to control label length.
) if necessary. There is no com-
H
Page 2-20 PN 9001106(B) SATO CX400 / CX410
Section 2: Command Codes

Copy Image Area

Command Structure <ESC>WDHaaaaVbbbbXccccYdddd
aaaa = Horizontal position of the top left corner of the area.
(0001 to 0832)
bbbb = Vertical position of the top left corner of the area.
(0001 to 1424) ???????????????
cccc = Horizontal length of the image area to be copied.
(0001 to 0832)
dddd = Vertical length of the image area to be copied.
(0001 to 1424) ??????????????
Example: <ESC>WDH0100V0050X0600Y0400
Placement: Anywhere within the data stream, after specifying the
location of the duplicate image.
Default: None
Command Function To copy an image from one location to another on the same label. This
may be useful for duplicating individual fields or entire sections of the label with only one command.
Input to Printer <ESC>A
<ESC>H0050<ESC>V0050<ESC>E010<ESC>XM SATOSATOSATOSATOSATOSATOSATO SATOSATOSATOSATOSATOSATOSATO SATOSATOSATOSATOSATOSATOSATO SATOSATOSATOSATOSATOSATOSATO <ESC>H0180<ESC>V0250<ESC>WDH0130V0050X0400Y0200 <ESC>Q1<ESC>Z
Printer Output
SATO CX400 / CX410 PN 9001106(B) Page 2-21
Section 2: Command Codes
Special Notes 1. Use the Print Position commands (V and H) to locate the new area for
the duplicate image.

2. Position of the new target area must not be inside the original image.

3. If you use the <ESC>R Rotate command, V, H, X and Y axis will be reversed.

4. If the reference area of the target image exceeds the print area, it will not be printed.

Page 2-22 PN 9001106(B) SATO CX400 / CX410
Section 2: Command Codes
Cut
Command Structure ESC>~Aaaaa
aaaa = Number of labels to print between each cut (1-9999)
Example: <ESC>~A2
Placement: Preceding the <ESC>Q Print Quantity command.
Default: <ESC>~A1 (if cutter enabled)
Command Function To control the cutting of labels when using a SATO cutter unit with the
printer printer. This command allows the cutting of a multi-part tag or label at a specified interval within a print job. It differs from the <ESC>~ Cut Job command in that it does not interact with the quantity command.
Input to Printer <ESC>A
<ESC>H0020<ESC>V0020<ESC>XB1ABC<ESC>~A0002 <ESC>Q7<ESC>Z
Printer Output This set of commands will print seven labels with two labels between
each cut. One label will e cut separately.
Special Notes

1. You must have the optional printer Cutter to use this function. Contact your SATO representative for more information.

2. To use this command, the printer configuration must have the cutter option enabled. See Configuration Commands in this section of the manual.

3. If the cutter option has been enabled in the printer configuration and the cut value (a = 0), the cutter is inactive.

4. This command is independent of the <ESC>Q Quantity command. It
will cut the specified number of labels.
SATO CX400 / CX410 PN 9001106(B) Page 2-23
Section 2: Command Codes

Cut Job

Command Structure <ESC>~aaaa
aaaa = Number of labels to print between each cut (1-9999)
Example: <ESC>~2
Placement: Following the Print Quantity command <ESC>Q
Default: <ESC>~1 (if cutter enabled)
Command Function To control the cutting of labels when using a SATO cutter unit with the
printer. This command allows the cutting of a multi-part tag or label at a specified interval within a print job.
Input to Printer <ESC>A
<ESC>H0020<ESC>V0020<ESC>XB1ABC<ESC>Q3 <ESC>~0002 <ESC>Z
Printer Output This set of commands will print 6 labels (3 x 2) with two labels between
each cut.
Special Notes 1. You must have the optional printer Cutter to use this function. Contact
your SATO representative for more information.

2. To use this command, the printer configuration must have the cutter option enabled. See Printer Configuration commands in this section manual.

3. If the cutter option has been enabled in the printer configuration and the cut value (a = 0), the cutter is inactive.

4. A “~” (tilde) character or <NUL> (ASCII 00 Hex) character can be can be used in this command. It is recommended that the “~” be used whenever possible.

5. 5. When using the Cutter command, the total number of labels printed is the product of the cut value and the print quantity.

Page 2-24 PN 9001106(B) SATO CX400 / CX410
Section 2: Command Codes

Cut Last

Command Structure <ESC>~B
Example: <ESC>~B
Placement: Separate data stream sent to the printer
Default: None
Command Function To control the cutting of labels when using a SATO cutter unit with the
printer. This command allows the cutting of a printed multi-part tag or label that is left in the printer after a job is cut.
Input to Printer <ESC>A
<ESC>~B <ESC>Z
Printer Output This command will feed the last printed label to the cut position, cut the
label and then back feed to the head position in preparation for printing the next job.
Special Notes 1. You must have the optional printer Cutter to use this function. Contact
your SATO representative for more information.
SATO CX400 / CX410 PN 9001106(B) Page 2-25
Section 2: Command Codes

Non-Proportional Proportional(1)

U 5W x 9H dot matrix XU 5W x 9H dot matrix
S 8W x 15H dot matrix XS 17W x 17H dot matrix
M 13W x 20H dot matrix XM 24W x 24H dot matrix
OA 15W x 22H OCR-A font OB 20W x 24H OCR-B font
(1) These fonts will be printed with proportional spacing only if preceded by an <ESC>PS command.

Fonts U, S, M, OA, OB, XU, XS & XM

Command Structure Font XU: <ESC>XU Font U: <ESC>U
Font XS: <ESC>XS Font S: <ESC>S
Font XM: <ESC>XM Font M: <ESC>M
Font OA: <ESC>OA Font OB: <ESC>OB
Example: See above
Placement: Preceding the data to be printed
Default: None
Command Function To print text images on a label. These are eight of the built-in fonts
available on the printer. All matrices include descenders.
Input to Printer <ESC>A<ESC>PS
<ESC>H0001<ESC>V0100<ESC>L0202<ESC>XUSATO <ESC>H0001<ESC>V0175<ESC>L0202<ESC>XSSATO <ESC>H0001<ESC>V0250<ESC>L0202<ESC>XMSATO <ESC>H0001<ESC>V0325<ESC>L0101<ESC>OASATO <ESC>H0001<ESC>V0400<ESC>L0101<ESC>OBSATO <ESC>H0300<ESC>V0100<ESC>L0202<ESC>USATO <ESC>H0300<ESC>V0175<ESC>L0202<ESC>SSATO <ESC>H0300<ESC>V0250<ESC>L0202<ESC>MSATO <ESC>Q1<ESC>Z
Page 2-26 PN 9001106(B) SATO CX400 / CX410
Section 2: Command Codes
Printer Output
Special Notes 1. Characters may be enlarged through the use of the Character Expan-
sion command.
2. Character spacing may be altered through the use of the Character Pitch command. The default is 2 dots between characters. It is recom­mended to use a spacing of 5 dots for OCR-A and 1 dot for OCR-B.
3. You may also create custom characters or fonts. See the <ESC>T Custom-Designed Characters command.
4. A font must be defined for each field to be printed. There is no default font.
5. Fonts U, S, M, OA and OB are identical to fonts U, S, M, OA and OB on the SATO M-8400 printer. The proportionally spaced fonts XU, XS, XM, XL and XA can be printed with fixed spacing using the <ESC>PS Proportional Space command.
6. The matrices for the OA and OB fonts are scaled so that they will remain a constant size according to the OCR-A and OCR-B specifica­tions when printed on different resolution printers.
SATO CX400 / CX410 PN 9001106(B) Page 2-27

Font, Vector

Command Structure Specify Vector Font: <ESC>$a,b,c,d
Data for Vector Font: <ESC>$=(data)
a= A Helvetica Bold (proportional spacing)
B Helvetica Bold (fixed spacing)
b= Font width (50-999)
c= Font height (50-999 dots)
d= Font variation (0-9) as follows:
0 Standard 1 Standard open (outlined) 2 Gray (mesh) pattern 1 3 Gray (mesh) pattern 2 4 Gray (mesh) pattern 3 5 Standard open, shadow 1 6 Standard open, shadow 2 7 Standard mirror image 8 Italic 9 Italic open, shadow
Section 2: Command Codes
Example: <ESC>$A,100,200,0<ESC>$=123456
Placement: Immediately preceding data to be printed.
Default: None
Command Function To specify printing of the unique SATO vector font. The vector font allows
large characters to be printed with smooth, round edges. Each character is made of a number of vectors (or lines), and will require slightly more printer compiling time.
Input to Printer <ESC>A
<ESC>H0100<ESC>V0100<ESC>$A,100,100,0
<ESC>$=SATO AMERICA
<ESC>H0100<ESC>V0200<ESC>$=VECTOR FONT <ESC>H0100<ESC>V0350<ESC>$A,200,300,9<ESC>$=SATO <ESC>Q1<ESC>Z
Page 2-28 PN 9001106(B) SATO CX400 / CX410
Section 2: Command Codes
Printer Output

Special Notes 1. The Pitch command can be used with Vector fonts.

2. If the font size designation is out of the specified range, a default value of 50 is used.

3. The font width and height values include ascenders, descenders, and other space.

4. A font must be defined for each field to be printed. There is no default font.

SATO CX400 / CX410 PN 9001106(B) Page 2-29
Section 2: Command Codes

Non-Proportional Proportional(1)

WB 18W x 30H dot matrix XB 48W x 48H dot matrix
WL 28W x 52H dot matrix XL 48W x 48H dot matrix
(1) These fonts will be printed with proportional spacing only if preceded by an <ESC>PS command.

Fonts WB, WL, XB & XL

Command Structure Font WB: <ESC>WBa Font XB: <ESC>XBa
Font WL: <ESC>WLa Font XL: <ESC>XLa
a = Provided for compatibility with CL printers.
Can be either a “0” or “1”.
Example: <ESC>WB1123456
Placement: Preceding the data to be printed
Default: None
Command Function To print text images on a label. These are the four auto-smoothing fonts
available on the printer.
Input to Printer <ESC>A<ESC>PS
<ESC>H0001<ESC>V0100<ESC>WB0SATO <ESC>H0001<ESC>V0185<ESC>WB1SATO <ESC>H0001<ESC>V0270<ESC>WL0SATO <ESC>H0001<ESC>V0355<ESC>WL1SATO <ESC>H0300<ESC>V0100<ESC>XB0SATO <ESC>H0300<ESC>V0185<ESC>XB1SATO <ESC>H0300<ESC>V0270<ESC>XL0SATO <ESC>H0300<ESC>V0355<ESC>XL1SATO <ESC>Q1<ESC>Z
Page 2-30 PN 9001106(B) SATO CX400 / CX410
Section 2: Command Codes
Printer Output
Special Notes 1. Characters may be enlarged through the use of the <ESC>L Character
Expansion command.
2. Character spacing may be altered through the use of the <ESC>A Char­acter Pitch command.
3. A font must be defined for each field to be printed. There is no default font.
4. The proportionally spaced fonts XU, XS, XM, XL and XB can be printed with fixed spacing using the <ESC>PS Proportional Space command.
SATO CX400 / CX410 PN 9001106(B) Page 2-31
Section 2: Command Codes

Form Feed

Command Structure <ESC>A(space)<ESC>Z
Example: See above
Placement: Separate data stream sent to printer
Default: None
Command Function To feed a blank tag or label, which is the equivalent of a “form feed.”
Input to Printer
Printer Output Blank label or tag
<ESC>A(space) <ESC>Z
Page 2-32 PN 9001106(B) SATO CX400 / CX410
Section 2: Command Codes

Form Overlay, Recall

Command Structure <ESC>/
Example: See above
Placement: Must be preceded by all other data and placed just before
the Print Quantity command (<ESC>Q)
Default: None
Command Function To recall the label image from the form overlay memory for printing. This
command recalls a stored image from the overlay memory. Additional or different data can be printed with the recalled image.
Input to Printer <ESC>A
<ESC>H01000<ESC>V0125 <ESC>STHIS IS THE STORED IMAGE WITH A BARCODE <ESC>H0100<ESC>V0165<ESC>B103100*12345* <ESC>&<ESC>Z <ESC>A<ESC>H0100<ESC>V0050 <ESC>STHIS IS RECALLING AND ADDING TO THE STORED
IMAGE<ESC>/
<ESC>Q1<ESC>Z
Printer Output
Special Notes 1. The overlay is stored using the <ESC>& Form Overlay Store com-
mand.

2. If the this command is used with the <ESC>EX0 Expanded Print Length command the Form Overlay length cannot exceed 9999 dots.

SATO CX400 / CX410 PN 9001106(B) Page 2-33
Section 2: Command Codes

Form Overlay, Store

Command Structure <ESC>&
Example: See above
Placement: Must be preceded by all other data and placed just before
the Stop command (<ESC>Z)
Default: None
Command Function To store a label image in the volatile form overlay memory. Only one label
image may be stored in this memory area at a time.
Input to Printer <ESC>A
<ESC>H0100<ESC>V0125 <ESC>STHIS IS THE STORED IMAGE WITH A BARCODE <ESC>H0100<ESC>V0165<ESC>B103100*12345* <ESC> <ESC>Z
&
Printer Output There is no output from this command. It stores the label image in the
overlay buffer.
Special Notes 1. Remember that this storage is volatile. Therefore, if the printer loses
power, the overlay must be sent again.
2. The overlay is recalled using the <ESC>/ Form Overlay Recall com­mand.

3. Form overlays do not have to be recompiled each time they are called to be printed and therefore may result in much faster print output.

Page 2-34 PN 9001106(B) SATO CX400 / CX410
Section 2: Command Codes

Graphics, Custom

Command Structure <ESC>Gabbbccc(data)
a = Specifies format of data stream to follow B Binary
format H Hexadecimal format
bbb = Number of horizontal 8 x 8 blocks
001 to 104
ccc = Number of vertical 8 x 8 blocks
001 to 356
(data) = Hex or Binary data to describe the graphic image.
Example: <ESC>GH006006 See Appendix C for a detailed
example
Placement: May be placed anywhere within the data stream after the
necessary position commands.
Default: None
Command Function To create and print custom graphics (logos, pictures, etc.) on a label.
The graphic image may be printed along with other printed data to enhance label appearance or eliminate the need for preprinted label stock. Using a dot-addressable matrix, design the graphic image in 8 dot by 8 dot blocks, then send it in a binary format to the printer.
Printer Input <ESC>A
<ESC>H0100<ESC>V0100<ESC>GH006006 FFFFFFFFFFFFFFFFFFFFFFFFC00000000003 C00000000003C000FFFFFFF3C00080000013 C00080000013C0009FFFFF13C00080000013 C00080000013C0009FFFFF13C00080000013 C00080000013C000FFFFFFF3C00000000003 C00000000003C00000000003C00000000003 C00000000003C00000000003C00003C00003 C00007E00003C0000FF00003C0000FF00003 C0000FF00003C0000FF00003C00007E00003 C00003C00003C00003C00003C00003C00003 C00003C00003C00003C00003C00003C00003 C00003C00003C00003C00003C00003C00003 C00003C00003C00001800003C00000000003 C00000000003FFFFFFFFFFFFFFFFFFFFFFFF <ESC>H0300<ESC>V0100<ESC>XSPLEASE PLACE YOUR DISK <ESC>H0300<ESC>V0150<ESC>XSIN A SAFE PLACE <ESC>Q1<ESC>Z
See Appendix C for a details on the data format.
SATO CX400 / CX410 PN 9001106(B) Page 2-35
Section 2: Command Codes
Printer Output
Special Notes 1. Do not use ASCII <CR> or <LF> characters (carriage return or line
feed) as line delimiters within the graphic data or the actual image will not be printed as specified.

2. A custom graphic cannot be enlarged by the <ESC>L Character Expansion command.

3. A custom graphic is not affected by either of the Rotation com­mands. Therefore, always design and locate your graphic image to print in the appropriate orientation.

4. To store graphic images in optional Expanded Memory, see the Expanded Memory Functions section.

5. The binary format reduces the transmission time by 50%.

Page 2-36 PN 9001106(B) SATO CX400 / CX410
Section 2: Command Codes

Graphics, PCX

Command
<ESC>GPaaaaa,(data)
Structure
aaaaa
Example: <ESC>GP32000, ... data...
Placement: Anywhere within the job data stream
Default: None
Command Function To allow the creation and printing of graphic images using a PCX file format.
Printer Input See Appendix Appendix C for a detailed example
<ESC>A <ESC>V0150<ESC>H0100<ESC>GP03800,(...Data...) <ESC>Q1 <ESC>Z
Printer Output
Number of bytes to be downloaded
=
Special Notes 1. The maximum number of bytes that can be downloaded is 32K (com-
pressed). The number specified by this command includes the PCX header information. The maximum size of the uncompressed PCX file is 64K. If the uncompressed file exceeds 64K, the graphic will not print.

2. Only black and white PCX files can be downloaded.

3. The file size specified by this command is the DOS file size in bytes.

SATO CX400 / CX410 PN 9001106(B) Page 2-37

Journal Print

Command Structure <ESC>J
Section 2: Command Codes
Example:
Placement:
Default:
Command Function To print text in a line by line format on a label. By specifying this
command, you automatically select Font XS with a Character Expansion of 2x2. You also establish a base reference point of H2,V2. The character pitch is 2 dots and the line gap is 16 dots. Simply issue an ASCII <CR> at the end of each text line.
Input to Printer <ESC>A
<ESC>J WITH THE JOURNAL FEATURE YOU CAN PRINT TEXT WITHOUT USING ANY FONT COMMANDS OR POSITION COMMANDS <ESC>Q1<ESC>Z
Printer Output
See above
Immediately following <ESC>A
None
Special Notes 1. Journal mode assumes a maximum label width . Otherwise, you
may print where there is no label and damage your print head.

2. It is effective only for the current print job.

1. The <ESC>A3 Base Reference Point command cannot be used to change the margins.

Page 2-38 PN 9001106(B) SATO CX400 / CX410
Section 2: Command Codes

Lines and Boxes

Command Structure Line: <ESC>FWaabcccc
aa = Width of horizontal line in dots (01-99)
b = Line orientation H Horizontal line V Vertical
Line
cccc = Length of line in dots (see Section 1 Table 1 for
max length)
Box: <ESC>FWaabbVccccHdddd
aa = Width of horizontal side in dots (01-99)
bb = Width of vertical side in dots (01-99)
cccc = Length of vertical side in dots (see Section 1
Table 1 for max length)
dddd = Length of horizontal side in dots (see Section 1
Table 1 for max length)
Example: <ESC>FW02H0200
Placement: Following the necessary positioning commands
Default: None
Command Function To print horizontal lines, vertical lines, and boxes as images on the label.
Input to Printer <ESC>A
<ESC>H0100<ESC>V0100<ESC>FW20H0200 <ESC>H0320<ESC>V0100<ESC>FW20V0200 <ESC>H0350<ESC>V0100<ESC>FW1010H0200V0200 <ESC>Q1<ESC>Z
Printer Output
SATO CX400 / CX410 PN 9001106(B) Page 2-39
Section 2: Command Codes
Special Notes 1. It is recommended that all lines and boxes be specified in the normal
print direction.

2. Use the <ESC>E0 Expanded Print Length command for maximum label length.

Page 2-40 PN 9001106(B) SATO CX400 / CX410
Section 2: Command Codes

Line Feed

Command Structure <ESC>Eaaa
aaa = Number of dots (001-999) between the bottom of the
characters on one line to the top of the characters on the next line.
Example: <ESC>E010
Placement: Preceding the text that will use the line feed function
Default: None
Command Function To print multiple lines of the same character size without specifying a new
print position for each line. With the Line Feed command, specify the number of dots you want between each line. Then, send an ASCII <CR> at the end of each line of text. The printer automatically identifies the size of the last character, moves down the number of dots specified, and begins printing the next line
Input to Printer <ESC>A
<ESC>E010<ESC>H0050<ESC>V0050<ESC>L0202<ESC>S THIS IS THE 1ST LINE>CR> THIS IS THE 2ND LINE>CR> THIS IS THE 3RD LINE>CR> <ESC>Q1<ESC>Z
Printer Output

Special Notes 1. It is effective only for the current data stream.

2. When printing lines or boxes in the same data stream with the Line Feed command, the Lines and Boxes command should be specified last, preceding <ESC>Q Quantity command.

3. This command is invalid only if the value specified is zero.

4. Following this command with a <CR> character will allow you to print with auto line feed. The print position will be determined from the value specified and the H value set in the printer. If you specify sev­eral H values after this command, the print position will be deter­mined by the H value last specified. You must redefine the font to be used after each H command.
SATO CX400 / CX410 PN 9001106(B) Page 2-41

Media Size

Command Structure <ESC>A1aaaabbbb
aaaa = Label Width in dots (1 to 832)
bbbb = Label Length in dots (1 to 8120)
Example: <ESC>A108323200
Placement: Separate data stream to the printer.
Default: <ESC>A108322136
COMMAND FUNCTION To set the size of the media.
INPUT TO PRINTER <ESC>A
<ESC>A108321424 <ESC>Z
Section 2: Command Codes
PRINTER OUTPUT There is no printer output resulting from this command. It is used to
automatically adjust the offset values for the size of label being used. The sample command stream specifies a label 832 dots wide by 1424 dots long.
SPECIAL NOTES 1. 1. The Base Reference point is always the on the right (looking at the
front of the printer) side of the print head. This command adjusts the Base Reference Point to correspond with the right edge of the loaded media.

2. If the label size is changed, then this command must be respecified to center the print image on the label.

3. All eight variables “aaaa” and “bbbb” must be included in this com­mand.
Page 2-42 PN 9001106(B) SATO CX400 / CX410
Section 2: Command Codes

Off-Line/Pause

Command Structure <ESC>@
Example: See above Placement: Anywhere in the print job between
the <ESC>A and <ESC>Z
Default: None
Command Function To specify the printer to come to an off-line state. When used within a print
job, the printer goes off-line after finishing the print job.
Input to Printer <ESC>A
<ESC>@ ...Job... <ESC>Z
Printer Output There is no printer output for this command. The printer is placed in the
Off-Line mode as soon as the current print job is finished.
Special Notes 1. You must press the FEED key on the front panel for more than 5 sec-
onds to return the printer to an On-Line status. Note: the print buffer will be cleared.

2. Remember, when using this command, that the print job specifies <ESC>Q10, all ten labels will print before the printer goes off-line

SATO CX400 / CX410 PN 9001106(B) Page 2-43

Postnet

Command Structure <ESC>BPn...n
n...n = 5 digits (Postnet-32 format)
Section 2: Command Codes
6 digits (Postnet-37 format) 9 digits (Postnet-52 format) 11 digits (Postnet-62, Delivery Point format)
Example:
Placement: Immediately preceding the data to be encoded
Default: None
Command Function To print Postnet bar codes
Printer Input <ESC>A
<ESC>H0100<ESC>V0120<ESC>BP94089 <ESC>H0100<ESC>V0160<ESC>BP123456 <ESC>H0100<ESC>V0200<ESC>BP123456789 <ESC>H0100<ESC>V0240<ESC>BP12345678901 <ESC>Q1<ESC>Z
Printer Output
<ESC>
BP123456789
Special Notes 1. If the number of data digits does not match those listed, the com-
mand is ignored.

2. Only numeric data will be accepted.

Page 2-44 PN 9001106(B) SATO CX400 / CX410
Section 2: Command Codes

Print Darkness

COMMAND STRUCTURE <ESC>#Ea
a = Print Darkness Value (1 - 5)
Example: <ESC>#E2
Placement: Must be placed immediately after <ESC>A and
immediately before <ESC>Z in its own separate data stream
Default: See Operator Manual for the specific printer
COMMAND FUNCTION To specify a new print darkness settings. This command allows software
control of the darkness setting for unique media and ribbon combinations.
INPUT TO PRINTER <ESC>A
<ESC>#E2 <ESC>Z
PRINTER OUTPUT There is no printer output for this command.
SPECIAL NOTES 1. This becomes the new setting in the printer configuration for all sub-
sequent print jobs, unless changed. The setting is stored in non-vola­tile memory and is not affected by cycling power.

2. The lighest setting is the smallest value and the darkest setting is the largest value.

SATO CX400 / CX410 PN 9001106(B) Page 2-45
Section 2: Command Codes

Print Length, Expanded

Command Structure <ESC>EX0 Sets the print length to 40” (1015 mm))
<ESC>AR Resets the maximum print length to 7" (178 mm)
Example: See above
Placement: Must follow the Start Code command and be in it is own
separate data stream.
Default: <ESC>AR(7”)
Command Function To increase the maximum print length (in feed direction) for a label.
Input to Printer <ESC>A
<ESC>EX0 <ESC>Z <ESC>A <ESC>H0050<ESC>V0100<ESC>WB1EXPAND TO: <ESC>H0050<ESC>V2700<ESC>WB1MAX INCHES <ESC>Q1<ESC>Z <ESC>A <ESC>AR <ESC>Z
Printer Output
SPECIAL NOTES 1. EX0 is effective until AR is sent to reset the printer to its standard
print length, or until the printer is re-powered.

2. When this command is used with the <ESC>& Store Form Overlay command the Form length cannot exceed the maximum specified.

3. If a job contains elements out of the memory range, it is ignored.

4. If the Forms Overlay command <ESC>& is used with Expanded Memory to expand the print area, the Form Overlay length is still lim­ited to the maximum.
Page 2-46 PN 9001106(B) SATO CX400 / CX410
Section 2: Command Codes

Print Position

COMMAND STRUCTURE Horizontal Position <ESC>Haaaa
Vertical Position: <ESC>Vbbbb
aaaa
bbbb = Number of dots vertically from the base
Example: <ESC>H0020<ESC>V0150
Placement: Preceding any printed field description of lines/
Default: <ESC>H0001
COMMAND FUNCTION The Horizontal and Vertical commands specify the top left corner of a field
or label, using the current base reference point as an origin. They also establish a reference point for subsequent fields until the next horizontal and/or vertical print position command is issued.
INPUT TO PRINTER <ESC>A
<ESC>H0025<ESC>V0050<ESC>L0303<ESC>MSATO <ESC>H0100<ESC>V0150<ESC>MSATO <ESC>Q2<ESC>Z
Printer Output
Number of dots horizontally from the base
=
reference point (1 to 832
reference point (1 to 8120)
boxes, fonts, bar codes or graphics.
<ESC>V0001
SATO CX400 / CX410 PN 9001106(B) Page 2-47
Section 2: Command Codes
SPECIAL NOTES 1. To expand the print length to the maximum limit, the <ESC>EX0
Expanded Print Length command must be used.

2. The print position of a field is affected by both the <ESC>R Rotate and <ESC>A3 Base Reference Point commands.

3. If any part of an image is placed past the maximum number of dots, that part of the image will be lost.

4. If you attempt to print where there is no paper, you may damage the print head.

5. For these commands, the leading zeroes do not have to be entered. The command “V1” is equivalent to “V0001”.

Page 2-48 PN 9001106(B) SATO CX400 / CX410
Section 2: Command Codes

Print Quantity

Command Structure <ESC>Qaaaaaa
aaaaaa = Total number of labels to print (1-65535)
Example: <ESC>Q500
Placement: Just preceding <ESC>Z, unless <ESC>~ exists, then
preceding that. This command must be present in every print job.
Default: None
Command Function To specify the total number of labels to print for a given print job.
Input to Printer
Printer Output Three labels containing the data “SATO” will be printed.

Special Notes 1. To cancel a print job, you must turn off the printer.

< ESC>A
<ESC>H0100<ESC>V0100<ESC>WBSATO <ESC>Q3 <ESC>Z

2. When used with the <ESC>F Sequential Numbering command, the Print Quantity value should be equal to the total number of labels to be printed.

3. If you do not specify a Print Quantity, one copy iwill be printed.

4. For this command, leading zeroes do not have to be entered. The command “Q1” is equivalent to “Q000001”.

SATO CX400 / CX410 PN 9001106(B) Page 2-49
Section 2: Command Codes

Print Speed

Command Structure <ESC>CSa
a = Designates the speed selection in ips
1 = 1 ips (25 mm/s) 2 = 2 ips (50 mm/s) 3 = 3 ips (75 mm/s) 4 = 4 ips (100 mm/s)
= Example: <ESC>CS3
Placement: Must be placed immediately after <ESC>A and
immediately before <ESC>Z in a separate data stream
Default: As previously set in the printer configuration
Command Function To specify a unique print speed through software for a particular label.
This allows flexibility in finding the best performance and quality for the particular label format, media, and ribbon. All subsequent labels will print at this speed unless the speed is changed with this command or through the Operator Panel.
Input to Printer <ESC>A <ESC>CS3 <ESC>Z
Printer Output There is no printer output for this command. It sets the print speed of the
printer.
Special Notes This becomes the new setting for all subsequent print jobs, unless
changed. The setting is stored in non-volatile memory and is not affected by cycling the power. The allowable speed ranges are:
Page 2-50 PN 9001106(B) SATO CX400 / CX410
Section 2: Command Codes

Repeat Label

Command Structure <ESC>C
Example: See above
Placement: Must be placed immediately after <ESC>A and
immediately before <ESC>Z in a separate data stream
Default: None
Command Function To print duplicate of the last label printed
Input to Printer <ESC>A
<ESC>C <ESC>Z
Printer Output A duplicate of the previous label will be printed.
Special Notes 1. This command will have no effect if the power to the printer was
cycled off and back on since printing the previous label.
SATO CX400 / CX410 PN 9001106(B) Page 2-51
Section 2: Command Codes

Replace Data (Partial Edit)

Command Structure <ESC>0(<ESC>zero)
Example: See above
Placement: Must follow <ESC>A and precede all other print data
Default: None
Command Function To replace a specified area of the previous label with new data. This
command will cause the previous label to print along with any changes specified within the current data stream.
Input to Printer <ESC>A
<ESC>H0025<ESC>V0020<ESC>WB0Company Name <ESC>H0025<ESC>V0085<ESC>WB1SATO <ESC>H0025<ESC>V0150<ESC>WL0SATO <ESC>H0025<ESC>V0215<ESC>WL1SATO <ESC>Q1<ESC>Z

Printer Output

<ESC>A<ESC>0<ESC>H0025<ESC>V0020<ESC>WB0SATO <ESC>Q1<ESC>Z
Page 2-52 PN 9001106(B) SATO CX400 / CX410
Section 2: Command Codes
Special Notes 1. Specify the exact same parameters for the image to be replaced
as were specified in the original data stream, including rotation, expansion, pitch, etc. This will ensure that the new data will exactly replace the old image. If the replacement data contains fewer char­acters than the old data, then the characters not replaced will still be printed.
2. This command will not function if the power has been cycled off and back on since the last label was printed.
3. Proportional Pitch text cannot be used with this command.
SATO CX400 / CX410 PN 9001106(B) Page 2-53
Section 2: Command Codes

Reverse Image

Command Structure <ESC>(aaaa,bbbb
a = Horizontal length in dots of reverse image area
1 to 832
b = Vertical height in dots of reverse image area.
1 to 1424
Example: <ESC>(100,50
Placement: This command must be preceded by all other data and be
placed just before <ESC>Q
Default: None
Command Function To reverse an image area from black to white and vice versa. Use the
Print Position commands (<ESC>H and <ESC>V) to locate the top left corner of the reverse image area.
Input to Printer <ESC>A
<ESC>H0050<ESC>V0120<ESC>L0202<ESC>WB1REVERSE <ESC>H0250<ESC>V0300<ES C>L0202<ESC>WB1HALF <ESC>H0040<ESC>V0110<ESC>(370,100 <ESC>H0240<ESC>V0290<ESC>(220,47 <ESC>Q1<ESC>Z
Printer Output
Page 2-54 PN 9001106(B) SATO CX400 / CX410
Section 2: Command Codes
Special Notes 1. A reverse image area is affected by the rotate commands. Therefore,
always assume the printer is in the normal print orientation when designing and sending the Reverse Image command.

2. If the Rotate commands are used with this command, the V and H parameters are reversed.

3. If using reverse images with the form overlay, place this command before the Form Overlay command in the data stream.

4. If the height and width to be reversed contain other than alphanu­meric data, the area is not printed.

5. If the values specified exceed the maximum ranges, the reverse image is not created.

SATO CX400 / CX410 PN 9001106(B) Page 2-55
Section 2: Command Codes

Rotate, Fixed Base Reference Point

Command Structure <ESC>%a
a = 0 Sets print to normal direction
1 Sets print to 90°CCW 2 Sets print to 180° rotated (upside down) 3 Sets print to 270° CCW
Example: <ESC>%3
Placement: Preceding any printed data to be rotated
Default: <ESC>%0
Command Function To rotate the print direction in 90° increments without changing the location
of the base reference point. The diagram below illustrates the use of the <ESC>% Rotate command. Note that the entire print area is shown, but your label will probably not be as large as the entire area.
Input to Printer
Printer Output
Special Notes 1. The specified values are valid until another Rotate (<ESC>%) com-
<ESC>A <ESC>%0<ESC>L202<ESC>H0200<ESC>V0100<ESC>MNORMAL DIRECTION <ESC>%1<ESC>H0200<ESC>V0300<ESC>MONE <ESC>%2<ESC>H0200<ESC>V0400<ESC>MTWO <ESC>%3<ESC H0200<ESC>V0500<ESC>MTHREE <ESC>Q1<ESC>Z
mand is received.

2. Receipt of a Stop Print (<ESC>Z) command will reset the setting to the default value.

Page 2-56 PN 9001106(B) SATO CX400 / CX410
Section 2: Command Codes

Sequential Numbering

Command Structure <ESC>Faaaabcccc,dd,ee,g
aaaa = Number of times to repeat the same data (0001-
9999)
b = Plus or minus symbol (+ for increments; - for
decrements)
cccc = Value of step for sequence (0001-9999) ,
dd = Number of digits for sequential numbering (01-
99). The first incrementing character position starts after the positions exempted from sequential numbering as specified in ee. If these digits are left out, the default is 8. ,
ee = Number of digits free from sequential numbering
(00-99) starting with the right most position. If these digits are left out, the default is 0.
g = Count base 1 Decimal Count 2 Hexadecimal
Base
Example: <ESC>F001-001,04,03
In this example, the right most (least significant) three digits would not decrement and the next four would decrement
Placement: Preceding the starting value to be incremented or
decremented.
Default: None
Command Function To allow the ability to print sequential fields (text, bar codes) where
all incrementing is done within the printer. Up to eight different sequential fields can be specified per label. Sequencing is effective for up to 99-digit numeric data within each field.
Input to Printer <ESC>A<ESC>H0100<ESC>V0100<ESC>MSERIAL NUMBER:
<ESC>H0100<ESC>V0200 <ESC>F001+005 <ESC>L0202<ESC>M1000<ESC>Q2<ESC>Z1
SATO CX400 / CX410 PN 9001106(B) Page 2-57
Section 2: Command Codes

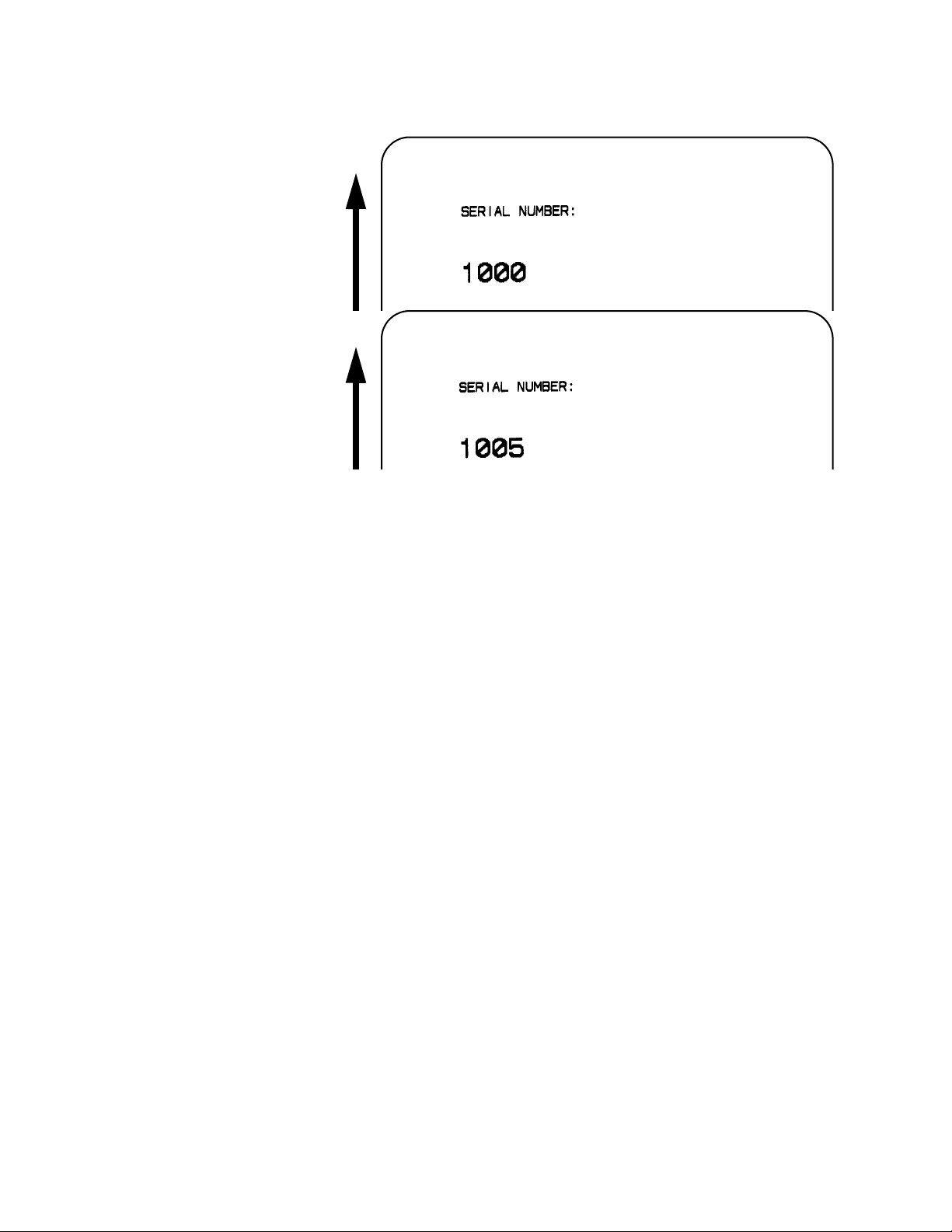

Printer Output
Special Notes 1. The value specified for Print Quantity should be equal to the
number of different sequential values desired multiplied by the number of repeats specified.
Example:
To print 2 sets each of the numbers 1001-1025 on separate labels, we need 50 total labels. The commands would be as follows:
<ESC>A <ESC>H0100<ESC>V0100<ESC>F002+001<ESC>XM1001 <ESC>Q50 <ESC>Z

2. It is necessary to specify the print position for each sequential field on a label.

3. Up to eight different sequential fields can be specified per label.

4. This command ignores alpha characters in the sequential num­ber field.

5. This command can not be used with the following commands:

Copy Image Reverse Image Line Feed
Page 2-58 PN 9001106(B) SATO CX400 / CX410
Section 2: Command Codes

Start/Stop Label

Command Structure Start Command: <ESC>A
Stop Command: <ESC>Z
Example: See above
Placement: <ESC>A must precede data <ESC>Z must follow
data
Default: None
Command Function For all print jobs, the Start command must precede the data, and the Stop
command must follow. The print job will not run properly if these are not in place.
Input to Printer <ESC>A
<ESC>H0001<ESC>V0100<ESC>WB1SATO <ESC>H0130<ESC>V0200<ESC>B103150*SATO* <ESC>H0170<ESC>V0360<ESC>L0202<ESC>S*SATO* <ESC>Q1<ESC>Z
Printer Output There is no output for these commands they are not accompanied by
other label printing commands. However, these commands must precede and follow each print job sent to the printer.
SATO CX400 / CX410 PN 9001106(B) Page 2-59
Section 2: Command Codes
Page 2-60 PN 9001106(B) SATO CX400 / CX410
SECTION 3.
EXPANDED MEMORY OPTION COMMANDS
These commands require the optional Expanded Memory.
Note: Before Expanded Memory can be used for the first time, it must be initialized
using the <ESC>BJF command. If it is not initialized, the printer will not recognize the memory and respond as if no expanded memory was installed.
SATO CX400 / CX410 PN 9001106(B) Page 3-1
Section 3: Expanded Memory Commands

Clear Expanded Memory

Command Structure <ESC>*a,bbb
Example: <ESC>*G,01
Placement: This command should be sent to the printer
a = Memory card section to be cleared
G To clear SATO graphic files from memory card P To clear PCX graphic files F To clear formats from the memory card O To clear TrueType fonts R To clear BMP graphic files
bbb = Memory Card storage area to be cleared
001 to 999 for Graphics, PCX or Formats 000 to 099 for TrueType fonts
immediately following the <ESC>CC Memory Area Select command.
Default: None
Command Function To clear individual memory areas in the Expanded Memory.
Input to Printer <ESC>A
<ESC>CC1<ESC>*O,09 <ESC>Z
Printer Output There is no printer output as a result of this command.
Special Notes 1. To clear everything in the Expanded Memory, use the
<ESC>BJF Expanded Memory Initialize command.

2. This command is ignored if there is no data to be cleared.

3. This command is ignored if Expanded Memory is not installed in the printer.

Page 3-2 PN 9001106(B) SATO CX400 / CX410
Section 3: Expanded Memory Commands

Graphics, Custom Recall

Command Structure <ESC>GRaaa
aaa = Graphics storage number (001-999)
Example: <ESC>GR111
Placement: The Recall command is sent in a secondary data
stream to print the graphic, and follows any necessary position or size commands.
Default: None
Command Function Use the Recall command any time you want to print a graphic image on a
label along with other printed data.
Printer Input
Non Rotated Graphic
<ESC>A<ESC>CC1 <ESC>V0100<ESC>H0080<ESC>L0505 <ESC>GR001 <ESC>Q1<ESC>Z
Graphic Rotated 180°
<ESC>A<ESC>CC1<ESC>%1 <ESC>V0180<ESC>H0500<ESC>L0505 <ESC>GR001 <ESC>Q1<ESC>Z
Graphic Rotated 90°<
<ESC>A<ESC>CC1<ESC>%1 <ESC>V0180<ESC>H0250<ESC>L0505 <ESC>GR001 <ESC>Q1<ESC>Z
Graphic Rotated 270°
<ESC>A<ESC>CC1<ESC>%3
<ESC>V0100<ESC>H0600<ESC>L0505 <ESC>GR001 <ESC>Q1<ESC>Z
Printer Output
Special Notes 1. The graphic image to be stored cannot be rotated before it is stored.
It can be rotated when it is recalled.

2. Graphic images cannot be stored as part of a label format.

3. See the <ESC>GI Custom Graphic Store command.

SATO CX400 / CX410 PN 9001106(B) Page 3-3
Section 3: Expanded Memory Commands

Graphics, Custom Store

Command Structure <ESC>GIabbbcccddd{data}
a
=
Specifies character format of the data
H Hex data B Binary data
bbb
ccc
ddd
{data}
Example: See Appendix C for detailed information on creating
Placement: Immediately following the <ESC>CC Memory Area
Number of horizontal 8 x 8 blocks (001 to 104)
=
Number of vertical 8 x 8 blocks (001 to 178)
=
Graphics storage number (001-999)
=
Hex or binary data to describe the graphic image
=
Hex and Binary graphic files.
Select command.
Default None
Command Function To provide similar functionality to the <ESC>G Custom Graphic
command, but allows for the graphic image to be stored in Expanded Memory. Use the Store command to send the graphic data to the printer, which is held in the optional Expanded Memory, even if printer power is lost.
Printer Input <ESC>A
<ESC>CC1<ESC>GIH002002001
0100038007C00FE01FF03FF87FFCFFFE07C007 C007C007C007C007C007C007C0
<ESC>Z
Note: See SATO Programming Reference:Appendix C, PN 9001096 for detailed explanation on how to format a graphics data stream.
Printer Output There is no printer output as a result of this command. See <ESC>GR
Recall Custom Graphics command.
Page 3-4 PN 9001106(B) SATO CX400 / CX410
Section 3: Expanded Memory Commands
Special Notes 1. You must have the optional Expanded Memory to use this com-
mand. Call your SATO representative for details.

2. The maximum storage capacity is 999 graphics, up to the capacity of the memory card used.

3. If a data transmission error occurs, the ERROR LED will come on. You must then retransmit the image.

4. Each graphic to be stored must be sent in its own data stream.

Example of correct data stream: <ESC>A <ESC>GIHaaabbb001(DATA) <ESC>Z <ESC>A <ESC>GIHaaabbb002(DATA) <ESC>Z
Example of incorrect data stream: <ESC>A <ESC>GIHaaabbb001(DATA) <ESC>GIHaaabbb002(DATA) <ESC>Z

5. Do not use ASCII <CR> or <LF> characters (carriage return or line feed) as line delimiters within the graphic data or the actual image will not be printed as specified.

6. The graphics storage number (ddd) must be specified with this command.

SATO CX400 / CX410 PN 9001106(B) Page 3-5
Section 3: Expanded Memory Commands

Graphics, PCX Recall

Command Structure <ESC>PYaaa
aa = Storage area number (001 thru 999)
Example: <ESC>PY001
Placement: This command must be placed within its own data
stream specifying the placement of the graphic.
Default: None
Command Function To recall for printing a graphic file previously stored in a PCX format in the
Memory Card.
Printer Input
Normal Rotation
<ESC>A<ESC>CC1 <ESC>V0100<ESC>H0050<ESC>PY001 <ESC>Q1<ESC>Z
2nd Rotation, Base Reference Point
<ESC>A<ESC>CC1<ESC>%2 <ESC>V0330<ESC>H0600<ESC>PY001 <ESC>Q1<ESC>Z
Rotate Base Reference Point
<ESC>A<ESC>CC1<ESC>%1 <ESC>V0330<ESC>H0160<ESC>PY001 <ESC>Q1<ESC>Z
3rd Rotation, Base Reference Point
<ESC>A<ESC>CC1<ESC>%3 <ESC>V0100<ESC>H0800<ESC>PY001 <ESC>Q1<ESC>Z
Printer Output
Special Notes 1. This command requires Expanded Memory option. See your SATO
representative for details.

2. See the <ESC>PI Store PCX Graphics command.

Page 3-6 PN 9001106(B) SATO CX400 / CX410
Section 3: Expanded Memory Commands

Graphics, PCX Store

Command Structure <ESC>PIaaa,bbbbb,{data}
aaa
=
Storage area number (001 thru 999)
bbbbb
{data}
Example: <ESC>PI001,32000,{data}
Placement: This command must be placed within its own
Default: None
Command Function To store for later printing a PCX graphic file in the Expanded
Memory.
Printer Input BASIC Program to Download a PCX file to Expanded Memory
Area #1, Storage Area #1
=
Size of PCX file in bytes
=
Data
data stream
OPEN .C:\WIZARD\GRAPHICS\LION.PCX. FOR INPUT AS #2 DA$ = INPUT$(3800,#2) C$ = CHR$(27) WIDTH .LPT1:.,255 LPRINT C$;"A";C$;"CC1"; LPRINT C$; .PI001,03800,.;DA$ LPRINT C$;"Z"; CLOSE #2
Printer Output There is no printer output as a result of this command. See
<ESC>PY PCX Graphics Recall command.
Special Notes: 1. This command requires Expanded Memory option. See your
SATO representative for details.

2. Graphics cannot be stored as part of a format.

3. Only black and white PCX files can be stored.

4. The file size specified by this command is the DOS file size in bytes.

SATO CX400 / CX410 PN 9001106(B) Page 3-7
Section 3: Expanded Memory Commands

Initialize

Command Structure <ESC>BJFaaaaaaaa
aaaaaaa = Eight character alphanumeric user ID
Example: <ESC>BJFsatocard
Placement: Immediately following the <ESC>CC Memory Area
Select command.
Default: None
Command Function This clears all of the data from Expanded Memory in the specified
memory area and prepares the area to accept data.
Input to Printer <ESC>A
<ESC>CC2<ESC>BJFsatocard <ESC>Z
Printer Output There is no printer output as a result of this command.
Special Notes 1. You must have the optional Expanded Memory to use this com-
mand. Call your local SATO representative for information.

2. All Expanded Memory must be initialized before it can be used for the first time.

3. Care should be exercised when using this command as it destroys any data previously written to the card. It will clear all data from the card and assign the new ID (“satocard” in the above example).

Page 3-8 PN 9001106(B) SATO CX400 / CX410
Section 3: Expanded Memory Commands

Memory Area Select

Command Structure <ESC>CCa
a = Memory Area
1 = 512K internal flash ROM 2 = 2M/4M expanded memory
Example: <ESC>CC1
Placement: Immediately following the <ESC>A Start Code.
Default: Last selected Memory Area.
Command Function Selects the Memory Area to be used for following Expanded Memory
commands.
Printer Input <ESC>A
<ESC>CC1 {commands} <ESC>Z
Printer Output There is no printer output as a result of this command.
Special Notes 1. To use this command with CC2 requires the Expanded Memory
option. See your SATO representative for more information.
SATO CX400 / CX410 PN 9001106(B) Page 3-9
Section 3: Expanded Memory Commands

Status

Command Structure <ESC>BJS
Example: <ESC>BJS
Placement: After the <ESC>CC Memory Area Select command.
Default: None
Command Function Casues the printer to print the card status.
Printer Input <ESC>A
<ESC>CC1<ESC>BJS <ESC>Z
Printer Output
Special Notes 1. This command requires the Expanded Memory option. See your
SATO representative for more information.
Page 3-10 PN 9001106(B) SATO CX400 / CX410
SECTION 4.
TWO-DIMENSIONAL SYMBOLS
The following commands are used to create the two-dimensional symbologies supported by the CX400 / CX410.
•Maxicode
•PDF417
SATO CX400 / CX410 PN 9001106(B) Page 4-1
Section 4: Two-Dimensional Symbols

Maxicode

Command Structure
<ESC>BVa,b,c,ddddddddd,eee,fff,gggg.....<ESC>
a = Position of Maxicode symbol within the set, when used
in a structured append format 1~8.
b = Total number of Maxicode symbols in the set, when
used in a structured format 1~8.
c = 2 For Mode 2 Structured Carrier Message for
Domestic U.S. UPS shipments
3 For Mode 3 Structured Carrier Message for
International UPS shipments 4 Standard symbol 5 Not currently supported 6 Reader programming
ddd..dd = 9 digit numeric Postal Code
eee = 3 digit numeric Country Code
fff = 3 digit numeric Service Class
gg..g = Data, terminated by <ESC>
Example: <ESC>BV1,2,3,123456789,222,333,MESSAGE<ESC>
Placement: Immediately preceding data to be encoded
Command Function
Command Function
Printer Output
Default None
To print a Maxicode two-dimensional bar code image on a label.
To print a UPS Maxicode symbol.
<ESC>A<ESC>V0100<ESC>H0100 <ESC>
BV1,2,3,123456789,222,333,MESSAGE<ESC>Q001<ESC>Z
Page 4-2 PN 9001106(B) SATO CX400 / CX410
Section 4: Two-Dimensional Symbols

MODE POSTAL

CODE

COUNTRY
CODE
SERVICE
CLASS
MESSAGE
LENGTH
29 digits max
numeric only
3 digits max numeric only
3 digits max numeric only
84 characters alphanumeric
3 6 digits fixed
alphanumeric
3 digits max numeric only
3 digits max numeric only
84 characters alphanumeric
4 6
“000000” fixed data
“000” fixed data
“000” fixed data
91 characters alphanumeric
Special Notes 1. Please refer to UPS Publication “Guide to Bar Coding with UPS Online-
Version 5” for the secondary message data format requirements and the latest format requirements.
2. This command implements Maxicode AIM I.S.S (UPS Version 3.1) sym­bol.

3. The following modes are supported:

SATO CX400 / CX410 PN 9001106(B) Page 4-3
Section 4: Two-Dimensional Symbols

PDF417

Command Structure <ESC>BKaabbcddeeffffnn...n,g
aa = Minimum module dimension (03-09 dots). Will not print
if values of 01, 02 or greater than 10 are specified.
bb = Minimum module pitch dimension (04-24 dots). Will
not print if values of 01, 02, 03 or greater than 25 are specified.
c = Security (error detection) Level (1-8).
dd = Code words per line (01-30). If 00 is specified for both
dd and ee, the printer automatically optimizes the number of rows per symbol.
ee = Rows per symbol (00 or 03-40). If 00 is specified for
both dd and ee, the printer automatically optimizes the number of rows per symbol.
ffff = Number of characters to be encoded (0001-2700).
nn...n = Data to be printed.
Example: <ESC>BK0304400000021
Placement: Immediately preceding data to be encoded.
Default: None
Command Function To print a PDF417 two-dimensional bar code image on a label.
Printer Input
Printer Output
<ESC>A <ESC>V0100<ESC>H0100<ESC>BK0607400000021PDF417 PDF417 PDF417 <ESC>Q1<ESC>Z
Page 4-4 PN 9001106(B) SATO CX400 / CX410
Section 4: Two-Dimensional Symbols
Special Notes 1. When the code words per line and the number of rows per symbol (“dd”
and “ee”) are set to all zeroes, the printer will calculate the optimum configuration.
2. If the product of the values entered for”dd”and"ee"are not equal to or less than the value of “f f f f”(i.e. “f f f f” is greater than “dd“ x “ee”, an error will occur and the symbol will not be printed. It is recommended that these values each be set to”000”and the printer be allowed to auto­matically calculate the optimum values.

3. The values for “dd” and“ee”need to be made larger if the security level is increased.

4. The maximum data length is 2700 characters, but may be less depend­ing upon:
- the minimum module dimension (“aa”)
- the security level specified by “c”.
- the number of data characters

5. The Reference Point of the PDF417 symbol is the upper-left corner.

6. The <ESC>F Sequential Numbering command cannot be used with this command.

7. The <ESC>E Line Feed command cannot be used with this command.

8. The values 00

9. This command can be stored in a format.

10. The print height of the symbol will vary depending upon the data speci­fied; numeric only, alpha only or alphanumeric.

11. The Macro and Truncated PDF417 symbols are not supported.

thru 1FH can be specified as print data.
H
SATO CX400 / CX410 PN 9001106(B) Page 4-5
Section 4: Two-Dimensional Symbols
Page 4-6 PN 9001106(B) SATO CX400 / CX410
SECTION 5.
CONFIGURATION COMMANDS
These commands are used to change to operating configuration of the printer. The settings currently active in the printer can be determined by printing a Test Label, either by sending the <ESC>CT Print Test Label command or by pressing the FEED button while turning the printer on.
SATO CX400 / CX410 PN 9001106(B) Page 5-1
Section 5. Configuration Commands

Backfeed Enable

COMMAND STRUCTURE <ESC>CEa
a = 0 = Disables Backfeed
1 = Enables Backfeed
Example: <ESC>CE1
Placement: Separate data stream sent to printer
Default: Last setting
COMMAND FUNCTION To enable/disable backfeed before printingto align first print line on a
label after it has been dispensed.
INPUT TO PRINTER <ESC>A
<ESC>CE1 <ESC>Z
PRINTER OUTPUT There is no output as a result of this command.
SPECIAL NOTES 1. When Backfeed is enabled, the printer will feed the last label of a
print job forward to the dispense/cut position. Upon receipt of the next print job, it will retract the label to the first print line position before printing.

2. This setting is saved in non-volatile memory.

3. The setting becomes ineffective once a cutter or dispenser is enabled.

Page 5-2 PN 9001106(B) SATO CX400 / CX410
Section 5. Configuration Commands

Calibrate Sensor

COMMAND STRUCTURE <ESC>CA
Example: <ESC>CA
Placement: Separate data stream sent to printer
Default: There is no default for this command.
COMMAND FUNCTION To calibrate the label sensor for media and ribbon combinations..
INPUT TO PRINTER <ESC>A
<ESC>CA <ESC>Z
PRINTER OUTPUT There is no output as a result of this command. It causes the printer to
feed approximately 6 inches of media while the characteristics of the label backing or eye-mark are measured.

SPECIAL NOTES 1. The sensor is calibrated for the currently selected sensor type.

2. This setting is saved in non-volatile memory.

3. The sensor must be recalibrated whenever the sensor type is changed or a label detect failure occurs

4. When calibrating the sensor for Thermal Transfer printing, the rib­bon must be installed in the printer.
SATO CX400 / CX410 PN 9001106(B) Page 5-3
Section 5. Configuration Commands
Custom Protocol Command Codes
Download
COMMAND STRUCTURE <ESC>LD,a,b,c,d,e,f,g,h,i,j
Replacement character for STX
=
a
Replacement character for ETX
=
b
Replacement character for ESC
=
c
Replacement character for ENQ
=
d
Replacement character for CAN
=
e
Replacement character for NUL
=
f
Replacement character for OFFLINE
=
g
Auto-Online. Printer powers up in the online mode.
=
h
0: Yes 1: No
Zero Slash. Places a slash through the “0” character.
=
i
0: Yes 1: No
j=
Example: <ESC>LD,{,},%,#,&,*,~,0,0,D5
Placement: Immediately following the <ESC>A Start command and
Default: Standard Protocol command Codes
COMMAND FUNCTION Allows the user to defines custom Protocol Command codes.
PRINTER INPUT <ESC>A
<ESC>LD,{,},%,#,&,*,~,0,0,D5 <ESC>Z
PRINTER OUTPUT A Protocol Command code status label will be printed as a result of the a
successful download of a custom set of Protocol Command codes.
Hexa-decimal character for Euro-character
in an independent data stream.
Page 5-4 PN 9001106(B) SATO CX400 / CX410
Section 5. Configuration Commands
Command Parameter Resulting Command Code
2B +
++
Special Notes

1. Commas must be used to separate the parameters. If a parameter is omitted between two commas, the default Non-Standard Protocol Command codes for that parameter will be used.

2. This command must be sent as an independent data stream immedi­ately following the <ESC>A Start code and immediately preceding the <ESC>Z Stop code. No other commands can be included in the data stream.
3. If more or less than nine commas are included in the command, the entire command sequence will be ignored. The command must con­tain exactly nine commas.

4. If two characters are specified for a parameter, it will be interpreted as a hex value. For example:

If a combination of characters are outside the hexadecimal range, the entire command sequence will be ignored.

5. The current protocol command codes may be verified by printing a Test Label (<ESC>CT).

SATO CX400 / CX410 PN 9001106(B) Page 5-5
Section 5. Configuration Commands

Label Tear-Off

COMMAND STRUCTURE <ESC>CBabb
a = + moves print line down from the top label edge
- moves print line up towards the top label edge
bb = Distance moved in mm (00 to 98)
Example: <ESC>CB+19
Placement: Separate data stream sent to printer
Default: Last valid setting
COMMAND FUNCTION To adjust the location of the first print line on the label.
INPUT TO PRINTER <ESC>A
<ESC>CB+19 <ESC>Z
PRINTER OUTPUT There is no printer output for this command.
SPECIAL NOTES 1. The effects ofthis command are absolute, i.e. if an <ESC>CB+06
command is followed by an <ESC>CB-02, the resulting position is ­02 mm.

2. The maximum range for the value stored in the printer is 98 mm. Any commands received that causes the value to exceed 00 or 98 mm will result in a setting of 00 or 98 mm respectively.

3. This value is stored in non-volative memory and will remain until it is modified by another valid <ESC>CBabb command, even if power is removed from the printer.

4. The current setting is printed on the “Pitch Offset” line on the Test Label.

Page 5-6 PN 9001106(B) SATO CX400 / CX410
Section 5. Configuration Commands

Print Darkness Range

COMMAND STRUCTURE <ESC>CDaaa,bbb
aaa = Darkness range adjust (0 to 400)
Media adjustment (0 to 6000)
Example: <ESC>CD250,3000
Placement: This command should be sent in a separate data
stream.
Default: CD200,3300
COMMAND FUNCTION To make fine adjustments for best print quality.
INPUT TO PRINTER <ESC>A
<ESC>CD200,3300 <ESC>Z
PRINTER OUTPUT There is no printer output as a result of this command.
SPECIAL NOTES 1. This setting is stored in non-volatile memory and will not change until a
new Print Darkness Range command is received.

2. The current Print Mode can be verified by printing a Test Label.

3. It is recommended that a bar code verifier be used when making adjustments with this command.

SATO CX400 / CX410 PN 9001106(B) Page 5-7
Section 5. Configuration Commands

Sensor Select

Command Structure
Command Function
Input to Printer
Printer Output
Special Notes
<ESC>CIa
a = 0 Sensor not used
1 Reflective (Eye Mark) sensor 2 See-thru (transmissive) sensor
Example: See above
Placement: Separate data stream sent to printer
Default: See-thru sensor
To select the label sensing method for a job.
<ESC>A <ESCI1 <ESC>Z
There is no printer output as a result of this command

1. This setting is stored in non-volatile memory. The setting will not change until another valid <ESC>CIa command is received, even if power is removed from the printer.

2. The reflective Eye-Mark, label gap or notch must be at leas 2 mm wide and extend 10 mm from the left edge (facing the printer) of the label backing.

Page 5-8 PN 9001106(B) SATO CX400 / CX410
Loading...
