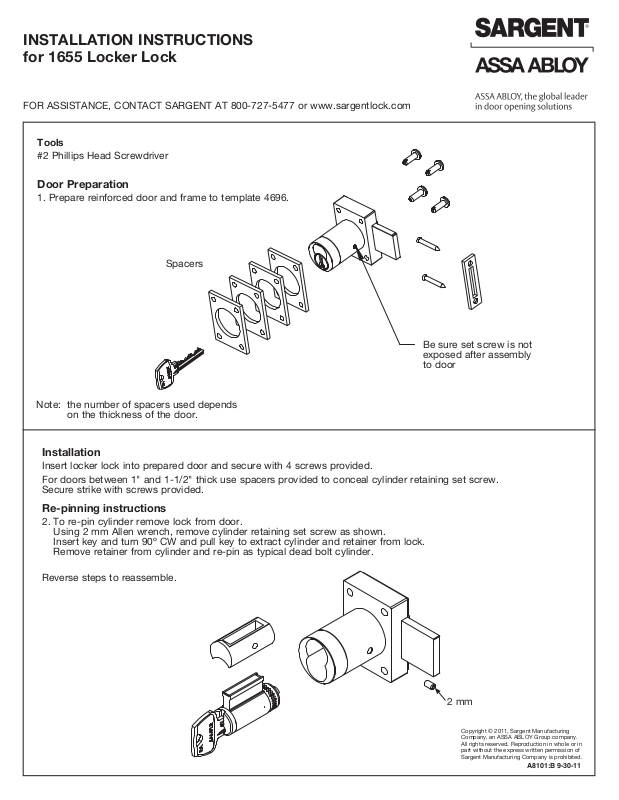

INSTALLATION INSTRUCTIONS
for 1655 Locker Lock

FOR ASSISTANCE, CONTACT SARGENT AT 800-727-5477 or www.sargentlock.com

Tools

#2 Phillips Head Screwdriver

Door Preparation

1. Prepare reinforced door and frame to template 4696.

Spacers

Be sure set screw is not
exposed after assembly
to door

Note: the number of spacers used depends

on the thickness of the door.

Installation

Insert locker lock into prepared door and secure with 4 screws provided.
For doors between 1" and 1-1/2" thick use spacers provided to conceal cylinder retaining set screw.

Secure strike with screws provided.

Re-pinning instructions

2. To re-pin cylinder remove lock from door.
Using 2 mm Allen wrench, remove cylinder retaining set screw as shown.
Insert key and turn 90º CW and pull key to extract cylinder and retainer from lock.
Remove retainer from cylinder and re-pin as typical dead bolt cylinder.

Reverse steps to reassemble.

2 mm

Copyright © 2011, Sargent Manufacturing
Company, an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in
part without the express written permission of
Sargent Manufacturing Company is prohibited.

A8101:B 9-30-11
