• Detailed surveillance options including auto focus, auto iris, white
balance, backlight/profile compensation, electronic shutter and
AGC
• DAY/NIGHT function enabling 24-hour surveillance
• Up to 256 preset positions and 4 preset position groups are
supported
• Up to 8 camera view setting files can be saved for storing camera
setting patterns
Four types of auto mode settings
1 SEQUENCE mode
In this mode, surveillance locations can automatically be moved
to multiple preset positions sequentially.
2 AUTO PAN mode
Automatic pan between two surveillance locations in loop can be
set after storing start and end locations.
3 TOUR mode
Sequential manual operations such as panning, tilting and
zooming can be saved as a movement track, and the movement
track can be used to automatically repeat the set of camera
operations.
4 AUTO RETURN mode
You can automatically return the surveillance status to the
specified surveillance mode after the specified duration has
passed without any operations.
b Auto pursuit function
b Sway correction function
Alarm detection function
• Both built-in and externally connected motion sensors can be
used simultaneously.
• Detailed input/output options for alarm signals are available for
linking external devices such as recorder and alarm buzzer.
Protecting privacy and ensuring security
• Masking patterns can be placed over defined image areas to
protect privacy.
• Password authorization can be set for camera operation.
Additional convenient functions
• Automatic image flipping (AUTO FLIP) function allows you to view
the surveillance image in an upright position when the camera is
tilted beyond the straight down position and the on-screen image
is inverted.
The sway correction function and the auto pursuit functions are
newly featured as standard.
• The MIRRORING function enables surveillance from the camera
set up on the floor.
• The automatic cleaning function keeps horizontal rotation of the
camera in smooth working order.
Supported protocols: SSP, HSSP, Pelco-D, Pelco-C
Memo: To operate the camera, the separately sold Power Board Unit
<VA-84S (for AC24V) or VA-80S (for AC230V)> is required.
The power board unit can be removed easily from the camera
unit by using the releasing levers.
Expendable itemsAccessories
The following parts are expendable items. Be sure to replace them
after their work life has expired. Component performance cannot be
guaranteed when parts are used to the very end of their projected
work life. Durability will differ according to environmental conditions
and usage.
• Lens unit: about 20,000 hours (Motor: 1,200,000 operations)
• Slip ring: about 20,000 hours (1,200,000 rotations)
For installing the core, refer to the supplied installation manual.
2
Precautions
■ In case of a problem
Do not use the unit if smoke or a strange odor comes from the
unit, or if it seems not to function correctly. Turn off the power
immediately and disconnect the power cord, and then consult
your dealer or an Authorized Sanyo Service Center.
■ Do not open or modify
Do not open the cabinet, as it may be dangerous and cause
damage to the unit. For repairs, consult your dealer or an
Authorized Sanyo Service Center.
■ Do not put objects inside the unit
Make sure that no metal objects or flammable substance get
inside the unit. If used with a foreign object inside, it could
cause a fire, a short-circuit or damage. Be careful to protect the
unit from rain, sea water, etc. If water or liquid gets inside the
unit, turn off the power immediately and disconnect the power
cord, and then consult your dealer or an Authorized Sanyo
Service Center.
■ Be careful when handling the unit
To prevent damage, do not drop the unit or subject it to strong
shock or vibration.
■ Do not install this unit close to magnetic fields
The magnetic fields may result in unstable operation.
■ Protect from humidity and dust
To prevent damage, do not install the unit where there is
greasy smoke or steam, where the humidity may get too high,
or where there is a lot of dust.
■ WEEE Symbol Information
Please note:
Your SANYO product is designed and
manufactured with high quality materials and
components which can be recycled and
reused.
This symbol means that electrical and
electronic equipment, at their end-of-life,
should be disposed of separately from your
household waste.
Please dispose of this equipment at your local
community waste collection/recycling centre.
In the European Union there are separate
collection systems for used electrical and
electronic products.
Please help us to conserve the environment
we live in!
This symbol mark and recycle system
are applied only to EU countries and
not applied to the countries in the
other area of the world.
■ Protect from high temperatures
Do not install close to stoves, or other heat sources, such as
spotlights, etc., or where it could be subject to direct sunlight,
as this could cause deformation, discoloration or other
damage.
Be careful when installing close to the ceiling, in a kitchen or
boiler room, as the temperature may rise to high levels.
■ Cleaning
• Dirt can be removed from the cabinet by wiping it with a soft
cloth. To remove stains, wipe with a soft cloth moistened with
a soft detergent solution and wrung dry, then dry by wiping
with a soft cloth.
• Do not use benzine, thinner or other chemical products on
the cabinet, as this may cause deformation and paint
peeling. Before using a chemical cloth, make sure to read all
accompanying instructions. Make sure that no plastic or
rubber material comes into contact with the cabinet for a long
period of time, as this may cause damage or paint peeling.
■ Installing the camera
To avoid an accident caused by a falling camera, when
installing the camera, be sure to follow the installation manual
and fix the camera to a durable ceiling, floor or wall securely.
3
Before Using the Menu
0 00 0 0
0 01 0 0
0 00 0 1
E sc t o e x i t
C A M 1 D V R 1
C A M 1 D V R 1
C A M 1 D V R 1
C A M E R A M E N U C O N T R O L
E sc t o e x i t
C A M 2 D V R 1
After installing the camera, use the menu to select camera operating options
and required functions according to your operating environment and
surveillance purpose. Use the system controller (VSP-9000) to perform menu
setting operations while viewing the menu on the monitor screen.
(The VAC-70, VSP-8500 also can be used to operate the camera.)
• To operate the system controller using the RS485 control method:
For system control setting switches (B), set the No.3 switch to the lower position
(OFF).
• To operate the system controller using the coaxial control method:
For system control setting switches (B), set the No.3 switch to the upper
position (ON).
<Main screen>
1
ALARM PLAY
PLAY
SPEED
R PLAY
PLAY STOP
STILL
SEQ
SEQ/
ON
PAN/
TOUR
PAN
OFF
ON
TOUR
ON
CAM 1DVR 1
PLAY
SPEED
CLOCK
ADJUST
ONE PUSH
AF
FOCUS
FAR
FOCUS
NEAR
RECALARM
REC STOP
TIMER
ON/OFF
IRIS
CENTER
IRIS
IRIS
GO TO
PRESET
ADDRESS ?
MUX
ADDRESS ?
SYSTEM
SETUP
MAP
ENTER
DVR
TO SUB
SCREEN
2
5
?
1
Datum: 00000
00000
Accept.values
Max 00100
Min 00001
Digit
Camera nr.
123
456
78
.
0
ON
A
When setting the address of the
camera, use numbers higher
12345678
than or equal to 1.
ON
B
123456
<Sub screen>
MAIN
MONITOR
LOCK
UNLOCK
AWB
SET
AWB
RESET
esc
del
4
PRESET
MEMORY
CAM 1 DVR 1
9
enter
MON2
SEQUENCE
AUDIO
AUX
ON
AUX
OFF
ZOOM
PRESET
ON
SEARCH
FR/FI
COPY
BLC
ON
BLC
OFF
ZOOM
PRESET
OFF
ON
OFF
MENU
ELS
ON
ELS
OFF
ZOOM
EXIT/OSD
L-L
PHASE
L-L
PHASE
MENUCODE
ONOFF
MENU
RESET
TO
10 KEY
6
3
CHANNEL
ADDRESS ?
ADDRESS ?
DVR
TO MAIN
SCREEN
Make connections with all equipment and turn them on.
1
When the power is turned on, the camera will perform its
startup movements. The camera’s address and other
information will be displayed on the monitor screen. After the
startup movements have been completed, live image will be
displayed.
The main screen appears on the touch panel of the system
controller.
Press the [ADDRESS? ] button.
2
The address entering screen appears.
Enter the camera’s address using the 10 key
3
buttons, and press the [enter] button.
The address (camera number) entered here is the one
specified with the address setting switches (A) and is
displayed on the monitor screen during the startup
movements.
System controller
Esc to exit
CAM 1 DVR 1
3
<Menu screen>
CAMERA
LENS
PAN/TILT
AUTO MODE
PASSWORD
LANGUAGE
OPTION
ADVANCED MENU
PRESET
MENU
Monitor screen
SET
SET
SET
SET
SET
SET
SET
SET
OFF
END
Press the [esc] button.
4
The main screen appears again.
Press the [TO SUB SCREEN] button.
5
The sub screen appears.
Press the [MENU] button in the sub screen.
6
The CAMERA MENU CONTROL screen appears.
Press the [MENU] button in the CAMERA MENU
7
CONTROL screen.
The camera menu appears on the monitor screen.
CAMERA MENU CONTROL
7
y
y
y
y
y
y
y
y
MENU
ENTER
Esc to exit
CAM 2 DVR 1
esc
4
Basic Operations for Performing Settings in
C AME RA M E N U C O N T R OL
Es c t o e x
t CA M 2 D V R 1
the Menu
To perform settings in the menu, use the joystick lever (1) on the system controller and the [ENTER] button (2) in the CAMERA MENU
CONTROL screen.
• Joystick lever:
Used to move the cursor or select menu options.
Instead of the joystick lever, the control buttons shown in (3) in
the CAMERA MENU CONTROL screen can be used to move the
cursor or select menu options.
• [ENTER] button:
Used to confirm your selection or execute operation commands.
Memo: Some settings in the menu can be performed by using the
sub screen on the system controller. For details, refer to the
system controller instruction manual.
2
3
1
<CAMERA MENU
CONTROL screen>
CAMERA MENU CONTROL
MENU
ENTER
Esc to ex
it CAM 2 DVR 1
esc
● To select the menu to perform settings
Use the joystick lever (xy) to move the cursor highlighting the menu
item up or down. Move the cursor to your desired menu item using
the lever.
CAMERA
LENS
PAN/TILT
AUTO MODE
ALARM
PRIVACY MASK
PASSWORD
LANGUAGE
OPTION
PRESET
MENU
SET
SET
SET
SET
SET
SET
SET
SET
SET
OFF
BACK
y
y
y
y
y
y
y
y
y
Cursor
● To display an advanced setting screen for the
selected menu
The menu item shown with y mark has an advanced setting screen.
After selecting the menu item with y mark, press the [ENTER] button
to display the advanced setting screen.
CAMERAy
LENSy
PAN/TILTy
AUTO MODEy
ALARMy
PRIVACY MASKy
PASSWORDy
SET
SET
SET
SET
SET
SET
SET
SYNC
IRISy
WHITE BALANCEy
BLC
SHUTTER
APERTUREy
AGCy
INT
AUTO
ATW
OFF
OFF
ON
ON
● To select an option for the setting item
Use the joystick lever (vw) to display the available options in turn.
SYNC
IRISy
WHITE BALANCEy
BLC
SHUTTER
APERTUREy
AGCy
INT
AUTO
ATW
OFF
OFF
ON
ON
SYNCy
IRISy
WHITE BALANCEy
BLC
SHUTTER
APERTUREy
AGCy
L-L
AUTO
ATW
OFF
OFF
ON
ON
● To exit from the menu screen
Move the cursor to “MENU” and select the “END” option, then press
the [ENTER] button.
PRESET
MENU
OFF
END
Memo: If there is no menu operation for three minutes or more, the
menu screen is automatically exited.
● To display the menu screen again
Press the [MENU] button in the CAMERA MENU CONTROL screen.
● To restore your selected options to initial values
Move the cursor to “PRESET” and change its option to “ON”, then
press the [ENTER] button.
PRESET
MENU
ON
BACK
Memo: The following settings cannot be restored.
•Privacy mask
• Preset position
• Camera view
• Camera title
• Password
☞ In this manual, xy represent vertical joystick lever operation
and vw represent horizontal joystick lever operation.
● To go back to a previous setting screen
Move the cursor to “MENU” and select the “BACK” option, then press
the [ENTER] button.
PRESET
MENU
OFF
BACK
5
About Setting Menus
b Setting menu mode
For performing settings in the menu, the following two menu modes are available.
● Main menu
This menu, which is provided for general users, appears by pressing the [MENU] button in the CAMERA MENU CONTROL screen. Some menu
items and setting options, which are available in the advanced menu, are omitted in the main menu.
● Advanced menu
This menu, which is provided for administrative users, appears by selecting [ADVANCED MENU] in the main menu. In the advanced menu, the
menu items for the [ALARM] and [PRIVACY MASK] settings are added and advanced settings can be made on individual menu screens.
<Main menu><Advanced menu>
MENU
CAMERA
LENS
PAN/TILT
AUTO MODE
PASSWORD
LANGUAGE
OPTION
Memo: • In the advanced menu, the vertical line is displayed on the left end of the screen.
• The settings common to the main menu and advanced menu modes are shared regardless of the menu mode in which the settings are
made. However, different passwords can be specified for the main menu and advanced menu respectively.
☞ The description in this manual assumes the advanced menu.
Entering password
When the password lock is enabled, you have to enter your password before displaying the main menu by pressing the [MENU] button. To enter
your password, perform the following procedures.
Use the joystick lever (vw) to select the digit and
1
use the lever (
xy) to select a number.
The PASSWORD screen appears.
After entering your four-digit password, press
2
[ENTER].
If the password is authenticated, the menu screen appears.
**** y
MENU
PASSWORD
SET
BACK
• If an invalid password is entered, “NG” appears and
the cursor moves to [BACK]. If you entered invalid
password three consecutive times, the password
entry field disappears.
• The factory setting value for password is “1234”. To
keep the camera system secured, change your
password regularly.
6
About Setting Menus
b Setting menu composition
The setting menu (ADVANCED MENU) contains the following
settings.
The menu item shown with y mark has an advanced setting
screen.
Uses internal signal in the camera to adjust synchronization.
• Power source synchronization (L-L)
Uses the power source frequency to adjust the vertical
synchronization phase.
SYNC
IRISy
WHITE BALANCEy
BLC
SHUTTER
APERTUREy
AGCy
GAMMA
DAY/NIGHTy
PRESET
MENU
INT
AUTO
ATW
OFF
OFF
ON
ON
0.45
AUTO
OFF
BACK
The internal synchronization (INT) is used as an initial setting. In this
setting, the vertical synchronization tends to be unstable when
multiple cameras are connected through the camera switcher and the
camera to be monitored is switched. In this case, use the following
steps to adjust the vertical synchronization phase.
Use the joystick lever (yx) to select [SYNC], use the
1
lever (vw) to select “L-L”, and press the [ENTER]
button.
The L-L SETTING screen appears.
SYNCy
IRISy
WHITE BALANCEy
BLC
SHUTTER
APERTUREy
AGCy
GAMMA
DAY/NIGHTy
PRESET
MENU
L-L
AUTO
ATW
OFF
OFF
ON
ON
0.45
AUTO
OFF
BACK
Use the joystick lever (vw) to adjust the value so
2
that the image on the monitor does not move up
and down when you use the camera switcher.
(Phase adjustment for vertical
synchronization)
L-L SETTING
[V SYNC PHASE]
141
PRESET
MENU
+
OFF
BACK
☞ After completing adjustment, use the lever to move the
cursor to [MENU] and select “BACK” or “END”.
Adjustment using power source synchronization is
available only for the area where the power supply
frequency is 50Hz. This setting will not work in the area
where the power supply frequency is 60Hz.
L-L SETTING
[V SYNC PHASE]
141
PRESET
MENU
+
OFF
BACK
10
Camera Settings (CAMERA)
B Setting lens aperture (IRIS)
Sets lens aperture according to the luminance level of the target
object.
The following methods are available for setting lens aperture.
• Auto iris (AUTO) <Initial setting>
• Manual iris (MANU)
SYNC
IRIS
WHITE BALANCE
BLC
SHUTTER
APERTURE
AGC
GAMMA
DAY/NIGHT
PRESET
MENU
INT
AUTO
ATW
OFF
OFF
ON
ON
0.45
AUTO
OFF
BACK
y
y
y
y
y
b Auto iris (AUTO)
Automatic setting of lens aperture provides natural images even
outdoors where the luminance difference is large, or in backlight
conditions.
Use the joystick lever (xy) to select [IRIS], use the
1
lever (vw) to select “AUTO”, and press the [ENTER]
button.
The IRIS SETTING screen appears.
IRIS SETTING
SENSE UP
40
[LEVEL]
OFF
+
b Manual iris (MANU)
When the [IRIS] is set to “MANU”, lens aperture can be set manually.
Because activating the electronic iris disables the auto iris function,
you need to set appropriate lens aperture using the following
procedure.
Use the joystick lever (xy) to select [IRIS], use the
1
lever (vw) to select “MANU”, and press the [ENTER]
button.
The IRIS SETTING screen appears.
IRIS SETTING
EI
[IRIS STOP]
17
40
PRESET
MENU
Use the joystick lever (xy) to select [EI] and use the
2
lever (vw) to select “ON”.
The electronic iris function controls both the AGC circuit and
shutter speed to change exposure value.
Use the joystick lever (xy) to select [IRIS STOP]
3
and use the lever (vw) to adjust the aperture
[LEVEL]
opening value.
Selecting the value changes the lens aperture opening.
Available settings: 1 (close, darker) - 17 (open, brighter)
OFF
+
+
OFF
BACK
PRESET
MENU
Use the joystick lever (xy) to select [SENSE UP]
2
and use the lever (vw) to select magnification
OFF
BACK
power of electronic sensitivity.
Available settings: OFF, X2, X4, X8, X16, X32
Use the joystick lever (xy) to select [LEVEL] and
3
use the lever (vw) to adjust the iris level.
Available settings: 0 (dark) - 100 (bright)
☞ After completing setting, use the lever to move the cursor to
[MENU] and select “BACK” or “END”.
• Electronic sensitivity boosting (SENSE UP)
automatically lengthens the CCD exposure time in
dark situations. Accordingly, moving target objects
may cause conspicuous afterimages, blurs and white
spots.
• When electronic sensitivity boosting (SENSE UP) is
enabled, the electronic shutter function will not work.
• When the Day/Night function is set to “AUTO”,
electronic sensitivity boosting (SENSE UP) works
only while black and white image is displayed.
Use the joystick lever (xy) to select [LEVEL] and
4
use the lever (vw) to adjust the iris level.
Available settings: 0 (video level is darker) - 100 (video level
is brighter)
☞ After completing setting, use the lever to move the cursor to
[MENU] and select “BACK” or “END”.
Notes on setting electronic iris (EI):
• If the iris views an unusually bright image, it can
cause a smear that cannot be corrected by adjusting
the light entering through the lens. In this case,
arrange the physical angle of lighting in a way that will
prevent on-screen smearing.
• If there is a fluorescent lighting in the camera
location, flickering of the target object may occur.
Changing fluorescent lighting to incandescent
lighting will prevent the flickering.
• When the electronic iris (EI) is activated, the
electronic shutter (SHUTTER) setting cannot be made.
11
Camera Settings (CAMERA)
C Setting the white balance (WHITE BALANCE)
Sets the white balance according to the shooting conditions.
The following methods are available for setting white balance.
• Auto trace white balance (ATW) <Initial setting>
• One-push automatic white balance (AWC)
• Fixed white balance (3200/5600/FLUO)
• Manual white balance (MWB)
SYNC
IRIS
WHITE BALANCE
BLC
SHUTTER
APERTURE
AGC
GAMMA
DAY/NIGHT
PRESET
MENU
INT
AUTO
ATW
OFF
OFF
ON
ON
0.45
AUTO
OFF
BACK
y
y
y
y
y
b Auto trace white balance (ATW)
Even when light sources of the target object change, automatic
adjustment assures capture of most suitable colors.
Use the joystick lever (xy) to select [WHITE BALANCE] and use the
lever (vw) to select “ATW y”.
Auto trace white balance settings are completed when “ATW y” is
selected. When an extremely bright light source is in the target
object, use the mask pattern so that the light source will not be
detected.
Placing mask patterns
To place a mask pattern over specific light sources in the target
object, do the following.
Mask patterns can be placed only when registering a
view setting file in the CAMERA VIEW screen.
While “ATW y” is selected by using the joystick
1
lever (vw), press the [ENTER] button.
The ATW SETTING screen appears.
Use the joystick lever (xy or vw) to move a mask
3
pattern to the light source area to be masked, and
press the [ENTER] button.
This sets the mask pattern.
ATW MASKING
CONTINUE (y)
If you want additional mask patterns to be placed, repeat the
above procedure.
<To delete the mask pattern>
Use the joystick lever (xy or vw) to place a mask pattern over
the mask pattern to be cancelled, then press the [ENTER]
button.
Use the joystick lever (y) to move a mask pattern to
4
the bottom area of the screen and continue holding
the lever straight down for three seconds.
This completes the mask pattern setting procedure.
☞ After completing setting, use the lever to move the cursor to
[MENU] and select “BACK” or “END”.
ATW SETTING
MASKINGy
Use the joystick lever (xy) to select [MASKING],
2
use the lever (vw) to select “ON y”, and press the
ON
[ENTER] button.
The ATW MASKING screen appears. A mask pattern is
displayed in the top left of the screen.
ATW MASKING
CONTINUE (y)
12
Camera Settings (CAMERA)
b One-push automatic white balance
(AWC)
In one-push automatic white balance setting, adjust white balance for
a fixed surveillance location by orienting the lens toward the white
target object (ex. white wall or paper).
Use the joystick lever (xy) to select [WHITE
1
BALANCE], use the lever (vw) to select “AWC y”,
and press the [ENTER] button.
The AWC SETTING screen appears.
AWC SETTING
AWC LOCKy
GO TO MWBy
MENU
While “SET y” for [AWC LOCK] is highlighted,
2
orient the lens toward the white target object and
press the [ENTER] button.
After the highlighted “SET y” option temporarily returns to
normal indication for about two seconds, the “SET y” option is
highlighted again and the white balance adjustment
completes.
If the result of white balance adjustment is
unsatisfactory, press the [ENTER] button again while
“SET y” is highlighted.
☞ After completing setting, use the lever to move the cursor to
[MENU] and select “BACK” or “END”.
Fine-tuning white balance setting (GO TO MWB)
If you want to fine-tune white balance setting after one-push
automatic white balance adjustment completes, you can adjust white
balance manually. To adjust white balance manually, use the joystick
lever (xy) to select [GO TO MWB] – “SET y”, and press the [ENTER]
button.
The MWB SETTING screen appears.
For details on adjusting white balance manually, refer to the “Manual
white balance (MWB)” section in the right column on this page.
You also can access the MWB SETTING screen directly
by selecting “MWB y” in the [WHITE BALANCE] menu
item. Whether you access the MWB SETTING screen
directly or through the AWC SETTING screen, only one
set of options and values in the MWB SETTING screen is
stored as the manual white balance setting.
SET
SET
BACK
b Fixed white balance (3200/5600/FLUO)
You can set the color temperature of white balance setting to a fixed
value.
Use the joystick lever (xy) to select [WHITE
1
BALANCE] and use the lever (vw) to select desired
color temperature option.
SYNC
IRIS
WHITE BALANCE
BLC
SHUTTER
APERTURE
AGC
GAMMA
DAY/NIGHT
PRESET
MENU
Available settings:
• 3200: Color temperature of 3,200K (For indoor)
• 5600: Color temperature of 5,600K (For outdoor)
•FLUO: Color temperature of 4,200K (For fluorescent
lighting)
INT
AUTO
3200
OFF
OFF
ON
ON
0.45
AUTO
OFF
BACK
y
y
y
y
b Manual white balance (MWB)
You can manually adjust white balance to your desired setting.
Use the joystick lever (xy) to select [WHITE
1
BALANCE], use the lever (vw) to select “MWB y”,
and press the [ENTER] button.
The MWB SETTING screen appears.
MWB SETTING
R 64
B 64
PRESET
MENU
Use the joystick lever (xy) to select color and use
2
the lever (vw) to adjust darkness level for the color.
Available settings: R (Red), B (Blue)
Available settings: 0 - 255 (The larger the number, the
☞ After completing setting, use the lever to move the cursor to
[MENU] and select “BACK” or “END”.
+
+
OFF
BACK
darker the color is.)
13
Camera Settings (CAMERA)
D Setting the backlight compensation level (BLC)
Sets the backlight compensation function to get clearer image in
backlight condition.
The following metering methods are available for the backlight
compensation function.
• Multi-spot evaluative metering (MULT)
• Center-weighted average metering (CENT)
• Multi-spot metering (MASK)
SYNC
IRIS
WHITE BALANCE
BLC
SHUTTER
APERTURE
AGC
GAMMA
DAY/NIGHT
PRESET
MENU
INT
AUTO
ATW
MULT
OFF
ON
ON
0.45
AUTO
OFF
BACK
y
y
y
y
y
y
• If you do not use the backlight compensation
function, set [BLC] to “OFF”.
• The multi-spot metering (MASK) function is available
only when registering a view setting file in the
CAMERA VIEW screen (P27).
b Multi-spot evaluative metering (MULT)
Evaluates the entire screen and corrects according to the best image
obtained.
Use the joystick lever (xy) to select [BLC], use the
1
lever (vw) to select “MULT y”, and press the
[ENTER] button.
The BLC SETTING screen appears.

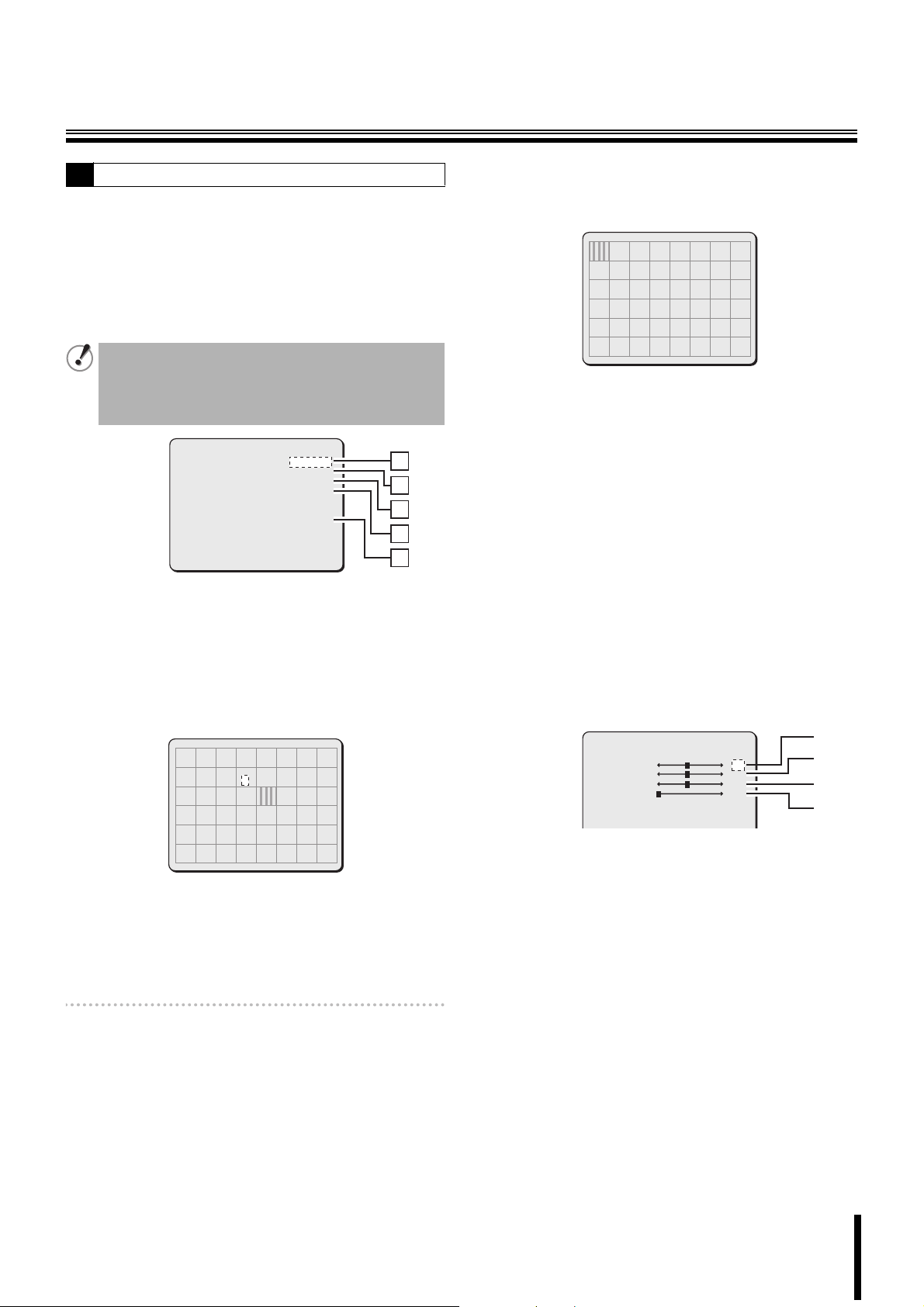

b Center-weighted average metering
(CENT)
Measures light mainly at the specified metering zone and
compensates for brightness level according to the best image
obtained.
Use the joystick lever (xy) to select [BLC], use the
1
lever (vw) to select “CENT y”, and press the
[ENTER] button.
The BLC SETTING (POSITION) screen appears.
BLC SETTING
[POSITION]
Use the joystick lever to determine the position for
2
the center-weighted average metering zone, and
press the [ENTER] button.
The BLC SETTING (SIZE) screen appears.
BLC SETTING
[SIZE]
BLC SETTING
[BLC WEIGHT]
7
7
PRESET
MENU
Use the joystick lever (xy) to select [BLC WEIGHT]
2
and use the lever (vw) to select the value of “BLC
[BRIGHT]
OFF
BACK
WEIGHT”.
Available settings: 0 - 15 (The larger the number, the more
Use the joystick lever (xy) to select [BRIGHT] and
3
use the lever (vw) to adjust compensation level.
Adjusts the compensation level for the brightness of the
backlighting.
Available settings: 0 - 15 (The larger the number, the more it
backlighting works.)
brightens.)
☞ After completing setting, use the lever to move the cursor to
[MENU] and select “BACK” or “END”.
Use the joystick lever to determine the size of the
3
center-weighted average metering zone, and press
the [ENTER] button.
The BLC WINDOW WEIGHTING screen appears.
BLC WINDOW WEIGHTING
TOP
BOTTOM
LEFT
RIGHT
CENTER[FIX]
PRESET
MENU
0
0
0
0
7
OFF
BACK
14
Camera Settings (CAMERA)
Use the joystick lever (xy) to select a zone to be
4
weighted and use the lever (vw) to adjust
weighting.
Selecting a zone to be weighted shows the corresponding
zone on the screen.
•TOP•BOTTOM
•LEFT•RIGHT
• CENTER [FIX] (The value is fixed to “7”.)
Available settings: 0 - 7 (The larger the number, the higher
the weighting.)
☞ After completing setting, use the lever to move the cursor to
[MENU] and select “BACK” or “END”.
b Multi-spot metering (MASK)
Sets backlight compensation by masking the bright area of the
background using mask patterns.
The multi-spot metering (MASK) function is available
only when registering a view setting file in the CAMERA
VIEW screen (P27).
Set [MASKING] to “ON” in the MOTION SETTING screen.
Use the joystick lever (xy) to select [BLC], use the
1
lever (vw) to select “MASK y”, and press the
[ENTER] button.
The BLC MASKING screen appears. A mask pattern is
displayed in the top left of the screen.
Mask pattern
BLC MASKING
Use the joystick lever (xy or vw) to move a mask
2
pattern to the area to be excluded in metering, and
press the [ENTER] button.
This sets the mask pattern for the area to be excluded in
metering.
BLC MASKING
CONTINUE (y)
If you want additional mask patterns to be set, repeat the
above procedure.
<To delete the mask pattern>
Use the joystick lever (xy or vw) to place a mask pattern over
the mask pattern to be cancelled, then press the [ENTER]
button.
Use the joystick lever (y) to move a mask pattern to
3
the bottom area of the screen and continue holding
the lever straight down for three seconds.
This completes the mask pattern setting procedure.
CONTINUE (y)
☞ After completing setting, use the lever to move the cursor to
[MENU] and select “BACK” or “END”.
15
Camera Settings (CAMERA)
E Setting the electronic shutter (SHUTTER)
Sets the appropriate shutter speed according to your surveillance
purpose.
The following shutter speed modes are available.
• Fast shutter speed (SHORT)
• Slow shutter speed (LONG)
SYNC
IRIS
WHITE BALANCE
BLC
SHUTTER
APERTURE
AGC
GAMMA
DAY/NIGHT
PRESET
MENU
INT
AUTO
ATW
OFF
SHORT
ON
ON
0.45
AUTO
OFF
BACK
y
y
y
y
y
y
If you do not use the electronic shutter, set [SHUTTER] to “OFF”.
The electronic shutter cannot be set in the following
conditions.
• For the auto iris setting, the electronic sensitivity
setting is activated. (When the [IRIS] is set to “AUTO”,
[SENSE UP] in the IRIS SETTING screen is set to other
than “OFF”.)
• For the manual iris setting, the electronic iris is
activated. (When the [IRIS] is set to “MANU”, [EI] is
set to “ON”.)
b Fast shutter speed (SHORT)
When viewing fast-moving target objects, higher shutter speed
produces clearer images with less blurs.
Use the joystick lever (xy) to select [SHUTTER],
1
use the lever (vw) to select “SHORT y”, and press
the [ENTER] button.
The ES SETTING screen appears.
b Slow shutter speed (LONG)
When the target object is in dark condition, making the exposure time
longer increases sensitivity, enabling you to view target object more
brightly. Select desired shutter speed according to the shooting
conditions.
The initial setting for slow shutter spped (LONG) is “x1”.
Use the joystick lever (xy) to select [SHUTTER],
1
use the lever (vw) to select “LONG y”, and press
the [ENTER] button.
The ES SETTING screen appears.
ES SETTING
SHUTTER SPEED
PRESET
MENU
Use the joystick lever (vw) to select the desired
2
shutter speed.
Available settings: x1, x2, x4, x8, x16, x32
(Each option represents a multiple of field
time. The higher the number, the longer
the exposure time.)
When the exposure time is longer, moving objects may
cause conspicuous afterimages, blurs and white spots.
☞ After completing setting, use the lever to move the cursor to
[MENU] and select “BACK” or “END”.
x1
OFF
BACK
ES SETTING
SHUTTER SPEED
PRESET
MENU
Use the joystick lever (vw) to select the desired
2
shutter speed.
50
OFF
BACK
Available settings: 50, 120, 250, 500, 1000, 2000, 4000,
10000 (1/N sec.)
To avoid flicker
If the camera is installed under fluorescent lighting and
the power supply frequency is 60Hz, set the shutter
speed to “120 (1/120 sec)” to avoid flicker.
☞ After completing setting, use the lever to move the cursor to
[MENU] and select “BACK” or “END”.
16
Camera Settings (CAMERA)
Setting the profile compensation
F
(APERTURE)
Further emphasizes the profile of the target object. The amount of
compensation can be adjusted for the horizontal or vertical directions.
SYNC
IRIS
WHITE BALANCE
BLC
SHUTTER
APERTURE
AGC
GAMMA
DAY/NIGHT
PRESET
MENU
Use the joystick lever (xy) to select [APERTURE],
1
use the lever (vw) to select “ON y”, and press the
INT
AUTO
ATW
OFF
OFF
ON
ON
0.45
AUTO
OFF
BACK
y
y
y
y
y
[ENTER] button.
The APERTURE SETTING screen appears.
APERTURE SETTING
H 8
V 8
PRESET
MENU
OFF
BACK
G Setting the AGC level (AGC)
Sets the AGC (Auto Gain Control) level in four grades.
SYNC
IRIS
WHITE BALANCE
BLC
SHUTTER
APERTURE
AGC
GAMMA
DAY/NIGHT
If you do not use the AGC function, set [AGC] to “OFF”.
Setting AGC
Use the joystick lever (xy) to select [AGC], use the
1
lever (vw) to select “ON y”, and press the [ENTER]
button.
The GAIN SETTING screen appears.
GAIN SETTING
MAX GAIN
DNR
Memo: Auto Gain Control (AGC) is a function that automatically adjusts gain
level in the amplifier section for the camera’s video signal according
to the brightness of the target object and keeps the signal output level
constant. When the target object is bright, the gain level is
decreased; when it is dark, the level is increased.
INT
AUTO
ATW
OFF
OFF
ON
ON
0.45
AUTO
NORMAL
OFF
y
y
y
y
y
Available settings:
•OFF: The profile compensation is turned off.
•ON: The profile compensation is turned on.
Use the joystick lever (vw) to adjust the value for
2
“H” (horizontal).
Available settings: 1 - 15 (The higher the number, the further
the profile is emphasized.)
Use the joystick lever (xy) to move the cursor to
3
“V” (vertical), and use the lever (vw) to adjust the
value for “V”.
Available settings: 1 - 15 (The higher the number, the further
the profile is emphasized.)
☞ After completing adjustment, use the lever to move the
cursor to [MENU] and select “BACK” or “END”.
Use the joystick lever (xy) to select [MAX GAIN]
2
and use the lever (vw) to adjust AGC level.
Available settings:
•NORMAL: Initial setting
• MIDDLE: For dark target object
•HIGH: For very dark target object
•LOW: For bright target object
Memo: • The “LOW” option cannot be selected when the Day/Night
function is set to “AUTO”.
• The value for the “MAX GAIN” setting depends on the
Day/Night function mode.
• When the gain level is increased, the sensitivity is
improved in dark condition, but the noise level increases.
Use the joystick lever (xy) to select [DNR] and use the
3
lever (
vw
) to select a DNR (Digital Noise Reduction) option.
Available settings:
•ON: Applies DNR.
(Reduces noise during low luminance level.)
•OFF: Does not apply DNR.
Digital noise reduction operates when the gain level increases. In
addition, blurring and ghosting of images can occur when
moving images are monitored, so the resolution is also reduced
slightly.
When the waver correction (STABILIZER) or electronic zoom is
operating in the color mode, the DNR (Digital Noise Reduction)
does not function.
17
☞ After completing setting, use the lever to move the cursor to
[MENU] and select “BACK” or “END”.
Loading...
+ 41 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
