INSTALLATION INSTRUCTIONS

NOTE

– Inverter Split System Air Conditioner –

This air conditioner uses the new refrigerant R410A.

Contents

Page

IMPORTANT!

Please Read Before Starting .................................. 2

1. GENERAL .......................................................... 3

1-1. Tools Required for Installation (not supplied) 1-2. Accessories Supplied with Unit 1-3. Optional Copper Tubing Kit 1-4. Type of Copper Tube and Insulation Material 1-5. Additional Materials Required for Installation

2. INSTALLATION SITE SELECTION ................... 4

2-1. Indoor Unit 2-2. Outdoor Unit 2-3. Baffle Plate for the Outdoor Unit

3. HOW TO INSTALL THE INDOOR UNIT ............. 7

3-1. Remove the Rear Panel from the Unit 3-2. Make a Hole 3-3. Install the Rear Panel on the Wall 3-4. Remove the Grille to Install the Indoor Unit 3-5. Shape the Indoor Side Tubing 3-6. Wiring Instructions 3-7. Recommended Wire Length and Diameter 3-8. Wiring Instructions for Inter-unit Connections 3-9. Mounting 3-10. Drain Hose

4. HOW TO INSTALL THE OUTDOOR UNIT ....... 17

4-1. Wiring Instructions for the Outdoor Unit

COOL/ DRY Model

Model Combinations

Combine indoor and outdoor units only as listed below.

Indoor Unit Outdoor Unit

KS1872 C1872

CL1872

KS2472 C2472

CL2472

Power Source: 60 Hz, single-phase, 230/208 V

Be sure to read the yellow instruction sheet attached to the outdoor unit for models using the new refrigerant R410A.

7. REMOTE CONTROL UNIT INSTALLATION

POSITION ......................................................... 24

7-1. Mounting on a Wall

8. ADDRESS SWITCH.......................................... 25

8-1. Address Setting of the Remote

Control Unit

5. REFRIGERANT TUBING.................................. 18

5-1. Use of the Flaring Method 5-2. Flaring Procedure with a Flare Tool 5-3. Caution before Connecting Tubes Tightly 5-4. Connecting Tubing between Indoor and

Outdoor Units 5-5. Insulation of Refrigerant Tubing 5-6. Taping the Tubes 5-7. Finishing the Installation

6. AIR PURGING................................................... 20

I Air Purging with a Vacuum Pump (for Test Run) I Basic Functions of the Service Valves I Pump Down

SANYO FISHER COMPANY SANYO Canada Inc.

A DIVISION OF SANYO NORTH AMERICA CORPORATION 300 Applewood Crescent, Concord 21605 Plummer Street Ontario, L4K 5C7, Canada

85264189988000 © SANYO 2006

Chatsworth, CA 91311 U.S.A.

The illustrations are based on the typical appearance of a standard model. Consequently, the shape may differ from that of the air conditioner that you are installing.

In Canada

IMPORTANT! Please Read Before Starting

This air conditioning system meets strict safety and operating standards. As the installer or service person, it is an important part of your job to install or service the system so it operates safely and efficiently.

For safe installation and trouble-free operation, you must:

Carefully read this instruction booklet before beginning.

Follow each installation or repair step exactly as shown.

Observe all local, state, and national electrical codes.

Pay close attention to all warning and caution notices given in this manual.

This symbol refers to a hazard

WARNING

CAUTION

or unsafe practice which can result in severe personal injury or death.

This symbol refers to a hazard or unsafe practice which can result in personal injury or product or property damage.

If Necessary, Get Help

These instructions are all you need for most installation sites and maintenance conditions. If you require help for a special problem, contact our sales/service outlet or your certified dealer for additional instructions.

In Case of Improper Installation

The manufacturer shall in no way be responsible for improper installation or maintenance service, including failure to follow the instructions in this document.

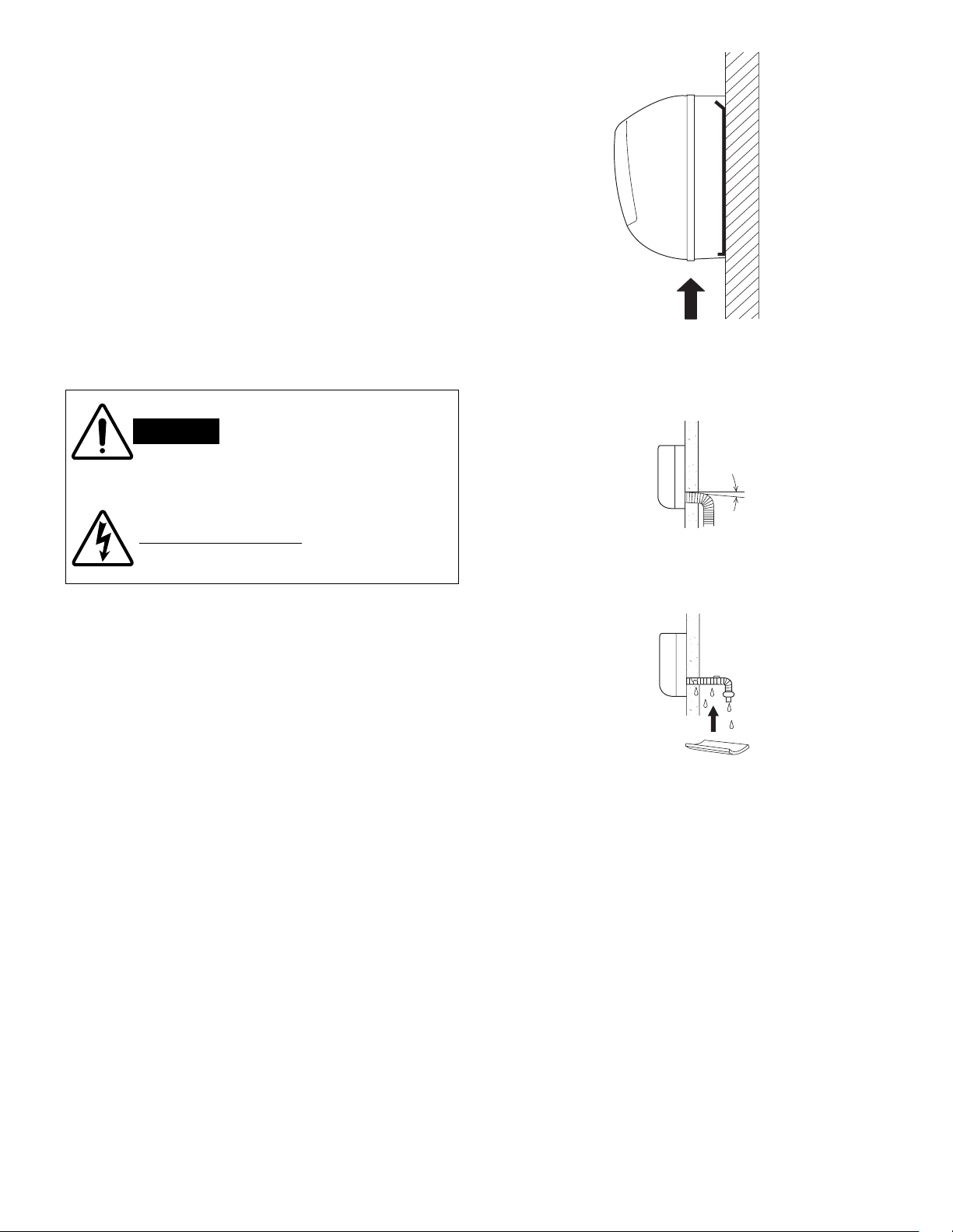

When Installing…

…In a Ceiling or Wall

Make sure the ceiling/wall is strong enough to hold the unit’s weight. It may be necessary to construct a strong wood or metal frame to provide added support.

…In a Room

Properly insulate any tubing run inside a room to prevent “sweating” that can cause dripping and water damage to walls and floors.

…In Moist or Uneven Locations

Use a raised concrete pad or concrete blocks to provide a solid, level foundation for the outdoor unit. This prevents water damage and abnormal vibration.

…In an Area with High Winds

Securely anchor the outdoor unit down with bolts and a metal frame. Provide a suitable air baffle.

…In a Snowy Area (for Heat Pump-type Systems)

Install the outdoor unit on a raised platform that is higher than drifting snow. Provide snow vents.

When Connecting Refrigerant Tubing

• Use the flare method for connecting tubing.

• Apply refrigerant lubricant to the matching surfaces of the flare and union tubes before connecting them, then tighten the nut with a torque wrench for a leak-free connection.

• Check carefully for leaks before starting the test run.

SPECIAL PRECAUTIONS

WARNING

• Do not supply power to the unit until all wiring and tubing are completed or reconnected and checked.

• Highly dangerous electrical voltages are used in this system. Carefully refer to the wiring diagram and these instructions when wiring. Improper connections and inadequate grounding can cause accidental injury or

death.

• Ground the unit following local electrical codes.

• Connect all wiring tightly. Loose wiring may cause overheating at connection points and a possible fire hazard.

When Transporting

Be careful when picking up and moving the indoor and outdoor units. Get a partner to help, and bend your knees when lifting to reduce strain on your back. Sharp edges or thin aluminum fins on the air conditioner can cut your fingers.

When Wiring

ELECTRICAL SHOCK CAN CAUSE SEVERE PERSONAL INJURY OR DEATH. ONLY A QUALIFIED, EXPERIENCED ELECTRICIAN SHOULD ATTEMPT TO WIRE THIS SYSTEM.

When Servicing

• Turn the power OFF at the main power box (mains) before opening the unit to check or repair electrical parts and wiring.

• Keep your fingers and clothing away from any moving parts.

• Clean up the site after you finish, remembering to check that no metal scraps or bits of wiring have been left inside the unit being serviced.

Others

CAUTION

• Ventilate any enclosed areas when installing or testing the refrigeration system. Escaped refrigerant gas, on contact with fire or heat, can produce dangerously toxic gas.

• Confirm upon completing installation that no refrigerant gas is leaking. If escaped gas comes in contact with a stove, gas water heater, electric room heater or other heat source, it can produce dangerously toxic gas.

1. General

This booklet briefly outlines where and how to install the air conditioning system. Please read over the entire set of instructions for the indoor and outdoor units and make sure all accessory parts listed are with the system before beginning.

1-1. Tools Required for Installation (not supplied)

1. Standard screwdriver

2. Phillips head screwdriver

3. Knife or wire stripper

4. Tape measure

5. Carpenter’s level

1-2. Accessories Supplied with Unit

Table 1

Parts Figure Q’ty Parts Figure Q’ty

Remote control unit

Remote control unit holder

AAA alkaline battery

Tapping screw

Rawl plug

Drain hose

adapter

Tr uss-head Phillips

/32 ¥ 5/8" (4¥16 mm)

6. Sabre saw or key hole saw

7. Hacksaw

8. Core bits

9. Hammer

10. Drill

11. Tube cutter

12. Tube flaring tool

13. Torque wrench

14. Adjustable wrench

15. Reamer (for deburring)

Parts Figure Q’ty

Hex wrench*

Clamp

*Packed in the outdoor unit.

Air clean filter

1-3. Optional Copper Tubing Kit

Copper tubing for connecting the outdoor unit to the indoor unit is available in kits which contain the narrow and wide tubing, fittings and insulation. Consult your nearest sales outlet or A/C workshop.

1-4. Type of Copper Tube and Insulation Material

Cushion rubber*

2. Foamed polyethylene insulation for the specified copper tubes as required to precise length of tubing. Wall thickness of the insulation should be not less than 5/16" (8 mm).

3. Use insulated copper wire for field wiring. Wire size varies with the total length of wiring. Refer to 3-6. Wiring Instructions for details.

If you wish to purchase these materials separately from a local source, you will need:

1. Deoxidized annealed copper tube for refrigerant tubing as detailed in Table 2.

Cut each tube to the appropriate lengths 1' to 1'4" (30 cm to 40 cm) to dampen vibration between units.

Table 2

Model

KS1872 1/4" (6.35 mm) 0.0314" (0.8 mm) 1/2" (12.70 mm) 0.0314" (0.8 mm)

KS2472 1/4" (6.35 mm) 0.0314" (0.8 mm) 5/8" (15.88 mm) 0.0393" (1.0 mm)

Outer Dia. Thickness Outer Dia. Thickness

Narrow Tube Wide Tube

CAUTION

Check local electrical codes and regulations before obtaining wire. Also, check any specified instructions or limitations.

1-5. Additional Materials Required for Installation

1. Refrigeration (armored) tape

2. Insulated staples or clamps for connecting wire (See local codes)

3. Putty

4. Refrigeration lubricant

5. Clamps or saddles to secure refrigerant tubing

2. Installation Site Selection

2-1. Indoor Unit

WARNING

AVOID:

To prevent abnormal heat generation and the possibility of fire, do not place obstacles, enclosures and grilles in front of or surrounding the air conditioner in a way that may block air flow.

2" (5 cm)

min.

Indoor unit

Outside drainage

Fig. 1

6" (15 cm) min.

Drain hose

2" (5 cm)

min.

G direct sunlight.

G nearby heat sources that may affect performance of the unit.

G areas where leakage of flammable gas may be expected.

G places where large amounts of oil mist exist.

DO:

G select an appropriate position from which every corner of

the room can be uniformly cooled. (High on a wall is best.)

G select a location that will hold the weight of the unit.

G select a location where tubing and drain hose have the

shortest run to the outside. (Fig. 1)

G allow room for operation and maintenance as well as unre-

stricted air flow around the unit. (Fig. 2)

G install the unit within the maximum elevation difference (H)

above or below the outdoor unit and within a total tubing length (L) from the outdoor unit as detailed in Table 3 and Fig. 3a.

G Install the indoor unit more than 3.3' (1 m) away from any

antenna or power lines or connecting wires used for television, radio, telephone, security system, or intercom. Electrical noise from any of these sources may affect operation.

Front View

Fig. 2

INDOOR UNIT

Elevation difference (H)

Fig. 3a

CAUTION

For stable operation of the air conditioner, do not install wall-mounted type indoor units less than 5' (1.5 m) from floor level.

Tubing length (L)

OUTDOOR UNIT

Indoor unit

Minimum height from floor level

5' (1.5 m)

Floor level

Wall

Fig. 3b

Table 3

Max. Allowable Tubing Limit of Tubing Limit of Elevation Required Amount of

Model Length at Shipment Length (L) Difference (H) Additional Refrigerant

(ft.) (ft.) (ft.) (oz./ft.)*

KS1872 25 98 49 0.27

KS2472 33 131 49 0.27

* If total tubing length becomes 25 to 98 ft. (Max.) or 33 to 131 ft. (Max.), charge additional refrigerant (R410A) by 0.27 oz./ft.

No additional charge of compressor oil is necessary.

2-2. Outdoor Unit

)

AVOID:

G heat sources, exhaust fans, etc. (Fig. 4) G damp, humid or uneven locations.

Hot air

Exhaust fan

Heat source

DO:

G choose a place as cool as possible. G choose a place that is well ventilated. G allow enough room around the unit for air intake/

exhaust and possible maintenance. (Fig. 5a or 5b)

G provide a solid base (level concrete pad, concrete block,

4" ¥ 1'4" (10 ¥ 40 cm) or 6" ¥ 1'4" (15 ¥ 40 cm) beams or equal), a minimum of 4" (10 cm) or 6" (15 cm) above ground level to reduce humidity and protect the unit against possible water damage and decreased service life. (Fig. 5c or 5d)

G Install cushion rubber under unit’s feet to reduce

vibration and noise. (Fig. 5e)

G use lug bolts or equal to bolt down unit, reducing

vibration and noise.

G Install in a location where no antenna of a television

or radio exists within 10' (3 m).

(C1872, CL1872)

Anchor bolts (4 pcs.)

Outdoor unit

(C1872, CL1872)

Air intake Min. 4" (10 cm)

Min.

2" (5 cm)

Air discharge

Min. 1'4" (40 cm)

(C2472, CL2472)

Fig. 4

Valve side Min. 10" (25 cm)

Fig. 5a

Obstacle above

Min.

7' (2 m)

Air discharge

Ground

Obstacle above

Min. 4" (10 cm

Air intake

Min.

7' (2 m)

Obstacle

Air intake

Concrete or equal

About 1'4" (40 cm)

(C2472, CL2472)

Air intake

Concrete or equal

Fig. 5c

Min. 4" (10 cm)

About 4" (10 cm)

Anchor bolts (4 pcs.)

Min. 6" (15 cm)

Air intake Min. 8" (20 cm)

Min.

4" (10 cm)

Air discharge

Valve side Min. 10" (25 cm)

Min. 1'8" (50 cm)

Fig. 5b

Min.

7' (2 m)

Air discharge

Ground

Cushion rubber

Min. 8" (20 cm)

Air intake

Min.

7' (2 m)

Obstacle

About 1'4" (40 cm)

Fig. 5d

About 6" (15 cm)

Fig. 5e

2-3. Baffle Plate for the Outdoor Unit

NOTE

(CLxx models only)

It is recommended to use baffle plates for models CL1872 and CL2472. The baffle plates are not normally required for the other models.

When the outdoor unit is installed in a position exposed to strong wind (like seasonal winds with low air temperature in winter), baffle plates must be installed in front of the outdoor unit. (Fig. 5f)

This unit is designed so that the fan of the outdoor unit runs at low speed when the air conditioner is operated at low outdoor air temperatures. When the outdoor unit is exposed to strong wind, the system pressure drops because of the freeze protector.

6" min

Air discharge

Baffle plate

Fig. 5f

6" min

Air discharge

Baffle plate

3. How to Install the Indoor Unit

NOTE

3-1. Remove the Rear Panel from the Unit

(1) Remove and discard the set screw on the rear

panel. (Fig. 6)

(2) Press the 2 LL marks on the frame cover and disen-

gage the stationary tabs from the frame. (Fig. 7)

(3) Remove the rear panel.

Set screw only for transportation

Fig. 6

Tubing can be extended in 5 directions as shown in Fig.

8. Select the direction you need providing the shortest

run to the outside unit.

G When left tubing is to be done, switch the drain hose

and drain cap. (For details, refer to “Switching drain hose and drain cap” on page 14.)

3-2. Make a Hole

(1) Place the rear panel from the indoor unit on the wall

at the location selected. Make sure the panel is horizontal, using a carpenter’s level or tape measure to measure down from the ceiling. Wait until after cutting the hole before attaching the rear panel to the wall.

(2) Determine which side of the unit you should make

the hole for tubing and wiring. (Fig. 9)

In the case of left-rear tubing, use the measurement points 2-3/8" (60 mm) from the edge of the rear panel for precise placement of the hose outlet. (Fig. 9)

Left tubing

Left-rear tubing

Rear panel

marks

Fig. 7

Right-rear tubing (recommended)

Right tubing

Downward tubing

Fig. 8

(3) Before making the hole, check carefully that no

studs or pipes are directly run behind the spot to be cut.

CAUTION

Also avoid areas where electrical wiring or conduits are located.

The above precautions are also applicable if tubing goes through the wall in any other location.

2-3/8" (60 mm)

Fig. 9

Indoor side

Outdoor side

NOTE

(4) Using a sabre saw, key hole saw or hole-cutting drill

attachment, cut a hole in the wall. See Table 4 and Fig. 10.

Table 4

Hole Dia.

3-5/32" (80 mm)

(5) Measure the thickness of the wall from the inside

edge to the outside edge and cut PVC pipe at a slight angle 1/4" (6 mm) shorter than the thickness of the wall. (Fig. 11)

(6) Place the plastic cover over the end of the pipe (for

indoor side only) and insert the pipe in the wall. (Fig.

12)

3-3. Install the Rear Panel on the Wall

Be sure to confirm that the wall is strong enough to suspend the unit.

See either Item a) or b) below depending on the wall type.

a) If Wooden Wall

(1) Attach the rear panel to the wall with the 8 screws

provided. (Fig. 13)

Hole should be made at a slight downward slant to the outdoor side.

Fig. 10

PVC pipe (Locally purchased)

Cut at sli

ht angle

Fig. 11

INSIDE OUTSIDE

Wall

Plastic cover

(Locally purchased)

PVC pipe

Slight angle

If you are not able to line up the holes in the rear panel with the beam locations marked on the wall, use rawl plugs or toggle bolts to go through the holes on the panel or drill 3/16" (5 mm) dia. holes in the panel over the stud locations and then mount the rear panel.

(2) Double check with a carpenter’s level or tape mea-

sure that the panel is level. This is important to install the unit properly. (Fig. 14)

(3) Make sure the panel is flush against the wall. Any

space between the wall and unit will cause noise and vibration.

b) If Block, Brick, Concrete or Similar Type Wall

Make 3/16" (4.8 mm) dia. holes in the wall. Insert rawl plugs for appropriate mounting screws. (Fig. 15)

Fig. 12

Fig. 13

Fig. 14

3/16" (4.8 mm) dia. hole

Rawl plug

Fig. 15

3-4. Remove the Grille to Install the Indoor Unit

NOTE

Basically, these models can be installed and wired without removing the grille. If access to any internal part is needed, follow the steps as given below.

How to remove the grille

Air intake grille

Grille

(1) Grasp both ends of the air intake grille, and remove

it by opening towards the front and pulling towards you. (Fig. 16a)

(2) Remove the 3 screws. (Fig. 16b) (3) Remove the screw on the right side cover plate and

open the cover. (Fig. 17a)

(4) Take out the thermistor from the grille. (Fig. 17b) (5) Press the 3 tabs at the top of the grille and the 3

tabs on the front face to separate the grille from the frame. (Fig. 18a)

(6) Pull the grill toward you to remove it.

How to replace the grille

(1) When installing the grille, place the bottom of the

grille into the frame first. (Fig. 18b) Then insert the tabs on the top of the grille and on the front face into the frame.

(2) Make sure that the grille and frame are firmly fitted

together by engaging the tabs.

(3) Attach the thermistor on the grille. (Fig. 17a)

Thermistor

Fig. 17a

Cover

Fig. 16a

Fig. 16b

Thermistor

Fig. 17b

Ta b

(4) Close the cover and replace the screw. (Fig. 17a) (5) Affix the grille with the 3 previously removed screws.

(Fig. 16b) (6) Install the air intake grille. (a) Allow the edge of the air intake grille to slide into the

top of the indoor unit, and then insert it all the way

inside. (Fig. 19a) (b) Press the bottom right and left corners and center of

the air intake grille to attach it to the indoor unit.

(Fig. 19b)

Attach so that the round pins at the top right and left corners of the air intake grille are inserted into the grooves at the top right and left of the indoor unit.

Ta b

Fig. 18a

Fig. 18b

Groove

Fig. 19b

Fig. 19a

3-5. Shape the Indoor Side Tubing

(1) Arrangement of tubing by direction

a) Right or left tubing

Cut out the corner of the right/left frame with a hacksaw or the like. (Figs. 20 and 21)

b) Right-rear or left-rear tubing

In this case, the corner of the frame need not be cut.

(2) To mount the indoor unit on the rear panel:

Hang the 2 mounting slots of the unit on the upper tabs of the rear panel. (Fig. 22)

3-6. Wiring Instructions

General precautions on wiring

(1) Before wiring, confirm the rated voltage of the unit as

shown on its nameplate, then carry out the wiring closely following the wiring diagram.

(2) Provide a power outlet to be used exclusively for

each unit, with a power supply disconnect and circuit breaker for overcurrent protection provided in the exclusive line.

Frame

Left tubing outlet

Fig. 20

Frame

Right tubing outlet

Fig. 21

(3) To prevent possible hazards due to insulation failure,

the unit must be grounded.

(4) Each wiring connection must be done tightly and in

accordance with the wiring system diagram. Wrong wiring may cause the unit to misoperate or become damaged.

(5) Do not allow wiring to touch the refrigerant tubing,

compressor, or any moving parts of the fan.

(6) Unauthorized changes in the internal wiring can be

very dangerous. The manufacturer will accept no responsibility for any damage or misoperation that occurs as a result of such unauthorized changes.

Fig. 22

3-7. Recommended Wire Length and Diameter

NOTE

Regulations on wiring diameter differ from locality to locality. For field wiring requirements, please refer to your local electrical codes. Carefully observe these regulations when carrying out the installation. Table 5 lists recommended wire lengths and diameters for power supply systems.

Refer to the wiring system diagram (Fig. 23) for the meaning of (A), (B), and (C) in Table 5.

Refer to your local codes or in the absence of local codes see the National Electric Code: ANSI/NFPA70.

Table 5

(A)+(B) (A) Power Supply Wiring Length (ft) (C) Control

(B) Power Line Length (ft) Line Length (ft)

Model (#14) (#12) (#14)

C1872, C2472, CL1872, CL2472

131 (Max.) 230 (Max.) 65 (Max.) 20A

# ... AWG (American Wire Gauge)

WARNING

WIRING SYSTEM DIAGRAM

Fuse or Circuit AWG

Breaker Capacity

G Be sure to comply with local codes on running the wire

from the indoor unit to the outdoor unit (size of wire and wiring method, etc.).

G Each wire must be firmly connected. G No wire should be allowed to touch refrigerant tubing, the

compressor, or any moving part.

WARNING

G To avoid the risk of electric shock, each air conditioner

unit must be grounded.

G For the installation of a grounding device, please

observe local electrical codes.

G Grounding is necessary, especially for units using

inverter circuits, in order to release charged electricity

and electrical noise caused by high tension.

Otherwise, electrical shock may occur.

G Place a dedicated ground more than 7' (2 m) away from

other grounds and do not have it shared with other elec-

tric appliances.

INDOOR

UNIT

Te r mi nal Terminal

1 2

Disconnect switch

Field supply

(C)

Grounding line

230/208V

(B)

OUTDOOR

UNIT

1 2

5 6

Fig. 23

Powe r supply

(A)

Grounding line

Single phase 230/208V 60HZ

CAUTION

G Be sure to connect the power supply line to the outdoor unit as shown in the wiring diagram.

The indoor unit draws its power from the outdoor unit.

G Do not run wiring for antenna, signal, or power lines of television, radio, stereo, telephone,

security system, or intercom any closer than 3'4" (1 m) from the power cable and wires between the indoor and outdoor units. Electrical noise may affect the operation.

3-8. Wiring Instructions for Inter-unit Connections

NOTE

(1) Insert the inter-unit wiring (according to local codes)

into the through-the-wall PVC pipe. Run the wiring toward the indoor side allowing approx. 10" (25 cm) to extend from the wall face. (Fig. 24)

Rear panel

Wall

Plastic cover

(2) Grasp both ends of the air intake grille, and remove

it by opening towards the front and pulling towards you.

(3) Remove the screw on the right side cover plate and

open the cover. (Fig. 25)

(4) Route the inter-unit wiring from the back of the

indoor unit and pull it toward the front for connection. (Fig. 26a, 26b)

(5) Connect the inter-unit wiring to the corresponding

terminals on the terminal plate (Fig. 26a, 26b) while referring to the wiring diagram.

(6) Be sure to secure the wiring with the provided

clamp.

When closing the air intake grille, press the bottom right and left corners and center. (Fig. 27)

Please refer to “How to replace the grille” on page 9 for installing the air intake grille.

Wiring

10" (25 cm)

Fig. 24

Cover

Fig. 25

Te r mi nal plate

Fig. 27

Fig. 26a

Inter-unit wiring

Earth plate

Lock nut

Top of conduit connector

Fig. 26b

Screw and special washer

Ring connector

Wire

WARNING

Loose wiring may cause the terminal to overheat or result in unit malfunction. A fire hazard may also exist. Therefore, be sure all wiring is tightly connected.

When connecting each power wire to the corresponding terminal, follow the instructions “How to connect wiring to the terminal” and fasten the wire securely tight with the fixing screw of the terminal plate.

How to connect wiring to the terminal

a) For Indoor Unit

(1) Cut the wire end with a cutting pliers, then strip the

insulation to expose the wire about 9/32" (7 mm). See the label (Fig. 28) near the terminal plate.

(2) Using a screwdriver, loosen the terminal screw on

the terminal plate.

(3) Insert the wire and tighten the terminal screw com-

pletely using a screwdriver.

b) For Outdoor Unit I For solid core wiring (or F-cable)

(1) Cut the wire end with a cutting pliers, then strip the

insulation to expose the solid wire about 15/16" (25 mm). (Fig. 29)

(2) Using a screwdriver, remove the terminal screw(s)

on the terminal plate.

9/32"

STRIP SIZE

(7 mm)

Fig. 28

Solid wire

Strip 15/16" (25 mm)

Insulation

Fig. 29

Stranded wire

Strip 3/8" (10 mm)

(ACTUAL

SIZE)

Loop

Ring connector

(3) Using the pliers, bend the solid wire to form a loop

suitable for the terminal screw.

(4) Shape the loop wire properly, place it on the termi-

nal plate and fix it securely with the removed terminal screw using a screwdriver.

I For stranded wiring

(1) Cut the wire end with a cutting pliers, then strip the

insulation to expose the stranded wiring about 3/8" (10 mm) and tightly twist the wire ends. (Figs. 30 and 31)

(2) Using a screwdriver, remove the terminal screw(s)

on the terminal plate.

(3) Using a ring connector fastener or pliers, securely

clamp each stripped wire end with a ring connector. (Fig. 30)

(4) Place the ring connector wire, and replace and

tighten the removed terminal screw using a screwdriver. (Fig. 32)

Wire

Special washer

Fig. 30

Twist wire ends

Fig. 31

Screw

Ring connector

Terminal plate

Fig. 32

3-9. Mounting

NOTE

(1) To install the indoor unit, mount the indoor unit onto

the 2 tabs on the upper part of the rear plate.

(2) Hold down the air discharge outlet and press the

lower part of the indoor unit until it clicks to securely fasten to the 2 tabs on the lower part of the rear plate. (Fig. 33)

For tubing, choose either the right or left tubing direction and follow the steps below. This work can be made easier by placing padding material (such as styrofoam) at the rear right side of the indoor unit. (Fig. 34)

I Right-side tubing

(1) Shape the refrigerant tubing so that it can easily go

into the wall hole. (Fig. 35)

Push

Fig. 33

(2) Push the wiring, refrigerant tubing, and drain hose

through the hole in the wall. Adjust the indoor unit so it is securely seated on the rear panel. (Fig. 36)

(3) Carefully bend the tubing (if necessary) to run along

the wall in the direction of the outdoor unit and then tape as far as the fittings. (See Caution on page

18.) The drain hose should come straight down the wall to a point where water runoff won’t stain the wall.

(4) Connect the refrigerant tubing to the outdoor unit.

(After performing a leak test on the connecting part, insulate it with the tubing insulation. (Fig. 37a)) Also, refer to Section 5-4. Connecting Tubing between Indoor and Outdoor Units.

(5) Assemble the refrigerant tubing, drain hose, and

conduit (including inter-unit wiring) as shown in Fig. 37b.

Refrigerant tubing

Padding material

Fig. 34

Rear panel

Cover

Refrigerant tubing

Inter-unit wiring

Drain hose

Fig. 35

Fig. 37a

Insulation

Conduit

Inter-unit wiring

Fig. 37b

Drain hose

Fig. 36

I Left-side tubing

Rear panel

(1) Lead the tubing and drain hose through the wall,

allowing sufficient length for connection. Then bend the tubing using a tube bender to make the attachment. (Fig. 38)

(2) Switch the drain hose and drain cap.

Switching drain hose and drain cap

(a) Locate the drain hose and the drain cap. (Fig.

39)

(b) Remove the screws fastening the drain hose on

the right side, and pull out the drain hose to remove it. (Fig. 39)

on the left side. (If you cannot pull it off by hand, use a long-nose pliers.)

(d) Reattach the drain hose to the left side and the

drain cap to the right side. (Fig. 40a)

Drain hose

Slide the drain hose fully onto the drain pan outlet until the drain hose edge is pushed into the insulation. Check that the screw holes in the drain bracket and the drain pan outlet are aligned and securely in contact, then fasten them with the screw. (After attaching the drain hose, check that it is attached securely.) (Fig. 40c)

Hole in wall

Drain hose

Drain cap

Bent part

Fig. 38

Fig. 39

Wide tube

Narrow tube

Drain cap

Drain hose

Clamp

Drain cap

Use a Phillips screwdriver to push the drain cap in firmly. (If it is difficult to push in, wet the cap with water first.)

(3) Install the indoor unit on the rear panel.

(4) Connect the tubing and wiring led inside from out-

doors.

(5) After completing a leak test, bundle the tubing

together with armoring tape and store it inside the tubing storage area at the back of the indoor unit and hold it with clamps. (Figs. 40a and 41)

Insulation

Drain bracket

Drain hose

Fig. 40c

Fig. 40a

Screw hole

Drain bracket

Screw

Conduit

Drain pan outlet

Drain hose

Fig. 40b

Refrigerant tubing

Inter-unit wiring

Fig. 41

To unmount indoor unit

WARNING

Risk of Electric Shock

Press the 2 LL marks on the lower part of the indoor unit and unlatch the tabs. Then lift the indoor unit and unmount. (Fig. 42)

3-10. Drain Hose

a) The drain hose should be slanted downward to the

outdoors. (Fig. 43)

b) Never form a trap in the course of the hose.

c) If the drain hose will run in the room, insulate the

hose with insulation* so that chilled condensation will not damage furniture or floors. (Fig. 44)

* Foamed polyethylene or its equivalent is recom-

mended.

Do not supply power to the unit or operate it until all tubing and wiring to the outside unit are completed.

Indoor unit

Push

Fig. 42

Slant

Drain hose

Insulation material (Locally purchased) must be used.

Fig. 43

Condensation

Fig. 44

4. How to Install the Outdoor Unit

First refer to Section 2. Installation Site Selection.

4-1. Wiring Instructions for the Outdoor Unit

Regulations on wire size differ from locality to locality. For field wiring requirements, please refer to your local electrical codes. Make sure that the installation fully complies with all local and national regulations.

Lock nut

Cabinet

(1) Remove access panel “C”. (Fig. 46)

(2) Connect the inter-unit and power supply line accord-

ing to the drawing on the panel side.

(3) Be sure to size each wire allowing approx. 4"

(10 cm) longer than the required length for wiring. Store excess wiring inside the cabinet.

(4) When connections are completed, check that all

connections are correct as shown in the wiring system diagram on panel side.

(5) Be sure to ground the unit according to your local

codes.

Te r mi nal block

Conduit plate

Plug

Inter unit (Conduit)

Access panel C

Power supply (Conduit)

Fig. 46

5. Refrigerant Tubing

NOTE

Flare nut

Union

5-1. Use of the Flaring Method

Many of the conventional split system air conditioners employ the flaring method to connect refrigerant tubes which run between indoor and outdoor units. In this method, the copper tubes are flared at each end and connected with flare nuts.

5-2. Flaring Procedure with a Flare Tool

Before

Deburring

After

(1) Cut the copper tube to the required length with a

tube cutter. It is recommended to cut approx. 12" to 20" (30 to 50 cm) longer than the tubing length you estimate.

(2) Remove burrs at the end of the copper tube with a

tube reamer or file. This process is important and should be done carefully to make a good flare. (Fig. 47)

When reaming, hold the tube end downward and be sure that no copper scraps fall into the tube. (Fig. 48)

(3) Remove the flare nut from the unit and be sure to

mount it on the copper tube.

(4) Make a flare at the end of copper tube with a flare

tool.* (Figs. 49a and 49b)

(*Use “RIGID” or equivalent.)

A good flare should have the following characteristics:

G inside surface is glossy and smooth. G edge is smooth. G tapered sides are of uniform length.

If the special R410A flare tool is used:

0 to 0.0196" (0 to 0.5 mm)

Fig. 47

Copper tubing

Reamer

Fig. 48

If the previous flare tool (clutch-type) is used:

0.0472" (1.2 mm)

Adjust so that the amount of tube protrusion is as shown in the figure.

Fig. 49a

Flare nut

Copper tubing

5-3. Caution before Connecting Tubes Tightly

a) Be sure to apply a sealing cap or water-proof tape

to prevent dust or water from getting into the tubes before they are used.

b) Be sure to apply refrigerant lubricant to the match-

ing surfaces of the flare and union before connecting them together. This is effective for reducing gas leaks. (Fig. 50)

c) For proper connection, align the union tube and

flare tube straight with each other, then screw in the flare nut lightly at first to obtain a smooth match. (Fig. 51)

Flare tool

Fig. 49b

Apply refrigerant lubricant here and here

Fig. 50

Fig. 51

5-4. Connecting Tubing between Indoor and

NOTE

IMPORTANT

Clamp

Insulated tubes

Outdoor Units

Torque wrench

a) Tightly connect the indoor side refrigerant tubing exten-

ded from the wall with the outdoor side tubing. (Fig. 52)

b) To fasten the flare nuts, apply specified torque as:

Table 6

Tube Dia. Tightening Torque

1/4" (6.35 mm) Approx. 120 – 160 lbs·in (140 – 180 kgf·cm)

3/8" (9.52 mm) Approx. 300 – 360 lbs·in (340 – 420 kgf·cm)

1/2" (12.70 mm) Approx. 430 – 540 lbs·in (490 – 610 kgf·cm)

5/8" (15.88 mm) Approx. 590 – 710 lbs·in (680 – 820 kgf·cm)

5-5. Insulation of Refrigerant Tubing

To prevent heat loss and wet floors due to dripping of condensation, both tubes must be well insulated with a proper insulation material. (Fig. 53) The thickness of the insulation should be a minimum 5/16" (8 mm). (Fig. 54)

5-6. Taping the Tubes

Indoor unit

Min. 5/16" (8 mm)

Spanner

Outdoor unit

Fig. 52

Insulation

Fig. 53

Insulation

Thickness: min. 5/16" (8 mm)

CAUTION

After a tube has been insulated, never try to bend it into a narrow curve, as this may cause the tube to break or crack.

(1) At this time, the 2 refrigerant tubes (and electrical wire

if local codes permit) should be taped together with armoring tape. The drain hose may also be included and taped together as 1 bundle with the tubing.

(2) Wrap the armoring tape from the bottom of the outdoor

unit to the top of the tubing where it enters the wall. As you wrap the tubing, overlap half of each previous tape turn. (Fig. 55)

(3) Clamp the tubing bundle to wall, using 1 clamp approx.

every 47" (120 cm).

Do not wind the armoring tape too tightly, since this will decrease the heat insulation effect. Also, be sure the condensation drain hose splits away from the bundle and drips clear of the unit and the tubing.

5-7. Finishing the Installation

Fig. 54

Fig. 55

Apply putty here

Tubing

Fig. 56

After finishing insulating and taping over the tubing, use sealing putty to seal off the hole in the wall to prevent rain and draft from entering. (Fig. 56)

6. Air Purging

NOTE

Air and moisture remaining in the refrigerant system have undesirable effects as indicated below. Therefore, they must be purged completely.

G pressure in the system rises G operating current rises G cooling (or heating) efficiency drops G moisture in the air may freeze and block capillary tubing G water may lead to corrosion of parts in the refrigerant

system

I Air Purging with a Vacuum Pump (for Test Run)

(1) Check that each tube (both narrow and wide tubes)

between the indoor and outdoor units have been properly connected and all wiring for the test run has been completed. Note that both narrow and wide tube service valves on the outdoor unit are kept closed at this stage.

Indoor unit

Outdoor unit

(2) Using an adjustable wrench or box wrench, remove

the valve caps from the service valve on both narrow and wide tubes.

(3) Connect a vacuum pump and a manifold valve (with

pressure gauges) to the service port on the wide tube service valve. (Fig. 57)

CAUTION

The service port on the wide tube service valve uses a Schrader core valve to access the refrigerant system. The valve core is similar to those used in automobile tires. Therefore, be sure to use a vacuum hose connector which has a pushpin inside.

CAUTION

Be sure to use a manifold valve for air purging. If it is not available, use a stop valve (field supply) for this purpose. The “Hi” knob of the manifold valve must always be kept closed.

(4) With the “Lo” knob of the manifold valve open, run

the vacuum pump. The operation time for the vacuum pump varies with tubing length and the capacity of the pump. The following table shows the amount of time for evacuation:

Manifold valve (Exclusively for R410A)

Pressure gauge

Vacuum pump

HiLo

Charging hose (Exclusively for R410A)

Vacuum pump adapter (Exclusively for R410A) (with reverse flow prevention)

Fig. 57

To prevent other refrigerants from being mistakenly charged to units which use R410A, the size of the charge port on the service valve is different from the one for other refrigerant types. For servicing such as recharging, the specified charging hose, manifold and vacuum pump adapter (with reverse flow prevention) for R410A must be used.

Table 7

Required time for evacuation when

100 liter/h vacuum pump is used

If tubing length is If tubing length is

less than 33 ft. (10 m) more than 33 ft. (10 m)

10 min. or more 15 min. or more

The required time in Table 7 is calculated based on the assumption that the ideal (or target) vacuum condition is around 10 mmHg abs.

(5) With the vacuum pump still running, close the “Lo”

knob of the manifold valve. Then stop the vacuum pump.

(6) With the accessory hex wrench, turn the valve stem

on the narrow tube service valve counter-clockwise by 90 degrees (1/4 turn) for 10 seconds, and then turn the stem clockwise to close it again. (Fig. 58)

90° (1/4 turn)

Narrow tube

Hex wrench

Wide tube

CAUTION

Be sure to completely insert the hex wrench before attempting to turn the valve.

(7) Leak test all joints at the tubing (both indoor and out-

doors) with soapy water. Bubbles indicate a leak. Tighten the joint more when leaks, then check if there is no leak. Be sure to wipe off the soap with a clean cloth.

(8) With the hex wrench, turn the wide tube service

valve stem counter-clockwise to fully open the valve.

(9) Turn the narrow tube service valve stem counter-

clockwise to fully open the valve.

(10) Loosen the vacuum hose connected to the wide

tube service port slightly to release the pressure. Then, remove the hose.

CAUTION

This may cause the refrigerant gas to leak. In order to avoid this, take off the hose quickly.

Valve cap

Vacuum hose to manifold valve

Fig. 58

(11) Fasten the valve cap on the wide tube service port

securely with an adjustable wrench or box wrench. Next, mount the valve cap on the service valve and tighten it to 170 lbs·in (200 kgf·cm) with a torque wrench. This process is very important to prevent gas from leaking from the system.

(12) Test run the air conditioner. (See next page.)

(13) While the air conditioner is running, apply liquid

soap to check for any gas leaks around the service valves or caps.

(14) If there is no leakage, stop the air conditioner.

(15) Wipe off the soap on the tubing.

This completes air purging with a vacuum pump and the air conditioner is ready for actual operation.

How to Test Run the Air Conditioner

IMPORTANT

After turning on power to the air conditioner, use the remote controller and follow the steps below to conduct the test run.

(1) Set the remote controller in Test Run mode.

(Fig. 59a) a) Press and hold the ION button. b) Then press and hold the 1HR TIMER button.

c) At the same time, press the ACL (reset) button once.

Use a pointed object such as the tip of a pen to press the ACL button.

• After a few seconds, “ ” appears and “oP-1” blinks in the remote controller display area. (Fig. 59b)

d) Release the 1HR TIMER button. e) Release the ION button.

(2) Start Cooling mode test run by pressing the ON/OFF

operation button of the remote controller. (Fig. 59a)

• This starts the fan producing uncooled forced air with the 4 indicator lamps (OPERATION lamp, TIMER lamp, QUIET lamp, and ION lamp) on the main unit blinking. (Fig. 59c)

• After 3 minutes, the system shifts into cooling operation, and cool air will start to be felt. Cool mode test run is unaffected by the room temperature.

(3) Press the ON/OFF operation button of the remote con-

troller again to stop the test run. (Fig. 59a)

(4) Finally press the ACL (reset) button of the remote con-

troller to release it from Test Run mode to return to normal mode. (Fig. 59a)

• “ ” and “oP-1” will disappear from the remote controller display area.

ION

button

Fig. 59a

ON/OFF operation

button

1HR. TIMER

button

ACL (Reset)

button

After the test run is completed, be sure to press the ACL (reset) button to return to normal mode. The air conditioner will not operate correctly if this is not done.

Fig. 59b

OPERATION lamp

TIMER lamp QUIET lamp ION lamp

Fig. 59c

I Basic Functions of the Service Valves

Action

Narrow Tube Service

Valve (2-Way)

Wide Tube Service

Valve (3-Way)

CLOSED

Fully OPEN

Shipping

Operating and test running the air conditioner

Measuring pressure and gas charging

Air purging with a vacuum pump

CLOSED

Valve cap

Stem

O-ring

Hex wrench

Open

The basic functions of the service valves are given in Table 8 below.

Table 8

CAUTION

When opening or closing the service valve stem, use the accessory hex wrench. Be sure to fully seat the wrench before turning the valve.

I Pump Down

Fig. 60b

Pump down means collecting all refrigerant gas in the system back into the outdoor unit without losing any of the gas. Pump down is used when the unit is to be moved or before servicing the refrigerant circuit.

Pump Down Procedure

Be sure to carry out pump down with the unit in cooling mode.

(1) Connect the Lo side charging hose of the manifold

valve to the service port on the wide tube service valve.

Hose with push-pin

(2) Using a hex wrench, turn the narrow tube service

(3) Press the operation button and start cooling oper-

(4) When the low pressure gauge reading falls to 14.2 to

(5) Disconnect all gauges and hoses, and replace the

* The service port on the wide tube ser-

vice valve uses a Schrader core valve to access the refrigerant system. Therefore, be sure to use a hose connector which has a push-pin inside. (Fig. 60a)

Service valve

PUSH

Fig. 60a

valve clockwise all the way to close the service valve. (Be sure to confirm that the wide tube service valve is fully open.)

ation.

7.1 psi (1 to 0.5 kg/cm

), fully close the wide tube

valve stem. Then quickly stop the unit.

valve caps as they were before.

7. Remote Control Unit Installation Position

The remote control unit can be operated from either a non-fixed position or a wall-mounted position.

To ensure that the air conditioner operates correctly, do not install the remote control unit in the following places:

G In direct sunlight G Behind a curtain or other place where it is covered G More than 26' (8 m) away from the air conditioner G In the path of the air conditioner’s airstream G Where it may become extremely hot or cold G Where it may be subject to electrical or magnetic

interference

G Where there is an obstacle between the remote con-

trol unit and the air conditioner (since a check signal is sent from the remote control unit every 5 minutes)

7-1. Mounting on a Wall

Before mounting the remote control unit, press the ON/OFF operation button at the mounting location to make sure that the air conditioner operates from that location. The indoor unit should make a beeping sound to indicate that it has received the signal.

Remote control unit mount

Mounting screws

5/32 × 5/8" (4 × 16 mm)

(Included)

Rear side

Press

Set in place

Hole

To prevent loss of the remote control unit, you can connect the remote control unit to the mount by passing a string through the remote control unit and attachment hole.

To take out the remote control unit, pull it forward.

Fig. 61

8. Address Switch

NOTE

8-1. Address Setting of the Remote Control Unit

The address can be set in order to prevent interference between remote controllers when two Sanyo indoor units are installed near each other. The address is normally set to “A.” To set a different address, it is necessary to change the address on the second remote controller.

Once changed, you cannot restore the original address setting of the air conditioner.

(1) Switch on the power source. (2) Break the address-setting tab marked “A” on the

second remote controller to change the address (Fig. 62). When the tab is removed, the address is automatically set to B (Fig. 63).

(3) Press and hold the remote controller ION button and

1 HR TIMER button. At the same time, press the ACL(reset) button. Use a thin object such as the tip of a pen to press the ACL button. When this has been done, “oP-1” (test run) appears, blinking, in the remote controller clock display area.

(4) Each time the 1 HR TIMER button is pressed, the

display changes as shown below. Press this button 2 times to change the display to “oP-7” (address setting). (Fig. 64)

Ta b

Fig. 62

ACL button

Fig. 63

Te st run mode

Selfdiagnostic mode

Address setting mode

(5) “oP-7” has now been selected for address setting. (6) Press the ON/OFF operation button on the remote

controller. (Fig. 64) Check that the “beep”signalreceived sound is heard from the second indoor unit (approximately 5 times). The sound you hear is the signal that the remote controller address has been changed.

(7) Finally press the remote controller ACL (reset) but-

ton to cancel the blinking “oP-7” display. (Fig. 64)

Changing of the second remote controller address is now completed.

ION

button

ON/OFF operation

button

1HR. TIMER

button

ACL (Reset)

button

Fig. 64

Sanyo KS1872 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
