OWNER’S MANUAL GUIDE D’UTILISATION
32” WIDE TFT LCD TELEVISION WITH DIGITAL TUNER TÉLÉVISEUR GRAND ÉCRAN ACL TFT DE 32 po AVEC SYNTONISEUR NUMÉRIQUE
HDLCD3212 HDLCD3212A
FRANÇAIS ENGLISH
ATTENTION
AIR/CABLE MODE SELECTION
When shipped from the factory, the Signal Type option is set to the “Cable” (Cable Television) mode. If not using Cable TV, set this menu option to the “Air” position. Lorsque l’appareil sort de l’usine, l’option « Signal Type » est en mode « Cable » (câblodistribution). Si vous n’utilisez pas la câblodistribution, sélectionnez l’option « Air ».
PLEASE HAVE THE MODEL NUMBER READY PRIOR TO THE CALL
S’IL FAUT CONTACTER LE SERVICE CLIENTÈLE, PRENEZ SOIN D’ÊTRE MUNI
POUR OBTENIR DES INFORMATIONS SUR NOS AUTRES PRODUITS, VEUILLEZ VISITER NOTRE SITE WEB:
FOR INFORMATION ON OUR OTHER PRODUCTS, PLEASE VISIT OUR WEBSITE AT
Before operating the unit, please read this manual thoroughly.
Avant de faire fonctionner l’appareil, veuillez lire le présent guide attentivement.
SÉLECTION DU MODE AIR/CABLE
IF CONTACT WITH CUSTOMER SERVICE IS REQUIRED
DU NUMÉRO DE MODÈLE AVANT D’APPELER.
CUSTOMER SERVICE – 1-800-289-0980
SERVICE/SERVICE CLIENTÈLE: 1-800-289-0980
ATTENTION
ORION WEBSITE
SITE WEB ORION
www.orionsalesinc.com
ENGLISH
The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN
OR MOISTURE. TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OPEN FLAMES AWAY FROM THIS PRODUCT AT TIMES.
CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT USE THIS POLARIZED PLUG WITH AN
EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
WARNING: This equipment has been tested and found to comply with the limits for a Class B digital device,
However, there is no guarantee that interference will not occur in a particular installation. If
CAUTION: Changes or modifications not expressly approved by the party responsible for compliance with the
The lamp(s) within this product contain mercury. Disposal should be in compliance with local, state or federal laws.
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Rules could void the user's authority to operate this equipment.
Location of the required Marking
The rating sheet and the safety caution are on the rear of the unit.
Record the model number and serial number.
Model number _______________ Serial number _______________
2
15) Apparatus should not be exposed to dripping or splashing, and objects filled with liquids, such as vases, should not be placed on the apparatus.
16) An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits, as contact with them might be fatal.
17) Do not overload wall outlets and extension cords, as this can result in a risk of fire or electric shock.
18) Do not push objects through any openings in this unit, as they may touch dangerous voltage points or short out parts that could result in fire or electric shock. Never spill or spray any type of liquid into the unit.
19) If an outside antenna or cable system
EXAMPLE OF ANTENNA GROUNDING AS PER THE NATIONAL ELECTRICAL CODE
is connected to the unit, be sure the antenna or cable system is grounded to provide some protection against voltage surges and built-up static charges, Section 810 of the National Electrical Code, ANSI/NFPA 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of
GROUND
ELECTRIC SERVICE
EQUIPMENT
NEC-NATIONAL ELECTRICAL CODE S2898A
CLAMP
ANTENNA LEAD IN WIRE
ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)
GROUNDING CONDUCTORS (NEC SECTION 810-21)
GROUND CLAMPS POWER SERVICE GROUNDING
ELECTRODE SYSTEM (NEC ART 250, PART H)
antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.
ENGLISH
3
IMPORTANT SAFETY INSTRUCTIONS
20) When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer or those that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
21) Upon completion of any service or repairs to this unit, ask the service technician to perform safety checks to determine that the unit is in proper operating condition.
22) When you connect the product to other equipment, turn off the power and unplug all of the equipment from the wall outlet. Failure to do so may cause an electric shock and serious personal injury. Read the owner's manual of the other equipment carefully and follow the instructions when making any connections.
23) Sudden high volume sound may cause hearing or speaker damage. When you use headphones, (if the unit is equipped with a headphone jack) keep the volume at a moderate level. If you use headphones continuously with high volume sound, it may cause hearing damage.
24) Do not allow the product to output distorted sound for an extended period of time. It may cause speaker overheating and fire.
25) This reminder is provided to call the cable TV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.
26) The socket-outlet must be installed near the unit and easily accessible.
CHILD SAFETY: It Makes A Difference How and Where You Use Your Flat Panel Display
Congratulations on your purchase! As you enjoy your new product, please keep these safety tips in mind:
THE ISSUE
The home theater entertainment experience is a growing trend and larger flat panel displays are popular purchases. However, flat panel displays are not always supported on the proper stands or installed according to the manufacturer’s recommendations. Flat panel displays that are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests or carts may fall over and cause injury.
THIS MANUFACTURER CARES!
The consumer electronics industry is committed to making home entertainment enjoyable and safe.
TUNE INTO SAFETY
One size does NOT fit all. Follow the manufacturer’s recommendations for the safe installation and use of your flat panel display. Carefully read and understand all enclosed instructions for proper use of this product. Don’t allow children to climb on or play with furniture and television sets. Don’t place flat panel displays on furniture that can easily be used as steps, such as a chest of drawers. Remember that children can become excited while watching a program, especially on a “larger than life” flat panel display. Care should be taken to place or install the display where it cannot be pushed, pulled over, or knocked down. Care should be taken to route all cords and cables connected to the flat panel display so that they cannot be pulled or grabbed by curious children.
WALL MOUNTING: IF YOU DECIDE TO WALL MOUNT YOUR FLAT PANEL DISPLAY, ALWAYS:
Use a mount that has been recommended by the display manufacturer and/or listed by an independent laboratory (such as UL, CSA, ETL). Follow all instructions supplied by the display and wall mount manufacturers. If you have any doubts about your ability to safely install your flat panel display, contact your retailer about professional installation. Make sure that the wall where you are mounting the display is appropriate to support the weight of the unit/ product and wall mount. If you are unsure, contact a professional installer. A minimum of two people are required for installation. Flat panel displays can be heavy.
4
IMPORTANT SAFETY INSTRUCTIONS
CONDENSATION
Moisture will form in the operating section of the unit if the unit is brought from cool surroundings into a warm room or if the temperature of the room rises suddenly. When this happens, unit's performance will be impaired. To prevent this, let the unit stand in its new surroundings for about an hour before switching it on, or make sure that the room temperature rises gradually. Condensation may also form during the summer if the unit is exposed to the breeze from an air conditioner. In such cases, change the location of the unit.
HOW TO HANDLE THE LCD PANEL
•
Do not press hard or jolt the LCD panel. It may cause the LCD panel glass to break and injury may occur.
•
If the LCD panel is broken, make absolutely sure that you do not touch the liquid in the panel. This may cause skin inflammation. If the liquid gets in your mouth, immediately gargle and consult with your doctor. Also, if the liquid gets in your eyes or touches your skin, consult with your doctor after rinsing for at least 15 minutes or longer in clean water.
Possible Adverse Effects on LCD Panel: If a fixed (non-moving) pattern remains on the LCD Panel for long periods of time, the image can become permanently engrained in the LCD Panel and cause subtle but permanent ghost images. This type of damage is NOT COVERED BY YOUR WARRANTY. Never leave your LCD Panel on for long periods of time while it is displaying the following formats or images:
•
Fixed Images, such as stock tickers, video game patterns, TV station logos, and websites.
•
Special Formats that do not use the entire screen. For example, viewing letterbox style (16:9) media on a normal (4:3) display (black bars at top and bottom of screen); or viewing normal style (4:3) media on a widescreen (16:9) display (black bars on left and right sides of screen).
The following symptoms are not signs of malfunction but technical limitation. Therefore we disclaim any responsibility for these symptoms.
LCD Panels are manufactured using an extremely high level of precision technology, however sometimes
• parts of the screen may be missing picture elements or have luminous spots. This is not a sign of a malfunction. Do not install the LCD Panel near electronic equipment that is susceptible to electromagnetic waves. Some
• equipment placed too near this unit may cause interference. Effect on infrared devices – There may be interference while using infrared devices such as infrared cordless
• headphones.
ENGLISH
SAFETY PRECAUTIONS
The unit emits heat when in operation. Do not place any covers or blankets on the unit, this may cause overheating. Do not block ventilation holes, or set up near radiators. Do not place in direct sunshine. When placing on a shelf leave 10 cm (4 inches) free space around the entire unit.
10cm
10cm
Notes when mounting the LCD TV on a wall
If the unit is to be mounted on the wall, contact the retailer where
• you purchased the LCD TV for advice, and have the equipment professionally installed. Incomplete or improper installation may cause injury to you, and/or damage to the LCD TV. Bracket holes: To attach a wall mounting bracket (not supplied) attach
• where indicated in the drawing right. This manufacturer recommends professional installation.
• Utilize an appropriate bracket and fasteners, sufficient to
• accommodate the size and weight of the unit. Assure the wall to which the unit is to be mounted will safely support
• the size and weight of the unit, using the bracket and fasteners you have selected. Keep cords and cables connected to this flat panel display out of
• reach of children. To hang the television on a wall, remove these screws and then
• remove a stand. Before performing work spread cushioning over the base area to lay the TV on.
Bracket holes
Screws
5
Features
Integrated Digital Tuner - You can view digital broadcasts without using a Digital TV Set-Top Box.
• Closed Caption Decoder With Full Text Mode - Displays text captions or full screen text on the screen for
•
hearing impaired viewers.
Picture Adjustments Using The Remote Control - The On-Screen display allows precise remote control
•
adjustment of BRIGHTNESS, CONTRAST, COLOR, TINT and SHARPNESS.
Programmable TV Sleep Timer - Operable from the remote control, the LCD TV can be programmed for up
•
to 120 minutes to turn off automatically.
V-Chip - The V-Chip function can read the rating of a broadcast program or movie content if the program is
•
encoded with this information. V-chip will allow you to set a restriction level.
Digital Audio Jack (Coaxial) - When a component with a built-in Dolby Digital decoder is connected, Dolby
•
Digital sound can produce the effect of being in a movie theater or a concert hall.
S-Video/Component Video Jacks - A VCR, DVD player, satellite receiver or other audio/video component
•
can be connected to this unit.
Video Input Jacks - This unit is equipped with 3 types of video input jacks. The component video in jacks and
•
S-video in jack enable you to watch the DVD player or the video devices with high quality picture.
On-Screen 3 Language Display - You can select one of 3 languages, English, French or Spanish for on-
•
screen programming.
* Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of
Dolby Laboratories.
* HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of
HDMI Licensing LLC.
Power source
TO USE AC POWER
Connect the AC cord plug into this unit’s AC INPUT jack.
1. Connect the AC cord into an AC outlet.
2.
Wider Hole and Blade
AC 120V, 60Hz
AC cord (supplied)
NOTE:
•
Please make sure to insert the cord securely at both the LCD TV and the wall outlet.
•
The AC cord has a grounding-type AC line plug. If the supplied AC cord does not match your AC outlet, contact a qualified electrician, do not defeat the purpose of a grounding plug.
WARNING:
•
DO NOT CONNECT THIS UNIT TO THE POWER USING ANY DEVICE OTHER THAN THE SUPPLIED AC CORD. THIS COULD CAUSE FIRE, ELECTRICAL SHOCK, OR DAMAGE.
•
DO NOT USE WITH A VOLTAGE OTHER THAN THE POWER VOLTAGE DISPLAYED. THIS COULD CAUSE FIRE, ELECTRICAL SHOCK, OR DAMAGE.
CAUTION:
•
WHEN THIS UNIT IS NOT USED FOR A LONG TIME, (E.G., AWAY ON A TRIP) IN THE INTEREST OF SAFETY, BE SURE TO UNPLUG IT FROM THE AC OUTLET.
•
DO NOT PLUG/UNPLUG THE PLUG WHEN YOUR HANDS ARE WET. THIS MAY CAUSE ELECTRICAL SHOCK.
•
IF YOU NEED TO REPLACE THE SUPPLIED AC ADAPTER OR AC CORD, THE SPECIFIED ONE IS RECOMMENDED. CONTACT CUSTOMER SERVICE AT 1-800-289-0980.
6
AC Outlet
Before using your unit
IMPORTANT SAFETY INSTRUCTIONS ........... 3
SAFETY PRECAUTIONS .................................5
Features ............................................................6
Power source ....................................................6
Contents ...........................................................7
Parts and functions ...........................................8
Remote control .................................................9
Antenna connections ......................................10
Cable TV connections ..................................... 11
Connections to other equipment .....................12
TV operation
Starting setup .................................................15
TV operation ...................................................15
Quick guide for menu operation ...................... 16
Convenience functions ...................................17
Memorizing channels ......................................18
Checking the digital-signal strength ................19
Labeling channels ...........................................19
Labeling video inputs ......................................19
Setting the V-Chip ...........................................20
Closed Caption ...............................................21
CC advanced ..................................................21
Setting the picture size .................................... 22
Additional information
Reception disturbances ..................................23
Troubleshooting ..............................................24
Specifications .................................................25
limited WARRANTY ........................................26
Contents
ENGLISH
7
Parts and functions
Left sideFront
VOLUME +/– buttons
Rear
Remote sensor
POWER indicator Red: Standby Green: On
CHANNEL
MENU button INPUT/ENTER button POWER button
To display the menu screen. Press MENU button to display the menu screen.
CHANNEL +/– buttons and INPUT/ENTER button
can be used to select the desired setting during the menu screen operations.
/ buttons,
/ buttons
VOLUME
8
AC INPUT jack
HDMI 1/DVI IN jack
HDMI 2 IN jack
PC/DVI AUDIO IN jack
AUDIO (L/R) jacks
(for COMPONENT IN and LINE2 VIDEO IN)
LINE1 IN jacks (VIDEO/S-VIDEO/AUDIO (L/R))
PC MONITOR IN jack VAR (VARIABLE) AUDIO OUT jack COAXIAL DIGITAL AUDIO OUT jack
RF (ANT) IN jack
COMPONENT IN jack
LINE2 VIDEO IN jack
1
2 3
4
5
6
7
8
1.POWER Button - Used to turn the power on/off to
the LCD TV.
2.SLEEP Button - To set the LCD TV to turn off after a preset amount of time, use the SLEEP button on the remote control.
3.Direct Channel Selection Buttons (0-9) - Allows direct access to any channel of the LCD TV.
4.
– Button -This button is the “–” button used when selecting digital channels. Also can display the current channel number when viewing the program.
5.RESET Button - Press to reset the On-Screen picture adjustments to their factory preset positions. To use this function, select “Picture” or “Audio” in the menu screen, then press this button.
9
10 11
12 13 14
15
16
17
Remote control
6.CH (CHANNEL) + / – / CURSOR ▲ / ▼ Buttons
- Used to operate the menu functions of the LCD TV, and to change the channels of the LCD TV.
7.MENU Button - Use to display the On-Screen
menu function.
8.AUDIO Button - Change sound track language.
9.MUTE Button - To turn off the sound, press this
button once. The LCD TV will be silenced and the symbol “Mute” will appear on the screen. The muting feature can be released by pressing the
MUTE button again or one of the VOL (VOLUME) + or – buttons.
10.DISPLAY Button - When you press this button,
the current information will be displayed on a screen. To remove the display from the screen, press this button again.
11.SCREEN SIZE Button - Used to change the
picture size.
12.INPUT SELECT Button - Use to change the
external input.
13.RECALL Button - This button allows you to go
back to the previous channel selected by just pressing the RECALL button. Press this button again to return to the channel you were watching.
14.CCD Button - Used to display the Closed Caption
menu screen.
15.ENTER Button - Use to enter or select
information for On-Screen operations.
16.VOL (VOLUME) + / – / CURSOR ◀ / ▶ Buttons
- Used to operate the menu functions of the LCD
TV. Press the ▶ button to increase, or the ◀ button to decrease the sound level.
17.EXIT Button - Press to remove setup menu.
ENGLISH
Before using the remote control, batteries must first be installed.
HOW TO INSTALL BATTERIES
1. Open the battery compartment cover.
2. Install two “AA” batteries (supplied).
3. Replace the battery compartment cover.
Use two “AA” size batteries. The batteries may last approximately one year depending on how much the remote control is used. For best performance, it is recommended that batteries should be replaced on a yearly basis, or when the remote operation becomes erratic. Do not mix old and new batteries or different types.
BATTERY PRECAUTIONS
These precautions should be followed when using batteries in this device:
•
Use only the size and type of batteries specified.
•
Be sure to follow the correct polarity when installing the batteries as indicated in the battery compartment. Reversed batteries may cause damage to the device.
•
Do not mix different types of batteries together (e.g. Alkaline and Carbon-zinc) or old batteries with fresh ones.
•
If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.
•
Do not try to recharge batteries not intended to be recharged; they can overheat and rupture. (Follow battery manufacturer’s directions.)
9
Antenna connections
If you are using an indoor or outdoor antenna, follow the instructions below that correspond to your antenna system. If you are using a Cable TV service, see page 11 for Cable TV connections.
Combination VHF/UHF Antenna (Single 75 ohm cable or 300 ohm twin-lead wire)
Connect the 75 ohm cable from the combination VHF/UHF antenna to the antenna jack.
If your combination VHF/UHF antenna has a 300 ohm twin-lead wire, the use of the 300-75 ohm matching transformer may be necessary.
75 ohm Coaxial Cable
Antenna
Jack
300-75 ohm Matching Transformer
Antenna
Jack
Combination VHF/UHF Antenna (Separate VHF and UHF 300 ohm twin-lead wires)
Connect the UHF 300 ohm twin-lead wire to the Combiner (not supplied). Connect the VHF 300 ohm twin-lead wire to the 300-75 ohm Matching Transformer. Attach the Transformer to the Combiner, then attach the Combiner to the Antenna Jack.
Combiner
UHF 300 ohm
300-75 ohm Matching Transformer
Antenna
Jack
VHF 300 ohm
Separate VHF/UHF Antennas (75 ohm VHF cable and 300 ohm UHF twin-lead wires)
Connect the VHF 75 ohm cable and UHF 300 ohm twin-lead wire to the Combiner (not supplied). Attach the Combiner to the Antenna Jack.
Combiner
UHF 300 ohm
Antenna
Jack
VHF 75 ohm
10

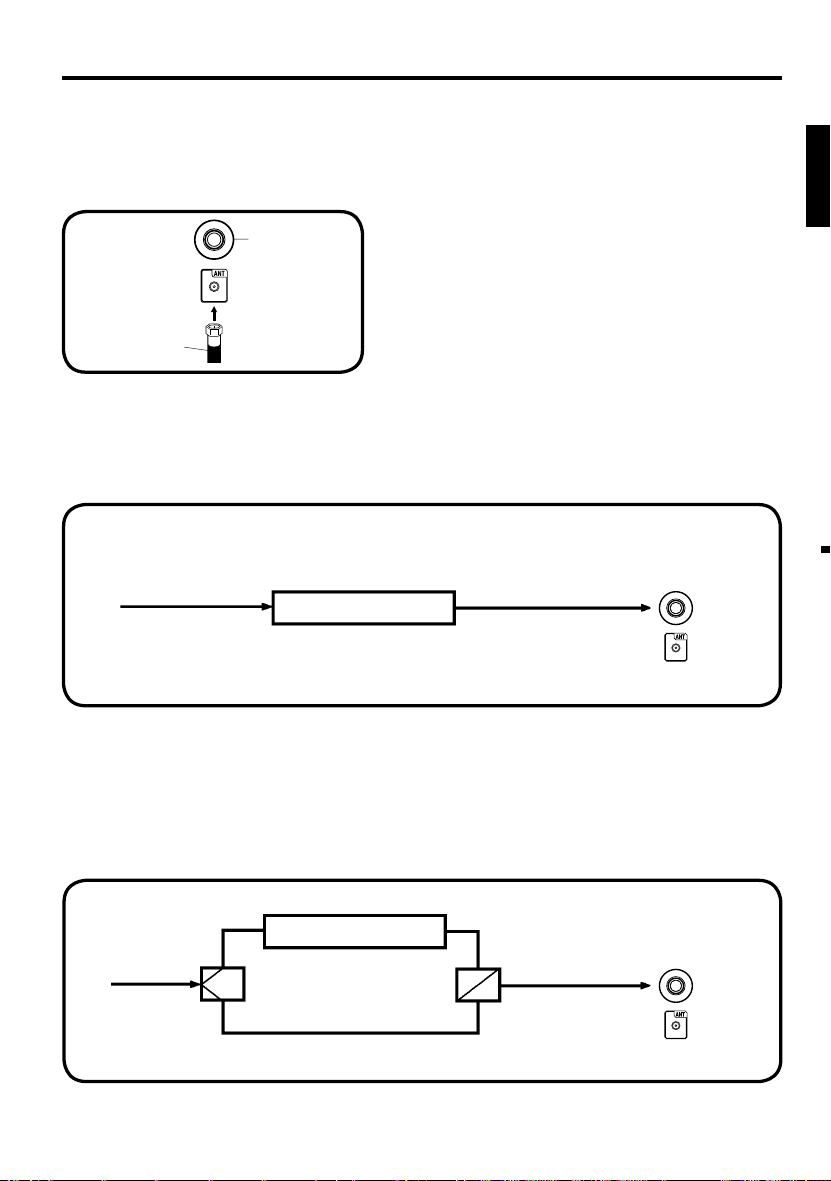

Cable TV connections
This TV has an extended tuning range and can tune most cable channels without using a Cable TV Converter box. Some cable companies offer “premium pay channels” where the signal is scrambled. Descrambling these signals for normal viewing requires the use of a descrambler device which is generally provided by the Cable TV company.
For subscribers to basic Cable TV service
For basic Cable TV service not requiring a Converter/
Antenna
Jack
75 ohm Coaxial Cable
For subscribers to scrambled Cable TV service
If you subscribe to a Cable TV service which requires the use of a Converter/Descrambler box, connect the incoming 75 ohm Coaxial Cable to the Converter/Descrambler box. Using another 75 ohm Coaxial Cable, connect the output jack of the Converter/Descrambler box to the Antenna Jack on the TV. Follow the connections shown below. Set the TV to the output channel of the Converter/Descrambler box (usually channel 3 or 4) and use the Converter/Descrambler box to select channels.
Incoming 75 ohm Cable TV Cable
Descrambler box, connect the 75 ohm Coaxial Cable directly to the Antenna Jack on the back of the TV.
Antenna
Converter/
Descrambler
75 ohm Cable to TV
Jack
ENGLISH
For subscribers to unscrambled Cable TV service with scrambled premium channels
If you subscribe to a Cable TV service in which basic channels are unscrambled and premium channels require the use of a Converter/Descrambler box, you may wish to use a signal Splitter and an A/B Switch box (available from the Cable TV company or an electronics supply store). Follow the connections shown below. With the switch in the “B” position, you can directly tune any nonscrambled channels on your TV. With the switch in the “A” position, tune your TV to the output of the Converter/Descrambler box (usually channel 3 or 4) and use the Converter/Descrambler box to tune scrambled channels.
Incoming 75 ohm Cable TV Cable
Splitter
Converter/
Descrambler
A/B Switch
75 ohm Cable to TV
A
B
Antenna
Jack
11
Connections to other equipment
The exact arrangement you use to interconnect various video and audio components to this unit is dependent on the model and features of each component. Check the Owner’s Manual provided with each component for the location of video and audio inputs and outputs.
To connect the LCD TV to a VCR
Rear of the unit
To LINE1 VIDEO/AUDIO IN
Video/Audio cord (not supplied)
To Video/Audio OUT
To connect the LCD TV to a VCR with an S-Video cord
If you connect a VCR with a S-Video cable to the S-VIDEO IN jack on the rear side of the unit, you must also connect the audio cables to the AUDIO IN jacks on the rear of the unit. The S-Video cable only carries the video signal. The audio signal is separate.
NOTE:
When the S-Video cable and the standard video cable are connected at the same time, the S-Video cable
• takes precedence.
Rear of the unit
To S-VIDEO IN
S-Video cord (not supplied)
To S-Video OUT
VCR
VCR
To LINE1 AUDIO IN
Audio cord (not supplied)
To Audio OUT
To connect to a DVD player with Component Video Input
You can enjoy a high quality picture by connecting the unit’s COMPONENT VIDEO OUT jacks of your DVD player with the COMPONENT video cables (not supplied).
Rear of the unit
NOTE:
Component Video input of the unit are for use with a device which output 480i/1080i interlaced signals and
• 480p/720p progressive signals.
To connect the TV to a camcorder, or a TV Game
To playback from a camcorder, connect the camcorder to the unit as shown. This unit can also be used as a display device for many video games. However, due to the wide variety of signals generated by these devices and subsequent hook-up variations required, they have not all been included in the suggested connection diagrams. You’ll need to consult each component’s Owner’s Manual for additional information.
Rear of the unit
To COMPONENT IN
Y
Pb
Component video cord
Pr
To LINE2 AUDIO IN
To LINE1 VIDEO/ AUDIO IN
Video/Audio cord (not supplied)
(not supplied)
Audio cord
(not supplied)
To Component OUT
Y
Pb
Pr
To Audio OUT
To Video/Audio OUT
DVD
or
12
Connections to other equipment (continued)
Using an AV Amplifier with built-in digital surround
If you are using an Amplifier with built-in digital surround sound, you can enjoy various audio systems including Dolby Digital Surround audio that sounds just like the movie.
Connect an AV amplifier with built-in Dolby Digital decoder, etc. as shown below.
Rear of the unit
Front Speaker (Right)
To COAXIAL DIGITAL
AUDIO OUT
Coaxial digital cable
(not supplied)
To Coaxial
Digital Audio IN
Front
Speaker
(Left)
Subwoofer
TV
Center Speaker
ENGLISH
Surround Speaker (Right)
AV Amplifier with built-in digital surround decoder as listed above
Surround Speaker (Left)
NOTE:
When you are viewing digital broadcast, this unit will not work in conjunction with DTS audio or MPEG audio.
•
There will be no sound output if connected to an AV amplifier with a built-in DTS decoder or MPEG decoder.
To connect the TV to a PC (Personal Computer)
Before you connect this TV to your PC, change the adjustment of your PC’s Resolution and Refresh rate (60 Hz).
Connect one end of a (male to male) VGA cable to the video card of the computer and the other end to the connector PC MONITOR on the rear of the of a Multimedia computer, connect the audio cord to the audio output of your Multimedia computer and to the AUDIO connector of the PC/DVI AUDIO IN jack of the TV. You can also connect the PC with HDMI cable. If you use HDMI cable, you don’t have to connect the audio cord. If you use DVI-to-HDMI cable, please connect audio cord as same way as VGA cable. Press INPUT SELECT on the remote control to select PC mode. Switch on the computer. The TV can operate as the computer monitor.
Rear of the unit
TV
. Attach the connectors firmly with the screws on the plug.
Monitor Display modes
VGA
In case
MODE Resolution Refresh rate VGA 640x480 60/ 72/ 75 Hz
VGA 720x400 70Hz SVGA 800x600 56/ 60/ 72/ 75 Hz XGA 1024x768 60/ 70/ 75 Hz WXGA 1280x768 60Hz WXGA 1280x720 60Hz WXGA 1360x768 60Hz
To return to normal mode
Press INPUT SELECT again.
To PC/DVI AUDIO IN
To HDMI IN
To PC MONITOR IN
VGA cable (not supplied)
Audio cord (not supplied)
HDMI cable (not supplied)
NOTE:
The on-screen displays will have a different appearance in PC mode than in TV mode.
•
If there is no video signal from the PC when the unit is in PC mode, “No signal” will appear on the TV-screen.
•
13
Connections to other equipment (continued)
To connect a HDMI or a DVI device to the unit
The HDMI1 input receives digital audio and uncompressed video from a HDMI device or uncompressed digital video from a DVI device. When you connect to a DVI device with a HDMI-to-DVI adapter cable, it transfers only video signal. Separate analog audio cords required.
Rear of the unit
To HDMI out
HDMI device
or
To PC/DVI AUDIO IN
NOTE:
•
When using HDMI1 to connect your HDMI or DVI devices, you must select the corresponding audio input source (HDMI or DVI) on the menu screen (see page 17). Otherwise you will only see the image with no sound.
•
If you connect an external component (cable box, satellite receiver, etc.) to this LCD TV using an HDMI cable or a DVI to HDMI cable, the image will not display if the output resolution of the component is set to 480i. To receive the picture you must change the output resolution on the external component.
Should you require further instruction, please contact the manufacturer of the external component.
To connect an audio system
This connection allows you to use an audio amplifier and external speakers, and adjust the audio level using the TV’s remote control. To control the audio, turn on the TV and the stereo amplifier, and turn off the TV’s built-in speakers (see page 17).
Rear of the unit
To HDMI IN
HDMI cable (type A connector)
(not supplied)
HDMI - to - DVI adapter cable
(HDMI type A connector)
(not supplied)
Audio cord (not supplied)
DVI device
To DVI output
Amplifier
To VAR AUDIO OUT
NOTE:
To hear sound when using an external audio amplifier, the volume of both the TV and the amplifier must be set
• above 0 (zero). For example, if the volume of the TV is set to 0, you will not be able to hear any sound, even if the volume of the amplifier is at its highest level.
To Audio (L) Input
Audio cord (not supplied)
To Audio (R) Input
14
Starting setup
The Starting Setup menu appears the first time you turn on the TV, and assists you to select the menu language, specify the Air/Cable setting, and program your channels automatically.
IMPORTANT: Make sure that the antenna or cable TV system connection is made!
To turn on the TV, press POWER (POWER
1
indicator on the front of the unit changes green. It may take approx. 10 seconds for a picture to appear on screen.). The starting setup function begins. Press ◀ or ▶ to select your desired language.
Auto Setup
Language English
Signal Type Cable
Automatic Search Start
: Adjust
: Select
Press ▲ or ▼ to select “Signal Type”, then press
2
◀ or ▶ to select “Cable” or “Air”.
Press ▲ or ▼ to select “Automatic Search”, then
3
press ▶ or ENTER.
Now the “Auto Setup” starts. After the starting
4
setup is completed, the TV channel appears on the screen.
•
Depending on the reception condition, it may
take from 15 minutes to 30 minutes to complete memorizing digital cable channels. Please be patient.
NOTE:
If you press EXIT in the process of “Auto Setup”,
•
the Starting Setup stops and changes to the normal screen.
When you make a menu selection, your changes
•
occur immediately. You do not have to press EXIT to see your changes. When you are finished programming the menus,
•
press EXIT.
TV operation
To turn on the TV, press POWER.
1
(POWER indicator on the front of the unit changes green. It may take approx. 10 seconds for a picture to appear on screen.)
Adjust the volume level by pressing VOL + or – .
2
The volume level will be indicated on the screen by blue bars. As the volume level increases, so do the number of bars. If the volume decreases, the number of blue bars also decreases.
Set the Signal Type option to the appropriate
3
position (see “Air/Cable selection” on page 18). Press the Direct Channel Selection (0-9, –)
4
buttons to select the channel. (If you press only channel number, channel selection will be delayed for a few seconds.)
TO SELECT ANALOG CHANNELS
1-9: Press 1-9 as needed. Example, to
10-99: Press the 2 digits in order. Example,
100-135: Press the 3 digits in order. Example, to
TO SELECT DIGITAL CHANNELS
Press the first 3 digits, then press the – button, followed by the remaining number. Example, to select channel 015-001, press 0, 1, 5, –, 0, 0, 1, then press ENTER.
•
•
The same program may be available on either
•
VHF/UHF/CABLE CHANNELS
VHF 2-13
UHF
14-69
NOTE:
If a channel with no broadcast is selected, the
• sound will automatically be muted.
•
It may take a few seconds for a digital channel picture to appear on screen after being selected.
To select the video input source
To view a signal from another device connected to your LCD TV, such as a VCR player, press INPUT
SELECT, then press ▲/▼ or corresponding Number buttons (0-6), then press ENTER. You can select TV,
Video1, Video2, Component, HDMI1, HDMI2 or PC depending on which input jacks you used to connect your devices.
Source Selection
0.TV
1.Video1
2.Video2
3.Component
4.HDMI1
5.HDMI2
6.PC
[0-6]:Select
CH +/
Press and release CH +/-. The channel automatically stops at the next channel set into memory. For proper operation, before selecting channels, they should be set into the memory. See “Memorizing channels” on pages 18 and 19.
select channel 2, press 2, then press ENTER.
to select channel 12, press 1, 2, then press ENTER.
select channel 120, press 1, 2, 0, then press ENTER.
If a channel is selected with only audio content, “Audio only” will be displayed on the screen. If a channel is selected with a weak digital signal, “Digital channel signal strength is low” will be displayed on the screen.
an analog channel or a digital channel. You may choose to watch either format. If a channel is selected to which you have not subscribed, be displayed on the screen.
Air Cable
“Digital channel is encrypted” will
VHF 2-13
STD/HRC/IRC 14-36 (A) (W) 37-59 (AA) (WW) 60-85 (AAA) (ZZZ) 86-94 (86) (94) 95-99 (A-5) (A-1) 100-135 (100) (135) 01 (4A)
-
ENGLISH
15
DISPLAY
Press DISPLAY to display the current information on the screen.
When the TV receives a digital signal, the digital information will appear.
62-001 HDTV Moving Picture1
CH-1
Digital Air
No Program Information is available
Full
1080i
Sleep Timer
Off English
Channel number• Station name•
Broadcast program name
Channel label (if preset)•
• V-Chip rating• Signal type• Sleep timer• Audio language• Program guide• Picture size• Resolution•
When the TV receives an analog signal, the analog information will appear.
14
Analog Cable
Mono
Full 480i
Sleep Timer
Off
Channel number• Channel label (if preset)• V-Chip rating• Signal type• Sleep timer• Picture size• Audio information
• Resolution• (Stereo, SAP or Mono)
Press DISPLAY again to clear the call display.
NOTE:
•
After a few seconds, DISPLAY screen will return to normal TV-operation automatically.
RECALL
This button allows you to go back to the last channel selected by pressing RECALL. Press RECALL again to return to the last channel you were watching.
MUTE
Press MUTE to switch off the sound. The TV’s sound will be silenced and “Mute” will appear on the screen. The sound can be switched back on by pressing this button again or the VOL + or –.
SLEEP
To set the TV to turn off after a preset amount of time, press SLEEP on the remote control. The clock will count up 10 minutes for each press of the SLEEP but­ton (Off, 0h 10m, 0h 20m, ..., 2h 0m). After the sleep time is programmed, the display will appear briefly every ten minutes to remind you that the sleep timer is operating. To confirm the sleep timer setting, press SLEEP and the remaining time will be displayed for a few seconds. To cancel the sleep timer, press SLEEP repeatedly until the display turns to Off.
Quick guide for menu operation
Call menu and for example: Select Language.
Press INPUT SELECT to select TV mode.
1
Press MENU. The TV menu screen will appear.
2
3 4
5
NOTE:
•
Main Menu
Audio
Channel
Lock
Setup
: Select ENTER:Set
>>
Press ▲ or ▼ to select “Setup”, then press ▶ or ENTER.
Press ▲ or ▼ to select “Language”, then press ◀/▶ to select the desired language.
…on the following pages the menu can be called in the same way as here.
Press EXIT to return to the normal screen.
If no buttons are pressed for more than about 60 seconds, the menu screen will return to normal operation automatically.
16
Convenience functions
You can change the default settings to convenience use.
Icon Selected Items Setup hint
Picture Picture
Setting
Picture Preference
Picture Size See page 22. Film Mode On/Off A smoother motion may be obtained by setting the Film Mode to “On”
PC Setting Hor Position /
Audio Bass / Treble / Balance You can adjust the sound quality to your preference.
Channel Add / Delete See page 18.
Lock See page 20. Setup Closed Caption See page 21.
DNR On/Off DNR (Digital Noise Reduction) can reduce the roughness of the picture.
MTS Stereo / Mono
Surround On/Off The dynamic presence and sound created offers a thoroughly enjoyable
Speakers On/Off Use this feature to turn the TV speakers off when you connect an audio
Audio Language When two or more audio languages are included in a digital signal, you can
HDMI1 Audio HDMI When you connect the HDMI device to the TV, select this setting.
DTV Signal See page 19. Auto Ch Memory See page 18. Ch Label See page 19.
Language You can choose from three different languages (English, Français (French)
Video Label See page 19. Auto Shut Off On/Off If the Auto Shut Off feature is On, a station being viewed stops
Reset The Reset function returns your settings to the factory settings.
Brightness / Contrast / Sharpness / Color / Tint
Color Temperature
Backlight The Backlight feature adjusts the screen brightness for improved picture
Sports Bright and dynamic picture (factory-set) Standard Standard picture quality (factory-set) Movie Movie-like picture setting (factory-set) Memory Your personal preferences (set by you; see “Picture Setting”)
Ver Position Clock To minimize any vertical bars or stripes visible on the screen background. Phase This must be adjusted after the frequency has been set optimize picture
Auto Adjust To adjust the all PC settings automatically.
/ SAP
DVI When you connect the DVI device to the TV with analog audio cords,
You can adjust the picture quality to your preference.
Bluish (Cool) / Neutral (Standard) / Reddish (Warm)
clarity.
when you view a DVD from the DVD player connected with the component or HDMI input.
To adjust the horizontal / vertical position of the image on the PC Monitor screen. Each video standard will require a different value for this setting.
quality.
The multi-channel TV sound (MTS) feature provides high-fidelity stereo sound. MTS also can transmit a second audio program (SAP) containing a second language or other audio information. When the TV receives a stereo or SAP broadcast, the word “Stereo” or “SAP” displays on-screen every time you press DISPLAY.
listening experience.
system.
select one of the audio language. (This function is available only for digital broadcast.)
select this setting.
and Español (Spanish)) for the on-screen displays. Select the language you prefer first, then proceed with the other menu options.
broadcasting and the TV is not operated, the TV will automatically shut itself off after 15 minutes.
“Picture Size”, “MTS”, “Audio Language” and “HDMI1 Audio” cannot be reset by this function.
ENGLISH
17
Memorizing channels
This TV is equipped with a channel memory feature which allows channels to skip up or down to the next channel set into memory, skipping over unwanted channels. Before selecting channels, they must be programmed into the TV’s memory. To use this TV with an antenna, set the Signal Type option to the Air mode. When shipped from the factory, this menu option is in the Cable mode.
Air/Cable selection
Select “Channel”, then press ▶ or ENTER.
1
Press ▲ or ▼ to select “Auto Ch Memory”, then
2
press ▶ or ENTER.
Press ▲ or ▼ to select “Signal Type”.
3
Press ◀ or ▶ to select “Air” or “Cable”.
4
Air - VHF/UHF channels Cable - CABLE TV channels
Auto Ch Memory
Signal Type Cable
Automatic Search Start
: Adjust
: Select

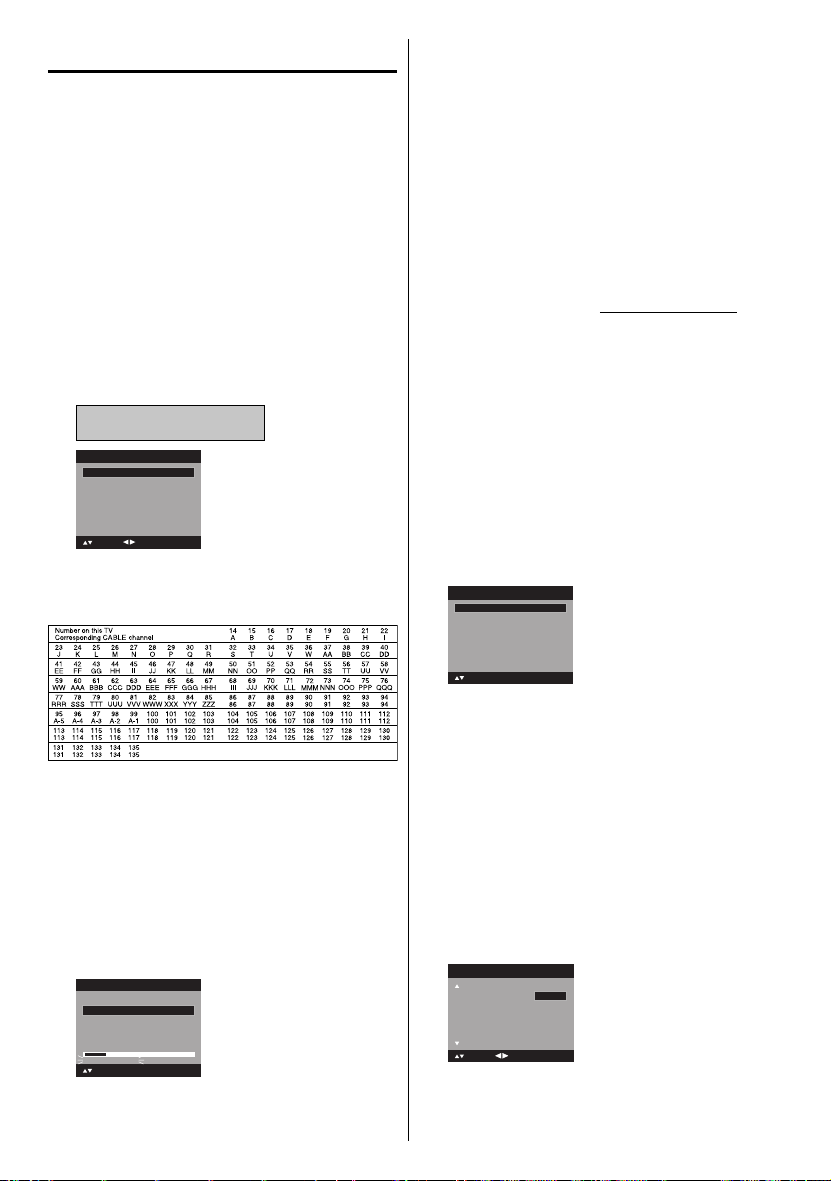

CABLE CHART
The chart below is typical of many cable system channel allocations.
The TV will begin memorizing all the channels
4
available in your area.
•
It may take from 15 minutes to 30 minutes to complete memorizing digital cable channels.
Depending on the reception condition, a bar
display may not advance for several minutes, please be patient.
NOTE:
Memorizing channels is best accomplished during
• evening “PRIMETIME” hours, as more stations are broadcasting digital signals. Memorizing channels can only be accomplished while a station is broadcasting a digital signal to set that channel into memory. If you are unsure of the digital channels available
• in your area, you may visit www.antennaweb.org to receive a list based on your address or zip code. Should you require further assistance you may call our toll-free customer service line at 1-800-289-0980. New digital channels may be added to your area
• periodically, it is recommended to perform the “Automatic Search” procedure regularly.
Adding Channel
If you find a new digital channel unregistered, you can add the new channel into the channel memory.
Tune in the new channel.
1
Select “Channel”, then press ▶ or ENTER.
2
Press ▲ or ▼ to select “Add/Delete”, then press ▶
3
or ENTER.
Add/Delete
Adding Channel >>
Add/Delete >>
Clear All >>
NOTE:
It may take a few seconds for a digital channel
• picture to appear on screen after being selected.
Automatic search
Select “Channel”, then press ▶ or ENTER.
1
Press ▲ or ▼ to select
2
press ▶ or ENTER.
Press ▲ or ▼ to select “Automatic Search”, then
3
press ▶ or ENTER.
Auto Ch Memory
Signal Type Cable
Automatic Search Stop
Analog Channel Found : 7
Digital Channel Found : 5
Programming Now
: Select
ENTER:Cancel
“Auto Ch Memory”, then
18
: Select ENTER:Set
Press ▲ or ▼ to select “Adding Channel”, then
4
press ▶ or ENTER. The new channel will be added into the channel memory.
Add/Delete channel
You can select the channel that you want to skip.
Select “Channel”, then press ▶ or ENTER.
1
Press ▲ or ▼ to select “Add/Delete”, then press
2
▶ or ENTER.
Press ▲ or ▼ to select “Add/Delete”, then press
3
▶ or ENTER. Press ▲ or ▼ to select the channel that you want
4
to skip.
Add/Delete
CH Signal
2 Analog
3 Analog Add
3-001 Digital Delete
3-002 Digital Add
4 Analog Delete
: Select
Press ◀ or ▶ to select “Add” or “Delete”,
5
whichever function you want to perform. Repeat steps 4 - 5 for other channels you want to
6
add or delete.
Add
: Adjust
Clear All
All channels are deleted from the channel memory.
Select “Channel”, then press ▶ or ENTER.
1
Press ▲ or ▼ to select “Add/Delete”, then press ▶
2
or ENTER.
Press ▲ or ▼ to select “Clear All”, then press ▶ or
3
ENTER.
Add/Delete
Adding Channel >>
Add/Delete >>
Clear All >>
: Select ENTER:Set
Checking the digital­signal strength
This TV will allow you to view the digital signal meter for digital channels.
Select “Channel”, then press ▶ or ENTER.
1
Press ▲ or ▼ to select “DTV Signal”.
2
Press ▶ or ENTER to check the Digital-signal
3
strength. The Digital-Signal strength screen will appear. If necessary, adjust the direction of the antenna to obtain the maximum signal strength.
DTV Signal
0 50 100
Signal Level
Ch Label
Channel Number 15-1
Ch Label
Label Clear >>
: Adjust
: Select
Press ◀ or ▶ repeatedly until the character you
4
want appears in the first space.
Ch Label
Channel Number 15-1
Ch Label A
Label Clear >>
: Adjust
: Select
The characters rotation as follows:
If the character which you desire appears, press ENTER. Repeat this step to enter the rest of the characters. If you would like a blank space in the label name, you must choose the empty space from the list of characters.
When you finish inputting the label name, press
5
EXIT to return to the normal screen. Repeat steps 3-4 for other channel. You can
6
assign a label to each channel.
ENTER:Set
SPACE
, () @ / + =
-
-
To clear a Ch Label
After step 3 above, press ▲ or ▼ to select “Label Clear”, then press ▶ or ENTER.
NOTE:
•
The channel labels will be reset after “Automatic Search” on page 18.
ENGLISH
NOTE:
Signal meter feature is not available for analog
•
channels. After 240 seconds, DTV Signal screen will return to
•
normal TV-operation automatically.
Labeling channels
Channel label appear with the channel number display each time you turn on the TV, select a channel, or press DISPLAY. You can choose any four characters to identify a channel.
To create channel labels
Select “Channel”, then press ▶ or ENTER.
1
Press ▲ or ▼ to select “Ch Label”, then press ▶
2
or ENTER. The “Ch Label” menu will appear.
Press ◀ or ▶ to select a channel you want to
3
label, then press ▼.
Labeling video inputs
The Video Label feature allows you to label each input source for your TV.
Select “Setup”, then press ▶ or ENTER.
1
Press ▲ or ▼ to select “Video Label”, then press
2
▶ or ENTER. Press ▲ or ▼ to select an input which you want to
3
label. Press ◀ or ▶ to select the desired label for that
4
input source.
Video Label
Video1 -
Video2 -
Component -
HDMI1 -
HDMI2 -
: Adjust
: Select
– : Uses the default label name
VCR : Video cassette recorder DVD : DVD video DTV : Digital TV set-top box SAT : Satellite box CBL : Cable box HD : HDMI device (only for HDMI inputs)
19
Setting the V-Chip
An age limitation can be set to restrict children from viewing or hearing violent scenes or pictures that you may choose to exclude. The restriction applies to “TV Rating” and “Movie Rating” if this data is transmitted. You may set this restriction separately. To use the V-Chip function, you must register a password.
To register a password
Select “Lock”, then press ▶ or ENTER.
1
Select and enter your password (4 digits) using
2
Number buttons (0-9), then press ENTER.
Lock
New Password
[0-9]
: Select ENTER:Set
“ ” appears instead of the number.
Enter the same password again to confirm, then
3
press ENTER. The password is now registered.
NOTE:
If you forget the password, contact Customer
• Service at 1-800-289-0980 for assistance. Your original remote control will be required. To avoid forgetting the password, write it down and
• keep in a safe place.
To set the V-Chip
Select “Lock” menu, then press ▶ or ENTER.
1
Use Number buttons (0-9) to enter your
2
password, then press ENTER. Then Lock menu will appear.
Press ▲ or ▼ to select “V-Chip”, then press
3
◀ or ▶ to select “On” .
Press ▲ or ▼ to select “V-Chip Set”, then press
4
▶ or ENTER. The V-Chip Set Menu appears.
Press ▲ or ▼ to select which rating will be used,
5
then press ▶ or ENTER. Each rating below will appear.
TV Rating
TV Rating
TV-Y
TV-Y7
TV-G
TV-PG
TV-14
TV-MA
You can set the rating using age level and genre.
Age: TV-Y : All children TV-Y7 : 7 years old and above TV-G : General audience TV-PG : Parental guidance TV-14 : 14 years old and above TV-MA : 17 years old and above
20
_
* * *
ALL D L S V FV
ENTER:Set
: Select
Genre: ALL : All D : Dialogue L : Language S : Sex V : Violence FV : Fantasy Violence
Movie Rating
Movie Rating
G
PG
PG-13
R
NC-17
X
: Select
G : All ages PG : Parental guidance PG-13 : Parental guidance
R : Under 17 years old parental guidance
NC-17 : 17 years old and above X : Adult only
Press ▲/▼/◀/▶ to select the desired rating, then
6
press ENTER.
Press EXIT to return to the normal screen.
7
V-Chip function is activated now.
To use the TV after the TV is protected.
When a program is received that is blocked by the V-Chip, press MUTE, then enter your password. The protection will be temporarily overridden. If the TV is turned off or the channel is changed, the V-Chip restriction will be reactivated.
NOTE:
The V-Chip function is activated only on programs
• and input sources that include a rating signal.
ENTER:Set
less than 13 years old
suggested
To change the password
Select “Lock”, then press ▶ or ENTER.
1
Use Number buttons (0-9) to enter your password,
2
then press ENTER. The Lock menu will appear.
Press ▲ or ▼ to select “Change Password”, then
3
press ▶ or ENTER. The Change Password screen will appear.
Enter a new password using Number buttons
4
(0-9), then press ENTER.
Enter the same password again to confirm, then
5
press ENTER. The password is now registered.
Downloading the additional V-Chip rating system
As a supplement to the standard V-Chip rating system, your television will be able to download an additional rating system, if such a system becomes available in the future.
To download the additional V-Chip rating system (when available)
Select “Lock”, then press ▶ or ENTER.
1
Use Number buttons (0-9) to enter your password,
2
then press ENTER. The Lock menu will appear.
Press ▲ or ▼ to select “V-Chip”, then press ◀ or
3
▶ to select “On”. Press ▲ or ▼ to select “V-Chip Set (DTV)”, then
4
press ▶ or ENTER. If the TV is not storing the additional rating
5
system, the TV will begin downloading it, which may take some time to be completed.
Set your preferred content rating limits for the
6
additional rating system. You also need “Update” procedure to update
7
rating information.
NOTE:
You can only download the additional V-Chip rating
• system when your TV is receiving a digital signal. When you download the additional rating system, it
• may take some time for the download to occur. The V-Chip rating information and system are not
• determined or controlled by the TV.
•
The standard V-Chip rating system is available whether your TV is receiving a digital signal or not, and will block both analog and digital programs. To set the restriction level using the standard V-Chip rating system, select V-Chip Set in step 4.
•
The downloadable V-Chip rating system is an evolving technology, and availability, content, and format may vary.
•
You cannot select this feature if the TV is not receiving a digital signal for the current station.
To clear the all V-Chip settings
Select “Lock”, then press ▶ or ENTER.
1
Use Number buttons (0-9) to enter your password,
2
then press ENTER. The Lock menu will appear. Press ▲ or ▼ to select “V-Chip Clear”, then press
3
▶ or ENTER. The Password screen will appear.
Use Number buttons (0-9) to enter your
4
password, then press ENTER. All of your settings return to the factory settings.
Closed Caption
WHAT IS CLOSED CAPTIONING?
This television has the capability to decode and display Closed Captioned television programs. Closed Captioning will display text on the screen for hearing impaired viewers or it will translate and display text in another language.
Captions: This Closed Caption Mode will display text on the screen in English or another language. Generally, Closed Captions in English are transmitted on C1 and Closed Captions in other languages are transmitted on C2. Text: The Text Closed Caption Mode will usually fill 1/2 of the screen with a programming schedule or other information.
Select “Setup”, then press ▶ or ENTER.
1
Press ▲ or ▼ to select “Closed Caption”, then
2
press ▶ or ENTER. The Closed Caption menu will appear.
Press ◀ or ▶ to set “CC Setting” to “On”.
3
On: Captions will be displayed on the screen. Off: Captions will not be displayed on the screen.
Press ▲ or ▼ to select “Analog Caption” or “Digital
4
Caption”. When you select “Analog Caption”, you can
choose C1, C2, C3, C4, T1, T2, T3 and T4. When you select “Digital Caption”, you can
choose from CS1, CS2, CS3, CS4, CS5 and CS6. Press ◀ or ▶ to select the desired Closed
5
Caption mode for both Digital and Analog Caption. Press ▲ or ▼ to select “CC Priority”, then press
6
◀ or ▶ to select “Digital CC” or “Analog CC”.
NOTE:
Depending on the broadcast signal, some
• Analog Captions will function with a Digital broadcast signal. This step prevent that two kind of captions are overlapping.
NOTE:
•
If the program or video you selected is not closed­captioned, no captions will display on-screen.
•
If text is not available in your viewing area, a black rectangle may appear on-screen. If this happens, set the CC Setting to “Off”.
•
When selecting Closed Captions, the captioning will be delayed approx. 10 seconds.
•
If no caption signal is received, no captions will appear, but the television will remain in the Caption Mode.
•
Misspellings or unusual characters may occasionally appear during Closed Captioning. This is normal with Closed Captioning, especially with live programs. This is because during live programs, captions are also entered live. These transmissions do not allow time for editing.
•
When Captions are being displayed, on-screen displays, such as volume and mute may be seen but may interfere with Closed Captions.
•
Some cable systems and copy protection systems may interfere with the Closed Captioned signal.
•
If using an indoor antenna or if TV reception is very poor, the Closed Caption Decoder may not appear or may appear with strange characters or misspelled words. In this case, adjust the antenna for better reception or use an outdoor antenna.
CC advanced
When you have selected Custom as the display method, you can adjust the various setting listed below as follows:
This feature is designed to customize Digital Captions only.
Select “Setup”, then press ▶ or ENTER.
1
Press ▲ or ▼ to select “Closed Caption”, then
2
press ▶ or ENTER. The Closed Caption menu will appear.
Press ◀ or ▶ to set “CC Setting” to “On”.
3
Press ▲ or ▼ to select “Digital CC Preset”, then
4
press ◀ or ▶ to select “Custom”.
ENGLISH
21
Press ▲ or ▼ to select “CC Advanced”, then
5
press ▶ or ENTER. The CC Advanced menu will appear.
Press ▲ or ▼ to select the desired item, then
6
press ◀ or ▶ to change the setting.
CC Advanced
Text Size Auto
Text Type Auto
Text Edge Auto
Text Color Auto
Text Opacity Auto
Background Color Auto
Background Opacity Auto
: Adjust
: Select
You can select from among the following items and parameters.
Text Size: Auto, Small, Standard, Large Text Type: Auto, Style1, Style2, Style3, Style4,
Style5, Style6, Style7
Text Edge: Auto, None, Raised, Depressed,
Uniform, Left Shadow, Right Shadow
Text Color: Auto, Black, White, Red, Green,
Blue, Yellow, Magenta, Cyan
Text Opacity: Auto, Solid, Transparent,
Translucent, Flashing
Background Color:
Background Opacity:
Auto, Black, White, Red, Green, Blue, Yellow, Magenta, Cyan
Auto, Solid, Transparent, Translucent, Flashing
NOTE:
•
You cannot set both “Text Color” and “Background Color” as a same color.
•
You cannot set both “Text Opacity” and “Background Opacity” to “Transparent”.
Cinema Wide1 (for 4:3 format programs)
To fill the screen, the right and left edges are extended, however; the center of the picture remains near its former ratio. The top and bottom edges of the picture may be hidden.
Cinema Wide2 (for letter box programs with subtitles)
To fill the width of the screen, it is extended horizontally. However; it is only slightly extended at the top and the bottom.
The top and bottom edges of the picture may be hidden.
Cinema Wide3 (for letter box programs with subtitles)
To fill the width of the screen, it is extended horizontally. However; it is only slightly extended at the top and the bottom.
The top and bottom edges of the picture may be hidden.

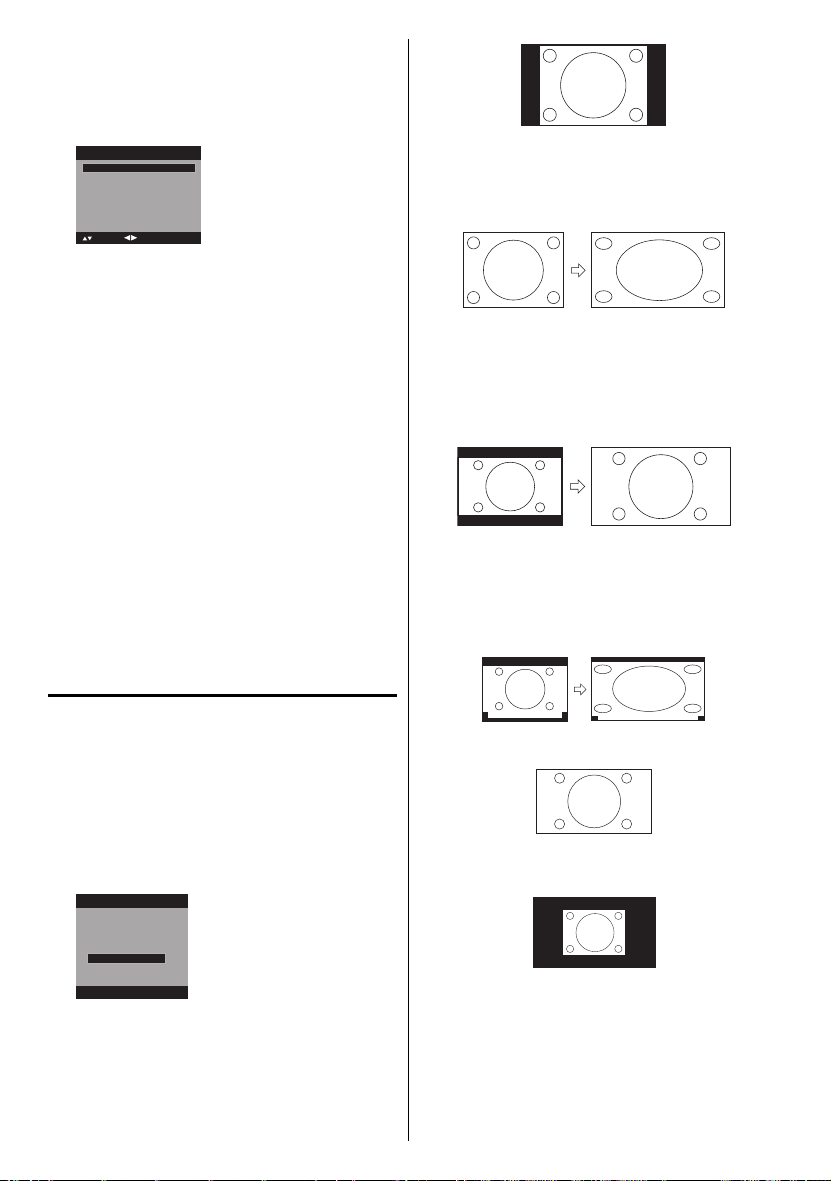

Setting the picture size
You can view 480i and 480p format programs in a variety of picture sizes— Natural, Cinema Wide1, Cinema Wide2, Cinema Wide 3, Full and Native.
Selecting the picture size
Select “Picture”, then press ▶ or ENTER.
1
Press ▲ or ▼ to select “Picture Size”, then press
2
▶ or ENTER to display Picture Size menu. Press ▲/▼ or corresponding Number buttons (0-4)
select the desired picture size, as described below.
Picture Size
0.Natural
1.Cinema Wide1
2.Cinema Wide2
3.Cinema Wide3
4.Full
[0-4]:Select
NOTE:
Selectable picture sizes may vary depending on the
• input source or broadcast signal. Picture Size menu also can be displayed by
• pressing SCREEN SIZE on the remote control.
Natural
In some cases, this image will display the size of standard 4:3 with a black side bar.
22
A B C D E F G - - - - - - - - - - - - - - - -
A B C D E F G - - - - - - - - - - - - - - - - - - - - - - - - - -
Full (for 16:9 source programs)
Full will display the picture at the maximum size.
Native (for PC mode only)
to
Detects the resolution of the signal of the image and it will be shown on the screen with same amount of pixels.
NOTE:
•
Some High Definition and/or Digital broadcasts may not allow you to change the picture size.
•
In HDMI or COMPONENT mode with a scanning rate of 720p or 1080i, only the Cinema Wide2 and Full picture size feature is available.
•
In PC Mode, only the Natural, Full and Native picture size features are available. In PC Mode (WXGA), only the Full and Native picture size features are available.

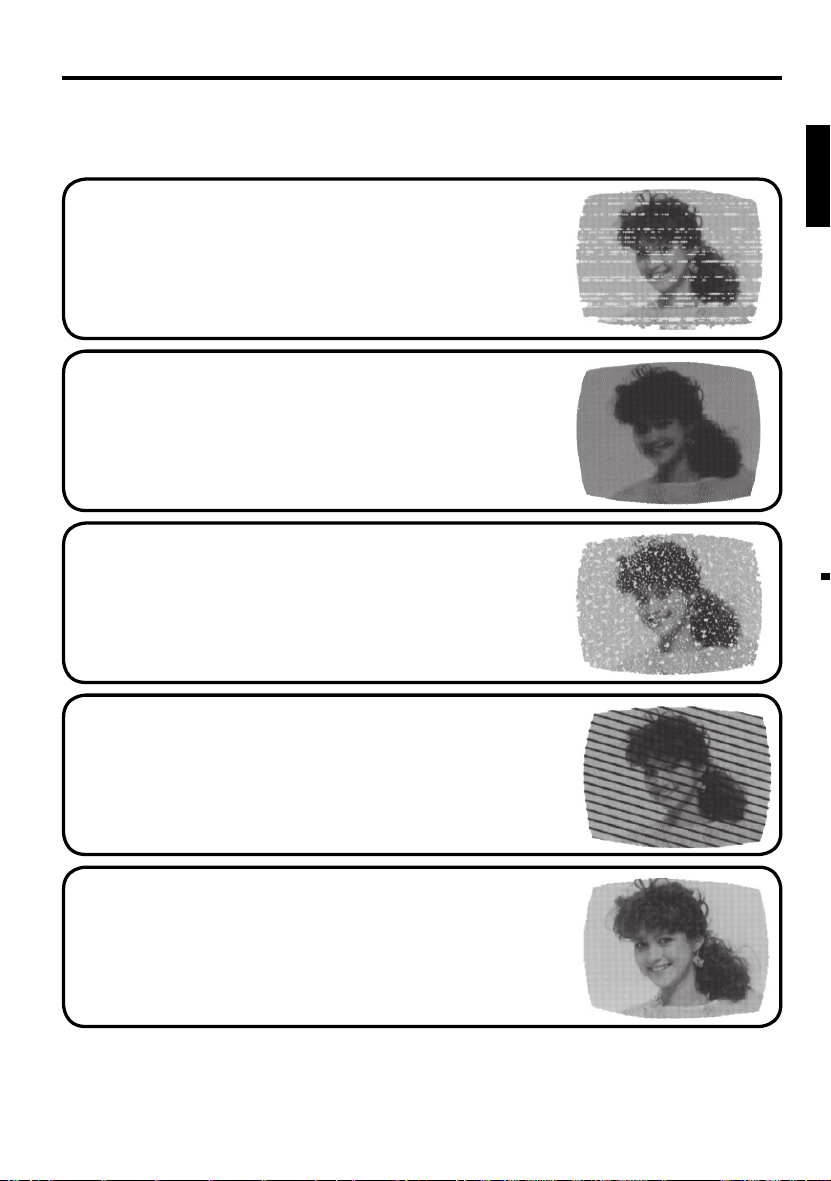

Reception disturbances
Most types of television interference can be remedied by adjusting the height and position of the VHF/ UHF antenna. Outdoor antennas are recommended for best results. The most common types of television interference are shown below. If one of these symptoms appear when the TV is connected to a Cable TV system, the disturbance may be caused by the local Cable TV company broadcast.
IGNITION
Black spots or horizontal streaks may appear, the picture may flutter or drift. Usually caused by interference from automobile ignition systems, neon lamps or AC powered tools and appliances such as drills or hair dryers.
GHOSTS
Ghosts are caused by the television signal following two paths. One is the direct path and the other is reflected by tall buildings, hills or other large objects. Changing the direction or position of the antenna may improve the reception.
SNOW
If the TV is located far from the TV station, in a fringe reception area where the signal is weak, small dots may appear in the picture. If the signal is extremely weak, the installation of a larger external antenna may be necessary.
RADIO FREQUENCY INTERFERENCE (RFI)
Caused by two-way radios, this type of interference produces moving ripples or diagonal streaks in the picture. Some cases may cause a loss of contrast in the picture. Changing the direction and position of the antenna or installing an RFI filter may improve the picture.
ENGLISH
PICTURE SIZE VARIATION
A slight picture size variation is normal when you adjust the CONTRAST or BRIGHTNESS settings.
CARE AND MAINTENANCE
To prevent fire or shock hazard, disconnect the TV from the power source before cleaning. The finish on the cabinet may be cleaned with mild soap and a soft, damp cloth and cared for as other furniture. Use caution when cleaning or wiping the plastic parts.
23
Troubleshooting
Use the following checklist for troubleshooting if you have problems with your LCD TV. Consult your local dealer or service outlet if problems persist. Be sure all connections are properly made when using with other units.
SYMPTOMS POSSIBLE SOLUTIONS
TV does not operate.
Poor sound or no sound.
Poor picture or no picture.
Poor reception on some channels.
Poor color or no color.
Picture wobbles or drifts.
Make sure the power cord is plugged in.
• Try another AC outlet.
• Power is off, check fuse or circuit breaker.
• Unplug unit for an hour, then plug it back
• in.
Station or Cable TV experiencing
• problems, tune to another station. Check sound adjustments (VOL +/– and
• Mute). Check for sources of possible
• interference.
Station or Cable TV experiencing
• problems, tune to another station. Make sure channels are set into memory.
• Check antenna or Cable TV
• connections, adjust antenna. Check for sources of possible
• interference. Check picture control adjustments.
• Station or Cable TV experiencing
• problems, tune to another station. Make sure channels are set into memory.
• Station is weak, adjust antenna to
• receive desired station. Check for sources of possible
• interference.
Station or Cable TV experiencing
• problems, tune to another station. Make sure channels are set into memory.
• Check picture control adjustments.
• Check antenna or Cable TV
• connections, adjust antenna. Check for sources of possible
• interference.
Station or Cable TV experiencing
• problems, tune to another station. Make sure channels are set into memory.
• Cable TV company is scrambling signal.
•
•
Adjust antenna.
SYMPTOMS POSSIBLE SOLUTIONS
Digital broadcasting screen problem.
No CATV reception.
Horizontal or diagonal bars on screen.
No reception above channel 13.
No Remote operation.
TV shuts off.
Closed ­Caption is not activated.
TV is not shown in your language.
Check digital signal strength.•
Check all Cable TV connections.
• Set Air/Cable menu option to the Cable
• mode. Station or Cable TV system problems,
• try another station.
Check antenna connections, adjust or
• re-direct antenna. Check for sources of possible
• interference.
Make sure Signal Type option is in the
• appropriate mode. If using antenna, check UHF antenna
• connections.
Batteries are weak, dead or inserted
• incorrectly. Remote is out of range, move closer to
• TV (within 15 feet). Make sure Remote is aimed at sensor.
• Confirm there are no obstructions
• between the Remote and the TV. Make sure the power cord is plugged in.
• Sleep Timer is set.
• Power interrupted.
• TV station experiencing problems or
• program tuned is not closed captioned. Try another channel. Check Cable TV connection or VHF/UHF
• antenna, reposition or rotate antenna. Set closed caption decoder in the menu.
•
•
Select proper language in the menu options.
FOR CUSTOMER SERVICE, ADDITIONAL SET-UP AND OPERATING ASSISTANCE, OR TO ORDER ACCESSORIES PLEASE CALL:
1-800-289-0980
WHEN CALLING CUSTOMER SERVICE – PLEASE HAVE YOUR MODEL NUMBER READY
OR WRITE TO:
ORION SALES, INC.
3471 N. UNION DR.
OLNEY, ILLINOIS 62450
FOR INFORMATION ON OUR OTHER PRODUCTS, OR TO ORDER ACCESSORIES ONLINE, PLEASE VISIT OUR WEBSITE AT
www.orionsalesinc.com
24
Specifications
Model HDLCD3212 HDLCD3212A GENERAL
Power supply: AC 120V 60Hz Power consumption: Operation: 106W
Weight: 10.5 kg (23.2 lbs) 10.9 kg (24.0 lbs) Dimensions: Width: 796.5 mm (31-3/8 inches)
Operating temperature: 5˚C - 40˚C Operating humidity: Less than 80% Type: 31.51 inches (800.4 mm diagonal) Display method: Transmission TFT color LCD panel Number of Pixels: 1366 (H) x 768 (V) Broadcasting system: US system M
Receiving channels: VHF 2-13
Tuner type: Frequency synthesized Inputs: S-Video: Y-Input:1.0 V (p-p), 75 ohms
Outputs: Digital audio out: 0.5 Vp-p 75 ohms terminated Speaker: 40.6 mm x 121.9 mm (1-5/8 inches x 4-13/16 inches), 8 ohms x 2 Audio output power: 5.0W + 5.0W
ACCESSORIES Remote control
Stand by: 0.7W
Height: 581 mm (22-7/8 inches) Depth: 214 mm (8-7/16 inches)
ATSC standard (8VSB), QAM
UHF 14-69 CATV 14-36 (A)-(W) 37-59 (AA)-(WW) 60-85 (AAA)-(ZZZ) 86-94 (86)-(94) 95-99 (A-5)-(A-1) 100-135 (100)-(135) 01 (4A)
C-Input:0.3 V (p-p), 75 ohms Video: (RCA) 1 V p-p/75 ohms Audio: (RCA) –8 dBm/50K ohms Component video: (Y) 1 V (p-p), 75 ohms (Pb)/(Pr) 0.7 V (p-p), 75 ohms HDMI: HDMI compliant (type A connector) HDCP compliant E-EDID compliant Suggested scan rates: 480p, 480i, 720p,1080i,1080p HDMI Audio: 2-channel PCM 32/44.1/48 kHz sampling frequency 16/20/24 bits per sample PC Monitor: Mini-Dsub 15pin x 1 Antenna: VHF/UHF In 75 ohms coaxial
Batteries AA x 2 AC Cord
ENGLISH
Designs and specifications are subject to change without notice.
25
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
