Sangean PT-50 User Guide

ProTravel

PT 50

Operating instruction

Mode d’emploi

Instruccions de manejo

GB
F
E

1

CARE AND SAFETY

________________________________________________

This device is designed for the playback of audio signals.
Any other use is expressly prohibited.

Continuous use of earphones at high volume can damage the user’s hearing.
Protect the device from moisture (water drops or splashes). Do not place any vessels such

as vases on the device. These may be knocked over and spill fluid on the electrical
components, thus presenting a safety risk. Do not place any objects such as burning
candles on the device.

When deciding where to place the device, please note that furniture surfaces are covered
by various types of varnish and plastic, most of which contain chemical additives. These
additives can corrode the device supports, leaving residues on the furniture surfaces which
can be difficult or impossible to remove.

Do not use any cleaning agent, as this may damage the casing. Clean the device with a clean,
moist leather cloth. Never open the device casing. Warranty claims are excluded for dama­ge resulting from improper handling.

The type plate is located on the bottom of the device.

Environmental note

As little material as possible was used in the packaging of your device. It can be divided
into two separate materials: cardboard (box) and polyethylene (bag). Please observe the
local regulations for disposing of the packing material.

! SERVICE !! SERVICE !

02 Yacht Boy 50, GB 19.08.2003 14:27 Uhr Seite 22

H/W

ON/OFF

12/24

SUMMER

SLEEP

ALARM SETALARM Hr.

2888288828

88

TIME SET H.T.Z MIN.

2888288828

88

Azores

L
o

F

n

R

ra

d

i
o

n

Istanbul

o

k

Sa

d

n

fu

e

ntiag

j

r

Moscow

a

t

n

New York

o

e
i
r
o

D

ubai

Chicago

LOCK

r

a

i

K

a

h

c

Denver

! SERVICE !

s

a

SUMMER

le

c

e

c

g

a

n

D

A
s
o

k

L

o

g

k
g

n

n

o

a
B

K

n

g
n

o

o

t

a

H

g

e

Honolulu

m

llin

Tokkyo

u

e

o

Sydney

W

N

2

ENGLISH

OVERVIEW

___________________________________________________________

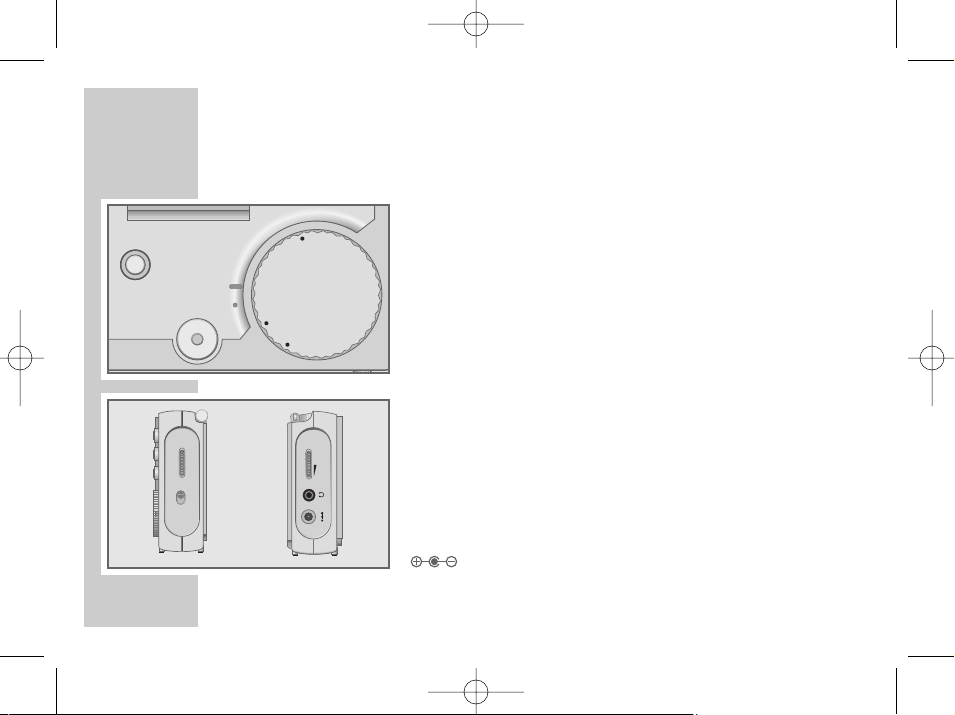

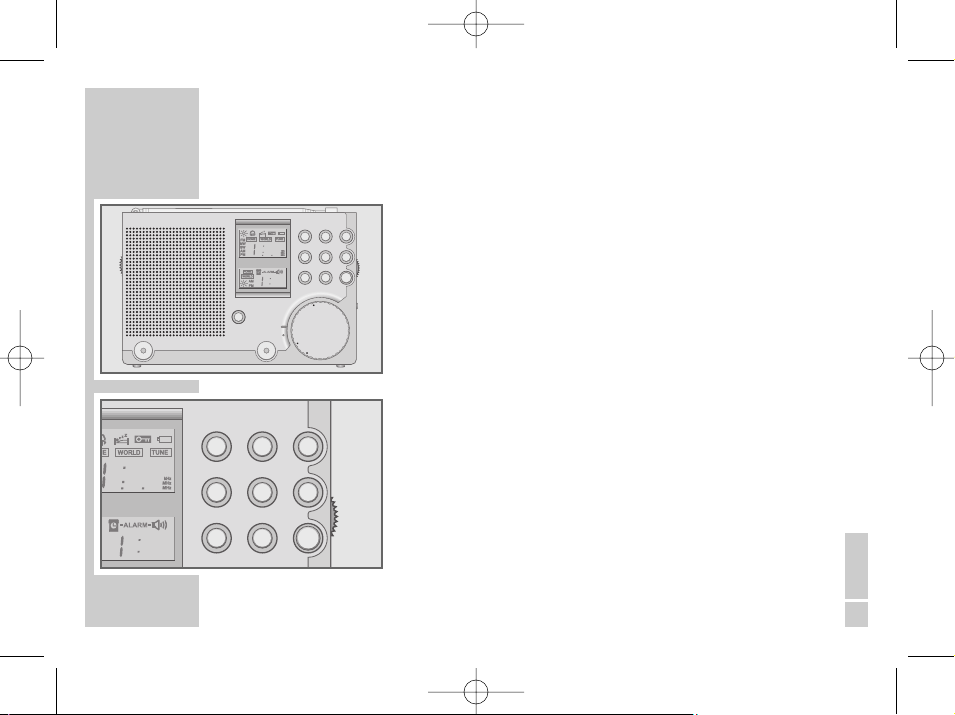

Controls

Front

ON/OFF SLEEP

Switches the device on and off.

HR.

For setting the clock and alarm time (hours).

MIN.

For setting the clock and alarm time (minutes).

H/W

Switches between local time and GMT.

SUMMER

For switching to daylight saving time.

ALARM

Switches between radio alarm clock and
signal tone. Deactivates the alarm.

H.T.Z

Sets the local time zone.

12/24

Switches between 12 and 24 hour clock
format.

ALARM SET

Activates the alarm time setting and the
alarm.

02 Yacht Boy 50, GB 19.08.2003 14:27 Uhr Seite 23

8

8

8

2888288828

88

88

88

88

2888288828

88

2888288828

88

LOCK

SUMMER

H/W

SUMMER

ON/OFF

12/24

ALARM SET ALARM Hr.

TIME SET H.T.Z MIN.

H/W

ON/OFF

12/24

SUMMER

SLEEP

ALARM SET ALARM Hr.

TIME SET H.T.Z MIN.

Santiago

New York

C

h
ic

a

Denver

A
s
o

L

SLEEP

Rio de janeiro

g
o

s

le

e

g

n

Honolulu

A

L

z

o

Berlin

o

n

r

d

e

o

Istanb

s

n

M

ul

o

s
c
o

w

Dubai

K

arachi

a

c
c

a

D

k

o
k

g

n

a

B

n

o

to

y

a

y

Hong Kong

g

k

e

e

k

n

o

m

llin

d

T

u

e

y

o

S

W

N

3

TIME SET

For setting the clock in combination with
»HR.« and »MIN.«.

LONDON ... Knob for setting the global time zone.
SUMMER

•

Marks the global time zone with daylight
saving hours set.

LOCK Disables and enables the buttons.

Right side of device

TUNING For tuning to radio stations.
MONO/STEREO Switches between stereo and mono reception

in earphone mode.

Left side of device

VOLUME } Adjusts the volume.

0 Socket for earphones (3.5 mm stereo jack).

DC 3-6V Connection socket for mains adapter (not

Ó supplied), input voltage 3-6 V (200 mA).

OVERVIEW

_____________________________________________________________

02 Yacht Boy 50, GB 19.08.2003 14:27 Uhr Seite 24

Santiago

New

Chicago

Denver

Los Angeles

York

Honolulu

A

London

z

Berlin

o

R

r

io

e

Is

s

d

e

jan

e

iro

Wellington

ta

n

b

M

u

o

l

s

c

o

w

Dubai

K

arachi

a

c

c

a

D

Bangkok

o

y

a

Hong Kong

k

e

k

o

m

T

u
o

Sydney

N

LOCK

SUMMER

TUNINGMONO/STEREO

VOLUME

DC 3-6V

4

ENGLISH

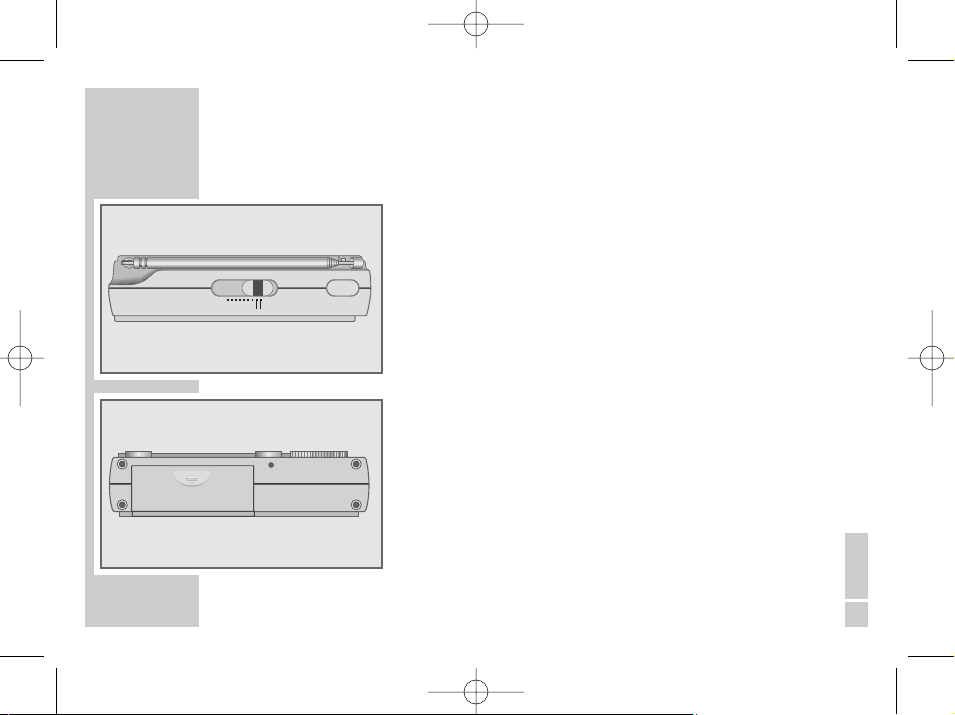

Top of device

SW 1 ... 7 Switches between the wavebands SW
MW FM (short wave, frequency bands 1 to 7), MW

(medium wave) and FM (VHF).

SNOOZE Interrupts the alarm function. Switches on the
LIGHT back light for 12 seconds.

ANTENNA T elescopic antenna for SW and FM reception.

The radio has a built-in rod antenna for
MW reception.

Bottom of device

RESET Returns the device to its original setting.

Battery compartment.

Note:

On the back of the device there are four buttons for fastening the
leather case supplied.

OVERVIEW

_____________________________________________________________

02 Yacht Boy 50, GB 19.08.2003 14:27 Uhr Seite 25

777654321

SW

MWFW

SNOOZE

LIGHT

RESET

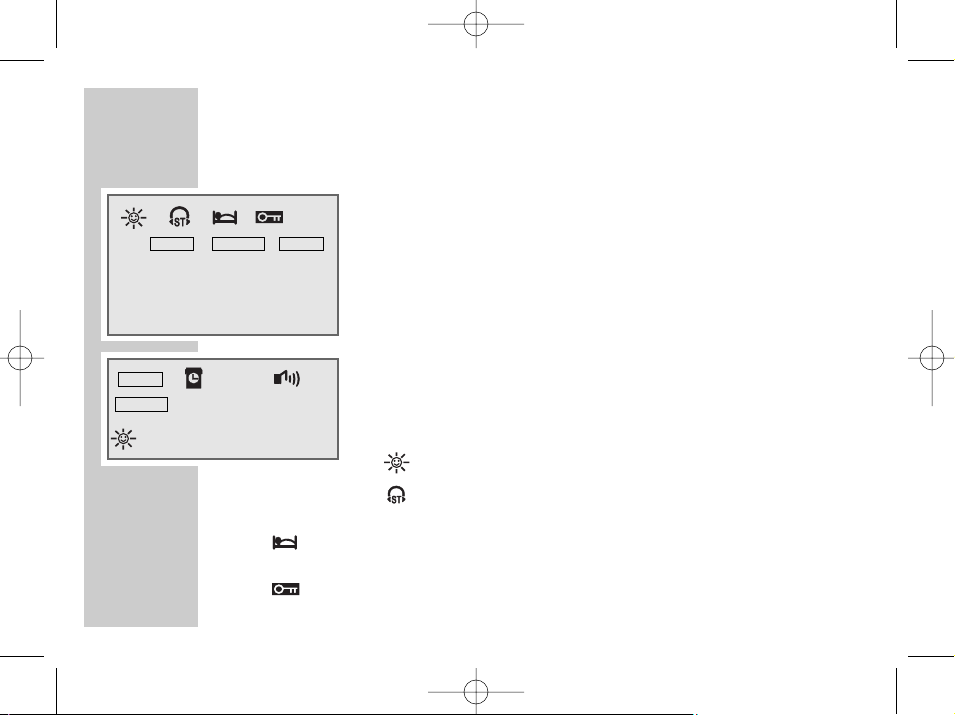

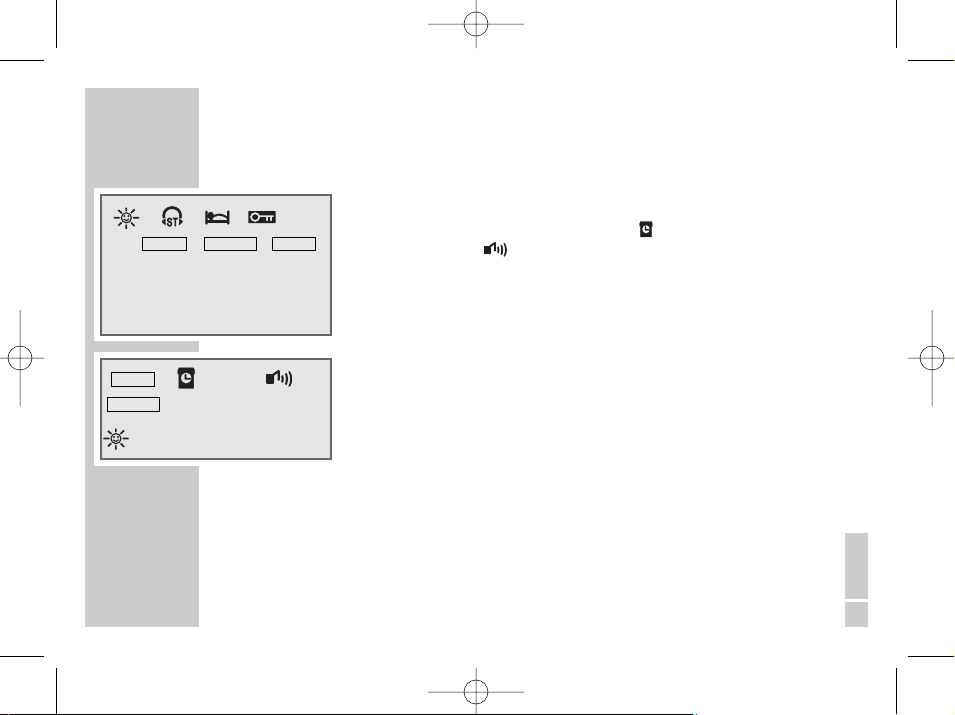

The display

000:0.0

Shows the current time and the frequency.

AM PM Displays 12-hour format.
FM MW Shows the waveband FM (VHF), medium wave (MW)

SW or short wave (SW).
kHz MHz Frequency display for MW (kHz), FM and SW (MHz).
HOME Local time is set.
WORLD GMT time is set.
TUNE Exact tuning display – the optimal setting for a radio

station.
Daylight saving time is set.

Indicates FM stereo reception (earphone operation only).
The alarm is interrupted or the sleep timer is activated.
The key lock is activated.

5

OVERVIEW

_____________________________________________________________

000 0 0

.:.

000 0 0

.:.

FM
MW
SW
AM
PM

AM
PM

kHz
MHz
Mhz

HOME WORLD

- ALARM -

HOME

WORLD

TUNE

1

02 Yacht Boy 50, GB 19.08.2003 14:27 Uhr Seite 26

6

ENGLISH

The batteries are low.

- ALARM - The alarm is activated with a signal tone (» «) or
a radio station (» «).

1

OVERVIEW

_____________________________________________________________

000 0 0

.:.

000 0 0

.:.

FM
MW
SW
AM
PM

AM
PM

kHz
MHz
Mhz

HOME WORLD

- ALARM -

HOME

WORLD

TUNE

1

02 Yacht Boy 50, GB 19.08.2003 14:27 Uhr Seite 27

7

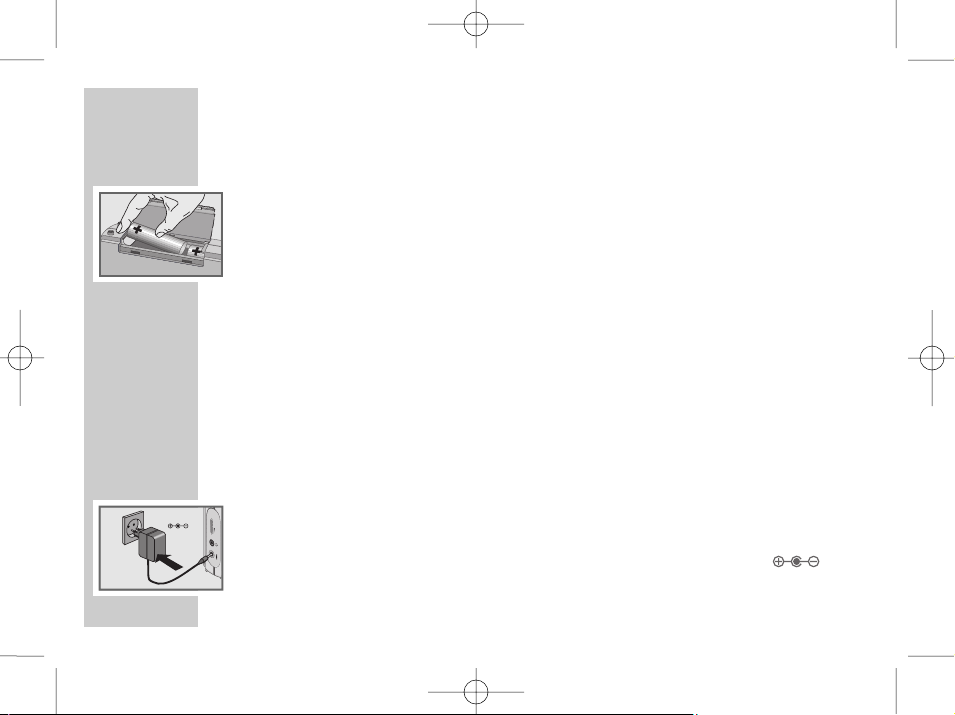

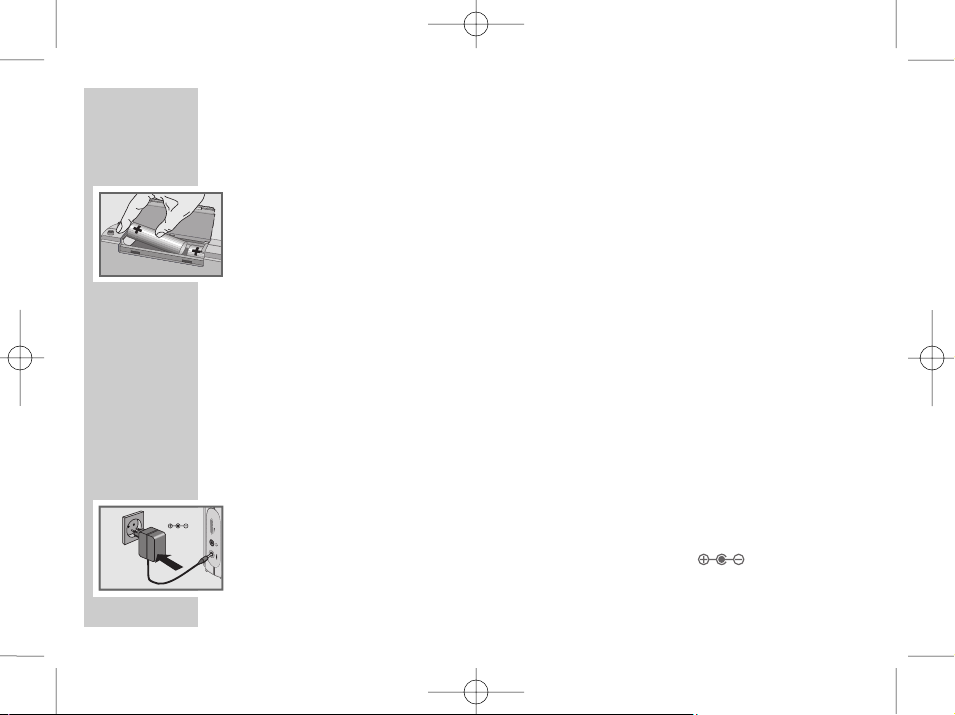

Battery operation

1 Open the battery compartment by pressing the marking and opening the lid.
2 When inserting the batteries (2 x 1.5 V, Mignon type LR6/AM3/AA), obser ve the

polarity marked on the base of the battery compartment.

Notes:

When the batteries are low, » « appears in the display. Take out the batteries when
you know that the device will not be used for a long period of time. The manufacturer
accepts no liability for damage resulting from used batteries.

Environmental note:

Batteries, including those which contain no heavy metal, may not be disposed of with
household waste. Please dispose of used batteries in an environmentally sound manner.
Find out about the legal regulations which apply in your area.

Mains operation (with 6 V/200 mA mains adapter)

Check if the mains voltage on the mains adapter type plate corresponds to your local mains
supply. The only way to disconnect the device from the mains supply is to unplug the adapter.

1 Plug the mains adapter cable into the »DC 3-6V

Ó

« socket on the left of the device.

2 Insert the mains adapter plug in the socket.

– The batteries in the compartment are switched off.

1

POWER SUPPLY

____________________________________________________

02 Yacht Boy 50, GB 19.08.2003 14:27 Uhr Seite 28

VOLUME

DC IN 3-6V

DC 3-6V

8

ENGLISH

Setting the clock

Due to the earth’s rotation, places to the west of you are behind you in time, and places to
the east are ahead of you. Therefore, the earth is divided into 24 hourly time zones. This
system is based on a standard time zone called UTC (Coordinated Universal Time),
previously known as GMT (Greenwich Mean Time). Short wave stations always give the
time according to UTC. Before you set the clock, find out your local time zone.

Setting the local time

When you first switch on the device, or if it has been without a power supply for a lengthy
period, »HOME« and »- : --« appear in the display. The time zone code, for example »5«,
flashes to indicate that the clock has to be set.

1 Set the time zone using the knob on the front of the device.
2 Press »H.T.Z« (on the front of the device).

– Display: for example, »AM« and »12:00« flash.

3 Set the hours using »HR.« and the minutes using »MIN.«.
4 Press »TIME SET« to confirm the setting.

– Display: the current local time.

5 Press »12/24« to switch between 12 and 24 hour clock format.
6 Set daylight saving time if necessary (see page 9).

SETTINGS

_____________________________________________________________

02 Yacht Boy 50, GB 19.08.2003 14:27 Uhr Seite 29

9

Setting daylight saving time

1 Hold down »TIME SET« until the time flashes in the display.
2 Press »H/W SUMMER« to put the clock forward by one hour.
3 Press »TIME SET« to confirm the setting.

– Display: » « and the current summer time.

Changing the local time

1 Hold down »TIME SET« until the time flashes in the display.
2 Set the hours using »HR.« and the minutes using »MIN.«.
3 Press »TIME SET« to confirm the setting.

– Display: the current local time.

Setting GMT

1 Set the time zone using the knob on the front of the device.

– Display: the time in the selected time zone.

Switching the time between local time and GMT

1 Press »H/W SUMMER« to switch between local time and GMT.

– Display: »HOME« or »WORLD«.

SETTINGS

_______________________________________________________________

02 Yacht Boy 50, GB 19.08.2003 14:27 Uhr Seite 30

10

ENGLISH

Setting 12 or 24 hour format

1 Press »12/24« to switch between 12 and 24 hour clock format.

– Display: »AM« or »PM« for 12 hour format.

Setting the alarm time

The alarm time is always set in local time »HOME«. Before you set the alarm time, you must
select the alarm signal (radio station or signal tone).

1 Press »ALARM«.

– Display: »ALARM« flashes.

2 While »ALARM« is flashing, press » ALARM« to select the radio alarm (» «) or

signal tone (» «).
– Display: » « or » « flashes for two seconds and then remains lit.

3 Hold down »ALARM SET« until the alarm time flashes in the display.
4 Set the hours for the alarm time using »HR.« and the minutes using »MIN.«.
5 Press »ALARM SET« to confirm the setting.

– Display: »ALARM - « or » - ALARM«.

SETTINGS

_______________________________________________________________

02 Yacht Boy 50, GB 19.08.2003 14:27 Uhr Seite 31

11

Switching on and off

1 Press »ON/OFF SLEEP« to switch on the device.

– The device switches on with the radio station last selected.

2 Press »ON/OFF SLEEP« to switch off the device.

Radio operation

1 Press »SW 1 ... 7 MW FM« (on the top of the device) to select the wave band.
2 Tune in a radio station using »TUNING« (on the right side of the device).

Notes:

For FM reception pull out the telescopic antenna and tilt it until you receive the best
signal. For short wave reception (SW) the antenna should be upright. For medium wave
reception (MW), align the antenna by turning the device.

3 Adjust the volume using »VOLUME

}« (on the left side of the device).

Listening with earphones

1 Insert the earphone plug (ø 3.5 mm, stereo) into the »0« jack on the left of the device.

– This automatically switches off the loudspeakers.

OPERA TION

___________________________________________

02 Yacht Boy 50, GB 19.08.2003 14:27 Uhr Seite 32

12

ENGLISH

Stereo/mono reception (with earphones only)

If the signal from the FM stereo station is weak, you can improve the sound
quality by switching to mono reception.

1 Press »MONO/STEREO« (on the right of the device) to switch to mono.

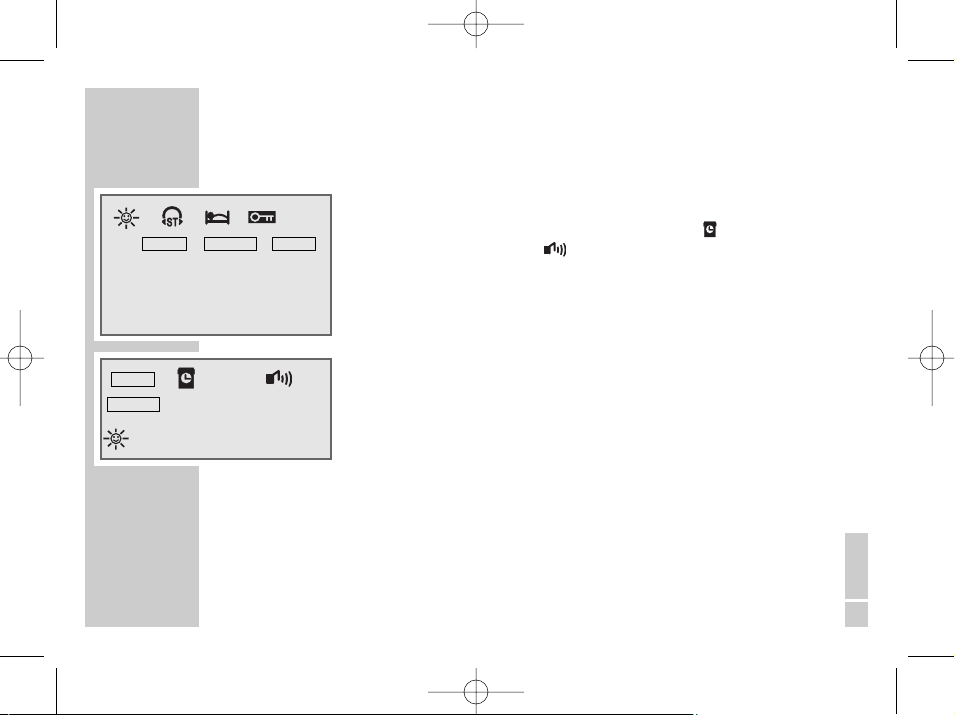

– Display: » « disappears from the display.

2 Press »MONO/STEREO« (on the right of the device) to switch to stereo.

– Display: » «, if a stereo station is being received.

Alarm mode

Displaying the alarm time

1 Press »ALARM SET« briefly.

– Display: the set alarm time.

Alarm with radio station

1 Press »ON/OFF SLEEP« to switch on the device.
2 Press »SW 1 ... 7 MW FM« (on the top of the device) to select the wave band.
3 Tune in a radio station using »TUNING« (on the right side of the device).
4 Adjust the alarm volume using »VOLUME

}« (on the left side of the device).

OPERATION

____________________________________________________________

02 Yacht Boy 50, GB 19.08.2003 14:27 Uhr Seite 33

13

5 Select the radio alarm (» «) by pressing »ALARM«.
6 Press »ON/OFF SLEEP« to switch off the device.

– The device switches the radio on at the set time (alarm duration 1 hour).

Alarm with signal tone

1 Select the signal tone alarm (» «) by pressing »ALARM«.

– The device switches on with the signal tone at the set time (alarm duration 1 hour).
– The signal tone increases in volume for one minute, stopps for a minute and starts

again.

Interrupting the alarm

1 Press »SNOOZE LIGHT« while the alarm is sounding.

– The alarm (signal tone or radio) stops.
– Display: » «.
– The alarm goes off again at 5-minute intervals (alarm duration 1 hour).

Cancelling the alarm for the day

1 Press »ON/OFF SLEEP« while the alarm is sounding.

– The alarm (signal tone or radio) stops.
– If the signal tone alarm is set, the device switches to radio mode.
– The alarm time set is retained for the next day.

OPERATION

____________________________________________________________

02 Yacht Boy 50, GB 21.08.2003 11:47 Uhr Seite 34

14

ENGLISH

Activating and deactivating the alarm

1 To deactivate the alarm, press »ALARM«.

– Display: »ALARM« flashes and then disappears.

2 To activate the alarm, press »ALARM«.

– Display: »ALARM - « or » - ALARM« appears.

Timer mode

The device possesses a sleep timer, which switches it off in radio mode at a preset time.
It is possible to set the switch-on time between 15 and 90 minutes.

Switching on the sleep timer

1 With the radio playing, press and hold down »ON/OFF SLEEP«.

– Display: » « and the sleep time in »60«, »45«, »30«, »15« and »90« intervals.

2 Release »ON/OFF SLEEP« to conclude the setting.

– After the selected switch-off time has elapsed, the device switches off automatically.

Switching off the sleep timer

1 To switch off the sleep timer before the set time, press »ON/OFF SLEEP«.

– The device switches off.

OPERATION

____________________________________________________________

02 Yacht Boy 50, GB 19.08.2003 14:27 Uhr Seite 35

15

General information

Disabling the buttons

1 Press »LOCK« to disable the buttons.

– Display: » «.
– The volume control, stereo/mono switch and frequency band selector are not disabled.

2 Press »LOCK« again to ensable the buttons.

– Display: » « disappears from the display.

Display lighting

1 Press »SNOOZE LIGHT« to switch on the display lighting for 12 seconds.
2 Press »SNOOZE LIGHT« to switch off the display lighting.

Resetting the device

1 To reset the device to its original state, press »RESET« (on the bottom) using an implement

such as a paper clip.
– All saved settings are deleted.

OPERATION

____________________________________________________________

02 Yacht Boy 50, GB 19.08.2003 14:27 Uhr Seite 36

16

ENGLISH

INFORMA TION

_____________________________________________________

Short wave reception

Your radio can receive signals in a number of frequency bands. It does not take long to get
used to tuning to FM and MW stations, since these stations are always at the same places
on the tuning scale because they broadcast at fixed wavelengths and frequencies.

Unfortunately, this is not always the case with short wave stations. Due to atmospheric
conditions, short wave stations must frequently broadcast on different wavelengths. Most
short wave bands are available all over the world and can be used by international
broadcasters. At present these are the only wavelengths which provide listeners with direct
reception over long distances. For this reason, short wave frequencies are not only used by
radio stations, but also by other users such as amateur radio enthusiasts, shipping, aircraft
and radio navigation systems.

If you want to listen to a particular SW station, you need to know the precise frequency and
wavelength. Many short wave stations will send you broadcasting schedules which give you
the information you need. You can also download the information from the Internet.

02 Yacht Boy 50, GB 19.08.2003 14:27 Uhr Seite 37
