Sangean PR-D15 User Manual
Revision 1
GB
PR-D15
GB
1
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including ampliers) that
produce heat.
Do not defeat the safety purpose of the polarized or groundingtype plug. A polarized plug has two blades with one wider
than the other. A grounding type plug has two blades and
a third grounding prong. The wide blade or the third prong
are provided for your safety. If the provided plug does not fit
into your outlet. consult an electrician for replacement of the
obsolete outlet.
Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
Important safety instructions
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
2
Only use attachments/accessories specied by the manufacturer.
Use only with the cart, stand, tripod, bracket, or table specied
by the manufacturer, or sold with the apparatus. When a cart is
used, use caution when moving the cart/apparatus combination
to avoid injury from tip-over.
Unplug this apparatus during lightning storms or when unused
for long periods of time.
Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged. liquid has been
spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate
normally, or has been dropped.
To Reduce the Risk of Fire or Electric Shock, Do not Expose
This Appliance To Rain or Moisture.
The Shock Hazard Marking and Associated Graphical Symbol
is provided on the rear of unit.
Apparatus shall not be exposed to dripping or splashing and no
objects lled with liquids, shall be placed on the apparatus.
11.
12.
13.
14.
15.
16.
17.
GB
3
Excessive sound pressure on ear- and headphones could
impair the hearing ability. Higher setting that idle on the
equalizer leads to higher signal voltages on the output for ear
and headphones.
The power plug should be close to the radio, and easy to be
approached that during the emergency, to disconnect the power
from the radio, just unplug the power plug from the AC power
slot.
Where the MAINS plug or an appliance coupler is used as the
disconnect device, the disconnected device shall remain readily
operable.
IMPORTANT NOTE:
To comply with the FCC RF exposure compliance requirements,
no change to the antenna or the device is permitted. Any
change to the antenna or the device could result in the device
exceeding the RF exposure requirements and void user’s
authority to operate the device.
18.
19.
20.
4
GB
5
Speaker
LCD display
Power / Sleep button
Charging LED indicator
Band button
Alarm button
Menu / Info button
Tuning / Auto seek / Select / Fine tune knob
Volume / tone control
Preset buttons
Antenna
Battery compartment
FM stereo / mono switch
AUX in socket
Earphone socket
DC input socket
Handle
Controls
2
3
1
5
7
17
16
15
14
13
12
11
10
9
4
6
8
Frequency / Time
RDS indicator
Sleep / Snooze indicator
Buzzer alarm indicator
Radio alarm indicator
Stereo indicator
Fine tune indicator
Menu indicator
Battery life indicator
Signal level indicator
LCD display
B
C
E
G
D
F
A
J
I
H
6

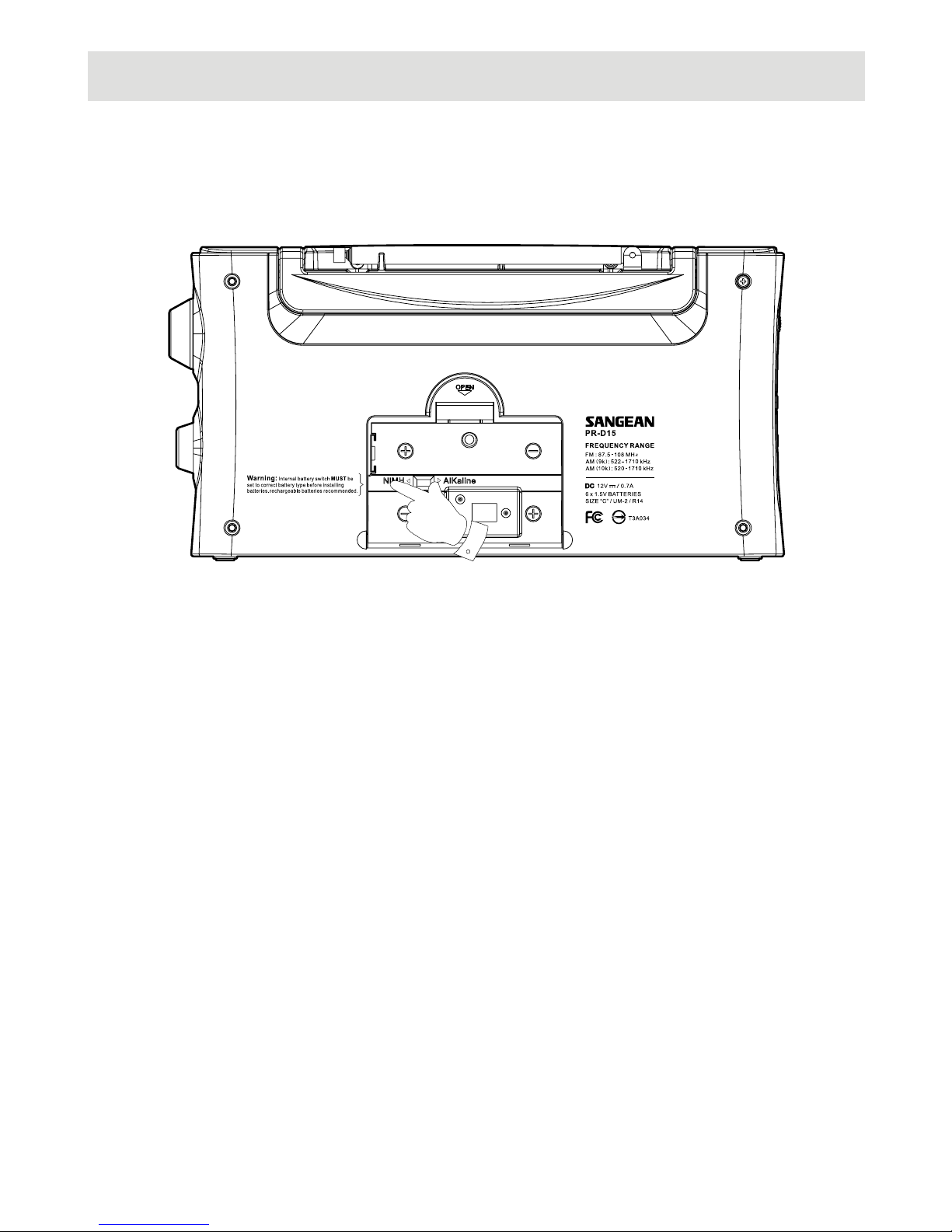

Battery operation using alkaline batteries
1. Remove the battery cover on the back of the unit .
2. Slide the switch inside the battery compartment to the Alkaline
position.
3. Insert 6 LR14 (C size) alkaline batteries into the spaces in the
compartment. Take care to ensure all batteries are inserted with
the correct polarity as shown on the back of the radio. Then replace
the battery cover.
Important:
● when using alkaline batteries the battery switch must be placed
in the alkaline position. Failure to do so could result in serious
damage to the batteries or radio.
● When the batteries are exhausted, you can tell from the battery
life indicator on the top right corner of the display. The radio will
then switch itself off. It may not be possible to switch the radio
back on until the batteries are replaced, or until the radio is
connected to the mains adaptor.
GB
7
● If the radio is not to be used for any extended period of time it is
recommended that the batteries are removed from the radio.
● We would recommend for economy that the unit is used via the
AC adaptor whenever possible with battery operation for occasional
or stand-by use only. If extended listening using batteries is
anticipated, then the use of rechargeable batteries is recommended.
