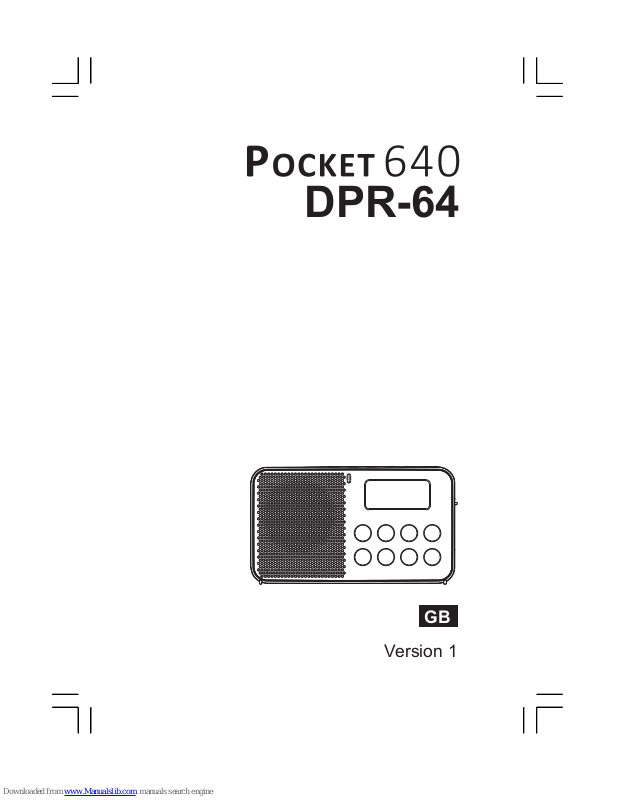

Sangean Pocket 640, DPR-64 User Manual

Version 1

中文

GB

DPR-64

1

Important safety instructions

1. Read and understand all safety and operating instructions
before the radio is operated.

2. Retain instruction: The safety and operating instructions
should be retained for further reference.

3. Heed warnings. All warnings on the appliance and operating
instructions should be followed.

4. Follow all operations and use instructions.

5. Water and moisture: The appliance should not be used near
water. Do not use near a bathtub, washbowl, laundry tub,
kitchen sink, wet basement, swimming pool, etc.

6. Unplug the radio from the AC power outlet before cleaning.
Use only a damp cloth for cleaning the exterior of the radio.

7. Do not place the radio on an unstable cart, stand, bracket or
table. The radio may fall, causing serious personal injury and
damage to the radio.

8. Ventilation: This radio should be situated so that its location
or position does not interfere with its proper ventilation. For
example, the radio should not be used on a bed, sofa, rug or
other soft surfaces that may block the ventilation openings. It
should not be placed in a built-in situation like a cabinet that

may reduce air ow through the ventilation openings.

9. Power sources: The radio should be operated only from the
type of power source indicated on the marking label. If you
are not sure of the type of power supply to your home, consult
your radio dealer or power company.

10. Mains adaptor: The mains adaptor should be positioned so
it is not walked on, pinched, or items placed on top of it. Pay
particular attention to wires at plugs, convenience receptacles,
and the point where they exit from the unit. Unplug the mains
adaptor by gripping the adaptor, not the wire. Operate the
radio using only the current type of power source indicated.
If you are not sure of the type of power supply to your home,
consult your dealer or local power company.

11. Do not overload wall outlets or extension cords. This can

result in a risk of re or electrical shock. Never insert objects

of any kind into the radio through opening. The objects may
touch dangerous voltage points or short out parts. This could

cause a re or electrical shock.

12. If the radio is left unattended or unused for long periods of
time, unplug it from the wall outlet. This will prevent damage
caused by unplug it from the wall outlet. This will prevent
damage caused by lightning or power line surges.

13. If the radio is left unattended and used for a long period
of time, remove the batteries. The batteries may leak and
damage furniture or your radio.

14. Do not attempt to service the receiver yourself. Removing the
cover may expose you to dangerous voltage, and will void the
warranty. Refer all servicing to authorized service personnel.

15. Never push objects of any kind into this radio through opening

as they may touch dangerous voltage points or short-out parts

that could result in a re or electric shock. Never spill liquid of

any kind into the product.

16. The appliance should be serviced by qualified service

personnel when:

The power supply cord or the plug has been damaged.

Objects have fallen or liquid had been spilled into the radio.

The radio has been exposed to rain or water.
The radio does not appear to operate normally or exhibits a

marked change in performance.

The radio has been dropped, or the enclosure damaged.

17. To prevent possible hearing damage, do not listen at
high volume levels for long periods.

2

GB

Controls

1. Page button

2. Preset 1

3. Preset 2

4. Preset 3

5. Preset 4/ Alarm 1 button

6. Preset 5/ Alarm 2 button

7. Speaker

8. Charge / Battery Low indicator

9. LCD display

10. Power / Clock time display button

11. Select/ Sleep timer button

12. Tuning up / down button

13. Volume up / down button

14. Info/Menu button

15. Band button

16. Lock switch

17. Headphone socket

18. Micro USB socket

3

Controls

19. Foldable stand

If needed, when the antenna is fully extended you can

stabilize the radio using the foldable stand located on the rear
of your radio by following the above diagram.

20. Battery compartment

21. Telescopic aerial

22. NiMH/Alkaline batteries switch

23. Strap holder

4

GB

Battery operation

1. Remove the battery compartment cover on the back of the unit by sliding the cover
downwards. Open the battery compartment door.

Note:

Before you insert the batteries, check the NiMH/Alkaline switch position. If you

use non-rechargeable batteries, make sure the NiMH/Alkaline switch which located

inside the battery compartment is switched to Alkaline position. If you use rechargeable

batteries, make sure to switch NiMH/Alkaline switch to NiMH position.

2. Insert two LR6 (AA size) batteries into the space in the compartment. Ensure the
batteries are inserted in accordance with the diagram shown. Close the battery
compartment door.

3. When the battery capacity drops below a certain level the low battery indicator will light.
When you see this indicator you should replace the batteries as soon as it is convenient
to do so. Reduced power, distortion and a “stuttering” sound are also signs that the
batteries may need replacing.

4. If the radio is not to be used for any extended period of time it is recommended that the
batteries are removed from the radio.

Charging the batteries

Make sure the radio is switched off and connected to the power source.

When the battery charge indicator LED flashes green, this indicates the batteries are
charging. Batteries will be fully charged in around 3-5 hours. The battery charge indicator
LED shows steady green light when the battery charging process is complete.

Note:

Duration for charging your batteries fully can vary according to the mAh capacity of the

batteries. Higher mAh batteries require a longer charging time.

5

Using USB cable to charge (European Version)

Use USB cable to connect your radio to any power source with a
USB port (e.g.PC) to charge.

1. Plug the Micro USB end into the Micro USB socket of the radio.

2. Plug the other end of the USB cable into any power source with
USB port (e.g.PC).

Important:

The radio battery may drain instead of charge if radio is connected
to a PC that’s turned off or is in sleep or standby mode, or to a
USB hub, or to a USB port on a keyboard.

Using the USB power adapter (Australian Version)

Use the USB power adapter to provide power to your radio and
charge the battery.

1. Plug the Micro USB end into the Micro USB socket of the radio.

2. Plug the power adapter into a wall socket.

Battery charging indicator

Please note that the battery charging status detection can only be
activated when the radio is in charging mode.

If batteries are already fully
charged, display is shown at right
and the battery charge indicator
LED shows steady green light.

Battery

1

2

Full

During the charging process, if
a battery is detected as faulty/

damaged, a solid square will be

displayed under the corresponding
battery number (see picture right).

Battery

1

2

Fail 1
