SERVICE & OPERATING MANUAL
Original Instructions
Certied Quality
Model G1F
Metallic
Design Level 1
Quality System
ISO 9001 Certied
Environmental Management System
ISO 14001 Certied
Natural Gas-Operated
Diaphragm Pumps
1: PUMP SPECS2: INSTAL & OP3: EXP VIEW4: Gas END5: WET END6: OPTIONAL7: WARRANTY
Certied to CSA Technical Letter No, R-14
Certied to ANSI LC6-2008
Warren Rupp, Inc.
A Unit of IDEX Corporation
800 N. Main St.,
Manseld, Ohio 44902 USA
Telephone 419.524.8388
Fax 419.522.7867
SANDPIPERPUMP.COM
© Copyright 2014 Warren Rupp, Inc.
All rights reserved
sa nd pi pe rp um p. co m
Safety Information
IMPORTANT
Read the safety warnings and instructions in this manual
before pump installation and start-up. Failure to comply with
the recommendations stated in this manual could damage the
pump and void factory warranty.
When the pump is used for materials that tend to settle out
or solidify, the pump should be ushed after each use to
prevent damage. In freezing temperatures the pump should be
completely drained between uses.
CAUTION
Before pump operation, inspect all fasteners for loosening
caused by gasket creep. Retighten loose fasteners to prevent
leakage. Follow recommended torques stated in this manual.
Nonmetallic pumps and plastic components are not UV
stabilized. Ultraviolet radiation can damage these parts and
negatively affect material properties. Do not expose to UV light
for extended periods of time.
WARNING
When used for toxic or aggressive uids, the pump should
always be ushed clean prior to disassembly.
Before maintenance or repair, shut off the compressed gas line,
bleed the pressure, and disconnect the gas line from the pump.
Be certain that approved eye protection and protective clothing
are worn at all times. Failure to follow these recommendations
may result in serious injury or death.
Gasborne particles and loud noise hazards. Wear eye and ear
protection.
In the event of diaphragm rupture, pumped material may
enter the gas end of the pump, and be discharged into the
atmosphere. If pumping a product that is hazardous or toxic,
the gas exhaust must be piped to an appropriate area for safe
containment.
Take action to prevent static sparking. Fire or explosion can
result, especially when handling ammable liquids. The pump,
piping, valves, containers and other miscellaneous equipment
must be properly grounded.
This pump is pressurized internally with gas pressure during
operation. Make certain that all fasteners are in good condition
and are reinstalled properly during reassembly.
kg
Use safe practices when lifting
Grounding the Pump
To be fully groundable, the pumps must be ATEX Compliant. Refer to the nomenclature page for ordering information.
Optional 8 foot long (244 centimeters) Ground Strap is available for easy ground connection.
To reduce the risk of static electrical sparking, this pump must be grounded. Check the local
electrical code for detailed grounding instruction and the type of equipment required.
Refer to nomenclature page for ordering information.
WARNING
Take action to prevent static sparking.
Fire or explosion can result, especially
when handling ammable liquids. The
pump, piping, valves, containers or
other miscellaneous equipment must
be grounded.
sa n d pip er pu mp .c om
g1fmdl1sm-rev0614
Table of Contents
SECTION 1: PUMP SPECIFICATIONS ................1
• Explanation of Nomenclature
• Performance
• Materials
• Dimensional Drawings
SECTION 2: INSTALLATION & OPERATION ......5
• Principle of Pump Operation
• Recommended Installation Guide
• Troubleshooting Guide
SECTION 3: EXPLODED VIEW ...........................8
• Composite Repair Parts Drawing
• Composite Repair Parts List
• Material Codes
1: PUMP SPECS2: INSTAL & OP3: EXP VIEW4: AIR END5: WET END6: OPTIONAL7: WARRANTY
SECTION 4: GAS END .....................................11
• Aluminum Gas Valve Assembly
• Stainless Steel Gas Valve Assembly
• Pilot Valve Assembly
• Intermediate Assembly
SECTION 5: WET END .....................................14
• Diaphragm Drawings
• Diaphragm Servicing
• Pumping Hazardous Liquids
SECTION 7: WARRANTY & CERTIFICATES ....17
• Warranty
• CE Declaration of Conformity - Machinery
• ATEX Declaration of Conformity
• ATEX Summary of Markings
sa n d pip er pu mp .c om
g1fmdl1sm-rev0614
Explanation of Pump Nomenclature
II 2GD T5
Your Model #:
G
__ ____ __ __ __ __ __ __ __ __ __ ____
(ll in from pump
nameplate)
1: PUMP SPECS
Pump Pump Check Design Wetted Diaphragm/
Brand Size Valve Level Material
Model #:
G XX X X X X X X X X X XX
Pump Brand
G Natural Gas Operated
Pump Size
1F 1"
Check Valve Type
B Ball
Design Level
1 Design Level
Wetted Material
S Stainless Steel
A Aluminum
Diaphragm/Check Valve Materials
B Nitrile/Nitrile
T PTFE -Nitrile/PTFE
5 Nitrile/PTFE
Check Valve Seat
T Virgin PTFE
A Aluminum
S Stainless Steel
Non-Wetted Material Options
A Painted Aluminum
B Unpainted Aluminum with Stainless Steel Gas Valve
D Unpainted Aluminum with Stainless Steel Gas Valve with FKM O-rings
X Unpainted Aluminum
0 Unpainted Aluminum/FKM Elastomer
V Painted Aluminum/ FKM Elastomer
Porting Options
N NPT Threads
B BSP (Tapered) Threads
R 150# Raised Face 1" ANSI Flange w/ Threaded Pipe Connections
W
Pump Style
S Standard
Mufer Options
X NoMuferPermitted*
Check Valve
150# Welded Raised Face 1" ANSI Flanged Manifolds
Check Valve Non-Wetted
Seat Material Options Style Options Options
Porting Pump Mufer Pump
Your Serial #: (ll in from pump nameplate) _____________________________________
ATEX Detail
(1)
1 • Model G1F Metallic
II 2G c T5
II 3/2 G c T5
II 2D c T100°C †
Models equipped with Wetted Options A or S, Non-Wetted Options A, B, D, X, 0, or V,
Pump Option X.
Note: See ATEX Explanation of Type Examination Certicate
sa n d pip er pu mp .c om
g1fmdl1sm-rev0614
Performance
MODEL G1F Metallic Performance Curve
G1F Metallic
SUCTION/DISCHARGE PORT SIZE
• 1"
CAPACITY
• 0 to 45 gallons per minute
(0 to 170 liters per minute)
GAS VALVE
• No-lube, no-stall design
SOLIDS-HANDLING
• Up to .25 in. (6mm)
HEADS UP TO
• 100 psi or 231 ft. of water
(7 bar or 70 meters)
MAXIMUM OPERATING PRESSURE
• 100 psi (7 bar)
DISPLACEMENT/STROKE
• .11 Gallon / .42 liter
SHIPPING WEIGHT
• Aluminum 28 lbs. (13kg)
• Stainless Steel 43 lbs. (20kg)
These pump models are designed to pump the following uids:
Crude Oil, Salt Water, Drilling Mud, Condensate, Lubrication Oils,
Glycol, Caustic Liquids, and Acids.”
HEAD
Performance based on the following: elastomer fitted pump, flooded suction, water at ambient conditions.
PSI
BAR
5(8.5)
100
7
6
5
4
3
2
1
0
100 PSI (6.8 Bar)
80
80 PSI (5.44 Bar)
60
60 PSI (4.08 Bar)
40
40 PSI (2.72 Bar)
20
20 PSI (1.36 Bar) Gas Inlet Pressure
0
0 5 10 15 20
Exhaust Gas: The exhausted natural gas must be vented to a low pressure safe location in accordance with
local re safety and environmental codes, or in the absence of local codes, an industry or nationally recognized
code having jurisdiction over the specic installations, and/or CAN/CGA B149, Installation Codes
The use of other materials and varying hydraulic conditions may result in deviations in excess of 5%.
10(17)
15(25.5)
20(34)
25(42.5)
30(51)
35(59.5)
U.S. Gallons per minute
Liters per minute
CAPACITY
40(68)
25 30 35 40 45
160140
NPSHR
1: PUMP SPECS
METERS
FEET
9.1
30
7.6
25
6
20
4.5
15
3
10
1.5
5
50
180120100806040200
Materials
Material Prole:
CAUTION! Operating temperature limitations are as follows:
FKM: (Fluorocarbon) Shows good resistance to a wide range
of oils and solvents; especially all aliphatic, aromatic and
halogenated hydrocarbons, acids, animal and vegetable oils.
Hot water or hot aqueous solutions (over 70°F(21°C)) will
attack FKM.
Nitrile: General purpose, oil-resistant. Shows good solvent, oil,
water and hydraulic uid resistance. Should not be used with
highly polar solvents like acetone and MEK, ozone, chlorinated
hydrocarbons and nitro hydrocarbons.
Virgin PTFE: (PFA/TFE) Chemically inert, virtually impervious.
Very few chemicals are known to chemically react with PTFE;
molten alkali metals, turbulent liquid or gaseous uorine and
a few uoro-chemicals such as chlorine triuoride or oxygen
diuoride which readily liberate free uorine at elevated
temperatures.
Maximum and Minimum Temperatures are the limits for which these materials can be operated.
Temperatures coupled with pressure affect the longevity of diaphragm pump components.
Maximum life should not be expected at the extreme limits of the temperature ranges.
Metals:
Stainless Steel: Equal to or exceeding ASTM specication A743 CF-8M for corrosion
resistant iron chromium, iron chromium nickel and nickel based alloy castings for
general applications. Commonly referred to as 316 Stainless Steel in the pump industry.
Forspecicapplications,alwaysconsulttheChemicalResistanceChart.
Operating
Temperatures:
Max. Min.
350°F
177°C
190°F
88°C
220°F
104°C
-40°F
-40°C
-10°F
-23°C
-35°F
-37°C
Ambient temperature range: -20°C to +40°C
Process temperature range: -20°C to +80°C for models rated as category 1 equipment
-20°C to +100°C for models rated as category 2 equipment
In addition, the ambient temperature range and the process temperature range do not exceed the operating temperature range of the applied non-metallic parts as listed in the manuals of the pumps.
sa n d pip er pu mp .c om
Model G1F Metallic • 2
g1fmdl1sm-rev0614
Dimensional Drawings
10.25
260.35
6.40
162.43
12.03
305.56
.41
10.32
1.22
30.96
5.13
130.18
SUCTION PORT
1" NPT
1" NPT EXHAUST PORT
9.09
230.80
1.63
41.28
5.00
127
6.39
162.31
AIR INLET
1/2 NPT
DISCHARGE PORT
1" NPT
G1F Metallic - NPT
Dimensions in inches (mm dimensions in brackets). Dimensional Tolerance:±1/8" (± 3mm)
The dimensions on this drawing are for reference only. A certied drawing can be requested if physical dimensions are needed.
1: PUMP SPECS
10.25
260.35
5.13
130.18
12.88
327.09
6.40
162.43
1" NPT EXHAUST PORT
1.22
30.96
.41
10.32
SUCTION PORT
1" NPT
12.03
305.56
9.09
230.80
DISCHARGE PORT
1" NPT
AIR INLET
41.28
5.00
127
1.63
1/2 NPT
6.39
162.31
4X
3.87
98.35
R.16
3.97
6.75
171.45
5.00
127
8.16
207.19
3 • Model G1F Metallic
sa n d pip er pu mp .c om
g1fmdl1sm-rev0614
Dimensional Drawings
4.64
117.73
3.87
98.17
3.93
99.89
7.44
188.98
9.10
231.14
3.22
81.76
14.04
356.50
DISCHARGE PORT
1" 150# ANSI RF FLANGE
SUCTION PORT
1" 150# ANSI RF FLANGE
10.25
260.35
5.13
130.18
.13
3.18
2.00
50.80
2.00
50.80
4.18
106.29
8.37
212.71
16.04
407.30
1" NPT EXHAUST PORT
4.64
117.73
3.87
98.17
3.93
99.89
7.44
188.98
9.10
231.14
3.22
81.76
14.04
356.50
DISCHARGE PORT
1" 150# ANSI RF FLANGE
SUCTION PORT
1" 150# ANSI RF FLANGE
G1F Metallic - ANSI Flange
Dimensions in inches (mm dimensions in brackets). Dimensional Tolerance:±1/8" (± 3mm)
The dimensions on this drawing are for reference only. A certied drawing can be requested if physical dimensions are needed.
10.25
1" NPT EXHAUST PORT
.13
3.18
260.35
8.37
212.71
5.13
4.18
106.29
130.18
2.00
50.80
3.54
89.81
4X
.38
9.53
14.04
356.50
MOUNTING HOLES
16.04
407.30
2.00
50.80
9.10
231.14
4.64
117.73
3.87
DISCHARGE PORT
1" 150# ANSI RF FLANGE
SUCTION PORT
1" 150# ANSI RF FLANGE
3.22
81.76
3.93
99.89
98.17
7.44
188.98
1: PUMP SPECS
7.44
188.98
3.22
81.76
2.09
53.18
AIR INLET
1/2" NPT
sa n d pip er pu mp .c om
g1fmdl1sm-rev0614
6.73
171.07
BOTTOM VIEW
Model G1F Metallic • 4
4.19
106.43
5.31
135
Principle of Pump Operation
SAFE AIR
EXHAUST
DISPOSAL
AREA
MUFFLER
Gas-Operated Double Diaphragm pumps are powered by
compressed gas, nitrogen or natural gas.
2: INSTAL & OP
Discharge
Stroke
Gas Line
Discharged
Fluid
Suction
Stroke
The main directional (gas) control valve
compressed gas to an gas chamber, exerting uniform
pressure over the inner surface of the diaphragm
same time, the exhausting gas
diaphragm
is directed through the gas valve assembly(s) to an exhaust
port
.
④
As inner chamber pressure
pressure
together creating discharge on one side and suction on the
opposite side. The discharged and primed liquid’s directions
are controlled by the check valves (ball or ap)
The pump primes as a result of the suction stroke. The
suction stroke lowers the chamber pressure
the chamber volume. This results in a pressure differential
necessary for atmospheric pressure
through the suction piping and across the suction side check
valve and into the outer uid chamber
Suction (side) stroking also initiates the reciprocating
(shifting, stroking or cycling) action of the pump. The suction
diaphragm’s movement is mechanically pulled through its
stroke. The diaphragm’s inner plate makes contact with an
actuator plunger aligned to shift the pilot signaling valve.
Once actuated, the pilot valve sends a pressure signal to the
opposite end of the main directional gas valve, redirecting the
compressed gas to the opposite inner chamber.
(P2), the rod
③
(P1) exceeds liquid chamber
connected diaphragms shift
⑤
distributes
①
. At the
②
from behind the opposite
orientation.
⑥
(P3) increasing
(P4) to push the uid
.
⑦
5 • Model G1F Metallic
Primed
Fluid

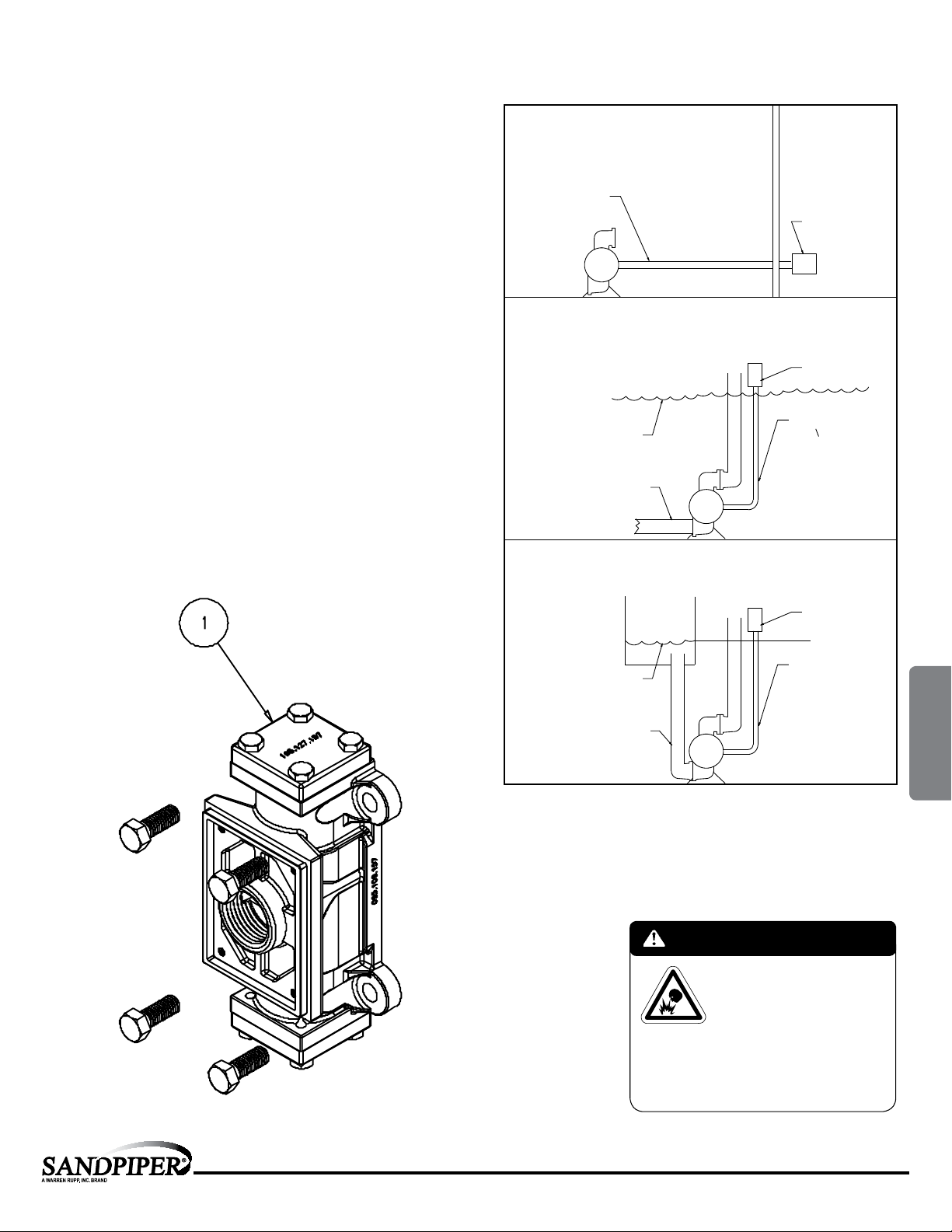

SUBMERGED ILLUSTRATION
MUFFLER
LIQUID
LEVEL
SUCTION
LINE
Pump can be submerged if the pump materials of construction
are compatible with the liquid being pumped. The gas exhaust
must be piped above the liquid level. When the pumped product
source is at a higher level than the pump (ooded suction
condition), pipe the exhaust higher than the product source to
prevent siphoning spills.
sa n d pip er pu mp .c om
g1fmdl1sm-rev0614
1" DIAMETER AIR
EXHAUST PIPING
Recommended Installation Guide
piping must be supported

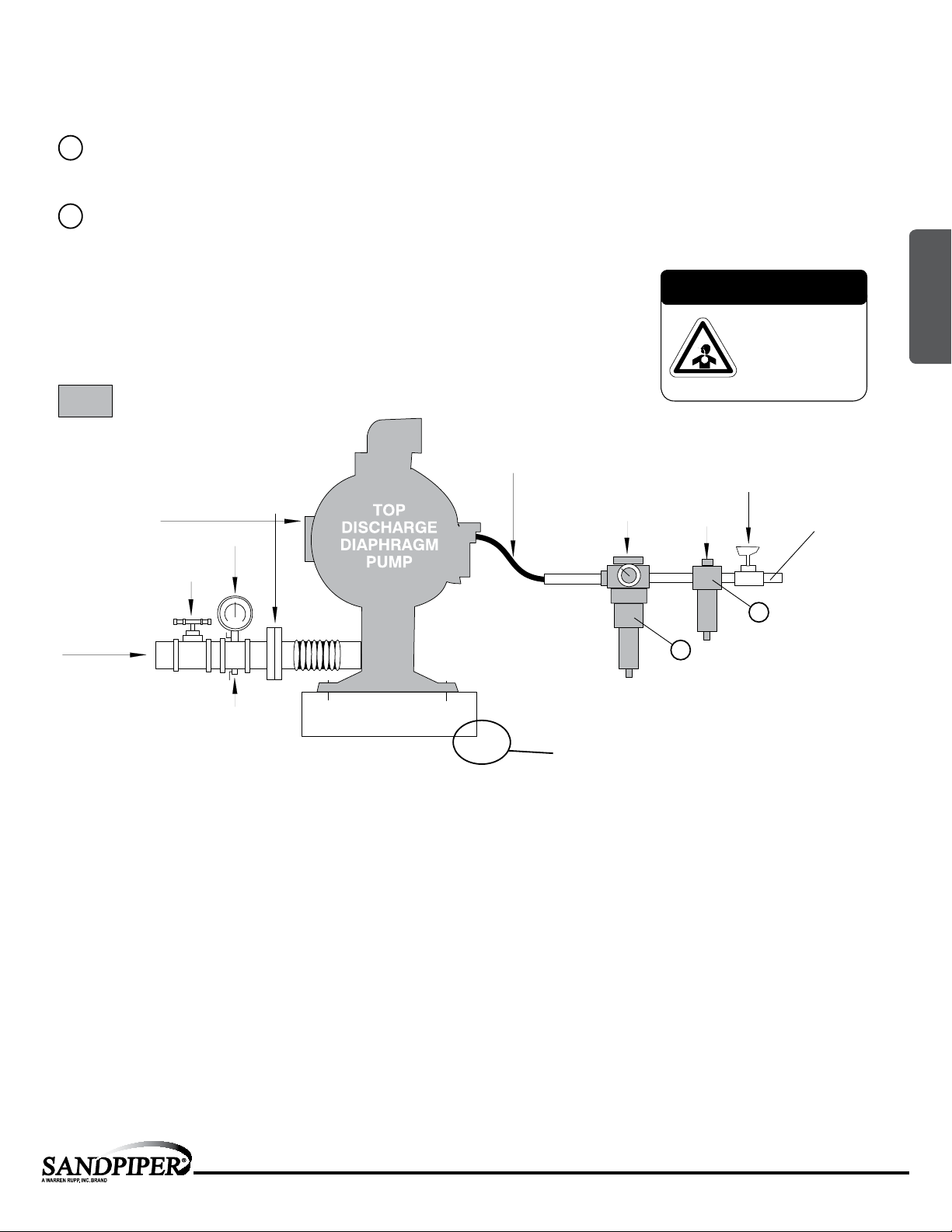

Top Discharge Ball Valve Pump
020.063.000 Filter
1
VENTING WARNING: This lter is equipped with a stainless steel manual drain. The port is 1/8" NPT. When draining moisture from the lter, rst shut off the
natural gas supply.
020.058.000 REGULATOR WITH GAGE
2
PRESSURE WARNING: This regulator is to be installed at point of use with the pump. The maximum gas supply is 400psi. Full line pressure needs to be
regulated below 400psi prior to the regulator installation position.
VENTING WARNING: This regulator is equipped with a 1/4" NPT vent port. In the event of a diaphragm
rupture, natural gas can be exhausted into the surrounding environment. Connect a conductive hose or
pipe to the vent port to send the escaping natural gas to a safe area for gas reclamation. Make sure to
ground the regulator, hose, and/or pipe.
Available from Warren Rupp
Flexible
Conductive
Connection
Pipe Connection
(Style Optional)
Natural Gas Exhaust
Shut-Off
SUCTION
Gauge
Valve
Flexible
Connection
Drain Port
Regulator
w/Gauge
CAUTION
Gas Shut-Off
Filter
2
The gas exhaust should
be piped to an area
for safe disposition
of the product being
pumped, in the event of
a diaphragm failure.
Valve
Natural gas
supply conductive
Natural Gas Inlet
1
2: INSTAL & OP
The pump must be rigidly mounted in the horizontal position with
fasteners to a conductive base or natural ground.
Installation And Start-Up
Locate the pump as close to the product being pumped as possible. Keep the suction line length and number of ttings to a minimum. Do not reduce the suction line
diameter.
Gas Supply
Connect the pump gas inlet to an gas supply with sufcient capacity and pressure to achieve desired performance. A pressure regulating valve should be installed to
insure gas supply pressure does not exceed recommended limits.
Gas Valve Lubrication
The gas distribution system is designed to operate WITHOUT lubrication. This is the standard mode of operation. If lubrication is desired, install an gas line lubricator
set to deliver one drop of SAE 10 non-detergent oil for every 20 SCFM (9.4 liters/sec.) of gas the pump consumes. Consult the Performance Curve to determine gas
consumption.
Gas Line Moisture
Water in the compressed gas supply may cause icing or freezing of the exhaust gas, causing the pump to cycle erratically or stop operating. Water in the gas supply
can be reduced by using a point-of-use gas dryer.
Gas Inlet And Priming
To start the pump, slightly open the gas shut-off valve. After the pump primes, the gas valve can be opened to increase gas ow as desired. If opening the valve
increases cycling rate, but does not increase the rate of ow, cavitation has occurred. The valve should be closed slightly to obtain the most efcient gas ow to pump
ow ratio.
sa n d pip er pu mp .c om
g1fmdl1sm-rev0614
Model G1F Metallic • 6
Troubleshooting Guide
Symptom: Potential Cause(s): Recommendation(s):
Pump Cycles Once
Pump Will Not Operate
/ Cycle
Pump Cycles and Will
2: INSTAL & OP
Not Prime or No Flow
Pump Cycles Running
Sluggish / Stalling,
Flow Unsatisfactory
Product Leaking
Through Exhaust
Premature Diaphragm
Failure
Unbalanced Cycling
Deadhead (system pressure meets or exceeds gas
supply pressure).
Gas valve or intermediate gaskets installed incorrectly. Install gaskets with holes properly aligned.
Bent or missing actuator plunger. Remove pilot valve and inspect actuator plungers.
Pump is over lubricated. Set lubricator on lowest possible setting or remove. Units are designed for lube free operation.
Lack of gas (line size, PSI, CFM). Check the gas line size and length, compressor capacity (HP vs. cfm required).
Check gas distribution system. Disassemble and inspect main gas distribution valve, pilot valve and pilot valve actuators.
Discharge line is blocked or clogged manifolds. Check for inadvertently closed discharge line valves. Clean discharge manifolds/piping.
Deadhead (system pressure meets or exceeds gas
supply pressure).
Blocked gas exhaust mufer. Remove mufer screen, clean or de-ice, and re-install.
Pumped uid in gas exhaust mufer. Disassemble pump chambers. Inspect for diaphragm rupture or loose diaphragm plate assembly.
Pump chamber is blocked. Disassemble and inspect wetted chambers. Remove or ush any obstructions.
Cavitation on suction side. Check suction condition (move pump closer to product).
Check valve obstructed. Valve ball(s) not seating
properly or sticking.
Valve ball(s) missing (pushed into chamber or
manifold).
Valve ball(s) / seat(s) damaged or attacked by product. Check Chemical Resistance Guide for compatibility.
Check valve and/or seat is worn or needs adjusting. Inspect check valves and seats for wear and proper setting. Replace if necessary.
Suction line is blocked. Remove or ush obstruction. Check and clear all suction screens or strainers.
Excessive suction lift. For lifts exceeding 20’ of liquid, lling the chambers with liquid will prime the pump in most cases.
Suction side gas leakage or gas in product. Visually inspect all suction-side gaskets and pipe connections.
Pumped uid in gas exhaust mufer. Disassemble pump chambers. Inspect for diaphragm rupture or loose diaphragm plate assembly.
Over lubrication. Set lubricator on lowest possible setting or remove. Units are designed for lube free operation.
Icing. Remove mufer screen, de-ice, and re-install. Install a point of use gas drier.
Clogged manifolds. Clean manifolds to allow proper gas ow.
Deadhead (system pressure meets or exceeds gas
supply pressure).
Cavitation on suction side. Check suction (move pump closer to product).
Lack of gas (line size, PSI, CFM). Check the gas line size, length, compressor capacity.
Excessive suction lift. For lifts exceeding 20’ of liquid, lling the chambers with liquid will prime the pump in most cases.
Gas supply pressure or volume exceeds system hd. Decrease inlet gas (press. and vol.) to the pump. Pump is cavitating the uid by fast cycling.
Undersized suction line. Meet or exceed pump connections.
Restrictive or undersized gas line. Install a larger gas line and connection.
Suction side gas leakage or gas in product. Visually inspect all suction-side gaskets and pipe connections.
Suction line is blocked. Remove or ush obstruction. Check and clear all suction screens or strainers.
Pumped uid in gas exhaust mufer. Disassemble pump chambers. Inspect for diaphragm rupture or loose diaphragm plate assembly.
Check valve obstructed. Disassemble the wet end of the pump and manually dislodge obstruction in the check valve pocket.
Check valve and/or seat is worn or needs adjusting. Inspect check valves and seats for wear and proper setting. Replace if necessary.
Entrained gas or vapor lock in chamber(s). Purge chambers through tapped chamber vent plugs. Purging the chambers of gas can be dangerous.
Diaphragm failure, or diaphragm plates loose. Replace diaphragms, check for damage and ensure diaphragm plates are tight.
Diaphragm stretched around center hole or bolt holes. Check for excessive inlet pressure or gas pressure. Consult Chemical Resistance Chart for compat-
Cavitation. Enlarge pipe diameter on suction side of pump.
Excessive ooded suction pressure. Move pump closer to product. Raise pump/place pump on top of tank to reduce inlet pressure.
Misapplication (chemical/physical incompatibility). Consult Chemical Resistance Chart for compatibility with products, cleaners, temperature limitations
Incorrect diaphragm plates or plates on backwards,
installed incorrectly or worn.
Excessive suction lift. For lifts exceeding 20’ of liquid, lling the chambers with liquid will prime the pump in most cases.
Undersized suction line. Meet or exceed pump connections.
Pumped uid in gas exhaust mufer. Disassemble pump chambers. Inspect for diaphragm rupture or loose diaphragm plate assembly.
Suction side gas leakage or gas in product. Visually inspect all suction-side gaskets and pipe connections.
Check valve obstructed. Disassemble the wet end of the pump and manually dislodge obstruction in the check valve pocket.
Check valve and/or seat is worn or needs adjusting. Inspect check valves and seats for wear and proper setting. Replace if necessary.
Entrained gas or vapor lock in chamber(s). Purge chambers through tapped chamber vent plugs.
Increase the inlet gas pressure to the pump. Pump is designed for 1:1 pressure ratio at zero ow.
(Does not apply to high pressure 2:1 units).
Increase the inlet gas pressure to the pump. Pump is designed for 1:1 pressure ratio at zero ow.
(Does not apply to high pressure 2:1 units).
Disassemble the wet end of the pump and manually dislodge obstruction in the check valve pocket.
Clean out around valve ball cage and valve seat area. Replace valve ball or valve seat if damaged.
Use heavier valve ball material.
Worn valve ball or valve seat. Worn ngers in valve ball cage (replace part). Check Chemical
Resistance Guide for compatibility.
Increase the inlet gas pressure to the pump. Pump is designed for 1:1 pressure ratio at zero ow.
(Does not apply to high pressure 2:1 units).
ibility with products, cleaners, temperature limitations and lubrication.
Install Back pressure device (Tech bulletin 41r). Add accumulation tank or pulsation dampener.
and lubrication.
Check Operating Manual to check for correct part and installation. Ensure outer plates have not been
worn to a sharp edge.
For additional troubleshooting tips contact After Sales Support at service.warrenrupp@idexcorp.com or 419-524-8388
7 • Model G1F Metallic
sa n d pip er pu mp .c om
g1fmdl1sm-rev0614
Composite Repair Parts Drawing
Torque: 90 in/lbs
12
8
18
4
17
25
7
21
26
3
16
1
5
14
28
27
6
23
15
14
24
11
31
Torque: 90 in/lbs
32
ATTACH EYELET TO ONE OF THE FOUR
CAPSCREWS ITEM # 11
20
9
30
2
29
13
3: EXP VIEW
10
Torque: 350 in/lbs
OPTIONAL OVERLAY
Service & Repair Kits
476.228.000 Gas End Kit
Seals, O-Rings, Gaskets, Retaining Rings,
Valve Assembly and Pilot Valve Assembly
476.228.363 Gas End Kit
FKM Seals, O-Rings, Gaskets, Retaining Rings,
Valve Assembly and Pilot Valve Assembly
476.204.360 Wetted End Kit
Nitrile Diaphagms, Nitrle Check Balls and PTFE
Check Valve Seats
476.204.649 Wetted End Kit
Nitrile Diaphragms, PTFE Overlay Diaphragms,
PTFE Check Balls and PTFE Check Valve Seats
476.204.672 Wetted End Kit
Nitrile Diaphragms, PTFE Check Balls and PTFE
Check Valve Seats
23
Torque: 450 in/lbs
2
29
19
30
9
OPTIONAL METALLIC SEAT
476.319.000 Gas End Wear Kit
Nitrile 0-rings, Bumpers and Seals
476.319.363 Gas End Wear Kit
FKM 0-rings, Bumpers, and Seals
474.008.360 Wet End Wear Kit
Nitrile Diaphagms
474.015.604 Wet End Wear Kit
Nitrile Backer Diaphragms PTFE
Overlay Diaphragms
22
30
22
sa n d pip er pu mp .c om
g1fmdl1sm-rev0614
Model G1F Metallic • 8
Composite Repair Parts List
Item Part Number Description Qty
1 031-179-000 Stainless Steel Gas Valve Assembly
(use with Option B) 1
031-179-363 Stainless Steel Gas Valve Assembly
with FKM O-rings (used with Option D) 1
031-183-000 Gas Valve Assembly 1
031-183-363 Gas Valve Assembly 1
2 050-028-360 Ball, Check 4
050-028-600 Ball, Check 4
3 070-012-170 Bushing 2
4 095-110-000 Pilot Valve Assembly 1
095-110-363 Pilot Valve Assembly with FKM O-rings 1
5 114-025-157 Intermediate Bracket 1
6 132-019-360 Bumper, Diaphragm 2
132-019-363 Bumper, Diaphragm 2
7 135-036-506 Bushing, Plunger 2
8 165-120-000 Cap, Gas Inlet Assembly 1
9 170-044-330 Capscrew, Hex Hd 5/16-18 X .1.00 16
10 170-045-330 Capscrew, Hex Hd 5/16-18 X 1.25 16
3: EXP VIEW
11 170-069-330 Capscrew, Hex Hd 5/16-18 X 1.75 4
12 170-006-330 Capscrew, Hex 3/8-16 X 1.00 4
13 196-173-157 Chamber, Outer 2
196-173-110 Chamber, Outer 2
14 286-008-360 Diaphragm 2
15 286-015-604 Diaphragm, Overlay 2
16 360-093-360 Gasket, Natural Gas Valve 1
17 360-114-360 Gasket, Pilot Valve 1
18 360-104-379 Gasket, Gas Inlet 1
19 518-175-156 Manifold, Suction 1
518-175-156E Manifold, Suction 1"BSP (Tapered) 1
518-175-156W Welded Raised Face 150#
1" ANSI Flanged Manifold 1
518-175-110 Manifold, Suction 1
518-175-110E Manifold, Suction 1"BSP (Tapered) 1
518-175-110W Welded Raised Face 150#
1" ANSI Flanged Manifold 1
20 518-176-156 Manifold, Discharge 1
518-176-156E Manifold, Discharge 1"BSP (Tapered) 1
518-176-156W Welded Raised Face 150#
1" ANSI Flanged Manifold 1
518-176-110 Manifold, Discharge 1
518-176-110E Manifold, Discharge 1"BSP (Tapered) 1
518-176-110W Welded Raised Face 150#
1" ANSI Flanged Manifold 1
Item Part Number Description Qty
21 560-001-363 O-Ring 2
560-001-360 O-Ring 2
22 560-091-360 O-Ring (metallic seats only) 8
560-091-611 O-Ring (metallic seats only) 8
23 612-022-330 Plate, Inner Diaphragm 2
24 612-108-157 Plate, Outer Diaphragm Assembly 2
612-101-110 Plate, Outer Diaphragm Assembly 2
25 620-022-115 Pin, Actuator 2
26 675-042-115 Ring, Retaining 2
27 685-060-120 Rod, Diaphragm 1
28 720-010-363 Seal, U-Cup 2
720-010-375 Seal, U-Cup 2
29 722-098-600 Seat, Check Valve 4
722-098-110 Seat, Check Valve 4
722-098-150 Seat, Check Valve 4
30 900-004-330 Washer, Lock, 5/16 16
31 901-038-330 Flat, Washer 4
32 920-025-000 Ground Strap 1
Parts not shown used with Raised Face ANSI Flange Options R and W:
170.043.330 Hex Cap Screw 4
326.050.080 Mounting Foot 2
545.003.330 Hex Nut 4
900.001.330 Lock Washer 4
901.002.330 Flat Washer 8
Parts not shown used with Raised Face ANSI Flange Option R ONLY:
334.112.110 1" ANSI 150# Raised Face Flange and
Threaded Pipe Connection 2
538.035.110 1" NPT Pipe Nipple x 1 1/2 Long 2
LEGEND:
= Items contained within Gas End Kits
= Items contianed within Wet End Kits
Note: Kits contain components specic to the material codes.
ATEX Compliant
9 • Model G1F Metallic
sa n d pip er pu mp .c om
g1fmdl1sm-rev0614
Material Codes - The Last 3 Digits of Part Number
000.....Assembly, sub-assembly;
and some purchased items
010.....Cast Iron
015.....Ductile Iron
020.....Ferritic Malleable Iron
080.....Carbon Steel, AISI B-1112
110 .....Alloy Type 316 Stainless Steel
111 ..... Alloy Type 316 Stainless Steel
(Electro Polished)
112 .....Alloy C
113 .....Alloy Type 316 Stainless Steel
(Hand Polished)
114 .....303 Stainless Steel
115 .....302/304 Stainless Steel
117 .....440-C Stainless Steel (Martensitic)
120.....416 Stainless Steel
(Wrought Martensitic)
148.....Hardcoat Anodized Aluminum
150.....6061-T6 Aluminum
152.....2024-T4 Aluminum (2023-T351)
155.....356-T6 Aluminum
156.....356-T6 Aluminum
157.....Die Cast Aluminum Alloy #380
158.....Aluminum Alloy SR-319
162.....Brass, Yellow, Screw Machine Stock
165.....Cast Bronze, 85-5-5-5
166.....Bronze, SAE 660
170.....Bronze, Bearing Type,
Oil Impregnated
180.....Copper Alloy
305.....Carbon Steel, Black Epoxy Coated
306.....Carbon Steel, Black PTFE Coated
307.....Aluminum, Black Epoxy Coated
308.....Stainless Steel, Black PTFE Coated
309.....Aluminum, Black PTFE Coated
313.....Aluminum, White Epoxy Coated
330.....Zinc Plated Steel
332.....Aluminum, Electroless Nickel Plated
333.....Carbon Steel, Electroless
Nickel Plated
335.....Galvanized Steel
337.....Silver Plated Steel
351.....Food Grade Santoprene
®
353.....Geolast; Color: Black
354.....Injection Molded #203-40
Santoprene
®
Duro 40D +/-5;
Color: RED
356.....Hytrel
®
357.....Injection Molded Polyurethane
358.....Urethane Rubber
(Some Applications)
(Compression Mold)
359.....Urethane Rubber
360.....Nitrile Rubber Color coded: RED
363.....FKM (Fluorocarbon)
Color coded: YELLOW
364.....EPDM Rubber
Color coded: BLUE
365.....Neoprene Rubber
Color coded: GREEN
366.....Food Grade Nitrile
368.....Food Grade EPDM
371.....Philthane (Tuftane)
374.....Carboxylated Nitrile
375.....Fluorinated Nitrile
378.....High Density Polypropylene
379.....Conductive Nitrile
408.....Cork and Neoprene
425.....Compressed Fibre
426.....Blue Gard
440.....Vegetable Fibre
500.....Delrin
®
500
502.....Conductive Acetal, ESD-800
503.....Conductive Acetal, Glass-Filled
506.....Delrin
®
150
520.....Injection Molded PVDF
Natural color
540.....Nylon
542.....Nylon
544.....Nylon Injection Molded
550.....Polyethylene
551.....Glass Filled Polypropylene
552.....Unlled Polypropylene
555.....Polyvinyl Chloride
556.....Black Vinyl
558.....Conductive HDPE
570.....Rulon II
580.....Ryton
®
®
600.....PTFE (virgin material)
Tetrauorocarbon (TFE)
603.....Blue Gylon
®
604.....PTFE
606.....PTFE
607.....Envelon
608.....Conductive PTFE
610.....PTFE Encapsulated Silicon
611 .....PTFE Encapsulated FKM
632.....Neoprene/Hytrel
®
633.....FKM/PTFE
634.....EPDM/PTFE
635.....Neoprene/PTFE
637.....PTFE, FKM/PTFE
638.....PTFE, Hytrel
®
/PTFE
639.....Nitrile/TFE
643.....Santoprene
644.....Santoprene
656 .....Santoprene
®
/EPDM
®
/PTFE
®
Diaphragm and
Check Balls/EPDM Seats
661.....EPDM/Santoprene
®
666.....FDA Nitrile Diaphragm,
PTFE Overlay, Balls, and Seals
668.....PTFE, FDA Santoprene
®
/PTFE
• Delrin and Hytrel are registered
tradenames of E.I. DuPont.
• Nylatron is a registered tradename
of Polymer Corp.
• Gylon is a registered tradename
of Garlock, Inc.
• Santoprene is a registered tradename
of Exxon Mobil Corp.
• Rulon II is a registered tradename
of Dixion Industries Corp.
• Ryton is a registered tradename
of Phillips Chemical Co.
• Valox is a registered tradename
of General Electric Co.
3: EXP VIEW
RECYCLING
Many components of SANDPIPER® AODD
pumps are made of recyclable materials.
We encourage pump users to recycle worn
out parts and pumps whenever possible,
after any hazardous pumped fluids are
thoroughly ushed.
sa n d pip er pu mp .c om
g1fmdl1sm-rev0614
Model G1F Metallic • 10
Gas Distribution Valve Assembly
1-F
1-E
Valve Assembly for Aluminum Mid Sections
4: AIR END
1-D
1-D
Natural Gas Assembly Parts List
Item Part Number Description Qty
1 031-183-000 Gas Valve Assembly 1
1-A 095-109-157 Valve Body 1
1-C
1-B
1-B
1-E
1-B 031-139-000 Sleeve and Spool Set 1
1-C 132-029-357 Bumper 2
1-D 560-020-360 O-Ring 10
1-E 165-127-157 Cap, End 2
1-F 170-032-330 Capscrew 8
Item Part Number Description Qty
1-A
1-C
1-D
1-F
1 031-183-363 Gas Valve Assembly (FKM) 1
1-D 560-020-363 O-Ring (FKM) 10
(includes all other items used on 031.183.000)
Valve Assembly for Stainless Steel Mid Sections
Natural Gas Assembly Parts List
1-D
1-D
1-C
1-B
1-B
1-F
Item Part Number Description Qty
1 031-179-000 Gas Valve Assembly 1
1-A 095-109-110 Valve Body 1
1-E
1-B 031-139-000 Sleeve and Spool Set 1
1-C 132-029-357 Bumper 2
1-D 560-020-360 O-Ring 10
1-E 165-127-110 Cap, End 2
1-F 170-032-115 Capscrew 8
170-032-110 3/16" Stainless Steel Option 8
1-D
1-F
1-E
IMPORTANT
1-A
1-C
Read these instructions completely, before installation
and start-up. It is the responsibility of the purchaser
to retain this manual for reference. Failure to comply
with the recommendations stated in this manual will
damage the pump, and void factory warranty.
ATEX Compliant
Item Part Number Description Qty
1 031-179-363 Gas Valve Assembly (FKM) 1
1-D 560-020-363 O-Ring (FKM) 10
(includes all other items used on 031.179.000)
Gas Distribution Valve Servicing
Step 1: Remove cap screws (1-F).
Step 2: Remove end cap (1-E) and bumper (1-C).
Step 3: Remove spool part of (1-B) (caution: do not scratch).
Step 4: Press sleeve (1-B) from body (1-A).
Step 5: Inspect O-Ring (1-C) and replace if necessary.
Step 6: Lightly lubricate O-Rings (1-C) on spool (1-B).
Step 7: Press sleeve (1-B) into body (1-A).
Step 8: Reassemble in reverse order, starting with step 3.
Note: Sleeve and spool (1-B) set is match ground to a specied clearance
sleeve and spools (1-B) cannot be interchanged.
11 • Model G1F Metallic
sa n d pip er pu mp .c om
g1fmdl1sm-rev0614
Pilot Valve Assembly
Pilot Valve Servicing
With Pilot Valve removed from pump.
Step 1: Remove snap ring (4-F).
Step 2: Remove sleeve (4-B), inspect O-Rings (4-C),
replace if required.
Step 3: Remove spool (4-D) from sleeve (4-B),
inspect O-Rings (4-E), replace if required.
Step 4: Lightly lubricate O-Rings (4-C) and (4-E).
Reassemble in reverse order.
Pilot Valve Assembly Parts List
Item Part Number Description Qty
4 095-110-000 Pilot Valve Assembly 1
4-A 095-095-157 Valve Body 1
4-B 755-052-000 Sleeve (With O-Rings) 1
4-C 560-033-360 O-Ring (Sleeve) 6
4-D 775-055-000 Spool (With O-Rings) 1
4-E 560-023-360 O-Ring (Spool) 3
4-F 675-037-080 Retaining Ring 1
Item Part Number Description Qty
4 095-110-363 Pilot Valve Assembly 1
4-B 755-052-363 Sleeve (With O-Rings) (FKM) 1
4-C 560-033-363 O-Ring (Sleeve) (FKM) 6
4-D 775.055.363 Spool (With O-Rings) (FKM) 1
4-E 560-023-363 O-Ring (Spool) (FKM) 3
(includes all other items used on 095-110-000)
4: AIR END
sa n d pip er pu mp .c om
g1fmdl1sm-rev0614
Model G1F Metallic • 12
Intermediate Assembly
4: AIR END
Intermediate Assembly Drawing
Step 1: Remove plunger, actuator (25) from center of
intermediate pilot valve cavity.
Step 2: Remove Ring, Retaining (26), discard.
Step 3: Remove bushing, plunger (7), inspect for wear
and replace if necessary with genuine parts.
Step 4: Remove O-Ring (21), inspect for wear and
replace if necessary with genuine parts.
Step 5: Lightly lubricate O-Ring (21) and insert into
intermediate.
Step 6: Utilizing a new Ring, Retaining (26) reassemble
in reverse order
Step 7: Remove Seal, Diaphragm Rod (28).
Step 8: Clean seal area, lightly lubricate and install new Seal,
Diaphragm Rod (28).
28
Intermediate Assembly Parts List
Item Part Number Description Qty
5 114-025-157 Intermediate 1
7 135-036-506 Bushing, Plunger* 2
21 560-001-360 O-Ring 2
560-001-363 O-Ring (FKM) 2
25 620-022-115 Plunger, Actuator* 2
26 675-042-115 Ring, Retaining 2
28 720-010-375 Seal, Diaphragm Rod* 2
720-010-363 Seal, Diaphragm Rod* (FKM) 2
IMPORTANT
When the pumped product source is at a higher
level than the pump (ooded suction condition),
pipe the exhaust higher than the product source
to prevent siphoning spills. In the event of a
diaphragm failure a complete rebuild of the
center section is recommended.
13 • Model G1F Metallic
sa n d pip er pu mp .c om
g1fmdl1sm-rev0614
Diaphragm Service Drawing, with Overlay
Torque: 450 in/lbs
Torque: 350 in/lbs
Diaphragm Service Drawing, Non-Overlay
5: WET END
sa n d pip er pu mp .c om
g1fmdl1sm-rev0614
Model G1F Metallic • 14
Diaphragm Servicing
Step 1: With manifolds and outer chambers
removed, remove diaphragm assemblies from
diaphragm rod. DO NOT use a pipe wrench or similar
tool to remove assembly from rod. Flaws in the rod
surface may damage bearings and seal. Soft jaws
in a vise are recommended to prevent diaphragm
rod damage.
Step 1.A: NOTE: Not all inner diaphragm plates
are threaded. Some models utilize a through hole
in the inner diaphragm plate. If required to separate
diaphragm assembly, place assembly in a vise,
gripping on the exterior cast diameter of the inner
plate. Turn the outer plate clockwise to separate the
assembly.
Always inspect diaphragms for wear cracks or
chemical attack. Inspect inner and outer plates for
deformities, rust scale and wear. Inspect intermediate
bearings for elongation and wear. Inspect diaphragm
rod for wear or marks.
Clean or repair if appropriate. Replace as required.
Step 2: Reassembly: There are two different types
of diaphragm plate assemblies utilized throughout the
Sandpiper product line: Outer plate with a threaded
stud, diaphragm, and a threaded inner plate.
Outer plate with a threaded stud, diaphragm, and
an inner plate with through hole. Secure threaded
inner plate in a vise. Ensure that the plates are being
installed with the outer radius against the diaphragm.
Step 3: Lightly lubricate, with a compatible material,
the inner faces of both outer and inner diaphragm plates
when using on non Overlay diaphragms (For EPDM
water is recommended). No lubrication is required.
Step 4: Push the threaded outer diaphragm
plate through the center hole of the diaphragm.
Note: Most diaphragms are installed with the
natural bulge out towards the fluid side. S05,
S07, and S10 non–metallic units are installed
with the natural bulge in towards the gas side.
Step 5: Thread or place, outer plate stud into
the inner plate. For threaded inner plates, use a
torque wrench to tighten the assembly together.
Torque values are called out on the exploded view.
Repeat procedure for second side assembly.
Allow a minimum of 15 minutes to elapse after
torquing, then re-torque the assembly to compensate
for stress relaxation in the clamped assembly.
Step 6: Thread one assembly onto the diaphragm
rod with sealing washer (when used) and bumper.
Step 7: Install diaphragm rod assembly into pump
and secure by installing the outer chamber in place
and tightening the capscrews.
Step 8: On opposite side of pump, thread the
remaining assembly onto the diaphragm rod. Using a
torque wrench, tighten the assembly to the diaphragm
rod. Align diaphragm through bolt holes, always going
forward past the recommended torque. Torque values
are called out on the exploded view. NEVER reverse
to align holes, if alignment cannot be achieved
without damage to diaphragm, loosen complete
assemblies, rotate diaphragm and reassemble as
described above.
5: WET END
15 • Model G1F Metallic
IMPORTANT
Read these instructions completely,
before installation and start-up.
It is the responsibility of the
purchaser to retain this manual for
reference. Failure to comply with
the recommendations stated in this
manual will damage the pump, and
void factory warranty.
sa n d pip er pu mp .c om
g1fmdl1sm-rev0614
PUMPING HAZARDOUS LIQUIDS
When a diaphragm fails, the pumped liquid or fumes enter the natural gas
end of the pump. Fumes are exhausted into the surrounding environment. When
pumping hazardous or toxic materials, the exhaust gas must be piped to an
appropriate area for safe disposal. See illustration #1 at right.
This pump can be submerged if the pump materials of construction are
compatible with the liquid being pumped. The natural gas exhaust must be
piped above the liquid level. See illustration #2 at right. Piping used for the gas
exhaust must not be smaller than 1" (2.54 cm) diameter. Reducing the pipe size
will restrict natural gas ow and reduce pump performance. When the pumped
product source is at a higher level than the pump (ooded suction condition), pipe
the exhaust gas higher than the product source to prevent siphoning spills. See
illustration #3 at right.
PIPING THE NATURAL GAS EXHAUST
The following steps are necessary to pipe the exhaust gas away from the
pump.The gas distribution valve assembly (item 1) has 1" NPT threads for piped
exhaust.
IMPORTANT INSTALLATION NOTE: The manufacturer recommends
installing a exible conductive hose or connection between the pump and any
rigid plumbing. This reduces stresses on the molded threads of the natural gas
exhaust port. Failure to do so may result in damage to the natural gas distribution
valve body.
Any piping or hose connected to the pump’s natural gas exhaust port must
be conductive and physically supported. Failure to support these connections
could also result in damage to the valve body.
If a high pressure gas spike is possible through the exhaust line, a pressure
regulator is required in the exhaust piping.
NATURAL GAS EXHAUST ILLUSTRATION
PUMP INSTALLATION AREA
1" DIAMETER AIR
EXHAUST PIPING
LIQUID
LEVEL
SUCTION
LINE
1" DIAMETER AIR
EXHAUST PIPING
SAFE AIR
EXHAUST
DISPOSAL
AREA
MUFFLER
Illustration #1
MUFFLER
Illustration #2
LIQUID
LEVEL
SUCTION
LINE
1" DIAMETER AIR
EXHAUST PIPING
WARNING
Natural gas exhaust is to be
vented to low pressure safe
location using conductive Nitrile
rubber hose or metal piping in
accordance with local fire and
environmental codes, or an industry
or nationally recognized code
having jurisdiction over specific
installations, and/or CAN/CGA
B149, Installation Codes.
MUFFLER
Illustration #3
5: WET END
sa n d pip er pu mp .c om
g1fmdl1sm-rev0614
Model G1F Metallic • 16
Written Warranty
5 - YEAR Limited Product Warranty
Quality System ISO 9001 Certied • Environmental Management Systems ISO 14001 Certied
Warren Rupp, Inc. (“Warren Rupp”) warrants to the original end-use purchaser that no product sold by
Warren Rupp that bears a Warren Rupp brand shall fail under normal use and service due to a defect in material
or workmanship within ve years from the date of shipment from Warren Rupp’s factory. Warren Rupp brands
include SANDPIPER®, MARATHON®, PortaPump®, SludgeMaster™ and Tranquilizer®.
~ See complete warranty at sandpiperpump.com/content/warranty-certications ~
Declaration of Conformity
Manufacturer: Warren Rupp, Inc.®, 800 N. Main Street
Mansfield, Ohio, 44902 USA
Certifies that Air-Operated Double Diaphragm Pump Series: HDB, HDF, M Non-Metallic,
S Non-Metallic, M Metallic, S Metallic, T Series, G Series, U Series, EH and SH High Pressure,
RS Series, W Series, SMA and SPA Submersibles, and Tranquilizer Surge Suppressors comply with
the European Community Directive 2006/42/EC on Machinery, according to Annex VIII.
This product has used Harmonized Standard EN809:1998+A1:2009, Pumps and Pump Units
for Liquids - Common Safety Requirements, to verify conformance.
October 20, 2005
Signature of authorized person
David Roseberry
Printed name of authorized person
Revision Level: F
7: WARRANTY
Date of issue
Engineering Manager
Title
August 23, 2012
Date of revision
EC Declaration of Conformity
EC Declaration of Conformity
EC Declaration of Conformity
In accordance with ATEX Directive 94/9/EC,
Equipment intended for use in potentially explosive environments.
Applicable Standard:
EN13463-1: 2001,
EN13463-5: 2003
David Roseberry, Engineering Manager
DATE/APPROVAL/TITLE:
27 MAY 2010
EN 60079-25: 2004
For pumps equipped with Pulse Output ATEX Option
KEMA Quality B.V. (0344)
AODD Pumps and Surge Suppressors
For Type Examination Designations, see page 2 (back)
AODD (Air-Operated Double Diaphragm) Pumps
EC Type Examination Certificate No. Pumps: KEMA 09ATEX0071 X
KEMA Quality B.V.
Utrechtseweg 310
6812 AR Arnhem, The Netherlands
Manufacturer: Warren Rupp, Inc.
®
, A Unit of IDEX Corportion
800 North Main Street, P.O. Box 1568, Mansfield, OH 44901-1568 USA
In accordance with ATEX Directive 94/9/EC,
Equipment intended for use in potentially explosive environments.
®
Manufacturer: Warren Rupp, Inc.
, A Unit of IDEX Corportion
800 North Main Street, P.O. Box 1568, Mansfield, OH 44902 USA
EN 60079-25: 2004
For pumps equipped with Pulse Output ATEX Option
KEMA Quality B.V. (0344)
Applicable Standard:
EN13463-1: 2001,
EN13463-5: 2003
AODD Pumps and Surge Suppressors
For Type Examination Designations
AODD (Air-Operated Double Diaphragm) Pumps
EC Type Examination Certificate No. Pumps: KEMA 09ATEX0071 X
KEMA Quality B.V.
Utrechtseweg 310
6812 AR Arnhem, The Netherlands
DATE/APPROVAL/TITLE:
27 MAY 2010
David Roseberry, Engineering Manager
ATEX Summary of Markings
Pump types, S1F, S15, S20,
and S30 provided with the
pulse output option
Pump types, S1F, S15, S20,
and S30 provided with the
integral solenoid option
Pump types, HDB1½, HDB40,
HDB2, HDB50, HDB3, HDF1,
HDF25, HDF2, HDF3M, PB¼,
S05, S1F, S15, S20, S30, SB1,
SB25, ST1½, ST40, G15, G20,
and G30, without the above
listed options, no aluminum
parts
Pump types, DMF2, DMF3,
HDB1½, HDB40, HDB2,
HDB50, HDB3, HDF1, HDF25,
HDF2, HDF3M, PB¼, S05, S1F,
S15, S20, S30, SB1, SB25,
SE½, ST1, ST25, ST1½, ST40,
U1F, G05, G1F, G15, G20, and
G30
Surge Suppressors all types II 2 G T5
Type Marking Listed In
II 2 G Ex ia c IIC T5
II 3/2 G Ex ia c IIC T5
II 2 D
Ex c iaD 20 IP67 T100oC
II 2 G EEx m c II T5
II 3/2 G EEx m c II T5
II 2 D c IP65 T100
II 1 G c T5
II 3/1 G c T5
II 1 D c T100
I M1 c
I M2 c
o
o
C
II 2 G c T5
II 3/2 G c T5
II 2 D c T100
II 3/2 G T5
II 2 D T100
o
C
o
C
C
KEMA 09ATEX0071 X
CE 0344
KEMA 09ATEX0071 X
CE 0344
KEMA 09ATEX0071 X
KEMA 09ATEX0072 X
CE 0344
KEMA 09ATEX0072 X
CE
KEMA 09ATEX0073
CE
EC Type Certificate No. Pumps: KEMA 09ATEX0071 X
Type Certificate No. Pumps: KEMA 09ATEX0072 X
Type Certificate No. Suppressors: KEMA 09ATEX0073
KEMA 09ATEX0071 X
KEMA 09ATEX0071 X
KEMA 09ATEX0071 X
KEMA 09ATEX0071 X
KEMA 09ATEX0071 X
KEMA 09ATEX0071 X
KEMA 09ATEX0071 X
KEMA 09ATEX0071 X
KEMA 09ATEX0071 X
KEMA 09ATEX0071 X
KEMA 09ATEX0072 X
KEMA 09ATEX0072 X
KEMA 09ATEX0072 X
KEMA 09ATEX0072 X
KEMA 09ATEX0073
KEMA 09ATEX0073
KEMA 09ATEX0073
Non-Conductive
Fluids
No
Yes
Yes
No
Yes
Yes
No
Yes
Yes
No
Yes
No
Yes
Yes
No
Yes
Yes
Loading...
