Page 1
Samsung Electronics 1-1
1-1 Ass’y Lens/Deck - - - - - - - - - - - - - - - - - - - - - - - - - 1-2
1-2 Ass’y EVF/CVF - - - - - - - - - - - - - - - - - - - - - - - - - - 1-4
1-3 Ass’y Front - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-6
1-4 Ass’y LCD - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-8
1-5 Ass’y Left - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-10
1-6 Ass’y TOP - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-12
1-7 Ass’y Cover Housing - - - - - - - - - - - - - - - - - - - - - 1-14
1-8 Ass’y Rear - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-16
1-9 Ass’y Right - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-18
1-10 Mechanical Parts (1) (MAIN CHASSIS) - - - - - - - - 1-20
1-11 Mechanical Parts (2) (SUB CHASSIS) - - - - - - - - - 1-22
1. Exploded View and Parts List
Page 2
Samsung Electronics1-2
Exploded View and Parts List
1-1 Ass’y Lens/Deck
Page 3
Samsung Electronics 1-3
Exploded View and Parts List
Loc. No New Part No Description and Specification Remark
165 AD97-04896A ASSY-DECK;-,CSM2000,ALPA,BETA
160 AD97-05140A ASSY-LENS;-,DVC10X,SUML
161 AD29-00019A FILTER-OPTICAL LPF;-,VP-D73,-,-,3.4X4.5X
170 AD61-01114A BRACKET-LENS;DELTA-PJ,SUS304 1/2H,T0.5,171 AD60-00053A SPACER-CCD;ALPHA_PJ,SILICON,-,-,-,BLK,-,
180 AD97-06418A ASSY-CCD;DELTA-PJ, NTSC NTSC only
180 AD97-06417A ASSY-CCD;DELTA-PJ, PAL PAL only
185 AD63-00414A SHIELD-CASE P/AMP;DELTA-PJ,SUS T0.2,-,-,
902 AC60-10028A SCREW-MACHINE;-,-,ZPC,FE,+,M1.7,-,X3,-,903 AC60-12128A SCREW-TAP TITE BH;-,-,-,FE,BH,4 1.7,l4,-
190 AD97-06532J ASSY-MAIN BOARD VP-D20
190 AD97-06532A ASSY-MAIN BOARD VP-D21
190 AD97-06532B ASSY-MAIN BOARD VP-D23
190 AD97-06532C ASSY-MAIN BOARD VP-D24
190 AD97-06532D ASSY-MAIN BOARD VP-D26
190 AD97-06532K ASSY-MAIN BOARD VP-D20i
190 AD97-06532E ASSY-MAIN BOARD VP-D21i
190 AD97-06532F ASSY-MAIN BOARD VP-D23i
190 AD97-06532G ASSY-MAIN BOARD VP-D24i
190 AD97-06532H ASSY-MAIN BOARD VP-D26i
Page 4
Samsung Electronics1-4
Exploded View and Parts List
1-2 Ass’y EVF/CVF
Page 5
Samsung Electronics 1-5
Exploded View and Parts List
Loc. No New Part No Description and Specification Remark
801 AD61-12033A BRACKET-NUT;SV-D10,T0.8,-,-,-,-,T0.8
803 AD61-01130A CASE-EVF TOP;DELTA-PJ,ABS 94V0 VE0812,-,
804 AD61-01129A CASE-EVF BOTTOM;DELTA-PJ,ABS 94V0 VE0812
805 AD73-00088A RUBBER-EYE CUP;DELTA-PJ,SILICON,-,-,-,D/
806 AD61-01145A GUIDE-LINK;DELTA-PJ,PC ,-,-,-,807 AD61-01113A HOLDER-EVF LENS;DELTA-PJ,ABS 94HB BLK,-,
808 AD67-00194A LENS-EVF 14X G1;DELTA-PJ,OPT PLASTIC PMM
809 AD64-00939A KNOB-EVF;DELTA-PJ,POM 94HB BLK,-,-,-,-,
811 AD97-06450A ASSY-LINK EVF;,DELTA-PJ,
812 AD41-00374A FPC-EVF;DELTA-PJ,-,POLYMIDE,-,0.3T
813 AD41-00373A FPC-CVF;DELTA-PJ
902 AC60-10028A SCREW-MACHINE;-,-,ZPC,FE,+,M1.7,-,X3,-,931 6003-001142 SCREW-TAPTITE;CH,+,B,M1.7,L5,NI PLT,SRWC
933 AD97-07160A ASSY-UNIT-EVF;0.24NTSC,DELTA-PJ,UNIT-EV NTSC EVF only
933 AD97-07159A ASSY-UNIT-EVF;0.24PAL,DELTA-PJ,UNIT-EV PAL EVF only
934 AD97-06484A ASSY-UNIT-CVF;0.24,DELTA-PJ,UNIT-CV CVF only
936 AD07-00009A LCD-PANNEL;-,MCVVQ410(320),VP-D50,0.24IN EVF only
935 AD97-06506A ASSY-EVF BOARD;DVC,SC-D23,EVF BOARD EVF only
937 AD97-06616A ASSY-CVF BOARD;DVC CVF only
938 AD07-00035A LCD-PANNEL;-,LCX042AK CVF only
Page 6
Samsung Electronics1-6
Exploded View and Parts List
1-3 Ass’y Front
Page 7
Samsung Electronics 1-7
Exploded View and Parts List
Loc. No New Part No Description and Specification Remark
100 AD97-06482A ASSY-FRONT;,DELTA,PAL,N/PIX,800X,LIGHT(O) PAL only, LIGHT (O)
100 AD97-06482B ASSY-FRONT;,DELTA,NT,N/PIX,800X,LIGHT(O) NTSC only, LIGHT (O)
100 AD97-06482C ASSY-FRONT;,DELTA,PAL,N/PIX(X)802X,LIGHT(X) PAL only, LIGHT (X)
100 AD97-06482D ASSY-FRONT;,DELTA,NT,N/PIX(X),803X,LIGHT(X) NTSC only, LIGHT (X)
101 AD97-06488A ASSY-VIDEO LIGHT;.,DELTA-PJ,VIDEO LIGHT
103 AD61-01122A HOLDER-LENS HOOD;DELTA-PJ,PC 94HB BLACK,
104 AD64-00639B INLAY-LENS;DELTA-PJ,PVC,T0.3,,,BLK,SILK
105 AD73-00089A RUBBER-HOOD;DELTA-PJ,SILICON 60,-,-,-,D/
110 AD67-00195A LENS-HOOD;DELTA-PJ,ABS 94HB NATURAL,-,-,
111 AD64-00941A KNOB-NITE-PIX;DELTA-PJ,SUS304-WPB.
112 AD61-01128A HOLDER-NITE-PIX;DELTA-PJ,ABS 94HB BLACK,
113 AD47-00008A LAMP;TXL38H-601F,-,3.8,9.5,-,BOX,50
903 AC60-12128A SCREW-TAP TITE BH;-,-,-,FE,BH,4 1.7,l4,-
Page 8
Samsung Electronics1-8
Exploded View and Parts List
1-4 Ass’y LCD
Page 9
Samsung Electronics 1-9
Exploded View and Parts List
Loc. No New Part No Description and Specification Remark
701 AD97-06158A ASSY-LCD BOARD;DELTA(PVI2.5” LCD),NTSC 2.5” NTSC only
701 AD97-06545A ASSY-LCD BOARD;DELTA(PVI2.5” LCD),PAL 2.5” PAL only
701 AD97-06519A ASSY-LCD BOARD;DELTA(PVI3.5” LCD),NTSC 3.5” NTSC only
701 AD97-06546A ASSY-LCD BOARD;DELTA(PVI3.5” LCD),PAL 3.5” PAL only
703 AD97-04556A ASSY-BL;-,BETA-PJ,2.5”,3T,RGBLU25 2.5” only
703 AD97-06358A ASSY-BL;-,3.5”, 3.5” only
705 AD63-00396A COVER-HINGE BOTTOM 2.5”;DELTA-PJ,ABS 94V 2.5” only
705 AD63-00397A COVER-HINGE BOTTOM 3.5”;DELTA-PJ,ABS 94V 3.5” only
706 AD63-00398A COVER-HINGE TOP 2.5”;DELTA-PJ,ABS 94V0,- 2.5” only
706 AD63-00399A COVER-HINGE TOP 3.5”;DELTA-PJ,ABS 94V0,- 3.5” only
708 AD64-00959A KNOB-LCD 2.5”;DELTA-PJ,ABS 94V0,-,-,-,-, 2.5” only
708 AD64-00960A KNOB-LCD 3.5”;DELTA-PJ,ABS 94V0,-,-,-,-, 3.5” only
709 AD61-01172A HOLDER-LCD 2.5”;DELTA-PJ,POM,-,-,-,-,- 2.5” only
709 AD61-01173A HOLDER-LCD 3.5”;DELTA-PJ,POM,-,-,-,-,- 3.5” only
710 AD61-12033A BRACKET-NUT;SV-D10,T0.8,-,-,-,-,T0.8
711 AD61-01207A BRACKET-NUT;DEL TA-PJ,SECC ,T0.8,4,4,,M1.4
712 AD61-01132A CASE-LCD BOTTOM (PVI2.5”);DELTA-PJ,ABS 94 2.5”only
712 AD61-01134A CASE-LCD BOTTOM (PVI3.5”);DELTA-PJ,ABS 94 3.5”only
714 AD97-06065A ASSY-HINGE;-,DELTA-PJ,ASSY-HINGE
715 AD97-06489A ASSY-LCD FPC;.,DELTA-PJ,LCD FPC 2.5” only
715 AD97-06668A ASSY-LCD FPC;.,DELTA-PJ,LCD FPC 3.5” only
716 AD07-00030A LCD;PA025XS5-DVC,D4-PJ,-,61.6*49.3 2.5” only
716 AD07-00034A LCD;PA035XS2 3.5” only
717 AD61-01206A SPRING ETC-LCD;DELTA-PJ,SUS304,WPB,,,OD4
718 AD64-01040A INLAY-MS 2.5”;DELTA-PJ,PC,T0.65,W12,
720 AD97-07208A ASSY-CASE LCD TOP 2.5” MS(O) NTSC only
720 AD97-07208B ASSY-CASE LCD TOP 2.5” MS(O)
720 AD97-07208C ASSY-CASE LCD TOP 2.5”MS(O) PAL only
720 AD97-07208D ASSY-CASE LCD TOP 2.5”MS(X) NTSC only
720 AD97-07208E ASSY-CASE LCD TOP 2.5” MS(X)
720 AD97-07208F ASSY-CASE LCD TOP 2.5” MS(X) PAL only
721 AD62-00027A INSULATION-BACK LIGHT;BETA-PJ,PVC,-,-,-, 2.5” only
721 AD62-00030A INSULATION-BACK LIGHT;BETA-PJ,PVC,-,-,-, 3.5” only
902 AC60-10028A SCREW-MACHINE;-,-,ZPC,FE,+,M1.7,-,X3,-,903 AC60-12128A SCREW-TAP TITE BH;-,-,-,FE,BH,4 1.7,l4,904 AC60-12128B SCREW-TAPTITE;-,-,1.7,4,BH,-,TAP,1.7,-,908 6003-001291 SCREW-TAPTITE;CH,+,B,M1.4,L3.0,ZPC(BLK),
913 6001-001545 SCREW-MACHINE;PH,+,M1.4,L3.0,ZPC(WHT),SW
914 6001-001659 SCREW-MACHINE;CH,+,M1.7,L2.5,NI PLT,SWRC
915 6003-001143 SCREW-TAPTITE;PH,+,B,M1.7,L6,NI PLT,SWRC
917 AD60-00002A SCREW MACHINE;-,-,-,-,-,-,-,A3-PJ,-,M2X4
Page 10
Samsung Electronics1-10
Exploded View and Parts List

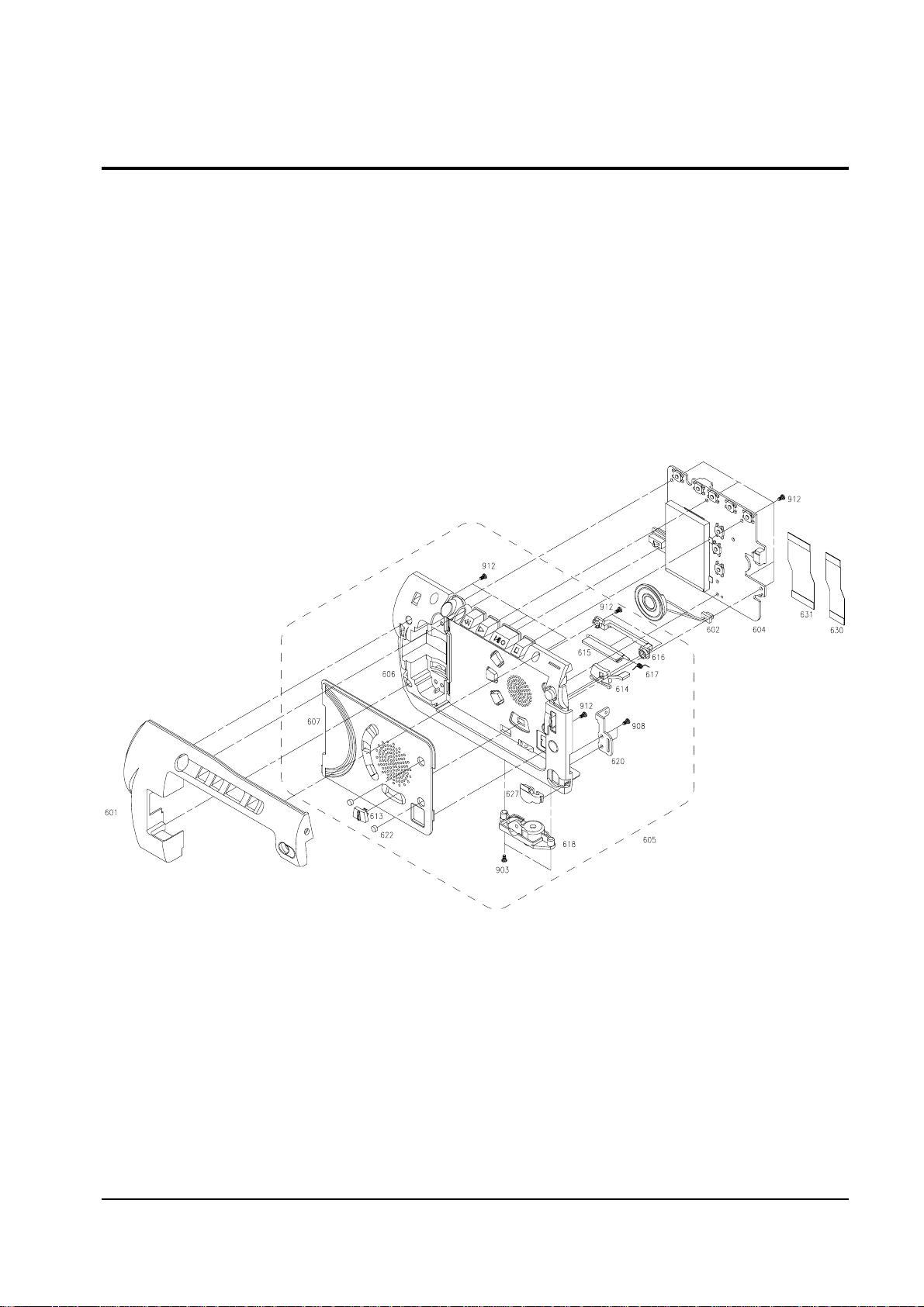

1-5 Ass’y Left
Page 11
Samsung Electronics 1-11
Exploded View and Parts List
Loc. No New Part No Description and Specification Remark
601 AD63-00403A COVER-LEFT 2.5”;DELTA-PJ,ABS 94HB,-,-,-, 2.5”
601 AD63-00403B COVER-LEFT 2.5”;DELTA-PJ,ABS 94HB,-,-,-, 2.5”
601 AD63-00410A COVER-LEFT 3.5”;DELTA-PJ,ABS 94HB,-,-,-, 3.5”
601 AD63-00410B COVER-LEFT 3.5”;DELTA-PJ,ABS 94HB,-,-,-, 3.5”
602 AD97-02047A ASSY-SPEAKER;-,VP-D65,ASSY-SPEAKER
604 AD97-06444A ASSY-LEFT BOARD;DELTA-PJ,SC-D23,ASSY LEF
605 AD97-06479B ASSY-UNIT CASE LEFT;,DELTA, VP-D20/21
605 AD97-06479E ASSY-UNIT CASE LEFT;,DELTA, VP-D23/24
605 AD97-06479H ASSY-UNIT CASE LEFT;,DELTA, VP-D26
605 AD97-06479L ASSY-UNIT CASE LEFT;,DELTA, VP-D20
607 AD63-00395A COVER-DUMMY 2.5”;DELTA-PJ,ABS 94HB,-,-,- VP-D23/24
607 AD63-00395C COVER-DUMMY 2.5”;DELTA-PJ,ABS 94HB,-,-,- VP-D21
607 AD63-00395F COVER-DUMMY 2.5”;DELTA-PJ,ABS 94HB,-,-,- VP-D20
607 AD63-00411C COVER-DUMMY 3.5”;DELTA-PJ,ABS 94HB,-,-,607 AD63-00411D COVER-DUMMY 3.5”;DELTA-PJ,ABS 94HB,-,-,-
613 AD64-00943A KNOB-SELECT;DELTA-PJ,ABS 94HB,-,-,-,-,BL
614 AD61-01138A HOLDER-SELECT;DELTA-PJ,ABS 94HB,-,-,-,-, 2.5”
614 AD61-01240A 3.5”
615 AD63-00394A COVER-DOOR M/S;DELTA-PJ,ABS 94HB,-,-,-,-
616 AD61-01100A HOLDER-DOOR M/S;DELTA-PJ,ABS 94HB,-,-,-, 2.5”
616 AD61-01241A 3.5”
617 AD61-01028A SPRING ETC-DOOR M/S;BETA-PJ,SUS304 WPB,618 AD61-01170A BRACKET-TRIPOD;DELTA-PJ,PC,-,-,-,-,620 AD61-01118A BRACKET-SHOULDER;DELTA-PJ,SUS304,T1,-,-,
621 AD63-00393A COVER-DC JACK;DELTA-PJ,TPE,-,-,-,-,-,-,?
622 AD69-00045B PAD-LCD;DELTA-PJ,PORON,T1.5,-,-,-,L-GR
630 3809-001435 FFC CABLE-FLAT;-,-,100MM,10P,0.5MM,631 3809-001438 FFC CABLE-FLAT;-,-,100MM,45P,0.5MM,903 AC60-12128A SCREW-TAP TITE BH;-,-,-,FE,BH,4 1.7,l4,908 6003-001291 SCREW-TAPTITE;CH,+,B,M1.4,L3.0,ZPC(BLK),
Page 12
Samsung Electronics1-12
Exploded View and Parts List
1-6 Ass’y TOP
Page 13
Samsung Electronics 1-13
Exploded View and Parts List
Loc. No New Part No Description and Specification Remark
850 AD97-06485A ASSY-TOP;.,DELTA-PJ,EXP
851 AD97-06477A ASSY-MIC;.,DELTA-PJ,ASSY MIC
853 AD97-06439A ASSY-TOP BOARD;.,SC-D23,ASSY TOP BOARD
855 AD61-01032A SPRING ETC-ZOOM;BETA-PJ,SUS,-,-,-,-,-,-,
856 AD61-01140A HOLDER-ZOOM;DELTA-PJ,POM,NAT,-,-,-,-,858 AD61-12033A BRACKET-NUT;SV-D10,T0.8,-,-,-,-,T0.8
860 AD61-01143A CASE-TOP;DELTA-PJ,ABS 94HB,-,-,-,-,861 AD64-00944A KNOB-ZOOM;DELTA-PJ,ABS,NAT,-,-,-,-,BLK,862 AD64-00945A GRILLE-MIC LEFT;DELTA-PJ,WIRE MASHI,T0.3
863 AD63-00422A SHEET-MIC
903 AC60-12128A SCREW-TAP TITE BH;-,-,-,FE,BH,4 1.7,l4,-
Page 14
Samsung Electronics1-14
Exploded View and Parts List
1-7 Ass’y Cover Housing
Page 15
Samsung Electronics 1-15
Exploded View and Parts List
Loc. No New Part No Description and Specification Remark
400 AD97-06480A ASSY-COVER HOUSING;.,DELTA-PJ,EXP
400 AD97-06480B ASSY-COVER HOUSING;.,DELTA-PJ,DOM
401 AD61-01001A BRACKET-GRIP-FRONT;BETA-PJ,SUS304,T1.0,-
402 AD63-00401A COVER-HOUSING;DELTA-PJ,ABS 94HB,-,-,-,-,
402 AD63-00401B COVER-HOUSING;DELTA-PJ,ABS 94HB,-,-,-,-,
403 AD64-00858B KNOB-TAPE EJECT;DELTA-PJ,ABS 94HB,,,,,D/
404 AD97-04814A ASSY-TAPE EJECT;SUS,BETA-PJ,405 6001-000805 SCREW-MACHINE;CH,+,M1.7,L3,NI PLT,SWRCH1
406 6003-001143 SCREW-TAPTITE;PH,+,B,M1.7,L6,NI PLT,SWRC
Page 16
Samsung Electronics1-16
Exploded View and Parts List
1-8 Ass’y Rear
Page 17
Samsung Electronics 1-17
Exploded View and Parts List
Loc. No New Part No Description and Specification Remark
200 AD97-06486A ASSY-REAR;.,DELTA-PJ,EXP
201 AD61-00798A SPRING-BATTERY EJECT;D5-PJ,SWPB T0.2,-,203 AD63-00418A COVER-LITHIUM BATTERY;DELTA-PJ,PP,-,-,-,
204 AD61-01141A CASE-REAR;DELTA-PJ,ABS 94HB HF06601,G353
205 AD64-00962A KNOB-BATTERY EJECT;DELTA-PJ,ABS 94HB,-,206 AD61-01112A BRACKET-JOINT;DEL TA-PJ,SECC,T0.8,-,-,-,208 AD97-06507A ASSY-REAR BOARD;DVC,SC-D23,REAR BOARD
903 AC60-12128A SCREW-TAP TITE BH;-,-,-,FE,BH,4 1.7,l4,-
Page 18
Samsung Electronics1-18
Exploded View and Parts List
1-9 Ass’y Right
Page 19
Samsung Electronics 1-19
Exploded View and Parts List
Loc. No New Part No Description and Specification Remark
301 AD97-06066A ASSY-LINK;-,DELTA-PJ,302 AD97-06499A ASSY-START/STOP;DVC,SC-D23,POWER
303 AD97-06487A ASSY-JACK;.,DELTA-PJ,ASSY JACK
306 AD97-06481A ASSY-CASE RIGHT;.,DELTA-PJ,EXP
307 AD61-01169A SPRING ETC-PLATE RECORD;DELTA-PJ,SUS 1/2
308 AD61-60521A SPRING-REC;SC-80,SWPB,4.3,-,-,-,-,-,-,-,
309 AD61-01116A BRACKET-RIGHT;DELTA-PJ,SUS,T0.8,-,-,-,311 AD61-60601A SPRING-KNOB POWER;-,SUS304 WPB,-,-,-,-,312 AD63-00402A COVER-JACK;DELTA-PJ,TPH,-,-,-,-,-,-,313 AD64-00936A BUTTON-POWER RECORD;DELTA-PJ,ABS 94HB,-,
316 AD64-00942A KNOB-POWER;DELTA-PJ,ABS 94HB,-,-,-,-,BLK
317 AD61-01146A PLATE-POWER;DELTA-PJ,SUS T0.5,T0.2,-,-,318 AD64-00947A LOCKER-SAFETY POWER;DELTA-PJ,ABS 94HB,-,
319 AD66-00190A SLIDER-POWER;DELTA-PJ,POM,-,-,-,NAT,320 AD73-00006A RUBBER—GUIDE DECK;BUTHYL RUB,-,VP-D50,321 AD61-12033A BRACKET-NUT;SV-D10,T0.8,-,-,-,-,T0.8
323 AD97-06064A ASSY-BELT GRIP;LEATHER,DELTA-PJ,325 3809-001448 FPC CABLE FLAT, 24P
902 AC60-10028A SCREW-MACHINE;-,-,ZPC,FE,+,M1.7,-,X3,-,907 6002-001085 SCREW-TAPPING;CH,+,2,M1.7,L5,ZPC(BLK),SW
918 AD60-10509A SCREW-TAP TITE;-,FE-ZN,M2X5,5,PWH,+,-,-,
Page 20
Samsung Electronics1-20
Exploded View and Parts List
1-10 Mechanical Parts (1) (MAIN CHASSIS)
M401
304
304
305
M415
303
302
M409
403
M410
M407
M413
M408
M412
M411
M405
M402
402
M404
M406
402
M416
302
M403
M414
Page 21
Samsung Electronics 1-21
Exploded View and Parts List
Loc. No New Part No Description and Specification Remark
302 6001-001452 SCREW-MACHINE;BH,+,M1.4,L2.5,BLK,SWRCH18
303 6001-001451 SCREW-MACHINE;TH,+,M1.4,L4.12,ZPC(YEL),S
304 6001-001331 SCREW-MACHINE;BH,+,M1.4,L3.0,BLK(LOCK),S
305 AC60-12113A SCREW;-,BLK,L2.2,S45C-HC,BH,+,-,M1.4
402 6031-001417 WASHER-PLAIN;POLYSLIDE,-,ID0.8,D3.0,T0.2
403 6031-001419 WASHER-PLAIN;LUMINA,CUT,ID1.1,OD2.8,T0.2
M401 AD97-02552A ASSY-DRUM REV02;AHS+R/T+MOT+PBT,DD-3,ASS
M402 AD97-02928A ASSY-ARM-PINCH-FULL;-,DD-3,M403 AD97-02931A ASSY-DRUM BASE RAIL;-,DD-3,M404 AD31-00028A MOTOR-CAPSTAN;-,DD-3,-,-,-,-,-,-,-,-,-,M405 AD61-00490A GUIDE-TENSION CAM;DD-3,SUS430 CP,T0.3,-,
M406 AD61-00496A HOLDER-FPC SUB;DD-3,DURACON,-,-,-,M407 AD66-00061A GEAR-CONNECT;DD-3,POM,0.4/0.5,8.5/23,-,M408 AD66-00064A GEAR-WHEEL;DD-3,POM,0.3/05,30/8,-,-,PCD
M409 AD66-00065A GEAR CAM-MAIN;DD-3,SECC,0.5,50,-,-,PCD 2
M410 AD66-00069A GEAR-CAPSTAN;DD-3,DYAMID,0.4,28,-,-,PCD
M411 AD66-00085A LEVER-CAM;DD-3,SUS430 CP,T0.5,-,-,-,-,M412 AD66-00098A GEAR-PULLEY ASSY;DD-3,POM+MAGNET,-,-,-,M413 AD66-62001A BELT-TIMING;DD-C2R,POLYURETHAN,-,L84,-,M414 AD97-02935A ASSY-LOADING-MOTOR;-,DD-3,M415 AD97-02987A ASSY-SLIDE-MAIN;-,DD-3,M416 AD61-00558A PLATE-S/P BASE;DD-3,SUS632 CSP ,T0.15,-,
Page 22
Samsung Electronics1-22
Exploded View and Parts List
1-11 Mechanical Parts (2) (SUB CHASSIS)
301
S310
S309
401
301
S304
S314
S303
S305
S308
S312
S301
S307
402
S313
S306
S302
S311
S315
Page 23
Samsung Electronics 1-23
Exploded View and Parts List
Loc. No New Part No Description and Specification Remark
301 6001-001513 SCREW;BH,+,M1.4,D3.0 , WH
401 6031-001430 WASHER-PLAIN;POLYSLIDER,-,ID0.8,D2.5,T0.
402 6031-001417 WASHER-PLAIN;POLYSLIDE,-,ID0.8,D3.0,T0.2
S301 AD61-00509A SPRING-TENSION;DD-3,SUS304-WPB,•’0.12,-,
S302 AD61-00513A SPRING-BRAKE S;DD-3,SUS304-WPB,•’0.18,-,
S303 AD61-00659A SPRING-MAIN BRAKE T;DD-3,SWP-B,•’0.16,-,
S304 AD66-00090A LEVER-EJECT;DD-3,POM,-,-,-,-,-,S305 AD66-00093A BRAKE-MAIN T;DD-33,NYLON,-,-,-,S306 AD66-00108A ARM-TENSION-ASSY;DD-3,SUS304 CP+ETC,-,-,
S307 AD97-02932A ASSY-BRAKE-TENSION;-,DD-3,S308 AD97-02933A ASSY-RELEASE-T;-,DD-3,S309 AD97-02934A ASSY-REVIEW-ARM;-,DD-3,S310 AD97-02938A ASSY-REEL-DISK-S;-,DD-3,S311 AD97-02939A ASSY-REEL-DISK-T;-,DD-3,S312 AD97-02940A ASSY-IDLER;-,DD-3,S313 AD97-02941A ASSY-BRAKE-PULLEY;-,DD-3,S314 AD97-02942A ASSY-BRAKE-S;-,DD-3,S315 AD97-05350A ASSY-COVER REEL;SUS+ETC,CSM2000
Page 24
Samsung Electronics1-24
Exploded View and Parts List
MEMO
MEMO
Loading...
