LED TV

user manual

PORTUGAL 808 20 7267 www.samsung.com/pt/support ROMANIA 08008 726 78 64 (08008 SAMSUNG)

Apel GRATUIT

SERBIA 011 321 6899 www.samsung.com/rs/support

SLOVAKIA 0800 - SAMSUNG (0800-726 786) www.samsung.com/sk/support SPAIN 0034902172678 www.samsung.com/es/support

SWEDEN 0771 726 7864 (SAMSUNG) www.samsung.com/se/support SWITZERLAND 0800 726 78 64 (0800-SAMSUNG) www.samsung.com/ch/support (German)

UK 0330 SAMSUNG (7267864) www.samsung.com/uk/support EIRE 0818 717100 www.samsung.com/ie/support LITHUANIA 8-800-77777 www.samsung.com/lt/support LATVIA 8000-7267 www.samsung.com/lv/support ESTONIA 800-7267 www.samsung.com/ee/support TURKEY 444 77 11 www.samsung.com/tr/support

www.samsung.com/ro/support

www.samsung.com/ch_fr/support (French)

BN68-06876D-00

Thank you for purchasing this Samsung product. To receive more complete service, please register

your product at

www.samsung.com/register

Model _____________Serial No. _____________

Warning! Important Safety Instructions

(Please read the appropriate section that corresponds to the marking on your Samsung

product before attempting to install the product.)

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO QUALIFIED PERSONNEL.

The slots and openings in the cabinet and in the back or bottom are provided for necessary ventilation. To ensure reliable operation of this apparatus, and to protect it from overheating, these slots and openings must never be blocked or covered.

- Do not cover this apparatus in a confined space, such as a bookcase or built-in cabinet, unless proper ventilation is provided.

- Do not place this apparatus near or over a radiator or heat resistor, or where it is exposed to direct sunlight.

- Do not place a vessel containing water (vases etc.) on this apparatus, as this can result in a risk of fire or electric shock.

Do not expose this apparatus to rain or place it near water (near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool etc.). If this apparatus accidentally gets wet, unplug it and contact an authorised dealer immediately. Make sure to pull out the power cord from the outlet before cleaning.

This apparatus use batteries. In your community there might be regulations that require you to dispose of these batteries properly under environmental considerations. Please contact your local authorities for disposal or recycling information.

Do not overload wall outlets, extension cords or adaptors beyond their capacity, since this can result in fire or electric shock. Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying

particular attention to cords at plug end, adaptors and the point where they exit from the appliance. To protect this apparatus from a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet

and disconnect the antenna or cable system. This will prevent damage to the set due to lightning and power line surges. Before connecting the AC power cord to the DC adaptor outlet, make sure the voltage designation of the DC adaptor corresponds to the local

electrical supply. Never insert anything metallic into the open parts of this apparatus. Doing so may create a danger of electric shock. To avoid electric shock, never touch the inside of this apparatus. Only a qualified technician should open this apparatus. Make sure to plug the power cord in until it is firmly inserted. When removing the power cord, make sure to hold the power plug when pulling the

plug from the outlet. Do not touch the power cord with wet hands. If this apparatus does not operate normally - in particular, if there are any unusual sounds or smells coming from it - unplug it immediately and

contact an authorised dealer or service centre. Be sure to pull the power plug out of the outlet if the TV is to remain unused or if you are to leave the house for an extended period of time

(especially when children, elderly or disabled people will be left alone in the house).

- Accumulated dust can cause an electric shock, an electric leakage or a fire by causing the power cord to generate sparks and heat or the insulation to deteriorate.

Be sure to contact an authorised service centre, when installing your set in a location with heavy dust, high or low temperatures, high humidity, chemical substances and where it operates for 24 hours such as the airport, the train station etc. Failure to do so may cause serious damage to your set.

Use only a properly grounded plug and receptacle.

- An improper ground may cause electric shock or equipment damage. (Class l Equipment only.)

To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.

Do not allow children to hang onto the product. Store the accessories (battery, etc.) in a location safely out of the reach of children. Do not install the product in an unstable location such as a shaky self, a slanted floor or a location exposed to vibration. Do not drop or impart any shock to the product. If the product is damaged, disconnect the power cord and contact a service centre. Unplug the power cord from the power outlet and wipe the product using a soft, dry cloth. Do not use any chemicals such as wax, benzene,

alcohol, thinners, insecticide, aerial freshener, lubricant or detergent. This may damage the appearance or erase the printing on the product. Apparatus shall not be exposed to dripping or splashing. Do not dispose of batteries in a fire. Do not short circuit, disassemble or overheat the batteries. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. WARNING - TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OTHER OPEN FLAMES AWAY FROM THIS

PRODUCT AT ALL TIMES.

This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product.

This symbol alerts you that important literature concerning operation and maintenance has been included with this product.

* Figures and illustrations in this User Manual are provided for reference only and may differ from the actual product appearance. Product design and specifications may change without notice.

CIS languages (Russian, Ukrainian, Kazakhs) are not available for this product, since this is manufactured for customers in EU region.

English - 2

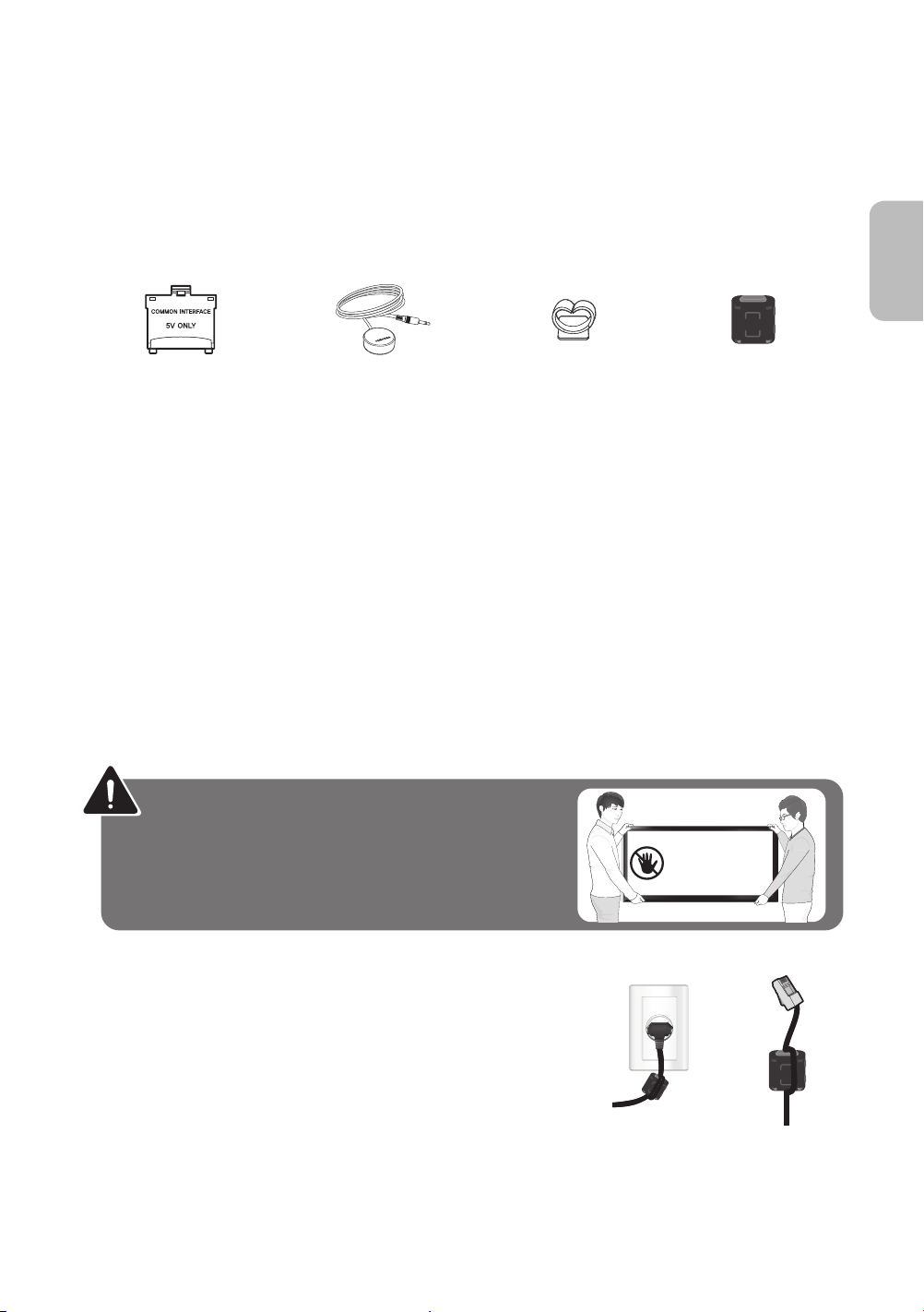

What's in the Box?

English

Remote Control & Batteries (AAA x 2) User Manual Warranty Card (Not available in some locations)

CI Card Adapter IR Extender Cable Cable Holder

- Please make sure the following items are included with your TV. If any items are missing, contact your dealer.

- The items’ colours and shapes may vary depending on the models.

- Cables not included can be purchased separately.

- Check for any accessories hidden behind or in the packing materials when opening the box.

An administration fee may be charged if either

(a) an engineer is called out at your request and there is no defect with the product (i.e. where the user manual has not been read).

(b) you bring the unit to a repair centre and there is no defect with the product (i.e. where the user manual has not been read).

You will be informed of the administration fee amount before a technician visits.

Regulatory Guide Power Cord

Ferrite Core (2EA)

(Depending on the model)

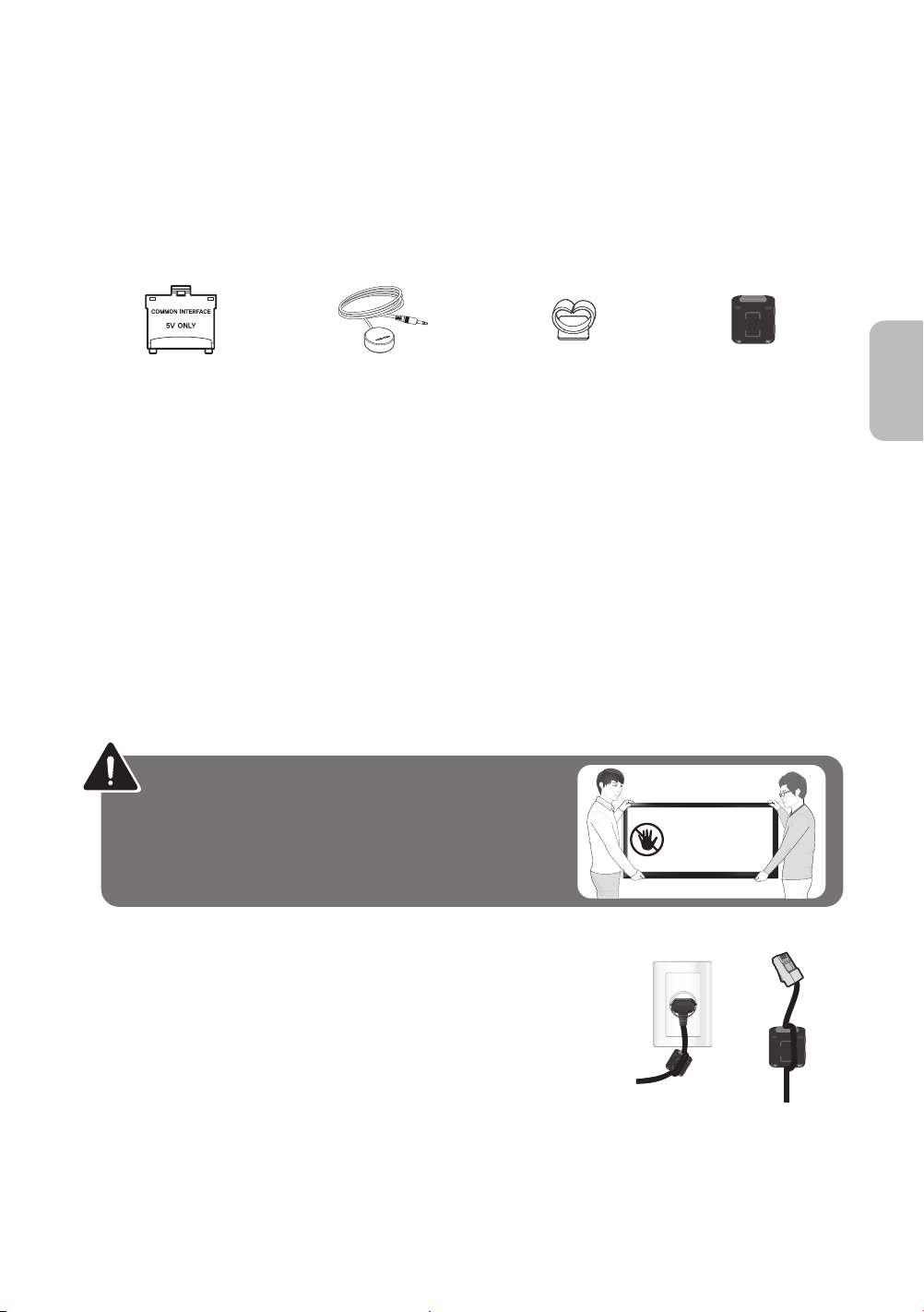

Warning: Screens can be damaged from direct pressure when handled incorrectly. We recommend lifting the TV at the edges, as shown.

Ferrite Core (Depending on the model): The ferrite cores are used to shield the cables from interference. When connecting a cable, open the ferrite core and clip it around the cable near the plug as shown in the figure.

English - 3

Don't Touch This Screen!

Attaching the TV to the Stand

Make sure you have all the accessories shown, and that you assemble the stand following the provided assembly instructions.

Mounting the TV on the Wall Using the Wall Mount Kit (Optional)

If you mount this product on a wall, it should be mounted only as recommended by the manufacturer. Unless it is correctly mounted, the product may slide or fall, causing serious injury to a child or adult, and serious damage to the product.

Installing the Wall Mount Kit

The wall mount kit (sold separately) lets you mount the TV on the wall. For detailed information about installing the wall mount, refer to the instructions provided with the wall mount. We recommend

that you contact a technician for assistance when installing the wall mount bracket. We do not advise you to do it yourself. Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you select to install the wall mount on your own.

Wall mount Bracket

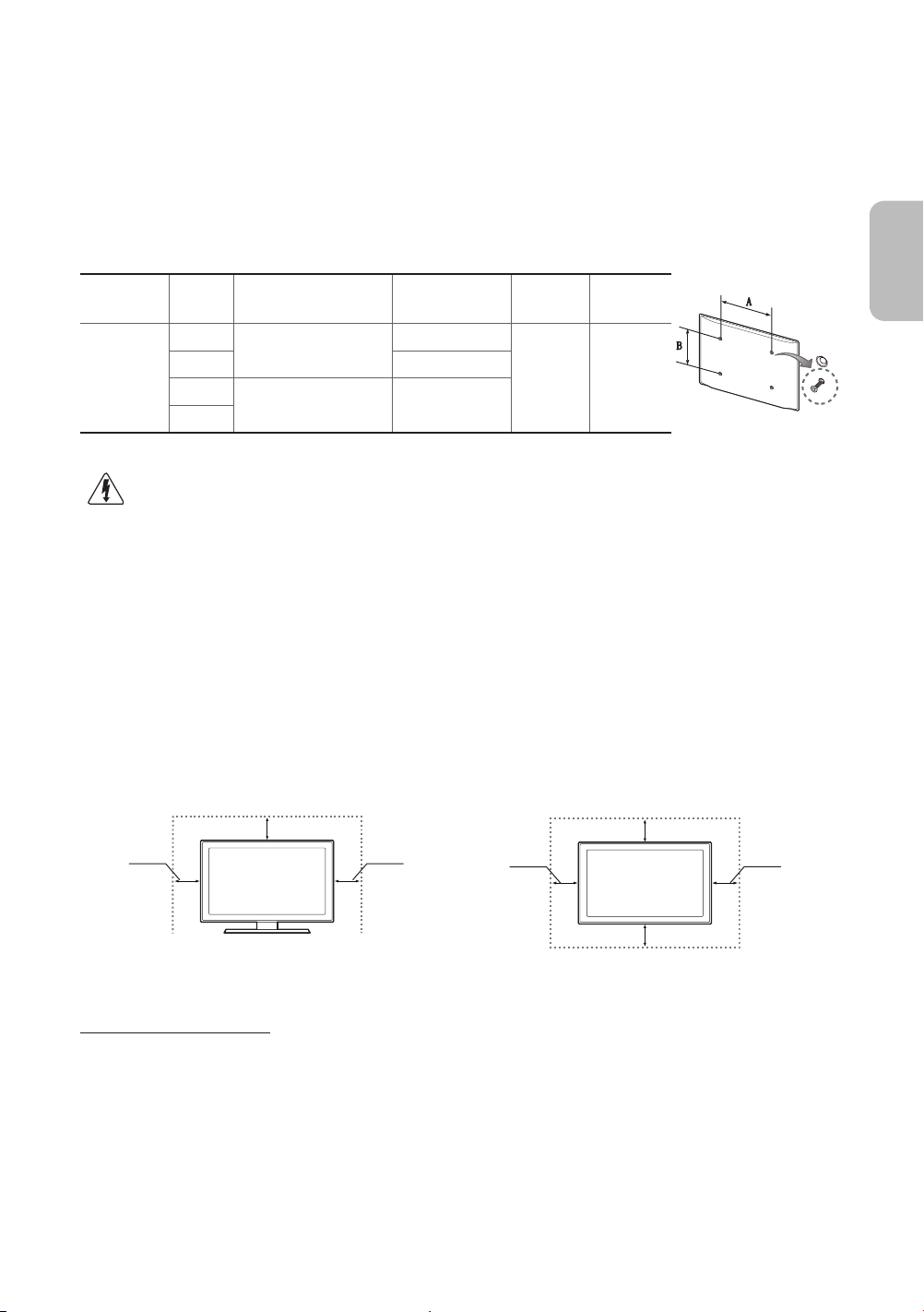

Wall Mount Kit Specifications (VESA)

The wall mount kit is not supplied, but is sold separately. Install your wall mount on a solid wall perpendicular to the floor. When attaching the wall mount to other building materials, please contact your nearest dealer. If the product is installed on a ceiling or slanted wall, it may fall and result in severe personal injury.

- Standard dimensions for wall mount kits are shown in the table below.

- When purchasing our wall mount kit, a detailed installation manual and all parts necessary for assembly are provided.

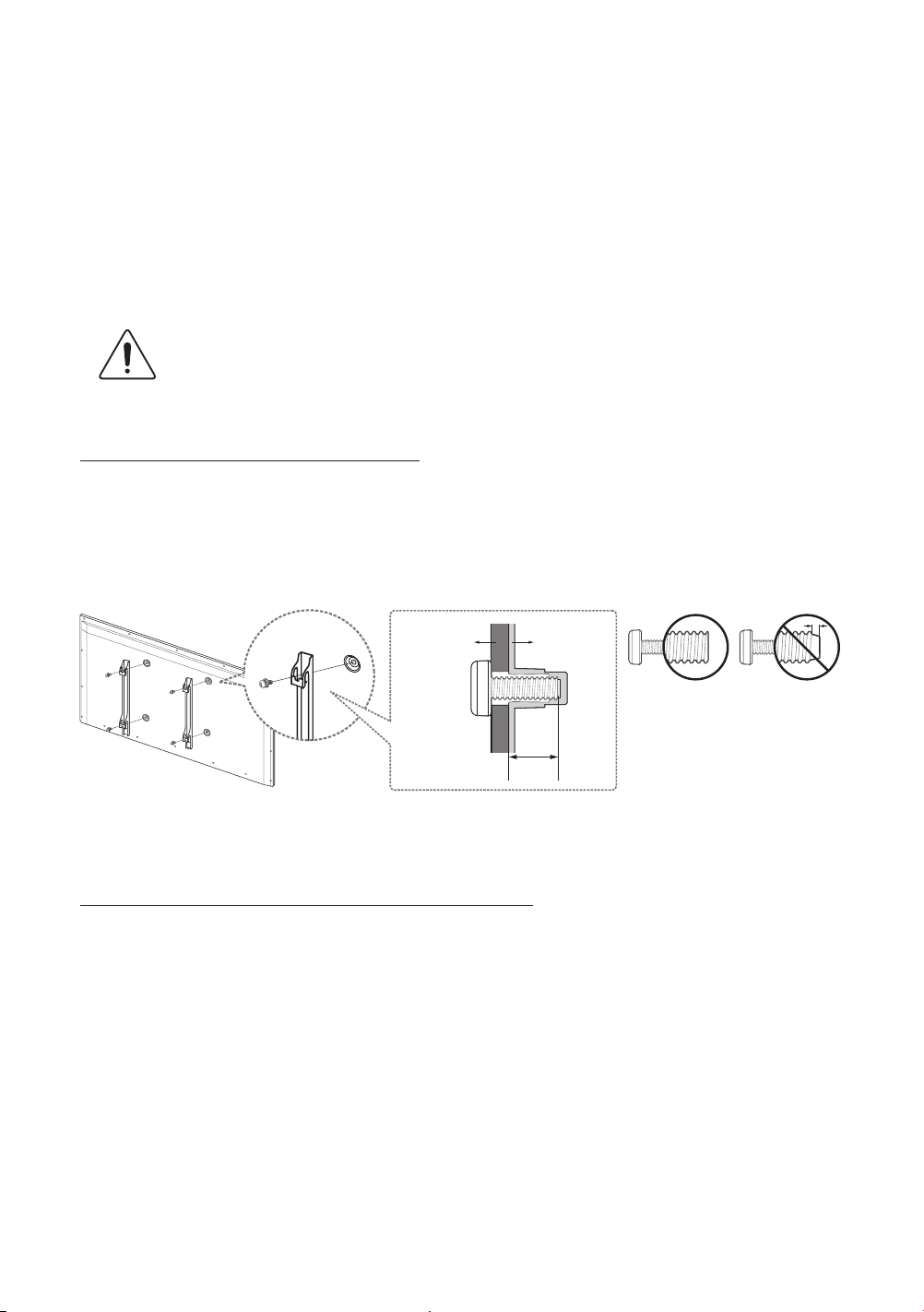

- Do not use screws that do not comply with the VESA standard screw specifications.

- Do not use screws that are longer than the standard dimension or do not comply with the VESA standard screw specifications. Screws that are too long may cause damage to the inside of the TV set.

English - 4

- For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ depending on the wall mount specifications.

- Do not fasten the screws that are too strongly; this may damage the product or cause the product to fall, leading to personal injury. Samsung is not liable for these kinds of accidents.

- Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the consumer fails to follow the product installation instructions.

- Do not mount the TV at more than a 15 degree tilt.

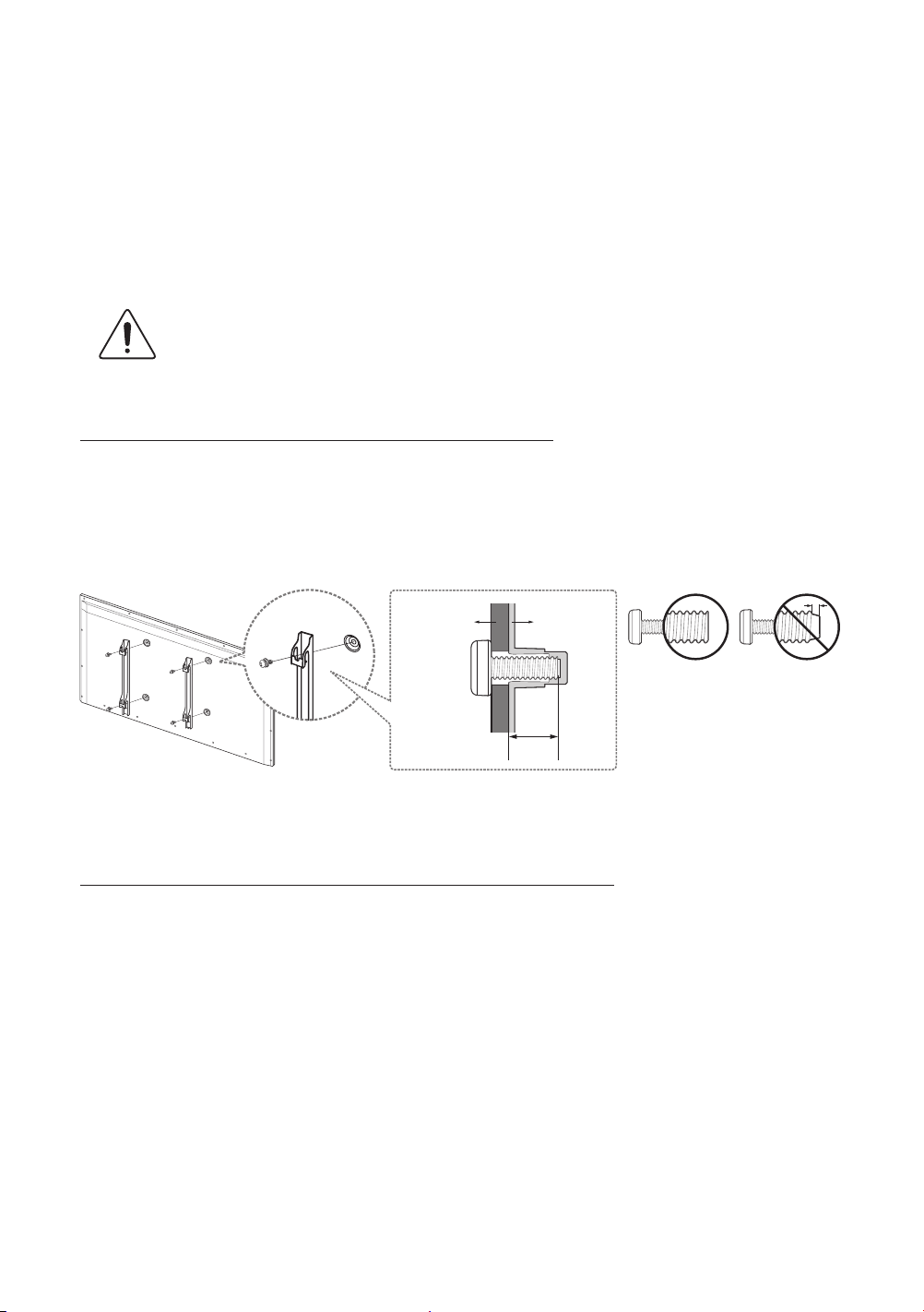

When using a third-party wall mount, note that the assembling screw length(C) is shown below.

English

Product

Family

LED-TV

Inches VESA Spec.(A * B)

40 20.2 ~ 21.2

Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric shock.

200 X 200

400 X 400 20.2 ~ 21.2

C (mm)

21.7 ~ 22.7

Standard

Screw

M8 4

Quantity

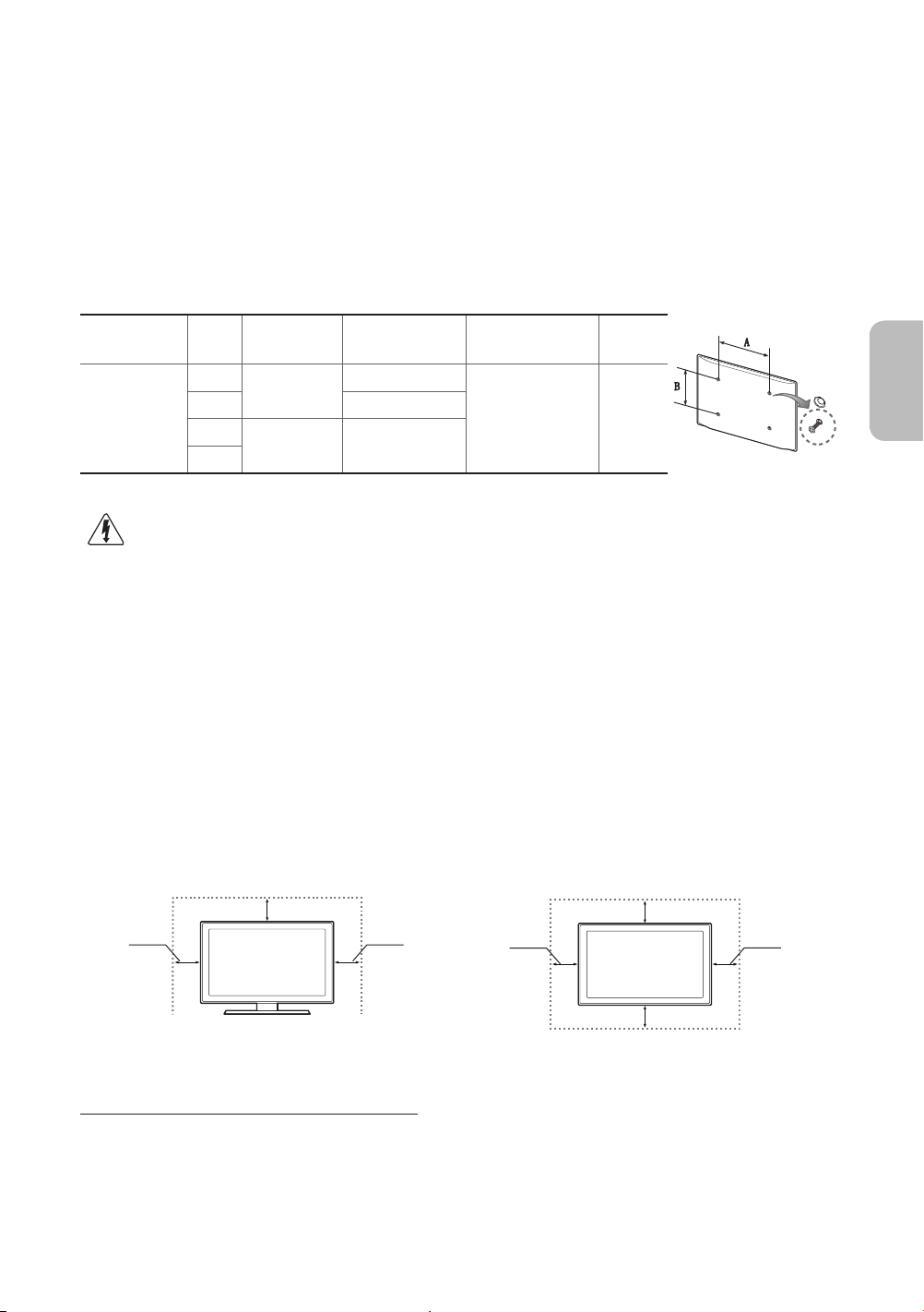

Providing Proper Ventilation for Your TV

When you install your TV, maintain a distance of at least 10 cm between the TV and other objects (walls, cabinet sides, etc.) to ensure proper ventilation. Failing to maintain proper ventilation may result in a fire or a problem with the product caused by an increase in its internal temperature.

If you use parts provided by another manufacturer, it may cause difficulties with the product or result in injury caused by the product falling.

- Whether you install your TV using a stand or a wall-mount, we strongly recommend you use parts provided by Samsung Electronics only.

Installation with a stand. Installation with a wall-mount.

10 cm

Other Cautions

- The actual appearance of the TV may differ from the images in this manual, depending on the model.

- Be careful when you touch the TV. Some parts can be somewhat hot.

English - 5

10 cm

Securing the TV to the Wall

Caution: Pulling, pushing, or climbing on the TV may cause the TV to fall. In particular, ensure that your children do not hang on to or destabilize the TV. Doing so may cause the TV to tip over, resulting in serious injuries or death. Follow all safety precautions provided in the Safety Flyer included with your TV. For added stability and safety, you can purchase and install the anti-fall device as described below.

To Avoid the TV from Falling

1. Put the screws into the clamps and firmly fasten them into the wall. Confirm

that the screws have been firmly installed into the wall.

- You may need additional material such as anchors depending on the type of wall.

- Since the necessary clamps, screws, and string are not supplied, please purchase these additionally.

2. Remove the screws from the centre back of the TV, put the screws into the

clamps, and then fasten the screws into the TV again.

- Screws may not be supplied with the product. In this case, please purchase screws of the following specifications.

- Screw Specifications: For a 32 ~ 50 inches: M8

3. Connect the clamps fixed into the TV and the clamps fixed onto the wall with

a strong cable and then tie the string tightly.

- Install the TV close to the wall so that it does not fall backwards.

- It is safe connecting the string so that the clamps fixed onto the wall are equal to or lower than the clamps fixed on the TV.

- Untie the string before moving the TV.

4. Verify that all connections are properly secured. Periodically check connections for any sign of damage. If you have any

doubt about the security of your connect ions, contact a professional installer.

- The product colour and shape may vary depending on the model.

wall

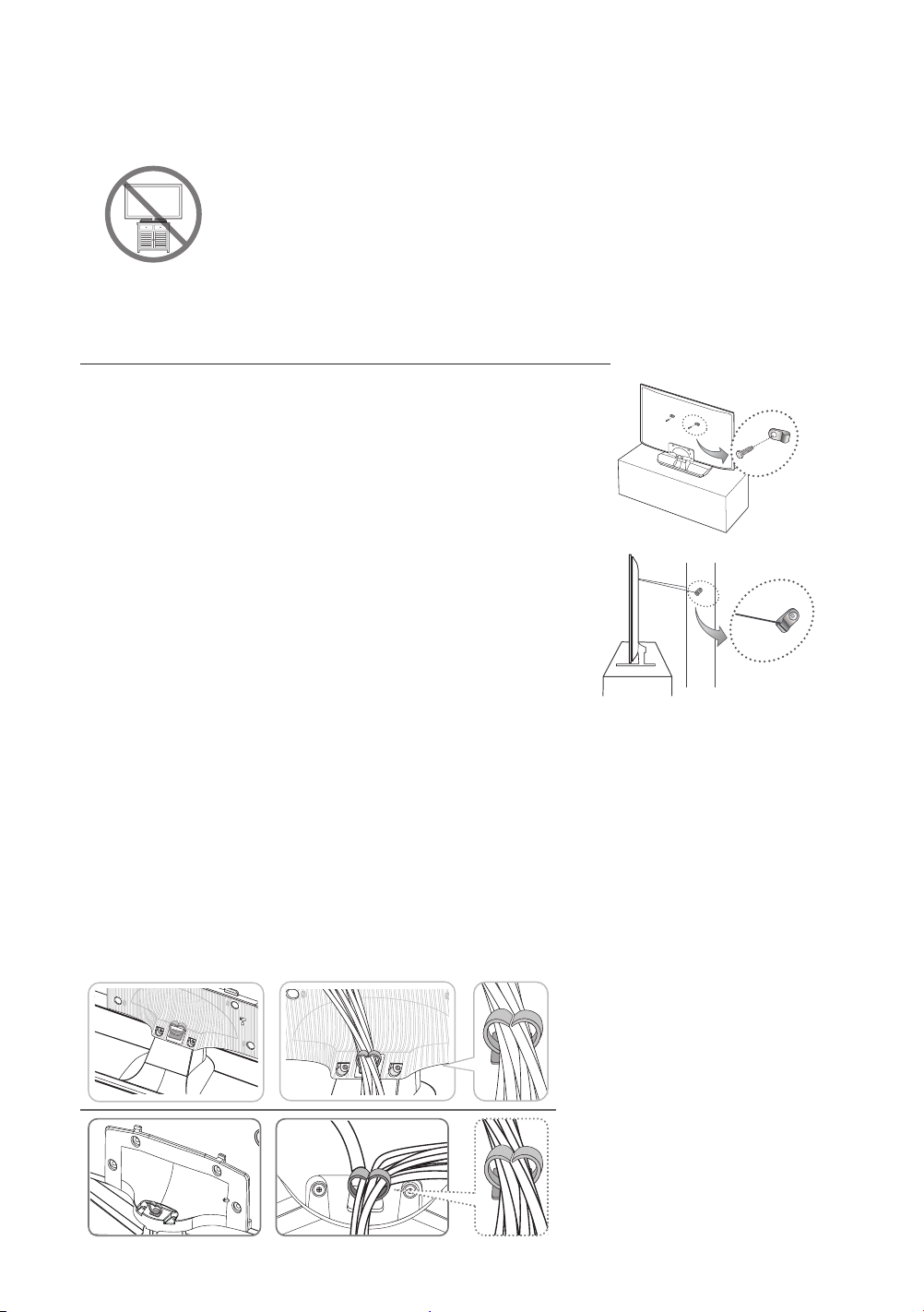

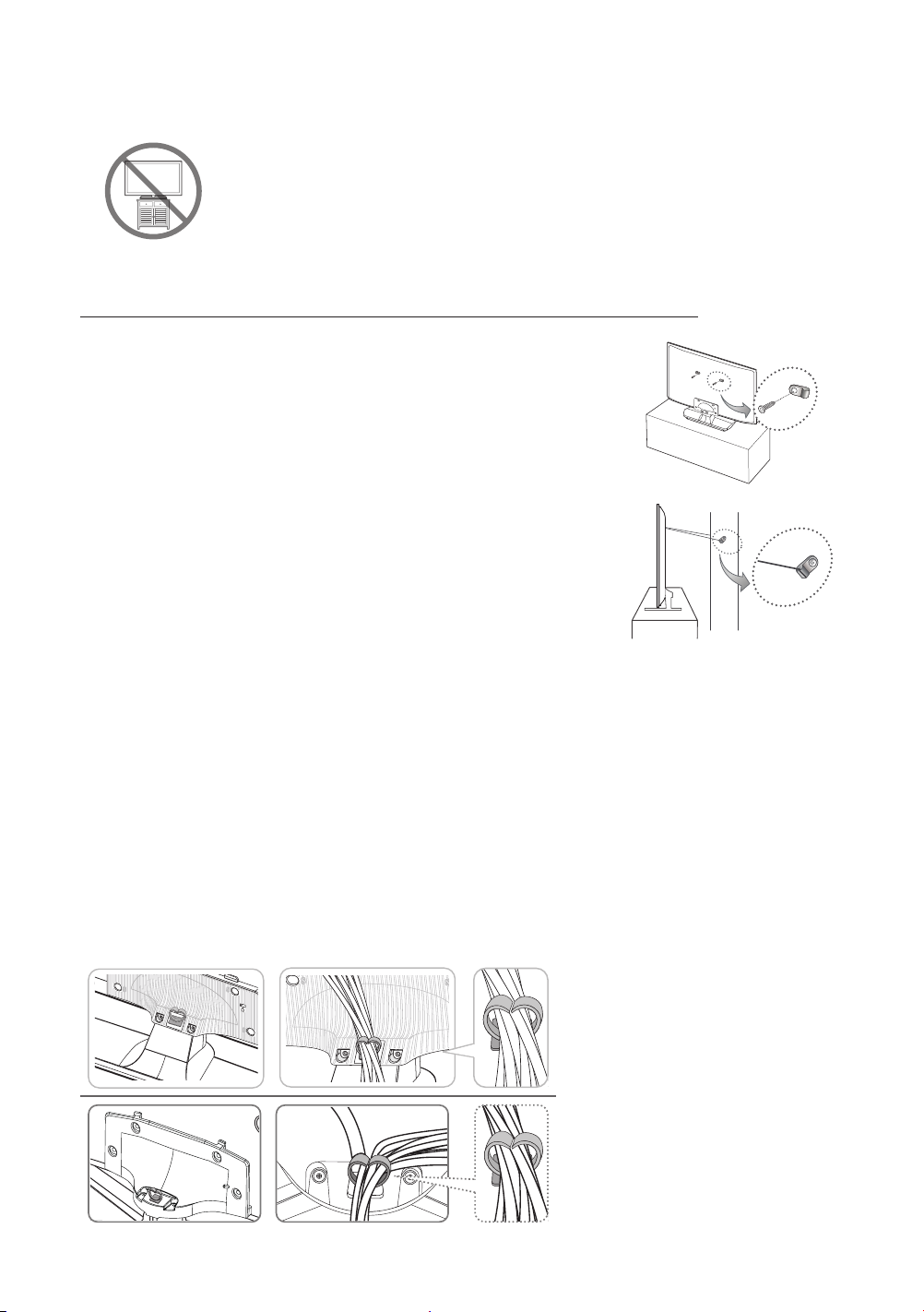

Arrange the cables using the Cable Holder

- The method for using the cable holder may vary depending on the specific model.

English - 6

Connecting devices to your TV

You can connect various external devices using the connectors located at the back of the product. Check the connectors and then refer to the assembly instructions provided for more information on supported external devices.

Connecting to a COMMON INTERFACE slot (Your TV viewing Card Slot)

- Turn the TV off to connect or disconnect a CI card or CI card adapter.

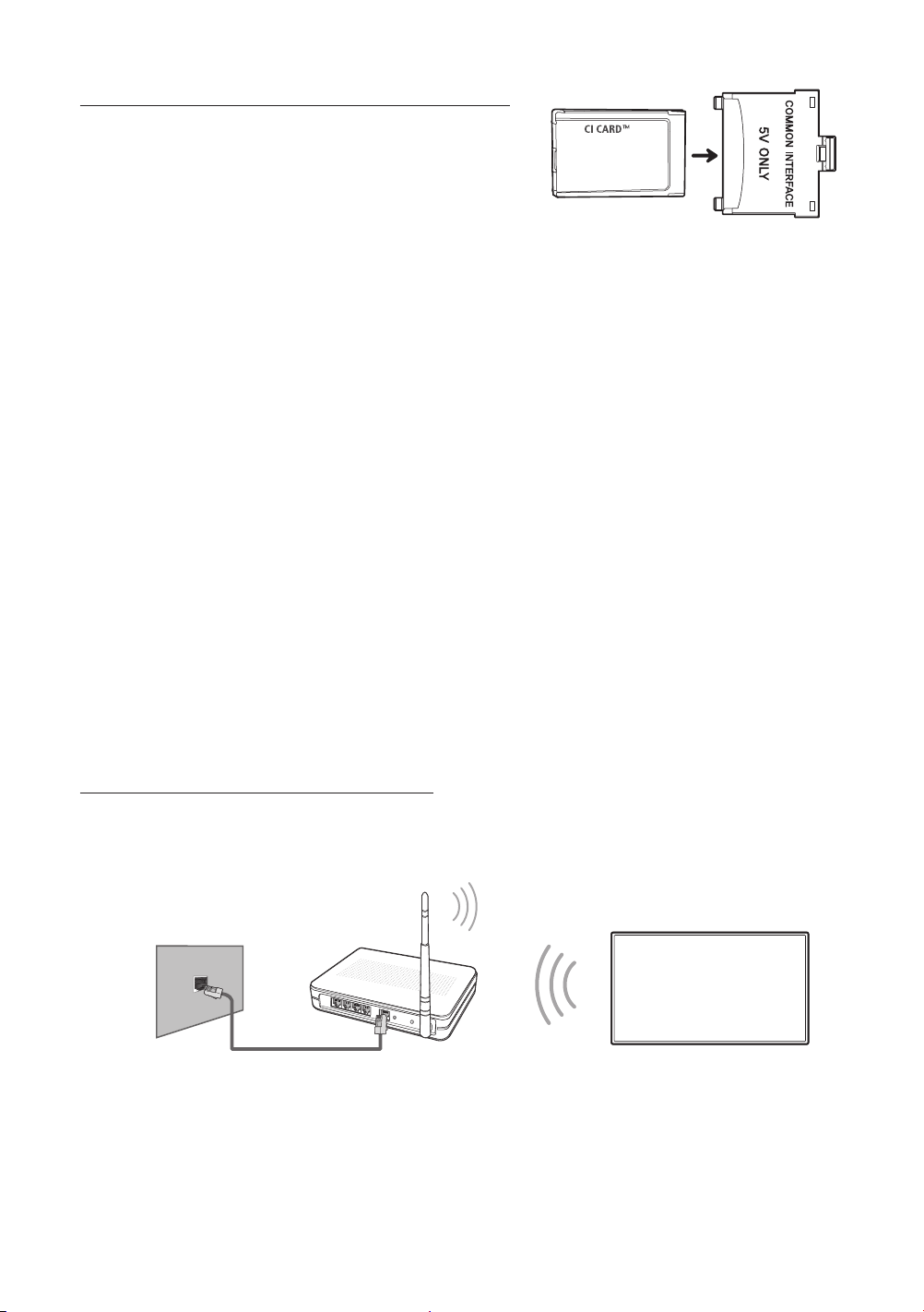

Attaching the CI Card Adapter

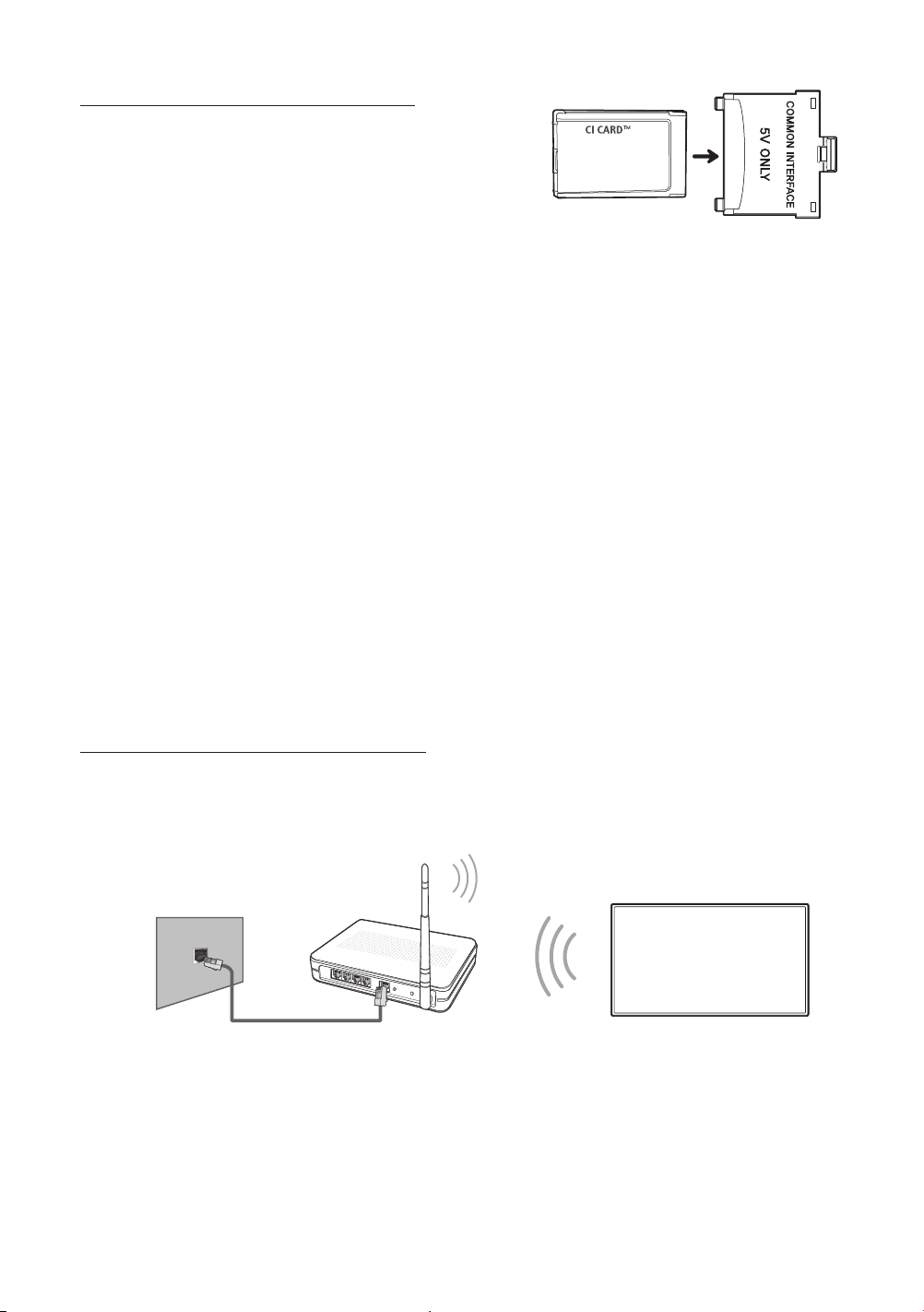

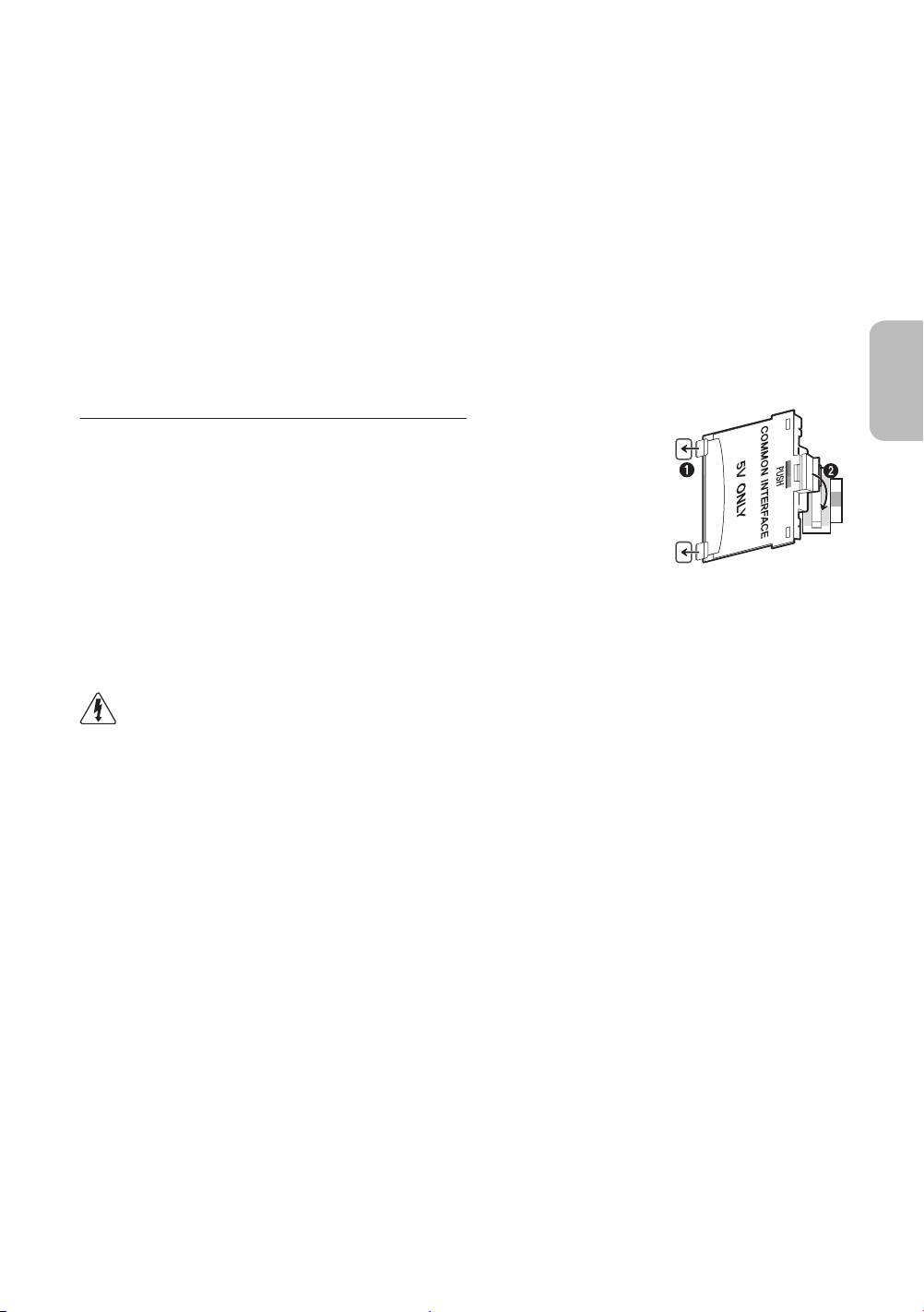

Attach the adapter as shown.

- To install the CI CARD Adapter, please remove the sticker attached to the TV.

To connect the CI CARD Adapter, follow these steps.

- We recommend attaching the adapter before installing the wall mount, or inserting the “CI or CI+ CARD”.

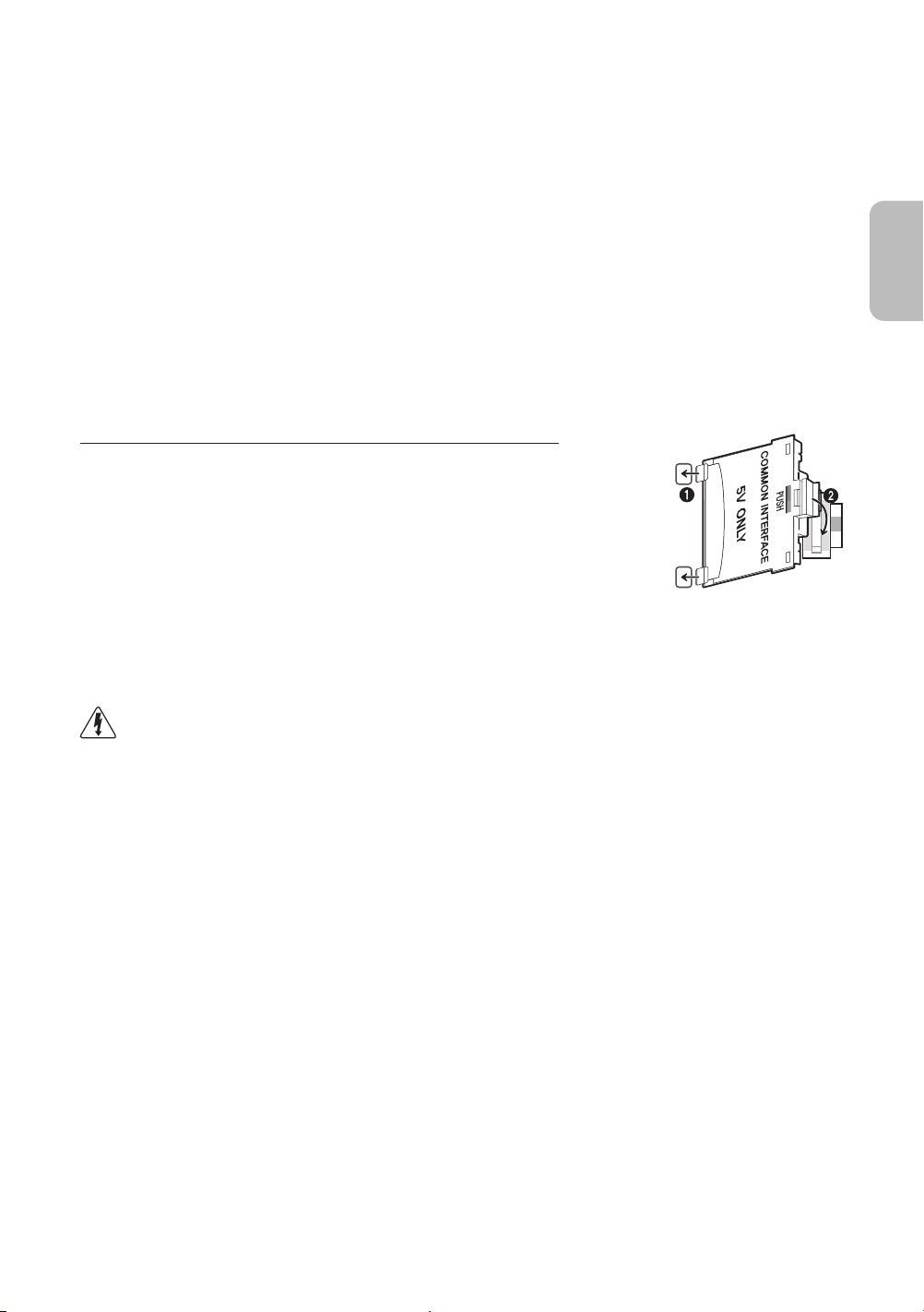

1. Insert the CI CARD Adapter into the two holes on the product 1.

- Please locate the two holes at the back of the TV next to the port.

2. Connect the CI CARD Adapter to the

3. Insert the “CI or CI+ CARD”.

COMMON INTERFACE

port on the product 2.

English

We recommend that you attach the CI Card adapter and insert the CI card (viewing card) before you mount the TV on the wall because it may be difficult and dangerous to do this when it is on the wall.

English - 7

Using the “CI or CI+ CARD”

To watch paid channels, the “CI or CI+ CARD” must be inserted.

- If you don’t insert the “CI or CI+ CARD”, some channels will display the “Scrambled Signal” message.

- The pairing information containing a telephone number, the “CI or CI+ CARD” ID, the Host ID, and other information will be displayed in about 2~3 minutes. If an error message is displayed, please contact your service provider.

- When the configuration of channel information has finished, the message “Updating Completed” is displayed, indicating the channel list is updated.

NOTE

- You must obtain a “CI or CI+ CARD” from a local cable service provider.

- When removing the “CI or CI+ CARD”, carefully pull it out as dropping the “CI or CI+ CARD” may damage it.

- Insert the “CI or CI+ CARD” in the direction marked on the card.

- The location of the COMMON INTERFACE slot may differ depending on the model.

- A “CI or CI+ CARD” is not supported in some countries and regions, therefore, check with your authorised dealer.

- If you have any problems, please contact a service provider.

- Insert the “CI or CI+ CARD” that supports the current aerial settings. The screen will be distorted or will not be visible.

Connecting to a Network

Connecting the TV to a network gives you access to online services such as the Smart Hub, as well as software updates.

Network Connection - Wireless

Connect the TV to the Internet using a standard router or modem.

Wireless IP Router or Modem with

The LAN Port on the Wall

LAN Cable (Not Supplied)

a DHCP Server

English - 8

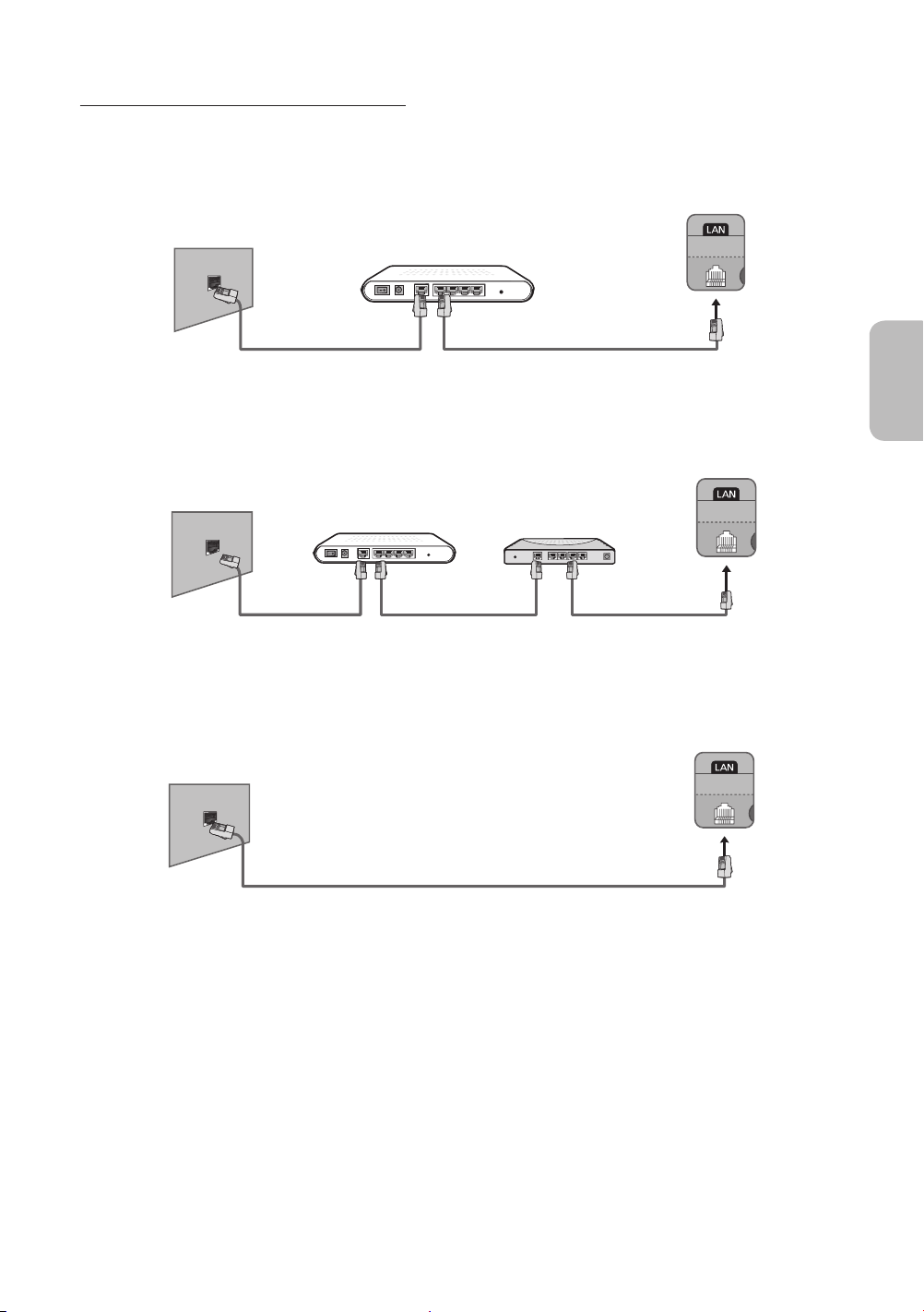

Network Connection - Wired

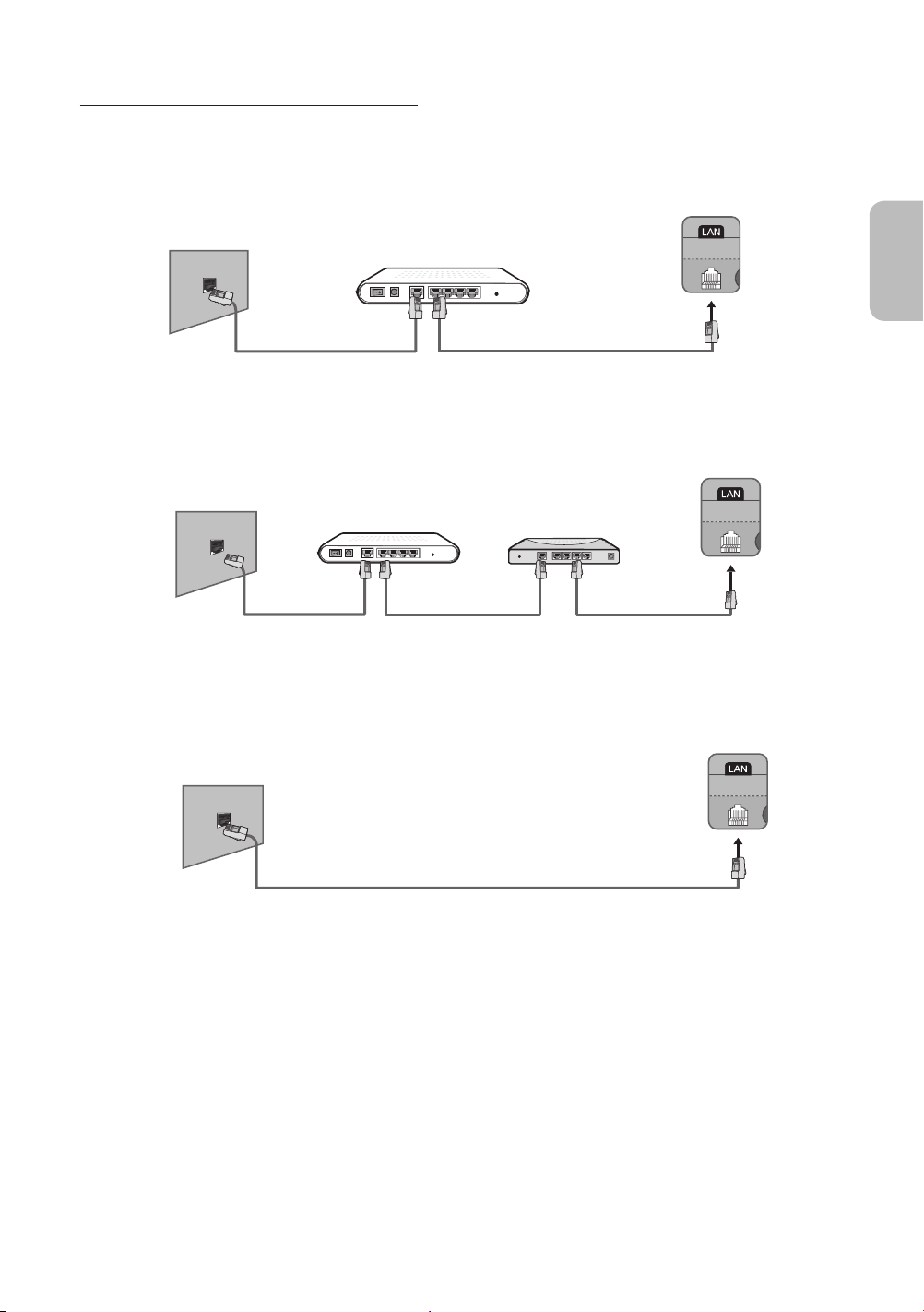

There are three main ways to connect your TV to your network using cable, depending on your network setup. They are illustrated starting below:

TV Rear Panel

The Modem Port on the Wall

Modem Cable (Not Supplied) LAN Cable (Not Supplied)

The Modem Port on the Wall

External Modem

(ADSL / VDSL / Cable TV)

External Modem

(ADSL / VDSL / Cable TV)

TV Rear Panel

IP Router with a DHCP

Server

English

Modem Cable (Not Supplied)

The LAN Port on the Wall

- The TV does not support network speeds less than or equal to 10Mbps.

- Use Cat 7 cable for the connection.

LAN Cable

(Not Supplied)

LAN Cable (Not Supplied)

LAN Cable

(Not Supplied)

TV Rear Panel

English - 9

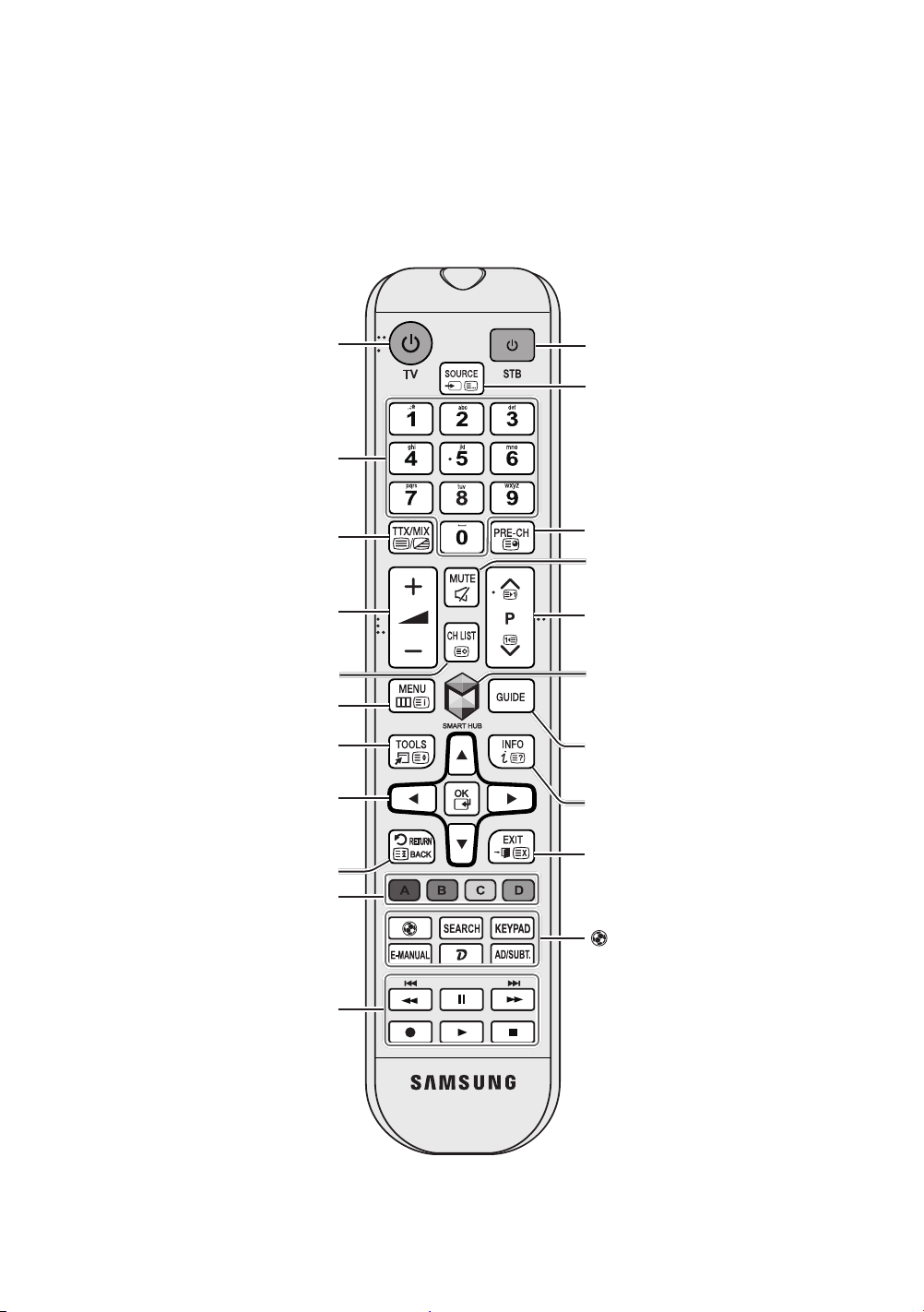

Remote Control

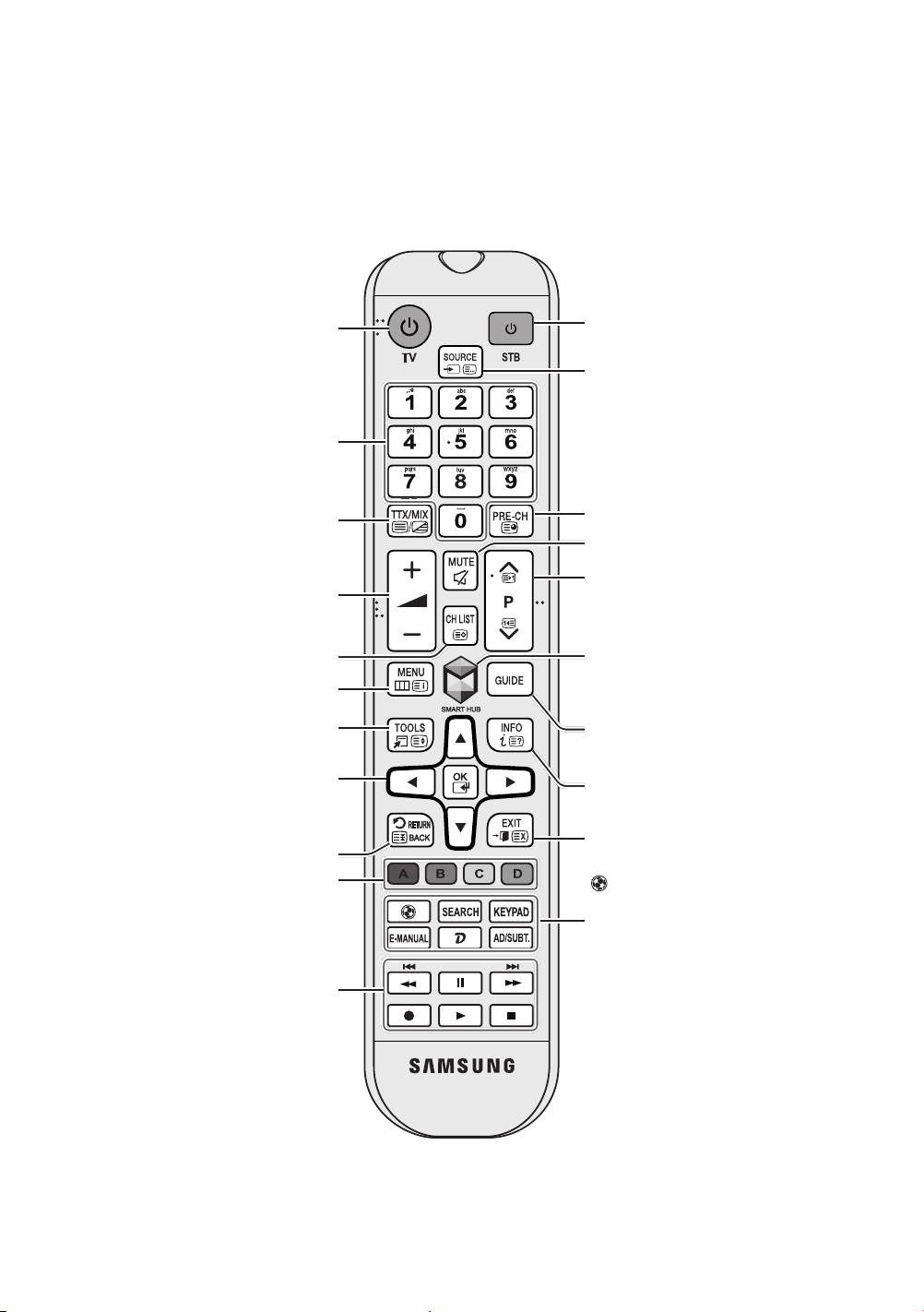

Learn where the function buttons are on your remote, such as:

INFO, CH LIST, RETURN, GUIDE

- This remote control has Braille points on the persons.

Turns the TV on and off.

Gives direct access to channels.

Alternately selects Teletext ON, Double,

Adjusts the volume.

Displays channel lists.

Opens the OSD (Menu).

and

EXIT

Mix or OFF.

Power, Channel

SOURCE, MUTE

, and

Volume

Y, < P >

buttons and can be used by visually impaired

Turns the Set-top box on and off.

Displays and selects available video sources.

Returns to the previous channel.

Cuts off the sound temporarily.

Changes channels.

Brings up to the e-Manual chapter, Smart Features >

Smart Hub

MENU, TOOLS

Smart Hub

, E,

applications. Refer

Quickly selects frequently used functions.

Moves the cursor, selects the on-screen

menu items, and changes the values

seen on the TV's menu.

Returns to the previous menu.

Use these buttons according to the

directions on the TV screen.

Use these buttons with specific features.

Use these buttons according to the

directions on the TV screen.

Displays the EPG (Electronic Programme Guide).

Displays information on the TV screen.

Exits the menu.

: Enable

Football Mode

sports viewing experience.

: Press this button to use the

search window.

KEYPAD

: With the virtual remote control on the screen, you can easily enter digits, control content, and use functions.

E-MANUAL

broadcast service.

AD/SUBT. Shortcuts

: Displays the

: Use this button when using data

: Displays the

for an optimal

e-Manual

Accessibility

English - 10

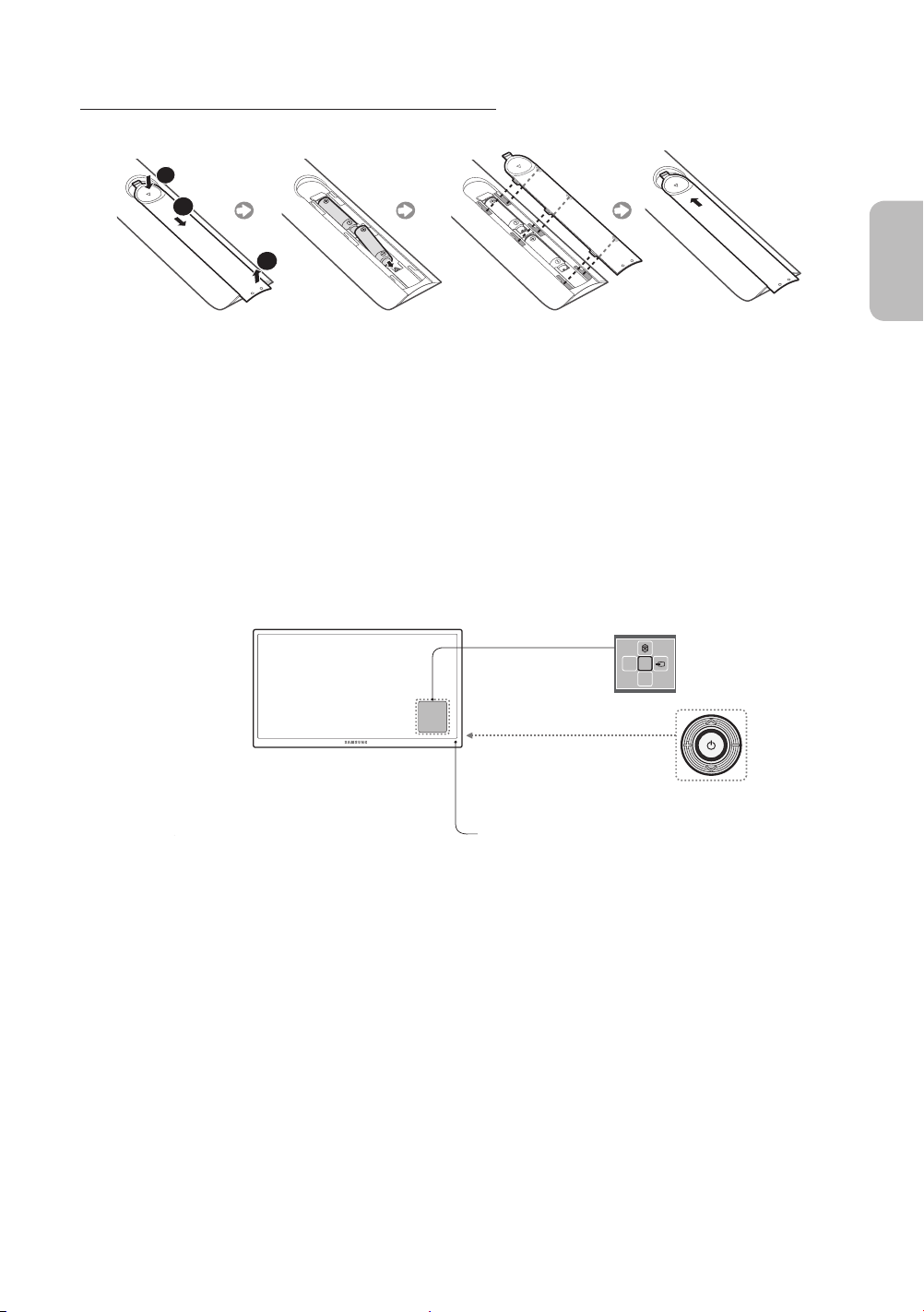

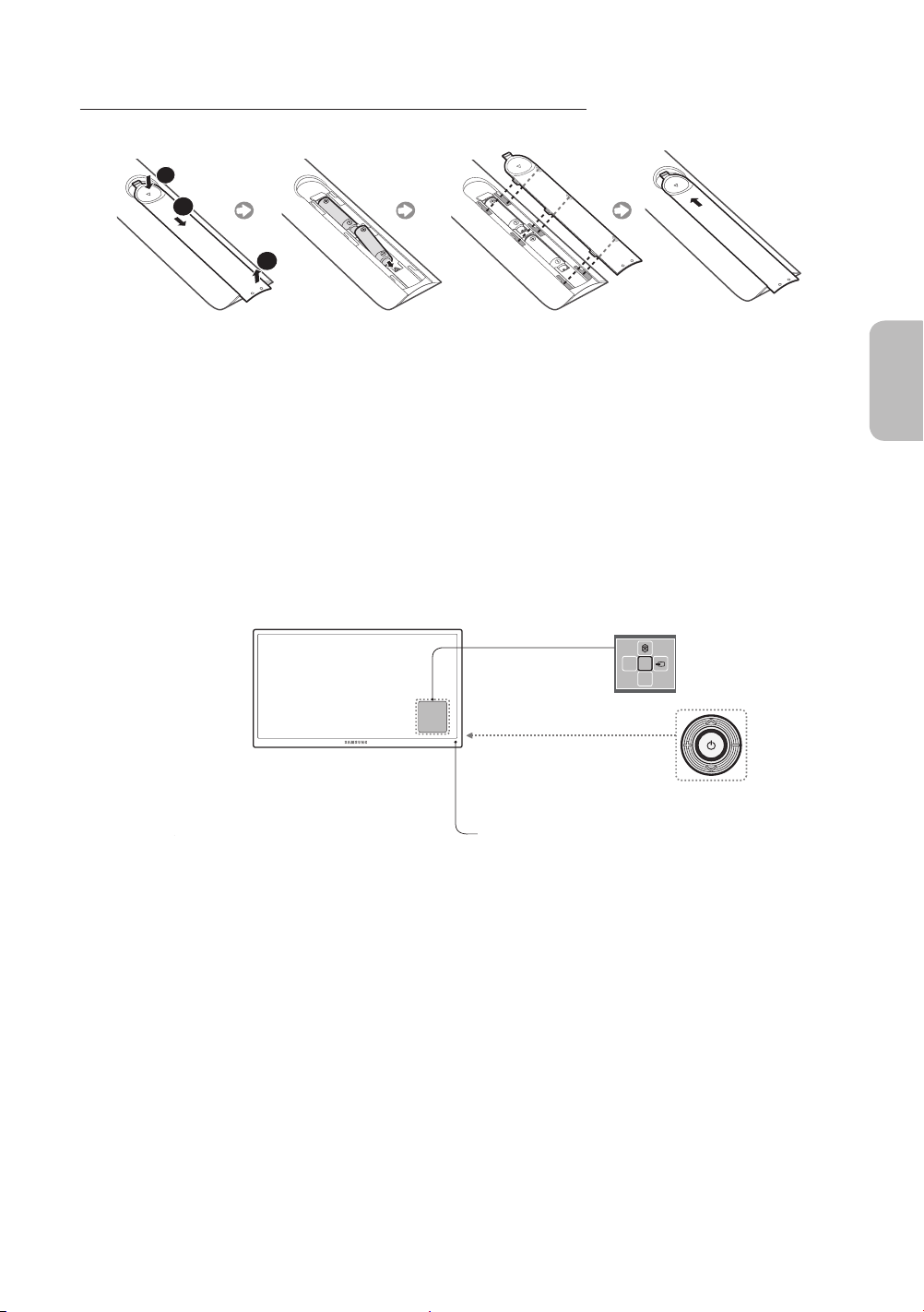

Installing the batteries (Battery size: AAA)

Match the polarities of the batteries to the symbols in the battery compartment.

- Use the remote control within 7m of the TV.

- Bright lights may affect the performance of the remote control. Avoid using the remote control near special fluorescent lights or neon signs.

- The colour and shape may vary depending on the model.

Turning on the TV

Turn on the TV using the P button on the remote control or TV panel.

- The product colour and shape may vary depending on the model.

- The TV’s Controller, a small joystick-like button at the right back of the TV, lets you control the TV without the remote control.

English

Function menu

TV Controller

Remote control sensor

English - 11

Initial setup

The initial setup dialogue box appears when the TV is first activated. Follow the on-screen instructions to finish the initial setup process, including the selecting the menu language, scanning channels, connecting to the network, and more. During each step, either make a choice or skip the step. You can manually perform this process at a later time in the

System > Setup

- If you connect any device to installation, the

top box

- If you do not want to select

Aerial

menu.

Channel Source

automatically.

HDMI1

before starting the

will be changed to

Set-top box

, please select

Set-

Selecting the video source

You can select a connected external device using the

SOURCE

button.

For example, to switch to a gaming console connected

SOURCE

Source

. From the

screen:

to the second HDMI connector, press

Source

list, select

mode. Connector names may vary depending on the model. The following options are available in the

HDMI2

to change the input signal to HDMI

Password Change

System

Change PIN

Changing the TV’s password.

1. Run

Change PIN

the password field. The default password is “1-1-1-1”.

2. Enter a new password and then enter it again to confirm

it. The password change is complete.

- If you forgot your PIN code, press the buttons in the following sequence to reset the PIN to “1-1-1-1”:

In Standby mode:

Alternatively, simply designate a computer connected to the TV via an HDMI cable as

You can also designate an AV device connected to the TV via an HDMI-DVI cable as

Information

View detailed information about the connected devices.

and then enter the current password in

MUTE

→ 8 → 2 → 4 →

DVI Devices

POWER

(On)

TOOLS

Select a port connected to an external device, and press and hold the Enter button. The following functions are available:

Button

- Available options for each connector may vary.

Edit Name

Rename devices connected to the TV for easier identification of external sources.

For example, you can designate a computer connected to the TV via an HDMI-DVI cable as

DVI PC

English - 12

Anynet+ (HDMI-CEC)

Displays a list of Anynet+ (HDMI-CEC)-compliant devices that are connected to the TV.

- This option is only available when

CEC)

is On.

Anynet+ (HDMI-

Disconnect USB Device

Used to safely remove a USB device connected to the TV. This option is only available when a USB device has been selected.

Controlling External Devices with the TV Remote (

Universal Remote Setup

System

Universal Remote Setup

- Availability depends on the specific model and area.

The universal remote control feature lets you control cable boxes, Blu-ray players, home theatres, and other external devices connected to the TV using the TV's remote control. In order to use the TV's remote control as a universal remote, you must first connect the IR extender cable (included).

- You can also use the Anynet+ (HDMI-CEC) function to operate some external Samsung devices with your TV's remote

control without any additional setup. For more information, refer to the e-Manual.

- Certain external devices connected to the TV may not support the universal remote feature.

Setting Up the Universal Remote Control

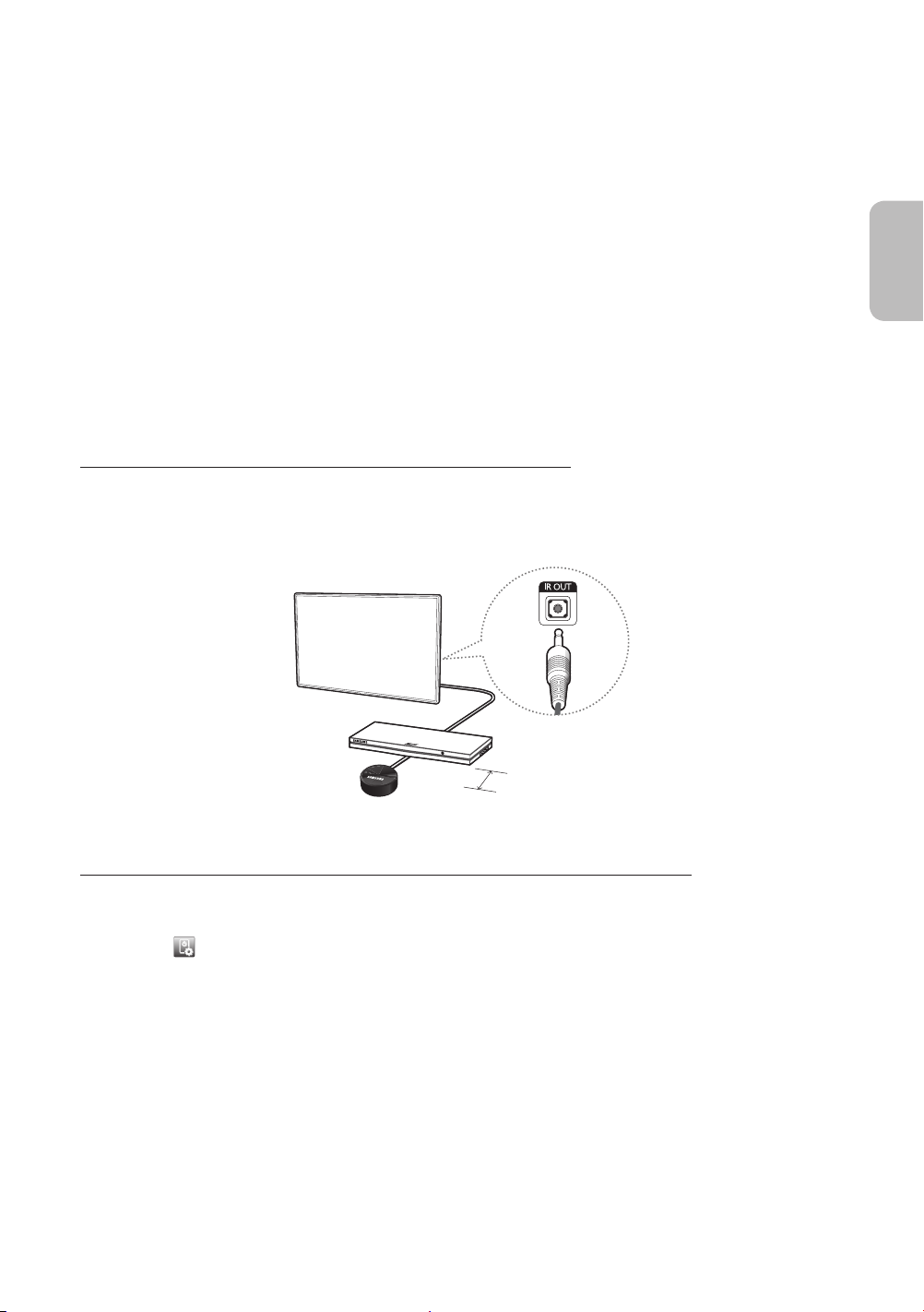

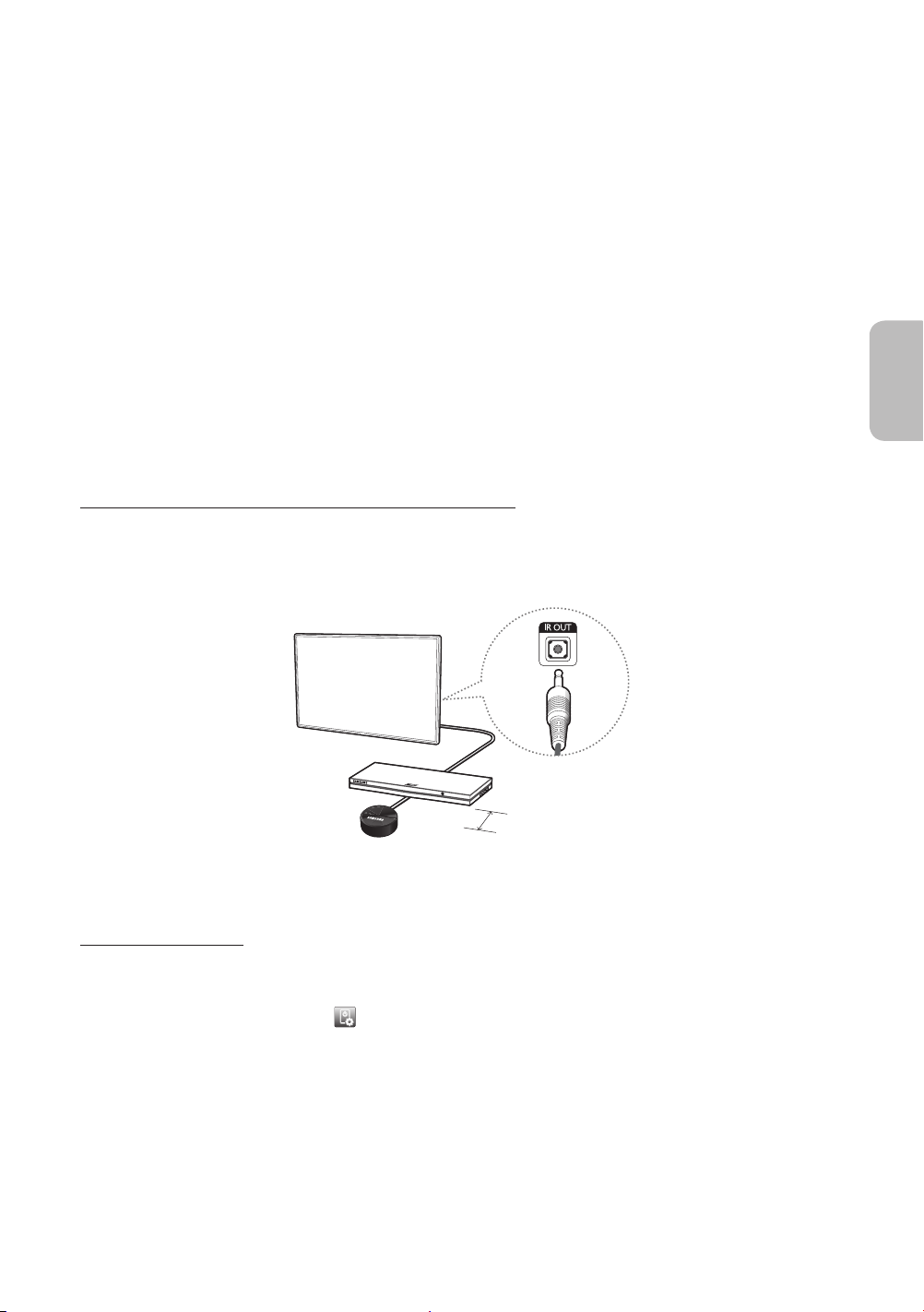

Connect the IR extender cable to the TV's IR output connector as shown in the diagram and place the transmitter end within 10 cm of the external device's receiver pointing in the direction of the remote receiver. However, there must be no obstacles between the IR extender cable and the external device. The presence of obstacles interferes with the transmission of the remote control signal.

)

English

10 cm

Controlling External Devices with the TV Remote

1. Turn on the external device to set up the universal remote function for, and bring up the

2. Select

3. Follow the on-screen instructions and register the external device.

Universal remote setup

from the top of the screen. This initiates the universal remote setup process.

Source

screen.

English - 13

Viewing more TV features

The

e-Manual

contains more detailed information on the TV features. Refer to the embedded

Launching the e-Manual

The embedded e-Manual contains information.

- You can also download a copy of the e-Manual from Samsung's website, and read it on your computer or print it out.

- Yellow words indicate a menu item; white bold words indicate remote control buttons. Arrows are used to indicate the menu path. (Example:

1. Select

2. Select a category from the side of the screen. Once a selection has been made, the contents of the selected category

3. Select an item from the list. This opens the e-Manual on the corresponding page.

appear.

e-Manual

. The e-Manual loads.


Picture Mode

)

If a description doesn't fit on a single screen...

You can scroll pages in one of the following ways.

•

Position the focus on the page to display / on the screen. Press <, > button.

Additional e-Manual Features

Loading Pages using Keywords

Select

from the side of the screen to bring up the search screen. Enter a search term and then select

item from the search results to load the corresponding page.

e-Manual (Support

Done

e-Manual

. Select an

English - 14

Loading Pages from the Index Page

Select

Index

from the side of the screen to bring up the index screen. Select a keyword from the list to navigate to the relevant

page.

Using the History to Load Previously Read Pages

Select

Recent pages

to the selected page.

from the side of the screen. A list of previously read pages is shown. Select a page. The e-Manual jumps

Accessing the Menu from the e-Manual (Try Now)

Select ( If you want to read an

- Certain menu options cannot be used.

Try Now

) on a feature-description to directly move to the corresponding menu and try out the feature.

e-Manual

entry on a specific screen menu feature, Press the

Loading Reference Pages

Select (

Link

) from the side of a feature-description page to access the corresponding reference page.

Updating the e-Manual to the Latest Version

You can update the e-Manual in the same way as updating apps.

Update apps

e-Manual

1. Select the

2. Press and hold the Enter button. The Options menu appears.

3. From the Options menu on the screen, select

4. Select

item in the

is shown on the screen only when an update is required.

in the popup window and then select

SAMSUNG APPS

Update apps

screen.

. A popup window appears.

Update

. You can update the

E-MANUAL

e-Manual

English

button.

to the latest version.

English - 15

Troubleshooting

If you have any questions about the TV, first refer to the Troubleshooting list below. If none of these troubleshooting tips apply, please visit “www.samsung.com” and click on Support, or contact the call centre listed on the back cover of this manual.

Issues Solutions and Explanations

The TV won’t turn on. Make sure the AC power cord is securely plugged into the wall outlet and the TV.

Make sure the wall outlet is working. Try pressing the P button on the TV to make sure the problem is not the remote. If the TV

turns on, refer to the “Remote control does not work” item below

There is no picture/video. Check the cable connections. Remove and reconnect all cables connected to the TV

and external devices. Set the video outputs of your external devices (Cable/Sat Box, DVD, Blu-ray etc) to

match the TV's input connections. For example, if the output of an external device is HDMI, it should be connected to an HDMI input on the TV.

Make sure your connected devices are powered on. Be sure to select the correct input source. Reboot the connected device by unplugging it, and then reconnecting the device’s

power cable.

The remote control does not work.

The remote control of the cable/ set top box doesn’t turn the TV on or off or adjust the volume.

- This TFT LED panel uses a panel consisting of sub pixels which require sophisticated technology to produce. There may, however be a few bright or dark pixels. These pixels will have no impact on the performance of the product.

- To keep your TV running optimally upgrade to the latest firmware on the Samsung website via the USB device USB (Samsung.com > Support > Downloads).

- Some of the pictures and functions above are available for specific models only.

Replace the remote control batteries. Make sure the batteries are installed with their polarities (+/–) in the correct direction.

Clean the sensor’s transmission window on the remote. Try pointing the remote directly at the TV from 1.5 ~ 1.8 m away.

Programme the Cable/Set remote control to operate the TV. Refer to the Cable/SetTop-Box user manual for the SAMSUNG TV code.

English - 16

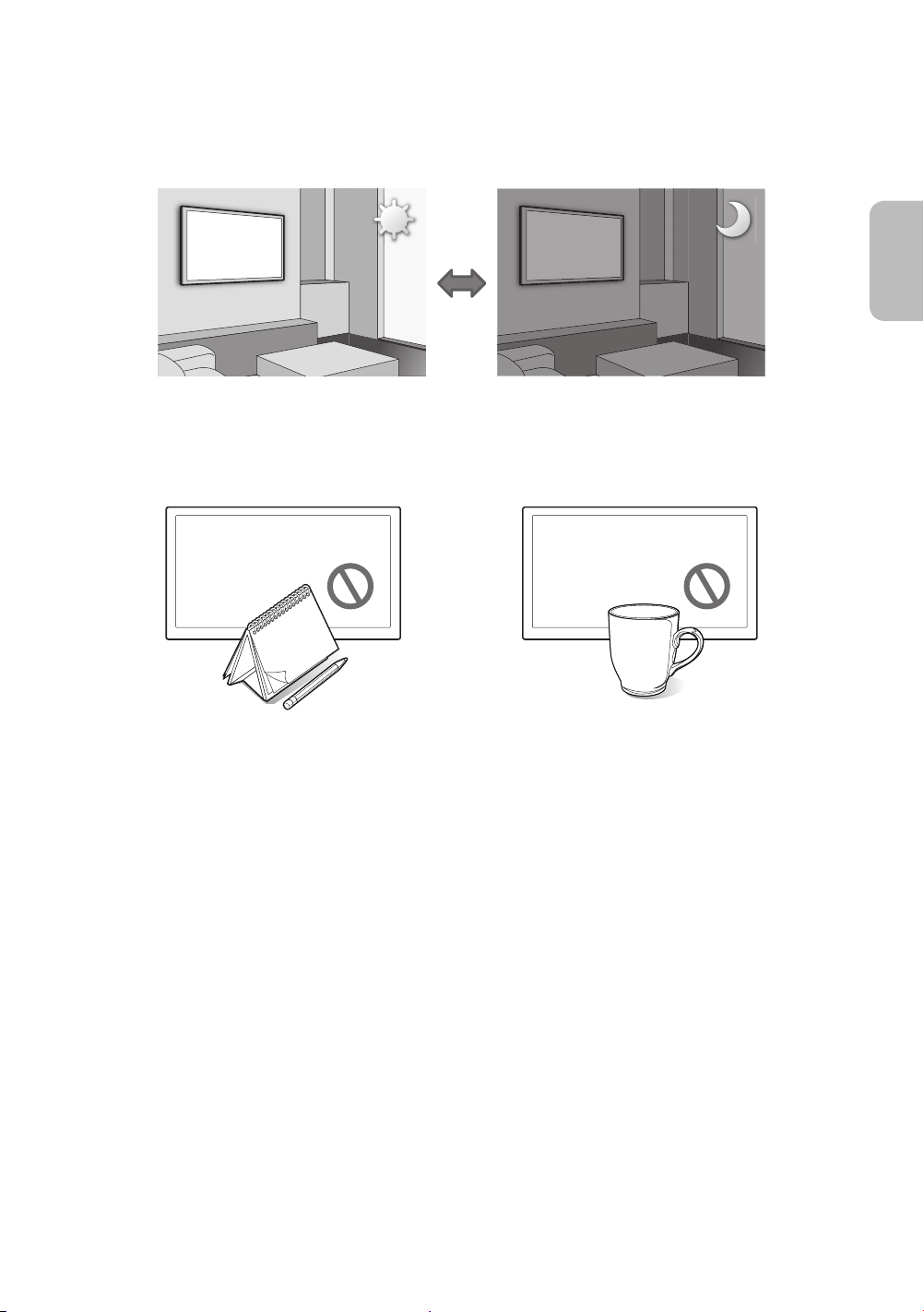

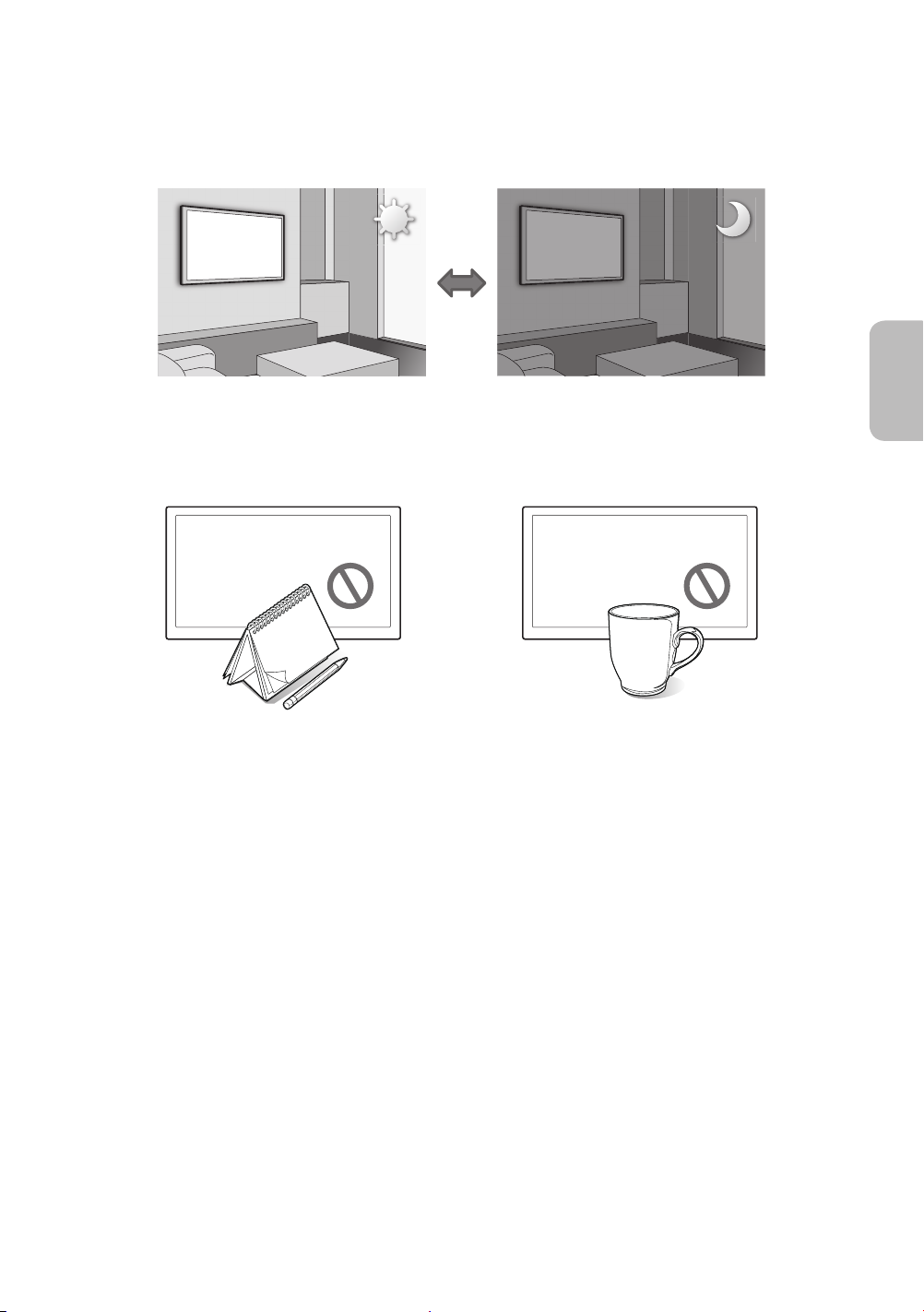

Cautions about the Eco Sensor and Screen Brightness

The Eco Sensor measures the light in the room and optimises the brightness of the TV automatically to reduce power consumption. This causes the TV to brighten and dim automatically. To turn this function off, go to

Eco Sensor

System

Eco Solution

English

Do not block the sensor with any material. This may decrease the picture brightness.

Eco Sensor

detected by the Light Sensor.

2. To enable or disable the

3. Please note: If the screen is too dark while watching TV in a dark environment, this may be due to the

: This power-saving feature automatically adjusts the screen brightness of the TV according to the ambient light

Eco Sensor

, go to

System

Eco Solution

Eco Sensor

and select On or

Off

Eco Sensor

English - 17

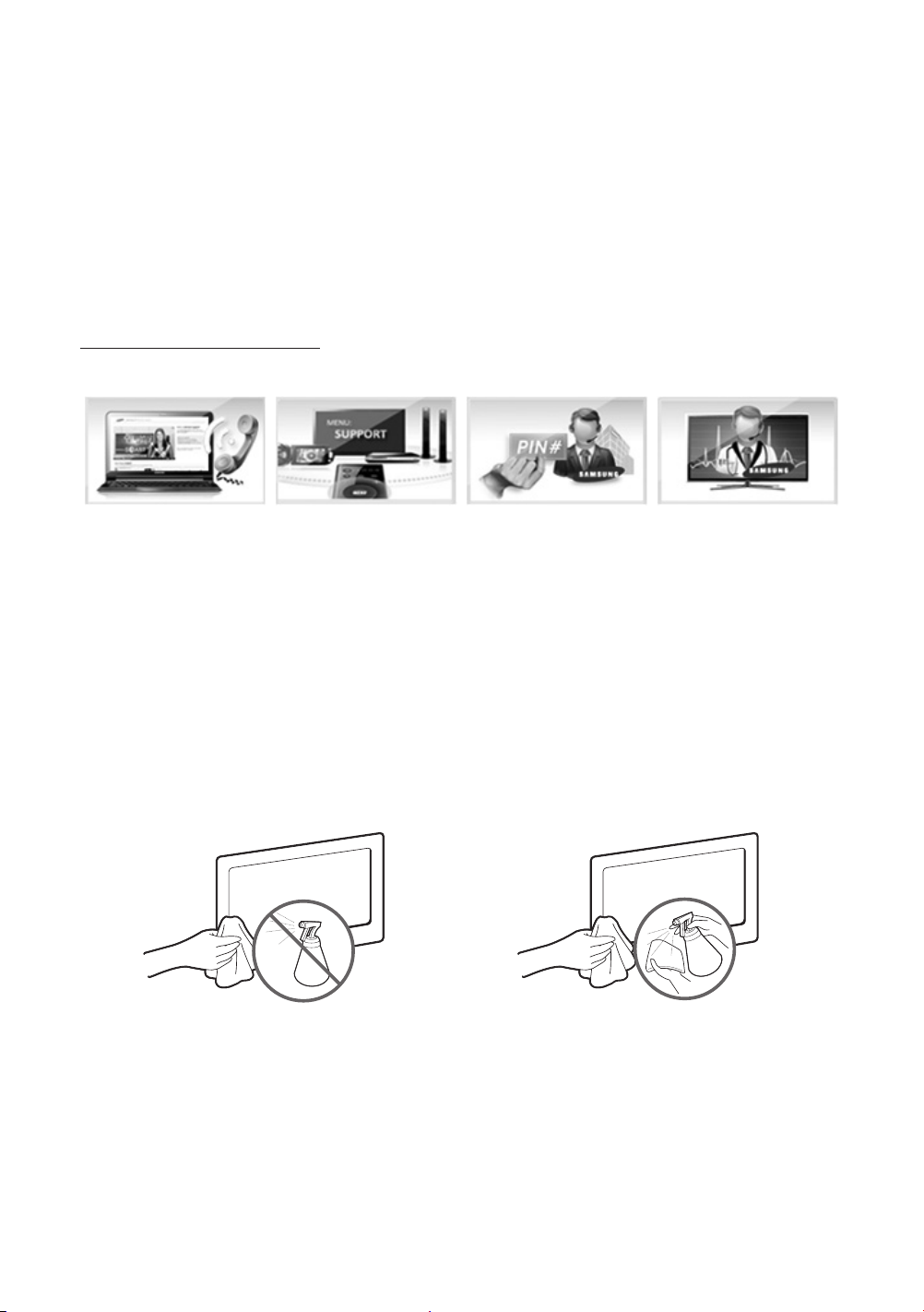

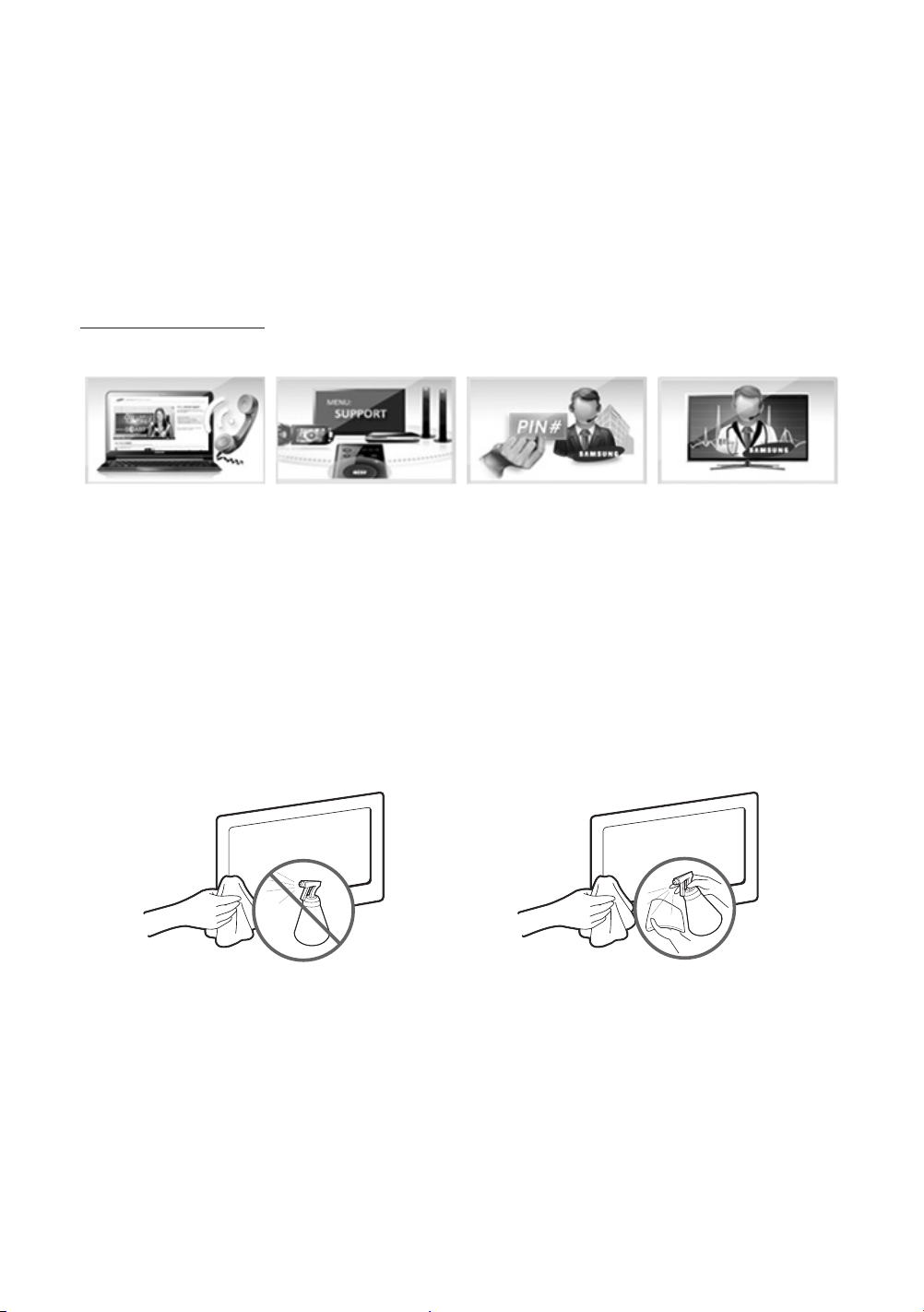

What is Remote Support?

Samsung's Remote Support service offers you one-on-one support with a Samsung Technician who can remotely:

•

Diagnose your TV

•

Adjust your TV settings

•

Perform a factory reset for your TV

•

Install recommended firmware updates

How Does it Work?

Having a Samsung Tech remotely service your TV is really pretty simple

1. Call the Samsung

Contact Centre and ask

for remote support.

2. Open the menu on

your TV and go to the

Support section.

3. Select Remote

Management and Provide the Pin# to the agent.

4. The agent will then access your TV. That's

it!

Storage and Maintenance

- If a sticker was attached to the TV screen, some debris may remain after you remove the sticker. Please clean the debris off before watching TV.

- The exterior and screen of the product can get scratched while cleaning it. Be sure to wipe the exterior and screen carefully using a soft cloth to prevent scratches.

Do not spray water directly onto the product. Any liquid that enters the product may result in product failure, fire, or electric shock.

Clean the product with a soft damp cloth using a small amount of water. Do not use a flammable liquid (e.g. benzene, thinners) or a cleaning agent.

English - 18

TV Specifications

Display Resolution 1920 x 1080

Environmental Considerations Operating Temperature Operating Humidity Storage Temperature Storage Humidity

Sound (Output) 10W x 2

Model Name UE32H5500 UE40H5500

Screen Size (Diagonal)

Stand Swivel (Left / Right)

Dimensions (W x H x D) Body With stand

Weight Without Stand With Stand

Model Name UE48H5500 UE50H5500

Screen Size (Diagonal) 48 inches 50 inches

Stand Swivel (Left / Right) 0˚

Dimensions (W x H x D) Body With stand

Weight Without Stand With Stand

Model Name UE40H5510 UE48H5510

Screen Size (Diagonal) 40 inches 48 inches

Stand Swivel (Left / Right) -20˚ ~ 20

Dimensions (W x H x D) Body With stand

Weight Without Stand With Stand

32 inches 40 inches

721.4 x 428.5 x 64.9 mm

721.4 x 465.1 x 163.4 mm

4.9 kg

5.3 kg

1075.1 x 627.6 x 65.5 mm

1075.1 x 673.8 x 203.9 mm

11.1 kg

12.4 kg

906.6 x 525.4 x 63.1 mm

906.6 x 604.9 x 264.8 mm

7.7 kg

8.8 kg

10°C to 40°C (50°F to 104°F) 10% to 80%, non-condensing

-20°C to 45°C (-4°F to 113°F ) 5% to 95%, non-condensing

0˚

906.6 x 532.9 x 65.1 mm

906.6 x 578.2 x 196.4 mm

7.7 kg

8.6 kg

1116.8 x 651.1 x 65.7 mm

1116.8 x 696.4 x 203.9 mm

13.0 kg

14.0 kg

1075.1 x 620.1 x 63.5 mm

1075.1 x 711.2 x 306.9 mm

11.1 kg

12.6 kg

English

- The design and specifications are subject to change without prior notice.

- For information about the power supply, and about power consumption, refer to the label attached to the product.

- Typical power consumption is measured according to IEC 62087 Ed.2

Standby mode

To decrease power consumption, unplug the power cord when the TV will not be used for a long time.

English - 19

+ 42 hidden pages
