LED TV

user manual

Thank you for purchasing this Samsung product.

To receive more complete service, please register your product at

www.samsung.com/register

Model _____________ Serial No. _____________

BN68-06007C-02

Warning! Important Safety Instructions

(Please read the appropriate section that corresponds to the marking on your Samsung product before attempting to install the product.)

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO QUALIFIED PERSONNEL.

This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product.

This symbol alerts you that important literature concerning operation and maintenance has been included with this product.

The slots and openings in the cabinet and in the back or bottom are provided for necessary ventilation. To ensure reliable operation of this apparatus, and to protect it from overheating, these slots and openings must never be blocked or covered.

-- Do not cover this apparatus in a confined space, such as a bookcase or built-in cabinet, unless proper ventilation is provided. -- Do not place this apparatus near or over a radiator or heat resistor, or where it is exposed to direct sunlight.

-- Do not place a vessel containing water (vases etc.) on this apparatus, as this can result in a risk of fire or electric shock.

Do not expose this apparatus to rain or place it near water (near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool etc.). If this apparatus accidentally gets wet, unplug it and contact an authorised dealer immediately. Make sure to pull out the power cord from the outlet before cleaning.

This apparatus use batteries. In your community there might be regulations that require you to dispose of these batteries properly under environmental considerations. Please contact your local authorities for disposal or recycling information.

Do not overload wall outlets, extension cords or adaptors beyond their capacity, since this can result in fire or electric shock.

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plug end, adaptors and the point where they exit from the appliance.

To protect this apparatus from a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the set due to lightning and power line surges.

Before connecting the AC power cord to the DC adaptor outlet, make sure the voltage designation of the DC adaptor corresponds to the local electrical supply.

Never insert anything metallic into the open parts of this apparatus. Doing so may create a danger of electric shock.

To avoid electric shock, never touch the inside of this apparatus. Only a qualified technician should open this apparatus.

Make sure to plug the power cord in until it is firmly inserted. When removing the power cord, make sure to hold the power plug when pulling the plug from the outlet. Do not touch the power cord with wet hands.

If this apparatus does not operate normally - in particular, if there are any unusual sounds or smells coming from it - unplug it immediately and contact an authorised dealer or service centre.

Be sure to pull the power plug out of the outlet if the TV is to remain unused or if you are to leave the house for an extended period of time (especially when children, elderly or disabled people will be left alone in the house).

-- Accumulated dust can cause an electric shock, an electric leakage or a fire by causing the power cord to generate sparks and heat or the insulation to deteriorate.

Be sure to contact an authorised service centre, when installing your set in a location with heavy dust, high or low temperatures, high humidity, chemical substances and where it operates for 24 hours such as the airport, the train station etc. Failure to do so may cause serious damage to your set.

Use only a properly grounded plug and receptacle.

-- An improper ground may cause electric shock or equipment damage. (Class l Equipment only.)

To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.

Do not allow children to hang onto the product.

Store the accessories (battery, etc.) in a location safely out of the reach of children.

Do not install the product in an unstable location such as a shaky self, a slanted floor or a location exposed to vibration.

Do not drop or impart any shock to the product. If the product is damaged, disconnect the power cord and contact a service centre.

Unplug the power cord from the power outlet and wipe the product using a soft, dry cloth. Do not use any chemicals such as wax, benzene, alcohol, thinners, insecticide, aerial freshener, lubricant or detergent. This may damage the appearance or erase the printing on the product.

Apparatus shall not be exposed to dripping or splashing. Do not dispose of batteries in a fire.

Do not short circuit, disassemble or overheat the batteries.

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

WARNING - TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OTHER OPEN FLAMES AWAY FROM THIS PRODUCT AT ALL TIMES.

* Figures and illustrations in this User Manual are provided for reference only and may differ from the actual product appearance. Product design and specifications may change without notice.

CIS languages (Russian, Ukrainian, Kazakhs) are not available for this product, since this is manufactured for customers in EU region.

English - 2

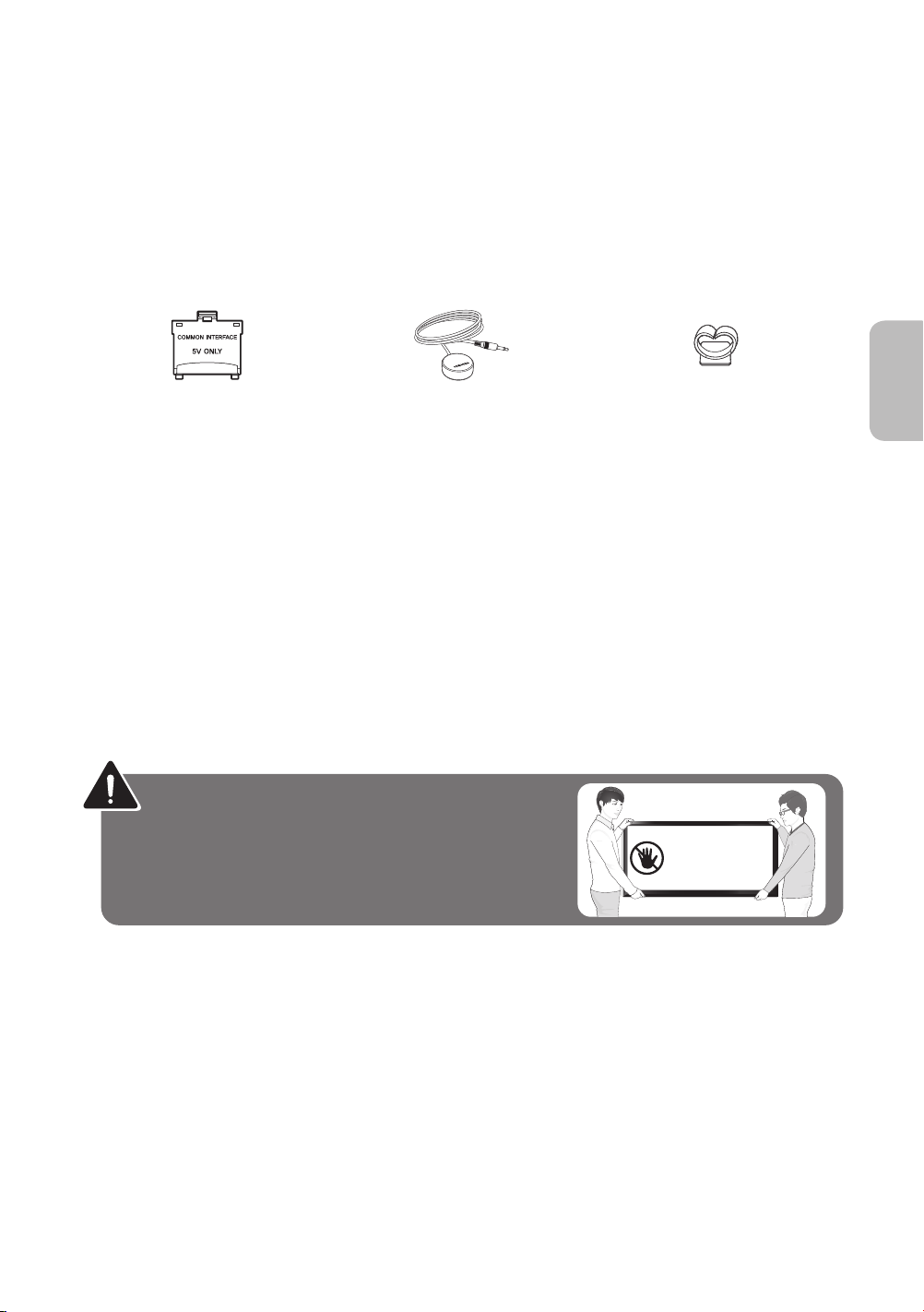

What's in the Box?

	<![if ! IE]> <![endif]>English
Samsung Smart Control & Batteries (AA x 2)	Regulatory Guide
Remote Control & Batteries (AAA x 2)	Power Cord
User Manual	Samsung 3D Active Glasses
Warranty Card (Not available in some locations)

CI Card Adapter							IR Extender Cable	Cable Holder

-- Please make sure the following items are included with your TV. If any items are missing, contact your dealer. -- The items’ colours and shapes may vary depending on the models.

-- Cables not included can be purchased separately.

-- Check for any accessories hidden behind or in the packing materials when opening the box.

An administration fee may be charged if either

(a)an engineer is called out at your request and there is no defect with the product (i.e. where the user manual has not been read).

(b)you bring the unit to a repair centre and there is no defect with the product (i.e. where the user manual has not been read).

You will be informed of the administration fee amount before a technician visits.

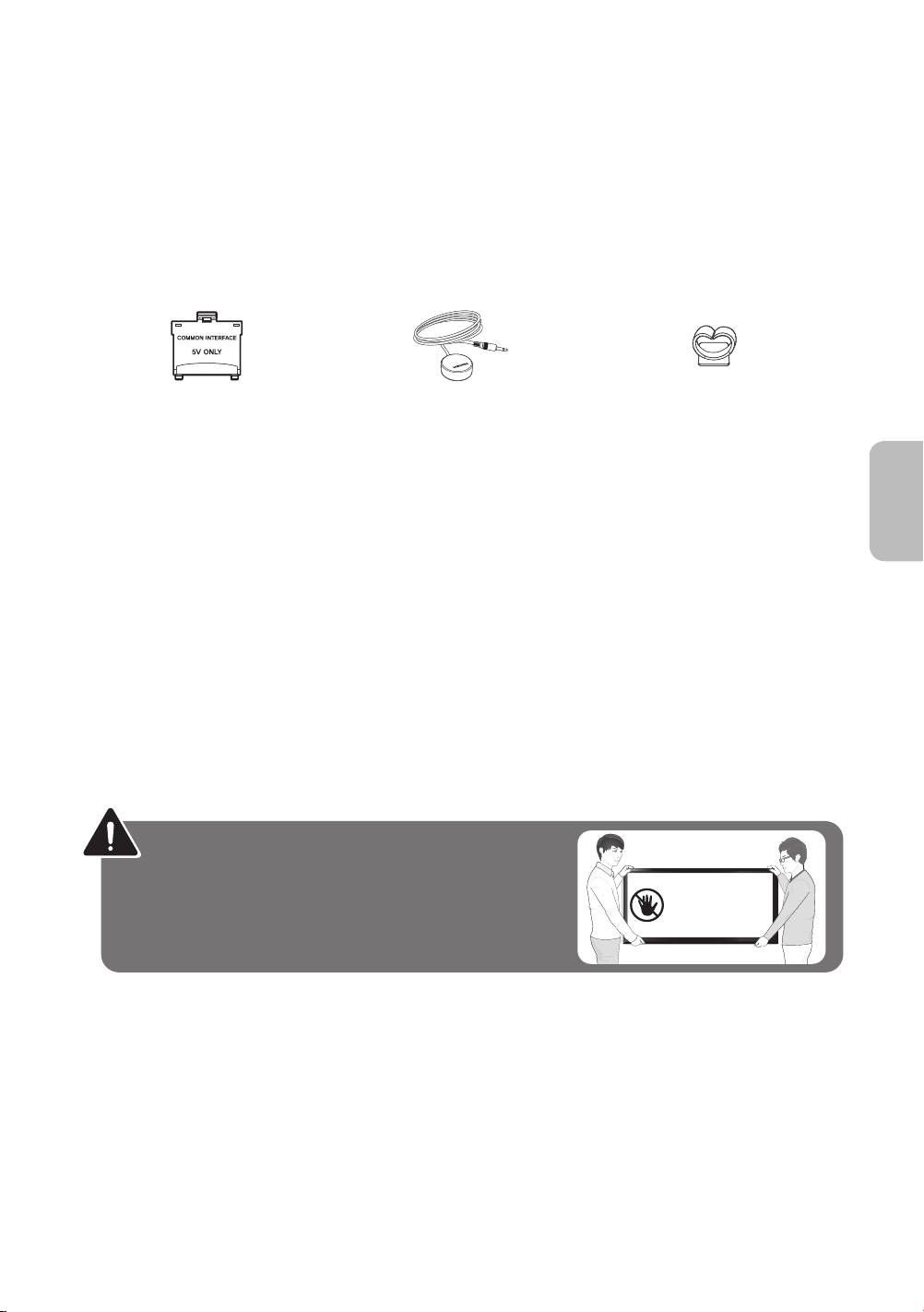

Warning: Screens can be damaged from direct pressure when
handled incorrectly. We recommend lifting the TV at the edges, as	Don't Touch
shown.	This Screen!

English - 3

Attaching the TV to the Stand

Make sure you have all the accessories shown, and that you assemble the stand following the provided assembly instructions.

Mounting the TV on the Wall Using the Wall Mount Kit (Optional)

If you mount this product on a wall, it should be mounted only as recommended by the manufacturer. Unless it is correctly mounted, the product may slide or fall, causing serious injury to a child or adult, and serious damage to the product.

Installing the Wall Mount Kit

The wall mount kit (sold separately) lets you mount the TV on the wall.

For detailed information about installing the wall mount, refer to the instructions provided with the wall mount. We recommend that you contact a technician for assistance when installing the wall mount bracket. We do not advise you to do it yourself. Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you select to install the wall mount on your own.

	Wall mount	TV
	Bracket

C

Wall Mount Kit Specifications (VESA)

The wall mount kit is not supplied, but is sold separately. Install your wall mount on a solid wall perpendicular to the floor. When attaching the wall mount to other building materials, please contact your nearest dealer. If the product is installed on a ceiling or slanted wall, it may fall and result in severe personal injury.

-- Standard dimensions for wall mount kits are shown in the table below.

-- When purchasing our wall mount kit, a detailed installation manual and all parts necessary for assembly are provided. -- Do not use screws that do not comply with the VESA standard screw specifications.

-- Do not use screws that are longer than the standard dimension or do not comply with the VESA standard screw specifications. Screws that are too long may cause damage to the inside of the TV set.

English - 4

-- For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ depending on the wall mount specifications.

-- Do not fasten the screws that are too strongly; this may damage the product or cause the product to fall, leading to personal injury. Samsung is not liable for these kinds of accidents.

-- Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the consumer fails to follow the product installation instructions.

-- Do not mount the TV at more than a 15 degree tilt.

When using a third-party wall mount, note that the assembling screw length(C) is shown below.

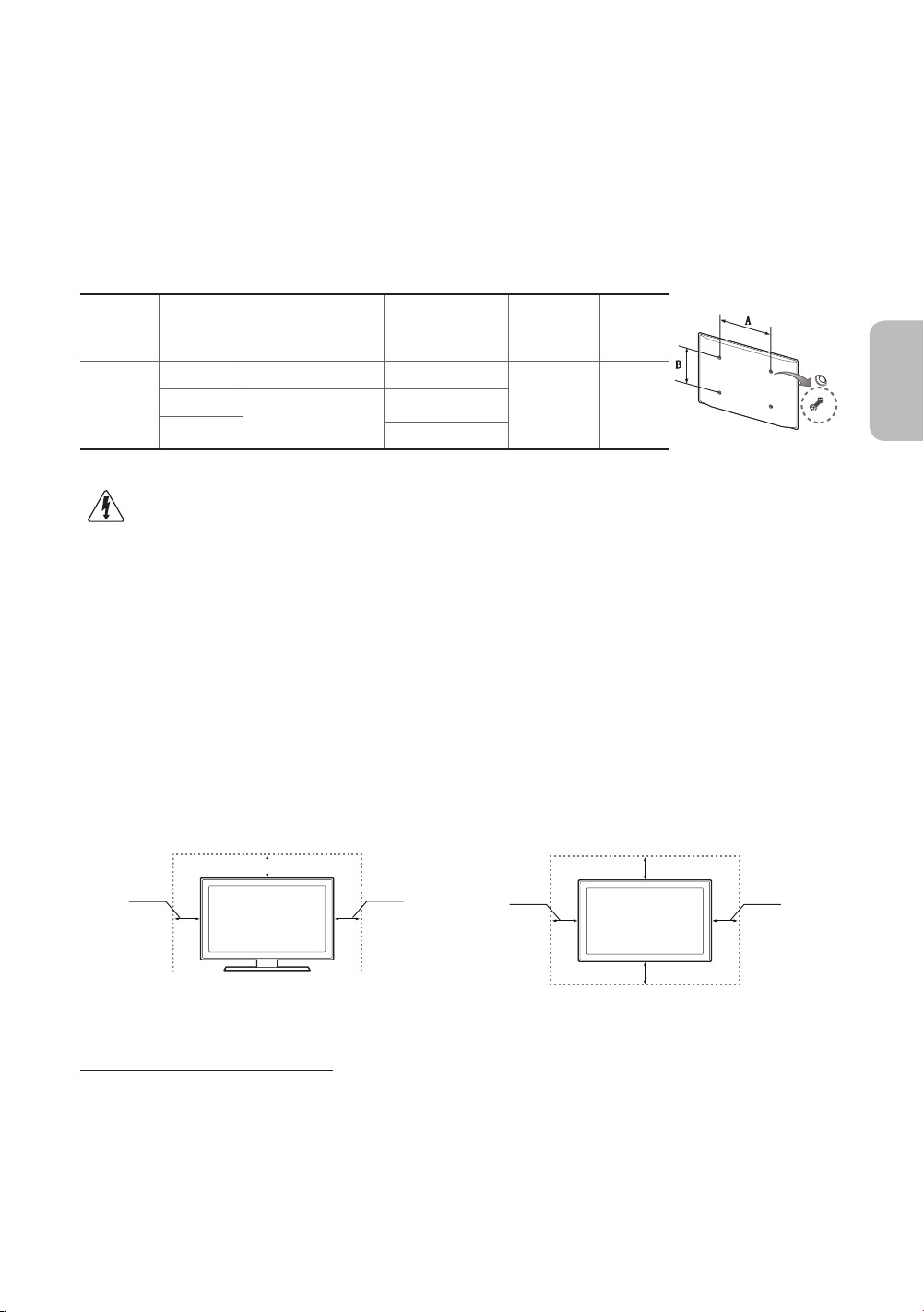

Product	Inches	VESA Spec.(A * B)	C (mm)	Standard	Quantity
Family				Screw
	40	200 X 200	20.2 ~ 21.2
LED-TV	48	400 X 400	20.8 ~ 21.8	M8	4
	55
			20.2 ~ 21.2

Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric shock.

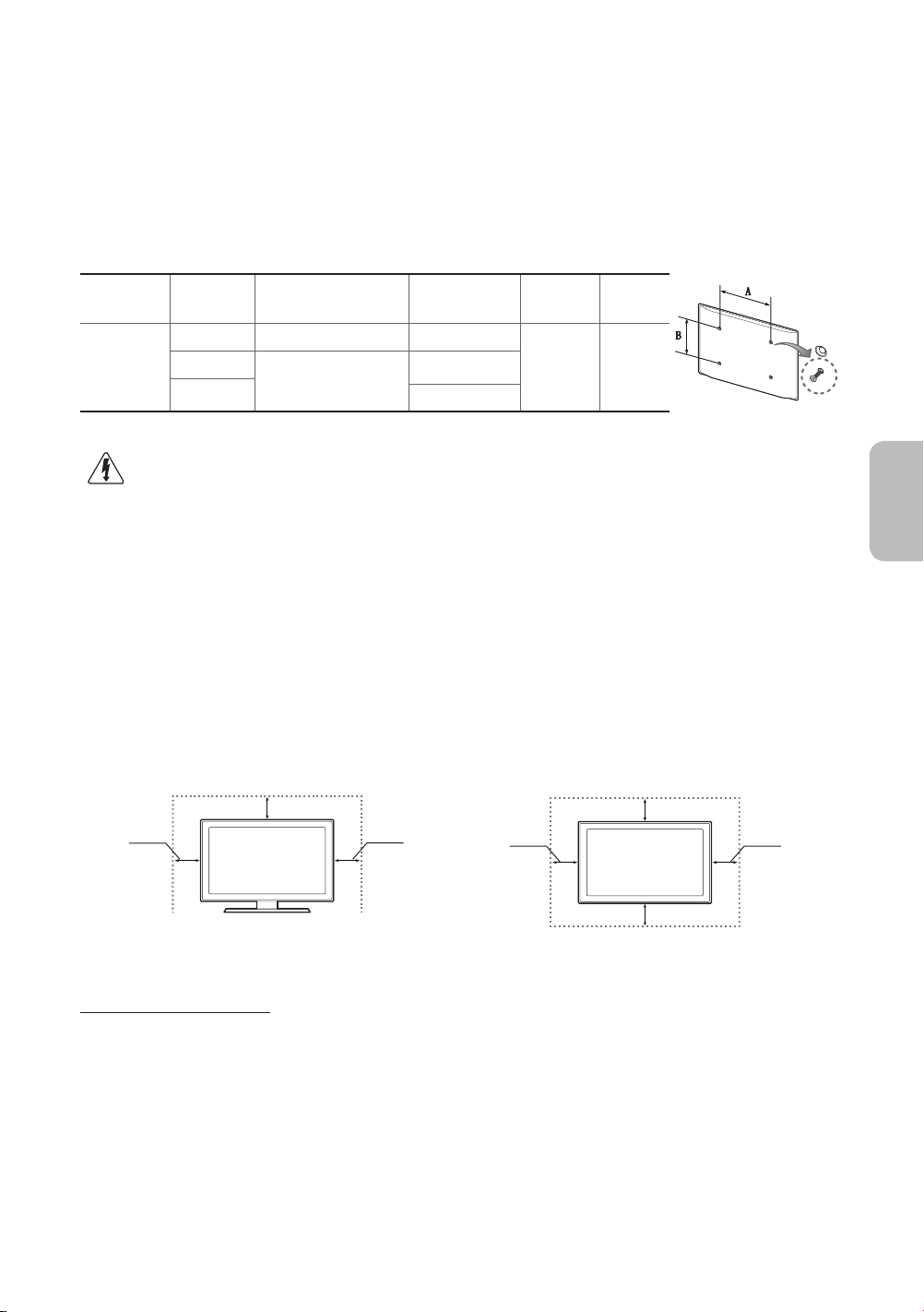

Providing Proper Ventilation for Your TV

When you install your TV, maintain a distance of at least 10 cm between the TV and other objects (walls, cabinet sides, etc.) to ensure proper ventilation. Failing to maintain proper ventilation may result in a fire or a problem with the product caused by an increase in its internal temperature.

If you use parts provided by another manufacturer, it may cause difficulties with the product or result in injury caused by the product falling.

--

Whether you install your TV using a stand or a wall-mount, we strongly recommend you use parts provided by Samsung

Electronics only.

Installation with a stand.

Installation with a wall-mount.

10 cm

10 cm

10 cm

10 cm

10 cm

10 cm

10 cm

Other Cautions

--

The actual appearance of the TV may differ from the images in this manual, depending on the model.

--

Be careful when you touch the TV. Some parts can be somewhat hot.

<![if ! IE]>

<![endif]>English

English - 5

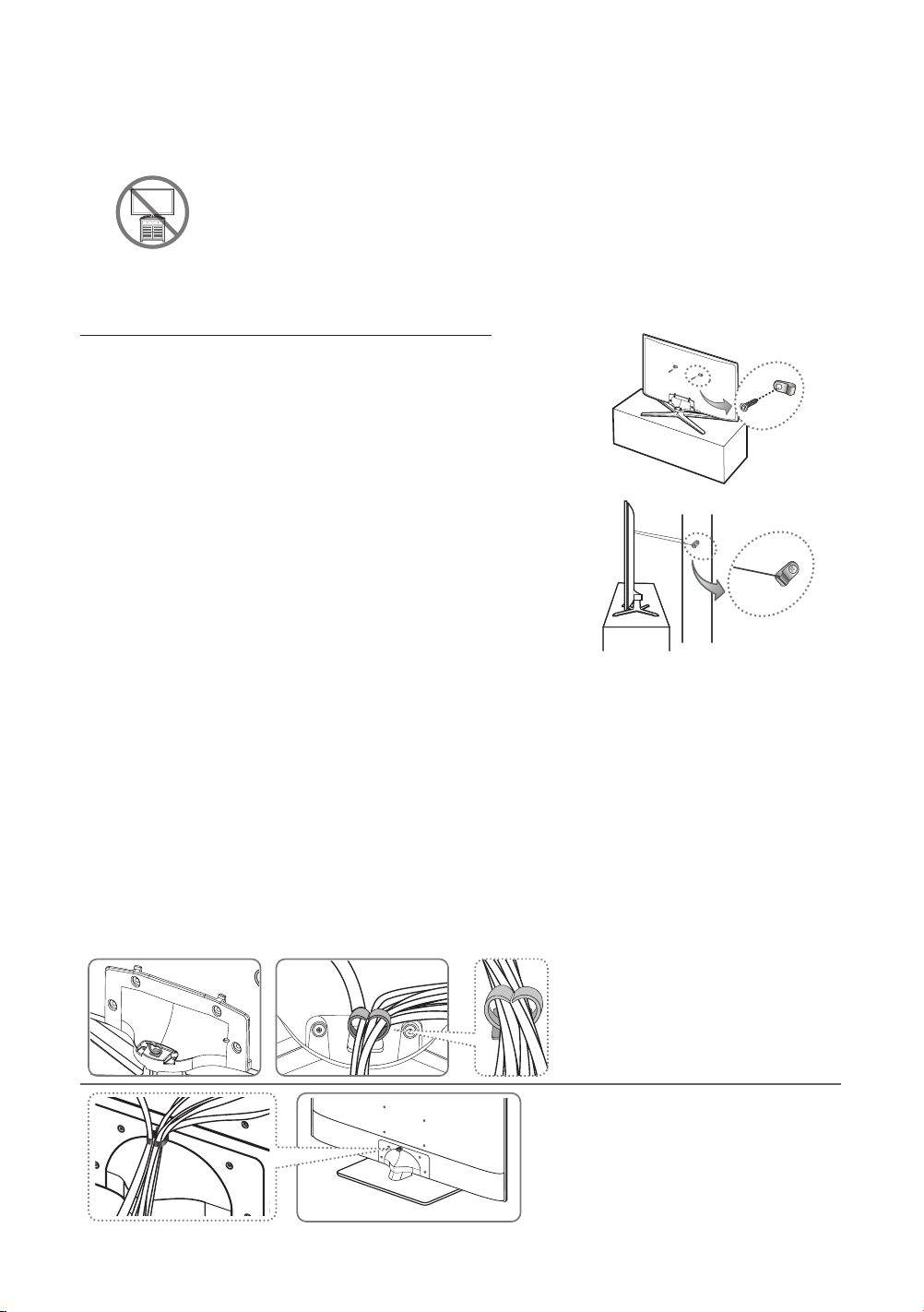

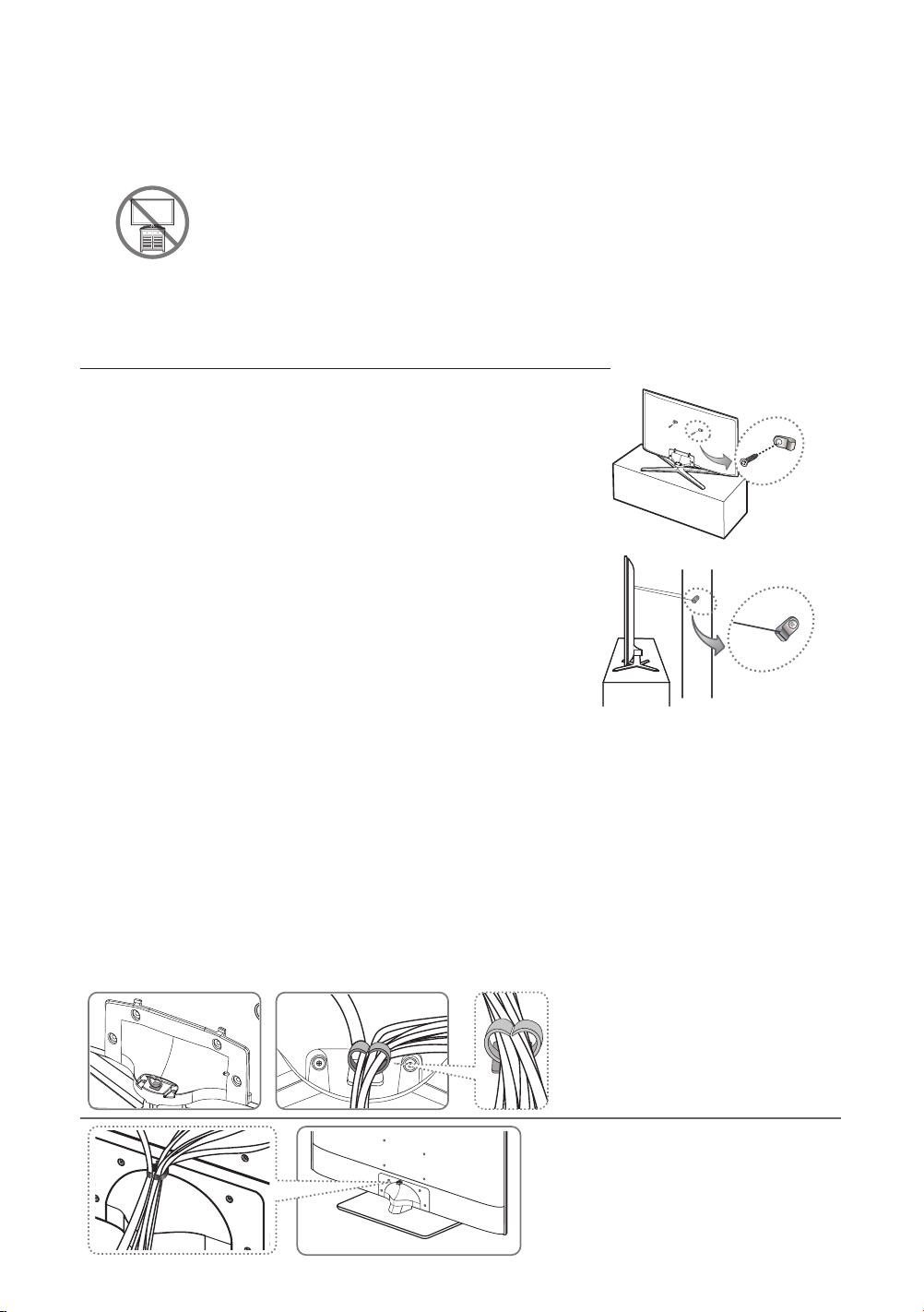

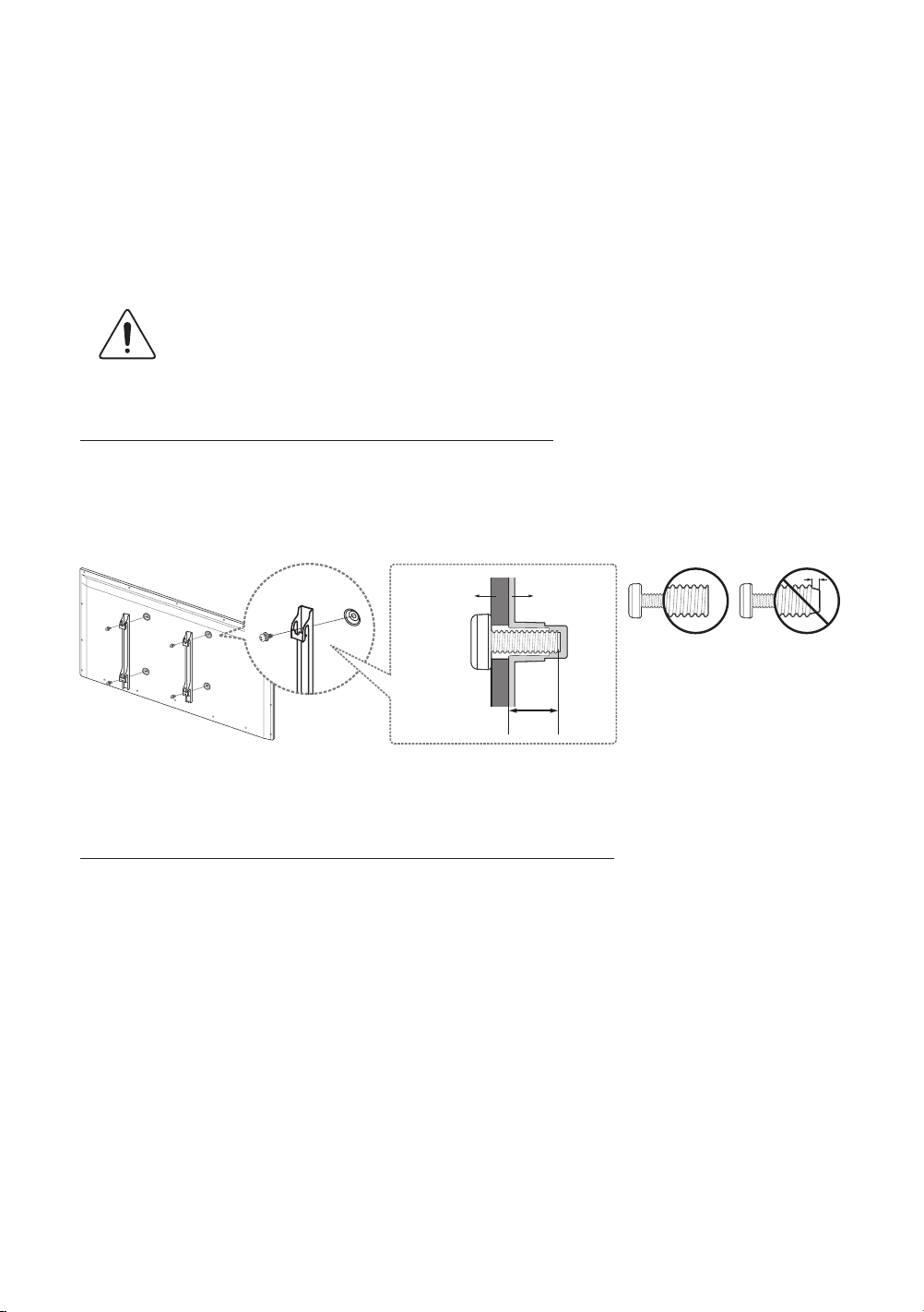

Securing the TV to the Wall

Caution: Pulling, pushing, or climbing on the TV may cause the TV to fall. In particular, ensure that your children do not hang on to or destabilize the TV. Doing so may cause the TV to tip over, resulting in serious injuries or death. Follow all safety precautions provided in the Safety Flyer included with your TV. For added stability and safety, you can purchase and install the anti-fall device as described below.

To Avoid the TV from Falling

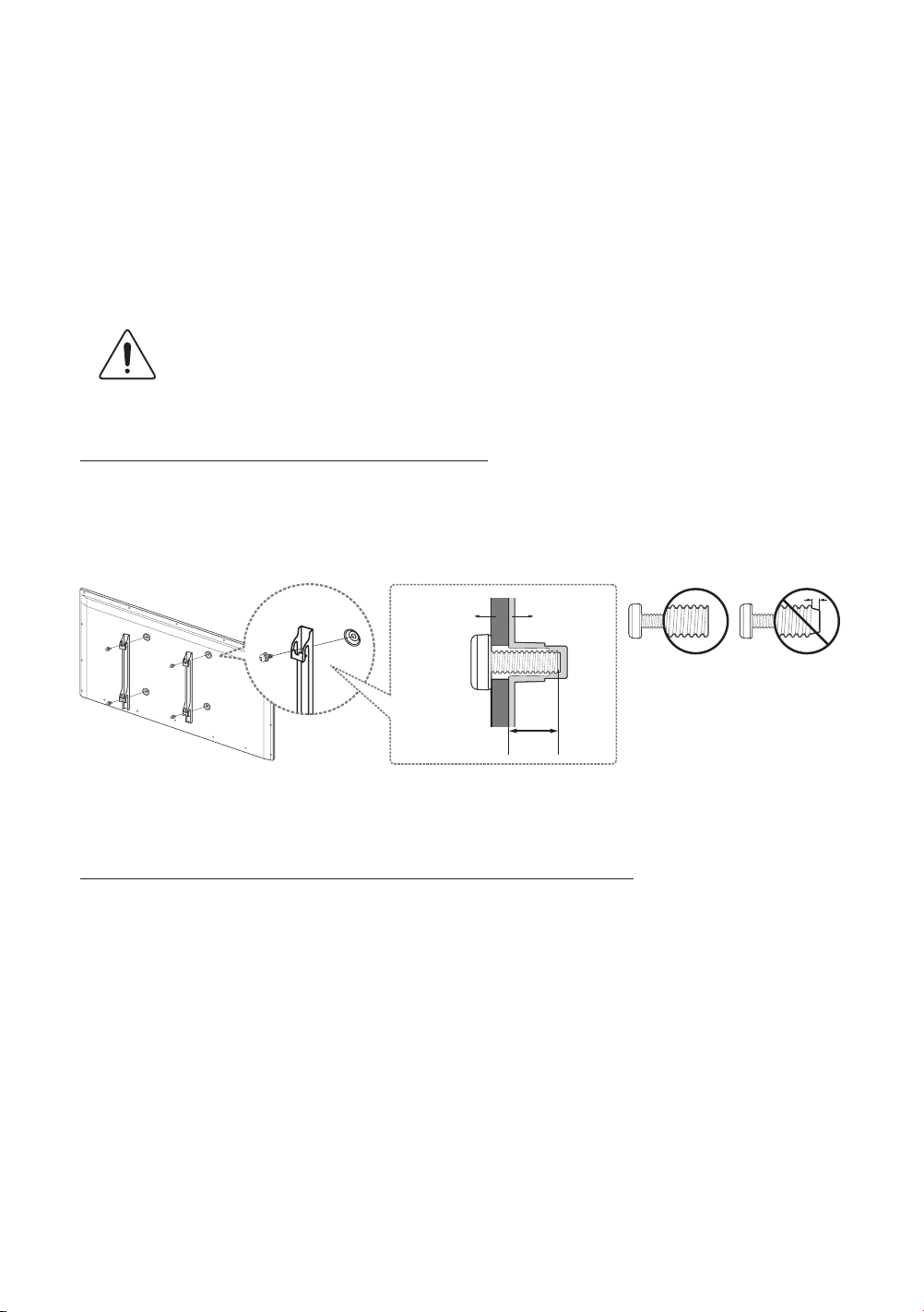

1.Put the screws into the clamps and firmly fasten them into the wall. Confirm that the screws have been firmly installed into the wall.

-- You may need additional material such as anchors depending on the type of wall.

-- Since the necessary clamps, screws, and string are not supplied, please purchase these additionally.

2.Remove the screws from the centre back of the TV, put the screws into the clamps, and then fasten the screws into the TV again.

-- Screws may not be supplied with the product. In this case, please purchase screws of the following specifications.

-- Screw Specifications: For a 40 ~ 55 inches: M8

3.Connect the clamps fixed into the TV and the clamps fixed onto the wall with a strong cable and then tie the string tightly.

-- Install the TV close to the wall so that it does not fall backwards.

-- It is safe connecting the string so that the clamps fixed onto the wall are equal to or lower than the clamps fixed on the TV.

-- Untie the string before moving the TV.

wall

-- The product colour and shape may vary depending on the model.

4.Verify that all connections are properly secured. Periodically check connections for any sign of damage. If you have any doubt about the security of your connections, contact a professional installer.

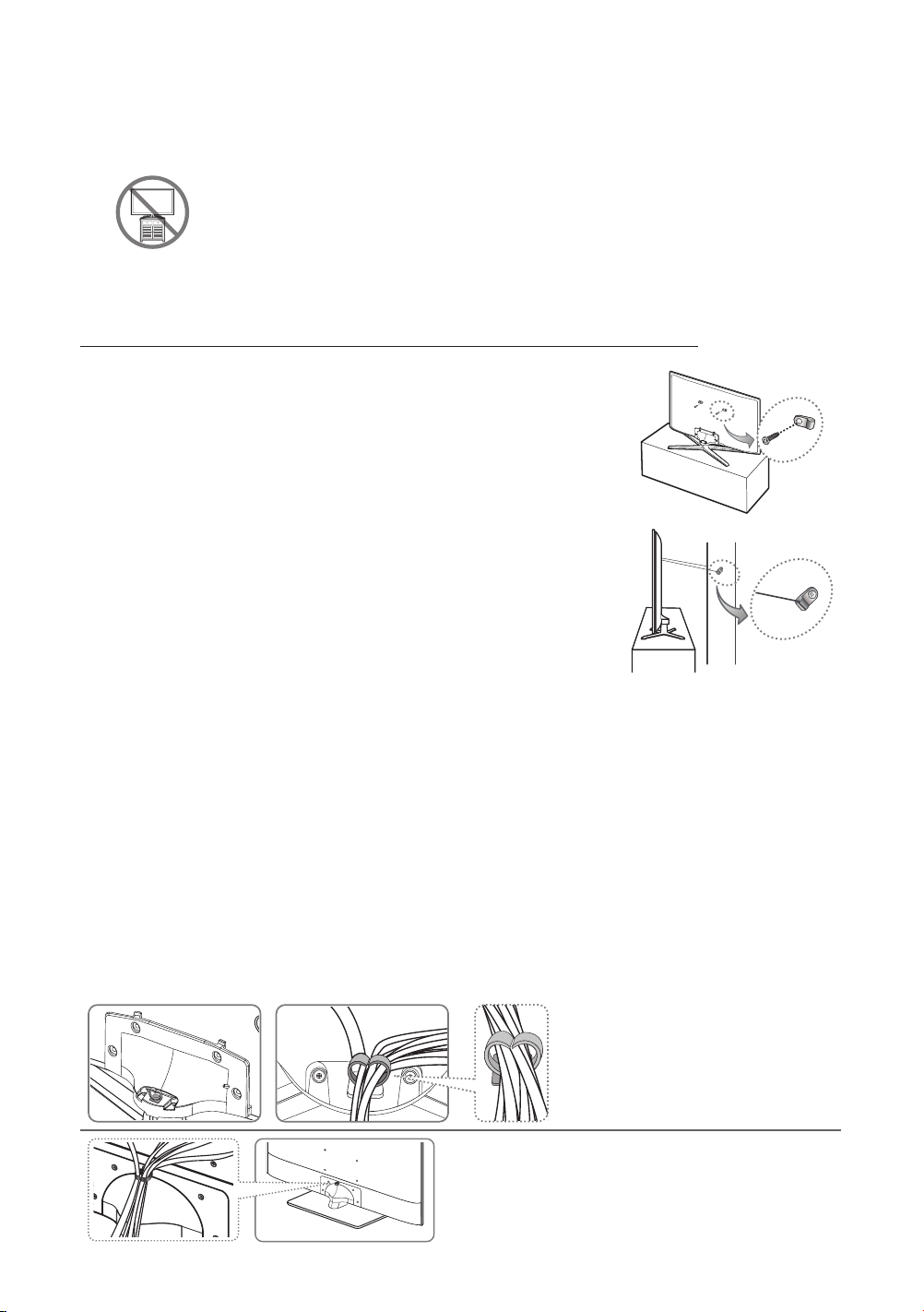

Arrange the cables using the Cable Holder

-- The method for using the cable holder may vary depending on the specific model.

English - 6

Connecting devices to your TV

You can connect various external devices using the connectors located at the back of the product. Check the connectors and then refer to the assembly instructions provided for more information on supported external devices.

Connecting to a COMMON INTERFACE slot (Your TV viewing Card Slot)

-- Turn the TV off to connect or disconnect a CI card or CI card adapter.

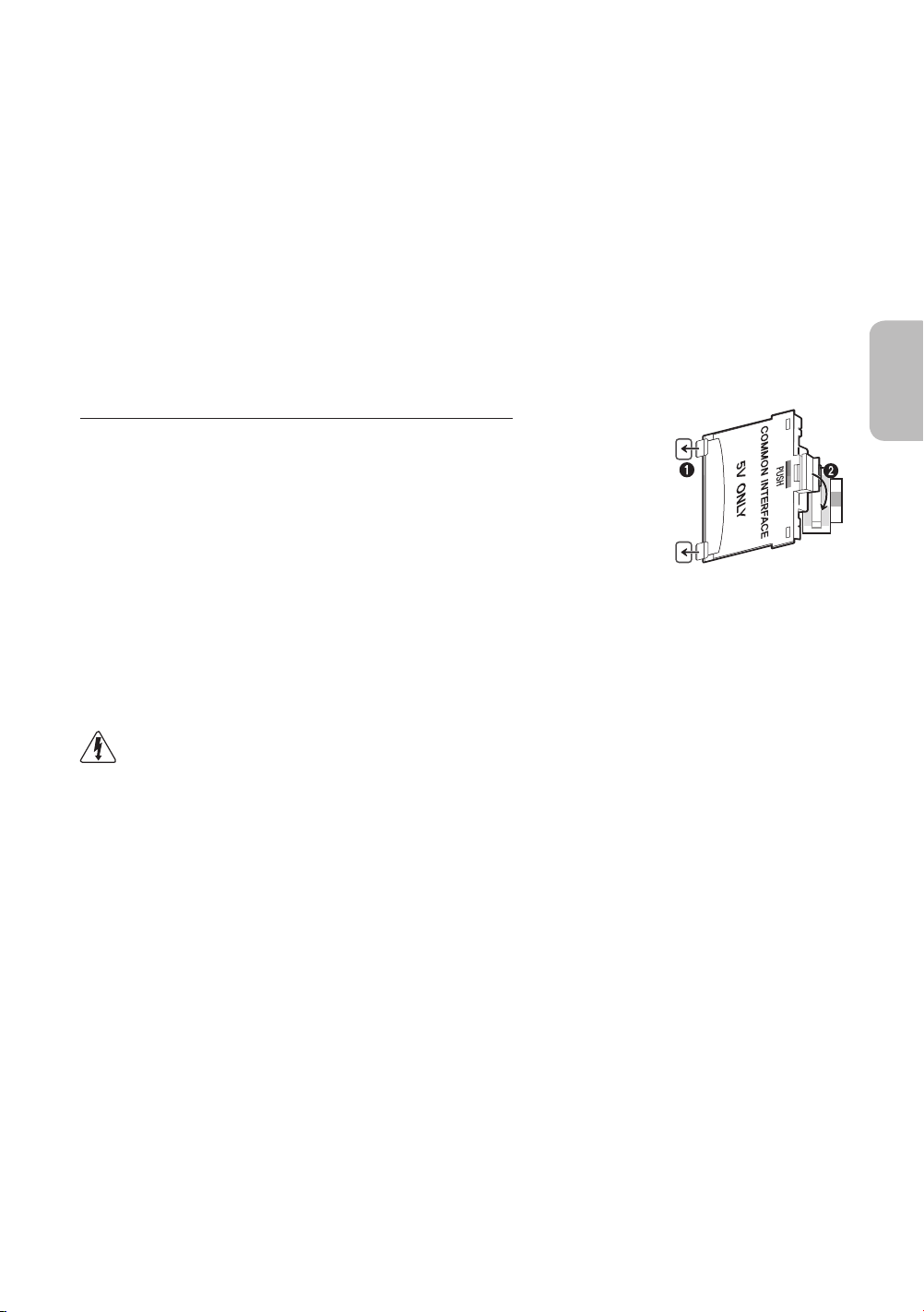

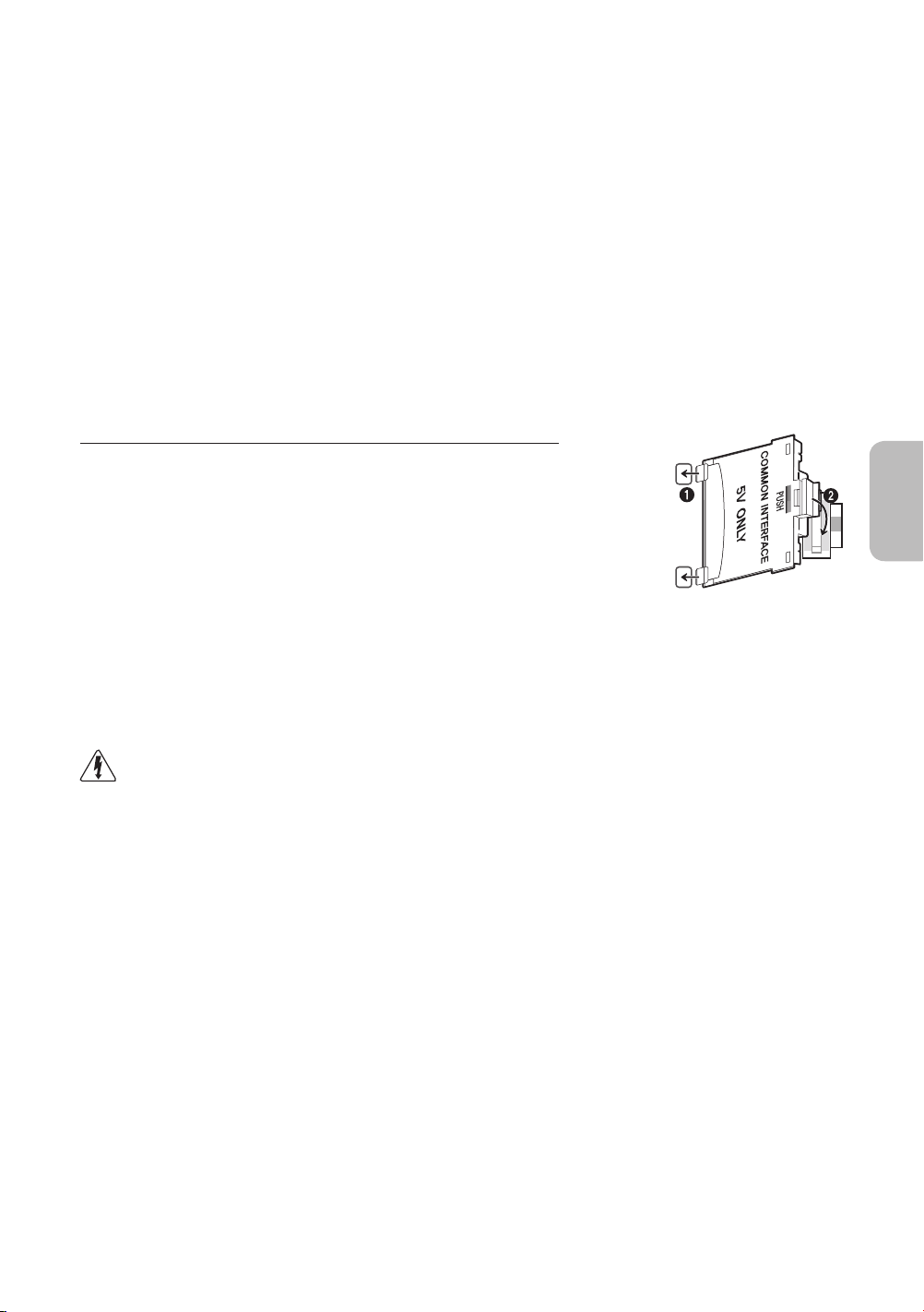

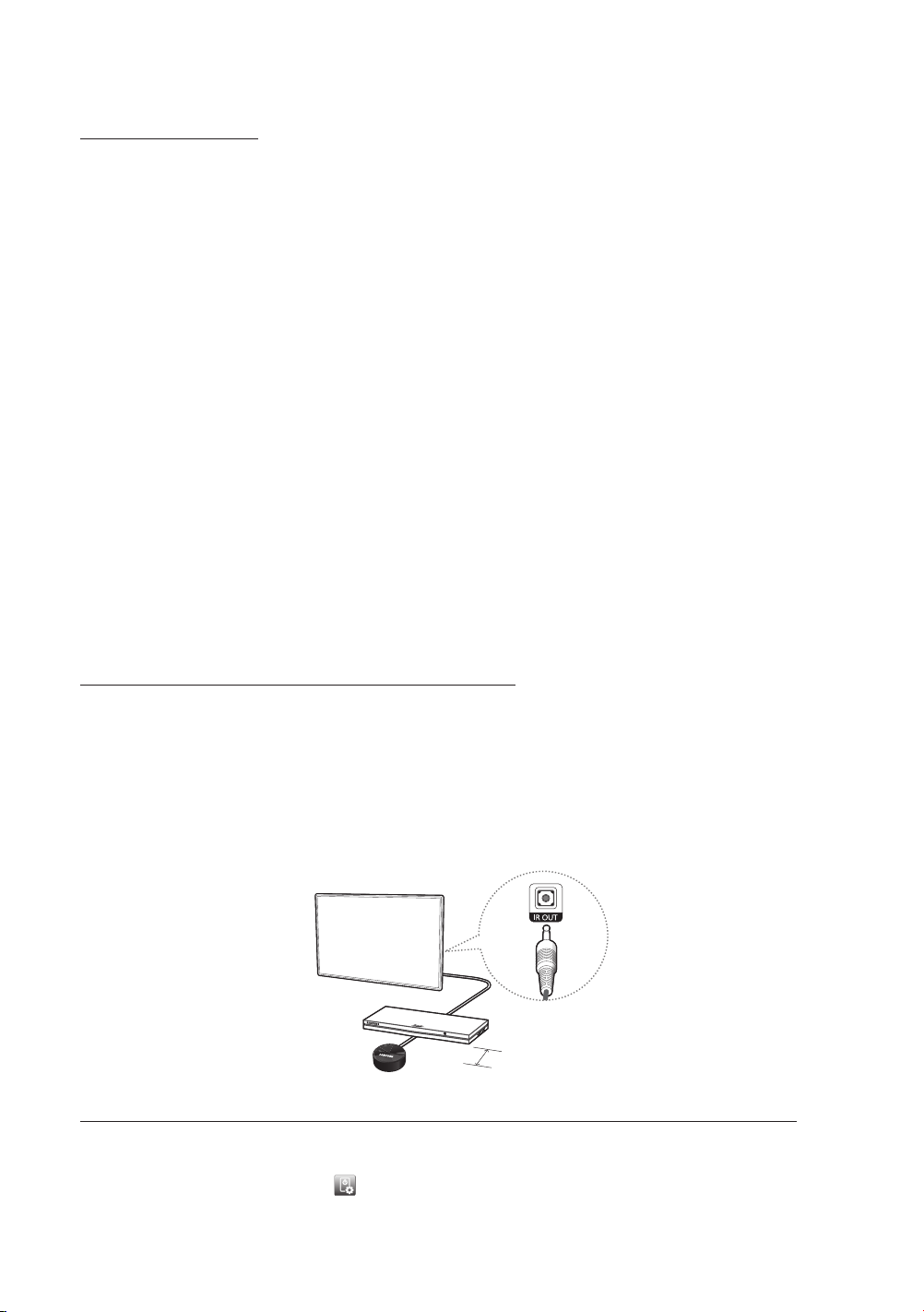

Attaching the CI Card Adapter

-- A CI Card Adapter that lets the TV use two different CI Cards is available, depending on the model.

Attach the adapter as shown.

-- To install the CI CARD Adapter, please remove the sticker attached to the TV. To connect the CI CARD Adapter, follow these steps.

-- We recommend attaching the adapter before installing the wall mount, or inserting the “CI or CI+ CARD”.

1. Insert the CI CARD Adapter into the two holes on the product 1.

-- Please locate the two holes at the back of the TV next to the COMMON INTERFACE port.

2.Connect the CI CARD Adapter to the COMMON INTERFACE port on the product 2.

3.Insert the “CI or CI+ CARD”.

We recommend that you attach the CI Card adapter and insert the CI card (viewing card) before you mount the TV on the wall because it may be difficult and dangerous to do this when it is on the wall.

<![if ! IE]>

<![endif]>English

English - 7

Using the “CI or CI+ CARD”

To watch paid channels, the “CI or CI+ CARD” must be inserted.

-- If you don’t insert the “CI or CI+ CARD”, some channels will display the “Scrambled Signal” message.

-- The pairing information containing a telephone number, the “CI or CI+ CARD” ID, the Host ID, and other information will be displayed in about 2~3 minutes. If an error message is displayed, please contact

your service provider.

-- When the configuration of channel information has finished, the message “Updating Completed” is displayed, indicating the channel list is updated.

NOTE

-- You must obtain a “CI or CI+ CARD” from a local cable service provider.

-- When removing the “CI or CI+ CARD”, carefully pull it out as dropping the “CI or CI+ CARD” may damage it. -- Insert the “CI or CI+ CARD” in the direction marked on the card.

-- The location of the COMMON INTERFACE slot may differ depending on the model.

-- A “CI or CI+ CARD” is not supported in some countries and regions, therefore, check with your authorised dealer. -- If you have any problems, please contact a service provider.

-- Insert the “CI or CI+ CARD” that supports the current aerial settings. The screen will be distorted or will not be visible.

Connecting to a Network

Connecting the TV to a network gives you access to online services such as the Smart Hub, as well as software updates.

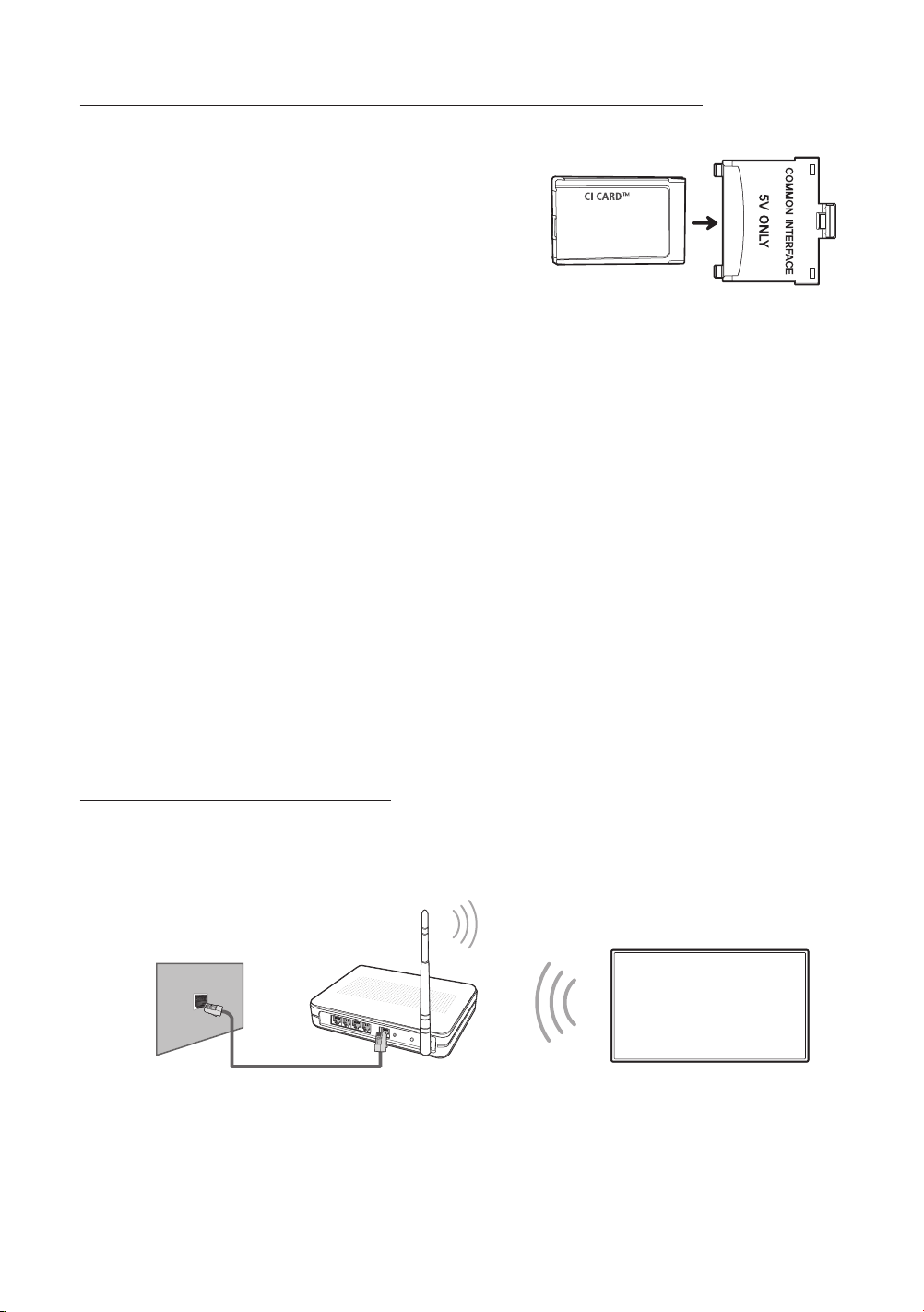

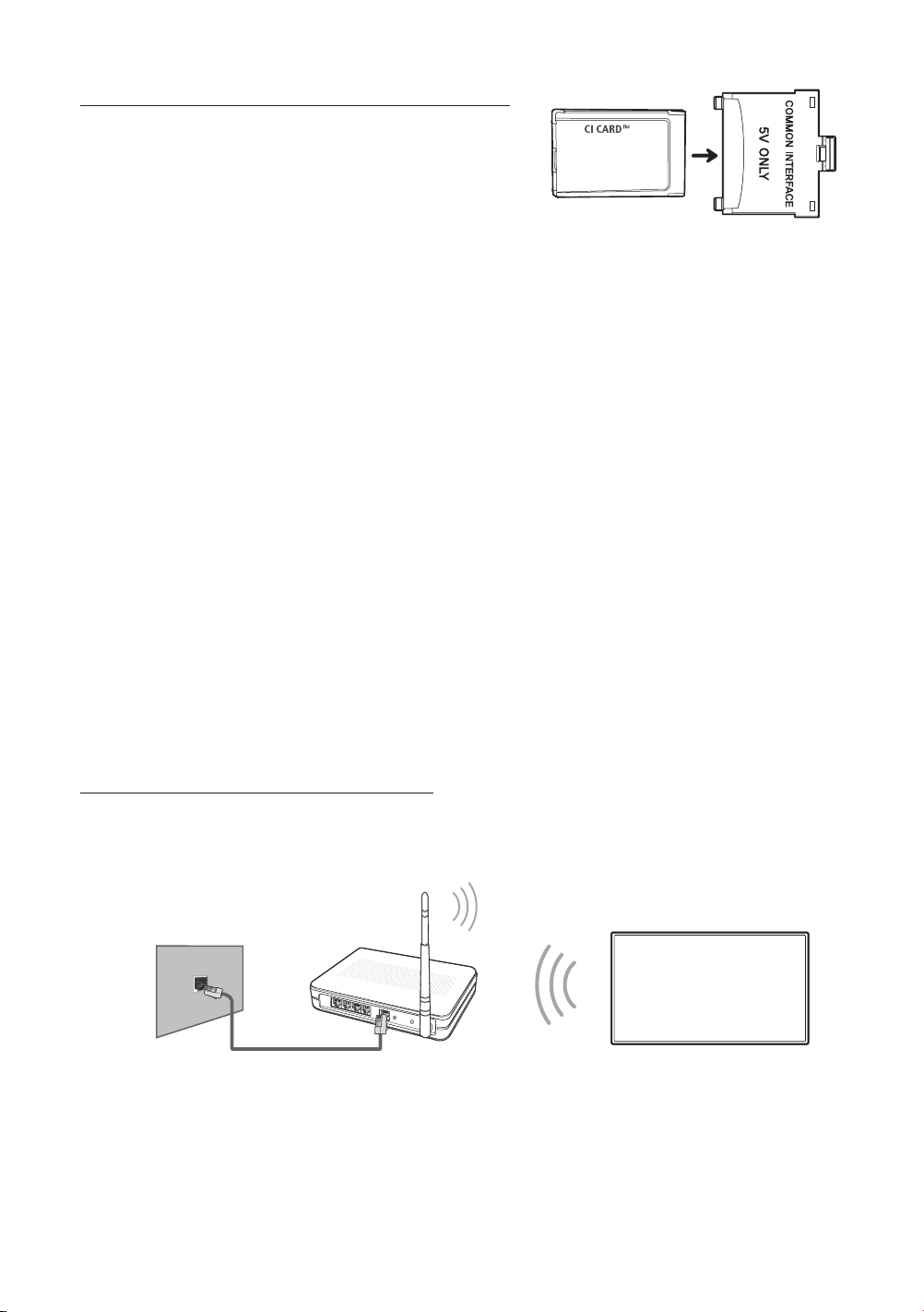

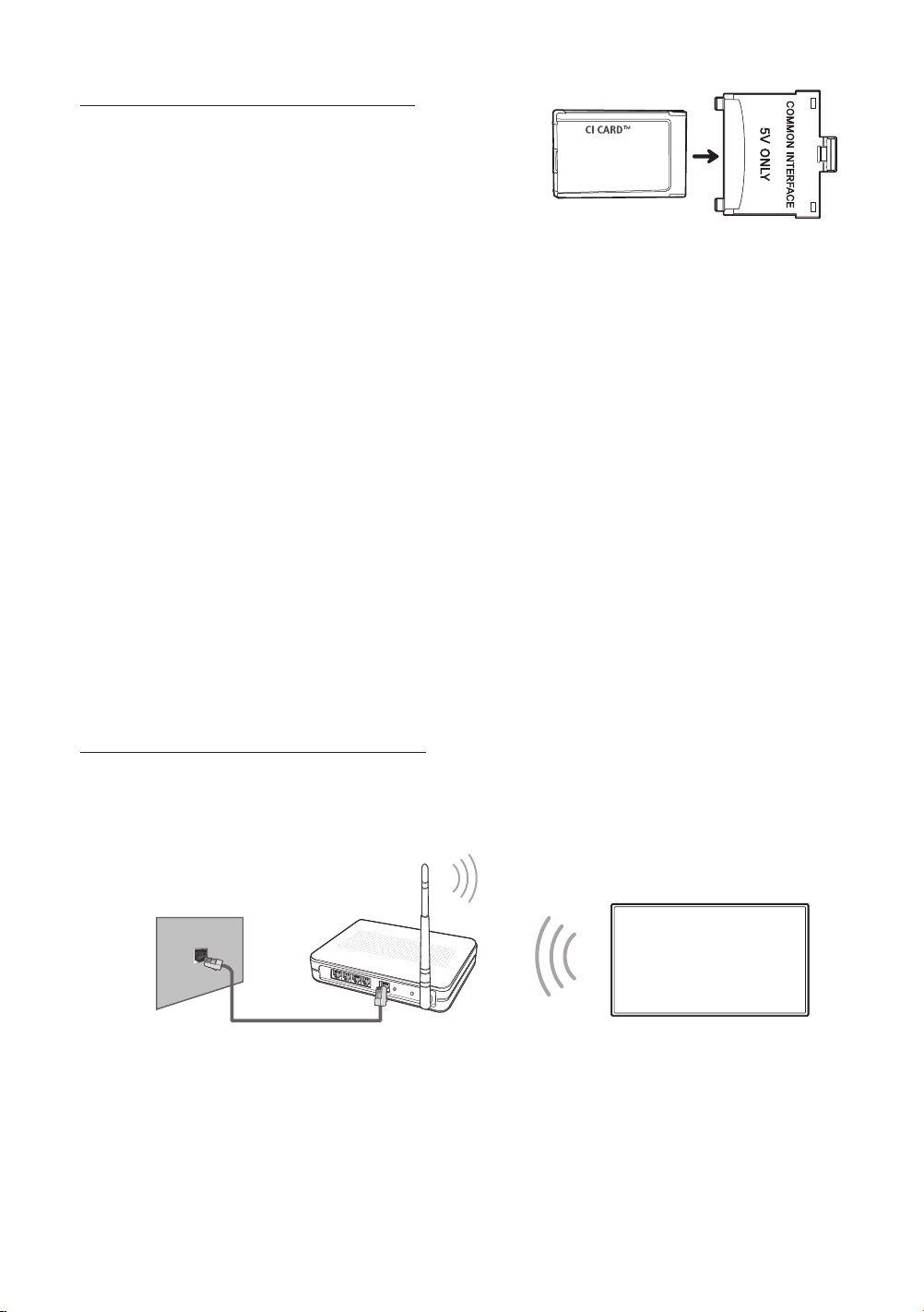

Network Connection - Wireless

Connect the TV to the Internet using a standard router or modem.

Wireless IP Router or Modem with a DHCP Server

The LAN Port on the Wall

LAN Cable (Not Supplied)

English - 8

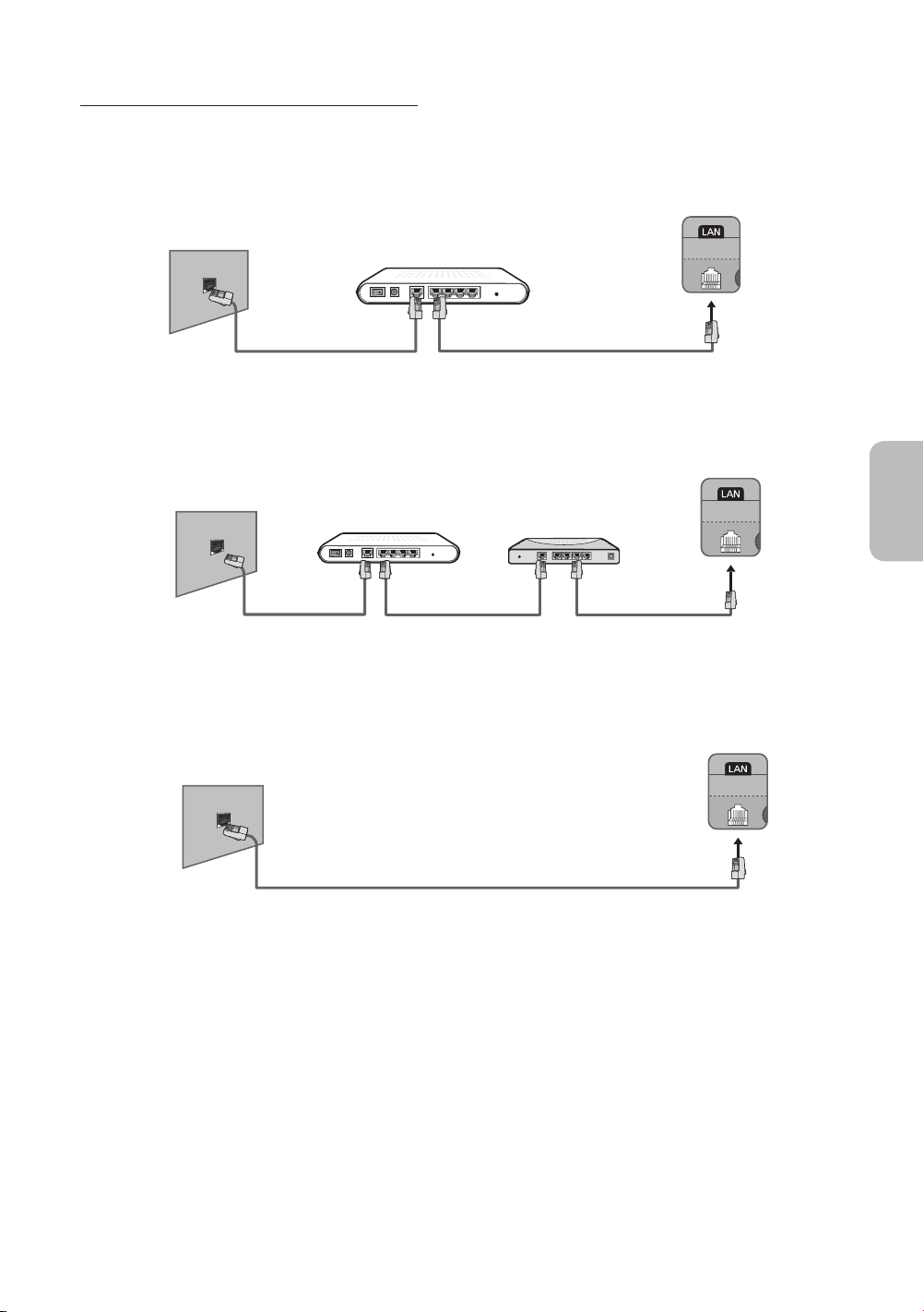

Network Connection - Wired

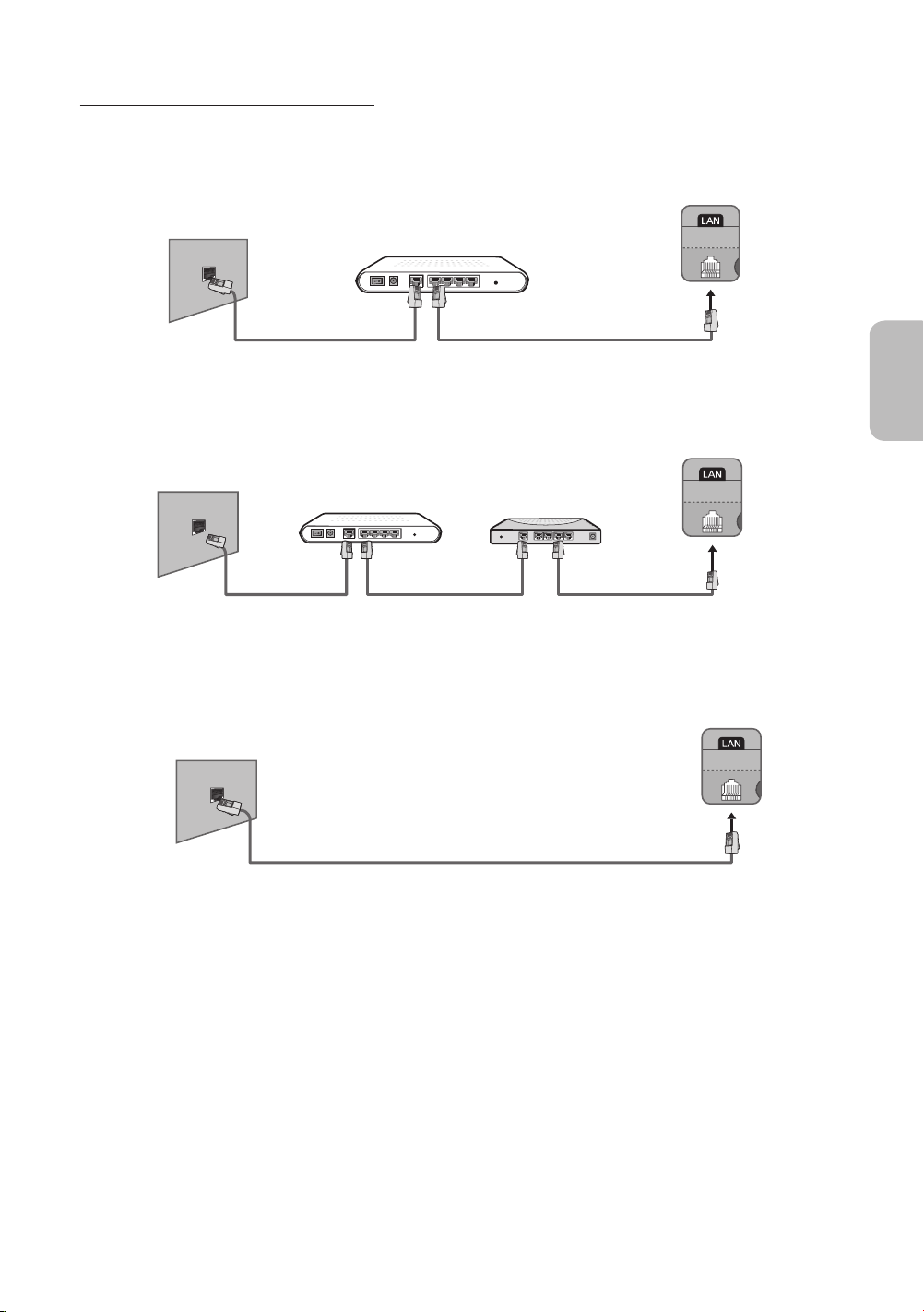

There are three main ways to connect your TV to your network using cable, depending on your network setup. They are illustrated starting below:

TV Rear Panel

The LAN Port on the Wall

External Modem

(ADSL / VDSL / Cable TV)

Modem Cable (Not Supplied)

LAN Cable (Not Supplied)

TV Rear Panel

The LAN Port on the Wall

External Modem

IP Router with a DHCP

(ADSL / VDSL / Cable TV)

Server

Modem Cable	LAN Cable	LAN Cable
(Not Supplied)	(Not Supplied)	(Not Supplied)

TV Rear Panel

The LAN Port on the Wall

LAN Cable (Not Supplied)

-- The TV does not support network speeds less than or equal to 10Mbps. -- Use Cat 7 cable for the connection.

<![if ! IE]>

<![endif]>English

English - 9

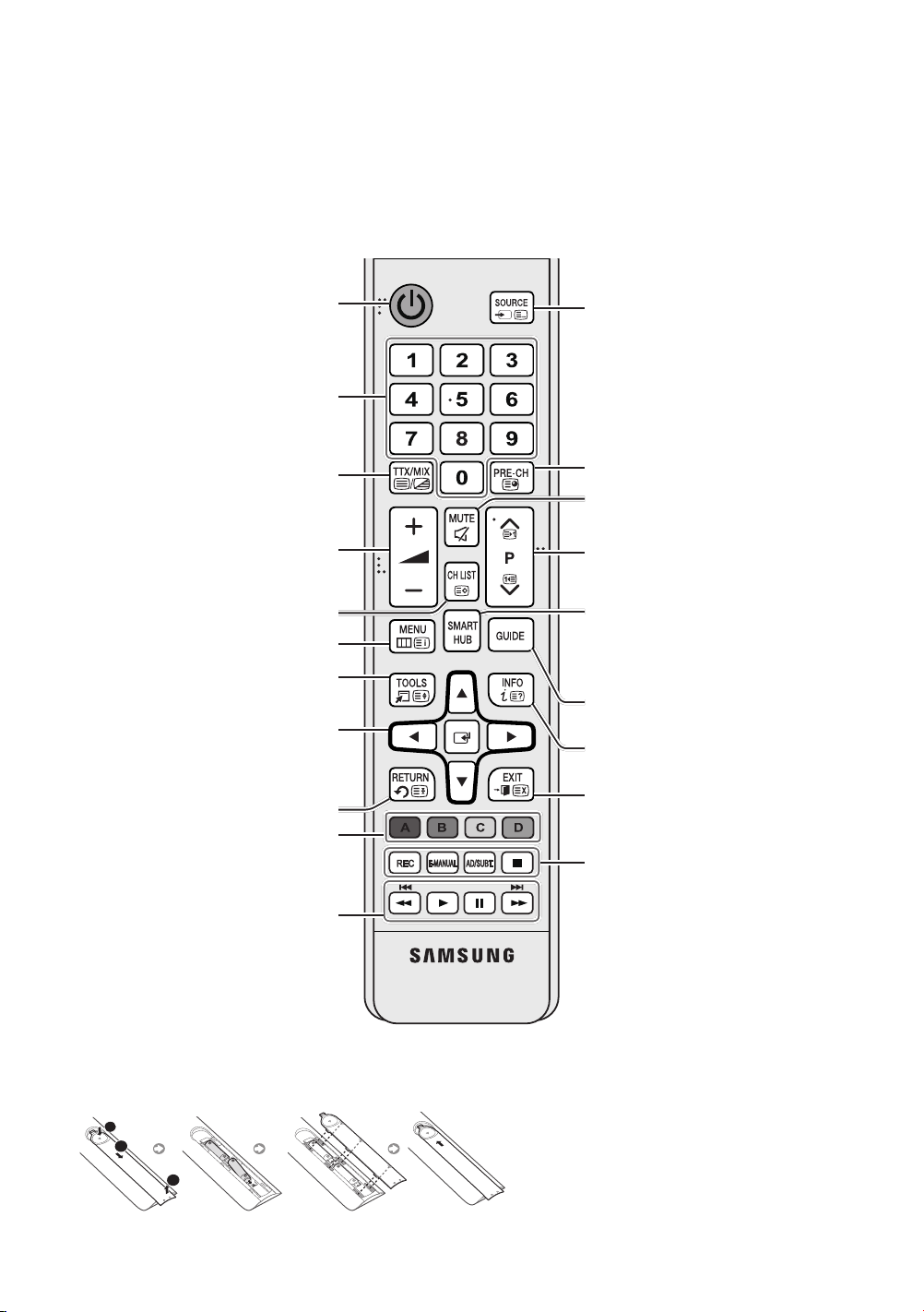

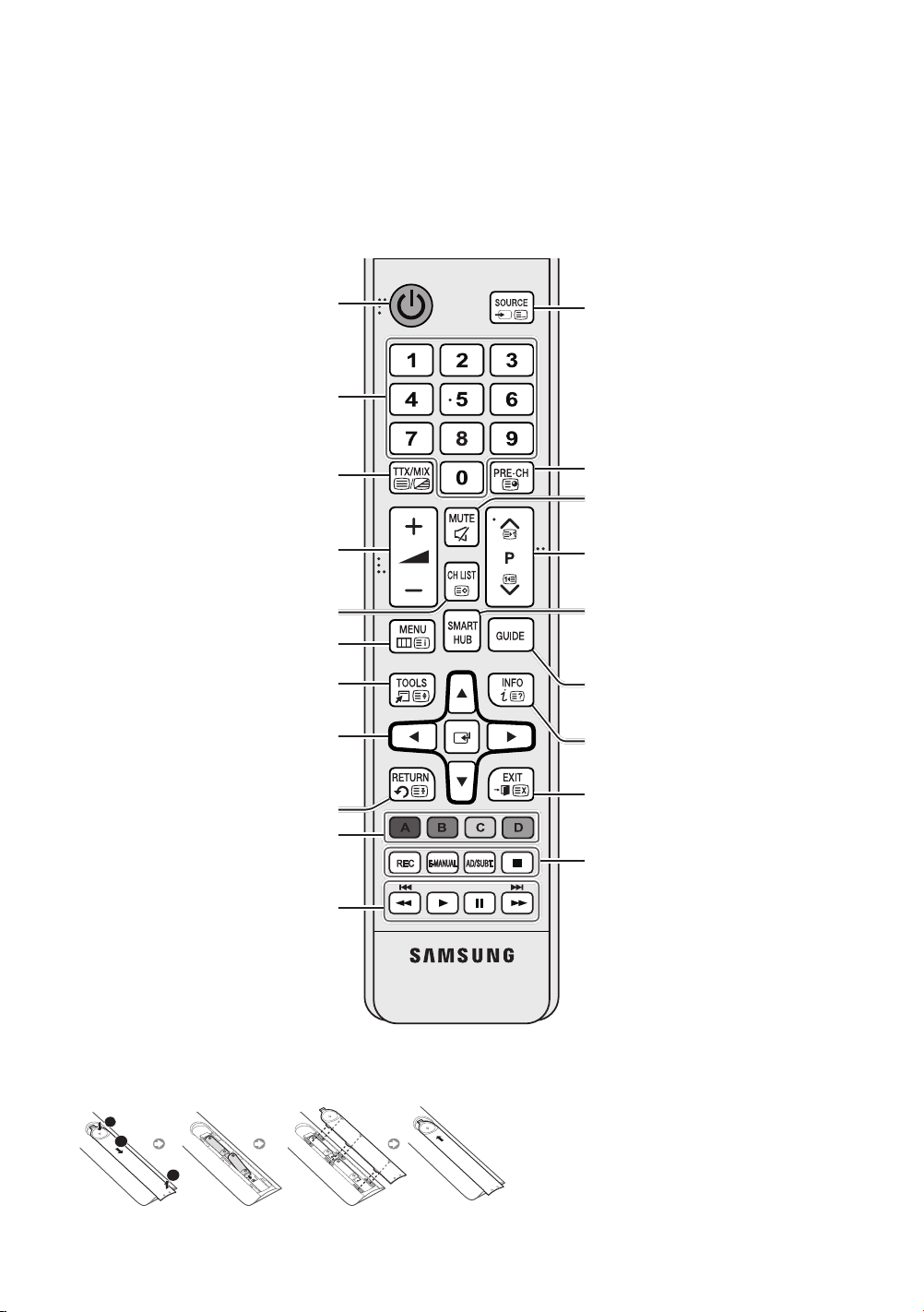

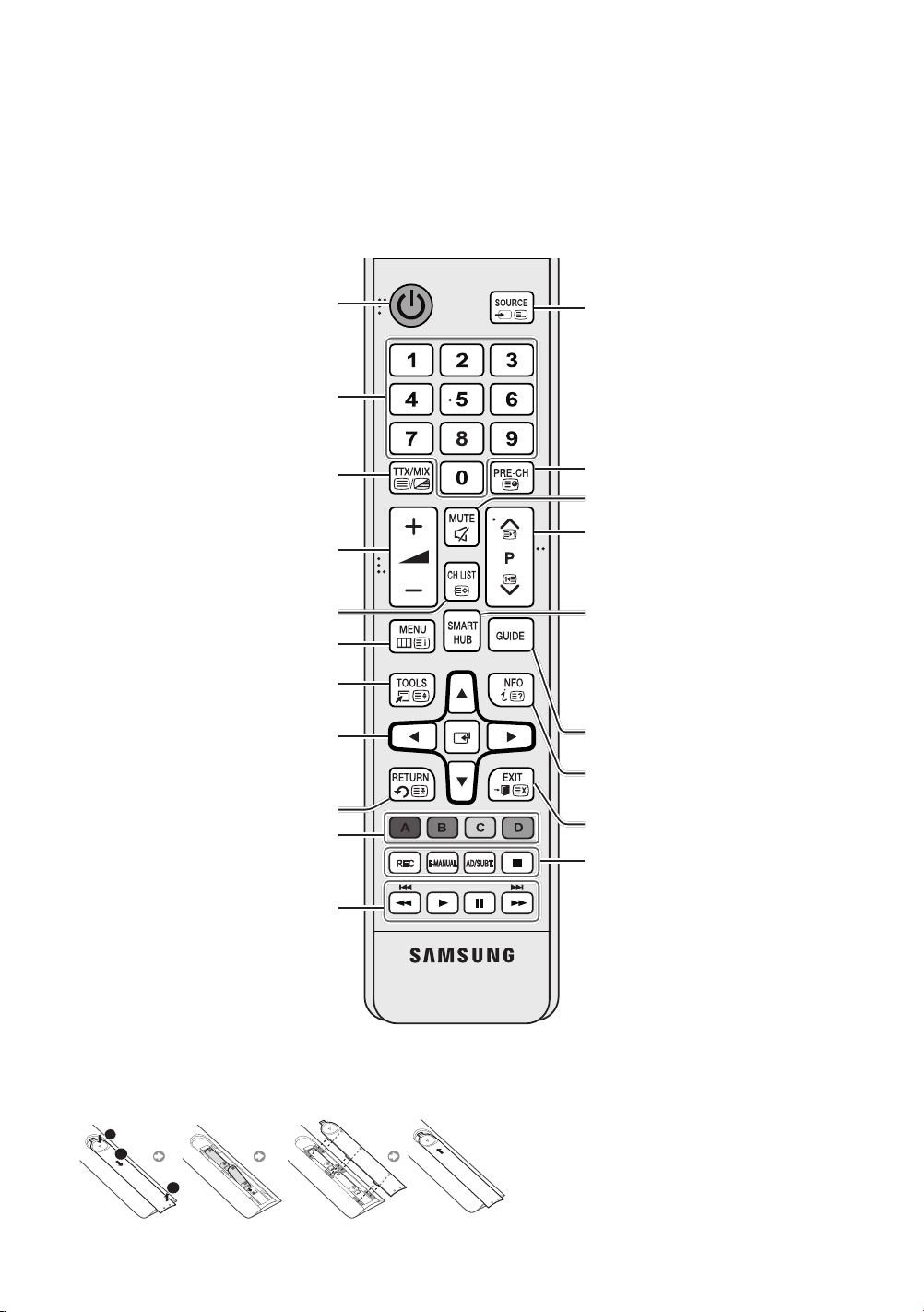

Remote Control

Learn where the function buttons are on your remote, such as: SOURCE, MUTE, Y, <P >, MENU, TOOLS, E,

INFO, CH LIST, RETURN, GUIDE and EXIT.

-- This remote control has Braille points on the Power, Channel, and Volume buttons and can be used by visually impaired persons.

-- Your TV also comes with a Samsung Smart Control. For information about the Samsung Smart Control, refer to the e-Manual.

Turns the TV on and off.

Displays and selects available video

sources.

Gives direct access to channels.

Returns to the previous channel.

Alternately selects Teletext ON Double,

Mix or OFF.

Cuts off the sound temporarily.

Adjusts the volume.

Changes channels.

Displays channel lists.

Brings up Smart Hub applications. Refer

Opens the OSD (Menu).

to the e-Manual chapter, Smart Features

> Smart Hub.

Quickly selects frequently used functions.

Displays the EPG (Electronic Programme

Guide).

Moves the cursor, selects the on-screen

Displays information on the TV screen.

menu items, and changes the values

seen on the TV's menu.

Returns to the previous menu.

Exits the menu.

Use these buttons according to the

directions on the TV screen.

REC: Records whatever you are currently

watching.

Use these buttons with specific features.

E-MANUAL: Displays the e-Manual.

Use these buttons according to the

AD/SUBT.: Displays the Accessibility

directions on the

Shortcuts.

TV screen.

': Stop.

Installing the batteries (Battery size: AAA)

Match the polarities of the batteries to the symbols in the battery compartment.

1 2

3

-- The colour and shape may vary depending on the model.

-- Use the remote control within 7m of the TV.

-- Bright lights may affect the performance of the remote control. Avoid using the remote control near special fluorescent lights or neon signs.

English - 10

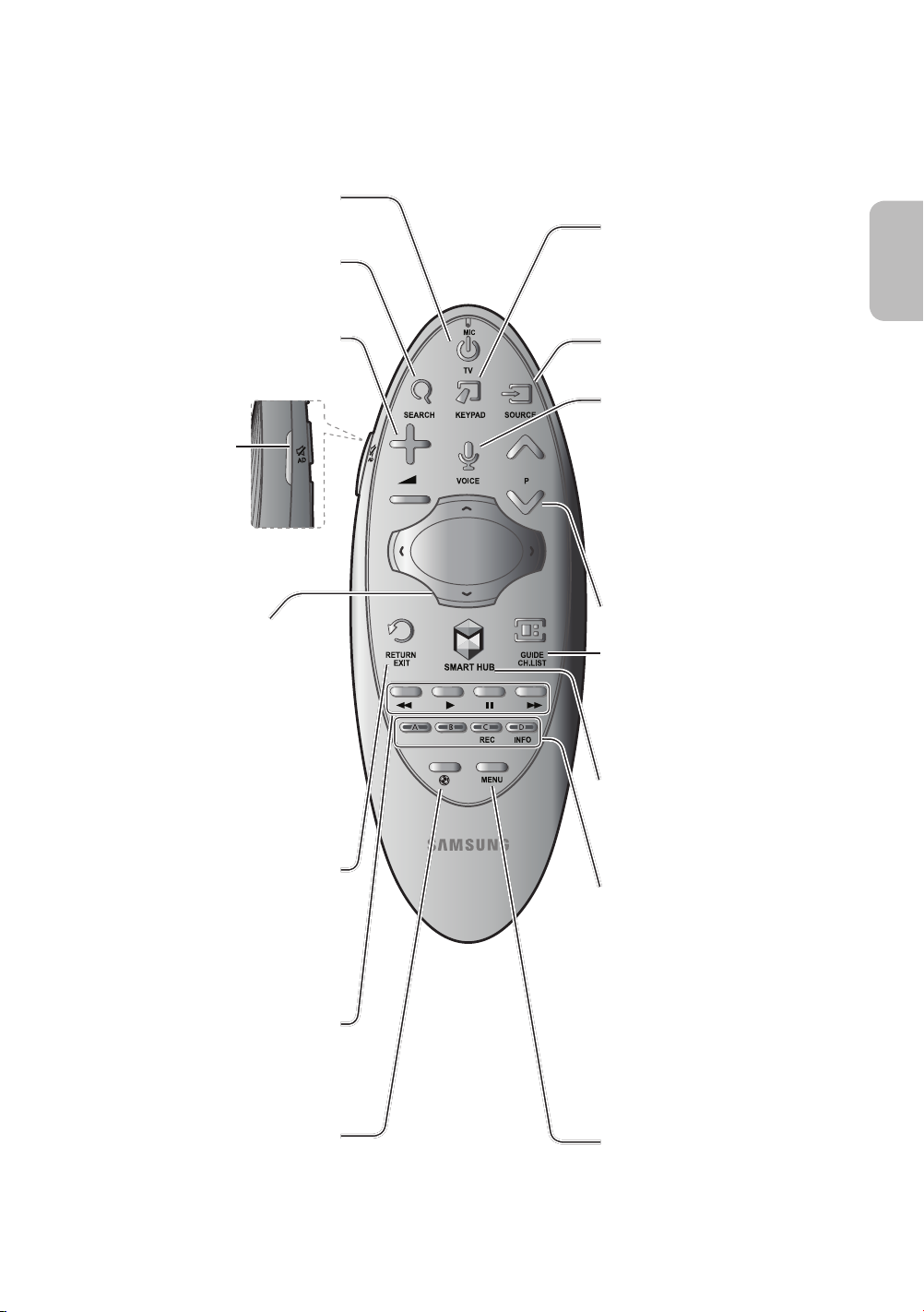

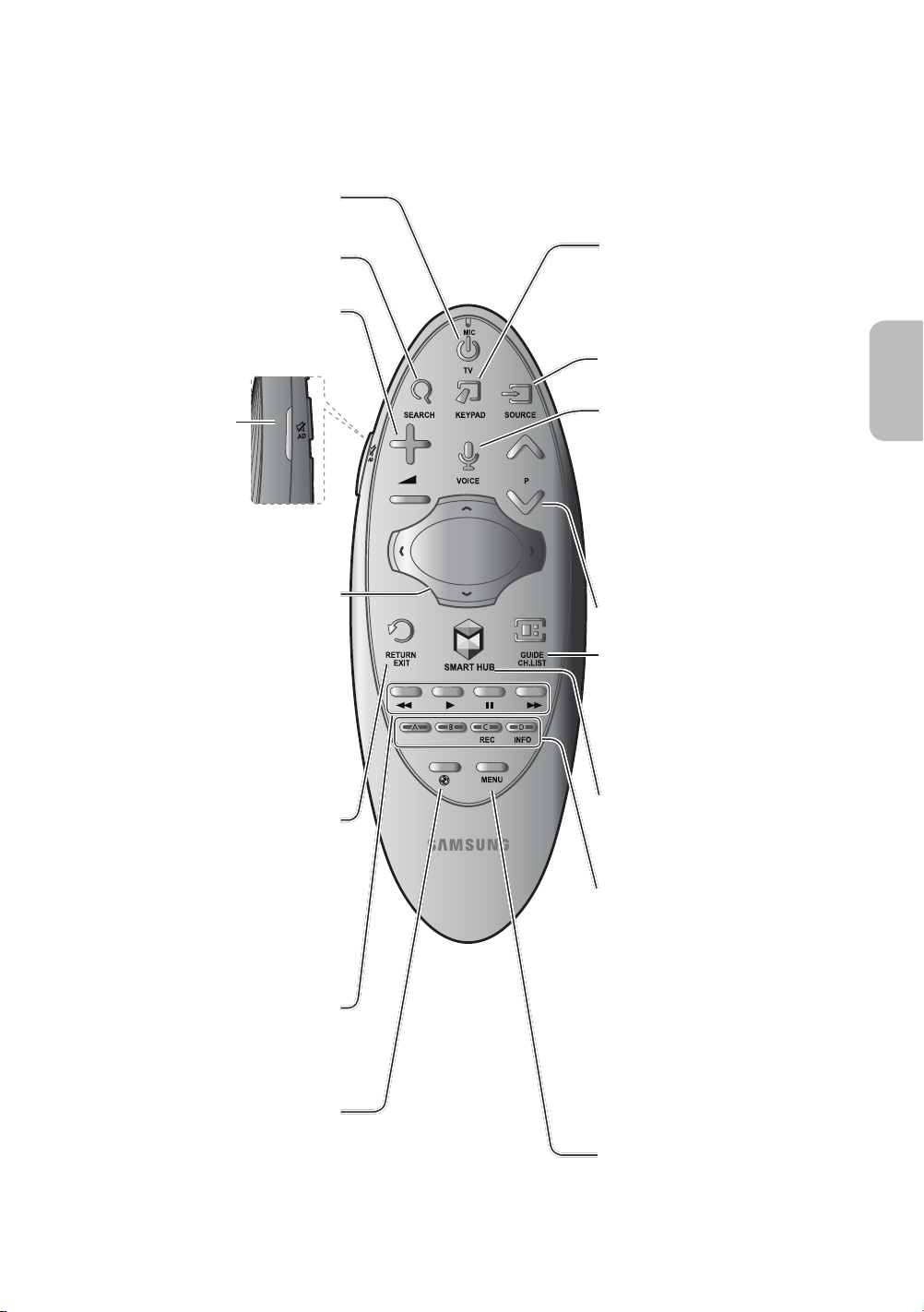

Samsung Smart Control

-- Colours and shape may vary depending on the model.

Turns the TV on/off.

Press this button to use the search window.

Changes the volume.

¢: Turns the sound on/off.

AD: Press and hold this button to bring up the

Accessibility Shortcuts panel. Select the options to turn them on or off.

-- Touchpad: Place a finger on the

touch pad and move the Samsung Smart Control. The pointer on the

screen moves in the direction and as

much as the Samsung Smart Control is moved. Press the touchpad to run

the focused item.

-- <>¡£: Moves the pointer or focus.

RETURN: Returns to the previous menu. Additionally, when you press this button while watching TV, you can return to the previous channel.

EXIT: Press and hold this button to exit all currently running applications.

Use these buttons with specific features. Use these buttons according to the directions on the TV screen.

Enable Football Mode for an optimal sports viewing experience.

With the virtual remote control on the screen, you can easily enter digits, control content, and use functions.

Changes the source.

Starts voice recognition. When the microphone icon appears on the screen, say a voice command into the microphone.

-- Say a voice command 10 cm to 15 cm from the microphone and at an appropriate volume.

Changes the channel.

GUIDE: Displays the digital channel broadcasting schedule.

CH.LIST: Press and hold to launch the

CH.LIST.

Launches Smart Hub. Pressing SMART HUB while an application is running terminates the application.

Colour button: Use these colour buttons to access additional options specific to the feature in use.

-- REC: Press and hold to record the broadcast.

-- INFO: Press and hold to view information about the current digital channel or media file.

MENU: Displays the menu on the screen.

<![if ! IE]>

<![endif]>English

English - 11

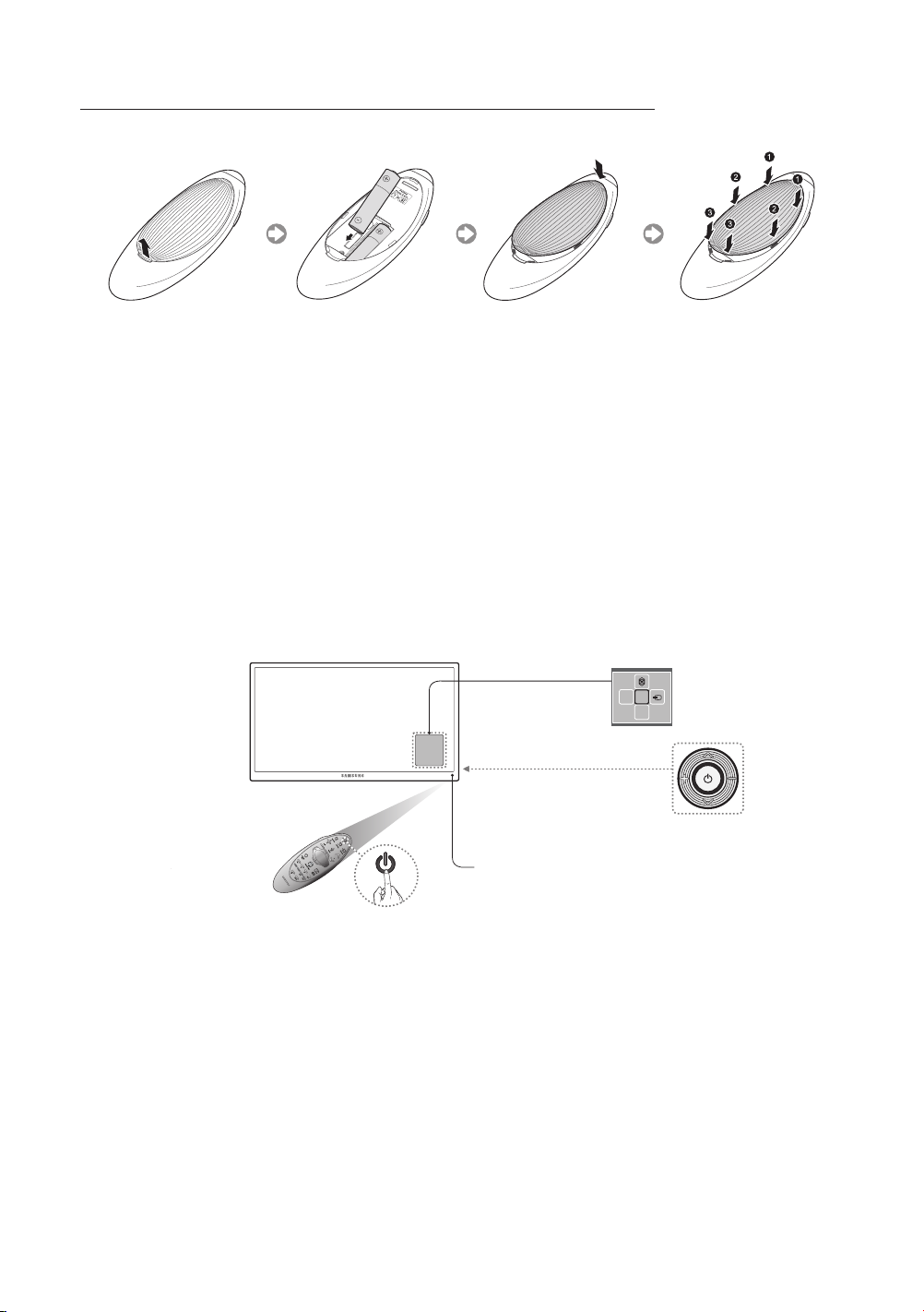

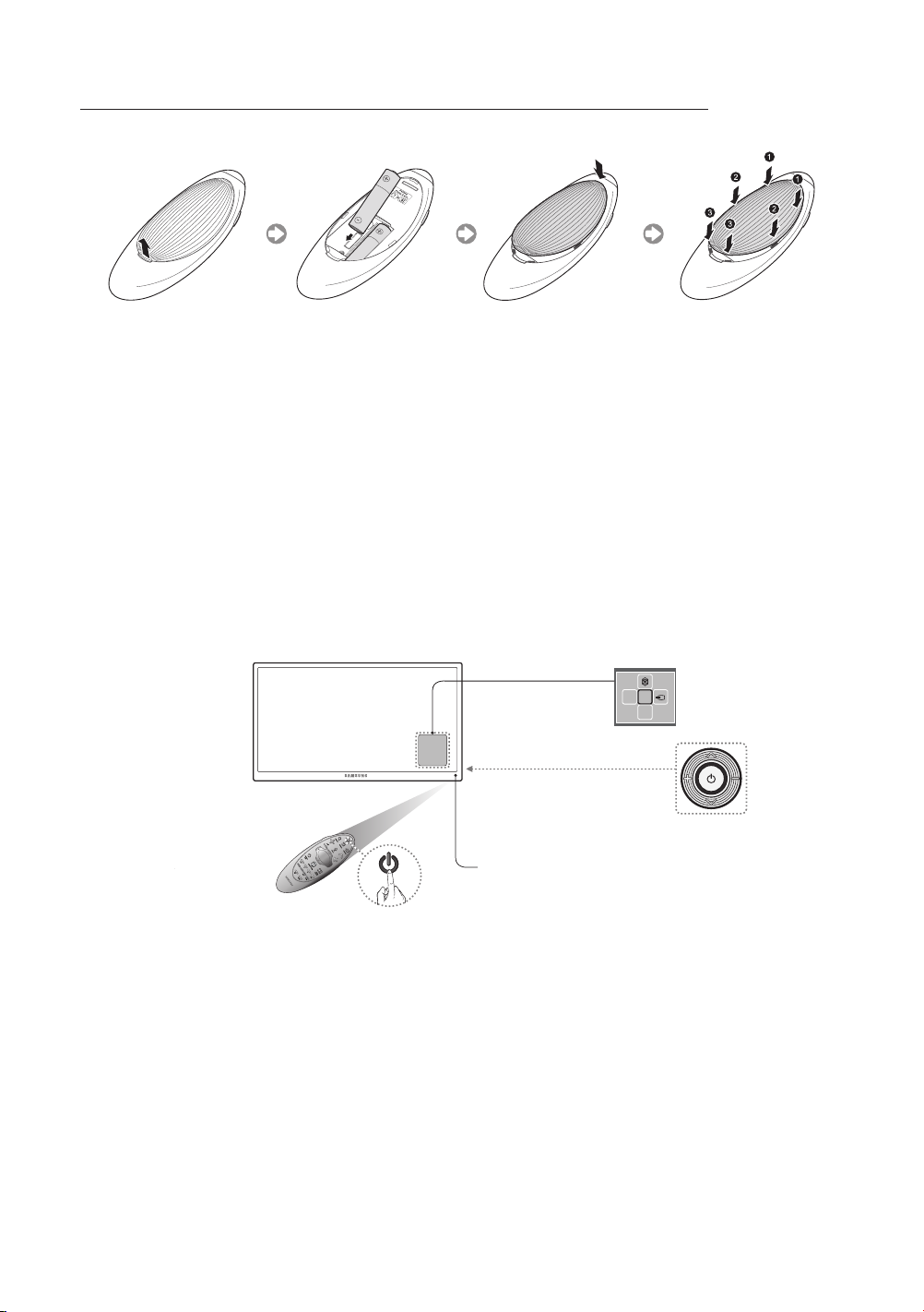

Inserting Batteries into Samsung Smart Control

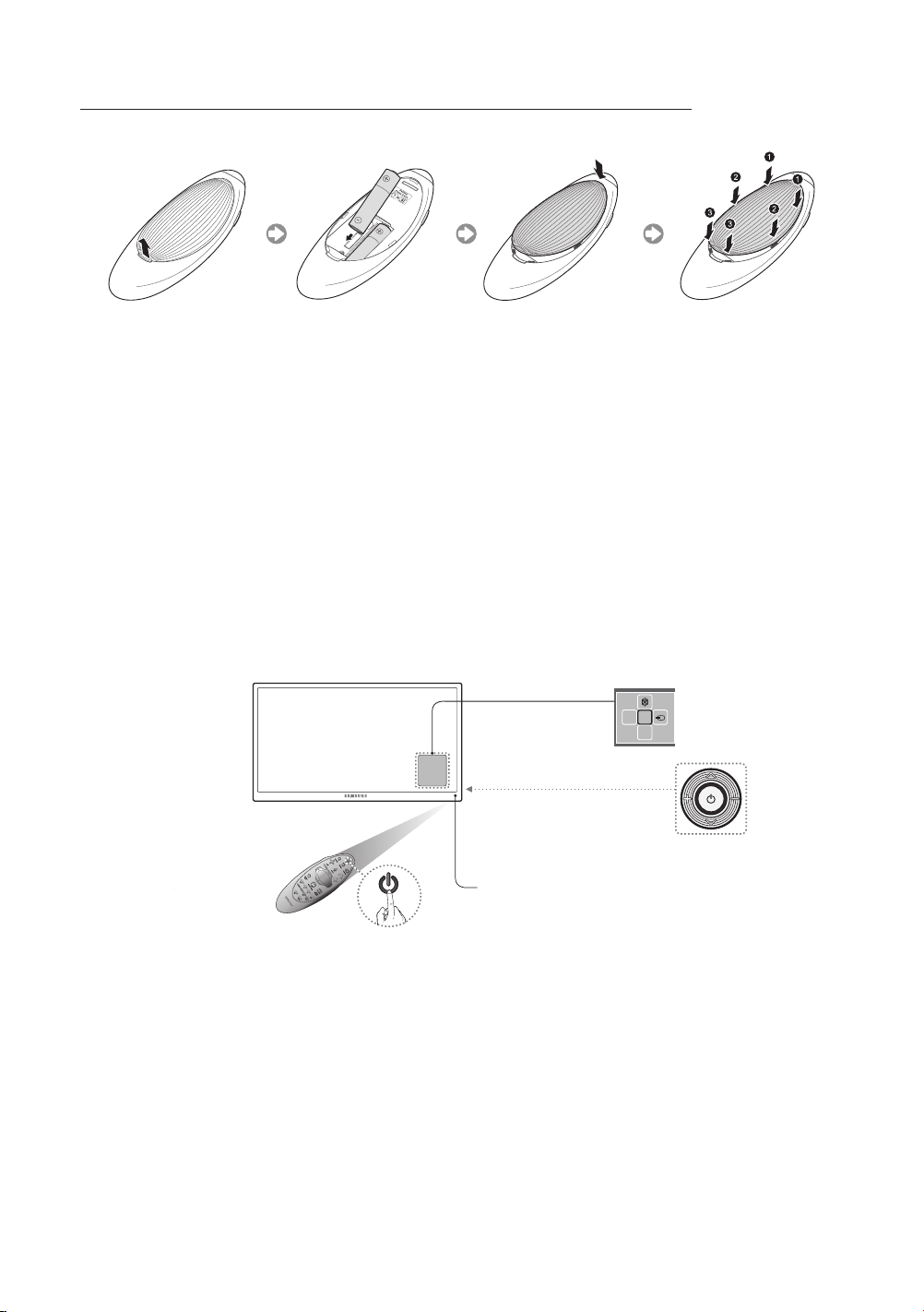

To use Samsung Smart Control, first refer to the figure below and insert batteries into the unit.

1.Gently pull on the battery cover's notch and then remove the cover completely once it comes loose.

2.Insert 2 AA alkaline batteries, making sure to align the positive and negative polarities correctly.

3.Place the battery cover on the remote control and insert the top part of the cover into the remote control.

4.Press the catches on both sides of the battery cover in the order shown so that the cover is completely attached to the remote control.

Turning on the TV

Turn on the TV using the Pbutton on the remote control or TV panel. -- The product colour and shape may vary depending on the model.

-- The TV’s Controller, a small joystick-like button at the right back of the TV, lets you control the TV without the remote control.

Function menu m R

P

TV Controller

Remote control sensor

When you use the Samsung Smart Control, the standby LED does not work (except the Pbutton).

English - 12

Initial setup

The initial setup dialogue box appears when the TV is first activated. Follow the on-screen instructions to finish the initial setup process, including the selecting the menu language, scanning channels, connecting to the network, and more. During each step, either make a choice or skip the step.

You can manually perform this process at a later time in the

System > Setup menu.

-- If you connect any device to HDMI1 before starting the installation, the Channel Source will be changed to Settop box automatically.

-- If you do not want to select Set-top box, please select

Aerial.

Password Change

System > Change PIN

Changing the TV’s password.

1.Run Change PIN and then enter the current password in the password field. The default password is “0-0-0-0”.

2.Enter a new password and then enter it again to confirm it. The password change is complete.

-- If you forgot your PIN code, press the buttons in the following sequence to reset the PIN to “0-0-0-0”:

For the Standard Remote Control: In Standby mode:

MUTE → 8 → 2 → 4 → POWER (On)

For the Samsung Smart Control: When the TV turns on: MUTE → Volume up → RETURN → Volume down →

RETURN → Volume up → RETURN

Selecting the video source

You can select a connected external device using the SOURCE button.

For example, to switch to a gaming console connected to the second HDMI connector, press SOURCE. From the

Source list, select HDMI2 to change the input signal to HDMI mode. Connector names may vary depending on the model.

The following options are available in the Source screen:

Alternatively, simply designate a computer connected to the TV via an HDMI cable as PC.

You can also designate an AV device connected to the TV via an HDMI-DVI cable as DVI Devices.

Information

View detailed information about the connected devices.

TOOLS Button

Select a port connected to an external device, and press and hold the Enter button. The following functions are available:

-- Available options for each connector may vary.

Edit Name

Rename devices connected to the TV for easier identification of external sources.

For example, you can designate a computer connected to the TV via an HDMI-DVI cable as DVI PC.

Anynet+ (HDMI-CEC)

Displays a list of Anynet+ (HDMI-CEC)-compliant devices that are connected to the TV.

-- This option is only available when Anynet+ (HDMICEC) is On.

Disconnect USB Device

Used to safely remove a USB device connected to the TV. This option is only available when a USB device has been selected.

<![if ! IE]>

<![endif]>English

English - 13

Using the Samsung Smart Control

Samsung Smart Control makes it even easier and more convenient to use the TV. Pressing the KEYPAD button displays a virtual remote control that allows you to easily enter digits, control content, and activate functions on the screen.

-- We recommend using Samsung Smart Control at a distance of less than 6m. A usable distance may differ depending on the wireless environmental conditions.

Pairing the Samsung Smart Control

To control the TV with Samsung Smart Control, you need to pair Samsung Smart Control to the TV via Bluetooth. Pair Samsung Smart Control to the TV.

-- Samsung Smart Control can only be paired to a single TV.

Point Samsung Smart Control at the remote control sensor of the TV and press the TV button to turn the TV on. -- Remote control receiver’s location may vary depending on the model.

Reconnecting Samsung Smart Control

If the Samsung Smart Control stops operating or works abnormally, replace the batteries as this may be due to insufficient battery power.

If the problem persists, the Samsung Smart Control restores pairing with the TV.

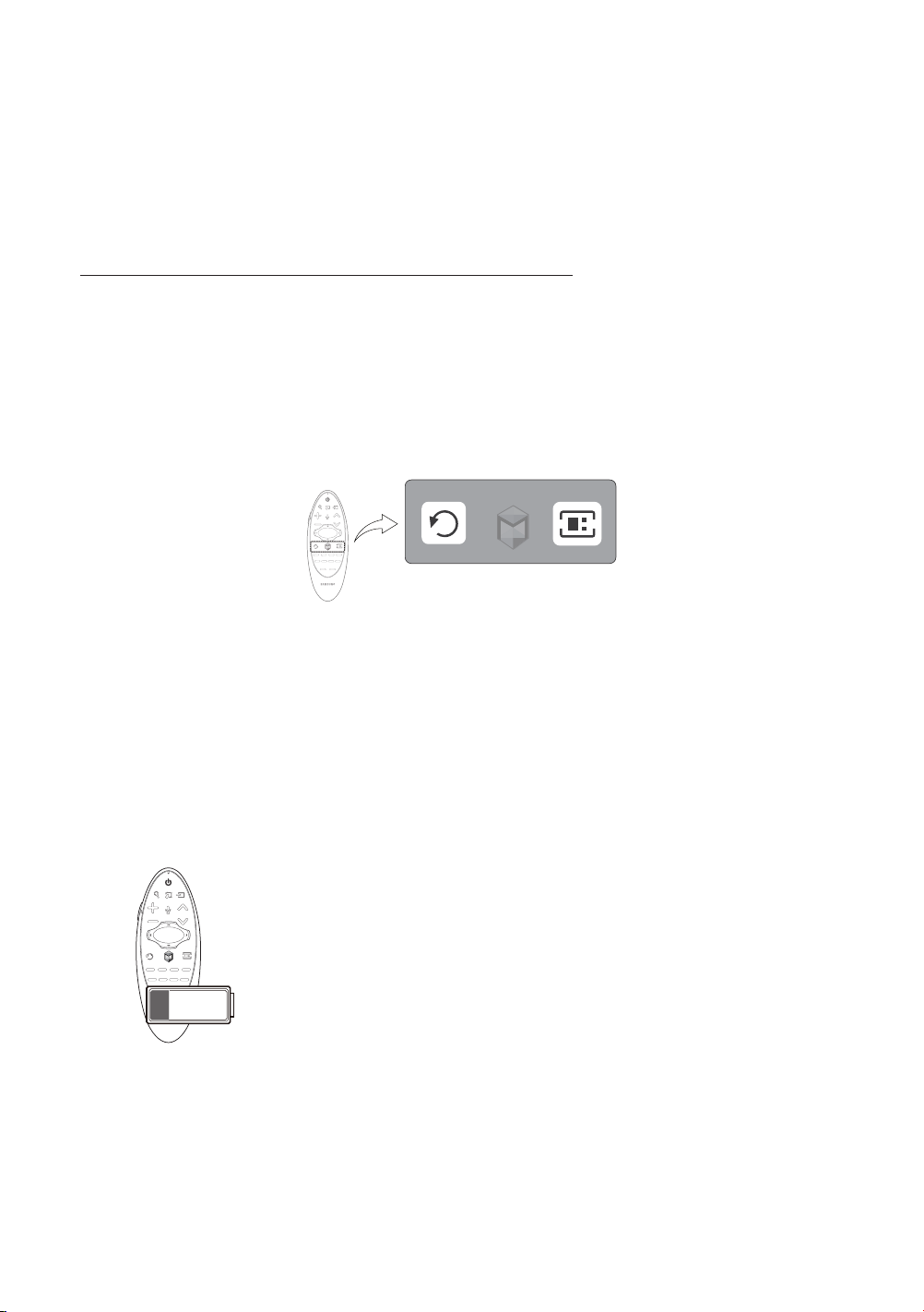

1. Press both the RETURN button and the GUIDE button simultaneously for more than 3 seconds.

-- You must place the Samsung Smart Control approximately 30cm ~ 40cm away from the TV and ensure it is pointing towards the remote control receiver.

2. Connection image is appeared on the screen. And then, Samsung Smart Control is connecting to TV automatically.

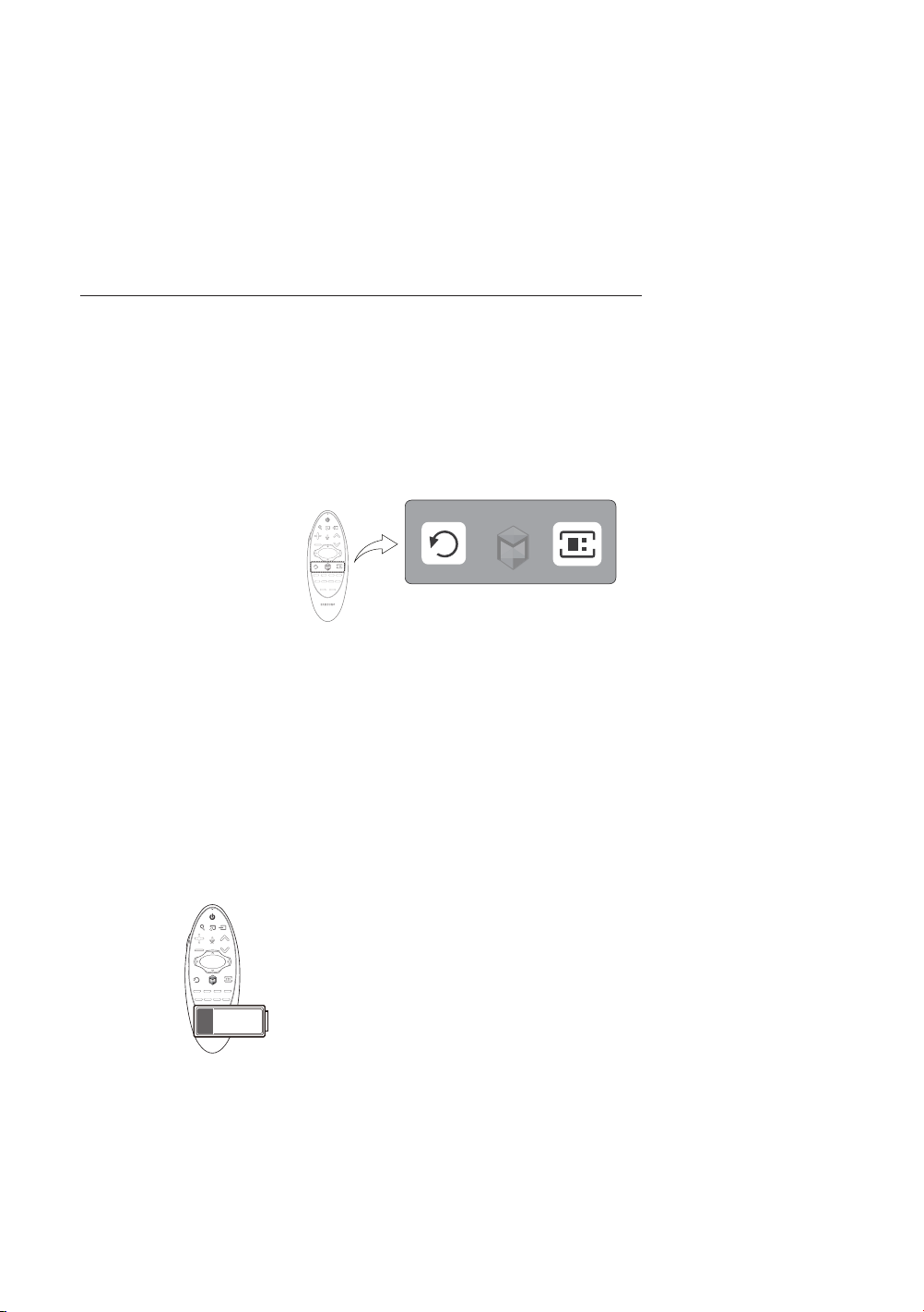

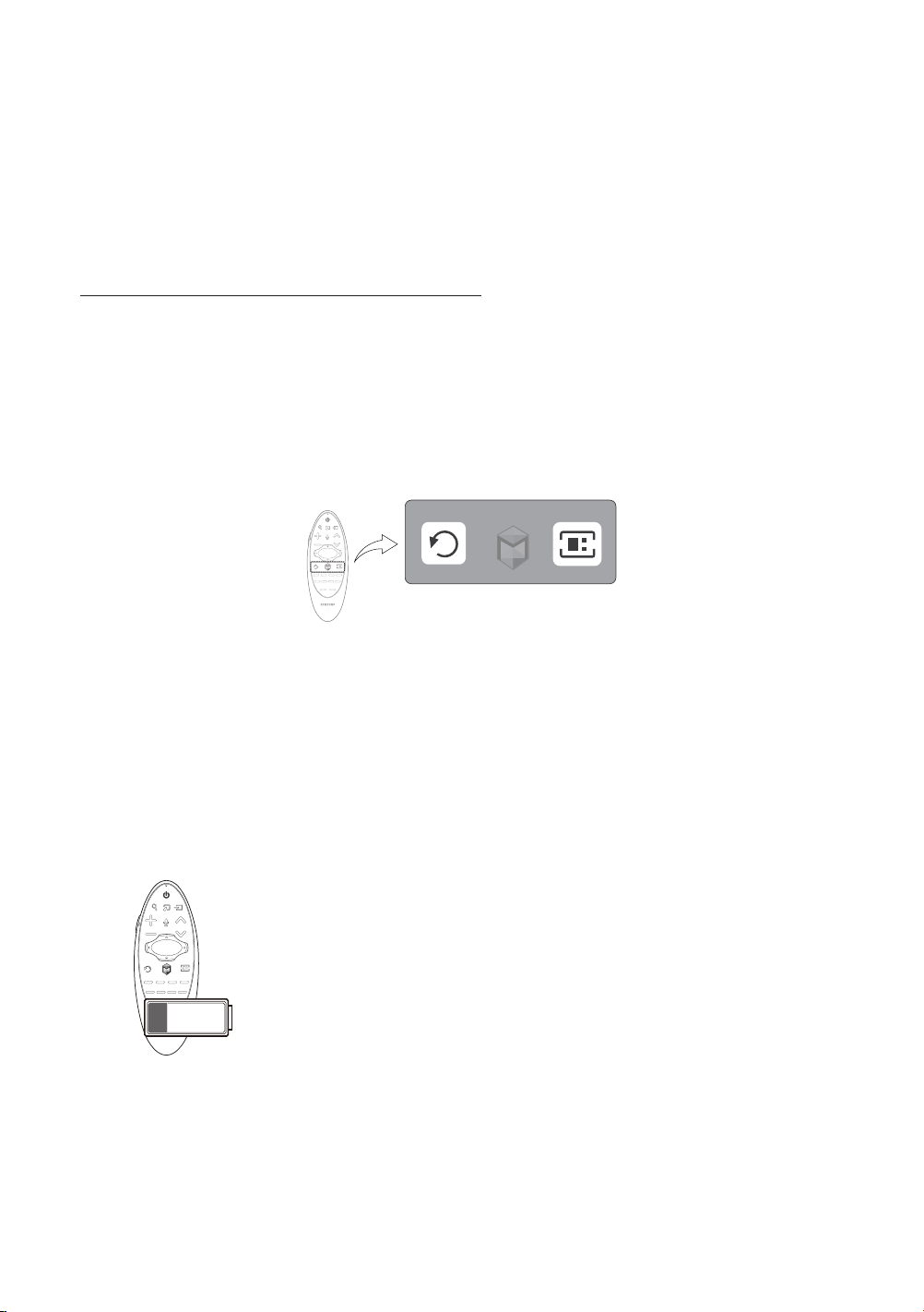

When you see this alarm icon on the screen...

Following alarm icon indicates Samsung Smart Control's batteries are low. If the alarm icon pops up, replace the batteries. Samsung recommends using alkaline batteries for a longer operating life.

<Low battery Alarm Icon>

English - 14

Using the TV by Moving the Samsung Smart Control

The Samsung Smart Control has a motion sensor (gyro sensor) that allows you to easily control the TV by holding and moving the Samsung Smart Control.

After placing a finger on the touchpad, a pointer appears on the screen. Hold and move the Samsung Smart Control. The pointer moves the same way the Samsung Smart Control is moved. It's also possible to scroll up and down on scrollable screens.

-- If you remove the finger from touchpad, the screen pointer disappears.

Using the TV with the Touchpad

-- Navigate to the Support menu and select the Smart Control Tutorial option to learn how to use the touchpad, following the on screen instructions.

Moving the Focus/Pointer

Press the directional buttons (up, down, left, and right) to move the pointer or focus in the direction.

Menu Access & Item Selection

Press the touchpad. This lets you access a TV menu or select an item.

Displaying the Context-sensitive Menu on Smart Hub

Press and hold on the touch pad from the Smart Hub screen. The Options menu available to the selected item appears. -- The Options menu depends on the context.

Moving to the Smart Hub panel

On the Smart Hub screen, drag left or right on the touchpad. This will move the Smart hub panels left or right.

Scrolling on the Web Browser

Drag up/down on the touchpad in the web browser screen. This scrolls through the web screen.

<![if ! IE]>

<![endif]>English

English - 15

Displaying the Remote Control on the Screen (virtual remote control)

Press the KEYPAD button to display the virtual remote control on the screen. You can easily enter digits, control content, and use TV buttons with the virtual remote control.

-- The virtual remote control buttons may vary depending on the TV's current status.

Controlling External Devices with the TV Remote (Universal Remote Setup)

System > Universal Remote Setup

-- Availability depends on the specific model and area.

The universal remote control feature lets you control cable boxes, Blu-ray players, home theatres, and other external devices connected to the TV using the TV's remote control. In order to use the TV's remote control as a universal remote, you must first connect the IR extender cable (included).

-- You can also use the Anynet+ (HDMI-CEC) function to operate some external Samsung devices with your TV's remote control without any additional setup. For more information, refer to the e-Manual.

-- Certain external devices connected to the TV may not support the universal remote feature.

Setting Up the Universal Remote Control

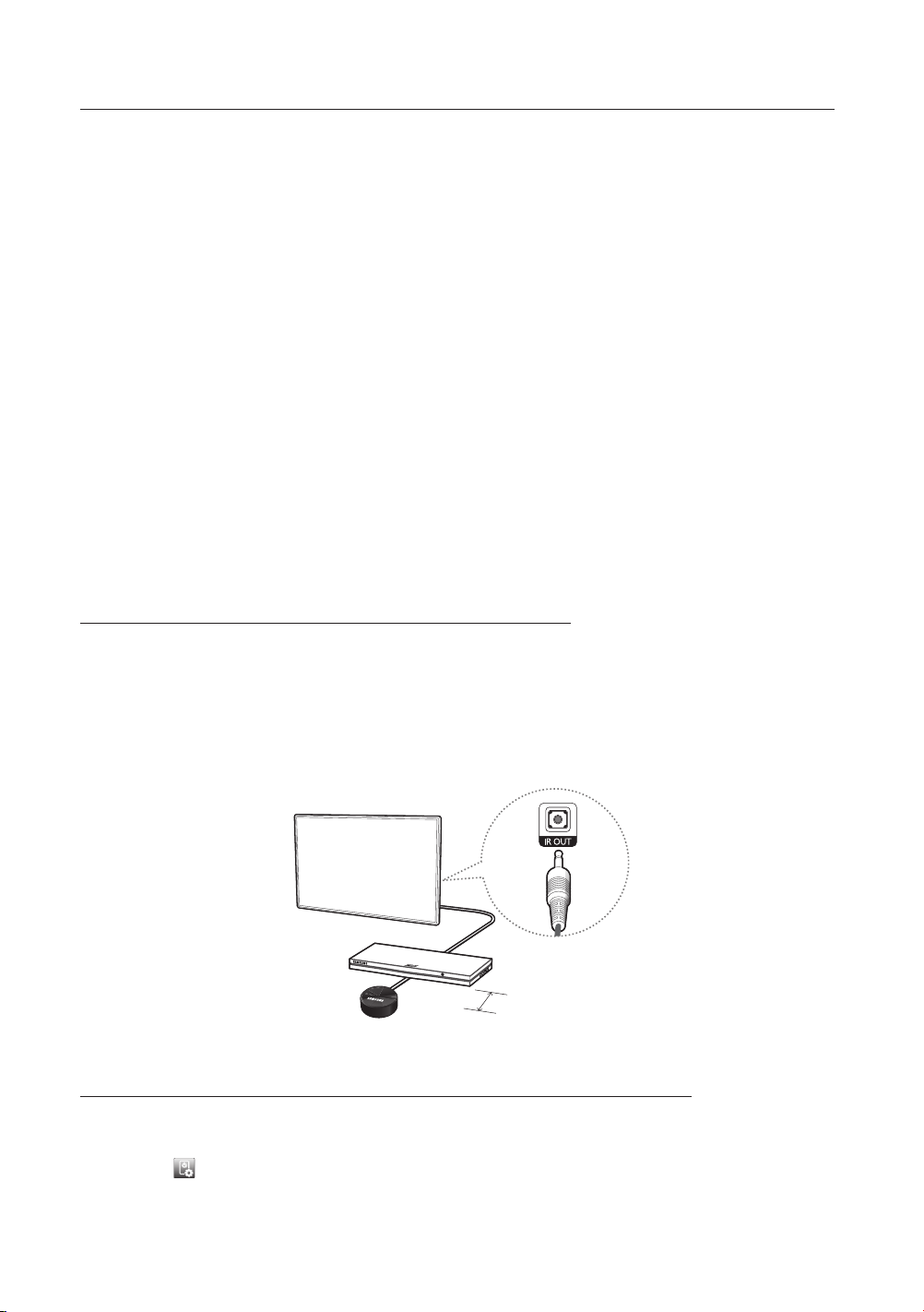

Connect the IR extender cable to the TV's IR output connector as shown in the diagram and place the transmitter end within 10 cm of the external device's receiver pointing in the direction of the remote receiver. However, there must be no obstacles between the IR extender cable and the external device. The presence of obstacles interferes with the transmission of the remote control signal.

-- When you use an external device registered with the Universal Remote Control on the Samsung Smart Control, you can use the external device without connecting an IR extender cable. However, if you want to use an external device using Voice Control, be sure to connect an IR extender cable.

10 cm

Controlling External Devices with the TV Remote

1.Turn on the external device to set up the universal remote function for, and bring up the Source screen.

2.Select Universal remote setup from the top of the screen. This initiates the universal remote setup process.

3.Follow the on-screen instructions and register the external device.

English - 16

Viewing more TV features

The e-Manual contains more detailed information on the TV features. Refer to the embedded e-Manual (Support > e-Manual).

Launching the e-Manual

The embedded e-Manual contains information.

-You can also download a copy of the e-Manual from Samsung's website, and read it on your computer or print it out.

-Yellow words indicate a menu item; white bold words indicate remote control buttons. Arrows are used to indicate the menu path. (Example: Picture > Picture Mode)

1.Select e-Manual. The e-Manual loads.

2.Select a category from the side of the screen. Once a selection has been made, the contents of the selected category appear.

3.Select an item from the list. This opens the e-Manual on the corresponding page.

If a description doesn't fit on a single screen...

You can scroll pages in one of the following ways.

• Position the focus on the page to display

/

on the screen. Press <, >button.

Additional e-Manual Features

Loading Pages using Keywords

Select Search from the side of the screen to bring up the search screen. Enter a search term and then select Done. Select an item from the search results to load the corresponding page.

<![if ! IE]>

<![endif]>English

English - 17

Loading Pages from the Index Page

Select Index from the side of the screen to bring up the index screen. Select a keyword from the list to navigate to the relevant page.

Using the History to Load Previously Read Pages

Select Opened page from the side of the screen. A list of previously read pages is shown. Select a page. The e-Manual jumps to the selected page.

Accessing the Menu from the e-Manual (Try Now)

Select (Try Now) on a feature-description to directly move to the corresponding menu and try out the feature. If you want to read an e-Manual entry on a specific screen menu feature,

Using Samsung Smart Control: Press the KEYPAD button and select e-Manual.

Using the remote control: Press the E-MANUAL button. - Certain menu options cannot be used.

Loading Reference Pages

Select (Link) from the side of a feature-description page to access the corresponding reference page.

Updating the e-Manual to the Latest Version

You can update the e-Manual in the same way as updating apps.

1.Select the e-Manual item in the SAMSUNG APPS screen.

2.Press and hold the Enter button. The Options menu appears.

3.From the Options menu on the screen, select Update apps. A popup window appears.

-Update apps is shown on the screen only when an update is required.

4.Select e-Manual in the popup window and then select Update. You can update the e-Manual to the latest version.

English - 18

Troubleshooting

If you have any questions about the TV, first refer to the Troubleshooting list below. If none of these troubleshooting tips apply, please visit “www.samsung.com” and click on Support, or contact the call centre listed on the back cover of this manual.

Issues	Solutions and Explanations
The TV won’t turn on.	Make sure the AC power cord is securely plugged into the wall outlet and the TV.
	Make sure the wall outlet is working.
	Try pressing the Pbutton on the TV to make sure the problem is not the remote. If the TV
	turns on, refer to the “Remote control does not work” item below.
There is no picture/video.	Check the cable connections. Remove and reconnect all cables connected to the TV
	and external devices.
	Set the video outputs of your external devices (Cable/Sat Box, DVD, Blu-ray etc) to
	match the TV's input connections. For example, if the output of an external device is
	HDMI, it should be connected to an HDMI input on the TV.
	Make sure your connected devices are powered on.
	Be sure to select the correct input source.
	Reboot the connected device by unplugging it, and then reconnecting the device’s
	power cable.
The remote control does not	Replace the remote control batteries. Make sure the batteries are installed with their
work.	polarities (+/–) in the correct direction.
	Clean the sensor’s transmission window on the remote.
	Try pointing the remote directly at the TV from 1.5 ~ 1.8 m away.
The remote control of the cable/	Programme the Cable/Set remote control to operate the TV. Refer to the Cable/Set-
set top box doesn’t turn the TV	Top-Box user manual for the SAMSUNG TV code.
on or off or adjust the volume.

-- This TFT LED panel uses a panel consisting of sub pixels which require sophisticated technology to produce. There may, however be a few bright or dark pixels. These pixels will have no impact on the performance of the product.

-- To keep your TV running optimally upgrade to the latest firmware on the Samsung website via the USB device USB (Samsung.com > Support > Downloads).

-- Some of the pictures and functions above are available for specific models only.

<![if ! IE]>

<![endif]>English

English - 19

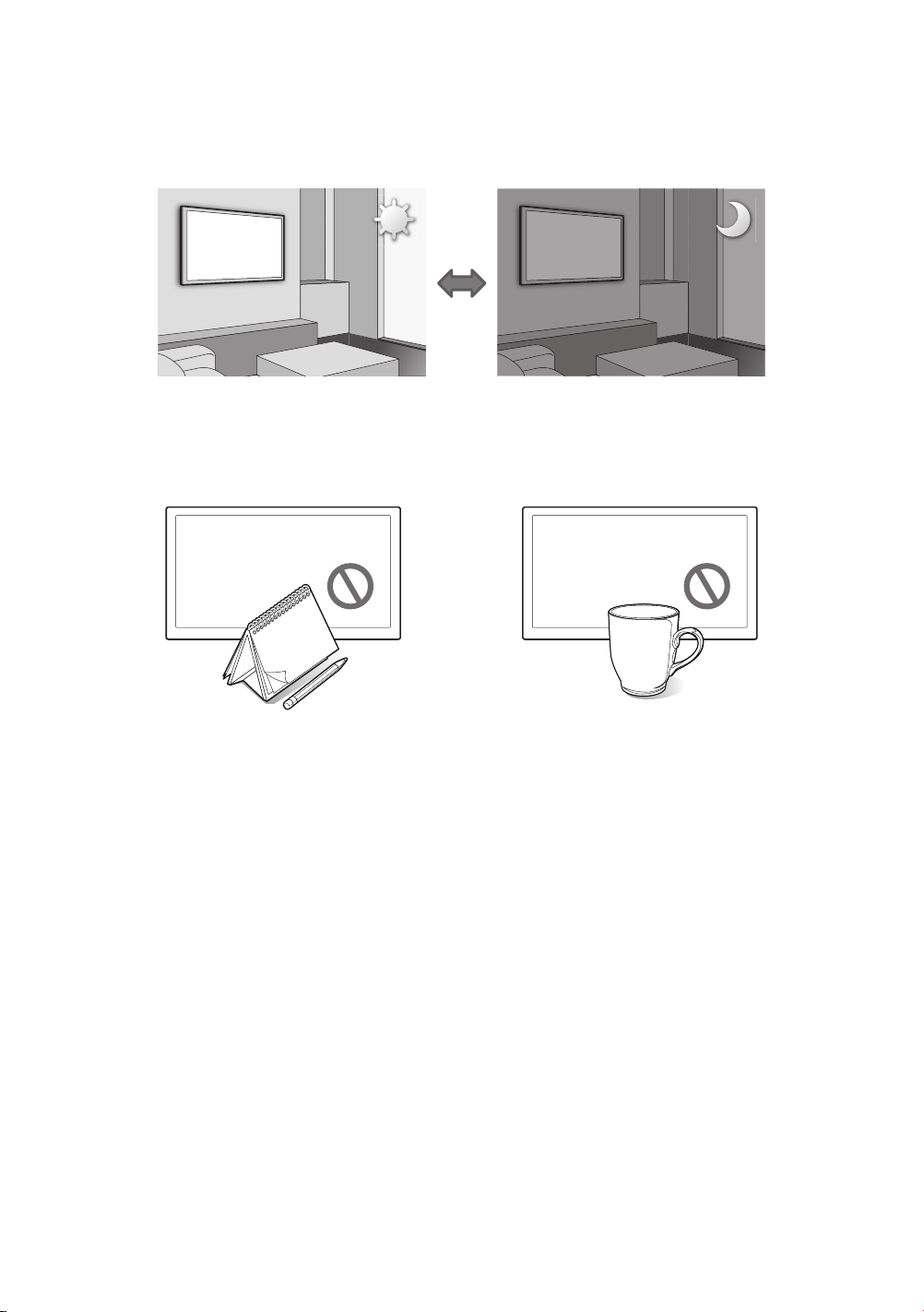

Cautions about the Eco Sensor and Screen Brightness

The Eco Sensor measures the light in the room and optimises the brightness of the TV automatically to reduce power consumption. This causes the TV to brighten and dim automatically. To turn this function off, go to System > Eco Solution >

Eco Sensor.

Do not block the sensor with any material. This may decrease the picture brightness.

1.Eco Sensor: This power-saving feature automatically adjusts the screen brightness of the TV according to the ambient light detected by the Light Sensor.

2.To enable or disable the Eco Sensor, go to System > Eco Solution > Eco Sensor and select On or Off.

3.Please note: If the screen is too dark while watching TV in a dark environment, this may be due to the Eco Sensor.

English - 20

What is Remote Support?

Samsung's Remote Support service offers you one-on-one support with a Samsung Technician who can remotely:

•• Diagnose your TV

•• Adjust your TV settings

•• Perform a factory reset for your TV

•• Install recommended firmware updates

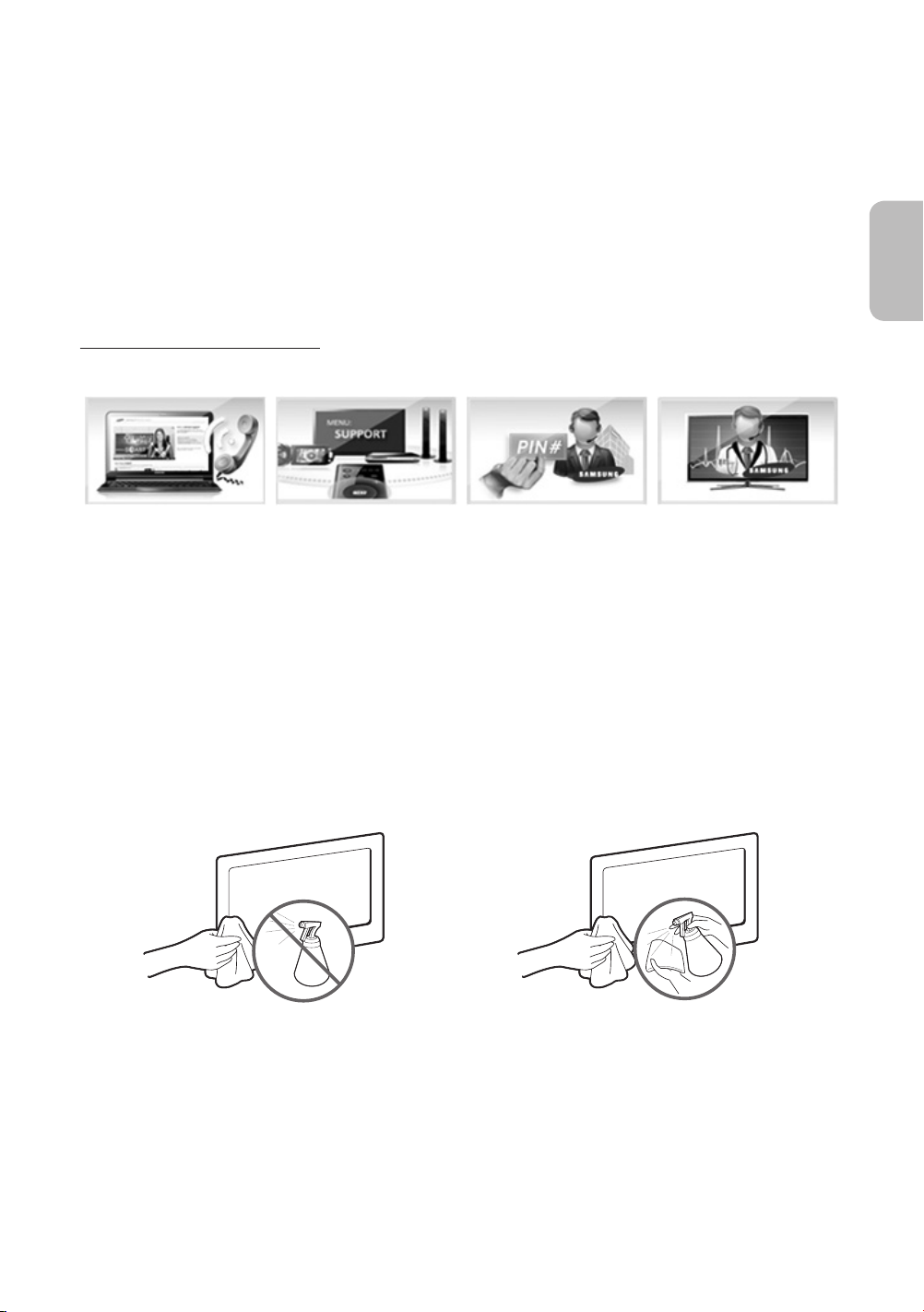

How Does it Work?

Having a Samsung Tech remotely service your TV is really pretty simple

<![if ! IE]>

<![endif]>English

1. Call the Samsung	2. Open the menu on	3. Select Remote	4. The agent will then
Contact Centre and ask	your TV and go to the	Management and	access your TV. That's
for remote support.	Support section.	Provide the Pin# to the	it!
		agent.

Storage and Maintenance

-- If a sticker was attached to the TV screen, some debris may remain after you remove the sticker. Please clean the debris off before watching TV.

-- The exterior and screen of the product can get scratched while cleaning it. Be sure to wipe the exterior and screen carefully using a soft cloth to prevent scratches.

Do not spray water directly onto the product. Any liquid that enters the product may result in product failure, fire, or electric shock.

Clean the product with a soft damp cloth using a small amount of water. Do not use a flammable liquid (e.g. benzene, thinners) or a cleaning agent.

English - 21

TV Specifications

Display Resolution			1920 x 1080
Environmental Considerations
Operating Temperature			50°F to 104°F (10°C to 40°C)
Operating Humidity
			10% to 80%, non-condensing
Storage Temperature			-4°F to 113°F (-20°C to 45°C)
Storage Humidity			5% to 95%, non-condensing
Stand Swivel (Left / Right)		-15˚ ~ 15˚ (LED 6750, 6770 series: 0˚)
Sound (Output)			10 W X 2
Model Name	UE40H6600 / UE40H6620 /		UE48H6600 / UE48H6620 /		UE55H6600 / UE55H6620 /
	UE40H6740		UE48H6740		UE55H6740
Screen Size (Diagonal)	40 inches		48 inches		55 inches
Dimensions (W x H x D)
Body	906.6 x 533.3 x 63.1 mm		1075.1 x 628.0 x 63.5 mm		1230.6 x 715.5 x 64.0 mm
With stand	906.6 x 596.2 x 266.9 mm		1075.1 x 697.6 x 308.2 mm		1230.6 x 794.8 x 308.2 mm
Weight
Without Stand	8.1 kg		11.6 kg		16.0 kg
With Stand	9.2 kg		13.2 kg		17.6 kg
Model Name	UE40H6750 / UE40H6770		UE48H6750 / UE48H6770		UE55H6750 / UE55H6770
Screen Size (Diagonal)	40 inches		48 inches		55 inches
Dimensions (W x H x D)
Body	906.6 x 533.3 x 63.1 mm		1075.1 x 628.0 x 63.5 mm		1230.6 x 715.5 x 64.0 mm
With stand	906.6 x 581.7 x 237.0 mm		1075.1 x 674.4 x 249.8 mm		1230.6 x 765.4 x 249.8 mm
Weight
Without Stand	8.1 kg		11.6 kg		16.0 kg
With Stand	10.8 kg		14.7 kg		19.1 kg

-- The design and specifications are subject to change without prior notice.

-- For information about the power supply, and about power consumption, refer to the label attached to the product. -- Typical power consumption is measured according to IEC 62087 Ed.2

Standby mode

To decrease power consumption, unplug the power cord when the TV will not be used for a long time.

English - 22

Licences

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Still image warning

Avoid displaying still images (such as jpeg picture files), still image elements (such as TV channel logos, stock or news bars at the bottom of the screen etc.), or programmes in panorama or 4:3 image format. Constantly displaying still pictures can cause image burn-in on the LED screen, which will affect the image quality. To reduce risk of this occurring please follow the recommendations below:

••	Avoid displaying the same TV channel for long periods.
••	Always try to display any image in full screen. Use the TV set’s picture format menu for the best possible match.
••	Reduce brightness and contrast to avoid the appearance of after-images.
••	Use all TV features designed to reduce image retention and screen burn. Refer to the e-Manual for more details.

Recommendation - EU Only

Hereby, Samsung Electronics, declares that this TV is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

The official Declaration of Conformity may be found at http://www.samsung.com, go to Support > Search Product Support and enter the model name.

This equipment may only be used indoors.

This equipment may be operated in all EU countries.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of the batteries in this product (Applicable in countries with separate collection systems)

This marking on battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

<![if ! IE]>

<![endif]>English

English - 23

Achtung! Wichtige Sicherheitshinweise

(Bitte lesen Sie den Abschnitt zu Ihrem Samsung-Gerät, ehe Sie es installieren.)

ACHTUNG

STROMSCHLAGGEFAHR NICHT ÖFFNEN

ACHTUNG: UM DIE GEFAHR EINES ELEKTRISCHEN SCHLAGES ZU VERRINGERN, ENTFERNEN SIE NICHT DIE ABDECKUNG (ODER RÜCKSEITE). IM GERÄTEINNEREN BEFINDEN SICH KEINE VOM BENUTZER ZU WARTENDEN TEILE. LASSEN SIE REPARATUREN NUR VON QUALIFIZIERTEM KUNDENDIENSTPERSONAL DURCHFÜHREN.

Dieses Symbol weist auf eine hohe Spannung im Innern des Geräts hin. Das Berühren von Teilen im Geräteinneren ist gefährlich.

Dieses Symbol weist darauf hin, dass diesem Gerät wichtige Anweisungen zu Betrieb und Wartung beigefügt sind.

Die Schlitze und Öffnungen im Gehäuse und in der Rückwand oder im Boden sind für die Belüftung erforderlich. Um den zuverlässigen Betrieb des Geräts zu gewährleisten und es vor Überhitzung zu schützen, dürfen diese Öffnungen keinesfalls blockiert oder bedeckt werden.

-- Stellen Sie das Gerät nicht in abgeschlossene Räume wie z. B. in ein Bücherregal oder einen Einbauschrank. Dieser Einbau ist nur dann zulässig, wenn für ausreichende Belüftung gesorgt wird.

-- Außerdem darf das Gerät keinesfalls in der Nähe oder über einem Radiator oder Heizkörper aufgestellt werden, oder an Orten, an denen es direkter Sonneneinstrahlung ausgesetzt ist.

-- Stellen Sie keine mit Flüssigkeit gefüllten Behälter (Vasen usw.) auf das Gerät, da dies zu einem Brand oder Stromschlag führen kann.

Setzen Sie das Gerät keinesfalls Regen aus, und stellen Sie es nicht in der Nähe von Wasser auf (Badewanne, Küchenspüle, feuchter Keller, Schwimmbecken usw.). Falls das Gerät dennoch Nässe ausgesetzt war, trennen Sie es von der Stromversorgung und wenden Sie sich umgehend an den nächstgelegenen Händler. Ziehen Sie vor dem Reinigen des Geräts den Netzstecker aus der Steckdose.

Für dieses Gerät benötigen Sie Batterien. Entsorgen Sie die Batterien gemäß den für Sie geltenden Umweltschutzbestimmungen. Bitte wenden Sie sich bei Fragen zur ordnungsgemäßen Entsorgung an Ihre örtlichen Behörden.

Überlasten Sie Steckdosen, Verlängerungskabel und Netzteile keinesfalls, da dies zu einem Brand oder Stromschlag führen kann.

Netzkabel müssen so verlegt werden, dass niemand auf das Kabel treten kann oder es durch Gegenstände gequetscht wird, die auf dem Kabel stehen oder gegen das Kabel drücken. Besondere Aufmerksamkeit muss den Bereichen um Stecker, Steckdosen und dem Punkt zukommen, an dem das Netzkabel aus dem Gerät herausgeführt wird.

Zum Schutz des Geräts bei einem Gewitter oder längerem Nichtbetrieb trennen Sie das Gerät vom Netz. Trennen Sie darüber hinaus das Antennenkabel vom Gerät. Auf diese Weise werden Schäden durch Blitzschlag oder Spannungsstöße vermieden.

Stellen Sie sicher, dass die Nennspannung des Gleichstromnetzteils für die örtliche Stromversorgung geeignet ist, bevor Sie das Netzkabel an die Stromversorgung anschließen.

Führen Sie niemals Metallgegenstände in die Öffnungen dieses Geräts ein. Dies kann zu Stromschlägen führen.

Berühren Sie keinesfalls Bauteile im Geräteinneren, um Stromschläge zu vermeiden. Das Gerät darf nur von einem qualifizierten Techniker geöffnet werden.

Stellen Sie sicher, dass das Netzkabel fest in die Steckdose eingestöpselt wird. Fassen Sie das Netzkabel am Stecker an, wenn Sie es aus der Wandsteckdose ziehen. Berühren Sie das Netzkabel niemals mit feuchten Händen.

Wenn das Gerät nicht einwandfrei funktioniert, insbesondere beim Auftreten ungewöhnlicher Geräusche oder Gerüche aus dem Inneren, trennen Sie es unverzüglich von der Stromversorgung und wenden Sie sich umgehend an Ihren nächstgelegenen Händler oder das nächste Kundendienstzentrum.

Ziehen Sie auf jeden Fall den Netzstecker aus der Steckdose, wenn das Fernsehgerät längere Zeit nicht verwendet werden soll, weil Sie beispielsweise längere Zeit abwesend sind (besonders wenn Kinder und ältere Personen allein im Haus bleiben).

-- Staubansammlungen können Stromschläge, Kurzschlüsse oder Brände verursachen, da am Netzkabel Funken auftreten oder die Hitze zu einer Beschädigung der Isolierung führt.

Wenden Sie sich an den autorisierten Kundendienst, wenn das Gerät an einem Ort mit hoher Konzentration an Staubpartikeln, außergewöhnlich hoher oder geringer Raumtemperatur, extrem hoher Luftfeuchtigkeit, in unmittelbarer Nähe zu chemischen Lösungsmitteln oder für den Dauerbetrieb, z. B. auf Bahnoder Flughäfen, aufgestellt werden soll.

Verwenden Sie nur ordnungsgemäß geerdete Stecker und Steckdosen.

-- Eine fehlerhafte Erdung kann zu einem elektrischen Schlag oder Schäden am Gerät führen. (Nur Geräte der Klasse I.)

Wenn Sie das Gerät vom Stromnetz trennen möchten, müssen Sie den Netzstecker aus der Dose ziehen. Deshalb muss der Netzstecker jederzeit leicht erreichbar sein.

Achten Sie darauf, dass sich Kinder nicht an das Gerät hängen.

Lagern Sie die Zubehörteile (Batterie usw.) an einem sicheren Ort außerhalb der Reichweite von Kindern.

Bringen Sie das Gerät nicht an einem instabilen Ort wie z. B. einem wackligen Regal, einem abschüssigen Boden oder einem Ort an, der Vibrationen ausgesetzt ist.

Lassen Sie das Gerät nicht fallen, und vermeiden Sie Erschütterungen. Wenn das Gerät beschädigt ist, trennen Sie es vom Stromnetz, und wenden Sie sich an ein Kundendienstzentrum.

Ziehen Sie den Netzstecker aus der Steckdose, und wischen Sie das Gerät mit einem weichen, trockenen Tuch ab. Verwenden Sie keine Chemikalien wie Wachs, Benzol, Alkohol, Verdünner, Insektizide, Luftverbesserer, Schmiermittel oder Reinigungsmittel. Hierdurch kann das Aussehen des Geräts beschädigt oder der Aufdruck entfernt werden.

Es dürfen keinesfalls Tropfen oder Spritzer von Flüssigkeiten in das Gerät eindringen. Entsorgen Sie Batterien niemals in einem Feuer.

Schließen Sie die Batterien nicht kurz, zerlegen und überhitzen Sie sie nicht.

Bei unsachgemäßem Austausch von Batterien besteht Explosionsgefahr. Setzen Sie nur Batterien des gleichen oder eines gleichwertigen Typs ein.

ACHTUNG: UM DIE AUSBREITUNG VON FEUER ZU VERHINDERN, SORGEN SIE JEDERZEIT DAFÜR, DASS DAS GERÄT NICHT MIT KERZEN ODER OFFENEM FEUER IN BERÜHRUNG KOMMT.

* Die Abbildungen und Illustrationen in diesem Handbuch dienen nur zur Information und können vom tatsächlichen Aussehen des Geräts abweichen. Änderungen an Ausführung und technischen Daten vorbehalten.

Einige GUS-Sprachen (Russisch, Ukrainisch, Kasachisch) stehen für dieses Produkt nicht zur Verfügung, da das Gerät für Kunden in der EU hergestellt wurde.

Deutsch - 2

Inhalt der Verpackung?

Samsung Smart Control & 2 Batterien (Typ AA)	Vorschriftenhandbuch
Fernbedienung 2 Batterien (Typ AAA)	Netzkabel
Benutzerhandbuch	Samsung 3D-Aktivbrille
Garantiekarte (nicht überall verfügbar)

CI-Kartenadapter							IR-Verlängerungskabel	Kabelhalter

-- Vergewissern Sie sich, dass im Lieferumfang des Fernsehgeräts folgende Komponenten enthalten sind. Falls Komponenten fehlen sollten, setzen Sie sich bitte mit Ihrem Händler in Verbindung.

-- Farbe und Form der Teile können sich je nach Modell unterscheiden. -- Nicht mitgelieferte Kabel können gesondert erworben werden.

-- Kontrollieren Sie beim Öffnen der Verpackung, ob Zubehör hinter oder in den Verpackungsmaterialien versteckt ist.

Verwaltungskosten werden abgerechnet, wenn

(a)auf Ihren Wunsch ein Ingenieur zu Ihnen geschickt wird, und es liegt kein Defekt des Geräts vor (d. h. wenn das Benutzerhandbuch nicht gelesen wurde)

(b)Sie das Gerät in eine Reparaturwerkstatt bringen, und es liegt kein Defekt des Geräts vor (d. h. wenn das Benutzerhandbuch nicht gelesen wurde)

Vor dem Besuch des Technikers werden Sie über die Höhe der Verwaltungsgebühr informiert.

	Warnung: Der Bildschirm kann aufgrund direkter Krafteinwirkung	Berühren Sie
	während eines unsachgemäßen Transports beschädigt werden.
		diesen
	Wir empfehlen daher, das Fernsehgerät beim Tragen wie in der
		Bildschirm nicht!
	Abbildung gezeigt an den Ecken des Geräts zu halten.

<![if ! IE]>

<![endif]>Deutsch

Deutsch - 3

Befestigen des Fernsehgeräts am Standfuß

Stellen Sie sicher, dass alle dargestellten Zubehörteile vorhanden sind, und montieren Sie den Standfuß entsprechend der zur Verfügung gestellten Montageanleitung.

Wandmontage des Fernsehgeräts mit Hilfe der Wandhalterung (optional)

Wenn Sie dieses Produkt an einer Wand anbringen, müssen Sie dabei auf jeden Fall die Anweisungen des Herstellers einhalten. Wenn das Gerät nicht ordnungsgemäß montiert ist, könnte es herunterfallen, ein Kind oder einen Erwachsenen ernsthaft verletzen und beschädigt werden.

Anbringen der Wandhalterung

Mit der (separat erhältlichen) Wandhalterung können Sie das Fernsehgerät an einer Wand befestigen.

Detaillierte Informationen zum Montieren der Wandhalterung finden Sie in den Anweisungen zur Wandhalterung. Wir empfehlen Ihnen, sich beim Anbringen der Wandhalterung von einem Techniker helfen zu lassen. Wir raten davon ab, dies selbst zu erledigen. Samsung Electronics haftet nicht für Schäden an Gerät oder Personen, wenn die Montage der Wandhalterung vom Kunden selbst durchgeführt wird.

Wandhalterung

Fernsehgerät

C

Spezifikation (VESA) der Wandhalterung

Die Wandhalterung wird nicht mitgeliefert, sondern ist gesondert erhältlich. Montieren Sie die Wandhalterung an einer soliden Wand, die senkrecht zum Boden steht. Bei Installation der Wandhalterung auf anderen Trägermaterialien wenden Sie sich bitte an Ihren Fachhändler. Bei Montage des Geräts an einer Decke oder schrägen Wand kann das Fernsehgerät herunterfallen und Verletzungen verursachen.

-- Die Standardabmessungen der Wandhalterung finden Sie in der nachfolgenden Tabelle.

-- Beim Kauf unserer Wandhalterung erhalten Sie ein detailliertes Installationshandbuch sowie alle für die Montage erforderlichen Teile.

-- Verwenden Sie keine Schrauben, die nicht der VESA-Standardspezifikation für Schrauben entsprechen.

-- Verwenden Sie keine Schrauben, die länger sind als in der VESA-Standardspezifikation für Schrauben angegeben. Zu lange Schrauben können Schäden an den inneren Bauteilen des Fernsehgeräts verursachen.

Deutsch - 4

-- Bei Wandhalterungen, die nicht der VESA-Standardspezifikation für Schrauben entsprechen, hängt die Länge der Schrauben von der Spezifikation der Wandhalterung ab.

-- Ziehen Sie die Schrauben nicht zu fest an, weil Sie auf diese Weise das Gerät beschädigen könnten oder weil das Gerät

	dadurch herunterfallen und damit Verletzungen verursachen könnte. Samsung haftet nicht bei derartigen Unfällen.
--	Samsung haftet nicht für Geräteschäden oder Verletzungen, wenn eine Wandhalterung verwendet wird, die nicht dem
	VESA-Standard entspricht oder nicht spezifiziert ist, oder wenn der Verbraucher die Installationsanleitung für das
	Produkt nicht befolgt.
--	Montieren Sie das Fernsehgerät nicht in einem Winkel von mehr als 15 Grad.
Wenn Sie die Wandhalterung eines Fremdherstellers verwenden, beachten Sie die unten angegebene Länge (C) der
Montageschrauben.
	Produktfamilie	Zoll	VESA-Spez. (A * B)	C (mm)	Standardschraube	Menge
		40	200 X 200	20,2 ~ 21,2
LED-Fernsehgerät		48	400 X 400	20,8 ~ 21,8	M8	4
		55		20,2 ~ 21,2

Installieren Sie die Wandhalterung nicht bei eingeschaltetem Fernsehgerät. Sie könnten dabei einen Stromschlag erhalten und sich verletzen.

Ausreichende Belüftung Ihres Fernsehgeräts

Halten Sie beim Aufstellen des Fernsehgeräts einen Abstand von mindestens 10 cm zu anderen Objekten (Wänden, Schrankwänden usw.) ein, um eine ausreichende Lüftung zu gewährleisten. Wenn Sie nicht für eine ausreichende Lüftung sorgen, können aufgrund des Temperaturanstiegs im Innern des Geräts ein Brand oder ein Problem mit dem Gerät die Folge sein.

Wenn Sie Teile eines anderen Herstellers verwenden, kann es zu Problemen mit dem Gerät oder zu Verletzungen kommen, weil das Gerät herunterfällt.

-- Wenn Sie einen Standfuß oder eine Wandhalterung einsetzen, empfehlen wir Ihnen dringend, ausschließlich Teile von

Samsung Electronics zu verwenden.
Aufstellen des Geräts mit dem Standfuß		Installation des Geräts mit der Wandhalterung
10 cm			10 cm
10 cm	10 cm	10 cm	10 cm
			10 cm

Weitere Vorsichtsmaßnahmen

-- Das tatsächliche Aussehen des Fernsehgeräts kann je nach Modell von den im Handbuch enthaltenen Abbildungen abweichen.

-- Seien Sie vorsichtig, wenn Sie das Fernsehgerät berühren. Einige Teile können während des Betriebs sehr heiß werden.

<![if ! IE]>

<![endif]>Deutsch

Deutsch - 5
