Samsung UE40F7000, UE46F7000, UE55F7000 Schematic

LED TV

Chassis : U89A
Model : UE40F70****

UE46F70****
UE55F70****

SERVICE

LED TV Contents

1. Precautions

2. Product specications

3. Disassembly and Reassembly

4. Troubleshooting

5. Wiring Diagram

Manual

UE**F70****

Contents

1. Precautions ...................................................................................................................1-1

1-1. Safety Precautions ..............................................................................................................1-1

1-1-1. Warnings ...................................................................................................................1-1

1-1-2. Servicing the LED TV ...............................................................................................1-1

1-1-3. Fire and Shock Hazard .............................................................................................1-1

1-1-4. Product Safety Notices ............................................................................................. 1-2

1-2. Servicing Precautions ..........................................................................................................1-3

1-2-1. General Servicing Precautions ................................................................................. 1-3

1-3. Static Electricity Precautions ...............................................................................................1-4

1-4. Installation Precautions .......................................................................................................1-5

2. Product Specications.................................................................................................2-1

2-1. Product specications ..........................................................................................................2-1

2-2. Detailed Specications ........................................................................................................2-5

2-1-1. Model Comparison ...................................................................................................2-5

2-1-2. Feature & Specications ........................................................................................... 2-6

2-3. Accessories .........................................................................................................................2-9

2-4. Viewing the Functions .......................................................................................................2-10

2-4-1. Supported Formats .................................................................................................2-10

2-4-2. Smart Control .........................................................................................................2-13

2-4-3. SMART Interaction .................................................................................................2-17

2-4-4. SMART HUB ...........................................................................................................2-20

3. Disassembly and Reassembly ....................................................................................3-1

3-1. Disassembly and Reassembly ............................................................................................3-1

3-1-1. LED TV .....................................................................................................................3-1

4. Troubleshooting ...........................................................................................................4-1

4-1. Troubleshooting ...................................................................................................................4-1

4-1-1. Previous Check ........................................................................................................4-1

4-1-2. Simple ow chart of malfunction ...............................................................................4-3

4-2. How to Check Fault Symptom .............................................................................................4-4

4-2-1. NO Power and No Video ..........................................................................................4-4

4-2-2. Problems and Solutions ............................................................................................ 4-6

4-3. Factory Mode Adjustments ..................................................................................................4-8

4-3-1. Detail Factory Option ................................................................................................4-8

4-3-2. Entering Factory Mode .............................................................................................4-9

4-3-3. Factory Data ...........................................................................................................4-10

4-4. White Balance ...................................................................................................................4-23

4-4-1. Calibration ..............................................................................................................4-23

4-4-2. Service Adjustment ................................................................................................. 4-23

4-4-3. Adjustment .............................................................................................................. 4-25

4-5. RS-232C ............................................................................................................................4-26

4-6. AV Control Tabe .................................................................................................................4-27

4-7. Software Upgrade ..............................................................................................................4-33

4-7-1. How to Check the Software Version .......................................................................4-33

4-7-2. How to Upgade Software ........................................................................................ 4-34

5. Wiring Diagram .............................................................................................................5-1

5-1. Wiring Diagram ....................................................................................................................5-1

5-2. Connector ............................................................................................................................5-2

5-3. Connector Functions ...........................................................................................................5-6

5-4. Cables .................................................................................................................................5-7

5-5. The types of module ............................................................................................................5-8

A. Exploded View & Part List [UE40F7000STXXH TE02] ............................................. A-1

A-1. Exploded View ................................................................................................................... A-1

A-2. Electrical Parts List ............................................................................................................. A-2

B. Exploded View & Part List [UE46F7000STXXH TE02] ............................................. B-1

B-1. Exploded View ................................................................................................................... B-1

B-2. Electrical Parts List ............................................................................................................. B-2

C. Exploded View & Part List [UE55F7000STXXH TE02] ............................................. C-1

C-1. Exploded View ................................................................................................................... C-1

C-2. Electrical Parts List ............................................................................................................ C-2

This Service Manual is a property of Samsung Electronics Co.,Ltd.

Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.

© 2013 Samsung Electronics Co.,Ltd.

All rights reserved.

Printed in Korea

1. Precautions

1. Precautions

1-1. Safety Precautions

Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as
electrical shock.

1-1-1. Warnings

For continued safety, do not attempt to modify the circuit board.

WARNING

1-1-2. Servicing the LED TV

When servicing the LED TV, Disconnect the AC line cord from the AC outlet.1.

It is essential that service technicians have an accurate voltage meter available at all times. Check the calibration of this 2.
meter periodically.

1-1-3. Fire and Shock Hazard

Before returning the monitor to the user, perform the following safety checks:

Inspect each lead dress to make certain that the leads are not pinched or that hardware is not lodged between the 1.
chassis and other metal parts in the monitor.

Inspect all protective devices such as nonmetallic control knobs, insulating materials, cabinet backs, adjustment and 2.
compartment covers or shields, isolation resistorcapacitor networks, mechanical insulators, etc.

Leakage Current Hot Check:3.

Disconnect the AC power and DC power jack before servicing.

(READING SHOULD)

DEVICE
UNDER

TEST

ALSO TEST WITH
PLUG REVERSED
(USING AC ADAPTER
PLUG AS REQUIRED)

NOT BE ABOVE 0.5mA

2-WIRE CORD

TEST ALL

EXPOSED METAL

SURFACES

LEAKAGE
CURRENT

TESTER

EARTH

GROUND

Do not use an isolation transformer during this test.

Use a leakage current tester or a metering system that complies with American National Standards

WARNING

Institute (ANSI C101.1, Leakage Current for Appliances), and Underwriters Laboratories (UL
Publication UL1410, 59.7).

With the unit completely reassembled, plug the AC line cord directly into a 120V AC outlet. With the unit’s AC switch rst 4.

in the ON position and then OFF, measure the current between a known earth ground (metal water pipe, conduit, etc.)
and all exposed metal parts, including: metal cabinets, screwheads and control shafts.
The current measured should not exceed 0.5 milliamp.
Reverse the power-plug prongs in the AC outlet and repeat the test.

1-1

1-2

1. Precautions

1-1-4. Product Safety Notices

Some electrical and mechanical parts have special safetyrelated characteristics which are often not evident from visual
inspection. The protection they give may not be obtained by replacing them with components rated for higher voltage,

wattage, etc. Parts that have special safety characteristics are identied by

replacement that does not have the same safety characteristics as the recommended replacement part might create

shock, re and/or other hazards. Product safety is under review continuously and new instructions are issued whenever

appropriate.

on schematics and parts lists. A substitute

1-3

1. Precautions

1-2. Servicing Precautions

An electrolytic capacitor installed with the wrong polarity might explode.

WARNING

Before servicing units covered by this service manual, read and follow the Safety Precautions section of

CAUTION

NOTE

1-2-1. General Servicing Precautions

Always unplug the unit’s AC power cord from the AC power source and disconnect the DC Power Jack before 1.
attempting to: (a) remove or reinstall any component or assembly, (b) disconnect PCB plugs or connectors, (c) connect
a test component in parallel with an electrolytic capacitor.

Some components are raised above the printed circuit board for safety. An insulation tube or tape is sometimes used. 2.
The internal wiring is sometimes clamped to prevent contact with thermally hot components. Reinstall all such elements
to their original position.

After servicing, always check that the screws, components and wiring have been correctly reinstalled. Make sure that 3.
the area around the serviced part has not been damaged.

Check the insulation between the blades of the AC plug and accessible conductive parts (examples: metal panels, input 4.
terminals and earphone jacks).

Insulation Checking Procedure: Disconnect the power cord from the AC source and turn the power switch ON. Connect 5.
an insulation resistance meter (500 V) to theblades of the AC plug. The insulation resistance between each blade of the
AC plug and accessible conductive parts (see above) should be greater than 1 megohm.

Always connect a test instrument’s ground lead to the instrument chassis ground before connecting the positive lead; 6.
always remove the instrument’s ground lead last.

this manual.

If unforeseen circumstances create conict between the following servicing precautions and any of the

safety precautions, always follow the safety precautions.

1-4

1. Precautions

1-3. Static Electricity Precautions

Some semiconductor (solid state) devices can be easily damaged by static electricity. Such components are commonly

called Electrostatically Sensitive Devices (ESD). Examples of typical ESD are integrated circuits and some eld-effect

transistors. The following techniques will reduce the incidence of component damage caused by static electricity.

Immediately before handling any semiconductor components or assemblies, drain the electrostatic charge from your 1.
body by touching a known earth ground. Alternatively, wear a discharging wrist-strap device. To avoid a shock hazard,
be sure to remove the wrist strap before applying power to the monitor.

After removing an ESD-equipped assembly, place it on a conductive surface such as aluminum foil to prevent 2.
accumulation of an electrostatic charge.

Do not use freon-propelled chemicals. These can generate electrical charges sufcient to damage ESDs.3.

Use only a grounded-tip soldering iron to solder or desolder ESDs.4.

Use only an anti-static solder removal device. Some solder removal devices not classied as “anti-static” can generate 5.
electrical charges sufcient to damage ESDs.

Do not remove a replacement ESD from its protective package until you are ready to install it. Most replacement ESDs 6.
are packaged with leads that are electrically shorted together by conductive foam, aluminum foil or other conductive
materials.

Immediately before removing the protective material from the leads of a replacement ESD, touch the protective material 7.
to the chassis or circuit assembly into which the device will be installed.

Be sure no power is applied to the chassis or circuit and observe all other safety precautions.

CAUTION

Minimize body motions when handling unpackaged replacement ESDs. Motions such as brushing clothes together, or 8.

lifting your foot from a carpeted oor can generate enough static electricity to damage an ESD.

1-5

1. Precautions

1-4. Installation Precautions

For safety reasons, more than a people are required for carrying the product.1.

Keep the power cord away from any heat emitting devices, as a melted covering may cause re or electric shock.2.

Do not place the product in areas with poor ventilation such as a bookshelf or closet. The increased internal temperature 3.

may cause re.

Bend the external antenna cable when connecting it to the product. This is a measure to protect it from being exposed 4.

to moisture. Otherwise, it may cause a re or electric shock.

Make sure to turn the power off and unplug the power cord from the outlet before repositioning the product. Also check 5.

the antenna cable or the external connectors if they are fully unplugged. Damage to the cord may cause re or electric

shock.

Keep the antenna far away from any high-voltage cables and install it rmly. Contact with the highvoltage cable or the 6.
antenna falling over may cause re or electric shock.

When installing the product, leave enough space (0.4m) between the product and the wall for ventilation purposes. 7.

A rise in temperature within the product may cause re.

2. Product Specications

2-1. Product specications

Item UE**F70****

2. Product specications

General Information

Display

Video

Audio

Product (LCD, LED, PDP) LED

Series 7

Inch 40" / 46" / 55"

Resolution 1,920 x 1,080

Ultra Clear Panel Yes

Picture Engine 3D HyperReal Engine

Clear Motion Rate 800

Dynamic Contrast Ratio Mega Contrast

Micro Dimming Micro Dimming

Precision Black (Local Dimming) NO

Wide Color Enhance (Plus) Yes

Auto Motion Plus 120/240Hz 240Hz

Film Mode Yes

Natural Mode Support Yes

Dolby Dolby Digital Plus / Dolby Pulse

SRS / DNSe+ DNSe+

dts 2.0 + Digital Out / DTS Premium Audio DTS Premium Audio

Smart TV 2.0

3D Sound Yes

Sound Customizer Yes

Speaker Type Down Firing + Full Range

Sound Output (RMS) 20 W (10 x 2)

Woofer NO

Smart Hub Yes

Smart Guide 17EU Countries

movies & TV shows Yes (FR, DE, ES, AT, CH,)

Apps Yes

Social Yes

Photos, Clips & Music Yes

Family Story No

Fitness Yes

Kids Yes

ACR(Advertisement) N/A

Samsung Sports Experience (SSE) N/A

Samsung Smart View Yes

Recommendation Bar 17 EU Countries

Web Browser Yes

2-1

2-2

2. Product specications

Item UE**F70****

Smart Interaction 2.0

Feature

Camera Built-in Yes

Face Recognition Yes

Hand Gesture Recognition Yes

Voice Recognition (Embedded) Yes

Voice Recognition (Server) Yes

Other EU (FR, DE) Yes

NLU (Natural Language Understanding)

Camera App Yes

Smasung TV Apps supported Yes

Samsung 3D Yes

3D Converter Yes

History Yes

MultiTasking Yes

Smart Evolution Support Yes

"Allshare
(Contens Sharing, Screen Mirroring)"

ConnectShare (USB 2.0) Movie

United Kingdom Yes

Nordic NO

Italy NO

Yes

RVU N/A

ISP Bound Yes

WiFi Direct Yes

Wireless LAN Built-in Yes

BT HID Bulit-in Yes

USB HID Support Yes

OSD Language 26 European Languages

User Interface Golden bridge

Digital Noise Filter Yes

MHL Yes

InstaPort S(HDMI Quick Switch) Yes

HDMI 1.4 3D Auto Setting Yes

HDMI 1.4 A / Reture Ch. Support Yes

EPG Yes

HbbTV Other EU

(CZ, PL, DE, AT,

CH, BE, NL, LU,

PT, FR, ES)

United Kingdom N/A

Yes

Nordic Yes

Italy N/A

2-3

2. Product specications

Item UE**F70****

Feature

System

Teletext Yes

Anynet+ (HDMI-CEC) Yes

BD Wise Plus Yes

Auto Channel Search Yes

Auto Power Off Yes

Auto Volume Leveler Yes

Cation (Subtitle) Yes

Clock & On/Off Timer Yes

Game Mode Yes

Picture-In-Picture Yes

Sleep Timer Yes

Cannel List USB-Clone Yes

V-Chip N/A

Embeded POP Yes

U.K & Nordic & Italy &

DTV Tuner

Analog Tuner Yes

AUSTRIA

Other EU 2 x DVB-T/C/S2

2 x DVB-T2/C/S2

Input & Output

Design

CI/CI+ N/A

HDMI 4

USB 3

Component In (Y/Pb/Pr) 1

Composite In (AV) 2 (1 Common Use for Component Y)

Ethernet (LAN) 1

Digital Audio Out (Optical) 1

Audio Out (Mini Jack) 1

RF In(Terrestrial/Cable input) 1

RS232C (AV CONTROL) NO

IR Out Yes

CI Slot 1

Scart 1

Design Metal

Bezel Type SNB

Slim Type Slim 2

Front Color Silver

Light Effect (Deco) Yes

Stand Type Metal Square

Push & Pull Camera Yes

2-4

2. Product specications

Item UE**F70****

ECO

Accessory

Energy Efciency Class TBD

Eco Mark EU Ecolabel

Eco Label Yes

Eco Sensor Yes

3D Active Glasses (Included)

IR Blaster Cable (Included) Yes

Remote Controller Model TM1390A / TM1240

Battery (for Remote Control) Yes

Mini Wall Mount Support Yes

Ultra Slim Wall Mount Soupport Yes

Vesa Wall Mount Support Yes

Slim Gender Cable 1 Scart

Power Cable Yes

User manual Yes

E-maual Yes

2

SSG-5100GB

2-5

2. Product specications

2-2. Detailed Specications

2-1-1. Model Comparison

Model UE**F70****

W

Front View

Detail View

Front Color Silver

40"

Dimensions

(W x H x D)

Weight

Panel Type Ultra Clear

46"

55"

40"

46"

55"

Set with Stand 904.5 x 573.6 x 227.0 mm

Set without Stand 904.5 x 517.8 x 30.0 mm

Set with Stand 1037.0 x 648.0 x 237.0 mm

Set without Stand 1037.0 x 529.6 x 30.0 mm

Set with Stand 1229.1 x 756.2 x 237.0 mm

Set without Stand 1229.1 x 700.6 x 30.0mm

Set with Stand 12.85 Kg

Set without Stand 9.15 Kg

Set with Stand 15.70 Kg

Set without Stand 11.4 Kg

Set with Stand 19.5 Kg

Set without Stand 15.2 Kg

H

* W : Width H : High D : Depth

D

Internal Memory 2 G

DDR 1024 Mbtye

Feature

3D / MoIP / Media Bridge / Allshare / Internet TV / Built-in Wi-Fi / Full Browser /

Bluetooth

2-6

2. Product specications

2-1-2. Feature & Specications

UE40F70****

Item Description

LCD Panel 40 inch FHD 240 Hz

Scanning Frequency Horizontal : 67.5 kHz

Vertical : 60 Hz

Display Colors 16.7M color

Maximum Resolution Horizontal : 1920 Pixels

Vertical : 1080 Pixels

Active Display (H x V)*

* Horizontal x Vertical

Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω, internally terminated

Input Sync Signal H/V Separate, TTL, P. or N.

Maximum Pixel Clock Rate 148.5 MHz

AC Power Voltage & Frequency AC 220-240 V 50/60 Hz

Power Consumption Typical power : 66 W•

TV System Tunning Frequency Synthesize (Refer to detailed Frequency Table)

Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)

Audio Specications

34.8661 (H) x 19.6122 (V) inches / 885.6 (H) x 498.15 (V) mm

Rating for includking Evolution Kit : 152 W•

UF70** ZG/XH/ZT/XE/XU•

System

Sound Dolby Digital+, SRS theater HD

Operating Humidity : 10% ~ 80%, non-condensing

Storage Temperature : -13˚F ~ 113˚F (-25˚C ~ 45˚C)

Storage Humidity : 5% ~ 95%, non-condensing

Audio : DTS Premium Audio 5.1 •

Speaker Type : Down Firing + Full Range•

Sound Output (RMS) : 20 W (10 x 2) •

1 PAL/SECAM/NIM/QAM/Cable/T2/S2 tuner -

UF70** ZG(Germany only) other EU•

1 PAL/SECAM/NIM/QAM/Cable/S2 tuner -

Note : 3D, MOIP, Media Bridge, Allshare, Internet TV, Built-in Wi-Fi, Full Browser, Bluetooth

2-7

2. Product specications

UE46F70****

Item Description

LCD Panel 46 inch FHD 240 Hz

Scanning Frequency Horizontal : 67.5 kHz

Vertical : 60 Hz

Display Colors 16.7M color

Maximum Resolution Horizontal : 1920 Pixels

Vertical : 1080 Pixels

Active Display (H x V)*

* Horizontal x Vertical

Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω, internally terminated

Input Sync Signal H/V Separate, TTL, P. or N.

Maximum Pixel Clock Rate 148.5 MHz

AC Power Voltage & Frequency AC 220-240 V 50/60 Hz

Power Consumption Typical power : 71 W•

TV System Tunning Frequency Synthesize (Refer to detailed Frequency Table)

Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)

Audio Specications

40.08189 (H) x 22.546063 (V) inches / 1018.08 (H) x 572.67 (V) mm

Rating for includking Evolution Kit : 157 W•

UF70** ZG/XH/ZT/XE/XU•

System

Sound Dolby Digital+, SRS theater HD

Operating Humidity : 10% ~ 80%, non-condensing

Storage Temperature : -13˚F ~ 113˚F (-25˚C ~ 45˚C)

Storage Humidity : 5% ~ 95%, non-condensing

Audio : DTS Premium Audio 5.1 •

Speaker Type : Down Firing + Full Range•

Sound Output (RMS) : 20 W (10 x 2) •

1 PAL/SECAM/NIM/QAM/Cable/T2/S2 tuner -

UF70** ZG(Germany only) other EU•

1 PAL/SECAM/NIM/QAM/Cable/S2 tuner -

Note : 3D, MOIP, Media Bridge, Allshare, Internet TV, Built-in Wi-Fi, Full Browser, Bluetooth

2-8

2. Product specications

UE55F70****

Item Description

LCD Panel 55 inch FHD 240 Hz

Scanning Frequency Horizontal : 67.5 kHz

Vertical : 60 Hz

Display Colors 16.7M color

Maximum Resolution Horizontal : 1920 Pixels

Vertical : 1080 Pixels

Active Display (H x V)*

* Horizontal x Vertical

Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω, internally terminated

Input Sync Signal H/V Separate, TTL, P. or N.

Maximum Pixel Clock Rate 148.5 MHz

AC Power Voltage & Frequency AC 220-240 V 50/60 Hz

Power Consumption Typical power : 76 W•

TV System Tunning Frequency Synthesize (Refer to detailed Frequency Table)

Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)

Audio Specications

47.933071 (H) x 27.098425 (V) inches / 1217.5 (H) x 688.3(V) mm

Rating for includking Evolution Kit : 177 W•

UF70** ZG/XH/ZT/XE/XU•

System

Sound Dolby Digital+, SRS theater HD

Operating Humidity : 10% ~ 80%, non-condensing

Storage Temperature : -13˚F ~ 113˚F (-25˚C ~ 45˚C)

Storage Humidity : 5% ~ 95%, non-condensing

Audio : DTS Premium Audio 5.1 •

Speaker Type : Down Firing + Full Range•

Sound Output (RMS) : 20 W (10 x 2) •

1 PAL/SECAM/NIM/QAM/Cable/T2/S2 tuner -

UF70** ZG(Germany only) other EU•

1 PAL/SECAM/NIM/QAM/Cable/S2 tuner -

Note : 3D, MOIP, Media Bridge, Allshare, Internet TV, Built-in Wi-Fi, Full Browser, Bluetooth

2-9

2. Product specications

2-3. Accessories

Product Description Code. No Remark

Smart Touch Control & Batteries

(AAA x 2)

Remote Control & Batteries

(AAA x 2)

Power Cord 3903-000742

3D Active Glasses BN96-25614A

User Manual & Regulatory Guide BN68-04851G / BN68-04972A

AA59-00759A

AA59-00786A

Supplied

Accessories

Quick Start Guide / Warranty Card BN68-05118B / BN68-03548J

Scart Adapter BN39-01154A

CI Card Adapter 3709-001732

IR Blaster Cable BN96-26652A

NOTE

The part code for some accessories may differ depending on your region.

2-10

2. Product specications

2-4. Viewing the Functions

2-4-1. Supported Formats

Supported Subtitle Formats 

Exterminal

Name File Extension

MPEG-4 Timed text .ttxt

SAMI .smi

SubRip .srt

SubViewer .sub

Micro DVD .sub or .txt

SubStation Alpha .ssa

Advanced SubStation Alpha .ass

Powerdivx .psb

Internal

Name File Extension

Xsub AVI

SubStation Alpha MKV

Advanced SubStation Alpha MKV

SubRip MKV

MPEG-4 Timed text MP4

Supported Music File Formats 

File Extension Type Codec Comments

*.mp3 MPEG MPEG1 Audio Layer 3

*.m4a

MPEG4 AAC*.mpa

*.aac

*.ac FLAC FLAC Supports up to 2 channel

*.ogg OGG Vorbis Supports up to 2 channel

WMA 10 Pro supports up to 5.1

*.wma WMA WMA

*.wav wav wav

*.mid

*.midi

*.ape ape ape

midi midi type 0, type 1 are supported.

channel. WMA lossless audio is
not supported. Supports up to M2
prole (except LBR mode)

2-11

2. Product specications

Supported Video Formats 

File

Extension

*.avi

*.mkv

*.asf

*.wmv

*.mp4

*.3gp

*.vro

*.mpg

*.mpeg

*.ts

*.tp

*.trp

*.mov

*.v

*.vob

*.svi

Container Video Codec Resolution

Divx 3.11 / 4 / 5 / 6

1920 x 1080

1280 x 720

1920x1080

AVI

MKV

ASF

MP4

3GP

MOV

FLV
VRO
VOB

PS

TS

SVAF

MPEG4 SP/ASP

H.264 BP/MP/HP

Motion JPEG 640 x 480

Microsoft MPEG-4 v3

Window Media Video

v7,v8

Window Media Video v9

MPEG2

Frame rate

(fps)

6~30

Bit rate

(Mbps)

30

8

30

Audio Codec

AC3

LPCM

ADPCM(IMA,

MS)

AAC

HE-AAC

WMA

DD+

MPEG(MP3)

G.711(A-Law,

μ-Law)

*.m2ts

*.mts

*.divx

*.webm WebM VP8 1920 x1080 20 Vorbis

MPEG1

MVC

VP6

640 x 480

24/25/30 60

4

6~30

Other Restrictions 

Codecs may not function properly if there is a problem with the content data. Video content does not play or does not
play correctly if there is an error in the content or container. "Sound or video may not work if they have standard bit rates/
frame rates above the TV’s compatibility ratings." If the Index Table is wrong, the Seek (Jump) function does not work.
"When playing video over a network connection, the video may not play smoothly because of data transmission speeds."
Some USB/digital camera devices may not be compatible with the player.

Video Decorders 

Supports up to H.264, Level 4.1 (does not support FMO/ASO/RS)•

VC1 AP L4 is not supported.•

All video codecs excluding WMV v7, v8, MSMPEG4 v3, MVC, and VP6:•

Below 1280 x 720: 60 frame max -

Above 1280 x 720: 30 frame max -

GMC is not supported.•

Supports SVAF top/bottom and left/right only.•

Supports Blu-ray/DVD MVC specs only.•

2-12

2. Product specications

Audio Decorders 

WMA 10 Pro supports up to 5.1 channels. Supports up to M2 prole. (Excluding M0 LBR mode)•

WMA lossless audio is not supported.•

Vorbis is supported for up to 2 channels.•

DD+ is supported for up to 5.1 channels.•

2-13

2. Product specications

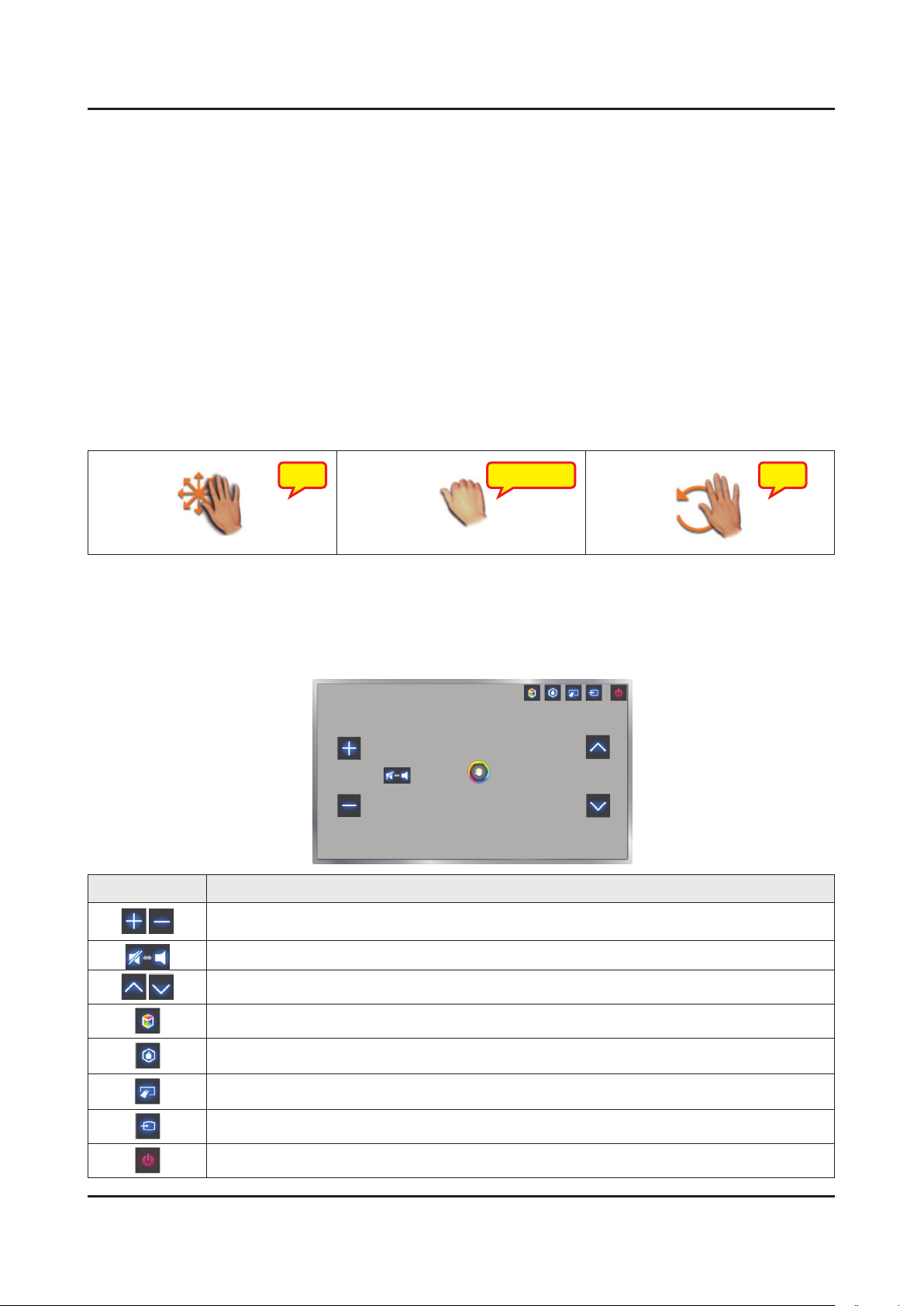

2-4-2. Smart Control

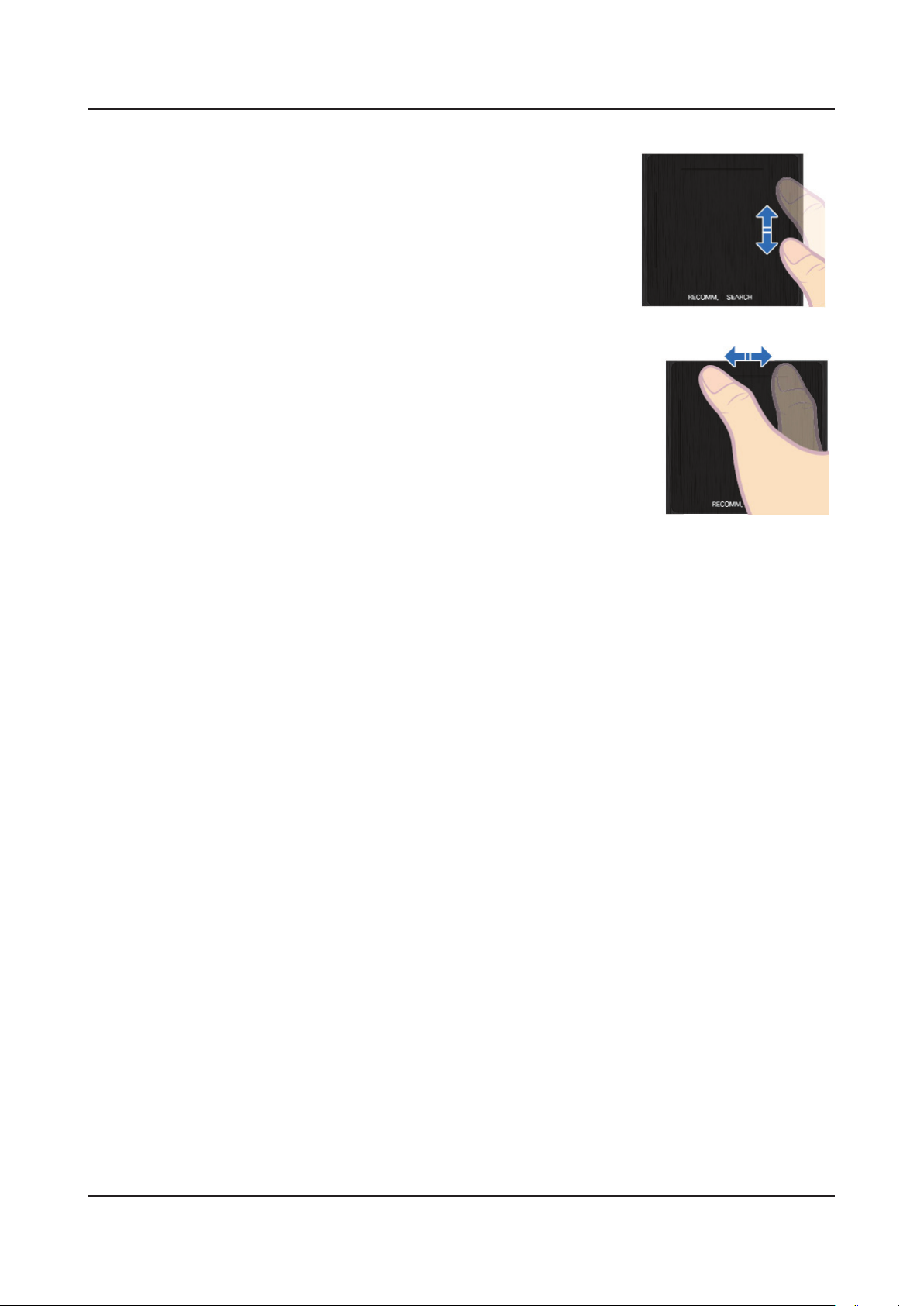

The Smart Touch Control makes it easier and more convenient to use the TV. For example, you can use the remote
control's built-in touchpad to move the focus and make selections as you would on a computer using a mouse. In
addition, you can use the virtual control panel displayed on the screen to change channels, play media les, and access
favorites.

Connecting to the TV 

In order to operate the TV using a Smart Touch Control unit, you must rst pair it to the TV via Bluetooth.

To turn on the TV, point the Smart Touch Control at the remote control receiver of the TV and press the TV button. The 1.
remote control receiver's location may vary depending on the model.

A Bluetooth icon will appear at the bottom left of the screen as shown below. The TV will then attempt to connect to the 2.
Smart Touch Control unit automatically

<Attempting to connect and completion icons>

Reconnecting the Smart Touch Control Unit 

If you need to reestablish the connection between the TV and the Smart Touch Control unit, press the pairing button at
the back of the Smart Touch Control unit.

<The Smart Touch Control unit's pairing button>

The pairing button can be accessed by removing the control unit's battery cover. Pressing the pairing button
automatically reestablishes the connection between the control unit and the TV.

2-14

2. Product specications

Buttons and Descriptions 

Touchpad

Drag your nger on the touchpad as you would on
the touchpad of a laptop to move the focus displayed
on the screen. To select item, press the touchpad.

<The Smart Touch Control>

TV

Turns the TV on/off.

SOURCE

Changes the source.

STB

Turns on and off the satellite or cable set-top
box connected to the TV. For this, the Smart
Touch Control must be congured as a universal
remote control.

VOL

Adjusts the volume.

VOICE

Run Voice Recognition. To speak a voice
command, press and hold the VOICE button and
say a voice command.

MUTE / AD

Turns the TV sound on/off.

< P >

Changes the channel.

MORE

Displays a virtual remote control on the screen.
The virtual remote control consists of a number
panel, a playback control panel, and a quick
access panel. Use the touchpad to select
numbers and buttons.

The colour buttons work differently, depending on the
function that the TV is currently performing.

RETURN/EXIT

Returns to the previous menu.

SMART HUB

Launch Smart Hub. While an application
is running, pressing the Smart Hub button
terminates the application.

GUIDE

Check the digital channel broadcasting schedule.

2-15

2. Product specications

Reconnecting the Smart Touch Control Unit 

Use the touchpad to perform various commands. Navigate to Guide (System → Device Manager → Smart Touch
Control Settings → Guide) to view an on-screen guide to using the Smart Touch Control.

Dragging•

Drag on the touchpad in the desired direction. Move the focus or the pointer in the
direction the nger is dragging.

Tap•

Tap on the touchpad. This selects the focused item.

Flicking•

Flick on the touchpad in the desired direction. This moves the focus or scrolls the
screen based n the direction and speed of the ick.

Tapping and Holding•

Tap and hold on the touchpad for at least 3 seconds. This gives you access to hidden
features included in certain applications.

Tapping and Dragging•

Tap on the touchpad, drag and release. This moves the selected web item in a
webpage or your current location on a map.

2-16

2. Product specications

Scrolling Up/Down•

Scroll up/down the line on either the left or right edge of the touchpad. This scrolls
a webpage or a list up/down. This scrolling feature easily accommodates both
right-handed and left-handed users.

Scrolling Left/Right•

Scroll left/right on the line at the top or bottom edge of the touchpad. This scrolls a
horizontal webpage or the Smart Hub panel to the left/right.

2-17

2. Product specications

2-4-3. SMART Interaction

NOTE

The camera is sold separately.

This Smart TV is enabled with SMART Interaction, a facial- and movement-recognition feature that allows users to
control the TV without the need for a remote control. To use SMART Interaction, you will need to purchase and install
a separate camera. SMART Interaction makes it possible to congure settings and access features with ease. It takes
approximately 15 seconds for motion recognition to come online after turning on the TV.

Face Recognition 

This product saves thumbnail images of users' faces for use during the Face Login. Logging into the Smart Hub via face
recognition may be less secure than logging in using an ID and password.

Users can register their faces and log into their Smart Hub accounts through Face Recognition. One face may be
registered per account. Depending on the ambient brightness level and the user's skin tone, the TV may have difculty
recognizing the user's face.

Face Registration•

A Smart Hub login is required to register a face. Log into the Smart Hub. Create a new account if you do not already
have one.

Face Recognition Login•

Select Face Recognition Mode from the login window. The TV automatically recognizes a user's face. If recognition
fails, try again. If the password entry option has been enabled under Change account information, you need to enter
your password as well in order to log into the Smart Hub.

TV Camera Use 

Under some circumstances and under certain legal conditions, the use/misuse of the TV camera may result in legal
liability. There may be obligations under local privacy laws regarding the protection of individuals concerning personal
data and on the free movement of such data, and possibly other laws including criminal laws, regulating camera
surveillance both in the workplace and elsewhere.

By using the TV camera, users agree that it will not be used (i) in locations where cameras are generally prohibited (such
as bathrooms, locker rooms or changing rooms), (ii) in any manner that will result in an invasion of a person’s privacy or
(iii) in violation of any applicable laws, regulations or statutes.

If you are using a camera, rst check the back for a sticker Remove the sticker cover before adjusting the TV camera
angle. When you are no longer using the camera, rotate the lens downward and secure it in place. This prevents any
inadvertent or unintentional camera operation,

Motion Control Environment Test 

Screen Menu → Smart Features → Motion Control•

Use Motion Control to change the channel, adjust the volume, move the pointer, and control other TV functions. Some
applications may not support Motion Control.

Operating Environment

Users should be located between 1.5m and 4m from the camera. The actual recognition range may vary depending on
the camera angle and other factors.

Motion Control relies on the TV camera and therefore will not function if the camera is pointed up or down. Adjust the
camera to the correct angle. Do not point the camera directly at the sun or any other light source or obstruct its view.

In order for the camera to recognize movement, the user has to stand out from the background.

The appropriate ambient brightness is between 50 to 500 lux.

Avoid direct sunlight when using Motion Control.

Run Motion Control Environment Test before using Motion Control to determine the camera's recognition range.

2-18

2. Product specications

Motion Control Environment Test

Screen Menu → Smart Features → Motion Control → Motion Control Environment Test

Run this test before using Motion Control to ensure proper functionality

Run Motion Control Environment Test and select Start within 4.9ft and 13.1ft of the TV. If light reects on the TV1.

Adjust the camera angle so that you appear inside the square displayed on the screen. Once you have nished2.

Motion Control Options

Motion Control: Activates/deactivates Motion Control.

Animated Motion Guide: Displays an animated guide when user motion is detected.

Motion Control Activvation

Raise your hand with the palm facing the TV. Hold it for a moment and slowly wave your arm and hand from side to side
three or four times. When your hand is successfully recognized, the Motion Control is activated and an arrow cursor is
displayed on the screen.

Using the Basic Motion Controls

The following basic motion control commands are available:

Zoom ZoomRun / Select

This action moves the cursor to the
desired position.

Motion Control Screen

Screen Icons Explanation

Adjust the volume.

Turns the TV sound on/off.

Changes the channel.

Make a st to select an option or
execute a command. Keeping your
st clenched is like holding down a
remote control button.

Make a circle with your hand in the
counterclockwise direction to return to
the previous menu.

Launch Smart Hub.

Check the recommended program information and air times. Select a program from the list to view
detailed information about that program.

Enter a channel number using the number panel to jump to the channel. Use the playback control
panel with the on-screen color buttons to control a media le that is currently playing.

Change the source.

Turn off the TV.

2-19

2. Product specications

Voice Recognition 

Screen Menu → Smart Features → Voice Recognition•

Voice Recognition lets you access and control specic functions of the TV using voice commands.

Press the

VOICE

button to run Voice Recognition.

Say a command.

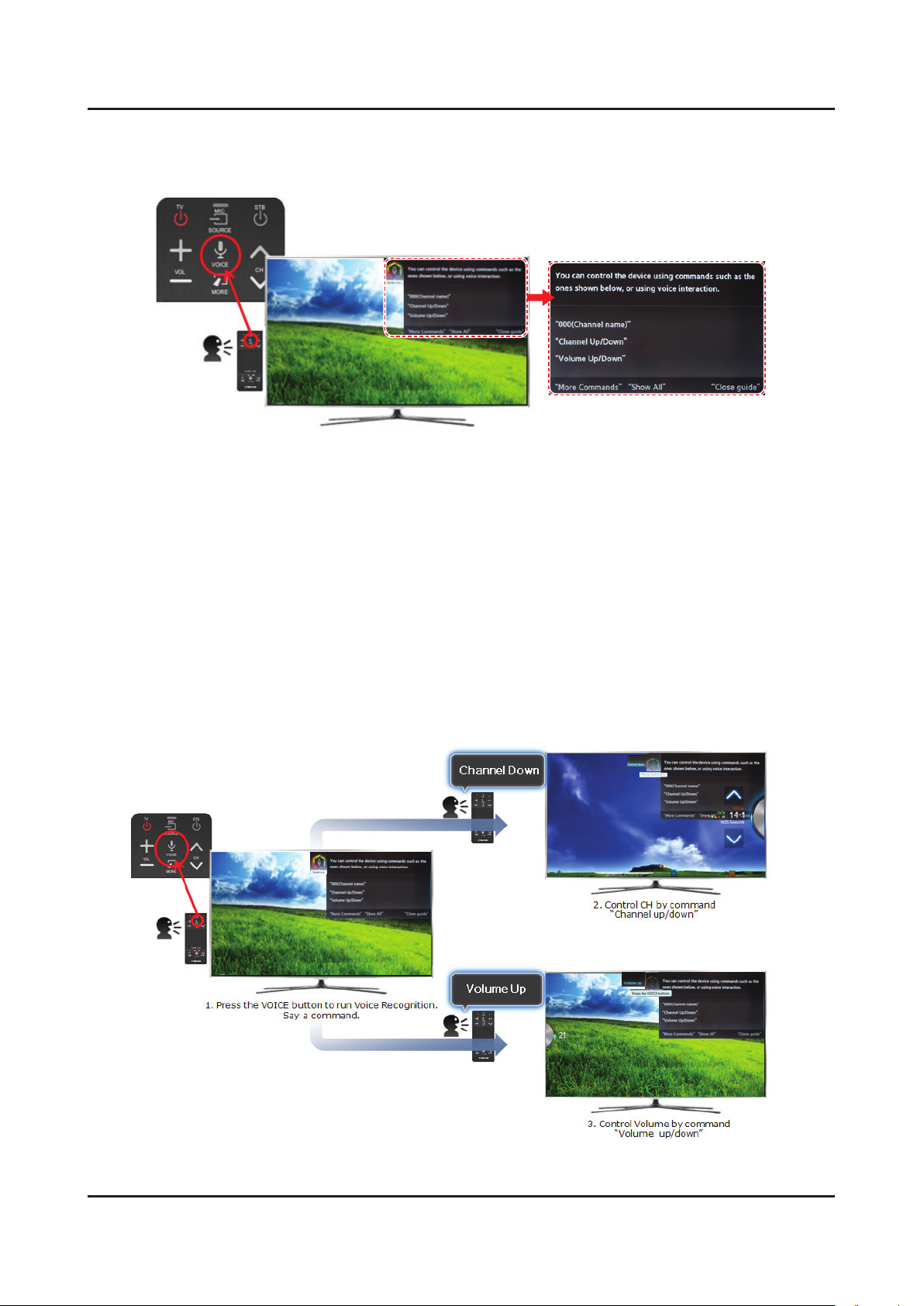

Basic Voice Recognition Use

Press the VOICE button to run Voice Recognition. Say a command. You can use Voice Recognition to operate the TV.

Moving the Focu• s : Say "Focus Left", "Focus Right", "Focus Up", or "Focus Down" to move the focus.

Select Item• : Say "Select".

Return• : Say "Previous".

Available Voice Commands• : Say "Guide me". A list of basic voice commands available in the current state is

shown. With the list displayed on the screen, say "Other Commands". This displays the complete list of voice
commands available in the current state.

All Voice Commands• : Say "Guide me" and then "Other Commands". This displays the list of all voice commands
available in the current state. Say "Show all Commands" to display a complete list of voice commands by category.
Say the name of a category.

2-20

2. Product specications

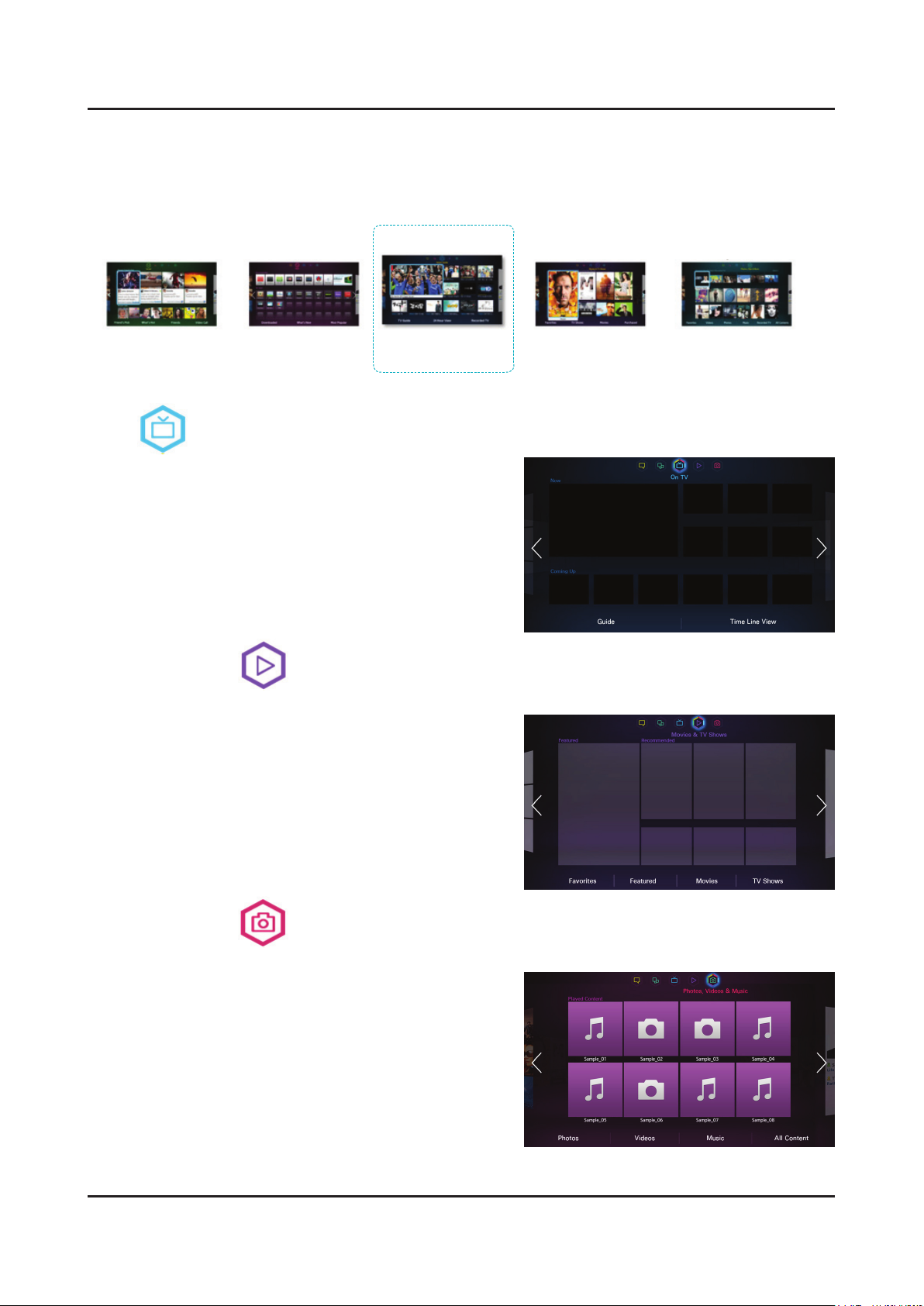

2-4-4. SMART HUB

This TV features Smart Hub, a multi-purpose entertainment and family center. With Smart Hub, users can surf the web,
download applications, and stay in touch with family and friends through social networking services. In addition, you can
enjoy photo, video, and music les stored on external storage devices.

5. Social

Social Content

4. Apps

Apps & Signature SVC

1. [HOME] On TV

Advaced EPG

Watching history baes

On TV

This functions is only available on U.S and Canada.

While you watch TV, a list of recommended programs on other
channels appears on the screen. You can use this list to change
the channel and nd out more information about the recommended
programs including how much time is left until they air.

Movies & TV Shows

2. Movies & TV Shows

P-VoD

3. Photos, Videos & Music

User EPG

From AllShare

Purchase and watch movies and series without a separate external device.

This functions is only available on U.S and Canada.

Users can buy movies and TV shows online.

Open Smart Hub and select Movies & TV Shows.

This service may be not available depending on the country or
region.

Movies & TV Shows

Play back photo, video, and music les from an external storage device.

Open Smart Hub and select Photos, Videos & Music.

Enjoy photo, video and music les from an external storage device
directly on your TV. Back up important les before connecting
an external storage device to the TV. Samsung will not be held
responsible for damaged or lost les.

2-21

2. Product specications

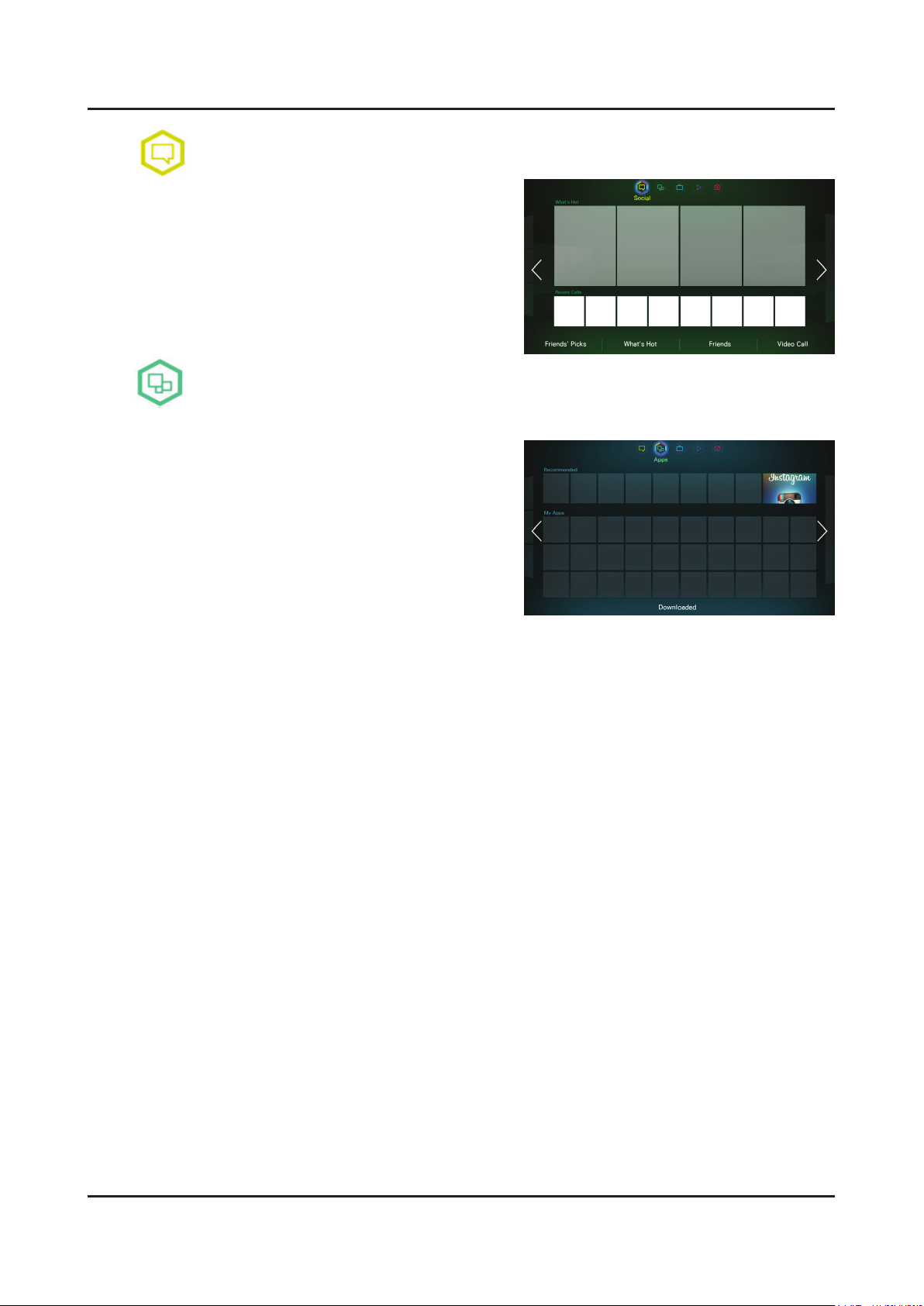

Social

Watch the latest YouTube videos and you and your friends' video
posts on Facebook and Twitter. You

can also make video calls to friends by connecting the TV to a
camera (sold separately).

Apps

Download and install applications such as WebBrowser and Family Tree.

Samsung Apps offers an extensive collection of free and paid news,
sports, weather, and gaming content you can directly download to
and enjoy on your TV. First, check the network and make sure the
TV is connected to the Internet. Your TV needs to be connected to
the Internet in order to use Apps.

Samsung Apps•

Samsung Apps offers various free and paid news, sports, weather, and gaming applications. Samsung Apps lets you
search for applications and install them directly on your TV. Read and agree to the terms and conditions of use and
then browse through the categories or directly search for applications.

Fitness•

Fitness is an application that helps you stay t. Create a prole, set up an exercise plan, and start exercising
according to a structured regimen. Read and agree to the terms and conditions before using Fitness.

Kids•

This is a quick launcher and recommended list for applications and content that is suitable for children and even
provides services not currently installed on your TV. Using Kids, you can download applications and content for your
children to your TV. Certain services, however, are fee-based.

WebBrowser•

WebBrowser is a web-browsing application. Using WebBrowser, you can browse the Internet on your TV as you
would on your computer and even watch TV while you surf the web. The browsing experience, however, may not be
the same as it is on your computer. Use a keyboard and mouse for a more convenient web browsing experience.

Social Networks•

Share your thoughts and comments about a program on the air through social networking services. Social Networks
displays social network services such as Twitter, Facebook, Google Talk, and NateOn on a single screen. You can
even post messages and comments in the same manner as you would using a computer. You must rst link your
Samsung account to the respective SNS accounts before you can access them using Social Networks.

3. Disassembly and Reassemble

3. Disassembly and Reassembly

This section of the service manual describes the disassembly and reassembly procedures for the LED TV.

This LED TV contains electrostatically sensitive devices. Use caution when handling these components.

WARNING

3-1. Disassembly and Reassembly

Disconnect the LED TV from the power source before disassembly.1.

Follow these directions carefully; never use metal instruments to pry apart the cabinet.2.

CAUTION

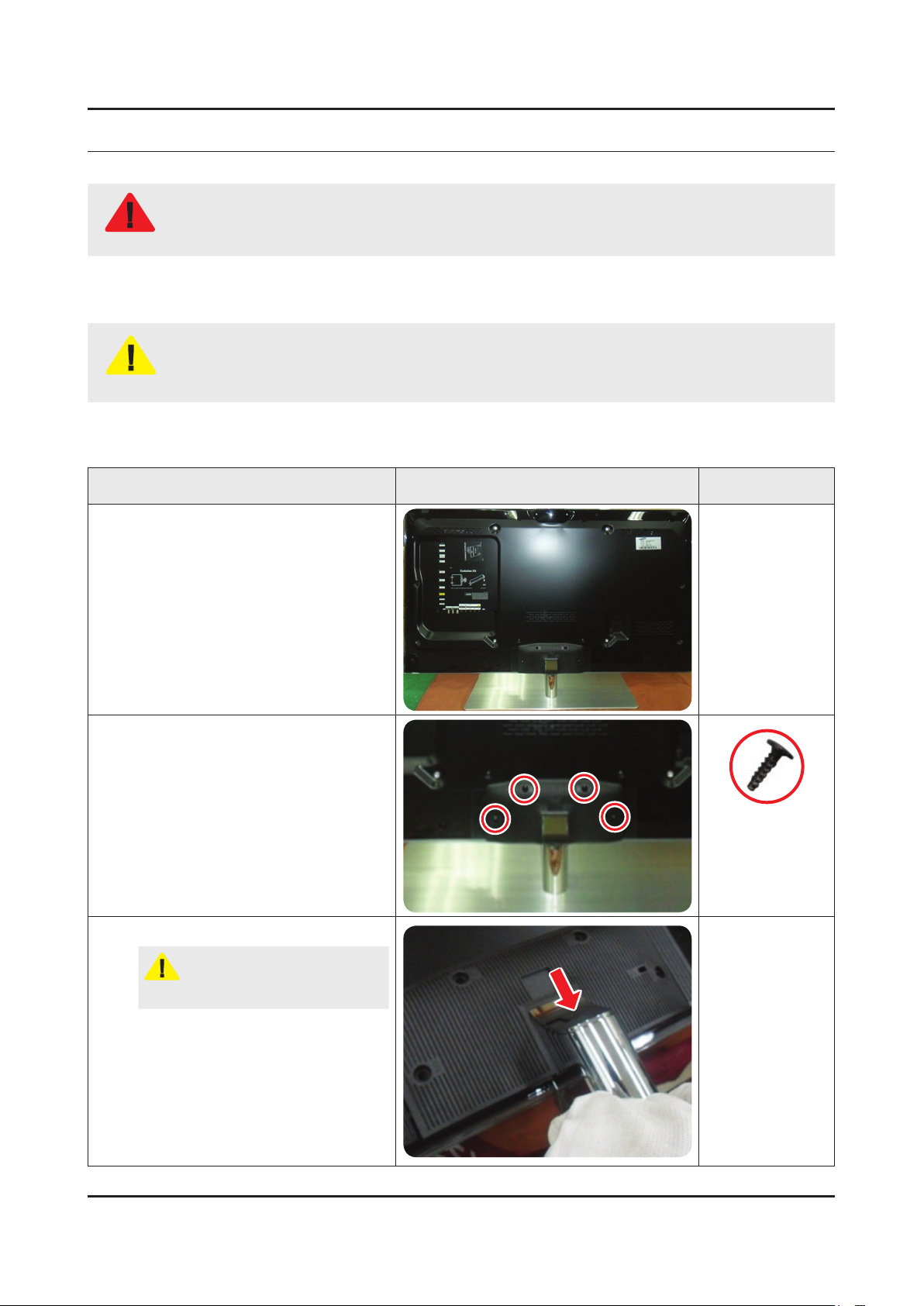

3-1-1. LED TV

Place TV face down on cushioned table.

If there is no additional coment, it is same for all inches.3.

Description Picture Description Screws

1

Remove 4 screws from the ASSY

2

GUIDE P-STAND.

Remove STAND.

3

CAUTION

Stand is very heavy.

6003-001782

(M4, L12, Machine)

3-1

3-2

3. Disassembly and Reassemble

Description Picture Description Screws

Remove screws of ASSY COVER

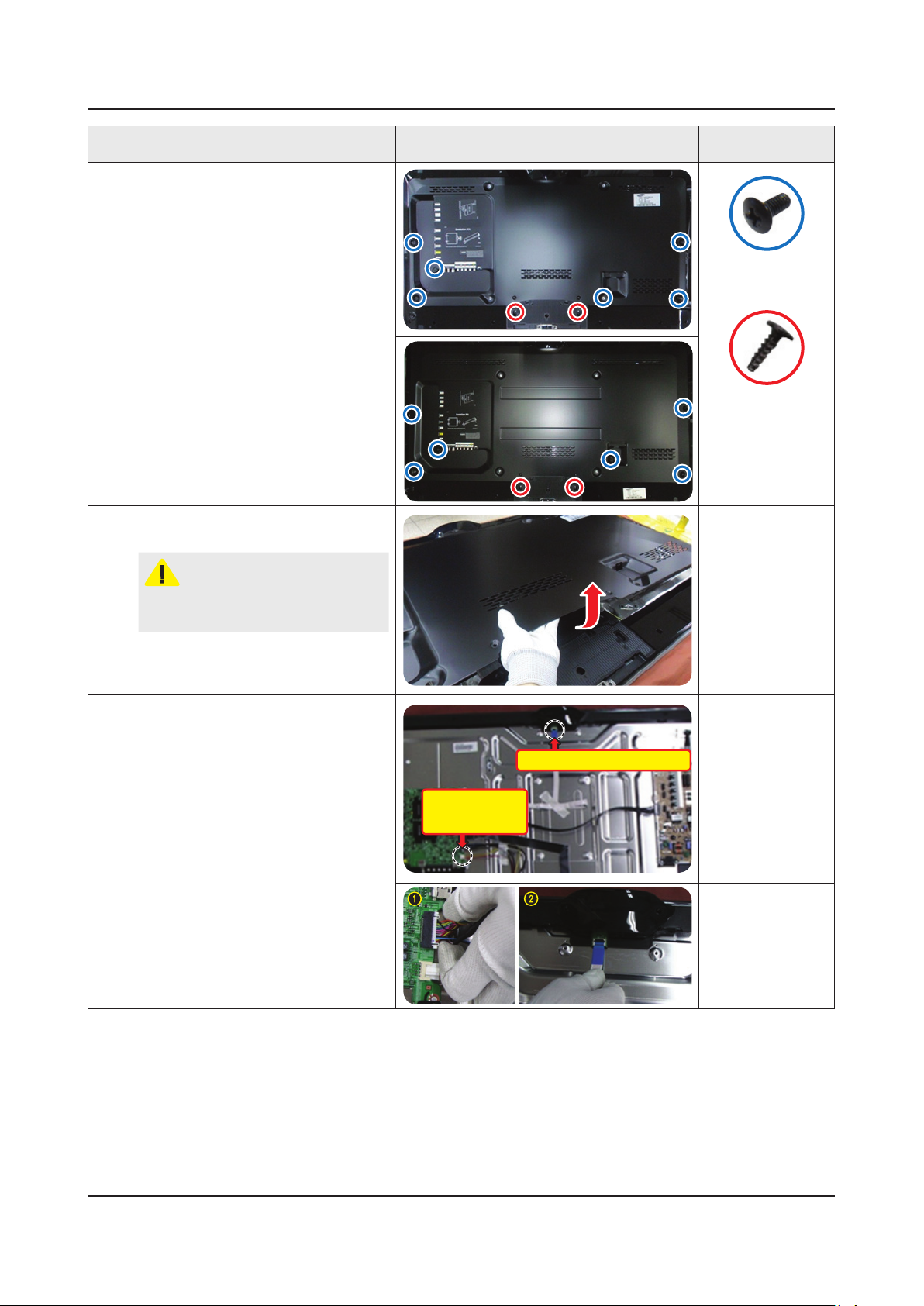

4

P-REAR.

40 inch : 6 EA / 2 EA•

46 inch : 6 EA / 2 EA•

55 inch : 6 EA / 2 EA•

Lift up and remove the ASSY COVER

5

P-REAR.

6001-002755

(M3, L6, Tapping)

6003-001782

(M4, L12, Machine)

CAUTION

Becareful when you lift up the ASSY
COVER P-REAR, It's really sharp.

Remove the ASSY BOARD P-5WAY

6

SWITCH FUNCTION Cable and ASSY
MISC P-AQUILA-7B Cable before
removing the ASSY COVER P-MIDDLE.

2 MISC P-AQUILA-7B Cable

1 ASSY BOARD

P-5WAY SWITCH
FUNCTION Cable

3-3

3. Disassembly and Reassemble

Description Picture Description Screws

Remove screws of ASSY COVER

7

P-MIDDLE.

40 inch : 20 EA •

46 inch : 20 EA •

55 inch : 22 EA•

6001-002755

(M3, L6, Tapping)

Disconnect the ASSY BOARD P-JOG

8

SWITCH & IR Cable.

NOTE

First remove the cable before you
remove the ASSY COVER P-MIDDLE.

Lift up and remove the ASSY COVER

9

P-MIDDLE.

ASSY BOARD P-JOG SWITCH & IR Cable

3-4

3. Disassembly and Reassemble

Description Picture Description Screws

Remove the Power Cables and Speaker

10

Cables.

Remove the LVDS Cable and Panel
Drive Cable.

Power Cable

LVDS Cable

Power Cable

Speaker Cable

Panel Drive Cable

LVDS Cable

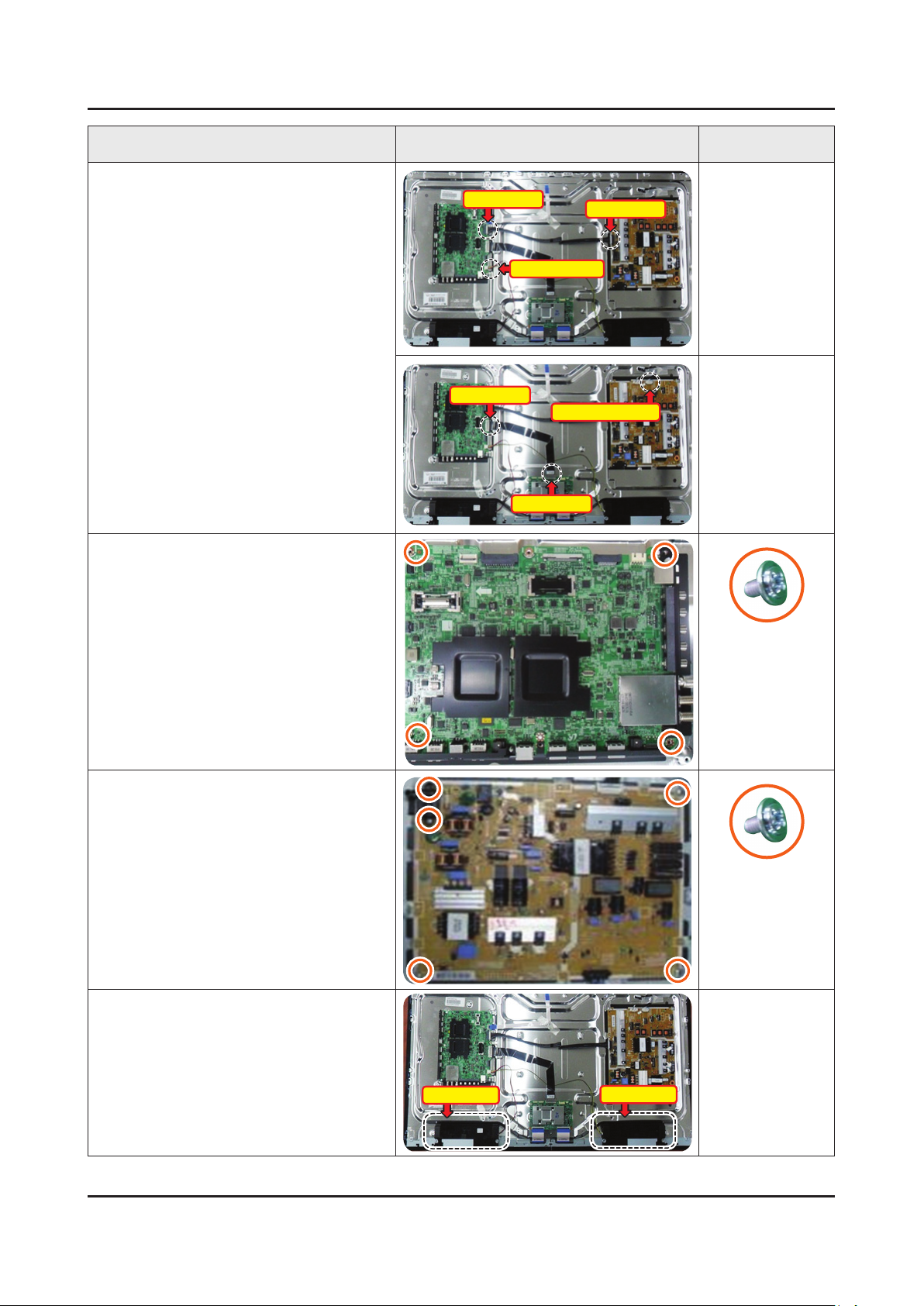

Remove the screws of ASSY PCB

11

MAIN.

Remove the screws of DC VSS-LED TV

12

PD BD.

6001-003016

(M3, L5)

6001-003016

(M3, L5)

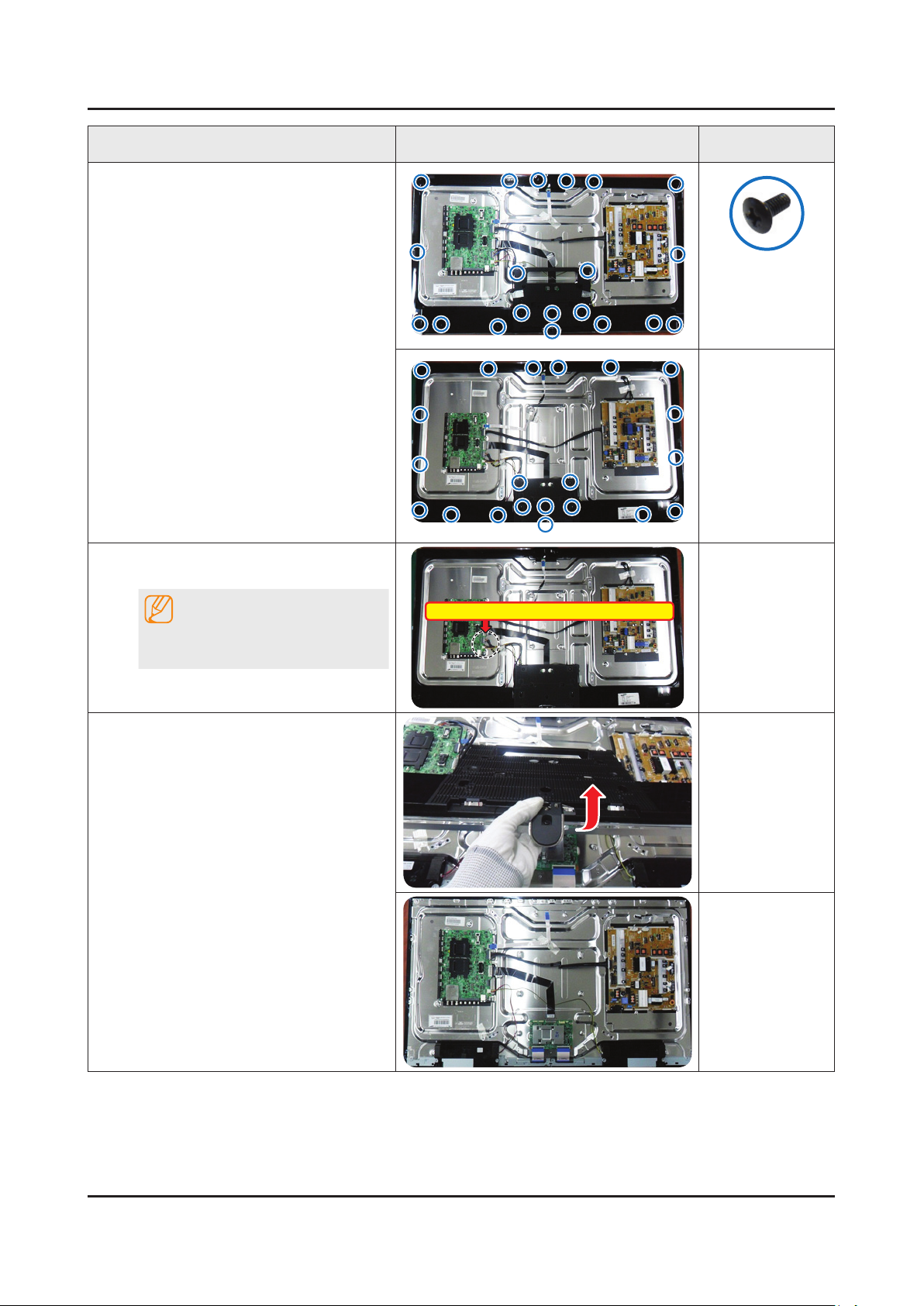

13

Remove the ASSY SPEAKER (L/R).

Speakers(R)

Speakers(L)

3-5

3. Disassembly and Reassemble

Description Picture Description Screws

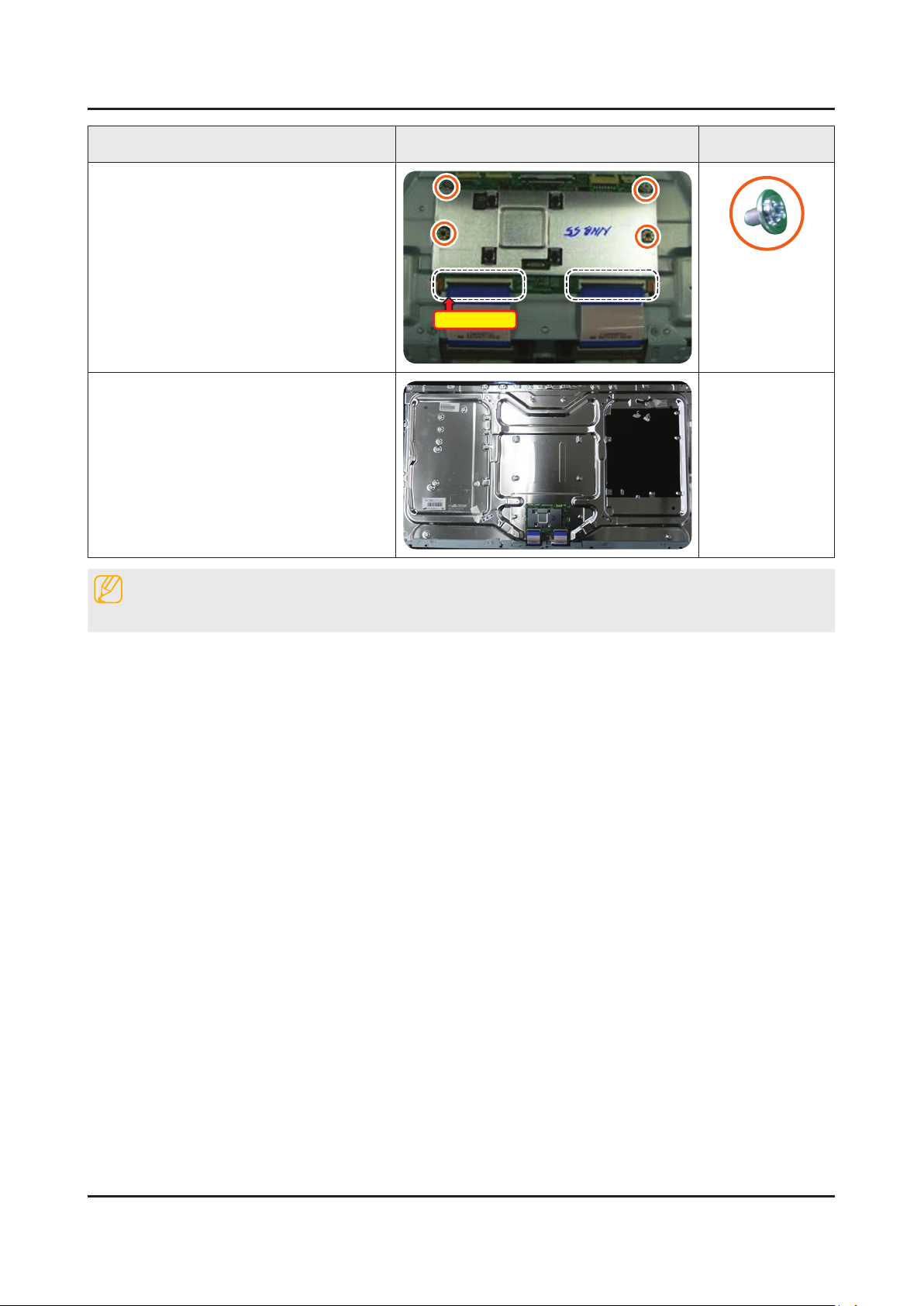

Remove the 4 screws of ASSY T CON

14

and unlock the locking of T CON Cable.

Completed disassembly.

15

Panel.•

6001-003016

(M3, L5)

T CON Cable

NOTE

Reassembly procedures are in the reverse order of disassembly procedures.

3. Disassembly and Reassemble

A

CROSS #2(3.56)
RECESS

B 8.0R

★ C 0.6 ± 0.1

M4.0 x 1.8
TAPPING △ B-TYPE

BD

C

A

CROSS #2(3.08 특수 Punch D:7.5
RECESS

M3 x 0.5 PITCH
SCALOCK

TRAP 도포

인치

BD

E

C

A

CROSS #2(★M3.0F)
RECESS

M3 x 0.5 PITCH
SCALOCK

B

B

D

C

TRAP 도포

인치

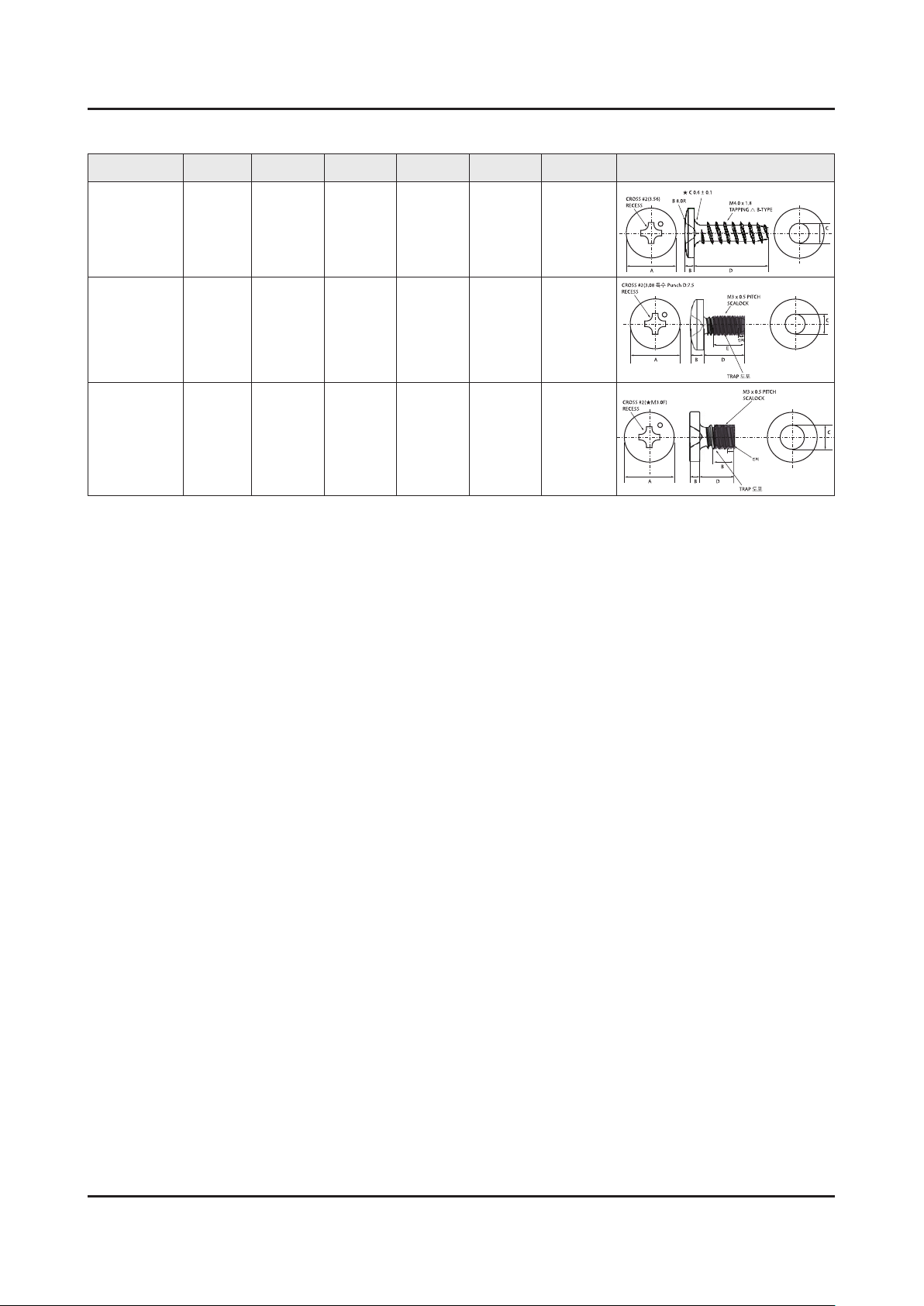

Screw Size

Code No. COLOR A (mm) B (mm) C (mm) D (mm) E (mm) Screw Image

6003-001782 BLACK 7.80~8.20 1.85~1.95 3.81~3.91 11.4~12.0 -

6001-002755 BLACK 7.1~7.5 1.9~2.0 2.98~3.02 5.7~6.0 4.4~5.4

6001-002756 WHITE 5.6~6.0 1.15~1.25 2.92~2.98 3.7~4.0 4.4~5.4

3-6

4. Troubleshooting

4-1. Troubleshooting

4-1-1. Previous Check

Check the various cable connections rst.1.

Check to see if there is a burnt or damaged cable. -

Check to see if there is a disconnected or loose cable connection. -

Check to see if the cables are connected according to the connection diagram. -

Check the power input to the Main Board.2.

MAIN BOARD

4. Troubleshooting

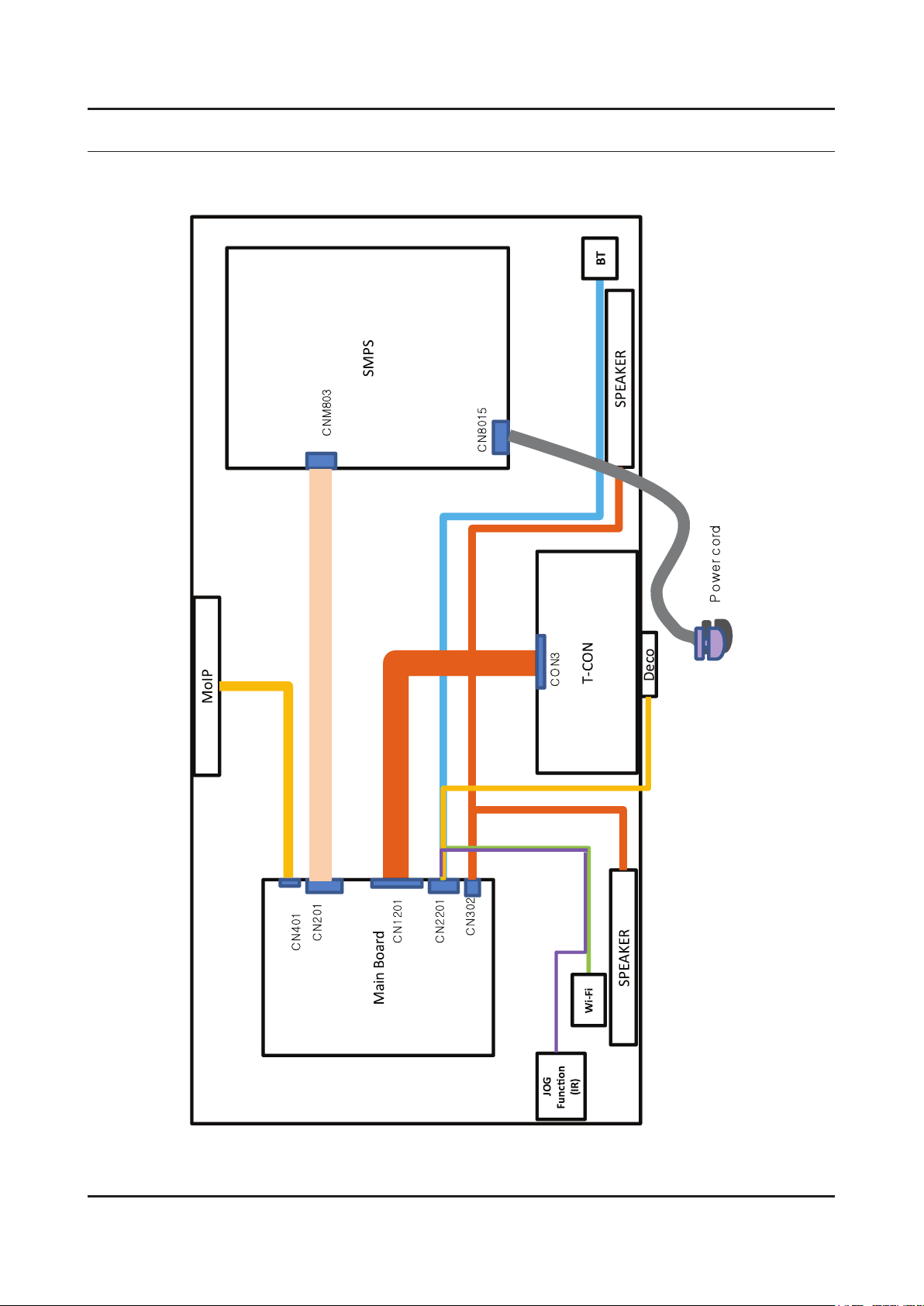

MoIP Cable

Panel Wire Cable

Power Cable

SMPS

LVDS Cable

FRC+T-CON

BOARD

Speaker (R/L)

How to distinguish if the problem is caused by 3. Main Board or T CON

No Video -

If the problem is No Video but BLU is on and Indication LED is blinking repeatedly and faster than nomal booting,

replace the T-CON board.

Distorted Picture -

Check the inner patterns.

For All mode•

X12 FOX_FT1 FRC Post Picture Problem

OK OK NG Main Board or Signal Source

NG OK NG Main Board

NG NG NG Main Board or LVDS cable or T CON or Panel

Only for HDMI mode (additional check)•

HDMI Picture Problem

OK NG There is no problems after HDMI IC check HDMI source or HDMI jack.

NG NG There is no problems before HDMI IC check X10+ pattern or LVDS cable or T CON

4-1

4-2

4. Troubleshooting

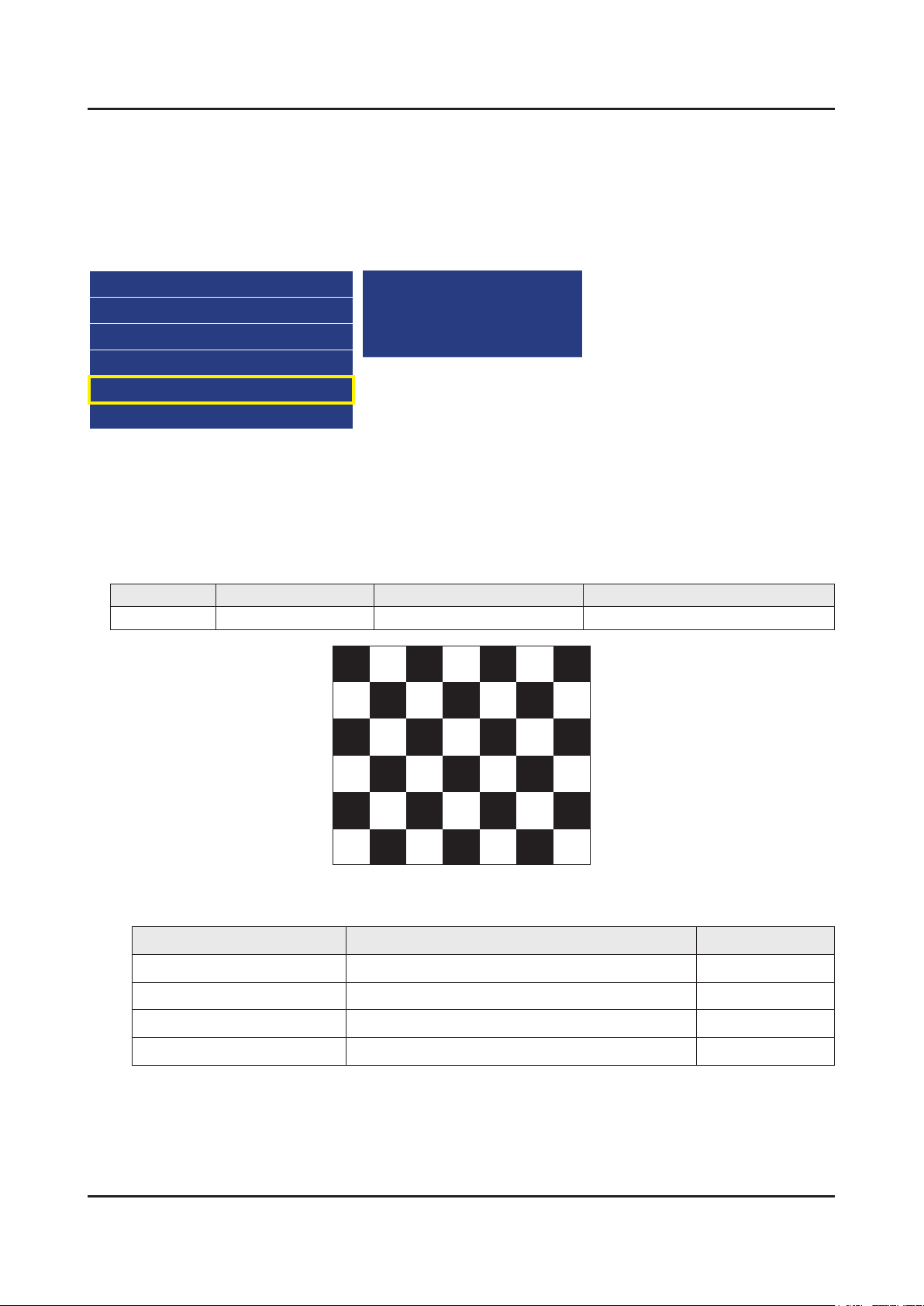

How to check inner pattern? 

Enter the service mode 1. ⇢ Choose ‘SVC’ ⇢ Check the ‘internal pattern.’

Enter ‘Service Mode.’2.

If you do not have Factory remote control -

Power OFF INFO MENU MUTE Power On

If you have Factory remote control -

INFO Factory

Choose ‘SVC 3. ⇢ Test pattern’.

Option

Control

Debug

SVC

ADC/WB

Advanced

Check inner patterns.4.

Test Pattern Mstar Test Pattern

4-1-2. Simple ow chart of malfunction

4-3

4. Troubleshooting

Does the TV turn

on?

No

Check the Power Cord.

Yes

Is any sound of

TV when RF signal

connected?

No

Yes

Yes

Can you see

anything on the

screen?

No

Check the LVDS

Cable connected.

If necessary replace the

T-CON Board.

Yes

Can you see

OSD menu running

on the screen?

No

Check LVDS cable

connected to Main Board.

If necessary, replace the

Main Board.

No

Change the Main Board.

Yes

Can you see Digital

Channel broadcast ?

No

Replace the Main Board.

A5V appear at

the pin 4 of CN201?

Yes

B13V appear at

the pin 11, 12, 13 of

CN201?

Yes

Please, contact Tech

support.

No

No

Check 24P Cable.

If necessary, replace the

SMPS Board.

Change the Main Board.

4-4

4. Troubleshooting

4-2. How to Check Fault Symptom

4-2-1. NO Power and No Video

Power indicator LED is on?

Yes

Check ‘Stand-By A5V’ 5V appear at

BD204?

0V to 5V (CN201 #4) -

Yes

Set On

Yes

Check ‘SW_POWER_TO_SMPS’ more

than 3.3V appear at CN201(#2)?

0V to 3.3V↑ (CN201 #2) -

Yes

Check ‘Power input of Main Ass’y’ ?

DC B13V, B5.3V appear at CN201 #3, 11,

13, 21, 23 (B13V) CN201 #1, 3 (B5V)?

0V to 13V (CN201 #3,11,13,21,23) -

0 to 5V (CN201 #1, 3) -

No

No

No

No

Check the power cord connection.

Cause : There did not supply the

power from SMPS.

Measure : Change 24P power cable

and SMPS.

Cause : Main IC(NT13) did not control

the SW_Power.

Measure : Change the Main Assy.

Cause : There did not supply the

power from SMPS.

Measure : Change 24P power cable

and SMPS.

Yes

Check ‘Power of main IC (B1.0V/B1.1V/

B3.3V)’ Check ‘Power of DDR IC(B1.5V)’

appear at BD224(1.0V), BD234(1.1V),

BD239_LD, BD225, BD226, BD227,

BD242(3.3V) BD228, BD222(1.5V)

Yes

Check ‘Power of LVDS (13V)’ appear at

TP-PANEL_VCC?

0V to 13V (IC1201 #7, 8) -

Yes

Change the LVDS cable ?

No

No

No

Cause : There is problem at DCDC

(IC202, IC213, IC204, IC201)/
LDO

Measure : Change the Main Assy.

Cause : There is probem panel or

T-con board or Main assy.

Measure : Change the Main Assy.

Change the Panel.

4-5

4. Troubleshooting

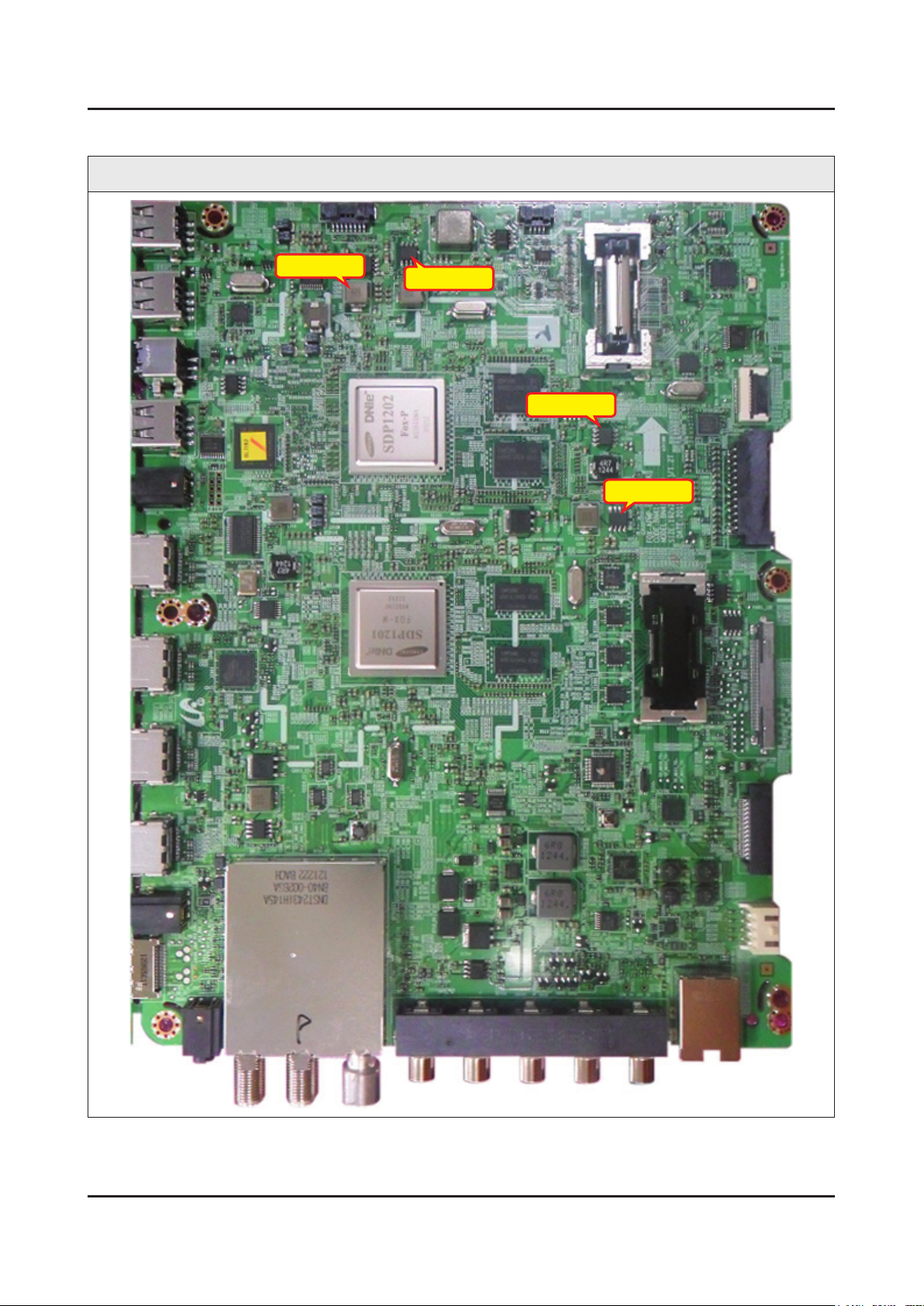

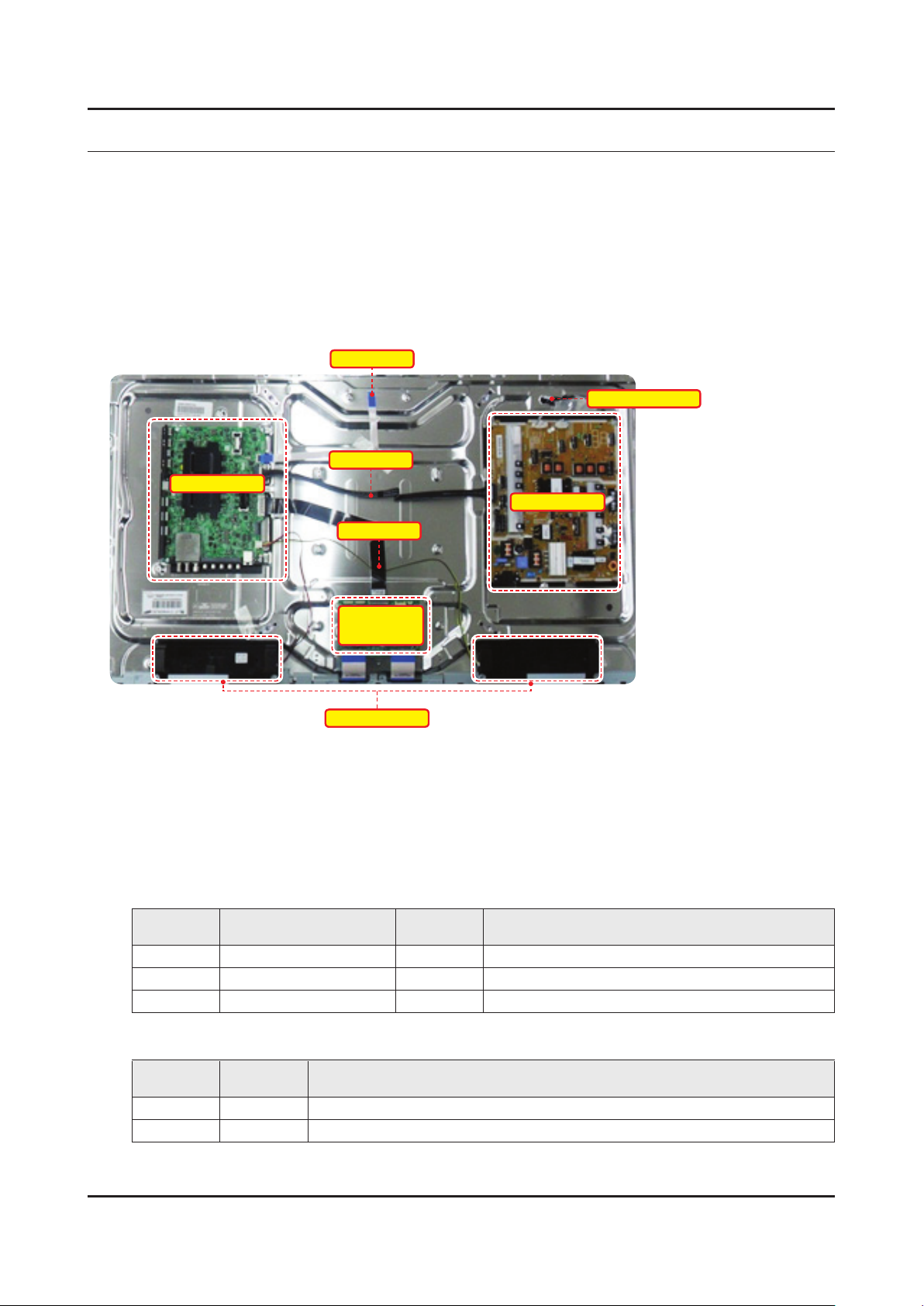

Location of Parts 

Main Board_Front

IC202/1.0V

IC213/1.1V

IC204/3.3V

IC201/1.5V

4-6

4. Troubleshooting

4-2-2. Problems and Solutions

Apps 

There is something

wrong with the TV.

Some application content

only appears in English.

How can I change the
language?

Some application

services do not work.

The application content language may be different from the user interface language.•

The ability to change the language depends on the service provider.•

Check with the service provider.•

Refer to the help section on the application service provider’s website.•

Photos, Videos & Music 

There is something

wrong with the TV.

Some les can’t be
played back.

This problem may occur with high-bitrate les. Most les can be played back, but you •
might experience problems with high-bitrate les.

Web Browser 

Select Web Browser. The browsing screen may differ from the one on your computer.1.

The web browser is not compatible with Java applications.2.

You cannot download les. If you attempt to download a le, you will receive an error message instead.3.

The web browser may not be able to access certain websites.4.

Playing Flash videos may be restricted.5.

E-commerce for online purchases is not supported.6.

With websites that have scrollable windows, scrolling through such a window can result in corrupted characters.7.

ActiveX is not supported.8.

Certain options are not accessible in Link Browsing mode. (Switch to Pointer Browsing to activate this.)9.

Only a limited number of fonts are supported. Certain symbols and characters may not be displayed properly.10.

The response to remote commands and the resulting on-screen display may be delayed while a webpage is loading.11.

Loading a webpage may be delayed or suspended completely with certain operating systems.12.

The copy and paste operations are not supported.13.

When composing an email or a simple message, certain functions such as the font size and color selection may not be 14.

available.

There is a limit to the number of bookmarks and the size of the log le that can be saved.15.

The number of windows that can be opened concurrently varies depending on the search conditions and the TV model.16.

The web browsing speed will vary depending on the network environment.17.

Playing embedded video automatically disables PIP. Video playback may not commence after PIP is disabled. In this 18.
case, you will have to reload the page.

The web browser supports .mp3 audio les only.19.

The web browser supports a specic le format for importing and exporting bookmarks. (Compatible Format: Netscape-20.
bookmarkle- 1)

The folder tree information is not included when importing and exporting bookmarks.21.

Try this!

Try this!

Exporting bookmarks to a USB device connected to the TV saves the bookmarks under a folder named "Samsung 22.

4-7

4. Troubleshooting

SmartTV Bookmark".

If Clock (System > Time > Clock) has not been enabled, the browsing history will not be saved.23.

The browsing history is saved in the order of latest to oldest, with the oldest entries being overwritten rst.24.

Depending on the types of video/audio codecs supported, it might not be possible to play back certain video and audio 25.

les during Flash playback.

A sudden change in the picture brightness inside a video window may affect the brightness of the screen. This problem 26.
applies to PDP TVs only.

Video sources from PC-optimized streaming service providers may not play properly on our proprietary web browser.27.

Using the on-screen QWERTY keyboard automatically disables PIP. (Except when entering a URL.)28.

4-8

4. Troubleshooting

4-3. Factory Mode Adjustments

4-3-1. Detail Factory Option

NOTE

If you replace the main board with new one, please change the factory option as well.
The options you must change are "Type".

Model Name UE40F70**** UE46F70**** UE55F70****

SDC SDC SDC

BN95-00947A BN95-00919A BN95-00920A

CY-SF400DSL CY-SF460DSL CY-SF550DSL

DONGYANG DONGYANG HANSOL

BN44-00632B BN44-00632B BN44-00633B

L46F2P_DDY L46F2P_DDY L55F2P_DDY

Depending on Region, Chassis Ass’y is different.

PANEL

SMPS

Vendor

Code

Spec.

Vendor

Code

Spec.

Chassis Ass'y

MAIN ASSY

PBA Ass'y

Depending on Region, PBA Ass’y code is different.

Byte Item

0 Factory Reset

- - -

1 Type

2 Local set

3 SW Model

4 BOM Model

EU EU EU

UF7000
UF7005

UF7080

UF7090

7000
7005

7080

7090

UF7000
UF7005

UF7080

UF7090

7000
7005

7080

7090

UF7000
UF7005

UF7080

UF7090

7000
7005

7080

7090

5 Tuner

6 Ch table

TC

T2C

TCS2

SI_ADI

FOX_T2C

SI_TCS2

NONE NONE NONE

4-3-2. Entering Factory Mode

4-9

4. Troubleshooting

To enter ‘Service Mode’ Press the remote -control keys in this sequence :

If you do not have Factory remote control•

Power OFF INFO MENU MUTE Power On

If you have Factory remote control•

INFO Factory

If you don’t have Factory remote control, can’t control some menus. (Expert, Advanced menu)•

Option

Control

Debug

SVC

ADC/WB

Advanced

T-FXPDEUC-xxxx

T-FOXDEUS2-xxxx

BT Version :

E-Manual : FPDVBEUF-xxxx

Camera Version : x.xx

Mic Version : x.xx

Blaster-Version : x.xx

EDID SUCCESS

CALIB : AV / COMP / PC / HMDI /

Option : xxxx xxxx xxx

CPLD/LD : T-FOXCPLD 0003

SDAL-FOXP-MAIN-xxxx-xxxx

RFS : "Fox.P 00xx" / 201x-xx-xx

KERNEL : xxx.xxxx,/ Onboot : xxxx

DTP-DTVTD-xxxx

Backend IC[1], Data Ver : xxxx

TCON Version: xxxx

Model : xxxxxxxx

Wired MAC----

Wireless MAC----
DRM : Crt O,Nf O,Wv O, Hc O, Dc O, Mx O, Ml O

Factory Data Ver : xx

EERC Version : xx

DTP-BP-HAL-xxxx

DTP-BP-MW-xxxx

DTP-BP-APP-xxxx

Date of purchase : mm/dd/yyyy

Main SW Version
Sub micom Version

Bluetooth Version

E-Manual Version
Camera Version
Camera(Mic) Version

IR Blaster Version

LD Version

FRC SW Version

TCON Version

Condition of Wired Mac
Condition of Wireless Mac

4-10

4. Troubleshooting

4-3-3. Factory Data

Option 

Factory Menu Name Data Range

Factory Reset

Type

Local Set

SW Model

BOM Model

TUNER

Ch Table

-

40A2UF7E / 46A2UF7E /
55A2UF7E

EU

UF7000 EU / EU_ITALY / EU_GER / EU_FRANCE /

7000 UF7005 / UF7080 / UF7090

SI2190

NONE

MRT Option

Front Color U-T-CL-V75

LVDS FORMAT JEIDA

Language_Arabic xx

Region xx

PnP Language CHI

WIFI REGION K

EU_BENELUX / EU_SPAIN / EU_UK / CIS_
CA_MS / NORDIC / CIS_RUSSSIA / CIS_UKR
/ EU_TURKEY / EU_AFRICA / EU_ALGERIA /
EU_S_AFR / EU_POLAND

OTN Support ON

OTA Support OFF

TTX OFF

China HD OFF

NT Conversion OFF

Num of DTV 1

Num of AV 1

Num of COMP 1

Num of HDMI 4

Num of SCART 0

Num of USB Port 3

Num of HeadPhone 0

Num of RVU 1

Num of Display 2

Num of IPTV 0

Num of RUI 0

Num of PVR RECORD 0

TOOLS Support 40

Factory Menu Name Data Range

4-11

4. Troubleshooting

LNA Support OFF

24Px4 Support OFF

BD Wise Support ON

Data Service Support OFF

PVR Support OFF

CI Support OFF

LEDMotionPlus Support ON

Natural Mode Support ON

Relax Mode Support OFF

HDMI/DVI SEL 4

Select LCD/PDP LCD

Wall Mount OFF

HV Flip HV Flip / H Filp / OFF

Light Effect OFF

e-Pop Default 1

CAMERA Support OFF

NETWORK Support 3

EcoSensor Support ON

3D Support ON

BT Support ON

BT ADDRESS

Engineer Option

Auto Power MEMORY

Type Of PANEL KEY None

5 Way Function Key R BACK

Contents Bar OFF

Cable Modulation QAM

Standby led on/off OFF

Recognition Support

IF AGC 0

D AGC 0

PH BW 0

FQ BW 0

PH RATE 0

PD EN 0

PEQ Inx 0

WF Scale

4-12

4. Troubleshooting

Factory Menu Name Data Range

WF Type 0

Nu of Network Stream 1

DP V Size 0

Backend Device FOX-FT1

BT_AUDIO_ON_OFF OFF

Cong_AV_PATH

ECO Standby OFF

Fast Logo Delay 0

Num of PANEL KEY 6

Control 

Factory Menu Name Data Range

EDID

EDID ON/OFF OFF

EDID WRITE ALL …

EDID WRITE HDMI …

EDID Ver …

EDID Port

Sub Option

RS-232 Jack UART Debug/UART

Watchdog OFF

Checksum 0x0000

Fast Boot in Production OFF

USB Serial OFF

Eeprom Reset

ECO IC TYPE NONE

Info Link Server Type development

Info Link Country None

TTX Group -

Visual Test -

MediaPlayDB -

OPTION_SWU

OTN Server Type operating

OTN Test Server OFF

SWU Reset

SWU Duration OFF

SWU Fail Test OFF

Factory Menu Name Data Range

4-13

4. Troubleshooting

OPTION_NUM

Num of ATV 1

Num of SVIDEO 0

Num of PC 0

Num of DVI 0

Num of OPTICAL Link 1

Num of MEDIA 1

Num of Tuner 1

Num of ISP 1

RF Remocon Support OFF

CDD mode -

DPMS Support OFF

Num of IPTV CIP 0

Num of CI 0

Num of DECODER 0

T-CON Device

BOARD CONTROL OFF

HP LINE LineOut

RM

Server Type Operating

RTS Mode OFF

PSA

FKP Download1 0

FKP Download2 0

LMK threshold 3

Low threshold 10

High threshold 15

CSB ON

CLB ON

PDP Option

Pixel Shift Test OFF

Logic SW 0

Panel Temperature 0

LOGIC Waveform Day 0

Logic CheckSum 0

MRT 0

SAPC Timer

4-14

4. Troubleshooting

Factory Menu Name Data Range

APC Speed

Hotel Option

Hospitality Mode OFF

Power On …

Menu OSD …

Operation …

Music Mode …

External Source …

Eco Solution …

Cloning …

Shop Option

Shop Mode OFF

Exhibition Mode OFF

3D Cube OFF

Asia Option

Unbalance OFF

AF Level adjust 3

TX Power Level 0

Mono Last Memory OFF

H Shaking OFF

SOUND

Carrier_Mute OFF

High Devi OFF

Speaker Delay Normal 0x6Eh

SPDIF PCM Gain -9dB

FM M Prescale 0x30h

FM Prescale 0x00h

AM Prescale 0x32h

NICAM Prescale 0x48h

BTSC Mono Prescale 0x19h

BTSC stereo Prescale 0x2Fh

BTSC SAP Prescale 0x2Bh

A2Ident High THID 31

A2Ident Low THID 0

Pilot Level High Thld 0x28h

Pilot Level Low Thld 0x10h

Carrier2 Amp High THID 4

Factory Menu Name Data Range

4-15

4. Troubleshooting

Carrier2 Amp Low THID 3

Carrier2 SNR High THR 16

Carrier2 SNR Low THR 80

Sig Error On 35

Sig Error Off 41

Amp Model TAS5745

Amp Volume 0xcbh

Amp Scale 0x35h

Amp Check Sum 0x000821B2

Woofer Type 0

Woofer Scale 0

Woofer Check Sum 0x8ah

Woofer Local EQ Checksum 0

Speaker EQ ON

PEQ Test Ready

Local Speaker EQ 0

Local EQ Checksum 0

Speaker cut-off Ferq 4

Audio-IP Test

SRS Tuning Parm 0

TruBass-CheckSum 0

Mic Scale 0

Subwoofer Support 0

India Sound OFF

AudioDock BT delay 50

Wall Filter Type 0

Wiselink Delay Menu 90

Debug 

Factory Menu Name Data Range

Spread Spectrum

LVDS Spread ON

DDR Spread 1.0% Spectrum

Period 30K

Amplitude 1

HD SSC ON/Off ON

HD SSC Value 1

4-16

4. Troubleshooting

Factory Menu Name Data Range

LVDS SSC ON/Off ON

LVDS SSC Value 0

DDR SSC ON/Off ON

DDR SSC Value 1

FRC LVDS SSC ON/OFF ON

FRC LVDS SSC MRR 10

FRC LVDS SSC MFR 1

FRC LVDS SSC Period 1

FRC LVDS SSC Modulation 1

FRC DDR SSC ON/OFF ON

FRC DDR SSC MRR 15

FRC DDR SSC MFR 1

FRC DDR SSC Period 1

FRC DDR SSC Modulation 1

DDR Margin

A CTRL_OFFSET_0_3 0x0

A CTRL_OFFSET_D 0x0

B CTRL_OFFSET_0_3 0x0

B CTRL_OFFSET_D 0x0

ND ADJ Support

MICOM POWER OFF

RF Mute Time

CI+1.3

OFF

OFF

6ms

OFF

FRC

FRC FDISPLAY ON/OFF 0

3D FDISPLAY ON/OFF OFF

PC Mode ON/OFF OFF

Tuner Margin

MPEG Margin

H.264 Margin

10

1000

8

CAM Wait Time

TS Clock deldy

TCON_TEMP READ

TEMP LAST

DCC VERSION

DCC CHK SEL

DCC CHECK LOCAL

0

0

60

0x0

0

0x0

Factory Menu Name Data Range

4-17

4. Troubleshooting

DCC CHECK TOTAL

MulitACC Checksum

IIC Bus stop

Tuner Status

DVB

SNR

BER

Signal Strength

Bandwidth

Frequency

LNA Status

FFT

Modulation

Code Rate

GI

Hier Modulation

Frequency offset

0x0

0

OFF

Timing offset

AGC

UCB

PLL Type

DEMOD Type

TPS Lock

RS Lock

SSI

SQI

Firmware Version

ISDB-T

FFT Size_1

Guard Interval_1

Freq. Offset_1

SNR_1

IF AGC_1

TMCC Lock_1

TS Packer_1

Master Lock_1

A_Modulation_1

4-18

4. Troubleshooting

Factory Menu Name Data Range

A_Code Rate_1

A_Timer InterLeave_1

A_Segments Num_1

A_BER_1

B_Modulation_1

B_Code Rate_1

B_Timer InterLeave_1

B_Segments Num_1

B_BER_1

C_Modulation_1

C_Code Rate_1

C_Timer InterLeave_1

C_Segments Num_1

C_BER_1

SVC 

Factory Menu Name Data Range

Test Pattern

Pattern Sel OFF

Logic Pattern Sel …

Logic Level Sel …

FRC Pre Test Pattern 0

FRC Post Test Pattern 0

FRC3D Fdisplay OFF

FRC3D PC Mode OFF

SOC TCON Test Pattern 0

SOC TCON Pattern Level 255

SOC TCON FRC Pattern 0

HDMI WB Pattern OFF

HDMI Pattern Sel 0

Parma Pre Test Pattern 0

Parma Post Test Pattern 0

Panel Display Time

SVC Info

Delete S/N

0Hr

0

0

Upgrade

T-CON Usb Download Failute

Factory Menu Name Data Range

4-19

4. Troubleshooting

T-CON CheckSum Error

Logic Usb D/L …

SUBMICOM UPGRADE Failute

BT UPGRADE

BT FREEPAIRING ON

Function Upgrade Failute

FRC3D FW Upgrade

Camera Upgrade

Mic Upgrade

CPLD USB Download

JP MICOM UPGRADE Failute

DP MICOM UPGRADE Failute

Jump Upgrade Failute

Smart Hub Reset

0

ER Count

WD Count 0

AR Count 0

WIFI ER Count 0

BT ER Count 0

HDMI Err Cnt 0

Camera ER Count 0

LOG(View Log)

Select Log Type NVRAM

Log View 0

Delete Log

Debug Log Down

Emergency Log Copy

Self Diagnosis

Loop Back

LAN Test

AV Audio Test

DVIN Audio Test

CVBS Test

COMP Test

USB HUB Test

HDMI Test

SCART Audio Test

4-20

4. Troubleshooting

Factory Menu Name Data Range

SCART CVBS Test

SCART RGB Test

CPU

DDR

FLASH

EEPROM

Sound AMP

HDMI Switch IC

USB HUB IC

WIFI

LVDS

T-CON/FRC

PCB Test

MOIP

App Self Test

Device self Test

Voltage

EcoSensor

BT

EXT Sound Inspection

Woofer Sound Inspection NONE

ATV CH Inspection

DTV CH Inspection

Satellite CH Inspection

IPERF

Stopped

OPTION HDMI

Expert

DVB CI

CAL Data Backup

CAL Data Restore

…

…

ADC/WB 

Factory Menu Name Data Range

ADC

AV Calibration Success

Comp Calibraion Success

PC Calibration Success

Factory Menu Name Data Range

4-21

4. Troubleshooting

HDMI Calibration Success

ADC Result

1st_Y_GH 258

1st_Y_GL 128

1st_Cb_BH …

1st_Cb_BL …

1st_Cr_RH …

1st_Cr_RL …

2nd_R_L 132

2nd_G_L 132

2nd_B_L 132

2nd_R_H 70

2nd_G_H 70

2nd_B_H 70

White Balance

R-Offset 128

G-Offset 128

B-Offset 128

R-Gain 128

G-Gain 128

B-Gain 128

WB_W2_R_Offset 128

WB_W2_B_Offset 128

WB_W2_R_Gain 164

WB_W2_B_Gain 63

WB_N_R_Offset 128

WB_N_B_Offset 128

WB_N_R_Gain 151

WB_N_B_Gain 108

MGA

MGA On/Off OFF

R1_Gain …

B1_Gain …

G1_Gain …

R2_Gain …

B2_Gain …

G2_Gain …

4-22

4. Troubleshooting

Factory Menu Name Data Range

R3_Gain …

B3_Gain …

G3_Gain …

R4_Gain …

B4_Gain …

G4_Gain …

R5_Gain …

B5_Gain …

G5_Gain …

R6_Gain …

B6_Gain …

G6_Gain …

R7_Gain …

B7_Gain …

G7_Gain …

R8_Gain …

B8_Gain …

G8_Gain …

R9_Gain …

B9_Gain …

G9_Gain …

R10_Gain …

B10_Gain …

G10_Gain …

4-4. White Balance

4-23

4. Troubleshooting

4-4-1. Calibration

Into the Factory Mode.1.

Select 2. ADC/WB menu.

Select 3. ADC menu.

Option

Control

Debug

SVC

ADC/WB

Advanced

AV Calibration

Comp Calibration

PC Calibration

HDMI Calibration

4-4-2. Service Adjustment

You must perform Calibration in the Lattice Pattern before adjusting the White Balance.

Color Calibration 

Adjust Specication•

Source Setting Mode Pattern Use Equipment

HDMI 1280 x 720@60 Hz Pattern #24 (Chess Pattern) CA210 & Master MSPG925 Generator

(Chess Pattern)

Use other equipment only after comparing the result with that of the Master equipment. -

Input mode Calibration Pattern

CVBS IN (Model_#1) Perform in NTSC B&W Pattern #24 Lattice

Component IN (Model_#6) Perform in 720p B&W Pattern #24 Lattice

PC Analog IN (Model_#21) Perform in VESA XGA (1024x768) B&W Pattern #24 Lattice

HDMI IN Perform in 720p B&W Pattern #24 Lattice

4-24

4. Troubleshooting

Method of Color Calibration (AV)

Apply the NTSC Lattice (N0. 3) pattern signal to the AV IN 1 port.1.

Press the Source key to switch to “AV1” mode.2.

Enter Service mode.3.

Select the “ADC” menu.4.

Select the “AV Calibration” menu.5.

In “AV Calibration Off” status, press the “► ” key to perform Calibration.6.

When Calibration is complete, it returns to the high-level menu.7.

You can see the change of the “AV Calibration” status from Failure to Success. 8.

Method of Color Calibration (Component)

Apply the 720p Lattice (N0. 6) pattern signal to the Component IN 1 port.1.

Press the Source key to switch to “Component1” mode.2.

Enter Service mode.3.

Select the “ADC” menu.4.

Select the “Comp Calibration” menu.5.

In “Comp Calibration Off” status, press the “ ►” key to perform Calibration.6.

When Calibration is complete, it returns to the high-level menu.7.

You can see the change of the “Comp Calibration” status from Failure to Success.8.

Method of Color Calibration (PC)

Apply the VESA XGA Lattice (N0. 21) pattern signal to the PC IN port1.

Press the Source key to switch to “PC” mode2.

Enter Service mode3.

Select the “ADC” menu4.

Select the “PC Calibration” menu.5.

In “PC Calibration Off” status, press the “ ►” key to perform Calibration.6.

When Calibration is complete, it returns to the high-level menu.7.

You can see the change of the “PC Calibration” status from Failure to Success.8.

Method of Color Calibration (HDMI)

Apply the 720p Lattice (N0. 6) pattern signal to the HDMI1/DVI IN port.1.

Press the Source key to switch to “HDMI1” mode.2.

Enter Service mode.3.

Select the “ADC” menu.4.

Select the “HDMI Calibration” menu.5.

In “HDMI Calibration Off” status, press the “►” key to perform Calibration.6.

When Calibration is complete, it returns to the high-level menu.7.

You can see the change of the “HDMI Calibration” status from Failure to Success.8.

4-4-3. Adjustment

4-25

4. Troubleshooting

Into the Factory Mode.9.

Select 10. ADC/WB menu.

Select 11. White Balance menu.

Option

Control

Debug

SVC

ADC/WB

Advanced

White Balance

(Low Light)

Sub Brightness

R offset

G offset

B offset

(Hight Light)

Sub Contrast

R gain

G gain

B gain

4-26

4. Troubleshooting

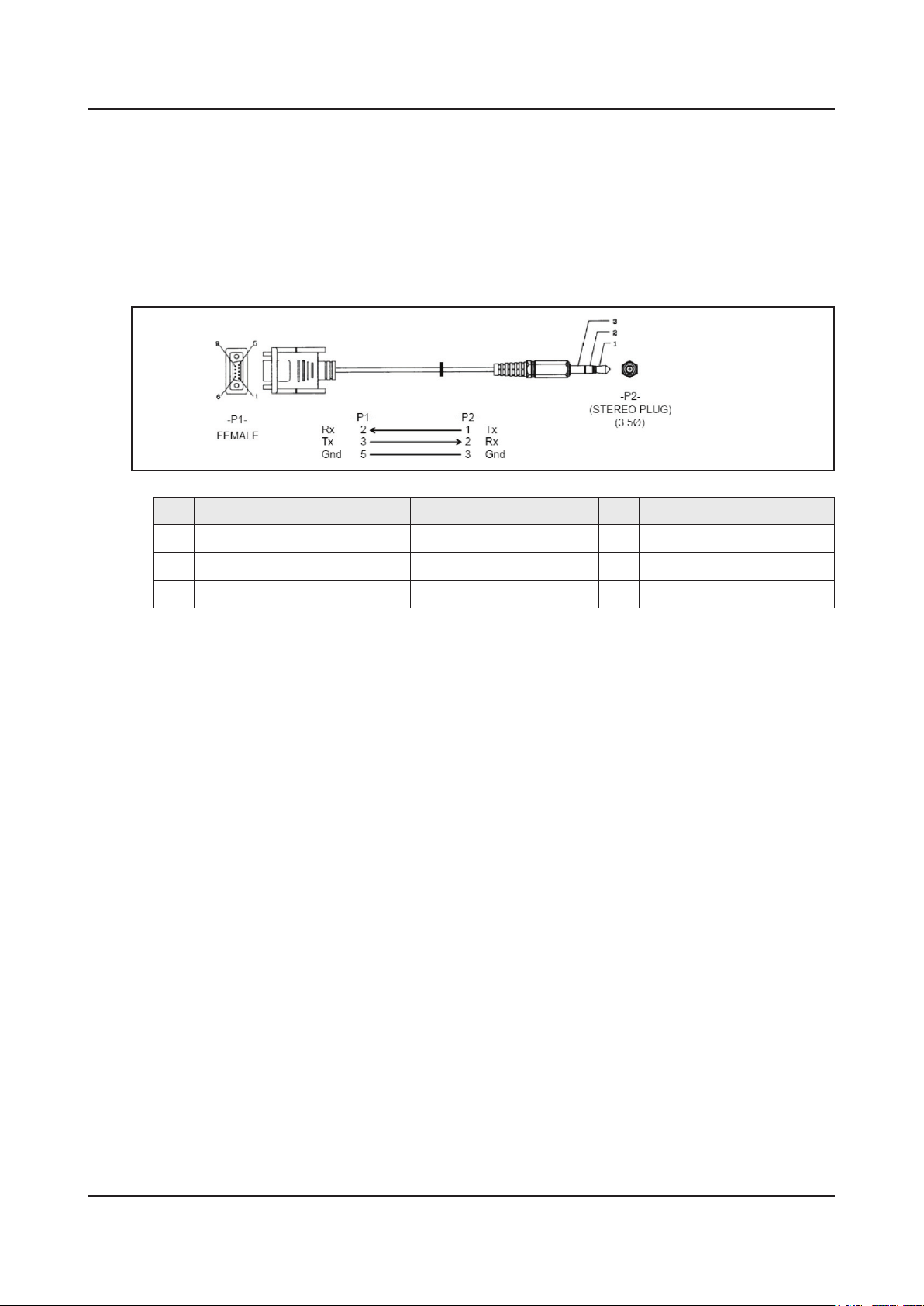

4-5. RS-232C

RS232C Control•

Port : COM#(Serial) -

Bit rate : 115200 -

Data Bit : 8 bit -

Parity : None -

Stop Bits : 1 -

Flow Control : None -

Description of RS232C•

Pin# Name Full Name Pin# Name Full Name Pin# Name Full Name

CD Carrier Detect

1

RxD Received Data

2

TxD Transmitted Data

3

DTR Data Terminal Ready

4

GND Signal Ground

5

DSR Data Set Ready

6

RTS Request To Send

7

CTS Clear To Send

8

RI Ring Indicator

9

4-6. AV Control Tabe

4-27

4. Troubleshooting

Control Item Cmd1 Cmd2 Cmd3 Value

General

Input

Power Power 0x00 0x00 0x00 0x00

Off 0x01

On 0x02

Volume Direct 0x01 0x00 0x00 (0~100)

Up 0x01 0x00

Down 0x02 0x00

Mute 0x02 0x00 0x00 0x00

Ch. Direct 0x04 -

Continuous Up

0x03 0x00

Down 0x02 0x00

0x01 0x00

Control Item Cmd1 Cmd2 Cmd3 Value

Source List TV

AV AV1 0x01 0x00

S-Video S-Video1 0x02 0x00

TV 0x0a 0x00 0x00 0x00

AV2 0x01

AV3 0x02

S-Video2 0x01


Component Component1 0x03 0x00

PC PC1 0x04 0x00

HDMI HDMI1 0x05 0x00

DVI DVI1 0x06 0x00

Control Item Cmd1 Cmd2 Cmd3 Value

Mode Dynamic(Entertain)

Standard 0x01

S-Video3 0x02

Component2 0x01

Component3 0x02

PC2 0x01

PC3 0x02

HDMI2 0x01

HDMI3 0x02

HDMI4 0x03

DVI2 0x01

DVI3 0x02

0x0b 0x00 0x00 0x00

Movie 0x02

Natural 0x03

4-28

4. Troubleshooting

Control Item Cmd1 Cmd2 Cmd3 Value


Mode CAL-NIGHT

CAL-DAY 0x05

BD Wise 0x06

Relax

BackLight
(CellLight)

Contrast 0~100 0x02 0x00 (0~100)

Brightness 0~100 0x03 0x00 (0~100)

Sharpness 0~100 0x04 0x00 (0~100)

Color 0~10 0x05 0x00 (0~100)

Tint G/R 0x06 0x00 (0~100)

Advanced
Settings

Black Tone

Dynamic Contrast Off 0x01 0x00

0~20 0x01 0x00 (0~20)

Off 0x07 0x00 0x00

Dark 0x01

Darker 0x02

Darkest 0x03

0x04

0x07

New function of 12"

(only PDP TV)

Low 0x01

Medium 0x02

HIgh 0x03

Shadow Detail -2 ~ 2 0x02 (-2~2)

Gamma -3 ~ 3 0x03 (-3~3)

RGB Only Mode Off 0x05 0x00

Red 0x01

Green 0x02

Blue 0x03

Color Space Auto 0x06 0x00

Native 0x01

Custom 0x02

White Balance R-Offset(LCD) 0x07 (0~50)

White Balance G-Offset(LCD) 0x08 (0~50)

White Balance B-Offset(LCD) 0x09 (0~50)

White Balance R-Gain(LCD) 0x0a (0~50)

White Balance G-Gain(LCD) 0x0b (0~50)

White Balance B-Gain(LCD) 0x0c (0~50)

White Balance Reset(LCD) 0x0d 0x00

Flesh Tone -15 ~ 15 0x0e (-15~15)

Edge Enhancement Off 0x0f 0x00

Control Item Cmd1 Cmd2 Cmd3 Value

4-29

4. Troubleshooting


Option

On 0x01

xvYCC Off 0x10 0x00

On 0x01

Motion Lighting Off 0x11 0x00

On 0x01

LED Motion Plus Off 0x0a 0x07 0x00

On(Normal) 0x01

Cinema 0x02

Ticker 0x03

Color Tone

Cool 0x0a 0x00 0x00

Standard 0x01

Warm1 0x02

Warm2 0x03

Digital Noise Filter

Off 0x02 0x00

Low 0x01

Medium 0x02

Change Normal →

Standard mode

MPEG Noise Filter

HDMI Black Level

Film Mode

Auto Motion Plus

High 0x03

Auto 0x04

Auto
Visualization

0x05

Off 0x03 0x00

Low 0x01

Medium 0x02

High 0x03

Auto 0x04

Normal 0x04 0x00

Low 0x01

Off 0x05 0x00

Auto1 0x01

Auto2 0x02

Cinema
Smooth

0x03

Off 0x06 0x00

Clear 0x01

New function of 12"

(only PDP TV)

Standard 0x02

Smooth 0x03

Custom 0x04

4-30

4. Troubleshooting

Control Item Cmd1 Cmd2 Cmd3 Value


Screen
Adjustment

Reset

3D 3D Mode

Picture Size

Reset Picture

Demo 0x05

16:9 0x0b 0x0a 0x01 0x00

Zoom1 0x01

Zoom2 0x02

Wide Fit 0x03

4:3 0x04

Screen Fit 0x05

Smart View I 0x06

Smart View II 0x07

Auto Wide 0x08

Wide Zoom 0x09

Zoom 0x0a

0x0b 0x0b 0x00 0x00

Off 0x0b 0x0c 0x00 0x00

2D ⇢ 3D

Side By Side 0x02

0x01

New function of 12"

(only DVB TV)

Sound

3D ⇢ 2D

3D View Point

Depth

3D Auto View

Control Item Cmd1 Cmd2 Cmd3 Value

Sound Mode Standard

Music 0x01

Movie 0x02

Top Bottom 0x03

Line By Line 0x04

Vertical Line 0x05

Checker BD 0x06

Frame
Sequence

Off 0x01 0x00

On 0x01

0x02 (-5~5)

0x03 (1~10)

Off 0x05 0x00

Message
Notice

On 0x02

0x0c 0x00 0x00 0x00

0x07

0x01

Clear Voice 0x03

Amplify 0x04

Control Item Cmd1 Cmd2 Cmd3 Value

4-31

4. Troubleshooting

Sound

Equalizer Balance

100hz 0x01 (0~20)

300hz 0x02 (0~20)

1khz 0x03 (0~20)

3khz 0x04 (0~20)

10khz 0x05 (0~20)

Reset 0x06 0x00

SRS
TruSurround
HD (echo)

Virtual
Surrond
(echo)

SRS
TruDialog
(echo)

Dialog
Clarify (X9)

Preferred
Language

Off

On

Off

On

English

Spanish 0x01

0x01 0x00 (0~20)

0x02 0x00 0x00

0x01

0x03 0x00 0x00

0x01

0x04 0x00 0x00

French 0x02

Korean 0x03

Japanese 0x04

Multi-Track
Sound

Auto Volume Off 0x06 0x00 0x00

Speaker
Select

Sound
Select

Sound
Reset

3D Audio Off 0x0a 0x00 0x00

Mono

Stereo 0x01

SAP 0x02

ON 0x01

Night 0x02

TV Speaker

External Speaker 0x01

Main

Sub 0x01

Sound Reset

0x05 0x00 0x00

0x07 0x00 0x00

0x08 0x00 0x00

0x09 0x00 0x00

Low 0x01

Medium

High 0x03

0x02

New function of 12"

4-32

4. Troubleshooting

Control Item Cmd1 Cmd2 Cmd3 Value

KEY

OSD

Get
Status

Key Generation

Show/Hide
Control

Power (On/Off) 0xf0 0x00 0x00 0x00

Volume(0~100) 0xf0 0x01 0x00 0x00

Mute (On/Off) 0xf0 0x02 0x00 0x00

Channel Number 0xf0 0x03 0x00 0x00

Source (TV/AV/…/HDMI/…) 0xf0 0x04 0x00 0x00

Picture Size 0xf0 0x05 0x00 0x00

3D (On/Off) 0xf0 0x06 0x00 0x00

Picture Mode 0xf0 0x07 0x00 0x00

Sound Mode 0xf0 0x08 0x00 0x00

Show

Hide 0x01

0x0d 0x00 0x00

0x0e 0x00 0x00 0x00

refer to

table

Key value Value

Up 96 (0x60)

Down 97 (0x61)

Left 101 (0x65)

New function of 12"

Right 98 (0x62)

Menu 26 (0x1A)

Internet 147 (0x93)

Enter(OK) 104 (0x68)

EXIT 45 (0x2D)

4-33

4. Troubleshooting

4-7. Software Upgrade

Software Upgrade can be performed by downloading the. latest rmware from samsung.com to a USB memory device.

Current Version - The software already installed in the TV.•

Software is represented as ‘Year/Month/Day_Version’.

4-7-1. How to Check the Software Version

Use the Main Menu 

Click the "MENU" key in remote controller.1.

Select "Support" menu.2.

Locate the menu cursor "Software Upgrade" menu.3.

Click the "INFO" key.4.

Check the Main SW and Micom version. -

Use the Factory Mode 

Option

Control

Debug

SVC

ADC/WB

Advanced

T-FXPDEUC-xxxx

T-FOXDEUS2-xxxx

BT Version :

E-Manual : FPDVBEUF-xxxx

Camera Version : x.xx

Mic Version : x.xx

Blaster-Version : x.xx

EDID SUCCESS

CALIB : AV / COMP / PC / HMDI /

Option : xxxx xxxx xxx

CPLD/LD : T-FOXCPLD 0003

4-34

4. Troubleshooting

4-7-2. How to Upgade Software

Insert a USB drive containing the rmware upgrade downloaded from samsung.com into the TV.1.

NOTE

Please be careful not to disconnect the power or remove the USB drive while upgrades are being applied.

The TV will turn off and turn on automatically after completing the rmware upgrade.2.

Please check the rmware version after the upgrades are complete.3.

the new version will have a higher number than the older version. -

NOTE

When software is upgraded, video and audio settings you have made will return to their default (factory) •
settings.

We recommend you write down your settings before beginning rmware update.•

After update is completed, restore your previous settings.4.

Main Software Upgrade 

Store the sw program named "T-FXPDEUC" in USB memory stick.

Click the "MENU" key in Remote Controller.

Select "Support - Software Update - Update Now" menu.

Click the "ENTER" key.

Wait for upgrade complete.•

Check the Software Version.•

Sub Software Upgrade 

4-35

4. Troubleshooting

USB Download

After Main Software upgrade, Enter the Factory menu by below method.1.

Factory Remocon -

Click the Remocon button continuedly. (Info key+ Factory key)•

Info Factory

Nomal Remocon -

Turn off the TV. 2 Click the Remocon button continuedly.

1•

Info Menu Mute Power

Select the “SVC”.2.

Option

Control

Debug

SVC

ADC/WB

Advanced

Select the “SUBMICOM UPGARADE”.3.

Test pattern DCC CHK SEL 0

Panel Display Time 1Hr DCC CHECK LOCAL 0x0

Tuner Status DCC CHECK TOTAL

T-CON Usb Download Failure Fuction Upgrade off

T-CON CheckSum Error Smart Hub Reset off

Tuner Margin 10 WIFI ER COUNT 0

TS Clock delay 0 BT ER COUNT 0

SUBMICOM UPGRADE off Debug Log Down

BT ADDRESS 0000 MulitACC Checksum Errow

BT UPGRADE SVC Info

BT FREEPAIRING ON TS Clock delay TC 0

SVC Reset TS Clock delay S 0

TCON_TEMP READ 0.00

TEMP LAST 60.00

DCC VERSION 0x0

CAL Data Backup ....

CAL Data Restore ....

Click the “→” remocon key.4.

SUBMICOM UPGRADE Wait

Wait for upgrade complete. -

Check the Software version. -

5. Wiring Diagram

5-1. Wiring Diagram

5. Wiring Diagram

5-1

5-2

5. Wiring Diagram

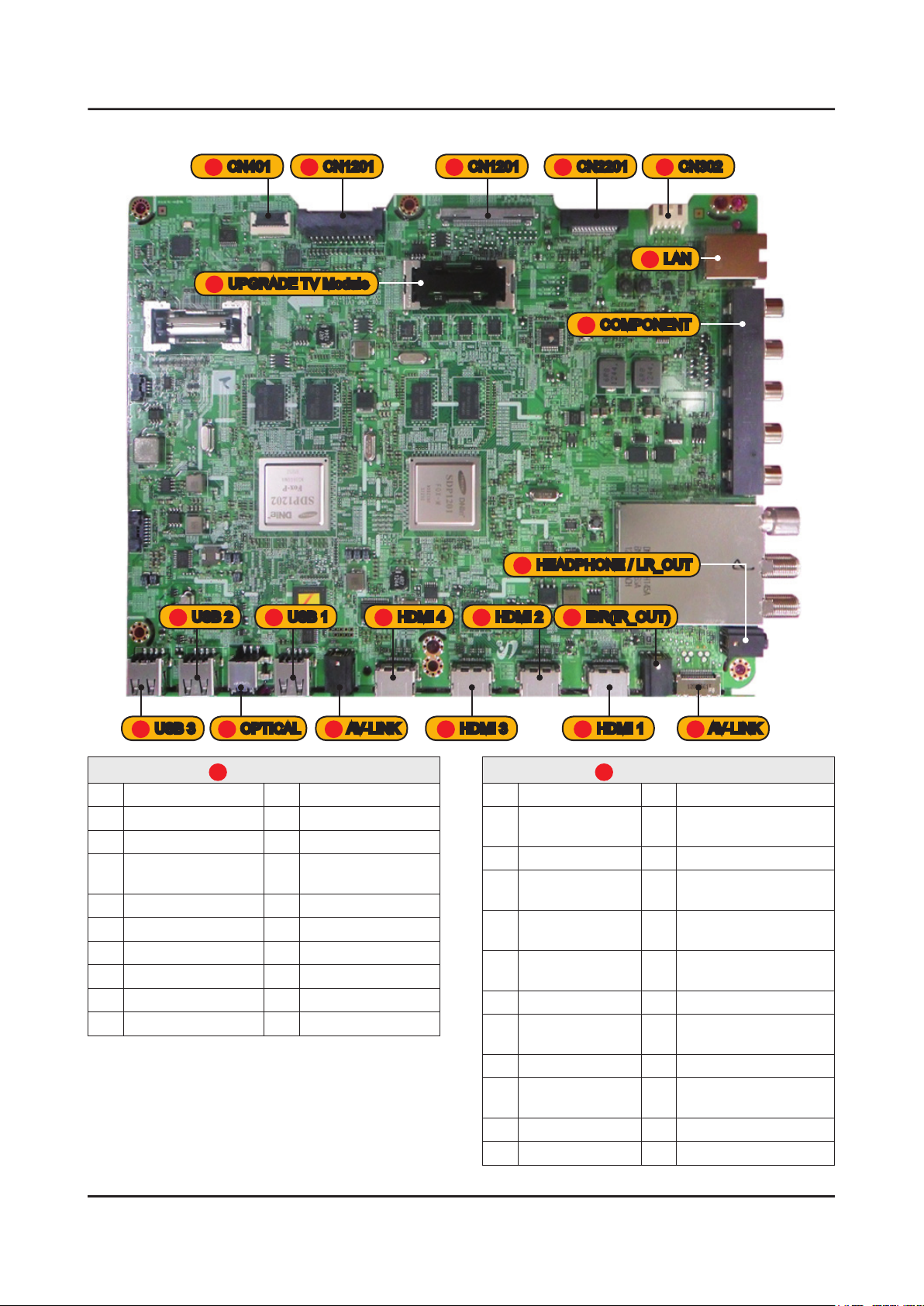

5-2. Connector

CN401

1

UPGRADE TV Module

20

2

CN1201

CN1201

3

CN2201

4

COMPONENT

7

HEADPHONE / LR_OUT

8

CN302

5

LAN

6

USB 2

18

USB 3

18

1 NC 11 DGND

2 DGND 12 KITE_I2STX_BCLK

3 A5V_MOIP_PW 13 DGND

4 NC 14

5 DGND 15 KITE_I2STX_DATA1

6 USB_MOIP_DM 16 DGND

7 USB_MOIP_DP 17 KITE_I2STX_DATA2

8 DGND 18 DGND

9 WOV 19 DGND

10 AIT_RESET 20 DGND

OPTICAL

17

CN401(MOIP)

1

16

USB 1

AV-LINK

15

KITE_I2STX_

LRCLK

14

HDMI 4

13

HDMI 2

12

HDMI 3

1 B5V_PW 13 B13V_PW

SW_POWER_

2

3 B5V_PW 15 POWER_GND

4 GND 16

5 GND 17

6 GND 18

7 B13VS_PW 19 OVD_LEVEL(LD_SDA)

8 GND 20

9 B13VS_PW 21 B13V_PW

10 B5V_PW 22

11 B13V_PW 23 B13V_PW

12 NC 24 B13VS_PW

IBR(IR_OUT)

10

HDMI 1

11

2

OUT

AV-LINK

9

CN201(POWER)

14

PWM_DIMMING_

TCON1_CPLD

PWM_DIMMING_

TCON2_CPLD

OVD_ON_OFF(LD_

PWM_DIMMING_

TCON3_CPLD

PWM_DIMMING_

TCON4_CPLD

PWM_DIMMING_

TCON5_CPLD

SCL)

5-3

5. Wiring Diagram

CN1201(LVDS)

3

1 NC 27 LVDS_EVEN_TX0-

2 DGND 28 DGND

3 SDA_3D_FRC 29 LVDS_ODD_TX4+

PWM_DIMMING_

4

5 SCL_3D_FRC 31 LVDS_ODD_TX3+

6

7

8 SDA_PANEL 34

9 PANEL_I2C_SW 35

10

11 REF_SYNC_IN 37 LVDS_ODD_TX2+

12 SCL_PANEL 38 LVDS_ODD_TX2-

13 DGND 39 LVDS_ODD_TX1+

14 LVDS_EVEN_TX4+ 40 LVDS_ODD_TX1-

15 LVDS_EVEN_TX4- 41 LVDS_ODD_TX0+

16 LVDS_EVEN_TX3+ 42 LVDS_ODD_TX0-

17 LVDS_EVEN_TX3- 43 DGND

18 DGND 44 DGND

19

20

21 DGND 47 PANEL_VCC_13V

22 LVDS_EVEN_TX2+ 48 PANEL_VCC_13V

23 LVDS_EVEN_TX2- 49 PANEL_VCC_13V

24 LVDS_EVEN_TX1+ 50 PANEL_VCC_13V

25 LVDS_EVEN_TX1- 51 PANEL_VCC_13V

26 LVDS_EVEN_TX0+

1 R1+ 5 L1+

2 R1- 6 L1-

3 R2+ 7 L2+

4 R2- 8 L2-

TCON1

PWM_DIMMING_

TCON3

PWM_DIMMING_

TCON2

EMITTER_BT_

SYNC_OUT

LVDS_EVEN_

TXCLK+

LVDS_EVEN_

TXCLK-

CN302(SPEAKER)

4

30 LVDS_ODD_TX4-

32 LVDS_ODD_TX3-

33 DGND

TLVDS_ODD_

TXCLK+

LVDS_ODD_

TXCLK-

36 DGND

45 DGND

PWM_DIMMING_

46

TCON4

CN2201(KEY FUNCTION & BLUETOOTH &

5

WIFI)

1 BT_NRESET 14

2 WAKE_BT 15 DSCL_3.3V

3 POWER_DET 16 GND

4 A5V_PW 17 DSDA_3.3V

5 A3.3V_PW 18

6 USB_BT_DP 19 KEY_INPUT1

7 LED_CNTR 20

8 USB_BT_DM 21 KEY_INPUT2

9 IR 22

10 GND 23 A3.3V_PW

11 GND 24 GND

12

13 A3.3_PW 26 GND

EMITTER_BT_

SYNC_BUFF

6

1 TX+ 5 DGND

2 DGND 6 RX-

3 TX- 7 NC

4 RX+ 8 LAN_GND

CN404(COMPONENT)

7

1 DGND 5 TEST_PB

2 COMP_Y 6 TEST_PR

3 COMP_PB 7 COMP_PR

4 TEST_CVBS_Y3

CN301(HEADPHONE / LR_OUT)

8

1 DGND 5 TEST_SR

2 HP_AUD_SL_OUT 6 IDENT_HP

3 HP_SUD_SR_OUT 7 DGND

4 TEST_SL

CN501_UBA(AV-LINK)

9

1 DGND 5 TEST_SR

2 SC1_AV2_CVBS_IN 6 TEST_SL

3 SC1_AV2_SR_IN 7 SC1_AV2_SL_IN

4 IDENT_SC1_AV2

25 GND

CN1701(LAN)

EMITTER_BT_

SYNC_OUT

B5V_USB_OP_

WIFI_CI_PW

USB_WIFI_DM_

HUB2

USB_WIFI_DP_

HUB2

5-4

5. Wiring Diagram

CN2402_IRB(IR_OUT)

10

1 DGND 5 NC

2 IRB_IR_TX 6 IRB_JACK_ID

3 NC 7 DGND

4 NC

CN601(HDMI 1/STB)

11

1 HDMI1_RX2+ 11 DGND

2 DGND 12 HDMI1_RXCLK-

3 HDMI1_RX2- 13 HDMI_CEC

4 HDMI1_RX1+ 14 DGND

5 DGND 15 HDMI1_DDC_SCL

6 HDMI1_RX2- 16 HDMI1_DDC_SDA

7 HDMI1_RX0+ 17 DGND

8 DGND 18 HDMI1_5V

9 HDMI1_RX0- 19 HDMI1_HPD

10 HDMI1_RXCLK+

CN602(HDMI 2/DVI_PC)

12

1 HDMI2_RX2+ 11 DGND

2 DGND 12 HDMI2_RXCLK-

3 HDMI2_RX2- 13 HDMI_CEC

4 HDMI2_RX1+ 14 DGND

5 DGND 15 HDMI2_DDC_SCL

6 HDMI2_RX2- 16 HDMI2_DDC_SDA

7 HDMI2_RX0+ 17 DGND

8 DGND 18 HDMI2_5V

9 HDMI2_RX0- 19 HDMI2_HPD

10 HDMI2_RXCLK+

CN604(HDMI 4/MHL)

14

1 HDMI4_RX2+ 11 DGND

2 DGND 12 HDMI4_RXCLK-

3 HDMI4_RX2- 13 HDMI_CEC

4 HDMI4_RX1+ 14 DGND

5 DGND 15 HDMI4_DDC_SCL

6 HDMI4_RX2- 16 HDMI4_DDC_SDA

7 HDMI4_RX0+ 17 DGND

8 DGND 18 HDMI4_5V

9 HDMI4_RX0- 19 HDMI4_HPD

10 HDMI4_RXCLK+

CN604(HDMI 4/MHL)

15

1 HDMI4_RX2+ 11 DGND

2 DGND 12 HDMI4_RXCLK-

3 HDMI4_RX2- 13 HDMI_CEC

4 HDMI4_RX1+ 14 DGND

5 DGND 15 HDMI4_DDC_SCL

6 HDMI4_RX2- 16 HDMI4_DDC_SDA

7 HDMI4_RX0+ 17 DGND

8 DGND 18 HDMI4_5V

9 HDMI4_RX0- 19 HDMI4_HPD

10 HDMI4_RXCLK+

CN502_US(AV_LINK)

16

1 DGND 5 NC

2 FA_TX 6 IDENT_FANET

3 FA_RX 7 DGND

4 NC

CN603(HDMI 3/ARC)

13

1 HDMI3_RX2+ 11 DGND

2 DGND 12 HDMI3_RXCLK-

3 HDMI3_RX2- 13 HDMI_CEC

4 HDMI3_RX1+ 14 DGND

5 DGND 15 HDMI3_DDC_SCL

6 HDMI3_RX2- 16 HDMI3_DDC_SDA

7 HDMI3_RX0+ 17 DGND

8 DGND 18 HDMI3_5V

9 HDMI3_RX0- 19 HDMI3_HPD

10 HDMI3_RXCLK+

CN2102(USB1)

17

1 USB1_VCC_5V_PW 3 USB1_DP

2 USB1_DM 4 DGND

U301(OPTICAL)

18

1 FOX_SPDIF_OUT 3 DGND

B5V_USB_OP_

2

1 USB2_VCC_5V_PW 3 USB2_DP

2 USB2_DM 4 DGND

WIFI_CI_PW

19

CN2103(USB2)

5-5

5. Wiring Diagram

CN1301(UPGRADE TV MODULE)

20

1 UP_SSRXP 24

2 UP_SSRXM 25

3 NC 26

4 B13V_UP_PW 27 DGND 50 B13V_UP_PW 73 DGND

5 B13V_UP_PW 28

6 NC 29

FOX_LVDS_ODD_

7

8

9

10

11

12

13 DGND 36 HUB2CPU_USB_DP 59 DGND 82 FOX_I2STX1_BCLK

14

15

16 DGND 39 FOXAP_USB3_DP 62 DGND 85

17

18

19

20

FOX_LVDS_EVEN_

21

FOX_LVDS_EVEN_

22

FOX_LVDS_EVEN_

23

TX0-

FOX_LVDS_ODD_

TX0+

FOX_LVDS_ODD_

TX1-

FOX_LVDS_ODD_

TX1+

FOX_LVDS_ODD_

TX2-

FOX_LVDS_ODD_

TX2+

FOX_LVDS_ODD_

TXCLK-

FOX_LVDS_ODD_

TXCLK+

FOX_LVDS_ODD_

TX3-

FOX_LVDS_ODD_

TX3+

FOX_LVDS_ODD_

TX4-

FOX_LVDS_ODD_

TX4+

TX0-

TX0+

TX1-

FOX_LVDS_EVEN_

TX1+

FOX_LVDS_EVEN_

TX2-

FOX_LVDS_EVEN_

TX2+

FOX_LVDS_EVEN_

TXCLK-

FOX_LVDS_EVEN_

TXCLK+

30 DGND 53 LVDS_ODD_TX0- 76 DGND

FOX_LVDS_EVEN_

31

FOX_LVDS_EVEN_

32

FOX_LVDS_EVEN_

33

FOX_LVDS_EVEN_

34

35 DGND 58 LVDS_ODD_TX2+ 81 FOX_I2STX1_LRCLK

37 HUB2CPU_USB_DM 60 LVDS_ODD_TXCLK- 83

38 DGND 61 LVDS_ODD_TXCLK+ 84 UP_MODULE_SYNC

40 FOXAP_USB3_DM 63 LVDS_ODD_TX3- 86 B3.3V_PW

41 DGND 64 LVDS_ODD_TX3+ 87

42 EXT_UART_RX 65 LVDS_ODD_TX4- 88 UP_MODULE_SPDIF

43 EXT_UART_TX 66 LVDS_ODD_TX4+ 89 A5V_PW

44 CPU2CPU_USB_DP 67 LVDS_EVEN_TX0- 90 CPU2CPU_USB_DM

45 SBB_MDI0_TX+ 68 LVDS_EVEN_TX0+ 91 SBB_MDI1_RX+

46 SBB_MDI0_TX- 69 LVDS_EVEN_TX1- 92 SBB_MDI1_RX-

TX3-

TX3+

TX4-

TX4+

47 UP_SSTXP 70 LVDS_EVEN_TX1+

48 UP_SSTXM 71 LVDS_EVEN_TX2-

49 NC 72 LVDS_EVEN_TX2+

51 B13V_UP_PW 74

52 NC 75

54 LVDS_ODD_TX0+ 77 LVDS_EVEN_TX3-

55 LVDS_ODD_TX1- 78 LVDS_EVEN_TX3+

56 LVDS_ODD_TX1+ 79 LVDS_EVEN_TX4-

57 LVDS_ODD_TX2- 80 LVDS_EVEN_TX4+

LVDS_EVEN_

TXCLK-

LVDS_EVEN_

TXCLK+

FOX_I2STX1_SPK_

SDATA

EXT_GPIO0_

NRESET

EXT_GPIO1_

WAKEUP

5-6

5. Wiring Diagram

5-3. Connector Functions

Connector Function

CN201_3D  IP CNM803

CN1401_FHD  FRC+T-CON

Supply main power and dimming signal from IP Board to Main Board.

The LVDS signal transfered from Main Board to Panel.

5-7

5. Wiring Diagram

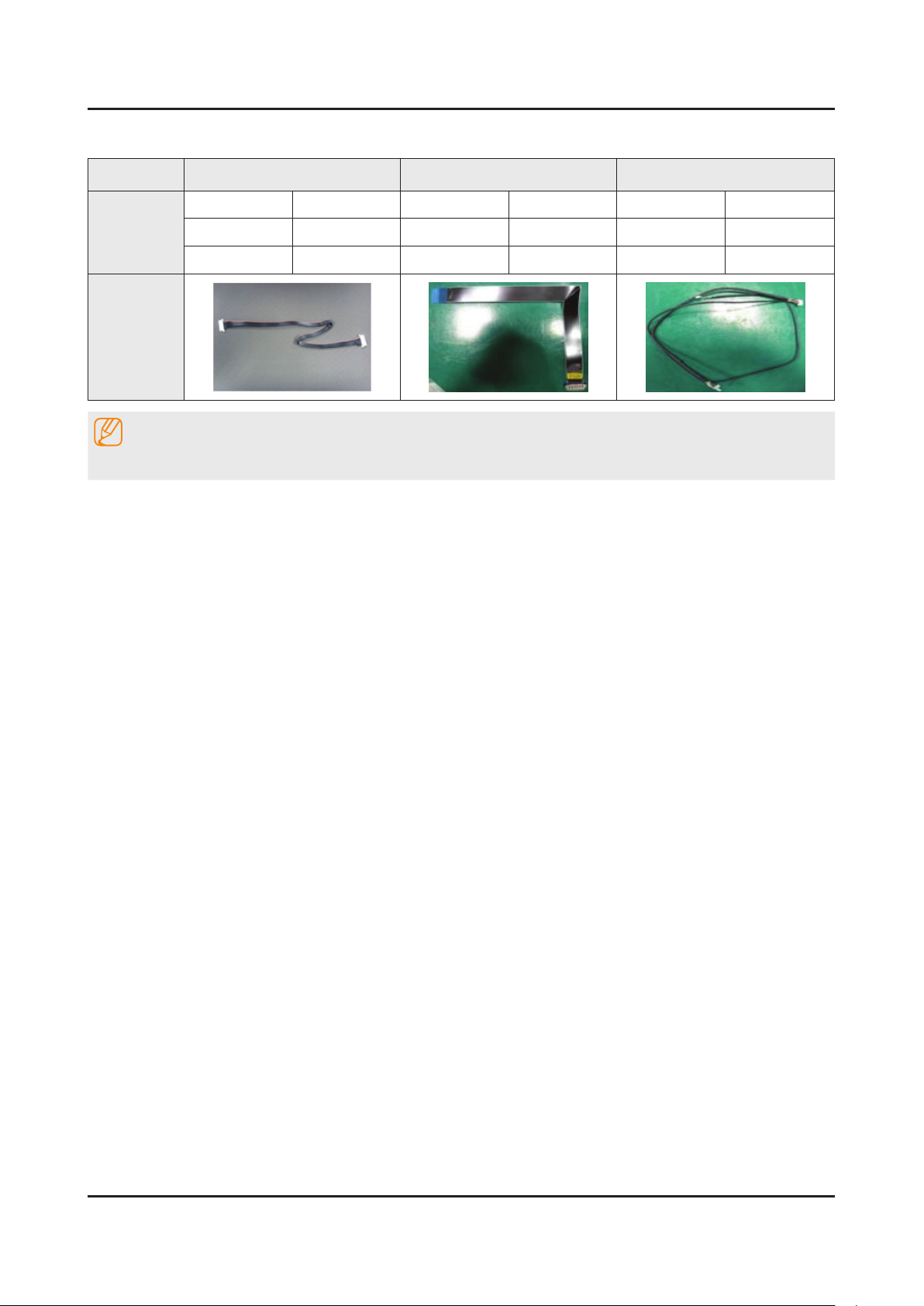

5-4. Cables

Use Main-SMPS (24P) Main-TCON Function-Main

40 inch BN39-01773G 40 inch BN96-26671S 40 inch BN39-01773G

Code No.


NOTE

The part code for some cables may differ depending on your region.

46 inch BN39-01773F 46 inch BN96-26671P 46 inch BN39-01773F

55 inch BN39-01773E 55 inch BN96-26671N 55 inch BN39-01773E

5. Wiring Diagram

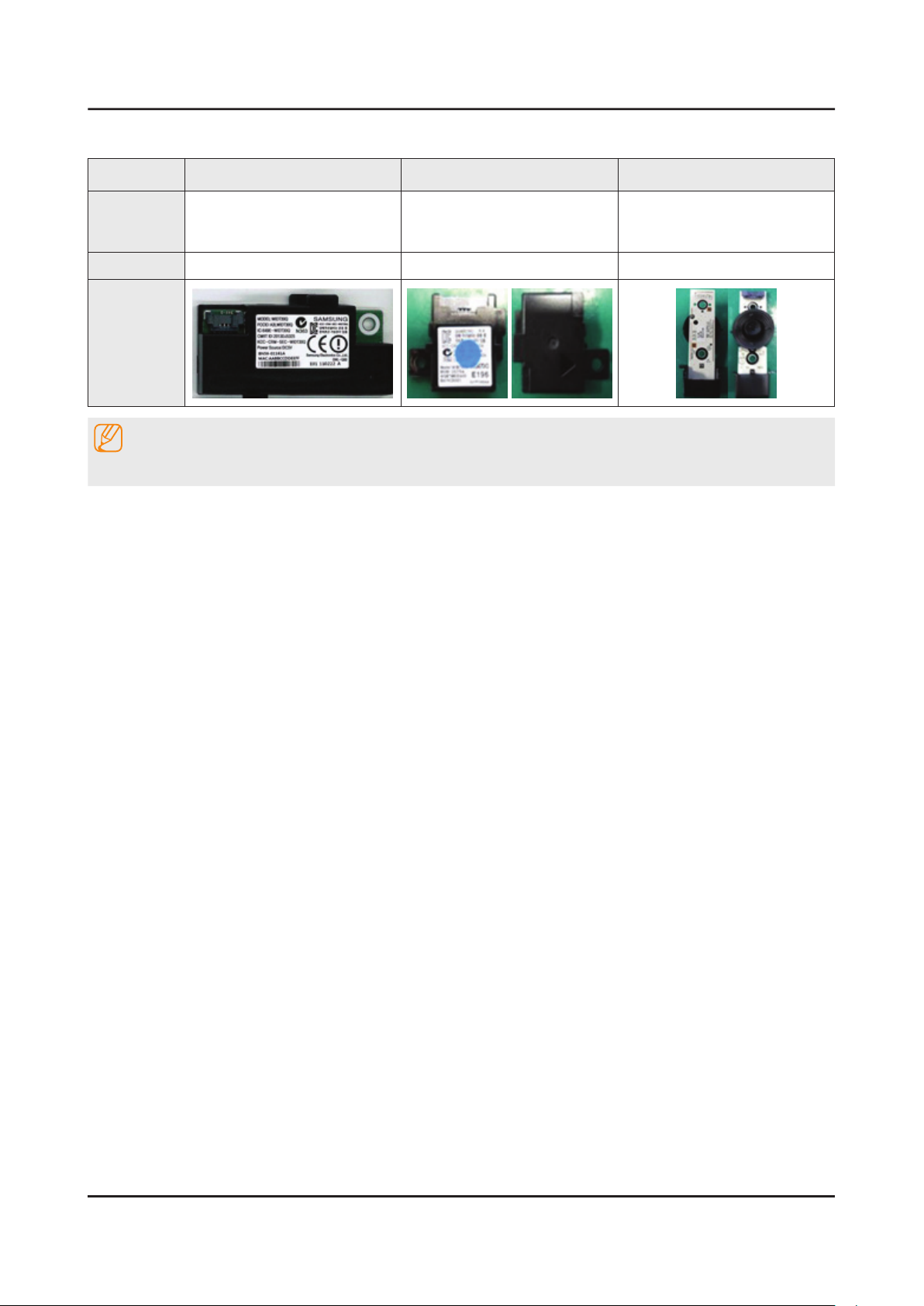

5-5. The types of module

Use Wi-Fi module Bluetooth module Function module

40" : BN96-26507B

Code No. BN59-01161A BN96-25376A

Standard IEEE802.11abgn - -


NOTE

The part code for some module may differ depending on your region and Model name.

46" : BN96-26507C
55" : BN96-26507D

5-8
