LED TV MONITOR

(MFM TV)

user manual

TB300 TB350

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com/register

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. Product design and speciﬁcations may be changed without notice.

Digital LED display notice

1. Functionalities related to Digital TV (DVB) are only available in countries/areas where DVB-T (MPEG2 and MPEG4 AVC) digital terrestrial signals are

broadcasted or where you are able to access to a compatible DVB-C (MPEG2 and MPEG4 AAC) cable-TV service. Please check with your local dealer the possibility to receive DVB-T or DVB-C signal.

2. DVB-T is the DVB European consortium standard for the broadcast transmission of digital terrestrial television and DVB-C is that for the broadcast

transmission of digital LED display over cable.

3. Although this LED display set meets the latest DVB-T and DVB-C standards, as of [August, 2008], the compatibility with future DVB-T digital

terrestrial and DVB-C digital cable broadcasts cannot be guaranteed.

4. Depending on the countries/areas where this LED display set is used some cable-TV providers may charge an additional fee for such a service and

you may be required to agree to terms and conditions of their business.

5. Some Digital LED display functions might be unavailable in some countries or regions and DVB-C might not work correctly with some cable service

providers.

6. For more information, please contact your local Samsung customer care centre.

The reception quality of LED display may be affected due to differences in broadcasting method between the countries. Please check the LED

✎

display performance in the local SAMSUNG Authorized Dealer, or the Samsung Call Centre whether it can be improved by reconﬁguring LED display setting or not.

Still image warning

Avoid displaying still images (like jpeg picture ﬁles) or still image element (like LED display programme logo, panorama or 4:3 image format, stock or news bar at screen bottom etc.) on the screen. Constant displaying of still picture can cause ghosting of screen, which will affect image quality. To reduce risk of this effect, please follow below recommendations:

• Avoid displaying the same LED display channel for long periods.

• Always try do display any image on full screen, use LED display set picture format menu for best possible match.

• Reduce brightness and contrast values to minimum required to achieve desired picture quality, exceeded values may speed up the burnout process.

• Frequently use all LED display features designed to reduce image retention and screen burnout, refer to proper user manual section for details.

Securing the Installation Space

Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation. Failing to do so may result in ﬁre or a problem with the product due to an increase in the internal temperature of the product.

The actual appearance of the LED display may differ from the images in this manual, depending on the model.

✎

Be careful when you touch the LED display. Some parts can be somewhat hot.

✎

Installation with a stand. Installation with a wall-mount.

10 cm

• An administration fee may be charged if either

– (a) an engineer is called out at your request and there is no defect in the product  (i.e. where you have failed to read this user manual). – (b) you bring the unit to a repair centre and there is no defect in the product  (i.e. where you have failed to read this user manual).

• The amount of such administration charge will be advised to you before any work or home visit is carried out.

10 cm

English

Getting Started

Connections

Basic Features

Advanced Features

4 Safety Precautions 11 Accessories 12 Viewing the Control Panel 13 Viewing the Remote Control

14 Connecting to an Antenna 14 Setup (Initial Setup) 15 Connecting to an AV Device 16 Connecting to a COMMON INTERFACE slot 17 Connecting to a Audio device and PC 19 Changing the Input Source

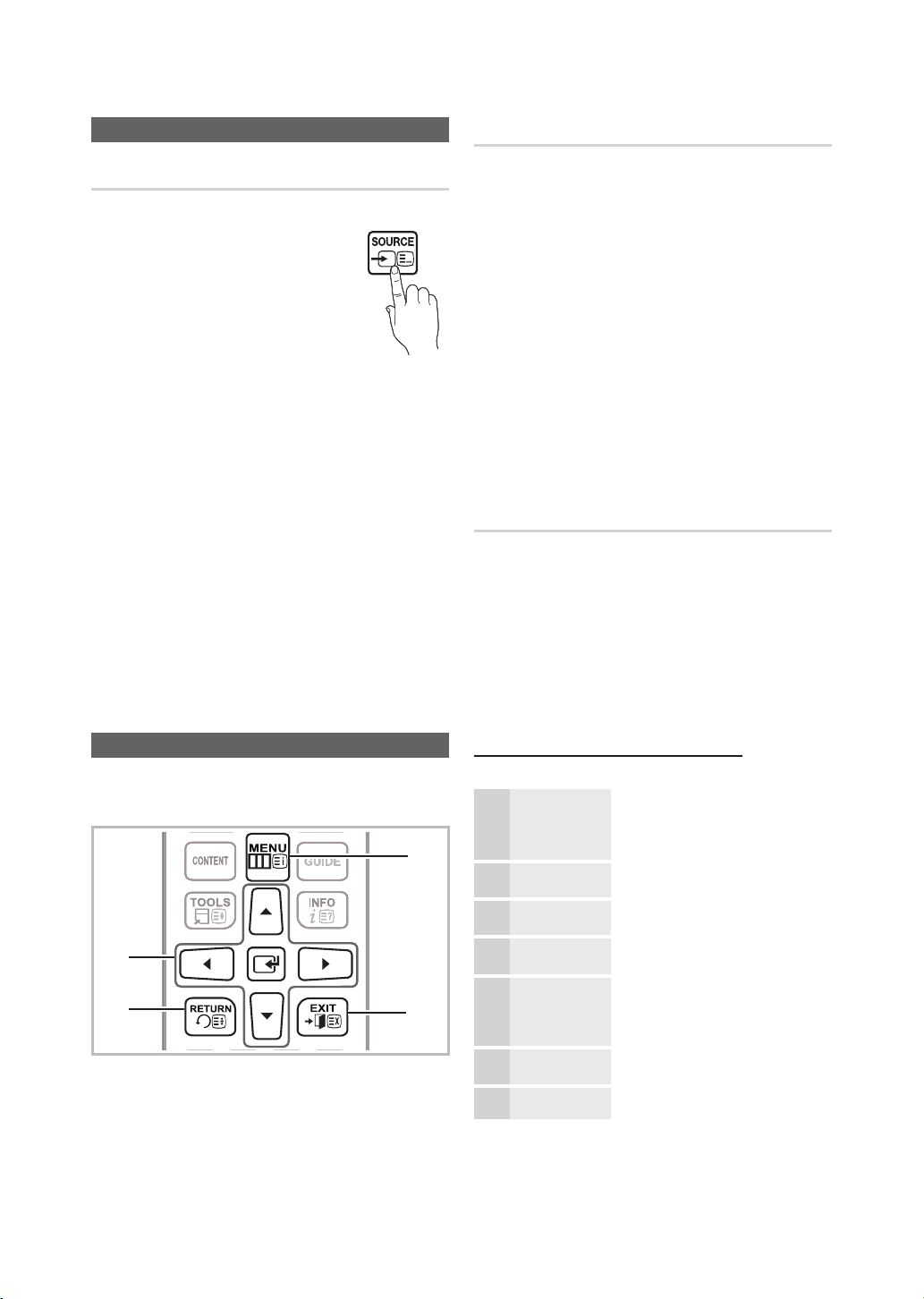

19 How to Navigate Menus 20 Using the INFO button (Now & Next guide) 20 Using the Channel Menu 22 Channel Menu 23 Picture Menu 25 Sound Menu 27 System Menu 30 Support Menu

31 Using the Media Play

Other Information

This function can be used by pressing the TOOLST

button on the remote control.

38 Analogue Channel Teletext Feature 39 Attaching a Wall Mount/Desktop Stand 40 Anti-theft Kensington Lock 41 Troubleshooting 45 Speciﬁcations

Check the Symbol!

ENGLISH

Note

Indicates additional information.

English

Getting Started

Icons used for safety precautions

Safety Precautions

WARNING

CAUTION

Do not perform.

Must be followed.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK). THERE ARE NO USER SERVICEABLE PARTS INSIDE.

REFER ALL SERVICING TO QUALIFIED PERSONNEL.

Failing to follow the precautions marked with this sign may result in a serious injury or even a fatality.

Failing to follow the precautions marked with this sign may result in a personal injury or property damage.

This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product.

This symbol alerts you that important literature concerning operation and maintenance has been included with this product.

¦ Power Related

✎

The following images are for your reference and may differ depending on models and countries.

Warning

Avoid using a damaged power cord or plug or a loose power outlet.

Otherwise, it may result in

electric shock or ﬁre.

Avoid connecting multiple electric appliances to a single wall outlet.

Otherwise, it may result in ﬁre due

to overheating of the wall outlet.

Avoid plugging in or unplugging the power supply with wet hands.

Otherwise, it may result in

electric shock.

Make sure to connect the power cord to a grounded wall outlet (for insulation class 1 equipment only).

Otherwise, it may result in

electric shock or injury.

Plug the power plug in ﬁrmly.

Otherwise, it may result in ﬁre.

Avoid bending or twisting the power cord excessively and avoid placing heavy objects on the cord.

Otherwise, it may result in electric

shock or ﬁre due to a damaged power cord.

English

Getting Started

Keep the power cord and the product away from a heater.

Caution

Avoid unplugging the power plug while the product is operating.

When unplugging the power plug from the wall outlet, make sure to hold it by the plug and not by the cord.

¦ Installation Related

Warning

Avoid placing burning candles, mosquitorepellentor cigarettes on the product.

Otherwise, it may result in electric shock or ﬁre.

Otherwise, it may damage the product due to electric shock.

Otherwise, it may result in electric shock or ﬁre.

Otherwise, it may result in ﬁre.

If the pins of the power plug or the wall outlet are covered in dust, clean it using a dry cloth.

Otherwise, it may result in ﬁre.

Make sure to use only the power cord supplied by our company. In addition, do not use the power cord of another electric appliance.

Otherwise, it may result in electric

shock or ﬁre.

Connect the power plug to a wall outlet that can be easily reached.

When a problem occurs with the

product, you must unplug the power plug to cut the power off completely. You cannot cut the power off completely using only the power button on the product.

Ask an installation engineer or relevant company to install the product onto the wall.

Otherwise, it may result in injury.

Make sure to use the speciﬁed

wall mount.

Avoid installing the product in a badly-ventilated location such as inside a bookshelf or closet.

Otherwise, it may result in ﬁre

due to internal over-heating.

Avoid installing the product in a location that is unstable or exposed to excessive vibration such as on an unstable or slanted shelf.

The product may fall and this

may result in damage to the product or injury.

If you use the product in a

location exposed to excessive vibrations, it may result in a problem with the product or ﬁre.

Keep the plastic bags used to pack the product away from children.

If children place the plastic

bags over their heads, they may suffocate.

Avoid installing the product in a location exposed to dust, moisture (sauna), oil, smoke or water (rain drops) and installing it within a vehicle.

This may result in electric shock

or ﬁre.

English

Getting Started

SAMSUNG

Caution

Avoid installing the product in a location exposed to direct sunlight and installing the product near a heat source such as a ﬁreplace or heater.

This may shorten the product

life cycle or cause ﬁre.

Bend the outdoor antenna cable downwards at the location where it comes in the house so that rainwater does not ﬂow in.

If rainwater enters the product,

it may result in electric shock or ﬁre.

Do not let the product drop while moving it.

This may result in a problem

with the product or injury.

When installing the product on a console or shelf, make sure that the front of the product does not protrude out of the console or shelf.

Otherwise, this may cause the

product to fall off and result in a malfunction or injury.

Make sure to use a cabinet or

shelf suitable to the size of the product.

If the product is installed in a location where the operating conditions vary considerably, a serious quality problem may occur due to the surrounding environment. In this case, install the product only after consulting one of our service engineers about the matter.

Places exposed to microscopic

dust, chemicals, too high or low temperature, high humidity, airports or stations where the product is continuously used.

Avoid installing the product where children may reach it.

If a child touches the product,

the product may fall and this may result in injury.

Since the front part is heavier,

install the product on a ﬂat and stable surface.

Install the antenna far away from any high voltage cables.

If the antenna touches or falls

onto a high voltage cable, it may result in electric shock or ﬁre.

Do not place the product face down on the ﬂoor.

This may damage the panel of

the product.

When putting the product down, handle it gently.

Otherwise, it may result in a

problem with the product or injury.

English

Getting Started

¦ Cleaning Related

Warning

Before cleaning the product, unplug the power cord.

Otherwise, it may result in

electric shock or ﬁre.

Caution

Avoid spraying cleansing agent directly onto the product.

This may result in discoloration

or cracking of the exterior of the product or the panel coming off.

When cleaning the product, do not spray water directly over the product parts.

Make sure that water does not

enter the product. Otherwise, it may result in ﬁre,

electric shock or a problem with the product.

When cleaning the product, disconnect the power cord and clean the product with the supplied cleaning cloth.

Avoid using chemicals such as

wax, benzene, alcohol, thinner, mosquitorepellent, fragrance, lubrication or cleansing agent when cleaning the product.

 This may result in the exterior

being deformed or the print being removed.

¦ Usage Related

Warning

If you can't get the product clean with just the supplied cloth, use a soft, damp cloth with a "monitorexclusive cleansing agent" and wipe the product with it.

If no monitor-exclusive cleansing

agent is available, dilute a cleansing agent with water at a ratio of 1:10 before cleaning the product.

Since a high voltage runs through the product, never disassemble, repair or modify the product yourself.

Otherwise, it may result in ﬁre or

electric shock. If the product needs to be ﬁxed,

contact a service centre.

Since the exterior of the product is easily scratched, be sure to use the supplied cleansing cloth.

To move the product, turn the power off and unplug the power cord, the antenna cable and any other wires connected to the product.

Otherwise, it may result in electric

shock or ﬁre due to the damaged power cord.

English

Getting Started

GAS

100

If the product generates a strange noise, a burning smell, or smoke, unplug the power plug immediately and contact a service centre.

Otherwise, it may result in

electric shock or ﬁre.

If you drop the product or the case is damaged, turn the power off and unplug the power cord. Contact a service centre.

Otherwise, it may result in ﬁre or

electric shock.

When thunder or lighting occurs, unplug the power cord and under no circumstance touch the antenna cable as this is dangerous.

Otherwise, it may result in

electric shock or ﬁre.

Avoid moving the product by pulling the power cord or antenna cable.

Otherwise, it may result in

electric shock, ﬁre or a problem with the product due to damage to the cable.

Avoid letting children hang or climb onto the product.

Otherwise, it may result in the

product falling and this may result in injury or death.

Avoid placing objects such as toys and cookies on top of the product.

If a child hangs over the product

to grab an object, the object or the product may fall and this may result in injury or even death.

Avoid dropping an object over the product or cause impact to the product.

Otherwise, it may result in electric

shock or ﬁre.

When a gas leak occurs, do not touch the product or the power plug and ventilate immediately.

A spark may result in an

explosion or ﬁre. During a thunder or lighting

storm, do not touch the power cord or antenna cable.

Avoid lifting up or moving the product by holding only the power cord or signal cable.

Otherwise, it may result in

electric shock, ﬁre or a problem with the product due to damage to the cable.

Take care not to block the vent by a table cloth or curtain.

Otherwise, it may result in ﬁre

due to internal overheating.

Avoid using or placing inﬂammable spray or objects near the product.

This may result in an explosion

or ﬁre.

Avoid inserting metal objects such as a chopsticks, coins or hairpins, or inﬂammable objects into the product (the vents, ports, etc).

If water or substances enters

the product, turn the power off, unplug the power cord and contact a service centre.

Otherwise, it may result in a

problem with the product, electric shock or ﬁre.

English

Getting Started

-_-

Caution

Avoid placing a liquid container such as a vase, ﬂowerpot, beverage, cosmetics or drugs, or a metal object over the product.

If water or substances enter

the product, turn the power off, unplug the power cord and contact a service centre.

Otherwise, it may result in a

problem with the product, electric shock or ﬁre.

Displaying a still image for a long time may create a persistent image or stain on the screen.

If you do not use the product

for a long time, use the power-saving mode or set the screensaver to the moving picture mode.

Set the appropriate resolution and frequency for the product.

Otherwise, it may result in eye

strain.

Do not press down hard on the product. The product may become deformed or damaged.

When not using the product for a long time such as leaving your home, unplug the power cord from the wall outlet.

Otherwise, it may cause dust

accumulation and result in ﬁre caused by overheating or short circuit or result in an electric shock.

Avoid turning the product upside down or move the product holding only the stand.

This may cause the product to

fall, resulting in damage to the product or injury.

Watching the product from too close a distance continuously may damage your eyesight.

It is important to give your eyes some rest (5 minutes every hour) when viewing the product screen for long periods of time.

This will alleviate any eye strain.

Avoid using a humidiﬁer or cooker near the product.

Otherwise, it may result in electric

shock or ﬁre.

Since the display panel is hot after using it for a long time, do not touch the product.

English

Getting Started

Keep the small accessories in a location out of the reach of children.

Avoid placing a heavy object over the product.

Otherwise, it may result in a

problem with the product or injury.

Be careful that children do not place the batteries in their mouths when removed from the remote control. Place the battery in a location that children or infants cannot reach.

If children have had the battery

in their mouths, consult your doctor immediately.

Take care when adjusting the angle of the product or the height of the stand.

If your hand or ﬁnger is caught,

you may be injured. If the product is tilted excessively,

the product may fall and this may result in injury.

When using headphones or earphones, do not turn the volume too high.

Having the sound too loud may

damage your hearing.

When replacing the batteries, insert them with right polarity (+, -).

Otherwise, the battery may

become damaged or it may cause ﬁre, personal injury or damage due to leakage of the internal liquid.

Use only speciﬁed standard batteries. Do not use new and used batteries together.

This may cause a battery to

break or leak and may cause ﬁre, injury, or contamination (damage).

The batteries (and rechargeable batteries) are not ordinary refuse and must be returned for recycling purposes. The customer is responsible for returning the used or rechargeable batteries for recycling.

The customer can return used

or rechargeable batteries to a nearby public recycling centre or to a store selling the same type of the battery or rechargeable battery.

English

Getting Started

Accessories

✎

Please make sure the following items are included with your LED display. If any items are missing, contact your dealer.

✎

The items’ colours and shapes may vary depending on the models.

✎

Cables not included in the package contents can be purchased separately.

✎

Check that there is no accessor y hidden behind packing materials when you open the box.

CAUTION: INSERT SECURELY LEST SHOULD BE DETACHED IN SET

[

User Manual

Remote Control & Batteries (AAA x 2)

Warranty Card / Safety Guide (Not available in some locations)

y Stand Connector y Stand Base y D-Sub Cable y Stereo Cable

Input Cables (Sold Separately)

Quick Setup Guide

Cleaning Cloth

Power Cord

y HDMI to DVI Cable y Audio Cable y Component Cable y Optical Cable

y HDMI Cable

English

Getting Started

Viewing the Control Panel

✎

The product colour and shape may vary depending on the model.

Control Panel

SOURCE

MENU Displays an on-screen menu, the OSD (on screen display) of your LED display's features.

(Power)

Power Indicator Blinks and turns off when the power is on and lights up in standby mode.

Remote control sensor Aim the remote control towards this spot on the LED display.

Standby mode

Do not leave your LED display in standby mode for long periods of time (when you are away on a holiday, for example). A small amount of electric power is still consumed even when the power button is turned off. It is best to unplug the power cord.

Toggles between all the available input sources. In the on-screen menu, use this button as you would use the ENTERE button on the remote control.

Adjusts the volume. In the OSD, use the buttons on the remote control.

Changes the channels. In the OSD, use the and d buttons on the remote control.

Turns the LED display on or off.

buttons as you would use the l and r

buttons as you would use the u

English

Getting Started

Viewing the Remote Control

✎

This is a special remote control for the visually impaired and has Braille points on the Channel and Number buttons.

Turns the TV on and off.

Have direct access to channels.

Alternately select Teletext ON, Double,

Mix or OFF.

Adjusts the volume.

Displays the main on-screen menu.

Displays the Content Home, which

includes Channel List, Guide, Media

Play, Schedule Manager, and Source.

Quickly select frequently used functions.

Move the cursor and select an item.

Conﬁrm the setting.

Returns to the previous menu.

Use these buttons according to the

direction on screen.

PIP: Turns the PIP on or off.

P.SIZE: Selects the Picture Size.

AD/SUBT.: Turns the audio description

on and off (not available in some

locations). / Displays digital subtitles.

Displays and selects the available video sources.

Returns to the previous channel.

Cuts off the sound temporarily.

Changes channels.

Displays channel lists on the screen.

Displays the EPG (Electronic Programme Guide).

Displays information on the TV screen.

Exits the menu.

Using these buttons in Media Play mode.

Installing batteries (Battery size: AAA)

English

Connections

Connecting to an Antenna

When the LED display is initially powered on, basic settings proceed automatically.

✎

Preset: Connecting the mains and antenna.

ANT OUT

Power Input

Setup (Initial Setup)

When the LED display is initially powered on, a sequence of on-screen prompts will assist in conﬁguring basic settings. Press the

POWERP button. Setup is available only when the Input Source is set to TV.

✎

Before turning on the LED display, make sure the antenna cable is connected.

Selecting a menu

language Selecting Store Demo

or Home Use

Selecting an area

Auto Tuning

Setting the Clock Mode Set the Clock Mode automatically or manually.

Complete

Press the twice when done.

Press the

Press the ENTER Press the ENTER

Press the ﬁnd and store channels on your TV. Do you need to search for channels?

Press the ENTER

or d button to select a menu language. Press ENTERE button

or d button, then press the ENTERE button.

Select the Home Use mode. Store Demo Mode is for retail environments.

To return the unit’s settings from Store Demo to Home Use (standard):

Press the volume button on the LED display. When you see the volume OSD, press and hold MENU for 5 sec.

Store Demo is only for shop display. If you select it, several functions are

not able to use. Please select Home Use when you watch at home.

button. Select the appropriate area by pressing the u or d button.

button to conﬁrm your choice.

or d button to select correct option, and then press ENTERE button twice. Let’s

Yes, I need to. All the channels available will be found and stored on your TV. (Auto Tuning

necessary) No, I don’t need to. My set-top box provides all the channels that are available, so I don't

need to search for channels.

✎

You can complete Setup by selecting it.

Air / Cable: Select the antenna source to memorise.

Digital & Analogue / Digital / Analogue: Select the channel source to memorise.

✎

You can check more details on page22.

Auto: Select the time zone (depending on the country) where you are located.

Manual: Allows you to manually set the current date and time.

✎

If the customer chooses "No, I don’t need to." in step 4, the clock just can be set manually.

button.

If You Want to Reset This Feature...

Select System - Setup (Initial Setup). Enter your 4 digit PIN number. The default PIN number is “0-0-0-0”. If you want to change the PIN number, use the Change PIN function. You should do Setup (MENU → System) again at home although you did in shop.

✎

If you forget the PIN code, press the remote control buttons in the following sequence in Standby mode, which resets the PIN to “0-0-0-0”: POWER (off) → MUTE → 8 → 2 → 4 → POWER (on).

English

Connections

Connecting to an AV Device

Using an HDMI or an HDMI to DVI cable (up to 1080p)

Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver, VCR

HDMI OUT

DVI OUT

AUDIO OUT

✎

HDMI IN(DVI) / PC/DVI AUDIO IN

If an HDMI to DVI cable is connected to the HDMI IN(DVI) port, the audio does not work.

The picture may not display normally (if at all) or the audio may not work if an external device that uses an older version of

HDMI mode is connected to the LED display. If such a problem occurs, ask the manufacturer of the external device about the HDMI version and, if out of date, request an upgrade.

Be sure to purchase a certified HDMI cable. Otherwise, the picture may not display or a connection error may occur.

A basic high-speed HDMI cable or one with ethernet is recommended. This product does not support the ethernet

function via HDMI.

Using a Scart Cable

Available devices: DVD, VCR

DVD /

Blu-ray player

DVD /

Blu-ray player

EXT (RGB)

✎

In Ext. mode, DTV Out supports MPEG SD Video and Audio only.

VCR / DVD

EXT

English

Connections

Using a Component (up to 1080p) or Audio/Video (480i only) Cable

Available devices: DVD, Blu-ray player, cable box, STB satellite receiver, VCR

Audio Cable

(Not Supplied)

R W BR G

Video Cable

(Not Supplied)

COMPONENT

/ AV IN

VIDEO OUT

AUDIO OUT

R-AUDIO-L

Device

Audio Cable

(Not Supplied)

R W BR G

Red

White

Red

Bule

Green

✎

When connecting to AV IN, the colour of the AV IN [ Y/VIDEO] jack (green) will not match the video cable (yellow).

✎

For better picture quality, the Component connection is recommended over the A/V connection.

AUDIO OUT

R-AUDIO-L

COMPONENT OUT

PR PB Y

Component Cable

(Not Supplied)

Device

R W

Red Yellow

White

Connecting to a COMMON INTERFACE slot

(Just for Europe, Turkey,Algeria,South Africa, and CIS area)

Using the “CI or CI+ CARD”

To watch paid channels, the “CI or CI+ CARD” must be inserted.

If you don’t insert the “CI or CI+ CARD,” some channels will display the message

“Scrambled Signal”. The pairing information containing a telephone number, the “CI or CI+ CARD” ID

the Host ID and other information will be displayed in about 2~3 minutes. If an error message is displayed, please contact your service provider.

When the conﬁguration of channel information has ﬁnished, the message “Updating

Completed” is displayed, indicating the channel list is updated.

✎

NOTE

You must obtain a “CI or CI+ CARD” from a local cable service provider.

When removing the “CI or CI+ CARD”, carefully pull it out with your hands since dropping the “CI or CI+ CARD” may cause

damage to it.

Insert the “CI or CI+ CARD” in the direction marked on the card.

The location of the COMMON INTERFACE slot may be dif ferent depending on the model.

“CI or CI+ CARD” is not supported in some countries and regions; check with your authorized dealer.

If you have any problems, please contact a service provider.

Insert the “CI or CI+ CARD” that suppor ts the current antenna settings. The screen will be distorted or will not be seen.

English

Connections

Connecting to a Audio device and PC

Using an Optical (Digital) or a Headphone Connection

Digital audio system

DIGITAL AUDIO OUT (OPTICAL)

TB300 series have not headphone and Optical interface.

✎

DIGITAL AUDIO OUT (OPTICAL)

When a Digital Audio System is connected to the DIGITAL AUDIO OUT (OPTICAL) jack, decrease the volume of both the

LED display and the system.

5.1 CH (channel) audio is available when the LED display is connected to an external device supporting 5.1 CH.

When the receiver (home theatre) is set to on, you can hear sound output from the TV’s optical jack. When the TV is

receiving a DTV signal, the TV will send 5.1 CH sound to the home theatre receiver. When the source is a digital component such as a DVD / Blu-ray player / cable box / STB (Set-Top-Box) satellite receiver and is connected to the TV via HDMI, only 2 CH audio will be heard from the home theatre receiver. If you want to hear 5.1 CH audio, connect the digital audio out jack from your DVD / Blu-ray player / cable box / STB satellite receiver directly to an amplifier or home theatre.

✎

Headphones H: You can connect your headphones to the headphones output on your set. While the headphones are connected, the sound from the built-in speakers will be disabled.

Sound function may be restricted when connecting headphones to the LED display.

Headphone volume and LED display volume are adjusted separately.

Using an HDMI cable or an HDMI to DVI cable or a D-sub cable

✎

Connecting through the HDMI cable may not be supported depending on the PC.

HDMI Cable

(Not Supplied)

HDMI to DVI

(Not Supplied)

Stereo Cable

D-Sub Cable

English

Connections

Display Modes (D-Sub and HDMI/DVI Input)

Optimal resolution : 1366 x 768 pixels (T19B300 model only)

Display Mode Horizontal

Mode Resolution

IBM

VESA DMT

MAC VESA DMT VESA DMT VESA DMT VESA DMT VESA DMT

720 x 400 70Hz 31.469 70.087 28.322 -/+

640 x 480 60Hz 31.469 59.940 25.175 -/-

640 x 480 67Hz 35.000 66.667 30.240 -/-

640 x 480 72Hz 37.861 72.809 31.500 -/-

640 x 480 75Hz 37.500 75.000 31.500 -/-

800 x 600 60Hz 37.879 60.317 40.000 +/+

800 x 600 72Hz 48.077 72.188 50.000 +/+

800 x 600 75Hz 46.875 75.000 49.500 +/+

832 x 624 75Hz 49.726 74.551 57.284 -/-

1024 x 768 60Hz 48.363 60.004 65.000 -/-

1024 x 768 70Hz 56.476 70.069 75.000 -/-

1024 x 768 75Hz 60.023 75.029 78.750 +/+

1280 x 720 60Hz 45.000 60.000 74.250 +/+

1366 x 768 60Hz 47.712 59.790 85.500 +/+

Optimal resolution : 1920 x 1080 pixels

Display Mode Horizontal

Mode Resolution

IBM

VESA DMT

MAC VESA DMT VESA DMT VESA DMT VESA DMT VESA DMT

MAC VESA DMT VESA DMT VESA DMT VESA DMT

MAC VESA DMT VESA DMT VESA DMT VESA DMT VESA DMT VESA DMT VESA DMT VESA DMT VESA DMT

✎

NOTE

The interlace mode is not suppor ted.

The set might operate abnormally if a non-standard video format is selected.

Separate and Composite modes are supported. SOG(Sync On Green) is not suppor ted.

720 x 400 70Hz 31.469 70.087 28.322 -/+

640 x 480 60Hz 31.469 59.940 25.175 -/-

640 x 480 67Hz 35.000 66.667 30.240 -/-

640 x 480 72Hz 37.861 72.809 31.500 -/-

640 x 480 75Hz 37.500 75.000 31.500 -/-

800 x 600 60Hz 37.879 60.317 40.000 +/+

800 x 600 72Hz 48.077 72.188 50.000 +/+

800 x 600 75Hz 46.875 75.000 49.500 +/+

832 x 624 75Hz 49.726 74.551 57.284 -/-

1024 x 768 60Hz 48.363 60.004 65.000 -/-

1024 x 768 70Hz 56.476 70.069 75.000 -/-

1024 x 768 75Hz 60.023 75.029 78.750 +/+

1152 x 864 75Hz 67.500 75.000 108.000 +/+

1152 x 870 75Hz 68.681 75.062 100.000 -/-

1280 x 720 60Hz 45.000 60.000 74.250 +/+

1280 x 800 60Hz 49.702 59.810 83.500 -/+

1280 x 1024 60Hz 63.981 60.020 108.000 +/+

1280 x 1024 75Hz 79.976 75.025 135.000 +/+

1366 x 768 60Hz 47.712 59.790 85.500 +/+

1440 x 900 60Hz 55.935 59.887 106.500 -/+

1600 x 900RB 60Hz 60.000 60.000 108.000 +/+

1680 x 1050 60Hz 65.290 59.954 146.250 -/+

1920 x 1080 60Hz 67.500 60.000 148.500 +/+

Frequency (kHz)

Vertical

Frequency (Hz)

Vertical

Frequency(Hz)

Pixel Clock

(MHz)

Pixel Clock

(MHz)

Sync Polarity

(H/V)

Sync Polarity

(H/V)

English

Connections

Changing the Input Source

Source

SOURCE s→ Source

Use to select LED display or an external input sources such as a DVD / Blu-ray player / cable box / STB satellite receiver.

■ TV / Ext. / PC / HDMI/DVI / AV /

Component

✎

In the Source, connected inputs will be highlighted.

✎

TV, PC and Ext. always stay activated.

Edit Name

SOURCEs→ TOOLST → Edit Name → ENTER

In the Source, press the TOOLST button, and then you can set an external input sources name you want.

■ VCR / DVD / Cable STB / Satellite STB / PVR STB /

AV Receiver / Game / Camcorder / PC / DVI PC / DVI Devices / TV / IPTV / Blu-ray / HD DVD / DMA: Name

the device connected to the input jacks to make your input source selection easier.

✎

When connecting a PC to the HDMI IN (DVI) port with HDMI cable, you should set the LED display to PC mode under Edit Name.

✎

When connecting a PC to the HDMI IN (DVI) port with HDMI to DVI cable, you should set the LED display to DVI PC mode under Edit Name.

✎

When connecting an AV devices to the HDMI IN (DVI) port with HDMI to DVI cable, you should set the LED display to DVI Devices mode under Edit Name.

Information

SOURCEs → TOOLST→ Information → ENTER

You can see detailed information about the selected external device.

Basic Features

How to Navigate Menus

Before using the LED display, follow the steps below to learn how to navigate the menu and select and adjust different functions.

1 ENTERE / Direction button: Move the cursor and select

an item. Conﬁrm the setting.

2 RETURN button: Returns to the previous menu. 3 MENU button: Displays the main on-screen menu. 4 EXIT button: Exits the on-screen menu.

How to Operate the OSD (On Screen Display)

The access step may differ depending on the selected menu.

▲ / ▼ Select an icon with the ▲ or ▼

ENTER

▲ / ▼

◄ / ►

ENTER

EXIT

The main menu options appear on the screen:

Picture, Sound, Channel, System, Support.

button. Press ENTERE to access the

sub-menu. Select the desired submenu with the

▲ or ▼ button.

Adjust the value of an item with the ◄ or ► button. The adjustment in the OSD may differ depending on the selected menu.

Press ENTERE to complete the conﬁguration.

Press EXIT.

English

Basic Features

Using the INFO button (Now & Next guide)

The display identiﬁes the current channel and the status of certain audio-video settings.

The Now & Next guide shows daily LED display programme information for each channel according to the broadcasting time.

Scroll l / r to view information for a

desired programme while watching the current channel. (Depending on the channels)

Scroll u / d to view information for other channels. If you

want to move to the currently selected channel, press the

ENTERE button.

DTV Air

All

Coming Soon

Stereo

No title

Italian

576i

4:3

No detailed information.

• The displayed image may differ depending on the model.

17.02 Tue 19 Jul

Information

Using the Channel Menu

Press the CONTENT button to select Contents Home, and then select the menu you want to use. Each screen will be displayed.

Contents Home

Using Channel View

Guide

5 Coming Soon

Channel View - All

Today 17:00 18:0017:30 18:30

1 1futech

2 24ore.tv

3 BBC World

4 Class News

5 Coming Soon

6 R4 DTT

• The displayed image may differ depending on the model.

Red (Sche. Mgr) : Displays the Schedule Manager.

Green (-24 Hours): Viewing the list of programmes to be

IL MEDICO E LO STRGONE

DTV Air 6 R4 DTT

16:55 - 17:55

IL MEDICO E LO STREGONE - 2 TEMPO

No Information

IL MEDICO E LO STREGONE

Sche. Mgr b -24 Hours { +24 Hours } Ch. Mode Information k Page E Watch

TG 4 No Information

broadcasted before 24 hours.

{

Yellow (+24 Hours): Viewing the list of programmes to

be broadcasted after 24 hours.

}

Blue (Ch. Mode): Select the type of channels you want

to display on the Channel View window.

(Information): Displays details of the selected programme.

(Page): Move to next or previous page.

(Watch / Schedule)

– When selecting the current programme, you can watch

the selected programme.

– When selecting the future programme, you can reserve

to watch the selected programme. To cancel the schedule, press the ENTER

button again and select

Cancel Schedule.

Schedule Manager

17:00 Tue 19 Jul

Channel List

• The displayed image may differ depending on the model.

Guide Media Play Schedule Manager Source

Guide

CONTENT → Contents Home → Guide → ENTER

The EPG (Electronic Programme Guide) information is provided by broadcasters. Using programme schedules provided by broadcasters, you can specify programmes you want to watch in advance so that the channel automatically changes to the selected programme channel at the speciﬁed time. Programme entries may appear blank or out of date depending on a channel status.

CONTENT → Contents Home → Schedule Manager → ENTER

Return

You can view, modify or delete a channel you have reserved to watch.

Using the Schedule Viewing

You can set a desired channel to be displayed automatically at the intended time. Set the current time ﬁrst to use this function.

1. Press the ENTER

2. Press the TOOLS

button to select Schedule Manager.

button or a button to add

programme to schedule manually. The Schedule Viewing screen appears.

3. Press the

/ d / l / r buttons to set the Aerial,

Channel, Repeat, Date or Start Time.

English

Basic Features

Aerial: Select the desired antenna source.

Channel: Select the desired channel.

Repeat: Select Once, Manual, Sat~Sun, Mon~Fri or

Everyday to set at your convenience. If you select Manual, you can set the day you want.

✎

The c mark indicates the date is selected.

Date: you can set desired date.

✎

It is available when you select Once in Repeat.

Start Time: You can set start time you want.

✎

On the Information screen, you can change or cancel a reserved information.

Cancel Schedule: Cancel a show you have

reserved to watch.

Edit: Change a show you have reserved to watch.

Return: Return to the previous screen.

Channel List

CONTENT → Channel List → ENTER

You can view all the channel searched.

• The displayed image may differ depending on the model.

✎

When you press the CH LIST button on the remote control, Channel List screen will be displayed at once.

Using the operation buttons with the Channel List.

(Tools): Press Tools button to check the following

■ functions.

Programme View:Press the u/d buttons to select the

desired programme, then press the ENTERE button. (Only for DIGITAL Channel)

Edit Favourites: Set channels you watch frequently as

favourites.

✎

Select the Edit Favourites, then press the

ENTERE button.

– If the channel is already added to favourite

channel, Edit Favourites will be shown.

Channel List

All

1 1futech

2 24ore.tv

3 BBC World

4 Class News

5 Coming Soon

6 R4 DTT

IL MEDICO E LO STREGONE

T Tools L Ch. Mode E Watch k Page

Lock / Unlock: Lock a channel so that the channel

cannot be selected and viewed.

✎

This function is available only when the Channel Lock is set to On.

✎

The PIN input screen appears. Enter your 4-digit PIN, the default of which is “0-0-0-0”. Change the PIN using the Change PIN option.

Edit Channel Name (Only for Analogue channels):

Assign your own channel name.

✎

This function may not support depending on the region.

Edit Channel Number: Edit the number by pressing the

number buttons desired.

✎

This function may not support depending on the region.

Delete: You can delete a channel to display the

channels you want.

Information: Display the channel name, resolution,

picture mode, language and so on.(Some just available for DTV)

Sort: Change the list ordered by channel name or

channel number. (Only for DIGITAL Channel)

Change antenna: Switches to Air or Cable.

Edit Mode: You can select desired channels and edit it.

■

l r

(Ch. Mode): Move to the type of channels you want to

display on the Channel List screen.

✎

The option may differ depending on country.

■

(Watch / Information): Watches the channel you

select. / Displays details of the selected programme.

■

(Page): Move to next or previous page.

How to use Schedule Viewing in Channel List (Depending on the channels)

When you set the Schedule Viewing in Channel List, you can only set the programme in Programme View.

1. Press the CH LIST button, then select a desired digital

channel.

2. Press the TOOLS

3. Press the

then press the E (Information) button.

4. Select Schedule Viewing, then press the ENTER

button when done.

✎

If you want to cancel Schedule Viewing, follow steps 1 through 3. Select Cancel Schedule.

button and select Programme View.

u / d

buttons to select the desired programme,

English

Basic Features

Channel Menu

¦ Retuning Channels

MENUm → Channel → ENTER

Aerial (Air / Cable)

Before your television can begin memorizing the available channels, you must specify the type of signal source that is connected to the LED display.

Country

(depending on the country) The PIN input screen appears. Enter your 4 digit PIN number.

✎

Select your countr y so that the LED display can correctly auto-tune the broadcasting channels.

■ Digital Channel: Change the country for digital channels.

■ Analogue Channel: Change the country for analogue channels.

Auto Tuning

(depending on the country)

✎

Automatically allocated programme numbers may not correspond to actual or desired programme numbers. If a channel is locked using the Channel Lock function, the PIN input window appears.

■ Auto Tuning

– Air / Cable: Select the antenna source to memorise.

Digital & Analogue / Digital / Analogue: Select the channel source to memorise.

✎

When selecting Cable → Digital & Analogue or Digital: Provide a value to scan for cable channels.

Search Mode(Full / Network / Quick): Selects

the Search Mode settings among Full /

Network / Quick.

Network (Auto / Manual): Selects the Network

ID setting mode among Auto or Manual.

Network ID: When Network is Manual, you

can set up Network ID using the numeric buttons.

Frequency: Displays the frequency for the

channel. (differs in each country)

Modulation: Displays available modulation

values.

Symbol Rate: Displays available symbol rates.

■ Cable Search Option

(depending on the country) Sets additional search options such as the frequency and

symbol rate for a cable network search.

– Start Frequency / Stop Frequency: Set the start or

stop frequency (differs in each country).

– Symbol Rate: Displays available symbol rates. – Modulation: Displays available modulation values.

Manual Tuning

Scans for a channel manually and stores in the LED display.

✎

If a channel is locked using the Channel Lock function, the PIN input window appears.

■ Digital Channel Tuning: Scans for a digital channel.

1. Press the ENTER

✎

When selecting Aerial → Air: Channel, Frequency, Bandwidth

✎

When selecting Aerial → Cable: Frequency,

Modulation, Symbol Rate

2. Press the

has ﬁnnished, a channel is updated in the channel list.

■ Analogue Channel Tuning: Scans for a analogue channel.

1. Press the ENTER

2. Set the Programme, Colour System, Sound System, Channel and Search.

3. Press the

has ﬁnnished, a channel is updated in the channel list.

button to select New.

button to select Search. When scanning

button to select New.

button to select Store. When scanning

Transfer Channel List

The PIN input screen appears. Enter your 4 digit PIN number. Imports or exports the channel map. You should connect a USB storage to use this function.

■ Import from USB: Import channel list from USB.

■ Export to USB: Export channel list to USB. This function is

available when USB is connected.

✎

USB format should be FAT32.

Fine Tune

(analogue channels only) If the reception is clear, you do not have to ﬁne tune the channel,

as this is done automatically during the search and store operation. If the signal is weak or distorted, ﬁne tune the channel manually. Scroll to the left or right until the image is clear.

✎

Settings are applied to the channel you’re currently watching.

✎

Fine tuned channels that have been saved are marked with an asterisk “*” on the right-hand side of the channel number in the channel banner

✎

To reset the fine-tuning, select Reset.

English

Basic Features

Picture Menu

¦ Changing the Preset Picture Mode

MENUm → Picture → Picture Mode → ENTER

Picture Mode

Select your preferred picture type.

✎

When connecting a PC, the Picture Mode is only available the Standard and Entertain.

■ Dynamic: Suitable for a bright room.

■ Standard: Suitable for a normal environment.

■ Movie: Suitable for watching movies in a dark room.

■ Entertain: Suitable for watching movies and games.

✎

It is only available when connecting a PC.

¦ Adjusting Picture Settings

MENUm → Picture → ENTER

Samsung MagicAngle

Adjust screen viewing Angle to optimize screen quality according to your viewing position.

■ Samsung MagicAngle: When viewing the screen at an

angle from below or above by setting the appropriate mode for each position you can obtain a similar picture quality as viewing the screen directly from the front.

Off: Select when viewing from the front position.

Lean back mode: Select when viewing from a slightly

lower position.

Standing Mode: Select when viewing from the upper

position.

■ Mode: Adjust screen viewing angle.

✎

When Samsung MagicAngle is set to Lean back mode or Standing Mode, Gamma is not available.

Backlight / Contrast / Brightness / Sharpness / Colour / Tint (G/R)

Your television has several setting options for picture quality control.

✎

NOTE

In analogue TV, PC, AV modes of the PAL system, the

Tint (G/R) function is not available.

When connecting a PC, you can only make changes to

Backlight, Contrast, Brightness and Sharpness.

Settings can be adjusted and stored for each external

device connected to the LED display.

Lowering picture brightness reduces power

consumption.

Screen Adjustment

■ Picture Size: Your cable box / satellite

receiver may have its own set of screen sizes as well. However, we highly recommend you use 16:9 mode most of the time.

Auto Wide: Automatically adjusts the picture size to the 16:9 aspect ratio.

16:9: Sets the picture to 16:9 wide mode. Wide Zoom: Magniﬁes the picture size more than 4:3.

✎

Adjusts the Position by using u / d buttons.

Zoom: Magniﬁes the 16:9 wide pictures vertically to ﬁt the screen size.

✎

Adjusts the Zoom or Position by using u / d button.

4:3: Sets the picture to basic (4:3) mode.

✎

Do not watch in 4:3 format for a long time. Traces of borders displayed on the left, right and centre of the screen may cause image retention (screen burn) which are not covered by the warranty.

Screen Fit: Displays the full image without any cut-off when HDMI (720p / 1080i / 1080p) or Component (720p / 1080i / 1080p) signals are inputted.

✎

Adjusts the Position by using u / d / l / r button.

✎

NOTE

Depending on the input source, the picture size options

may vary.

The available items may differ depending on the

selected mode.

When connecting a PC, only 16:9 and 4:3 modes can

be adjusted.

Settings can be adjusted and stored for each external

device connected to an input on the LED display.

If you use the Screen Fit function with HDMI 720p

input, 1 line will be cut at the top, bottom, left and right as in the overscan function.

■ Zoom / Position:You can adjust picture size and position

/ d / l / r button.

✎

It's only available when picture size is set as Zoom and Wide Zoom.

✎

In Wide Zoom mode, you can only use Position adjustment.

✎

Reset: Reset the Zoom and Position to the default settings.

■ 4:3 Screen Size (16:9 / Wide Zoom / Zoom / 4:3): Available only when picture size is set to Auto Wide. You can determine the desired picture size at the 4:3 WSS (Wide Screen Service) size or the original size. Each European country requires different picture size.

✎

Not available in HDMI , Component, and HDMI/DVI mode.

English

Basic Features

■ PC Screen Adjustment

✎

Available only PC mode.

Coarse / Fine: Removes or reduces picture noise.

If the noise is not removed by Fine-tuning alone, then adjust the frequency as best as possible (Coarse) and Finetune again. After the noise has been reduced, readjust the picture so that it is aligned to the centre of screen.

Position: Adjusts the PC screen position with

direction button (u / d / l / r).

Image Reset: Resets the image to default settings.

Auto Adjustment

Frequency values / position and ﬁne tune are adjusted automatically.

✎

It's only available in PC mode.

Using Your TV as a Computer (PC) Display

Setting Up Your PC Software (Based on Windows XP) Depending on the version of Windows and the video card, the actual screens on your PC may differ in which case the same basic set-up information will almost always be applied. (If not, contact your computer manufacturer or Samsung Dealer.)

1. Click on “Control Panel” on the Windows start menu.

2. Click on “Appearance and Themes” in the “Control Panel”

window and a display dialog-box will appear.

3. Click on “Display” and a display dialog box will appear.

4. Navigate to the “Settings” tab on the display dialog-box.

The correct size setting (resolution) [Optimum: 1920 x

1080 pixels]. (T19B300: 1366 x 768 pixels)

If a vertical-frequency option exists on your display

settings dialog box, the correct value is “60” or “60 Hz”. Otherwise, just click “OK” and exit the dialog box.

Maintaining the Correct Posture when Using this Product

Maintain the correct posture when using this product.

Straighten your back.

Keep a distance of 45~50 cm (15~19 inches) from your

eyes to the screen. Look down at the screen and face the screen forwards.

Adjust the angle of the product so that light is not reﬂected

onto the screen.

Keep your elbow at a right angle and keep your arm level

with the back of your hand. Keep your elbow at a right angle.

Place your heels ﬂat on the ground while keeping your

knees at an angle of 90 degrees or higher and maintain the position of your arm so that your arm is below your heart.

¦ Changing the Picture Options

Advanced Settings

MENUm → Picture → Advanced Settings → ENTER

(Advanced Settings are available in Standard / Movie mode) Compared to previous models, new Samsung LED display have

a more precise picture.

✎

When connecting a PC, you can only make changes to White Balance.

Advanced Settings

Dynamic Contrast High

Black Tone Off

Flesh Tone 0

RGB Only Mode Off

Colour Space Native

White Balance

Gamma 0

■ Dynamic Contrast (Off / Low / Medium / High): Adjust the screen contrast.

■ Black Tone (Off / Dark / Darker / Darkest): Select the black level to adjust the screen depth.

■ Flesh Tone: Emphasize pink “Flesh Tone.”

■ RGB Only Mode (Off / Red / Green / Blue): Displays the Red, Green and Blue colour for making ﬁne adjustments to the hue and saturation.

■ Colour Space (Auto / Native): Adjust the range of colours available to create the image.

■ White Balance: Adjust the colour temperature for a more natural picture.

R-Offset / G-Offset / B-Offset: Adjust each colour’s (red, green, blue) darkness.

R-Gain / G-Gain / B-Gain: Adjust each colour’s (red, green, blue) brightness.

Reset: Resets the White Balance to it’s default settings.

■ Gamma: Adjust the primary colour intensity.

■ Motion Lighting (Off / On): Reduce power consumption by brightness control.

English

Basic Features

Picture Options

MENUm → Picture → Picture Options → ENTER

✎

When connecting a PC, you can only make changes to the Colour Tone.

Picture Options

Colour Tone Standard

Digital Noise Filter Auto

MPEG Noise Filter Auto

HDMI Black Level Low

Film Mode Off

■ Colour Tone (Cool / Standard / Warm1 / Warm2)

✎

Warm1 or Warm2 will be deactivated when the picture mode is Dynamic.

✎

Settings can be adjusted and stored for each external device connected to an input on the LED display.

■ Digital Noise Filter (Off / Low / Medium / High / Auto / Auto Visualisation): If the broadcast signal received by your LED display is weak, you can activate the Digital Noise Filter feature to reduce any static and ghosting that may appear on the screen.

✎

When the signal is weak, try other options until the best picture is displayed.

Auto Visualisation: When changing analogue channels, displays signal strength.

✎

Only available for analogue channels.

✎

When bar is green, you are receiving the best possible signal.

■ MPEG Noise Filter (Off / Low / Medium / High / Auto): Reduces MPEG noise to provide improved picture quality.

■ HDMI Black Level (Low / Normal): Selects the black level on the screen to adjust the screen depth.

✎

Available only in HDMI mode (RGB signals).

■ Film Mode (Off / Auto1 / Auto2): Sets the LED display to automatically sense and process ﬁlm signals from all sources and adjust the picture for optimum quality.

✎

Available in TV mode, HDMI (1080i).

✎

If the screen does not seem natural, change its option to Off / Auto1 / Auto2 in Film Mode.

Sound Menu

¦ Changing the Preset Sound Mode

MENUm → Sound → Sound Mode → ENTER

Sound Mode

■ Standard: Selects the normal sound mode.

■ Music: Emphasizes music over voices.

■ Movie: Provides the best sound for movies.

■ Clear Voice: Emphasizes voices over other sounds.

■ Amplify: Increase the intensity of high-frequency sound to

allow a better listening experience for the hearing impaired.

✎

If Speaker Select is set to External Speaker , Sound Mode is disabled.

¦ Adjusting Sound Settings

Sound Effect

MENUm → Sound → Sound Effect → ENTER

(standard sound mode only)

■ SRS TruSurround HD(Off / On)

 This function provides a virtual 5.1 channel surround sound

experience through a pair of speakers using HRTF (Head Related Transfer Function) technology.

■ SRS TruDialog (Off / On)

 This function allows you to increase the intensity of a voice

over background music or sound effects so that dialog can be heard more clearly.

■ Equalizer

 Adjusts the sound mode.

– Balance L/R: Adjusts the balance between the right and

left speaker.

 100Hz / 300Hz / 1kHz / 3kHz / 10kHz (Bandwidth

Adjustment): Adjusts the level of speciﬁc bandwidth frequencies.

– Reset: Resets the equaliser to its default settings.

Reset Picture (Yes / No)

Resets your current picture mode to its default settings.

English

Basic Features

¦ Sound Systems, Etc.

MENUm → Sound → ENTER

Broadcast Audio Options

■ Audio Language

 (digital channels only)  Change the default value for audio languages.

✎

The available language may differ depending on the broadcast.

■ Audio Format

 (digital channels only)  Select the audio format.

■ Audio Description

 (not available in all locations) (digital

channels only)

 This function handles the Audio Stream

for the AD (Audio Description) which is sent along with the Main audio from the broadcaster.

✎

Audio Description (Off / On): Turn the audio description function on or off.

✎

Volume: Adjust the audio description volume.

Additional Settings

(digital channels only)

■ DTV Audio Level (MPEG / HE-AAC): This function allows you to reduce the disparity of a voice signal (which is one of the signals received during a digital TV broadcast) to a desired level.

✎

According to the type of broadcast signal, MPEG / HE-AAC can be adjusted between -10dB and 0dB.

✎

To increase or decrease the volume, adjust between the range 0 and -10 respectively.

■ SPDIF Output: SPDIF (Sony Philips Digital InterFace) is used to provide digital sound, reducing interference going to speakers and various digital devices such as a DVD player.

– Audio Format: You can select the Digital Audio output

(SPDIF) format.

✎

The available Digital Audio output (SPDIF ) format may differ depending on the input source.

– Audio Delay: Correct audio-video sync problems, when

watching TV or video, and when listening to digital audio output using an external device such as an AV receiver (0ms ~ 250ms).

✎

It's not available for TB300 series.

■ Dolby Digital Comp (Line / RF): This function minimizes

signal disparity between a dolby digital signal and a voice signal (i.e. MPEG Audio, HE-AAC, ATV Sound).

✎

Select Line to obtain dynamic sound, and RF to reduce the difference between loud and soft sounds at night time.

Line: Set the output level for signals greater or less than

-31dB (reference) to either -20dB or -31dB. RF: Set the output level for signals greater or less than

-20dB (reference) to either -10dB or -20dB.

Speaker Settings

■ Speaker Select (External Speaker / TV Speaker):A sound

echo may occur due to a difference indecoding speed between the main speaker and theaudio receiver. In this case, set the TV to External Speaker.

✎

When Speaker Select is set to External Speaker, the volume and MUTE buttons will not operate and the sound settings will be limited.

✎

When Speaker Select is set to External Speaker.

TV Speaker: Off, External Speaker: On

✎

When Speaker Select is set to TV Speaker.

TV Speaker: On, External Speaker: On

✎

If there is no video signal, both speakers will be mute.

✎

It's not available for TB300 series.

■ Auto Volume (Off / Normal / Night): To equalize the volume level on each channel, set to Normal.

Night: This mode provides an improved sound experience compared to Normal mode, making almost no noise. It is useful at night.

Reset Sound (Yes / No)

Reset all sound settings to the factory defaults.

Dual

↔ Dual

f-g

Default

Automatic

change

Dual

Automatic

change

Dual

¦ Selecting the Sound Mode

When you set to Dual fg, the current sound mode is displayed on the screen.

Audio

Type

Stereo

NICAM

Stereo

✎

If the Stereo signal is weak and an automatic switching, occurs, then switch to the Mono.

✎

Only activated in stereo sound signal.

✎

Only available when the input Source is set to TV.

Mono Mono

Stereo

Dual

Mono Mono

Stereo

Dual

Stereo ↔ Mono

Dual

Mono ↔ Stereo Mono ↔ Dual

 Dual g 

English

Basic Features

System Menu

¦ Setting the Time

MENUm → System → ENTER

Time

■ Clock: Setting the clock is for using various timer features

of the LED display.

✎

The current time will appear every time you press the

INFO button.

✎

If you disconnect the power cord, you have to set the clock again.

Clock Mode (Auto / Manual)

Auto: Set the current time automatically using the time

from a digital channel.

✎

The antenna must be connected in order to set the time automatically.

Manual: Set the current time manually.

✎

Depending on the broadcast station and signal, the auto time set up may not be correct. In this case, set the time manually.

Clock Set: Set the Day, Month, Year, Hour and Minute manually.

✎

Available only when Clock Mode is set to Manual.

✎

You can set the Day, Month, Year, Hour and Minute directly by pressing the number buttons on the remote control.

Time Zone (Auto / Manual) (depending on the country): Select your time zone.

✎

This function is only available when the Clock Mode is set to Auto.

– GMT(GMT-3:00~GMT-1:00 / GMT /

GMT+1:00~GMT+ 12:00): Selects your time zone.

✎

This function is only available when the Time Zone is set to Manual.

– DST(Daylight Saving Time) (Off / On): Switches

the Daylight Saving Time function on or of off.

✎

This function is only available when the Time

Zone is set to Manual.

Using the Sleep Timer

■ Sleep Timer

display after a preset period of time. (30, 60, 90, 120, 150 and 180 minutes).

✎

To cancel Sleep Timer, select Off.

: Automatically shuts off the LED

Setting the On / Off Timer

■ On Timer

On Timer 1 / On Timer 2 / On Timer 3: Three different on

timer settings can be made. You must set the clock ﬁrst.

On Timer 1

Setup Off

Mon

Tue

Wed

Thu

Fri

Return

Sat

Sun

Time 0:00

Volume

Source TV

Aerial DTV

Channel 1

Setup: Select Off, Once, Everyday, Mon~Fri, Mon~Sat, Sat~Sun or Manual to set at your convenience. If you

select Manual, you can set up the day you want to activate the timer.

✎

The c mark indicates the day you've selected.

Time: Set the hour and minute. Volume: Set the desired volume level. Source: Select a desired input source when the LED

display is turned on automatically. (USB can be selected only when a USB device is connected to the LED display)

Aerial (when the Source is set to TV): Select ATV or DTV. Channel (when the Source is set to TV): Select the desired

channel. Music / Photo (when the Source is set to USB): Select a

folder in the USB device containing music or photo ﬁles to be played when the LED display is turned on automatically.

✎

NOTE

If there is no music file on the USB device or the

folder containing a music file is not selected, the Timer function does not operate correctly.

When there is only one photo file in the USB, the

Slide Show will not play.

If a folder name is too long, the folder cannot be

selected.

Each USB you use is assigned its own folder.

When using more than one of the same type of USB, make sure the folders assigned to each USB have different names.

It is recommended that you use a USB memory

stick and a multi card reader when using On Timer.

The On Timer function may not work with USB

devices with a built-in battery, MP3 players, or PMPs made by some manufacturers because these devices take a long time to be recognized.

English

Basic Features

■ Off Timer

Off Timer 1 / Off Timer 2 / Off Timer 3: Three different off

timer settings can be made. You must set the clock ﬁrst.

Off Timer 1

Setup Off

Sun Mon Tue Wed Thu Fri Sat

Time 0:00

Return

Setup: Select Off, Once, Everyday, Mon~Fri, Mon~Sat, Sat~Sun or Manual to set at your convenience. If you

select Manual, you can set up the day you want to activate the timer.

✎

The c mark indicates the day you've selected.

Time: Set the hour and minute.

¦ Locking Programmes

MENUm → System → Security → ENTER

Security

✎

The PIN input screen appears before the setup screen.

✎

Enter your 4-digit PIN, the default of which is “0-0-0-0”. Change the PIN using the Change PIN option.

■ Channel Lock (Off / On): Lock channels in Channel Manager, to prevent unauthorized users, such as children, from watching unsuitable programme.

✎

Available only when the input Source is set to TV.

■ Program Rating Lock (depending on the country): Prevent unauthorized users, such as children, from watching unsuitable programme with a user-deﬁned 4-digit PIN code. If selected channel is locked, the “ displayed.

✎

The items of Program Rating Lock differs depending on the country.

■ Change PIN: The Change PIN screen will appear. Choose any 4 digits for your PIN and enter them. Change your personal ID number required to set up the LED display. Re-enter the same 4 digits. When the Conﬁrm screen disappears, your PIN has been memorised.

” symbol will be

¦ Economical Solutions

MENUm → System → Eco Solution → ENTER

Eco Solution

■ Energy Saving (Off / Low / Medium / High / Picture Off)

in order to reduce power consumption. If you select Picture Off, the screen is turned off, but the sound remains on.

Press any button except volume button to turn on the screen.

■ No-Signal Power Off (Off / 15 min / 30 min / 60 min):

To avoid unnecessary energy consumption, set how long you want the LED display to remain on if it’s not receiving a signal.

■ Auto Power Off (Off / On): Saves power by turning LED

display off automatically when no user operation is received for 4 hours.

: This adjusts the brightness of the LED display

✎

Disabled when the PC is in power saving mode.

¦ Other Features

MENUm → System → ENTER

Language

■ Menu Language: Set the menu language.

■ Teletext Language: Set a desired language for teletext.

✎

English is the default in cases where the selected language is unavailable in the broadcast.

■ Preferred Language (Primary Audio / Secondary Audio / Primary Subtitle / Secondary Subtitle): Select a language, which will be the default language when a channel is selected.

Subtitle

Use this menu to set the Subtitle mode.

■ Subtitle (Off / On): Switches subtitles on or off.

■ Subtitle Mode (Normal / Hearing Impaired): Sets the subtitle mode.

■ Subtitle Language: Sets the subtitle language.

✎

If the programme you are watching does not support the Hearing Impaired function, Preferred automatically activates even if the Hearing Impaired mode is selected.

✎

English is the default in cases where the selected language is unavailable in the broadcast.

English

Basic Features

Digital Text (Disable / Enable)

(UK only) If the programme broadcasts with digital text, this feature is

enabled.

Auto Protection Time

■ Off / 2 hours / 4 hours / 8 hours / 10 hours: If the screen

remains idle with a still image for a certain period of time deﬁned by the user, the screen saver is activated to prevent the formation of ghost images on the screen.

General

■ Max. Power Saving (Off / On): Turn off PC monitor when

PC is not used for certain length of time to reduce power consumption.

■ Game Mode (Off / On): When connecting to a game

console such as PlayStation™ or Xbox™, you can enjoy a more realistic gaming experience by selecting game mode.

✎

NOTE

Precautions and limitations for game mode

– To disconnect the game console and connect another

external device, set Game Mode to Off in the setup menu.

– If you display the LED display menu in Game Mode,

the screen shakes slightly.

Game Mode is not available when the input source is

set to TV or PC.

After connecting the game console, set Game Mode

to On. Unfortunately, you may notice reduced picture quality.

If Game Mode is On:

– Picture mode is set to Standard and Sound mode is

set to Movie.

■ Panel Lock (Off / On): Lock or unlock all the keys on the

front panel at once. When Panel Lock is on, none of the keys on the front panel operate.

■ Boot Logo (Off / On): Display Samsung logo when the LED

display is turned on.

Common Interface

■ CI Menu: This enables the user to select from the CAM-

provided menu. Select the CI Menu based on the menu PC Card.

■ Application Info: View information on the CAM inserted

into the CI slot and on the “CI or CI+ CARD” which is inserted into the CAM. You can install the CAM anytime whether the LED display is on or off.

1. Purchase a CI CAM module at your nearest dealer or by

phone.

2. Firmly insert the “CI or CI+ CARD” into the CAM in the

direction of the arrow.

3. Insert the CAM with the “CI or CI+ CARD” into the common

interface slot, in the direction of the arrow so that it aligns parallel with the slot.

4. Check if you can see a picture on a scrambled signal

channel.

¦ Picture In Picture (PIP)

MENUm → System → PIP → ENTER

PIP

You can watch the LED display tuner and one external video source simultaneously. PIP (Picture-in-Picture) does not function in the same mode.

✎

NOTE

For PIP sound, refer to the Sound Select instructions.

If you turn the LED display of f while watching in PIP

mode, the PIP window will disappear.

You may notice that the picture in the PIP window

becomes slightly unnatural when you use the main screen to view a game or karaoke.

While Program Rating Lock is in operation, the PIP

function cannot be used.

PIP settings

Main picture Sub picture HDMI, HDMI(PC), Component,

■ PIP (Off / On): Activate or deactivate the PIP function.

■ Channel: Select the channel for the sub-screen.

■ Size (

/ Ã): Select a size for the sub-picture.

■ Position ( sub-picture.

■ Sound Select (Main / Sub): You can choose the desired sound (Main / Sub) in PIP mode.

/ – / — / œ): Select a position for the

¦ DivX® Video On Demand

Shows the registration code authorized for the TV. If you connect to the DivX web site and register, you can download the VOD registration ﬁle. If you play the VOD registration using Media contents, the registration is

completed.

✎

For more information on DivX® VOD, visit “http://vod.divx. com”.

English

Basic Features

Support Menu

MENUm → Support → ENTER

Self Diagnosis

✎

Self Diagnosis might take few seconds, this is part of the normal operation of the LED display

■ Picture Test (Yes / No): Use to check for picture problems.

Yes: If the test pattern does not appear or there is noise in the test pattern, select Yes. There may be a problem with the LED display. Contact Samsung’s Call Centre for assistance.

No: If the test pattern is properly displayed, select No. There may be a problem with your external equipment. Please check your connections. If the problem persists, refer to the external device’s user manual.

■ Sound Test (Yes / No): Use the built-in melody sound to

check for sound problems.

Yes: If you can hear sound only from one speaker or not at all during the sound test, select Yes. There may be a problem with the LED display. Contact Samsung’s Call Centre for assistance.

No: If you can hear sound from the speakers, select No. There may be a problem with your external equipment. Please check your connections. If the problem persists, refer to the external device’s user manual.

■ Signal Information: (digital channels only) An HD channel’s

reception quality is either perfect or the channels are unavailable. Adjust your antenna to increase signal strength.

■ Reset: Restores all settings to factory defaults except

network settings.

Software Upgrade

Software Upgrade can be performed via a broadcasting signal

or downloading the latest ﬁrmware from “www.samsung.com,” to a USB memory device.

Current Version the software already installed in the LED display.

✎

Software is represented as “Year/Month/Day_Version”.

Installing the Latest Version

■ By USB: Insert a USB drive containing the ﬁrmware upgrade ﬁle, downloaded from “www.samsung.com,” into the TV. Please be careful not to disconnect the power or remove the USB drive until upgrades are complete. The TV will be turned off and on automatically after completing the ﬁrmware upgrade. When software is upgraded, video and audio settings you have made will return to their default settings. We advise you to write down your settings so that you can easily reset them after the upgrade.

■ By Channel: Upgrade the software using the broadcasting signal.

✎

If the function is selected during the software transmission period, software will be automatically searched and downloaded.

✎

The time required to download the software is determined by the signal status.

■ Alternative Software: Replace the current software with the alternative.

■ Standby Mode Upgrade (Off / 1 hour later / 2 hours later / 00:00 / 02:00 / 12:00 / 14:00): A manual upgrade will be automatically performed at selected time. Since the power of the unit is turned on internally, the screen may be turned on slightly for the LED product. This phenomenon may continue for more than 1 hour until the software upgrade is complete.

TV Side

USB Drive

Contact Samsung

View this information when your LED display does not work properly or when you want to upgrade the software. You can ﬁnd information regarding our call centres, and how to download products and software.

Contents Home

You can enjoy useful and various contents.

Software Upgrade

By USB

By Channel

Alternative Software

Standby Mode Upgrade 2 hours later

English

Advanced Features

Using the Media Play

Enjoy videos, photos, music ﬁles saved on a USB Mass Storage Class (MSC) device.

1. Press the CONTENT button.

2. Press the

Play), then press the ENTERE button.

CONTENT → Media Play → ENTER

/ r button to select desired menu (Media

Media Play / Videos /

Cruzer Blade

Videos

Photos

Music

• The displayed image may differ depending on the model.

¦ Connecting a USB Device

1. Turn on your TV.

2. Connect a USB device containing photo and music ﬁles to the USB jack on the side

of the TV.

3. When USB is connected to the TV, popup window appears. Then you can select Device connected.

✎

It might not work properly with unlicenced multimedia files.

✎

Need-to-Know List before using Media Play.

MTP (Media Transfer Protocol) is not suppor ted.

The file system supports FAT16, FAT32 and NTFS.

Certain types of USB Digital camera and audio devices may not be compatible with this TV.

Media Play only supports USB Mass Storage Class (MSC) devices. MSC is a Mass Storage Class Bulk-Only Transport

device. Examples of MSC are Thumb drives, Flash Card Readers and USB HDD (USB HUB are not supported). Devices should be connected directly to the TV’s USB por t.

USB (HDD) is not supported.

Before connecting your device to the TV, please back up your files to prevent them from damage or loss of data. SAMSUNG

is not responsible for any data file damage or data loss.

Do not disconnect the USB device while it is loading.

The higher the resolution of the image, the longer it takes to display on the screen.

The maximum supported JPEG resolution is 15360 x 8640 pixels.

For unsupported or corrupted files, the “Not Supported File Format” message is displayed.

MP3 files with DRM that have been downloaded from a non-free site cannot be played. Digital Rights Management (DRM)

is a technology that supports the creation, distribution and management of the content in an integrated and comprehensive way, including the protection of the rights and interests of the content providers, the prevention of the illegal copying of contents, as well as managing billings and settlements.

If more than 2 PTP devices are connected, you can only use one at a time.

If more than two MSC devices are connected, some of them may not be recognized. A USB device that requires high power

(more than 500mA or 5V ) may not be supported.

If an over-power warning message is displayed while you are connecting or using a USB device, the device may not be

recognized or may malfunction.

TV Side

3.23GB Free / 3.55GB

USB Drive

Return

English

Advanced Features

If the TV has been no input during time set in Auto Protection Time, the Screensaver will run.

The power-saving mode of some external hard disk drives may be released automatically when connected to the TV.

If a USB extension cable is used, the USB device may not be recognized or the files on the device may not be read.

If a USB device connected to the TV is not recognized, the list of files on the device is corrupted or a file in the list is not

played, connect the USB device to the PC, format the device and check the connection.

Media Play only supports sequential jpeg format.

¦ Screen Display

Move to the desired ﬁle using the u / d / l / r buttons and then press the ENTERE button. The ﬁle is played. Media Play screen may differ depending on the way to enter the screen.

Information:

Displays the selected content

category (Music, for example),

device (USB drive,for example),

folder/ﬁle name and page.

Contents mode:

You can select the desired

Content Category.

Media Play / Videos / Cruzer.../Video_02.AVI

Upper Folder

Video_02

1.Jan.2012

Video_04

1.Jan.2012

Video_06

1.Jan.2012

Video_08

1.Jan.2012

Video_01

1.Jan.2012

Video_03

1.Jan.2012

Video_05

1.Jan.2012

Video_07

1.Jan.2012

�µ

Page Move E Play T Tools R Return

• The displayed image may differ depending on the model.

Operation Buttons

•

�

Turn to the previous page. Only available in Music.

•

Turn to the next page. Only available in Music.

•E Play: Play the media ﬁle.

•T Tools: Displays the option menu.

•R Return: Move to the previous step.

Video_02.AVI

1.Jan.2012

17.6MB

2 / 8

Displays the selected ﬁle information.

English

Advanced Features

Videos

Playing Video

1. Press the

ﬁle list.

2. Press the ENTER

x x

Supported Subtitle Formats

– External

/ r / u / d button to select the desired video in the

button or ∂ (Play) button.

The selected file name is displayed on the top with its playing time.

If video time information is unknown, play time and progress bar are not displayed.

During video playback, you can search using l and r button.

You can use π (REW) and µ (FF) buttons during playback.

✎

In this mode, you can enjoy movie clips contained on a Game, but you cannot play the Game itself.

Name Extension

MPEG-4 Timed text .ttxt

SAMI .smi

SubRip .srt

SubViewer .sub

Micro DVD .sub or .txt

SubStation Alpha .ssa

Advanced SubStation Alpha .ass

Powerdivx .psb

• The displayed image may differ depending on the model.

– Internal

Name Container

Xsub AVI

SubStation Alpha MKV

Advanced SubStation Alpha MKV

SubRip MKV

MPEG-4 Timed text MP4

English

Advanced Features

Supported Video Formats

File

Extension

*.avi

*.mkv

*.asf

*.wmv

*.mp4

*.3gp

*.vro

*.mpg

*.mpeg

*.ts *.tp

*.trp

*.m2ts

*.mts

*.divx

Container Video Codec Resolution

DivX 3.11 / 4.x

/ 5.1 / 6.0

MPEG4 SP /

ASP

AVI

MKV

ASF MP4 3GP VRO VOB

PS TS

H.264 BP / MP

/ HP

H.263

Motion JPEG 640 x 480 10

Window Media

Video v9

MPEG2 Hight Proﬁle High Level

MPEG1 MPEG-1 except D-picture

1920 x 1080

1920 x 1080 20 [40]

Frame rate

(fps)

Bit rate (Mbps)

20 [40]

Support BP / MP / HP Level 4.1

VC1 SP / MP / A P L3 Support,

Comments Audio Codec

GMC Not Support

Not Include FMO / ASO / RS

Proﬁle3, restricted up to SD

L4 Not Support

Simple Proﬁle Medium Level

Main Proﬁle High Level

Advanced Proﬁle Level 3

WMV9 support

resolution

AC3

LPCM

ADMPCM(IMA, MS)

AAC

HE-AAC

WMA

DD+

MPEG(MP3)

DTS Core

Vorbis

English

Advanced Features

Other Restrictions

✎

NOTE

If there are problems with the contents of a codec, the codec will not be supported.

If the information for a Container is incorrect and the file is in error, the Container will not be able to play correctly.

Sound or video may not work if the contents have a standard bitrate/frame rate above the compatible Frame/ sec listed in

the table above.

If the Index Table is in error, the Seek (Jump) function is not supported.

You may experience file stuttering while playing a video through a network connection.

Name Format

Supports up to H.264, Level 4.1

H.264 FMO / ASO / RS, VC1 SP / MP / AP L4 and

AVCHD are not supported. MPEG4 SP, ASP:

– Below 1280 x 720: 60 frame max – Above 1280 x 720: 30 frame max

GMC 2 over is not supported.

Photos

Viewing a Photo (or Slide Show)

1. Press the u / d / l / r button to select the desired photo in

the ﬁle list.

2. Press the ENTER

– When a selected photo is displayed, press the ENTER

button to start the slide show.

– During the slide show, all ﬁles in the ﬁle list will be displayed

in order.

✎

Music files can be automatically played during the Slide Show if the Background Music is set to On.

✎

The Background Music cannot be changed until the BGM has finished loading.

Supported Picture Formats

button.

File Extension Format Resolution

*.jpg JPEG 15360 x 8640

*.bmp BMP 1920 x 1080

*.mpo MPO 15360 x 8640

Supports up to WMA 7, 8, 9, STD

WMA 9 PRO does not support 2 channel excess multi

channel or lossless audio. WMA sampling rate 22050Hz mono is not supported.

Media Play / Photos / Cruzer... / Photos / 0801181... .JPG

Upper Folder

�µ

Page Move E Play T Tools R Return

• The displayed image may differ depending on the model.

7 / 1000


1.Jan.2012

663.0KB 1920 x 1080

English

Advanced Features

Music

Playing Music

1. Press the

list.

2. Press the ENTER

✎

Only displays the files with the file extension in following supported music formats list. Other file extensions are not displayed, even if they are saved on the same USB device.

✎

If the sound is abnormal when playing MP3 files, adjust the Equaliser in the Sound menu. (An over-modulated MP3 file may cause a sound problem.)

Playing selected music

1. Press the TOOLS

2. Select the desired music.

3. Press the TOOLS

Supported Music Formats

/ d button to select the desired Music in the ﬁle

button.

button and select Play Selection.

✎

The c mark appears to the left of the selected files.

button and select Play Selection.

✎

You can select or deselect all music pressing the Select All / Deselect All.

File Extension Type Codec

*.mp3 MPEG MPEG1 Audio Layer 3

*.m4a *.mpa

*.aac *.3ga

*.ﬂac FLAC FLAC

*.ogg OGG Vorbis

*.wma WMA WMA

Media Play / Music / Cruzer... / Music / Music_01.mp3

Upper Folder

Music_01 Singer 1

Music_02 Singer 2

Music_03 Singer 3

Music_04 Singer 4

Music_05 Singer 5

Music_06 Singer 6

Music_07 Singer 7

Music_08 Singer 8

Music_09 Singer 9

• The displayed image may differ depending on the model.

MPEG4 AAC

Music_01

Singer 1 2003 Fallen Other

Page Move EPlay T Tools R Return

2:36 /

5:00

English

Advanced Features

¦ Media Play - Additional Functions

Videos/Photos/Music Play Option menu

Press the TOOLS

Category Operations Videos Photos Music

Shufﬂe Mode You can play the music randomly.

Repeat Mode You can play media ﬁles repeatedly.

Picture Mode You can adjust the picture setting.

Sound Mode You can adjust the sound setting.

Start Slide Show / STOP Slide Show

Slide Show Speed You can select the slide show speed during the slide show.

Background Music You can on/off background music when watching a Slide Show.

Background Music Setting You can select background music when watching a Slide Show.

Zoom You can zoom into images in full screen mode.

Rotate You can rotate images in full screen mode.

Information You can see detailed information about the played ﬁle.

Play Selection You can play the items what you selected.

Title Search You can move directly to another Title.

Time Search

Picture Size You can adjust the picture size to your preference.

Subtitle You can set the subtitle On / Off.

Subtitle Settings Play a video ﬁle with captions displayed. This option is available only

Audio language View a video in a supported language of your choice. The option is

button and you can make the following operations.

You can start or pause a Slide Show.

You can search the movie using 1 minute.

when the caption ﬁle name matches the video ﬁle name.

available only when a stream-type ﬁle that supports multiple audio formats is played.

and r buttons at intervals of

> >

> > >

English

Other Information

Analogue Channel Teletext Feature

The index page of the Teletext service gives you information on how to use the service. For Teletext information to be displayed correctly, channel reception must be stable. Otherwise, information may be missing or some pages may not be displayed.

✎

You can change Teletext pages by pressing the numeric buttons on the remote control.

(Teletext on/mix/off): Activates the Teletext mode for the current channel. Press the button twice to overlap the Teletext mode with the current broadcasting screen. Press it one more time to exit teletext.

(store): Stores the Teletext

pages.

(index): Displays the index (contents) page at any time while you are viewing Teletext.

(size): Displays the teletext on the upper half of the screen in double-size. To move the text to the lower half of the screen, press it again. For normal display, press it once again.

(hold): Holds the display at the current page, in the case that there are several secondary pages that follow automaticially. To undo, press it again.

Colour buttons (red, green, yellow, blue): If the FASTEXT system is used by the broadcasting company, the different topics on a Teletext page are colour-coded and can be selected by pressing the coloured buttons. Press the colour corresponding to the topic of your choice. A new colour-coded page is displayed. Items can be selected in the same way. To display the previous or next page, press the corresponding coloured button.

(mode): Selects the Teletext mode (LIST/ FLOF).

If pressed during LIST mode, switches the mode to List save mode. In List save mode, you can save a Teletext page into a list using the

(store) button.

(sub-page): Displays the

available sub-page.

(page up): Displays the next

Teletext page.

(page down): Displays the

previous Teletext page.

(reveal): Displays the hidden

text (answers to quiz games, for example). To display the normal screen, press it again.

(cancel): Shrinks the Teletext

display to overlap with the current

broadcast.

Typical Teletext page

Part Contents

A Selected page number.

B Broadcasting channel

identity.

C Current page number

or search indications.

D Date and time. E Text. F Status information.

FASTEXT information.

English

Other Information

Attaching a Wall Mount/Desktop Stand

Preparing before installing Wall-Mount/Desktop Stand

1. Turn the product off and unplug the power cord from the wall outlet.

2. Place a soft cloth or cushion on a ﬂat surface to protect the panel and place the product face down.

3. Hold the main body of the product with your hand. Pull the stand in the direction of the arrow as shown in the ﬁgure to separate

it.

Attaching a Wall Mount/Desktop Stand

3 4

Wall/Desktop Stand Mount

Wall mount kit/desktop stand (not supplied)

Caution

[

Important

For the installation of Wall-mount, please don’t use screws longer than 14mm(L14) of longitude.

4. Align wall mount/desktop stand to the Monitor/LED display and ﬁrmly ﬁx the wall mount/desktop stand by fastening the screw.

5. Align the groove of the part of the product that is to be connected to the stand with the groove in the stand (desk-top stand, wall

mount stand or another stand) and ﬁrmly ﬁx the stand by fastening the screw.

English

Other Information

✎

NOTE

If you use screws that are longer than the standard specifications, the inside of the product may be damaged.

For wall mounts that are not compatible with the standard VESA specifications, the length of the screw may differ depending

on the corresponding specifications.

Avoid using screws that are incompatible with the standard VESA specifications and avoid assembling them using excessive

force. This may result in damage to the product or injury due to the product falling. Samsung shall not be held liable for any damage or injury.

Samsung shall not be held liable for any damage to the product or injur y caused by using a wall mount/desktop stand that is

not compatible with the specifications or due to an installation not performed by an authorized installation engineer.

When installing the product using a wall mount, purchase a wall mount that provides at least 10 cm (3.93 inches) of space

from the wall.

Use the wall mount according to the international specifications.

Anti-theft Kensington Lock

The Kensington Lock is not supplied by Samsung. It is a device used to physically ﬁx the system when using it in a public place. The appearance and locking method may differ from the illustration depending on the manufacturer. Refer to the manual provided with the Kensington Lock for additional information on proper use.

✎

Please find a “K” icon on the rear of the LED display. A kensington slot is beside

” icon.

the “

To lock the product, follow these steps:

1. Wrap the Kensington lock cable around a large, stationary object such as desk or

chair.

2. Slide the end of the cable with the lock attached through the looped end of the

Kensington lock cable.

3. Insert the locking device into the Kensington slot on the product (1).

4. Lock the lock.

✎

These are general instructions. For exact instructions, see the User manual supplied with the locking device.

✎

The locking device has to be purchased separately.

✎

The location of the Kensington slot may be different depending on the LED display model.

English

Other Information

Troubleshooting

If you have any questions about the LED display, ﬁrst refer to this list. If none of these troubleshooting tips apply, please visit “www. samsung.com,” then click on Support, or contact the call centre listed on the back-cover of this manual.

Issues Solutions and Explanations

Picture Quality First of all, please perform the Picture Test and conﬁrm that your LED display is properly displaying test

The LED display image does not look as good as it did in the store.

The picture is distorted: macroblock error, small block, dots, pixelization

There is poor colour or brightness. • Adjust the Picture options in the LED display menu. (go to Picture Mode / Colour / Brightness /

There is a dotted line on the edge of the screen.

When changing channels, the picture freezes or is distorted or delayed.

Sound Quality First of all, please perform the Sound Test to conﬁrm that your LED display audio is properly operating. (go

There is no sound or the sound is too low at maximum volume.

The picture is good but there is no sound. • If you are using a DVI to HDMI cable, LED display set does not support audio.

The speakers are making an inappropriate noise.

No Picture, No Video

The LED display will not turn on. • Make sure the AC power cord is securely plugged in to the wall outlet and the LED display.

The LED display turns off automatically. • Ensure the Sleep Timer is set to Off in the Time menu.

image. (go to MENU - Support - Self Diagnosis - Picture Test) If the test image is properly displayed, the poor picture may caused by the source or signal.

• If you have an analogue cable/set top box, upgrade to a digital set top box. Use HDMI to deliver HD (high deﬁnition) picture quality.

• Cable/Satellite subscribers: Try HD stations from the channel line up.

• Antenna connection: Try HD stations after performing Auto tuning.

Many HD channels are up scaled from SD(Standard Deﬁnition) contents.

✎

• Adjust the Cable/Set top box video output resolution to 1080i or 720p.

• Make sure you are watching the LED display at the minimum recommended distance based on the

size and deﬁnition of the signal.

• Compression of video contents may cause picture distortion especially in fast moving pictures such as sports and action movies.

• Low signal level or bad quality can cause picture distortion. This is not a LED display issue.

• Mobile phones used close to the LED display (cca up to 1m) may cause noise in picture on analogue

and digital LED display.

Sharpness)

• Adjust Energy Saving option in the LED display menu. (go to MENU - System - Eco Solution - Energy Saving)

• Try resetting the picture to view the default picture settings. (go to MENU - Picture - Reset Picture)

• If the picture size is set to Screen Fit, change it to 16:9.

• Change cable/satellite box resolution.

• If connected with a cable box, please try to reset the cable box. Reconnect the AC cord and wait until

the cable box reboots. It may take up to 20 minutes.

• Set the output resolution of the cable box to 1080i or 720p.

to MENU - Support - Self Diagnosis - Sound Test) If the audio is OK, the sound problem may caused by the source or signal.

• Please check the volume of the device (Cable/Sat Box, DVD, Blu-ray etc) connected to your LED display.

• Reboot the connected device by reconnecting the device’s power cable.

• If your LED display has a headphone jack, make sure there is nothing plugged into it.

• For antenna or cable connections, check the signal strength. Low signal level may cause sound

distortion.

• Make sure the wall outlet is working.

• Try pressing the POWER button on the LED display to make sure the problem is not the remote. If the

LED display turns on, refer to “The remote control does not work” below.

• If your PC is connected to the LED display, check your PC power settings.

• Make sure the AC power cord is plugged in securely to the wall outlet and the LED display.

• When watching LED display from an antenna or cable connection, the LED display will turn off after

10 ~ 15 minutes if there is no signal.

English

Other Information

Issues Solutions and Explanations

There is no picture/video. • Check cable connections (remove and reconnect all cables connected to the LED display and

RF(Cable/Antenna) Connection

The LED display is not receiving all channels.

The picture is distorted: macro block error small block, dots, pixelization.

Others

The picture will not display in full screen. • HD channels will have black bars on either side of the screen when displaying up scaled SD (4:3)

The remote control does not work. • Replace the remote control batteries with the poles (+/–) in the right direction.

The cable/set top box remote control doesn’t turn the LED display on or off, or adjust the volume.

A “Mode Not Supported” message appears.

There is a plastic smell from the LED display.

The LED display Signal Information is unavailable in the Self Diagnosis Test menu.

LED display is tilted to the right or left side. • Remove the stand base from the LED display and reassemble it.

There are difﬁculties assembling the stand base.

The Channel menu is grey out (unavailable).

Your settings are lost after 30 minutes or every time the LED display is turned off.

You have intermittent loss of audio or video.

You see small particles when you look closely at the edge of the frame of the LED display.

external devices).

• Set your external devices’ (Cable/Set top Box, DVD, Blu-ray etc) video outputs to match the connections to the LED display input. For example, if an external device’s output is HDMI, it should be connected to an HDMI input on the LED display.

• Make sure your connected devices are powered on.

• Be sure to select the LED display correct source by pressing the SOURCE button on the LED display

remote.

• Reboot the connected device by reconnecting the device’s power cable.

• Make sure the Antenna cable is connected securely.

• Please try Setup (Initial setup) to add available channels to the channel list. Go to MENU - System -

Setup (Initial setup) and wait for all available channels to be stored.

• Verify the Antenna is positioned correctly.

• Compression of video contents may cause picture distortion, especially on fast moving pictures such

as sports and action movies.

• A low signal can cause picture distortion. This is not a LED display issue.

contents.

• Black bars on the top and bottom will appear during movies that have aspect ratios different from your LED display.

• Adjust the picture size options on your external device or LED display to full screen.

• Clean the sensor’s transmission window on the remote.

• Try pointing the remote directly at the LED display from 5~6 feet away.

• Programme the Cable/Set top box remote control to operate the LED display. Refer to the Cable/Set

user manual for the SAMSUNG LED display code.

• Check the supported resolution of the LED display, and adjust the external device’s output resolution accordingly.

• This smell is normal and will dissipate over time.

• This function is only available with digital channels from an Antenna / RF / Coax connection.

• Make sure the LED display is placed on a ﬂat surface. If you can not remove the screws from the LED

display, please use a magnetized screw driver.

• The Channel menu is only available when the LED display source is selected.

• If the LED display is in the Store Demo mode, it will reset audio and picture settings every 30

minutes. Change the settings from Store Demo mode to Home Use mode in the Setup (Initial setup) procedure. Press the SOURCE button to select TV mode, and go to MENU → System → Setup (Initial setup) → ENTER

• Check the cable connections and reconnect them.

• Loss of audio or video can be caused by using overly rigid or thick cables. Make sure the cables

are ﬂexible enough for long term use. If mounting the LED display to the wall, we recommend using cables with 90 degree connectors.

• This is part of the product’s design and is not a defect.

English

Other Information

Issues Solutions and Explanations

The PIP menu is not available. • PIP functionality is only available when you are using a HDMI source.

You turned the LED display off 45 minutes ago, and it turned on again.

The message “Scramble signal” or “Weak Signal/No Signal” appears.

There are recurrent picture/sound issues. • Check and change the signal/source.

A reaction may occur between the rubber cushion pads on the base stand and the top ﬁnish of some furniture.

✎

This panel uses a panel consisting of sub pixels which require sophisticated technology to produce. However, there may be a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.

¦ Storage and Maintenance

✎

If you attched some stickers on the LED display screen, it remains some debris after removing the sticker. Please clean it to watch LED display.

✎

The exterior and screen of the product can get scratched during cleaning. Be sure to wipe the exterior and screen carefully using the cloth provided or a soft cloth to prevent scratches.

• It is normal. The LED display operates the OTA (Over The Aerial) function itself to upgrade ﬁrmware downloaded whilst your watching LED display.

• If you are using a CAM CARD (CI/CI+), check that it is installed into the common interface slot.

• If there is still a problem, pull the CAM CARD out of the LED display and insert it into the slot again.

• To prevent this, use felt pads on any surface of the LED display that comes in direct contact with

furniture.

Do not spray water or a cleaning agent directly onto the product. Any liquid that goes into the product may cause a failure, ﬁre, or electric shock.

CAUTION

[

If the height of "A" on one side is different from the other side, adjust the heights.

Clean the product with a soft cloth dapped in a small amount of water.

English

Other Information

¦ Licence

TheaterSound HD, SRS and the symbol are trademarks of SRS Labs, Inc. TheaterSound HD technology is incorporated under licence from SRS Labs, Inc.

Manufactured under licence from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS, the Symbol, & DTS and the Symbol together are registered trademarks & DTS 2.0 Channel is a trademarks of DTS, Inc. Product

2.0 Channel

(Only available in TB300 series)

Manufactured under licence under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks. & DTS 2.0+ Digital Out and the DTS logos are trademarks of DTS, Inc. Product Includes software. © DTS, Inc. All Rights Reserved.

(Only available in TB350 series)

Open source licence notice

In the case of using open source software, Open Source licence are available on the product menu. Open Source Licence Notice is written only English.

¦ WEEE

Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government ofﬁce, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product (Applicable in the European Union and other European countries with separate battery return systems.)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment. To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

English

Other Information

Speciﬁcations

Environmental considerations

Tilt -1°(±2°) ~ 20°(±2°)

LED display System

Colour/Video System

Sound System BG, DK, L, NICAM, MPEG1, DD, DD+, HEAAC

HDMI IN

Screen Size (Diagonal) 18.5 inches (47 cm) 21.5 inches (55 cm) 23.6 inches (60 cm) 27 inches (69 cm)

Display Resolution 1366 x 768 @ 60Hz 1920 x 1080 @ 60Hz

Sound (Output) 5W × 2

Dimensions (WxDxH)

Weight

Screen Size (Diagonal) 21.5 inches (55 cm) 23 inches (58 cm) 24 inches (61 cm)

Display Resolution 1920 x 1080 @ 60Hz

Sound (Output) 5W × 2

Dimensions (WxDxH)

Weight

Operating

Storage

Digital: MPEG-2 MP@ML, MPEG-4, H.264/AVC MP@L3, MP@L4.0, HP@L4.0

Model Name

(Without Stand)

(With Stand)

(Without Stand) 2.95 kg (6.5 Ibs) 3.7 kg (8.2 Ibs) 4.25 kg (9.4 Ibs) 5.1 kg (11.2 Ibs)

(With Stand) 3.2 kg (7.1 Ibs) 3.95 kg (8.7 Ibs) 4.5 kg (9.9 Ibs) 5.6 kg (12.3 Ibs)

Model Name

(Without Stand)

(With Stand)

(Without Stand) 3.7 kg (8.2 Ibs) 3.25 kg (7.2 Ibs) 4.15 kg (9.1 Ibs)

(With Stand) 3.95 kg (8.7 Ibs) 3.5 kg (7.7 Ibs) 4.45 kg (9.8 Ibs)

T19B300 T22B300 T24B300 T27B300

444.7 x 48.5 x 278.2 mm (17.5 x 1.9 x 11.0 inches)

444.7 x 187 x 356.4 mm

(17.5 x 7.4 x 14.0 inches)

T22B350 T23B350 T24B350

509.7 x 47 x 318.2 mm

(20.1 x 1.9 x 12.5 inches)

509.7 x 195 x 396.6 mm

(20.1 x 7.7 x 15.6 inches)

Temperature : 50°F ~ 104°F (10°C ~ 40°C)

Humidity : 10 % ~ 80 %, non-condensing

Temperature : -4°F ~ 113°F (-20°C ~ 45°C)

Humidity : 5 % ~ 95 %, non-condensing

Analogue: B/G, D/K, L, I (Depending on your country selection)

Analogue: PAL, SECAM, NTSC-4.43, NTSC-3.58, PAL60

Video: 1080 24p, 1080p, 1080i, 720p, 576p, 480p

Audio: 2Ch Linear PCM 32/44.1/48kHz, 16/20/24bits.

509.7 x 47 x 318.2 mm

(20.1 x 1.9 x 12.5 inches)

509.7 x 195 x 396.6 mm

(20.1 x 7.7 x 15.6 inches)

Digital: DVB-T/DVB-C

569.2 x 49 x 349.4 mm

(22.4 x 1.9 x 13.8 inches)

569.2 x 195 x 428 mm

(22.4 x 7.7 x 16.9 inches)

547.5 x 49 x 337.9 mm

(21.6 x 1.9 x 13.3 inches)

547.5 x 195 x 416.1 mm (21.6 x 7.7 x 16.4 inches)

643.3 x 49 x 397.9 mm

(25.3 x 1.9 x 15.7 inches)

643.3 x 252 x 476.5 mm (25.3 x 9.9 x 18.8 inches)

569.2 x 49 x 349.4 mm

(22.4 x 1.9 x 13.8 inches)

569.2 x 195 x 428 mm

(22.4 x 7.7 x 16.9 inches)

✎

NOTE

Design and specifications are subject to change without prior notice.

For information about power supply, and more about power consumption, refer to the label attached to the product.

Some models may not be available for purchase depending on the region.

If there is no power cut-off switch, the power consumption is "0" only when the power cord is disconnected.

DPM(Display Power Management) Function does not work if you used in conjunction with the HDMI IN (DVI) port of this

product.

English

Contact SAMSUNG WORLDWIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

País

del Centro de atención al cliente

Sitio web

EUROPE

ALBANIA 42 27 5755 http://www.samsung.com

AUSTRIA 0810 - SAMSUNG (7267864, € 0.07/min) http://www.samsung.com

BELGIUM 02-201-24-18 http://www.samsung.com/be (Dutch)

BOSNIA 05 133 1999 http://www.samsung.com

BULGARIA 07001 33 11 http://www.samsung.com

CROATIA 062 SAMSUNG (062 726 7864) http://www.samsung.com

CZECH 800 - SAMSUNG (800-726786) http://www.samsung.com

Samsung Electronics Czech and Slovak, s.r.o.,Oasis Florenc, Sokolovská 394/17, 180 00, Praha 8

DENMARK 70 70 19 70 http://www.samsung.com

FINLAND 030 - 6227 515 http://www.samsung.com

FRANCE 01 48 63 00 00 http://www.samsung.com

GERMANY 01805 - SAMSUNG (726-7864, € 0,14/Min) http://www.samsung.com

CYPRUS From landline : 8009 4000 http://www.samsung.com

GREECE From landline : 80111-SAMSUNG (7267864)

From landline & mobile : (+30)210 6897691

HUNGARY 06-80-SAMSUNG (726-7864) http://www.samsung.com

ITALIA 800-SAMSUNG (726-7864) http://www.samsung.com

KOSOVO +381 0113216899 http://www.samsung.com

LUXEMBURG 261 03 710 http://www.samsung.com

MACEDONIA 023 207 777 http://www.samsung.com

MONTENEGRO 020 405 888 http://www.samsung.com

NETHERLANDS 0900-SAMSUNG (0900-7267864) ( € 0,10/Min) http://www.samsung.com

NORWAY 815-56 480 http://www.samsung.com

POLAND 0 801-1SAMSUNG (172-678) +48 22 607-93-33 http://www.samsung.com

PORTUGAL 80820-SAMSUNG (808207267) http://www.samsung.com

RUMANIA From landline : 08010-SAMSUNG (7267864)

From landline & mobile : (+40)21 206 01 10

SERBIA 0700 SAMSUNG (0700 726 7864) http://www.samsung.com

SLOVAKIA 0800 - SAMSUNG (0800-726 786) www.samsung.com/sk

SPAIN 902 - 1 - SAMSUNG (902 172 678) http://www.samsung.com

SWEDEN 0771 726 7864 (SAMSUNG) http://www.samsung.com

SWITZERLAND 0848 - SAMSUNG (7267864, CHF 0.08/min) http://www.samsung.com/ch

U.K 0330 SAMSUNG (7267864) http://www.samsung.com

EIRE 0818 717100 http://www.samsung.com

LITHUANIA 8-800-77777 http://www.samsung.com

LATVIA 8000-7267 http://www.samsung.com

ESTONIA 800-7267 http://www.samsung.com

TURKEY 444 77 11 http://www.samsung.com

http://www.samsung.com/be_fr (French)

http://www.samsung.com

http://www.samsung.com/ch_fr (French)

CIS

RUSSIA 8-800-555-55-55 http://www.samsung.com

GEORGIA 8-800-555-555 http://www.samsung.com

ARMENIA 0-800-05-555 http://www.samsung.com

AZERBAIJAN 088-55-55-555 http://www.samsung.com

KAZAKHSTAN 8-10-800-500-55-500(GSM: 7799) http://www.samsung.com

UZBEKISTAN 8-10-800-500-55-500 http://www.samsung.com

KYRGYZSTAN 00-800-500-55-500 http://www.samsung.com

TADJIKISTAN 8-10-800-500-55-500 http://www.samsung.com

País

MONGOLIA http://www.samsung.com

UKRAINE 0-800-502-000 http://www.samsung.com/ua

BELARUS 810-800-500-55-500 http://www.samsung.com

MOLDOVA 00-800-500-55-500 http://www.samsung.com

del Centro de atención al cliente

Sitio web

http://www.samsung.com/ua_ru

ASIA PACIFIC

AUSTRALIA 1300 362 603 http://www.samsung.com

NEW ZEALAND 0800 SAMSUNG (0800 726 786) http://www.samsung.com
