Samsung sv-700X, SV-A160X-XEG Specifications

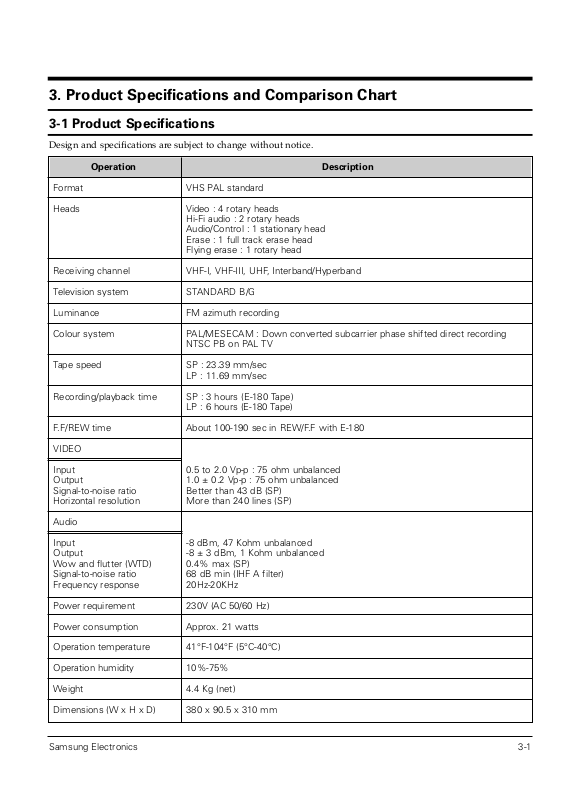

3. Product Specifications and Comparison Chart
3-1 Product Specifications
Design and specifications are subject to change without notice.
Operation Description
Format VHS PAL standard
Heads Video : 4 rotary heads
Hi-Fi audio : 2 rotary heads
Audio/Control : 1 stationary head
Erase : 1 full track erase head
Flying erase : 1 rotary head
Receiving channel VHF-I, VHF-III, UHF, Interband/Hyperband
Television system STANDARD B/G
Luminance FM azimuth recording
Colour system PAL/MESECAM : Down converted subcarrier phase shifted direct recording
NTSC PB on PAL TV
Tape speed SP : 23.39 mm/sec
LP : 11.69 mm/sec
Recording/playback time SP : 3 hours (E-180 Tape)
LP : 6 hours (E-180 Tape)
F.F/REW time About 100-190 sec in REW/F.F with E-180
VIDEO
Input 0.5 to 2.0 Vp-p : 75 ohm unbalanced
Output 1.0 ± 0.2 Vp-p : 75 ohm unbalanced
Signal-to-noise ratio Better than 43 dB (SP)
Horizontal resolution More than 240 lines (SP)
Audio
Input -8 dBm, 47 Kohm unbalanced
Output -8 ± 3 dBm, 1 Kohm unbalanced
Wow and flutter (WTD) 0.4% max (SP)
Signal-to-noise ratio 68 dB min (IHF A filter)
Frequency response 20Hz-20KHz
Power requirement 230V (AC 50/60 Hz)
Power consumption Approx. 21 watts
Operation temperature 41°F-104°F (5°C-40°C)
Operation humidity 10%-75%
Weight 4.4 Kg (net)
Dimensions (W x H x D) 380 x 90.5 x 310 mm
Samsung Electronics 3-1
Product Specifications
3-2 Comparison Chart
AREA
SELLING
GERMANY,AUSTRIA
TV
VCR/
TYPE
REMOCON
JUST REC
SLOW/DLC
EDIT
VIDEO
SWEDEN,FILAND
NORWAY,DENMARK
O O MULTI O SPAIN
O O MULTI O
O O MULTI O NEDERLAND
A2/
NICAM
ACS
VIEW
SHOW
ATS
PDC
VPS/
AUDIO
DUBBING
JOG
SHUTTLE/
A2/NICAM
A2/NICAM
A2/NICAM
FUNCTION
MODEL
SV-A160X/XEG (SV-700X) O O O O O O A2 O O MULTI O
SV-A160X/XET (SV-700X) O O O O O O A2 O O MULTI O ITALY
SV-A160X/XEC (SV-700X) O O O O O O
SV-A160X/XEE (SV-700X O O O O O O
3-2 Samsung Electronics
SV-A160X/AMF (SV-700X) O O O O O O
SV-A160X/ATR (SV-700X) O O O O O O A2 O O MULTI O SWISS
