DLP TV
SP46L6HV
SP50L6HV
SP61L6HV
SP67L6HV
Owner’s Instructions
Before operating the unit,
please read this manual thoroughly,
and retain it for future reference.
Picture In Picture (PIP)
My Colour Control
SRS TruSurroundXT
Digital Natural Image engine
This device is a Class B digital apparatus.
Register your product at www.samsung.com/global/register
Contents
◆ CONNECTING AND PREPARING YOUR TELEVISION
■ Checking Parts .............................................................................................. 5
■ Control Panel................................................................................................. 6
■ Connection Panel .......................................................................................... 7
■ Infrared Remote Control ................................................................................ 9
■ Inserting the Batteries in the Remote Control................................................ 10
■ Connecting to an Aerial or Cable Television Network ................................... 11
■ Connecting a Satellite Receiver or Decoder.................................................. 11
■ Switching Your Television On and Off........................................................... 12
■ Placing Your Television in Standby Mode..................................................... 12
■ Becoming Familiar with the Remote Control ................................................. 13
■ Plug & Play Feature....................................................................................... 14
■ Choosing Your Language.............................................................................. 15
◆ SETTING THE CHANNELS
■ Storing Channels Automatically..................................................................... 16
■ Storing Channels Manually............................................................................ 17
■ Skipping Unwanted Channels ....................................................................... 19
■ Sorting the Stored Channels ......................................................................... 20
■ Assigning Names to Channels ...................................................................... 21

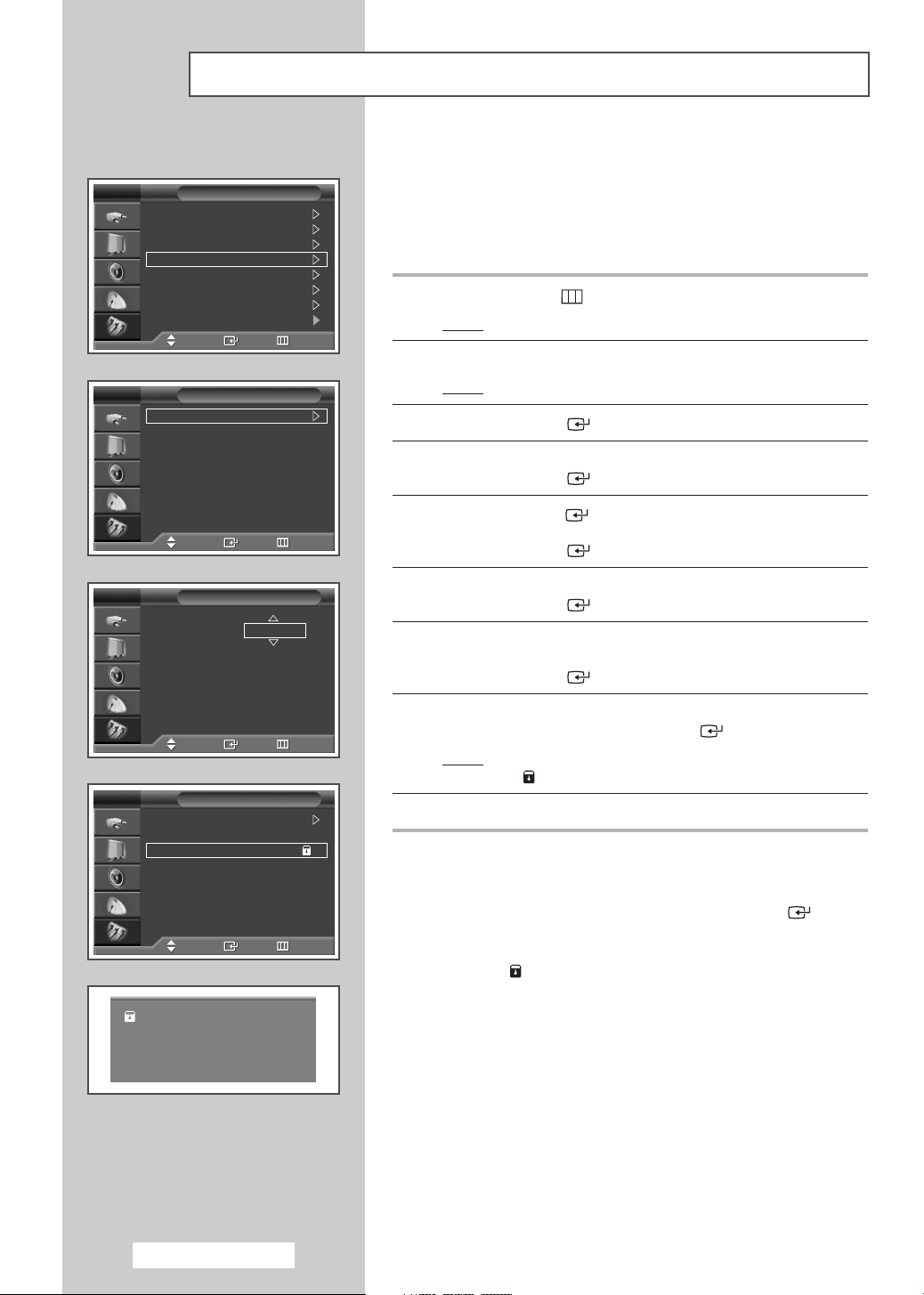

■ Locking the Channel...................................................................................... 22
■ Using the LNA (Low Noise Amplifier) Feature............................................... 23
■ Fine Tuning Channel Reception.................................................................... 24
◆ USING YOUR DISPLAY
■ Displaying Information ................................................................................... 24

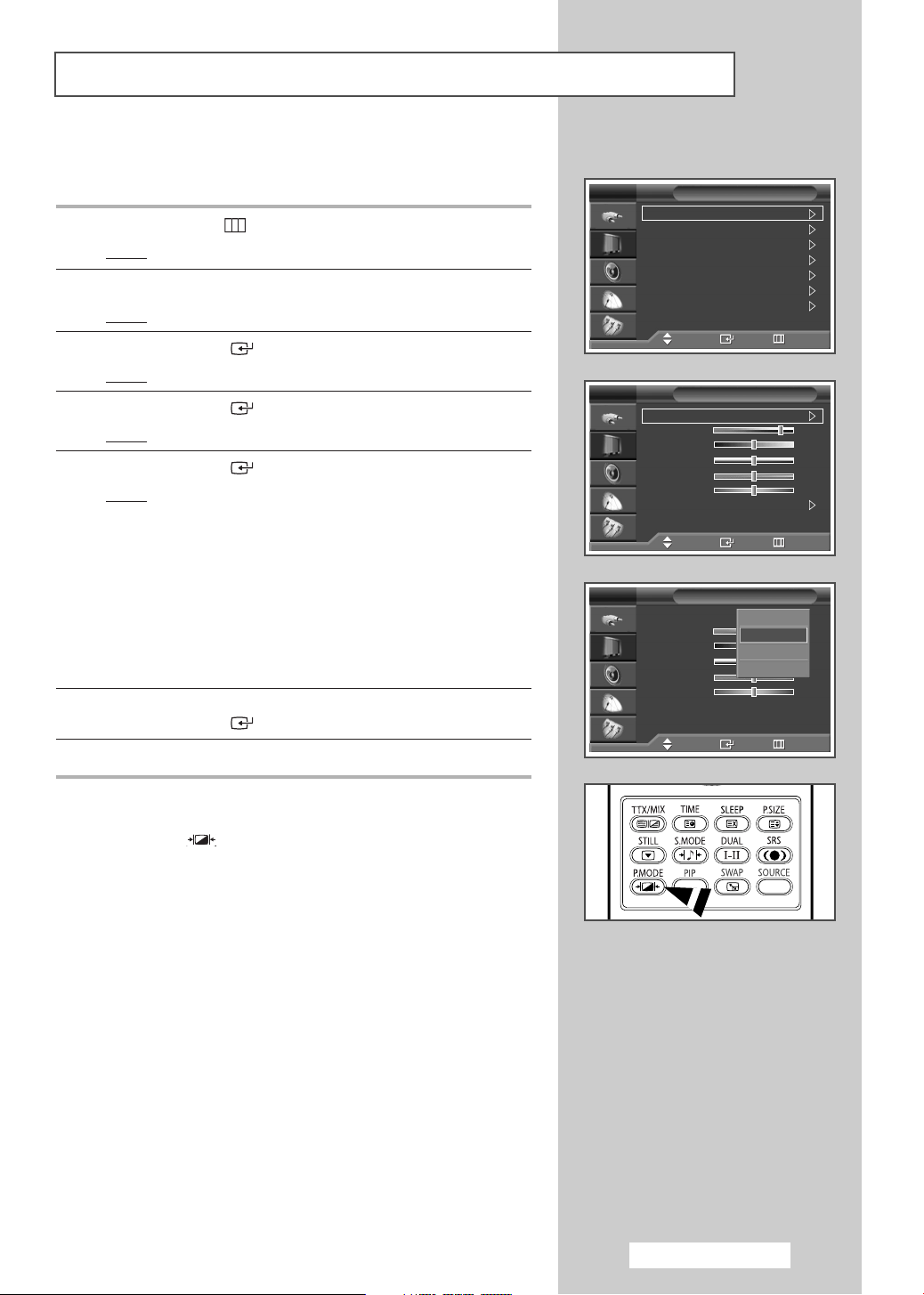

■ Changing the Picture Standard ..................................................................... 25
■ Customizing the Picture Settings................................................................... 26
■ Setting the Picture (PC Mode)....................................................................... 27
■ Selecting the Picture Size.............................................................................. 29
■ Viewing the DNIe Demonstration .................................................................. 30
■ Freezing the Current Picture ......................................................................... 30
■ Setting the My Colour Control (Easy Control) ............................................... 31
■ Setting the My Colour Control (Detail Control) .............................................. 32
■ Setting the Blue Screen................................................................................. 33
■ Activating Panel Button Lock......................................................................... 33
■ Setting the Film Mode.................................................................................... 34

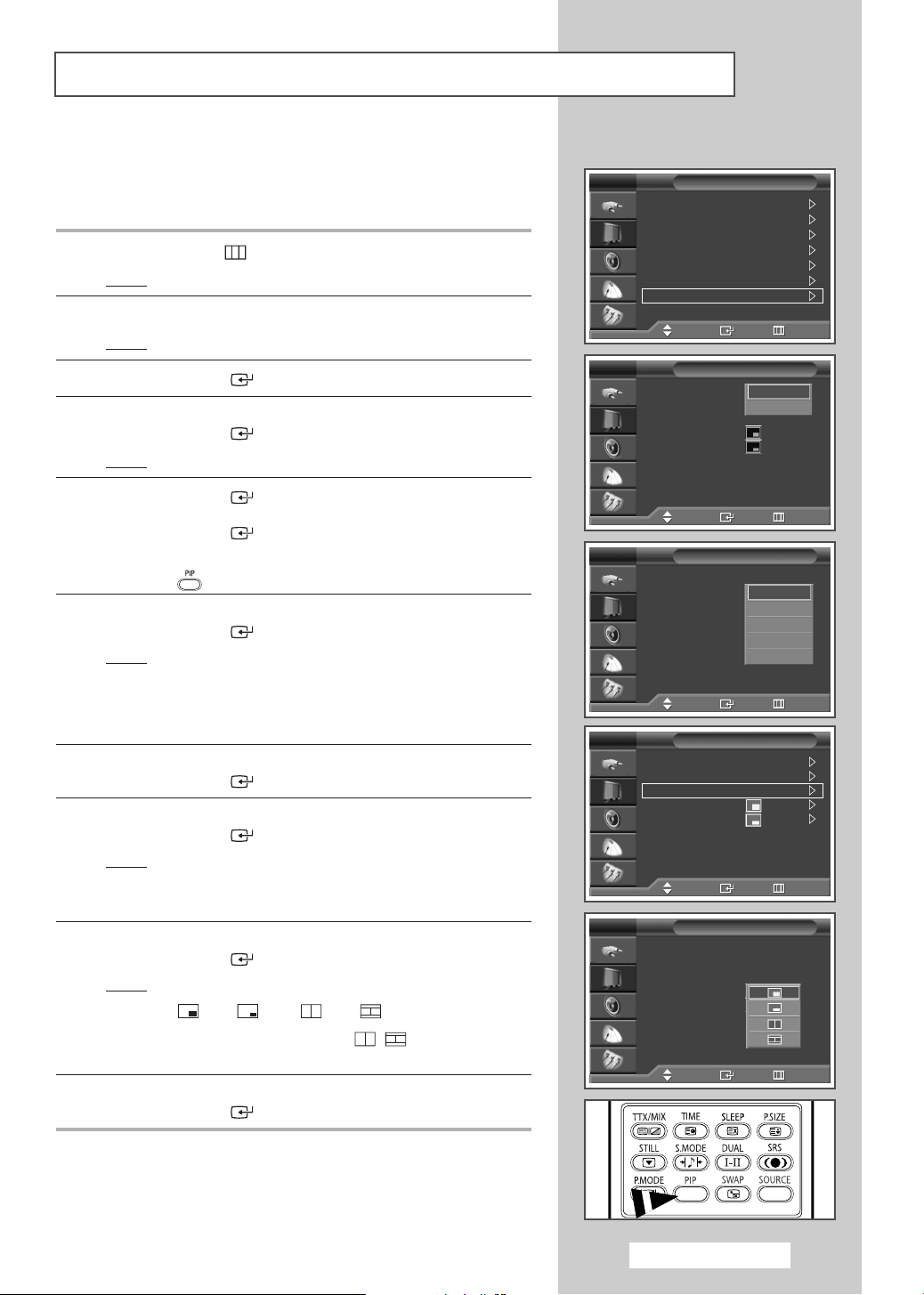

■ Viewing the Picture in Picture (PIP)............................................................... 35
■ Using the Digital NR (Noise Reduction) Feature ........................................... 38
■ Changing the Sound Standard ...................................................................... 39

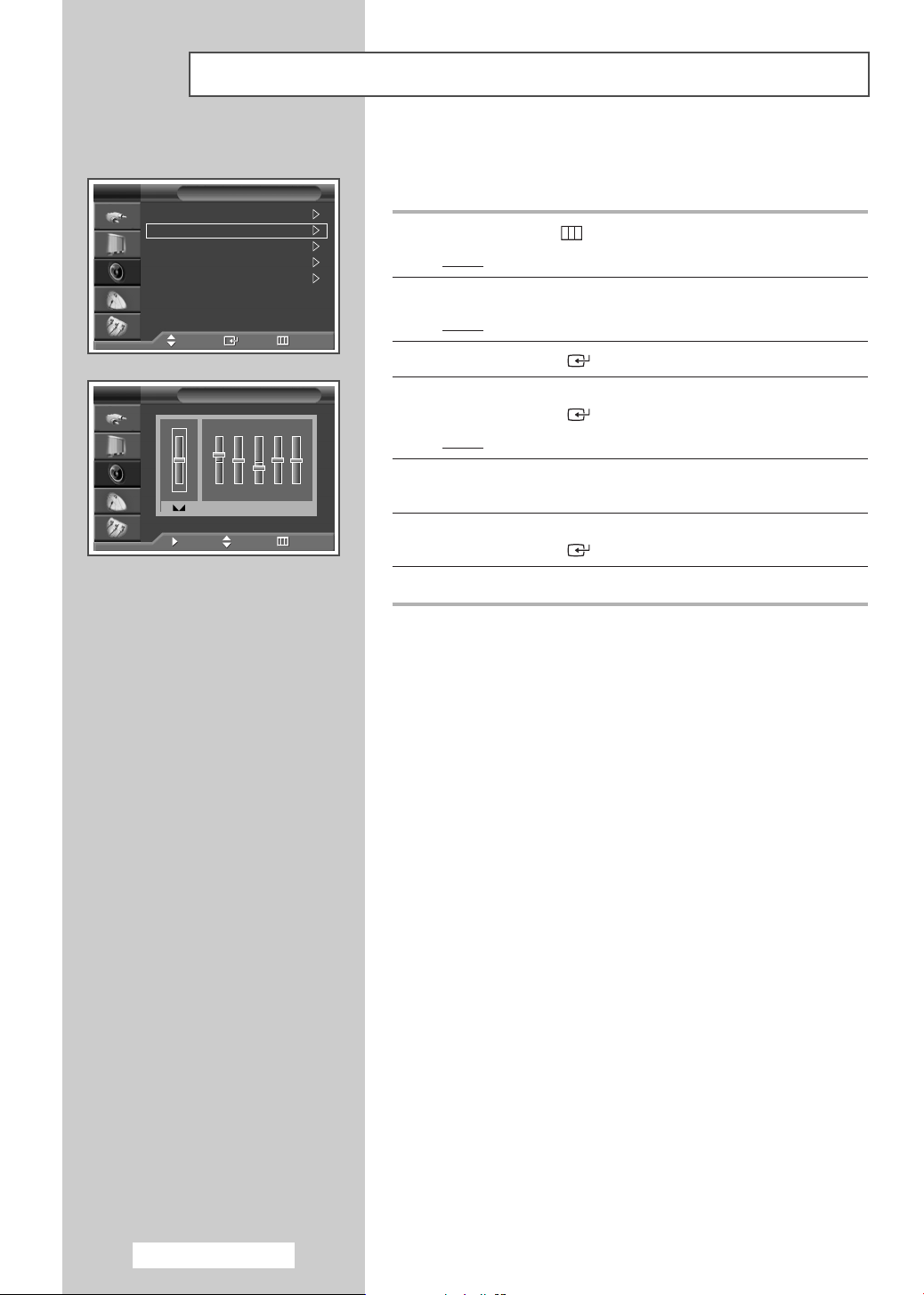

■ Customizing the Sound Settings ................................................................... 40

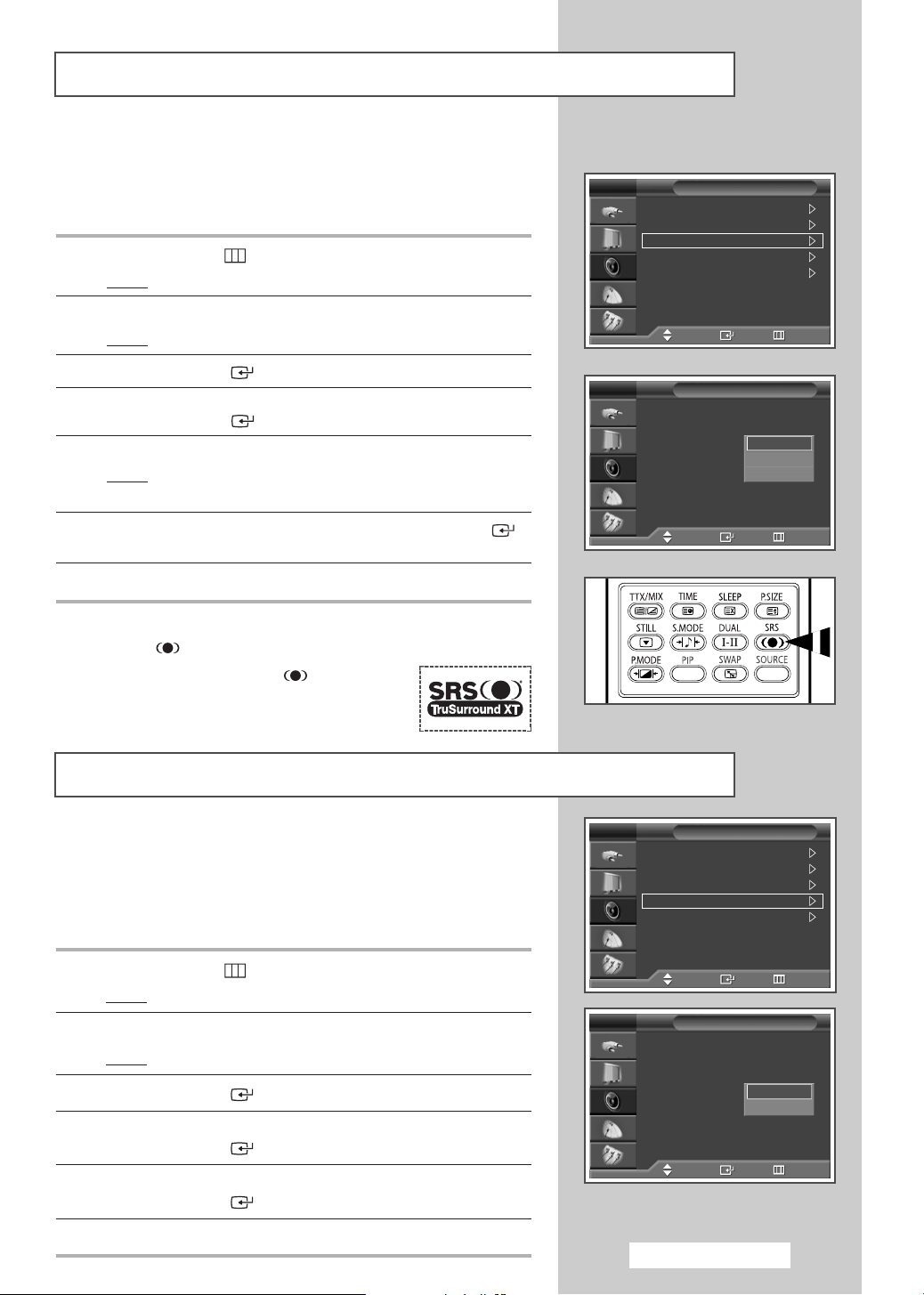

■ Setting the TruSurround XT........................................................................... 41
continued...
English - 3
◆ USING YOUR DISPLAY (continued)
■ Adjusting the Volume Automatically .............................................................. 41
■ Selecting the Internal Mute............................................................................ 42
■ Setting the Melody Sound ............................................................................. 42

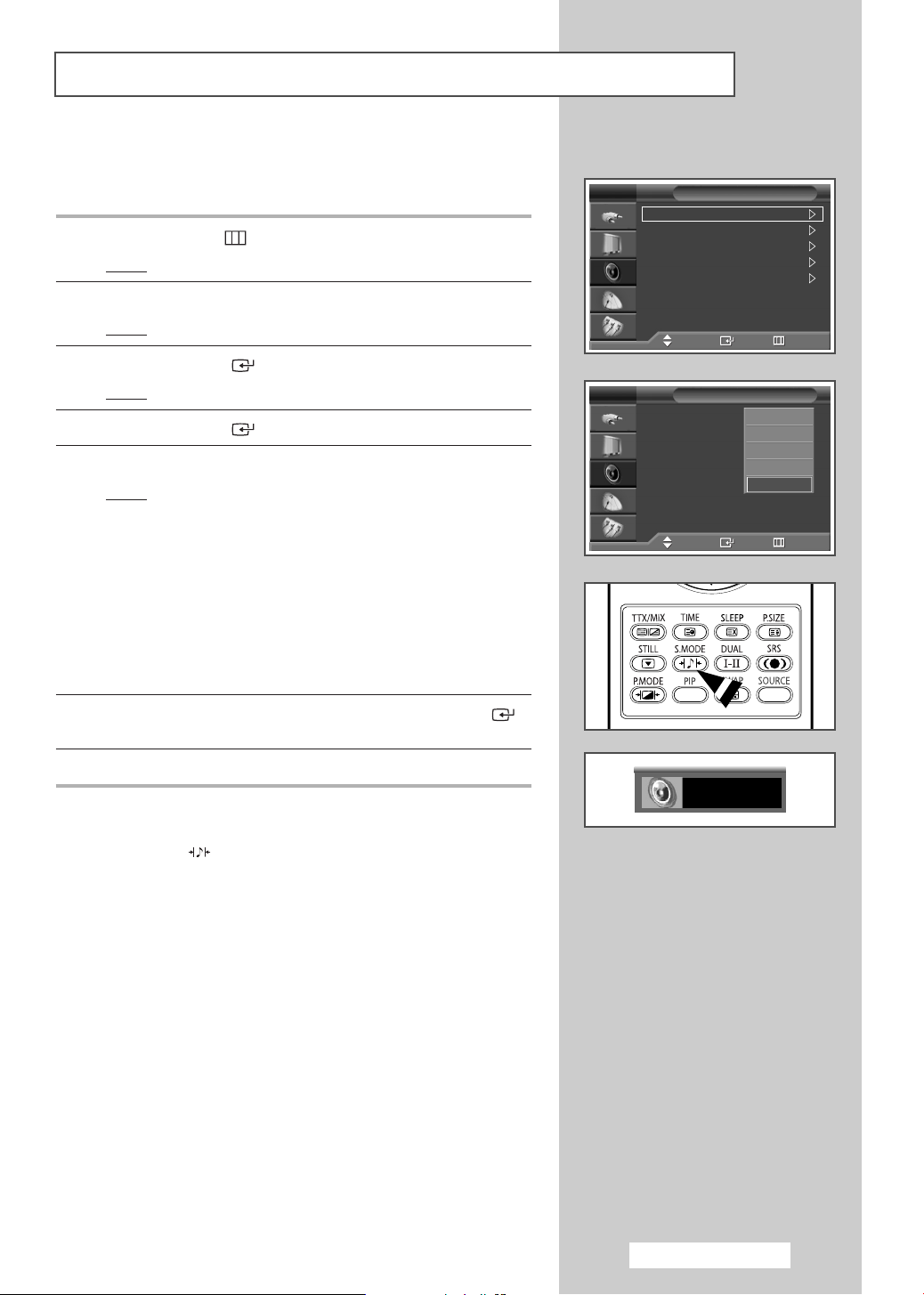

■ Selecting the Sound Mode (depending on the model) .................................. 43
■ Setting and Displaying the Current Time....................................................... 44
■ Setting the Sleep Timer ................................................................................. 45
■ Switching the Television On and Off Automatically ....................................... 46
■ Viewing an External Signal Source ............................................................... 48
◆ USING THE TELETEXT FEATURE
■ Teletext Feature ............................................................................................ 49
■ Displaying the Teletext Information ............................................................... 50
■ Selecting Display Options.............................................................................. 51
■ Selecting a Teletext Page.............................................................................. 52
◆ ADDITIONAL INFORMATION AND CONNECTIONS
■ Connecting to the External Input/Output ....................................................... 53
■ Connecting to the RCA Input......................................................................... 54
■ Connecting to the S-Video Input.................................................................... 54

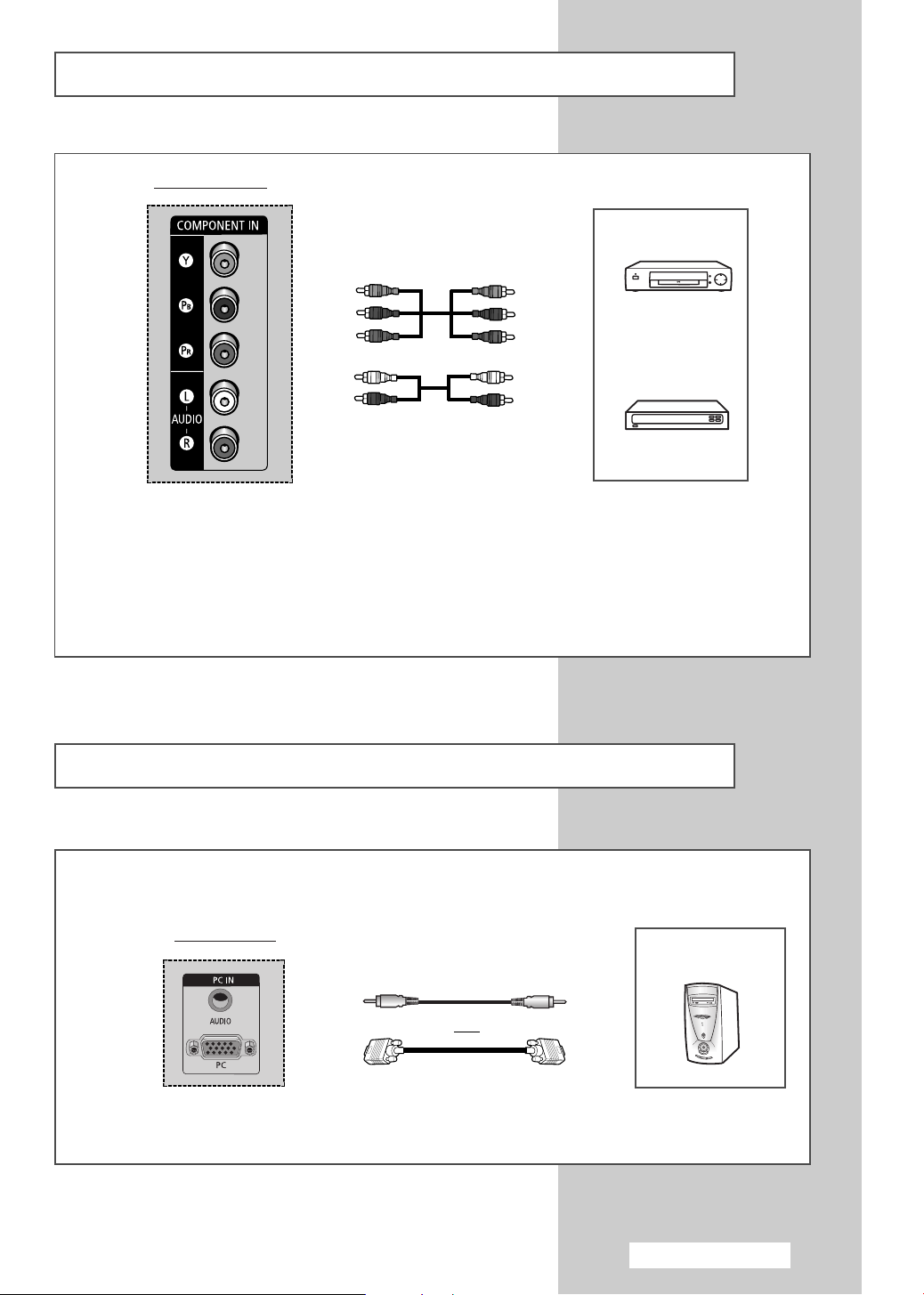

■ Connecting to the Component Input.............................................................. 55
■ Connecting to the PC Input ........................................................................... 55

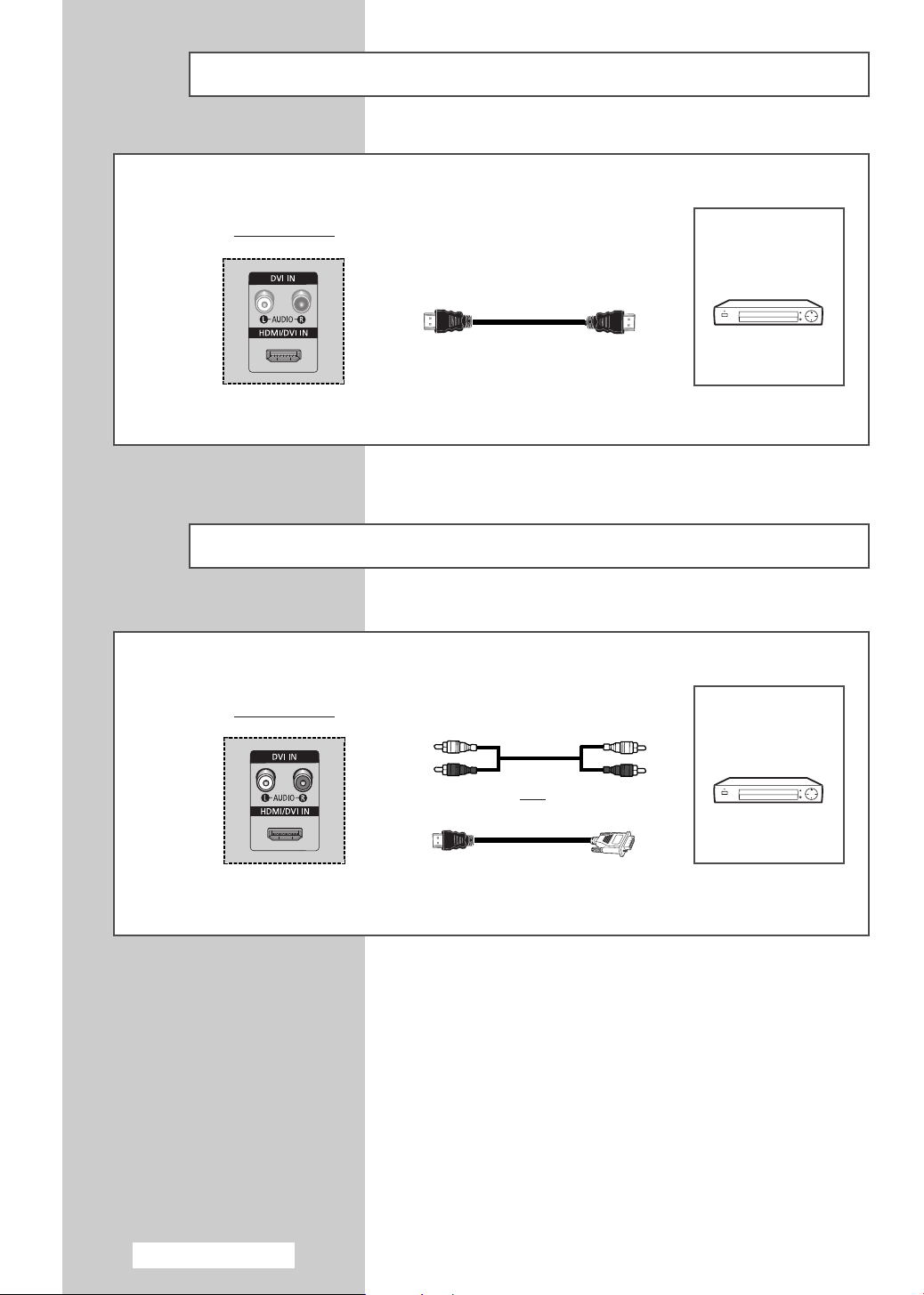

■ Connecting to the HDMI (High Definition Multimedia Interface) Input ........... 56
■ Connecting to the HDMI/DVI Compatible ...................................................... 56
■ Connecting Home Theater System ............................................................... 57

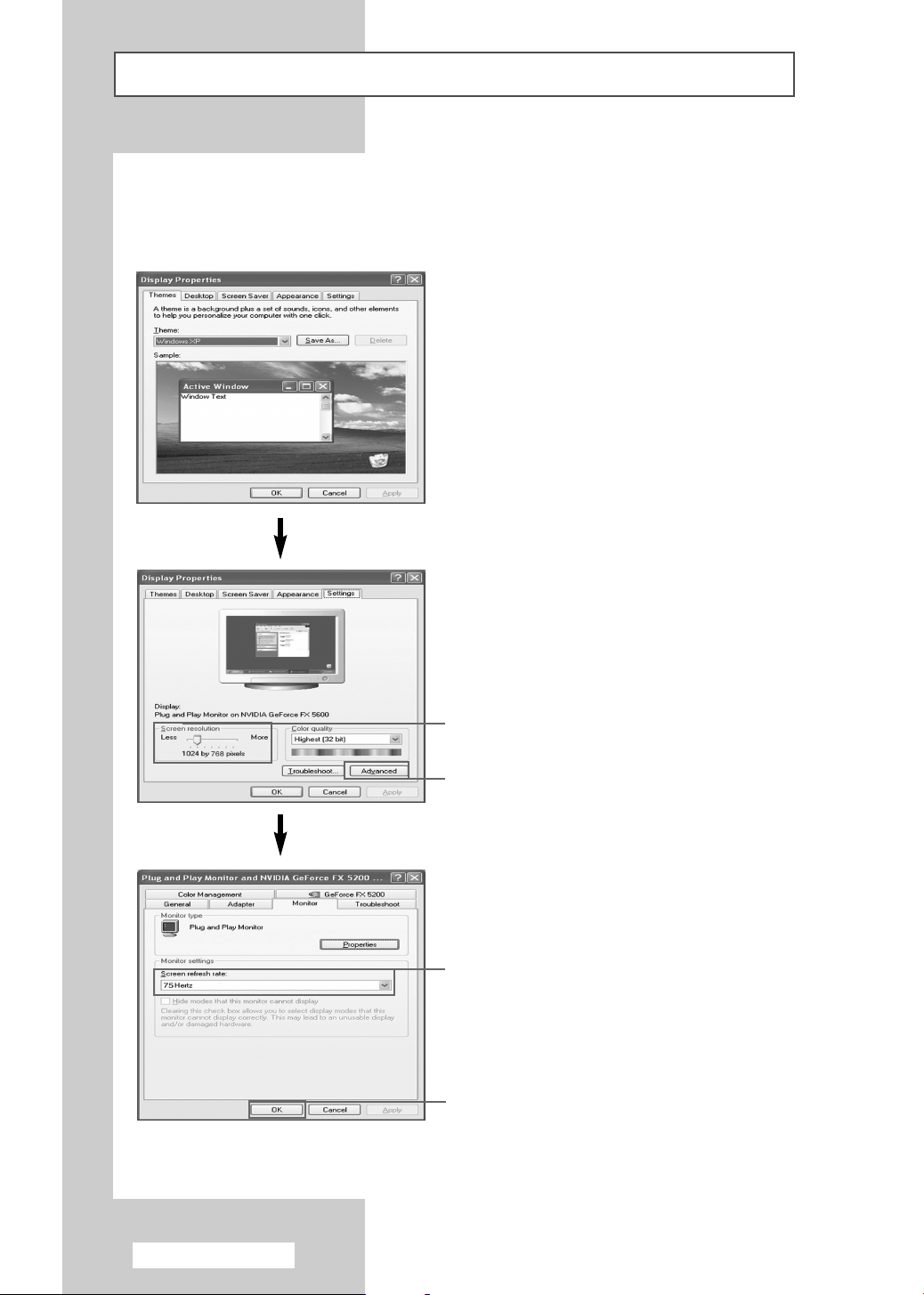

■ Setting up Your PC Software (Windows only) .............................................. 58
■ PC Input Mode............................................................................................... 59
◆ RECOMMENDATIONS FOR USE
■ Replacing the Lamp....................................................................................... 60
■ Troubleshooting: Before Contacting Service Personnel................................ 61
■ Technical Specifications ................................................................................ 62
Symbols
English - 4
☛
➢
Press Important Note
Checking Parts
Owner’s Instructions
Remote Control/
AAA Batteries
Replacement Lamp
For purchasing a replacement lamp,
ask at a nearby service center.
•
Use authorized lamps only. The
company cannot guarantee the
quality of the product if an
unauthorized lamp is used.
Warranty Card/
Safety Guide Manual
(Not available in
all locations)
Sold Separately
S-VIDEO Cable
Component Cables
(RCA)
HDMI Cable
PC Cable
Power Cord
Antenna Cable
PC Audio Cable
When installing the product, make sure to keep
➢
it away from the wall (more than 10cm) for
ventilation purposes.
• Poor ventilation may cause an increase
in the internal temperature of the product,
resulting in a shortened component life
and degraded performance.
Scart Cable
HDMI/DVI Cable
English - 5
Control Panel
Front of the TV
The actual configuration on your TV may be different, depending on
➢
your model.
Switch among video input modes
Display the on-screen menu
Adjust the volume
Select the channels
LED Indicators
Switch the TV On and Off
( :On, :Blinking, :Off)
TIMER LAMP STAND BY/TEMP Indication
Standby mode.
A timer pilot lights when Timer Auto On or Off is selected.
Normal operation.
Normal operation (when Timer Auto On or Off is selected).
Lamp is warming up. The normal picture comes on after 25 seconds.
The normal picture comes on after 25 seconds. (when Timer Auto On or
Off is selected)
Air vent cover in the rear of the TV is not properly installed.
Inside temperature of the TV is over normal. Clean the air vent cover in the
rear of the TV. Turn the TV back on after 1 hour.
The lamp does not work, please contact an authorized Service Center for
assistance.
Picture On/Off
Remote Control Sensor
Access to the selected option on
the menu system
➢
◆
You can use the channel selection buttons to switch on the TV when it is in standby mode
depending on the model.
◆
When using the on-screen menu the volume adjustment and channel selection buttons have
the same function as the
◆
If the remote control no longer works or you have lost it, you can use controls on the panel
…/†/œ/√ buttons on the remote control.
of the TV.
◆
Press the "I" side of the POWER switch to supply power to the TV. If the "I" side of the
POWER switch is not pressed, the
POWER button on the remote control and the Picture
On/Off switch on the front panel of the TV will not work.
continued...
English - 6
Connection Panel
The actual configuration on your TV may be different, depending on
➢
your model.
Side of the TV
Video Input Audio Input S-Video Input
continued...
English - 7
Rear of the TV
a) EXT 1(RGB), 2(Y/C)
Inputs or outputs for external devices, such as
VCR, DVD, video game consoles or
Cable/Satellite sources.
b) COMPONENT IN
Video (Y/PB/PR) and audio (AUDIO L/R) inputs for
Component.
c) PC IN (PC / AUDIO)
Connect to the video and audio output jack on
your PC.
d) HDMI/DVI IN
Connect to the HDMI jack of a device with
HDMI output. These inputs can also be used
as a DVI connection with separate analog
audio inputs. An optional HDMI/DVI cable
will be necessary to make this connection.
When using the optional HDMI/DVI adapter,
the DVI analog audio inputs on your TV allow
you to receive left and right audio from your
DVI device. (Not compatible with PC)
English - 8
e) DVI IN (AUDIO L/R)
DVI audio inputs for external devices.
f) AUDIO OUT
Connect to the external audio amplifier.
g) SERVICE
Service connection for qualified service engineer.
h) ANT IN
Coaxial connector for Aerial/Cable Network.
For further details about connection, refer to
➢
pages 53~57.
Whenever you connect an audio or video system to
➢
your television, ensure that all elements are
switched off. Refer to the documentation supplied
with your equipment for detailed connection
instructions and associated safety precautions.
Infrared Remote Control
Turns the TV on and off
Direct channel selection
One or two-digit channel
Temporary sound switch-off
TV mode selection
Move to the required
Adjust an option value
Current time display/
Teletext Sub-page
Mix both teletext information and
the normal broadcast
Sound effect selection
Picture effect selection
selection
Volume increase
Volume decrease
Menu display/
Teletext index
menu option/
respectively
Teletext display/
Picture still
(Refer to page 30)
(Refer to page 39)
(Refer to page 25)
Switch repeatedly between the
last two channels displayed
Next channel/
Teletext next page
External input selection/
Teletext page hold
Previous channel/
Teletext previous page
Information display/
Teletext reveal
(Refer to page 24)
Exit menu
Automatic switch-off/
Teletext cancel
(Refer to page 45)
Picture size/
Teletext size selection
(Refer to page 29)
TruSurround XT mode selection
(Refer to page 41)
Sound mode selection

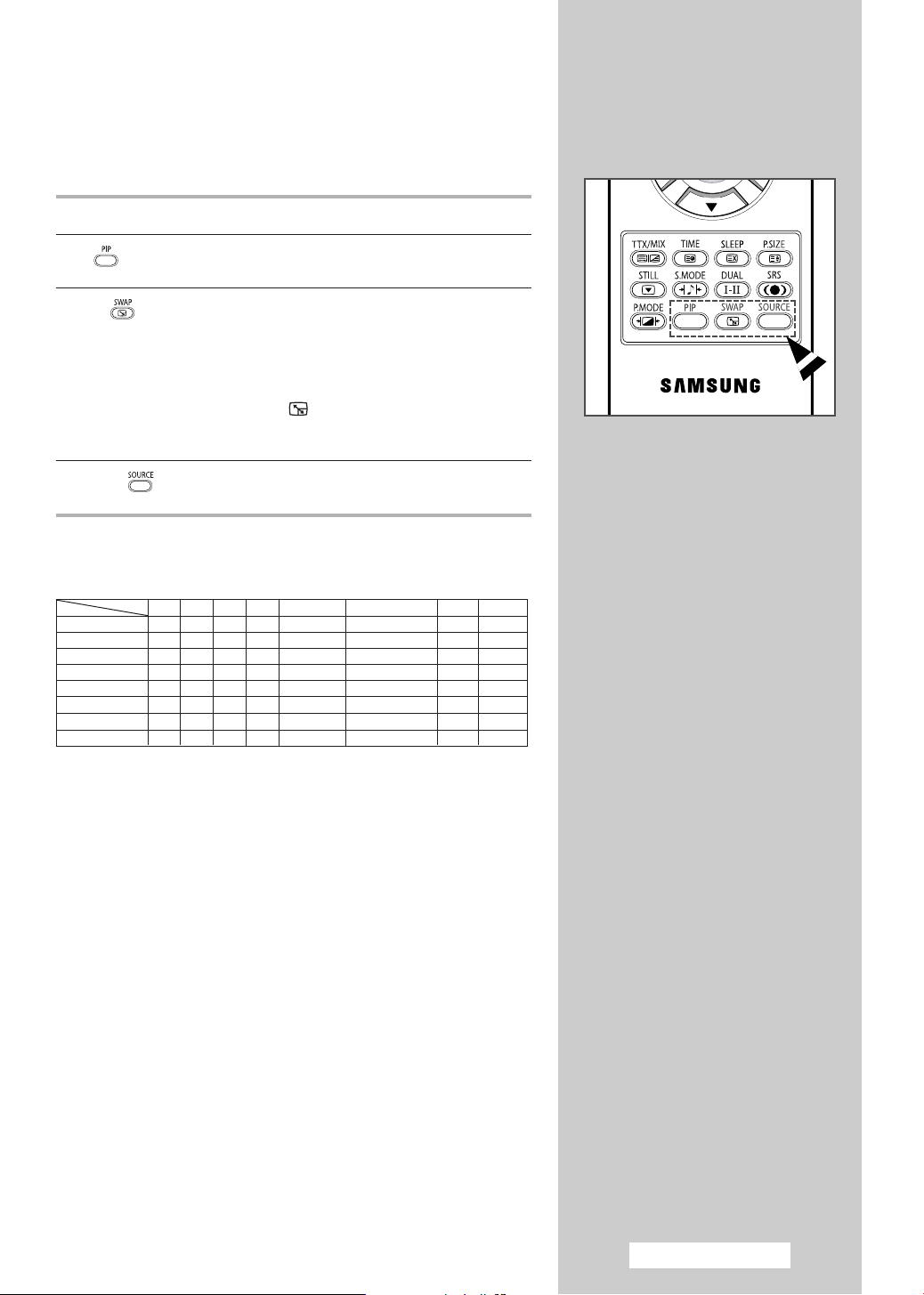

PIP functions:
- PIP activation or deactivation
(PIP)
- Swapping the main and the sub
picture (SWAP)
- Source selection (SOURCE)
The performance of the remote control may be affected by bright light.
➢
English - 9
Inserting the Batteries in the Remote Control
You must insert or replace the batteries in the remote control when
you:
◆ Purchase the television
◆ Find that the remote control is no longer operating
correctly
1 Remove the cover on the rear of the remote control by pressing
the symbol ( ) downwards and then pulling firmly to remove it.
2 Insert two R03, UM4, “AAA” 1.5V or equivalent batteries taking
care to match the polarities:
◆-on the battery against -on the remote control
◆+on the battery against +on the remote control
3 Replace the cover by aligning it with the base of the remote
control and pressing it back into place.
Do not mix battery types, i.e. alkaline and manganese.
➢
English - 10
Connecting to an Aerial or Cable Television Network
To view television channels correctly, a signal must be received by
the set from one of the following sources:
◆ An outdoor aerial
◆ A cable television network
◆ A satellite network
◆ An indoor aerial
1 In the first three cases, connect the aerial or network input cable to
the
ANT IN jack on the rear of the television.
2 If you are using an indoor aerial, you may need to adjust its
position when tuning your television until you obtain a picture that
is both sharp and clear.
For further details, refer to:
◆ “Storing Channels Automatically” on page 16.
◆ “Storing Channels Manually” on page 17.
When installing or re-installing your TV, be sure to use the
➢
supplied coaxial antenna cable. If you connect using a different
coaxial cable, there is risk of noise or interference to the screen
image. (You must not use another general purpose cable.
Use the 3M/5M/7M cable supplied by Samsung.)
Connecting a Satellite Receiver or Decoder
In order to watch television programmes broadcast via a satellite network,
you must connect a satellite receiver to the rear of TV. Also, in order to
descramble a coded transmission signal, you must connect a decoder to the
rear of TV.
Rear of the TV
or
Cable Television
Network
Rear of the TV
◆ Using a SCART cable
Connect the receiver (or decoder) SCART cable to one of the SCART
connectors on the rear of the television.
◆ Using a coaxial cable
Connect a coaxial cable to the:
-
Receiver (or Decoder) output socket.
-
Television aerial input socket.
➢ If you wish to connect both a satellite receiver (or decoder) and
a VCR, you should connect the:
◆ Receiver (or Decoder) to the VCR
◆ VCR to the television
Otherwise, connect the receiver (or decoder) directly to the
television.
Coaxial
cable
Satellite Receiver/Decoder
English - 11
SCART
cable
Switching Your Television On and Off
Plug the mains lead to the rear of your television.
1 Plug the mains lead into an appropriate socket.
The main voltage is indicated on the rear of the television
➢
and the frequency is 50 or 60Hz.
2 Press the power switch on the side of the television toward
“
ON” (I).
3 Press the POWER () button on the remote control (or the
button on the front of the television).
Result
: The programme that you were watching last is re-
selected automatically. However, if a SCART signal
input is present, the SCART signal has priority.
If you have not yet stored any channels, No clear picture
➢
appears. Refer to “Storing Channels Automatically” on
page 16 or “Storing Channels Manually” on page 17.
4 To switch your television off, press the power switch toward
“
OFF” (O).
Placing Your Television in Standby Mode
Your television can be placed in Standby mode, in order to reduce
the power consumption.
The Standby mode can be useful when you wish to interrupt
viewing temporarily (during a meal, for example).
English - 12
1 Press the POWER () button on the remote control to turn the
screen off.
Result
: The STAND BY/TEMP indicator on the front of the
television turns on.
2 To turn the screen back on, simply press the POWER () button
again.
You can also switch on by pressing the P /, TV () or
➢
any numeric button on the remote control.
Do not leave your television in Standby mode for long
☛
periods of time (when you are away on holiday, for
example). Turn your television off by pressing the power
switch on the back of the set. It is best to unplug the set
from the mains and aerial.
Becoming Familiar with the Remote Control
The remote control is used mainly to:
◆ Change channels and adjust the volume.
◆ Set up the television using the on-screen menu system.
The following table presents the most frequently used buttons and
their functions.
Button Viewing Function Menu Function
P
to
Used to display the next
stored channel.
Used to display the
previous stored channel.
Used to display the corresponding channels.
➢
For double digit channels, the second digit must be
pushed immediately after the first. Failure to do this
will result in a single digit channel being displayed.
-
-
-/--
MUTE
()
MENU
()
EXIT
()
PRE-CH
()
Used to select a channel numbered ten or over.
Press this button, and the “
--
” symbol is displayed.
Enter the two-digit channel number.
Used to increase the volume.
Used to decrease the volume.
Used to switch the sound off temporarily.
➢
To turn the sound back on, press this button
again, or press the or button.
Used to display the
on-screen menu system.
-
-
Press the
channel viewed. To quickly switch between two channels
that are far apart, select the first channel, then use the
numeric buttons to select the second channel. Then, use the
PRE-CH button to quickly alternate between them.
PRE-CH button. The TV will switch to the last
Used to return to the previous
menu or normal viewing.
Used to:
◆ Display a sub-menu
containing selections for
the current menu option.
◆ Increase/decrease a
menu option value.
Used to confirm your choice.
Used to exit from the menu
system and return to normal
viewing directly.
English - 13
Plug & Play Feature
Plug & Play
Start Plug & Play
OK
Enter Exit
Plug & Play
Language
Move Enter Skip
Check antenna input.
Country
Move Enter Skip
Auto Store
P 1 C
Clock Set
English
Deutsch
Français
Nederlands
Plug & Play
OK
Enter Skip
Plug & Play
Belgium
France
Germany
Italy
Plug & Play
--
40 MHz
Start
Enter Skip
Plug & Play
--:--
0 %
When the television is initially powered on, several basic customer
settings proceed automatically and subsequently.
The following settings are available.
1 If the television is in standby mode, press the POWER ()button
on the remote control.
Result
: The message to start Plug & Play is displayed.
2 To start Plug & Play, press the ENTER () button.
Result
: The Language menu is displayed.
The Language menu will automatically appear after several
➢
seconds, even if the
ENTER () button is not pressed.
3 Select the appropriate language by pressing the … or † button.
Press the
Result
ENTER () button.
: The message to check the connected status of the
antenna is displayed.
4 Make sure that the antenna is connected to the TV.
Press the
Result
➢
ENTER () button.
: The
Country menu is displayed.
If you do not press the ENTER () button, the clock
setting menu appears after several seconds.
5 Select your country or area by pressing the … or † button.
Press the
Result
ENTER () button.
: The menu to select channels is displayed.
6 To start channel store, press the ENTER () button.
Result
: The search will end automatically. Channels are sorted
and stored in the order which reflects their position in
the frequency range (with lowest first and highest last).
When this has finished, the menu to set the time will be
displayed.
To stop the search before it has finished or return to normal
➢
viewing, press the MENU () or the ENTER () button.
Press the ENTER () button to set the clock.
➢
Enter Skip
Plug & Play
Clock Set 00 : 00
Move Adjust Enter Skip
Enjoy your watching.
OK
English - 14
7 Press the œ or √ button to select the hour or minute.
Set these by pressing the
You can enter the hours or minutes by using the numeric
➢
buttons on the remote control.
… or † button.
8 The settings are complete, and the stored channel will be
activated.
continued...
If you want to reset this feature...
1 Press the MENU ()button.
Result
: The main menu is displayed.
2 Press the … or † button to select Setup.
Result
: The Setup menu is displayed.
3 Press the ENTER () button.
4 Press the ENTER () button again to select Plug & Play.
Result
: The message to start Plug & Play is displayed.
TV
Plug & Play
Language : English
Time
Child Lock
Blue Screen : Off
Melody : On
Panel Lock : Off
PC
Move Enter Return
Plug & Play
Setup
5 For further details on settings, refer to the previous page.
Choosing Your Language
When you start using your television for the first time, you must
select the language which will be used for displaying menus and
indications.
1 Press the MENU ()button.
Result
: The main menu is displayed.
2 Press the … or † button to select Setup.
Result
: The Setup menu is displayed.
3 Press the ENTER () button.
4 Press the … or † button to select Language.
Press the ENTER () button.
Result
: The available languages are listed.
5 Select the appropriate language by pressing the … or † button.
Press the
6 Press the EXIT button to exit.
ENTER () button.
Start Plug & Play
Enter Return
TV
Plug & Play
Language : English
Time
Child Lock
Blue Screen : Off
Melody : On
Panel Lock : Off
PC
Move Enter Return
TV
Plug & Play
Language : English
Time
Child Lock
Blue Screen : Off
Melody : On
Panel Lock : Off
PC
Move Enter Return
OK
Setup
Setup
English
Deutsch
Français
Nederlands
Espaol
English - 15
TV
Country : Belgium
Auto Store
Manual Store
Add/Delete
Sort
Name
Fine Tune
LNA : Off
Move Enter Return
TV
Country : Belgium
Auto Store
Manual Store
Add/Delete
Sort
Name
Fine Tune
LNA : Off
Move Enter Return
TV
Country : Belgium
Auto Store
Manual Store
Add/Delete
Sort
Name
Fine Tune
LNA : Off
Move Enter Return
Auto Store
P 1 C
Enter Return
Storing Channels Automatically
You can scan for the frequency ranges available to you (availability
depends on your country). Automatically allocated programme numbers
may not correspond to actual or desired programme numbers. However
you can sort numbers manually and clear any channels you do not wish
to watch.
1 Press the MENU ()button.
Result
: The main menu is displayed.
2 Press the … or † button to select Channel.
Result
: The Channel menu is displayed.
3 Press the ENTER () button.
Result
: The Country is selected.
4 Press the ENTER () button again.
Result
: The available countrys are listed.
5 Select your Country by pressing the … or † button.
➢ If you have selected the Others option but do not wish to
scan the PAL frequency range, store the channels manually
(“Storing Channels Manually” on page 18).
6 Press the ENTER () button.
7 Press the … or † button to select Auto Store.
Press the
Result
ENTER () button.
: The Auto Store menu is displayed.
8 Press the ENTER () button again to start the search.
Result
: The search will end automatically. Channels are sorted
and stored in the order which reflects their position in
the frequency range (with lowest first and highest last).
The programme originally selected is then displayed.
➢ To stop the search before it has finished, press the MENU
() or the ENTER () button.
9 When the channels have been stored, you can:
◆ Sort them in the order required (“Sorting the Stored
Channels” on page 20).
◆ Clear a channel (“Skipping Unwanted Channels” on page 19).
◆ Fine-tune channel reception if necessary (“Fine Tuning
Channel Reception” on page 24).
◆ Assign a name to the stored channels (“Assigning Names to
Channels” on page 21).
◆ Activate/deactivate the Digital NR (Noise Reduction) feature
(“Using the Digital NR (
◆ Activate/deactivate the LNA (Low Noise Amplifier) feature
(“Using the LNA (
--
Start
Channel
Channel
Belgium
France
Germany
Italy
Netherlands
Spain
Channel
40 MHz
0 %
Noise Reduction) Feature” on page 38).
Low Noise Amplifier) Feature” on page 23).
English - 16
Storing Channels Manually
You can store television channels, including those received via cable
networks.
When storing channels manually, you can choose:
◆ Whether or not to store each of the channels found.
◆ The programme number of each stored channel which you
wish to identify.
1 Press the MENU ()button.
Result
: The main menu is displayed.
2 Press the … or † button to select Channel.
Result
: The Channel menu is displayed.
3 Press the ENTER () button.
4 Press the … or † button to select Manual Store.
Press the
5 If necessary, select the broadcasting standard required.
Press the
Press the
6 Select the required colour standard by pressing the … or †
button. Press the ENTER () button.
Result
7 Press the … or † button to select Sound System.
Press the
8 Select the required sound standard by pressing the … or †
button. Press the ENTER () button.
Result
ENTER () button.
… or † button to select Colour System.
ENTER () button.
: The following options are available.
(depending on the model)
AUTO - PAL - SECAM - NTSC 4.43
ENTER () button.
: The following options are available.
BG - DK - I - L
TV
Country : Belgium
Auto Store
Manual Store
Add/Delete
Sort
Name
Fine Tune
LNA : Off
Move Enter Return
TV
Programme : P 1
Colour System : AUTO
Sound System : BG
Channel : C 5
Search : 175 MHz
Store : ?
Move Enter Return
TV
Programme : P 1
Colour System : AUTO
Sound System : BG
Channel : C 2
Search : 48 MHz
Store : ?
Move Enter Return
TV
Programme : P 1
Colour System : AUTO
Sound System : BG
Channel : C 2
Search : 48 MHz
Store : ?
Channel
Manual Store
Manual Store
AUTO
PAL
SECAM
NTSC 4.43
Manual Store
BG
DK
I
L
continued...
Move Enter Return
English - 17
TV
Programme : P 1
Colour System : AUTO
Sound System : BG
Channel : C 05
Search : 175 MHz
Store : ?
Adjust Enter Return
TV
Programme : P 1
Colour System : AUTO
Sound System : BG
Channel : C 5
Search : 175 MHz
Store : ?
Adjust Enter Return
TV
Programme : P 1
Colour System : AUTO
Sound System : BG
Channel : C 5
Search : 175 MHz
Store : OK
Move Enter Return
Manual Store
Manual Store
Manual Store
9 If you know the number of the channel to be stored, see the
following steps.
◆
Press the … or † button to select Channel.
Press the
◆
Press the … or † button to select C (Air channel) or
ENTER () button.
S (Cable channel).
◆
Press the √ button.
◆
Press the … or † button to select the required number.
Press the
You can select the channel directly by pressing
➢
ENTER () button.
the numeric buttons on the remote control.
If there is abnormal sound or no sound, re-select the
➢
sound standard required.
10 If you do not know the channel numbers, select Search by
pressing the
Press the
Press the
Result
… or † button. Press the ENTER () button.
… or † button to start the search.
ENTER () button.
: The tuner scans the frequency range until the first
channel or the channel that you selected is received on
your screen.
11 To assign a programme number to a channel, select Programme
by pressing the … or † button. Press the ENTER () button.
12 Press the … or † button until you find the correct number.
Press the
➢
ENTER () button.
You can select the programme directly by pressing
the numeric buttons on the remote control.
English - 18
13 To store the channel and associated programme number, select
Store by pressing the … or † button. Set to OK by pressing the
ENTER () button.
14 Repeat steps 9 to 13 for each channel to be stored.
15 Press the EXIT button to exit.
Channel mode
☛
◆ P (Programme mode): When completing tuning, the
broadcasting stations in your area have been assigned to
position numbers from P00 to P99. You can select a
channel by entering the position number in this mode.
◆ C (Air channel mode): You can select a channel by entering
the assigned number to each air broadcasting station in this
mode.
◆ S (Cable channel mode): You can select a channel by entering
the assigned number for each cable channel in this mode.
Skipping Unwanted Channels
You can exclude the channels of your choice from the channel scan
operation. When you scan through the stored channels, those that you
have chosen to skip are not displayed.
All channels that you do not specifically choose to skip are displayed
during scanning.
1 Press the MENU () button.
Result
: The main menu is displayed.
2 Press the … or † button to select Channel.
Result
: The Channel menu is displayed.
3 Press the ENTER () button.
4 Press the … or † button to select Add/Delete.
Press the
Result
5 Press the … or † button to delete or add the required
channel.
Press the
Result
6 Repeat step 5 for each channel to be deleted or added.
7 Press the EXIT button to exit.
\
ENTER () button.
: The Add/Delete menu is displayed with the current
channel selected.
ENTER () button.
: If the ENTER () button is pressed repeatedly,
the will appear and disappear.
If the appears, the channel is added.
TV
Country : Belgium
Auto Store
Manual Store
Add/Delete
Sort
Name
Fine Tune
LNA : Off
Move Enter Return
TV
Prog. Name Added
0
1
2
3
4
Move Enter Return
TV
Prog. Name Added
0
1
2
3
4
Move Enter Return
Channel
Add/Delete
-----
-----
-----
-----
-----
Add/Delete
-----
-----
-----
-----
-----
English - 19
TV
Country : Belgium
Auto Store
Manual Store
Add/Delete
Sort
Name
Fine Tune
LNA : Off
Move Enter Return
TV
Prog. Channel Name
0C
1C 7
2C 19
3C 25
4C 26
Move Enter Return
TV
Prog. Channel Name
0C
2C 19
3C 25
4C 26
Sorting the Stored Channels
This operation allows you to change the programme numbers of
Channel
Sort
--
Sort
--
C 7
stored channels. This operation may be necessary after using auto store.
1 Press the MENU ()button.
Result
: The main menu is displayed.
2 Press the … or † button to select Channel.
Result
: The Channel menu is displayed.
3 Press the ENTER () button.
4 Press the … or † button to select Sort.
Press the
ENTER () button.
5 Select the channel that you wish to move by pressing the … or †
button. Press the ENTER () button.
6 Select the number of the programme to which the channel is to
be moved by pressing the
Press the
Result
ENTER () button.
: The channel is moved to its new position and all other
channels are shifted accordingly.
7 Repeat steps 5 to 6 until you have moved all the channels to the
required programme numbers.
8 Press the EXIT button to exit.
… or † button.
Move Enter Return
English - 20

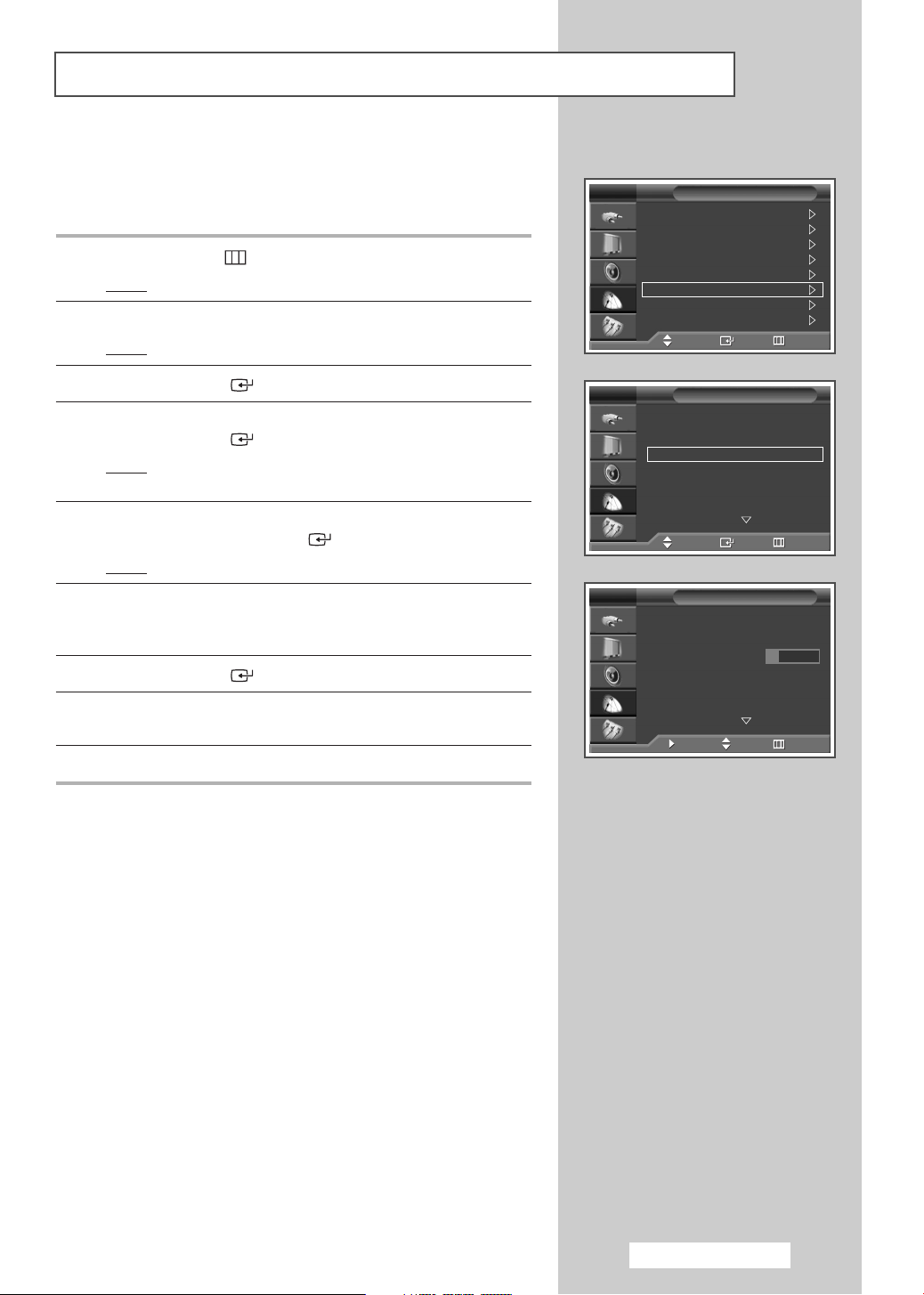

Assigning Names to Channels
Channel names will be assigned automatically when channel information is
broadcast. These names can be changed, allowing you to assign new
names.
1 Press the MENU ()button.
Result
: The main menu is displayed.
2 Press the … or † button to select Channel.
Result
: The Channel menu is displayed.
TV
Country : Belgium
Auto Store
Manual Store
Add/Delete
Sort
Name
Fine Tune
LNA : Off
Move Enter Return
Channel
3 Press the ENTER () button.
4 Press the … or † button to select Name.
Press the
Result
ENTER () button.
: The
Name menu is displayed with the current channel
selected.
5 Press the … or † button to select the channel to be assigned to a
new name. Press the
Result
: Arrow indications are displayed around the name box.
ENTER () button.
6 Press the … or † button to select a letter (A~Z), a number (0~9),
or a symbol. Move on to the previous or next letter by pressing the
œ or √ button.
7 Press the ENTER () button.
8 Repeat steps 5 to 7 for each channel to be assigned to a new
name.
9 Press the EXIT button to exit.
TV
Prog. Channel Name
0C
1C 7
2C 19
3C 25
4C 26
Move Enter Return
TV
Prog. Channel Name
0C
1C 7
2C 19
3C 25
4C 26
Move Adjust Return
Name
-- -----
-----
-----
-----
-----
Name
-- -----
A
-----
-----
-----
English - 21
TV
Plug & Play
Language : English
Time
Child Lock
Blue Screen : Off
Melody : On
Panel Lock : Off
PC
Move Enter Return
TV
Child Lock : On
Programme : P 1
Lock : ?
Move Enter Return
Locking the Channel
This feature allows you to prevent unauthorized users, such as children,
Setup
Child Lock
from watching unsuitable programmes by muting out video and audio.
Child Lock cannot be released using front panel buttons. Only remote
control can release the Child Lock setting, so keep the remote control
away from children.
1 Press the MENU ()button.
Result
2 Press the … or † button to select Setup.
Result
3 Press the ENTER () button.
4 Press the … or † button to select Child Lock.
Press the
5 Press the ENTER () button again.
Select
Press the
: The main menu is displayed.
: The Setup menu is displayed.
ENTER () button.
On by pressing the … or † button.
ENTER () button.
TV
Child Lock : On
Programme : 01
Lock : ?
Adjust Enter Return
TV
Child Lock : On
Programme : P 1
Lock : Locked
Move Enter Return
P1
Mono
Child Lock
Child Lock
6 Press the … or † button to select Programme.
Press the
ENTER () button.
7 Select the number of programme to which the channel is to be
locked by pressing the
Press the
ENTER () button.
… or † button.
8 Press the … or † button to select Lock.
Select
Locked by pressing the ENTER () button.
Result
: The selected channel is locked and marked with the
symbol.
9 Press the EXIT button to exit.
◆ A Blue screen is displayed when the Child Lock is
➢
activated.
◆ To unlock the Channel lock, press the ENTER ()
button again. The locked channel is unlocked.
◆ When a channel is locked, the channel is marked with
the symbol on the left side in the Channel OSD (On
Screen Display).
English - 22
Using the LNA (Low Noise Amplifier) Feature
This function is very useful in the situation that the TV is used in a weak
signal area. LNA amplifies the TV signal in the weak signal area, a lownoise preamplifier boosts the incoming signal.
1 Press the MENU ()button.
Result
: The main menu is displayed.
2 Press the … or † button to select Channel.
Result
: The Channel menu is displayed.
TV
Country : Belgium
Auto Store
Manual Store
Add/Delete
Sort
Name
Fine Tune
LNA : Off
Move Enter Return
Channel
3 Press the ENTER () button.
4 Press the … or † button to select LNA.
Press the
ENTER () button.
5 Select Off or On by pressing the … or † button.
Press the
ENTER () button.
6 Press the EXIT button to exit.
◆ If the picture is noisy with the LNA set to On, select Off .
➢
◆ LNA setting must be set for each individual channel.
TV
Country : Belgium
Auto Store
Manual Store
Add/Delete
Sort
Name
Fine Tune
LNA : Off
Move Enter Return
Channel
Off
On
English - 23
TV
Country : Belgium
Auto Store
Manual Store
Add/Delete
Sort
Name
Fine Tune
LNA : Off
Move Enter Return
Fine Tune
P 1
Adjust Save
Fine Tune
P 1
Adjust Save
Fine Tune
P 1 *
Adjust Save

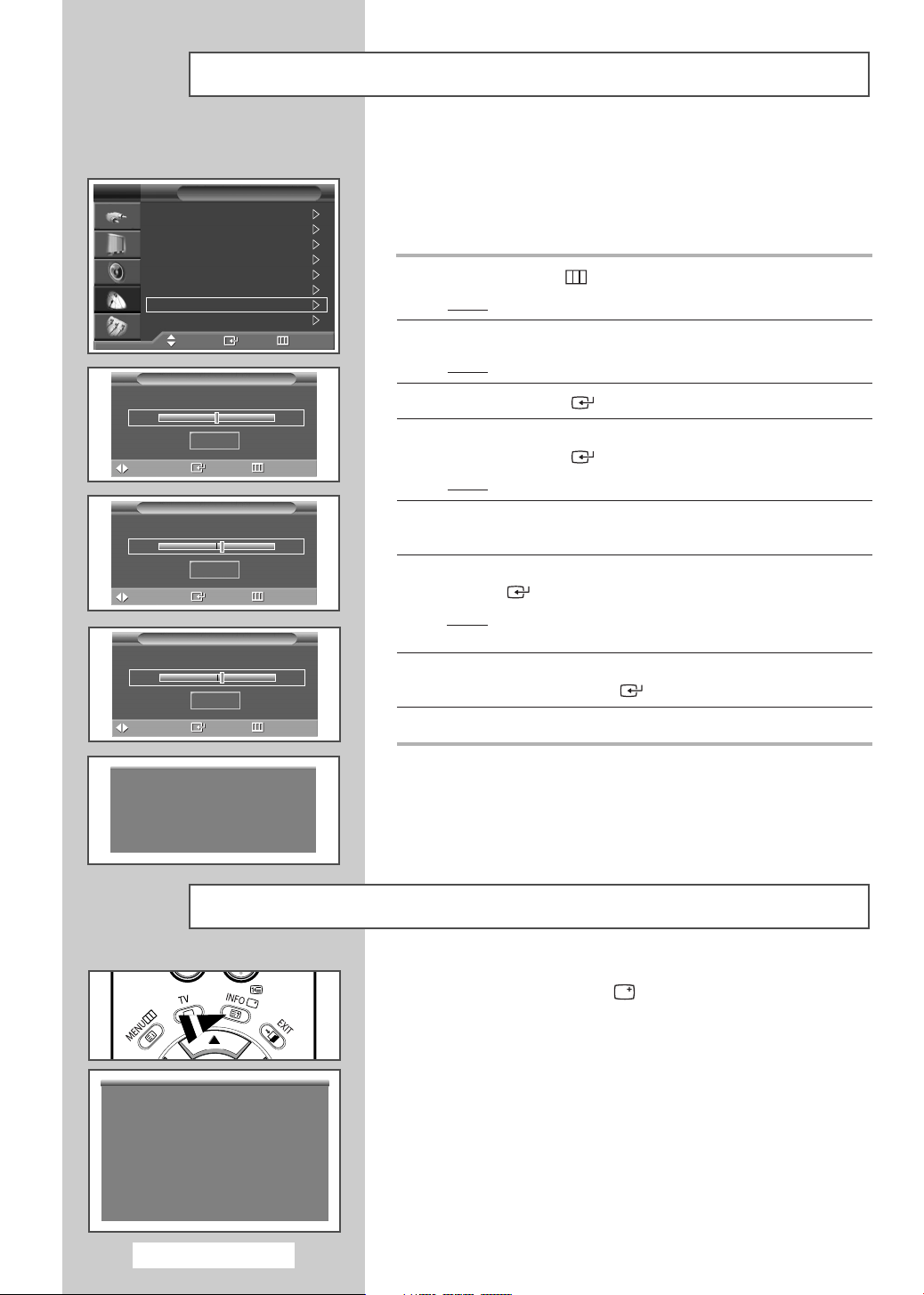

Fine Tuning Channel Reception
If the reception is clear, you do not have to fine tune the channel,
Channel
0
Reset
Return
+3
Reset
Return
+3
Reset
Return
as this is done automatically during the search and store operation.
If the signal is weak or distorted, you may have to fine tune the
channel manually.
1 Press the MENU ()button.
Result
: The main menu is displayed.
2 Press the … or † button to select Channel.
Result
: The
Channel menu is displayed.
3 Press the ENTER () button.
4 Press the … or † button to select Fine Tune.
Press the
Result
ENTER () button.
: The horizontal bar is displayed.
5 To obtain a sharp and clear picture and good sound quality,
press the
œ or √ button until you reach the optimal setting.
6 To store the fine tuning setting in the TV’s memory, press the
ENTER () button.
Result
: The programme number changes to red and is
marked with a “*”.
7 To reset the fine tuning to 0, select Reset by pressing the … or †
button. Press the ENTER () button.
8 Press the EXIT button to exit.
P 1 *
Mono
Displaying Information
P 1
Mono
Picture : Standard
Sound : Custom
SRS TSXT : Off
00 : 00
English - 24
If you are unable to fine tune a channel, check that the
➢
Colour System and Sound System settings are correct.
Fine Tune Store will change the colour of the Channel OSD
➢
(On Screen Display) from White to Red and add the “
*” mark.
You can view the channel information and setting status you have
selected by pressing the INFO
()
button on the remote control.
The information displayed varies according to the selected source.
Changing the Picture Standard
You can select the type of picture which best corresponds to your
viewing requirements.
1 Press the MENU ()button.
Result
: The main menu is displayed.
2 Press the … or † button to select Picture.
Result
:
The
Picture menu is displayed.
3 Press the ENTER () button.
Result
:
The
Mode is selected.
4 Press the ENTER () button again.
Result
:
The
Mode menu is displayed.
5 Press the ENTER () button.
Result
: The following
Dynamic - Standard - Movie - Custom
◆ Choose Dynamic for viewing the TV during the day or
➢
when there is bright light in the room.
◆ Choose Standard for the standard factory settings.
◆ Choose Movie when viewing a movie.
◆ Choose Custom if you want to adjust the settings
according to personal preference (see “Customizing the
Picture Settings”, page 26).
6 Select the required option by pressing the … or † button.
Press the
ENTER () button.
7 Press the EXIT button to exit.
options
are available.
TV
Mode : Standard
Size : Auto Wide
Digital NR : On
DNIe Demo : Off
My Colour Control
Film Mode : Of f
PIP
Move Enter Return
TV
Mode : Standard
Contrast 80
Brightness 50
Sharpness 50
Colour 50
Tint G 50 R 50
Colour Tone : Cool 1
Reset
Move Enter Return
TV
Mode : Dynamic
Contrast 80
Brightness 50
Sharpness 50
Colour 50
Tint G 50 R 50
Colour Tone : Cool 1
Reset
Move Enter Return
Mode
Mode
Dynamic
Standard
Movie
Custom
You can also set these options simply by pressing the
➢
P.MODE (: Picture Mode) button on the remote control.
English - 25
TV
Mode : Standard
Size : Auto Wide
Digital NR : On
DNIe Demo : Off
My Colour Control
Film Mode : Of f
PIP

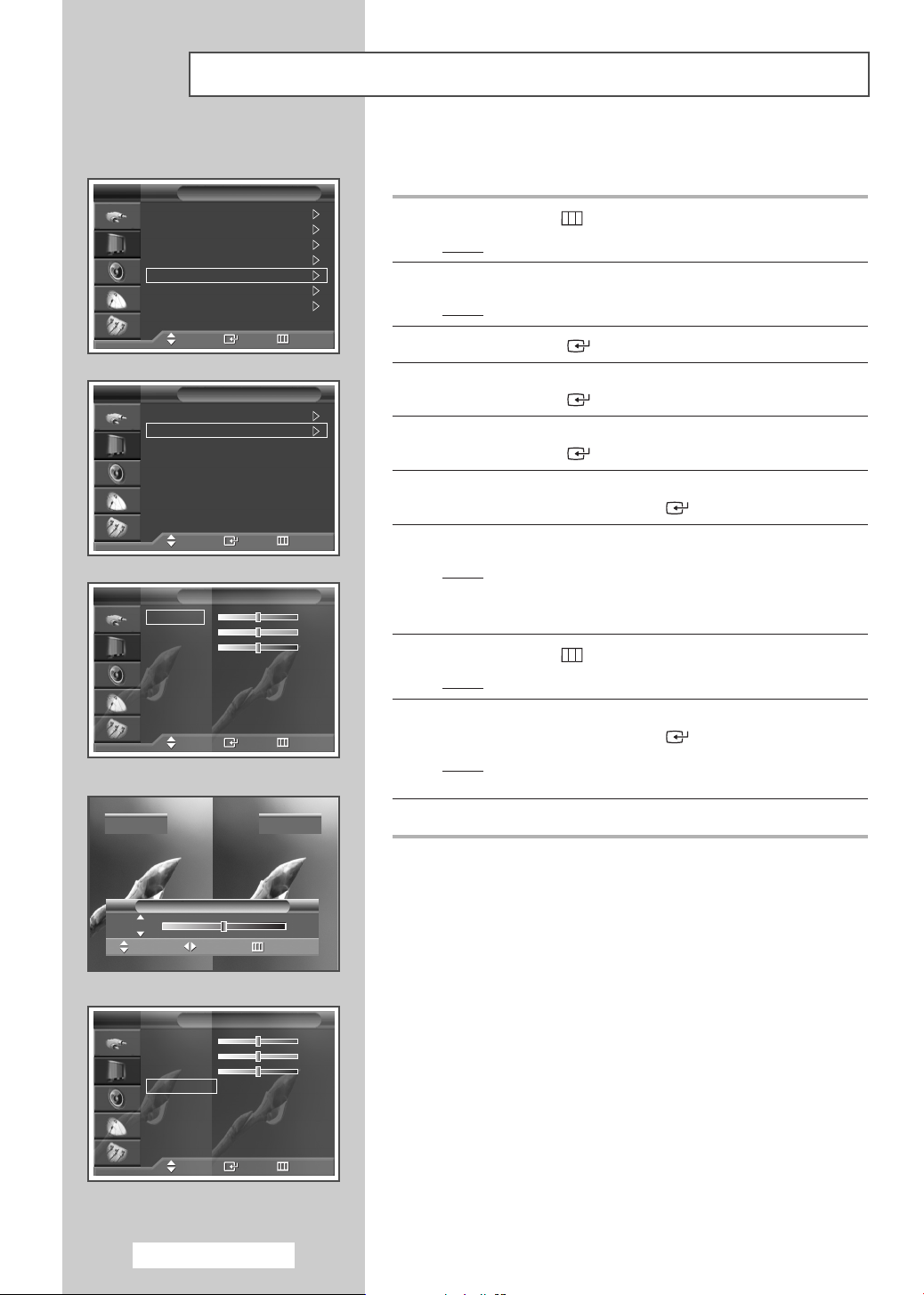

Customizing the Picture Settings
Your television has several setting options that allow you to control
the picture quality.
1 Press the MENU ()button.
: The main menu is displayed.
Result
2 Press the … or † button to select Picture.
:
The
Result
Picture menu is displayed.
Move Enter Return
TV
Mode : Custom
Contrast 80
Brightness 50
Sharpness 50
Colour 50
Tint G 50 R 50
Colour Tone : Cool 1
Reset
Move Enter Return
Contrast 80
TV
Mode : Custom
Contrast 80
Brightness 50
Sharpness 50
Colour 50
Tint G 50 R 50
Colour Tone : Cool 1
Reset
Move Enter Return
Mode
Mode
Cool 2
Cool 1
Normal
Warm 1
Warm 2
3 Press the ENTER () button.
:
The
Result
Mode is selected.
4 Press the ENTER () button again.
The
Result
:
Mode menu is displayed.
5 Press the ENTER () button.
options
: The following
Result
are available.
Dynamic - Standard - Movie - Custom
6 Select the required option by pressing the … or † button.
7 Press the ENTER () button.
8 Select the required option by pressing the … or † button.
: The following
Result
◆ Contrast - Brightness - Sharpness - Colour Tint (NTSC only)
◆ Contrast - Brightness : PC mode.
options
are available.
9 Press the ENTER () button.
: The horizontal bar is displayed.
Result
➢
Press the œ or √ button until you reach the optimal
setting.
◆ Press the … or † button to select other option(s).
◆ The settings values may vary depending on the input
source. (ex. RF, Video, Component, PC, or HDMI.)
TV
Mode : Custom
Contrast 80
Brightness 50
Sharpness 50
Colour 50
Tint G 50 R 50
Colour Tone : Cool 1
Reset
Move Enter Return
English - 26
Mode
10 Press the MENU () button to return to Mode menu.
Press the
Press the
… or † button to select Colour Tone.
ENTER () button.
11 Select the required option by pressing the … or † button.
: The following
Result
Cool 2 - Cool 1 - Normal - Warm 1 - Warm 2
options
are available.
12 Press the ENTER () button.
13 To return the factory defaults, select Reset by pressing the
… or † button. Press the ENTER () button.
: The previously adjusted settings will be reset to the
Result
factory defaults.
The reset function is set for each mode (Dynamic,
➢
Standard, Movie, or Custom).
The reset function is also set for each Colour Tone (Cool 2,
➢
Cool 1, Normal, Warm 1, or Warm 2).
14 Press the EXIT button to exit.

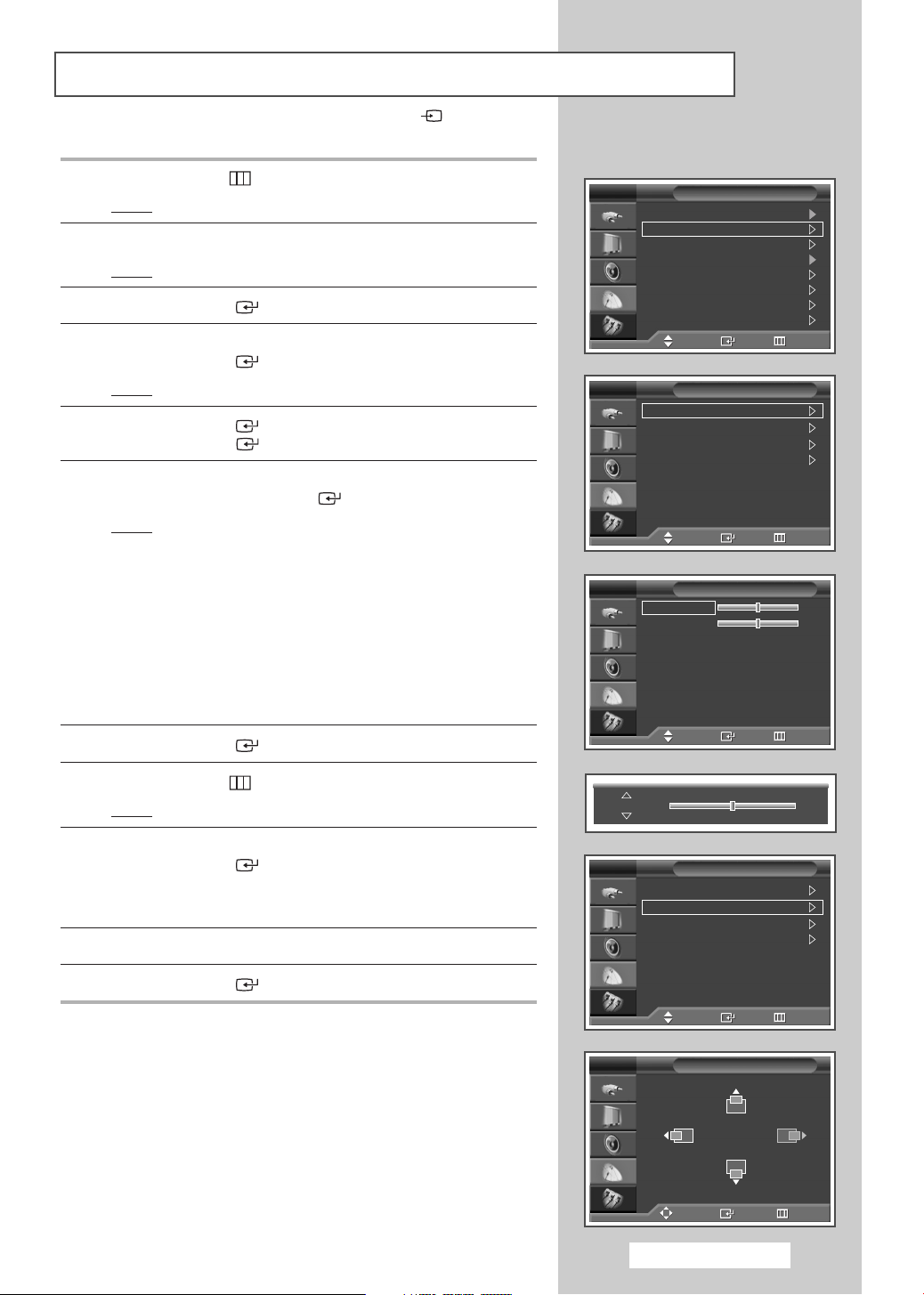

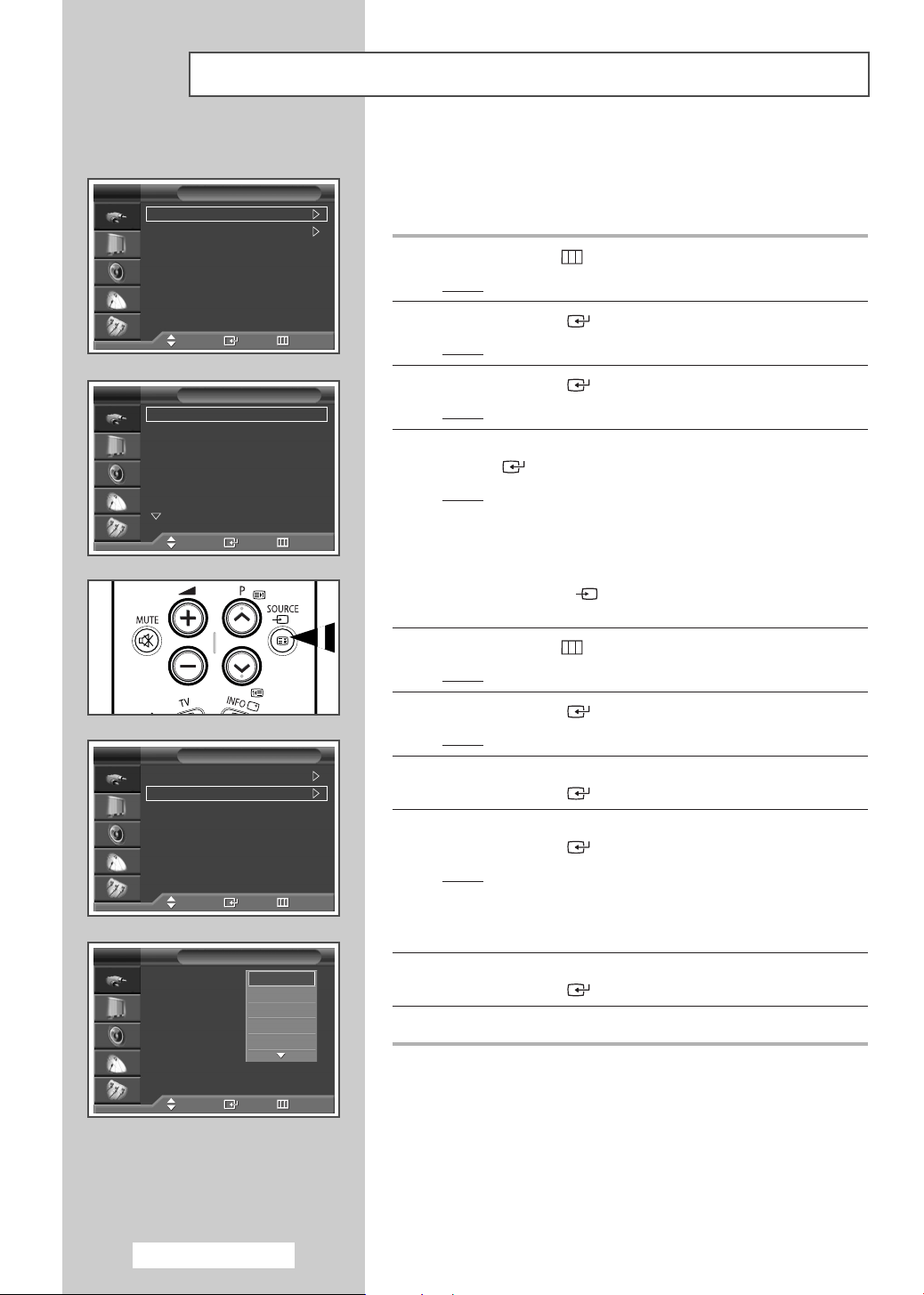

Setting the Picture (PC Mode)
Preset to the PC mode by pressing the SOURCE () button.
➢
1 Press the MENU ()button.
Result
: The main menu is displayed.
2 Press the … or † button to select Setup.
Result
: The Setup menu is displayed.
3 Press the ENTER () button.
4 Press the … or † button to select PC.
Press the
Result
ENTER () button.
: The PC menu is displayed.
5 Press the ENTER () button to select Image Lock.
Press the ENTER () button.
6 Press the … or † button to select the option (Coarse or Fine ) to
be adjusted. Press the
Result
: The horizontal bar is displayed.
Press the
setting.
The purpose of picture quality adjustment is to remove or
➢
reduce picture noise.
If the noise is not removed by Fine-tuning alone, then adjust
the frequency as best as possible (coarse) and Fine-tune
again. After the noise has been reduced, re-adjust the
picture so that it is aligned on the center of screen.
Press the … or † button to select other option(s).
➢
ENTER () button.
œ or √ button until you reach the optimal
7 Press the ENTER () button.
TV
Plug & Play
Language : English
Time
Child Lock
Blue Screen : Off
Melody : On
Panel Lock : Off
PC
Move Enter Return
TV
Image Lock
Position
Auto Adjustment
Image Reset
Move Enter Return
TV
Coarse 50
Fine 50
Image Lock
Move Enter Return
Setup
PC
8 Press the MENU ()button.
Result
: The PC menu is displayed again.
9 Press the … or † button to select Position.
Press the
➢
ENTER () button.
Adjust the PC’s screen positioning if it does not fit the TV
screen.
10 Adjust the position by pressing the …/†/œ/√ button.
11 Press the ENTER () button.
continued...
Coarse
TV
TV
50
PC
Image Lock
Position
Auto Adjustment
Image Reset
Move Enter Return
Position
Move Enter Return
English - 27
TV
PC
Image Lock
Position
Auto Adjustment
Image Reset
Move Enter Return
12 Press the … or † button to select Auto Adjustment.
Press the
Result
ENTER () button.
: The screen quality and position are automatically reset.
The settings are all finished, and the TV will
automatically return to the previous picture.
13 To return the factory defaults, select Image Reset by pressing
the
… or † button. Press the ENTER () button.
Result
: The previously adjusted settings will be reset to the
factory defaults.
Auto Adjustment in progress
Please wait
TV
Image Lock
Position
Auto Adjustment
Image Reset
Move Enter Return
Image Reset is completed.
Return
14 Press the EXIT button to exit.
PC
English - 28
Selecting the Picture Size
You can select the picture size which best corresponds to your viewing
requirements.
1 Press the MENU ()button.
Result
: The main menu is displayed.
2 Press the … or † button to select Picture.
Result
: The Picture menu is displayed.
3 Press the ENTER () button.
4 Press the … or † button to select Size .
Press the
ENTER () button.
5 Select the required option by pressing the … or † button.
Result
: The following modes are available depending on the
mode.
◆ Auto Wide : Expanding and pulling up the picture from 4:3
to 16:9 ratio.
◆ 16:9 : Sets the picture to 16:9 wide mode. Press the
√ button. The picture position ( , ) and
size ( ) adjustment are able in these mode by
pressing the
▲ or ▼ button.
◆ Zoom : Magnify the size of the picture vertically on
screen. Press the
√ button. The picture position
() and size ( ) adjustment are able in
these mode by pressing the
▲ or ▼ button.
◆ 4:3 : Sets the picture to 4:3 wide mode. Press the
√ button. The picture position ( , ) and
size ( ) adjustment are able in these mode by
pressing the
▲ or ▼ button.
6 When you are satisfied with your setting, press the ENTER ()
button.
7 Press the EXIT button to exit.
TV
Mode : Standard
Size : Auto Wide
Digital NR : On
DNIe Demo : Off
My Colour Control
Film Mode : Of f
PIP
Move Enter Return
RF/AV/S-Video SD-level-Component Mode
TV
Auto Wide
16:9
Zoom
4:3
Move Enter Return
Size
PC Mode
TV
Auto Wide
16:9
Zoom
4:3
Move Enter Return
TV
Auto Wide
16:9
Zoom
4:3
Size
Size
◆ You can select these options simply by pressing the P.SIZE
➢
button on the remote control.
◆ If you change the picture size when PIP is On, PIP will
automatically be turned Off.
◆ Depending on the input source, the P.SIZE options may vary.
Positioning and Sizing the screen using Zoom
◆ Resizing the screen using the Zoom enables the positioning
➢
and sizing of the screen to up/down direction using the
† button as well as the screen size.
◆ Move the screen up/down using the … or † button after
selecting the by pressing the
œ or √ button.
◆ Resize the screen vertically using the … or † button after
selecting the by pressing the
(Pressing the
… button extends it upward and pressing the
œ or √ button.
† button extends it downward.)
◆ Screen enlargement operates only in RF/AV/S-video/SD level
Component(480i,576i,480p,576p) input modes.
… or
HDMI Mode
TV
Auto Wide
16:9
Zoom
4:3
Move Enter Return
Size
Move Enter Return
English - 29
Viewing the DNIe Demonstration
TV
Mode : Standard
Size : Auto Wide
Digital NR : On
DNIe Demo : Off
My Colour Control
Film Mode : Of f
PIP
TV
Mode : Standard
Size : Auto Wide
Digital NR : On
DNIe Demo : Off
My Colour Control
Film Mode : Of f
PIP
DNIe Off DNIe On
Move Enter Return
Move Enter Return
DNIe Demo
Off
On
This TV includes the DNIe function so as to provide a high visual
quality.
If you set DNIe Demo to On, you can view an applied DNIe and a
normal picture on the screen, for demonstration purposes. Using
this function, you can view the difference in the visual quality.
1 Press the MENU ()button.
Result
: The main menu is displayed.
2 Press the … or † button to select Picture.
Result
: The Picture menu is displayed.
3 Press the ENTER () button.
4 Press the … or † button to select DNIe Demo.
Press the
ENTER () button.
5 Select Off or On by pressing the … or † button.
Result
: The following options are available.
◆ On : Switches on the DNIe Demo mode.
◆ Off : Switches off the DNIe Demo mode.
6 When you are satisfied with your setting, press the ENTER ()
button.
7 Press the EXIT button to exit.
DNIeTM(Digital Natural Image engine)
➢
This feature brings you more detailed image with 3D noise
reduction, detail enhancement, contrast enhancement and
white enhancement. New image compensation Algorithm
gives brighter, clearer, more detailed image to you.
TM
DNIe
technology will fit every signal into your eyes.
Freezing the Current Picture
You can freeze the picture when watching a television programme
simply by pressing the STILL button. To return to normal
viewing, press it again.
In the PIP mode, the main and sub pictures are stilled at
➢
the same time.
English - 30
Setting the My Colour Control (Easy Control)
This feature allows you to adjust colours according to your preferences, by
adjusting skin, sky, and grass tones using the predefined settings (Blue,
Green, Pink, Standard, and Custom) without affecting other colours on
the screen.
1 Press the MENU ()button.
Result
: The main menu is displayed.
2 Press the … or † button to select Picture.
Result
: The Picture menu is displayed.
3 Press the ENTER () button.
4 Press the … or † button to select My Colour Control .
Press the
Result
5 Press the ENTER () button again.
➢
Result
ENTER () button.
: The Easy Control is selected.
The current image will be displayed on the screen.
: The following options are available.
◆ Blue
Emphasizing clear blues.
◆ Green
Emphasizing mild greens.
◆ Pink
Emphasizing warm skin colours.
◆ Standard
Standard picture.
◆ Custom
Changing the settings in the Detail Control
menu will automatically set to Custom
(see next page).
TV
Mode : Standard
Size : Auto Wide
Digital NR : On
DNIe Demo : Off
My Colour Control
Film Mode : Of f
PIP
TV
Easy Control : Custom
Detail Control
Original Custom
Standard Custom
œ
Move
Move Enter Return
My Colour Control
Move Enter Return
Easy Control
Enter
Return
6 Select the required option by pressing the œ or √ button.
Result
: The original picture (before adjustment) is shown on
the left side, while the selected mode is shown on the
right side.
7 When you are satisfied with your setting, press the ENTER ()
button.
8 Press the EXIT button to exit.
◆ The My Colour Control is not available in PC mode.
➢
◆ When running the My Colour Control feature, the current
picture is captured as a still image before being displayed on
the screen.
◆ You cannot use this function, when PIP is On.
English - 31
TV
Mode : Standard
Size : Auto Wide
Digital NR : On
DNIe Demo : Off
My Colour Control
Film Mode : Of f
PIP
Move Enter Return
Setting the My Colour Control (Detail Control)
This setting can be adjusted to suit your personal preferences.
1 Press the MENU ()button.
Result
: The main menu is displayed.
2 Press the … or † button to select Picture.
Result
: The Picture menu is displayed.
3 Press the ENTER () button.
TV
TV
Original Adjusted
My Colour Control
Easy Control : Custom
Detail Control
Move Enter Return
Detail Control
Pink 50
Green 50
Blue 50
Reset
Move Enter Return
4 Press the … or † button to select My Colour Control .
Press the
ENTER () button.
5 Press the … or † button to select Detail Control .
Press the
ENTER () button.
6 Select the required option (Pink, Green , or Blue) by pressing the
▲ or ▼ button. Press the ENTER () button.
7 Press the œ or √ button until you reach the optimal setting.
Result
: Changing the adjustment value will refresh the
adjusted screen.
Press the ▲ or ▼ button to select other option(s).
➢
8 Press the MENU ()button.
Result
: The Detail Control menu is displayed again.
9 To return the factory defaults, select Reset by pressing the
▲ or ▼ button. Press the ENTER () button.
Result
: The previously adjusted colours will be reset to the
factory defaults.
10 Press the EXIT button to exit.
Detail Control
Pink
Move
TV
Adjust
Detail Control
Pink 50
Green 50
Blue 50
Reset
Move Enter Return
English - 32
50
Return

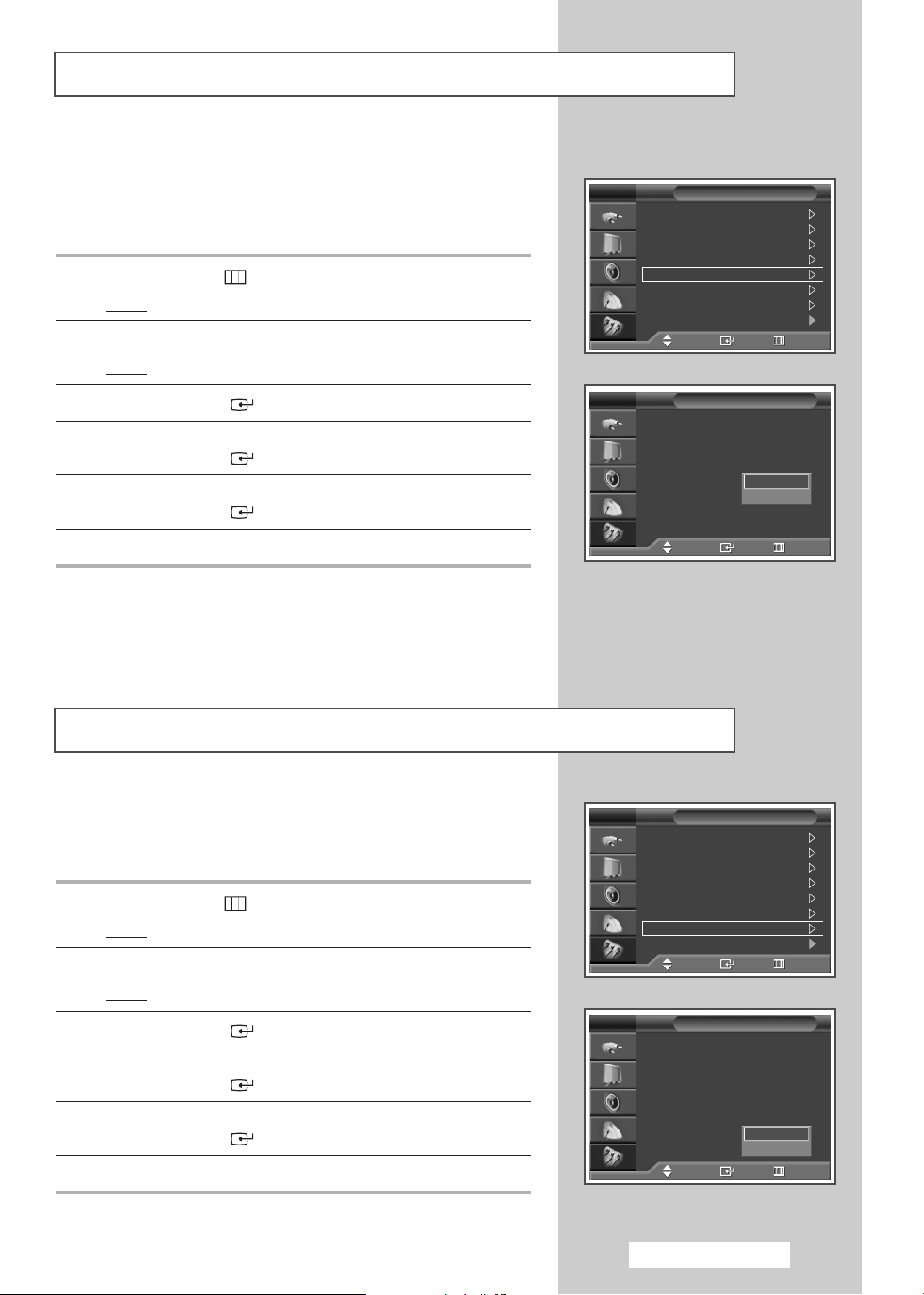

Setting the Blue Screen
If no signal is being received or the signal is very weak, a blue screen
automatically replaces the noisy picture background. If you wish to
continue viewing the poor picture, you must set the Blue Screen mode to
Off.
1 Press the MENU ()button.
Result
: The main menu is displayed.
2 Press the … or † button to select Setup.
Result
: The Setup menu is displayed.
3 Press the ENTER () button.
4 Press the … or † button to select Blue Screen .
Press the
5 Select Off or On by pressing the … or † button.
Press the
6 Press the EXIT button to exit.
ENTER () button.
ENTER () button.
TV
Plug & Play
Language : English
Time
Child Lock
Blue Screen : Off
Melody : On
Panel Lock : Off
PC
Move Enter Return
TV
Plug & Play
Language : English
Time
Child Lock
Blue Screen : Off
Melody : On
Panel Lock : Off
PC
Move Enter Return
Setup
Setup
Off
On
Activating Panel Button Lock
This feature allows you to lock the TV panel buttons so that it cannot be
operated via the TV panel. It can, however, still be operated via the remote
control. Only remote control can release the panel lock setting, so keep
the remote control away from unauthorized users.
1 Press the MENU ()button.
Result
: The main menu is displayed.
2 Press the … or † button to select Setup.
Result
: The
3 Press the ENTER () button.
4 Press the … or † button to select Panel Lock .
Press the
5 Select Off or On by pressing the … or † button.
Press the
6 Press the EXIT button to exit.
Setup menu is displayed.
ENTER () button.
ENTER () button.
TV
Plug & Play
Language : English
Time
Child Lock
Blue Screen : Off
Melody : On
Panel Lock : Off
PC
Move Enter Return
TV
Plug & Play
Language : English
Time
Child Lock
Blue Screen : Off
Melody : On
Panel Lock : Off
PC
Move Enter Return
Setup
Setup
Off
On
English - 33

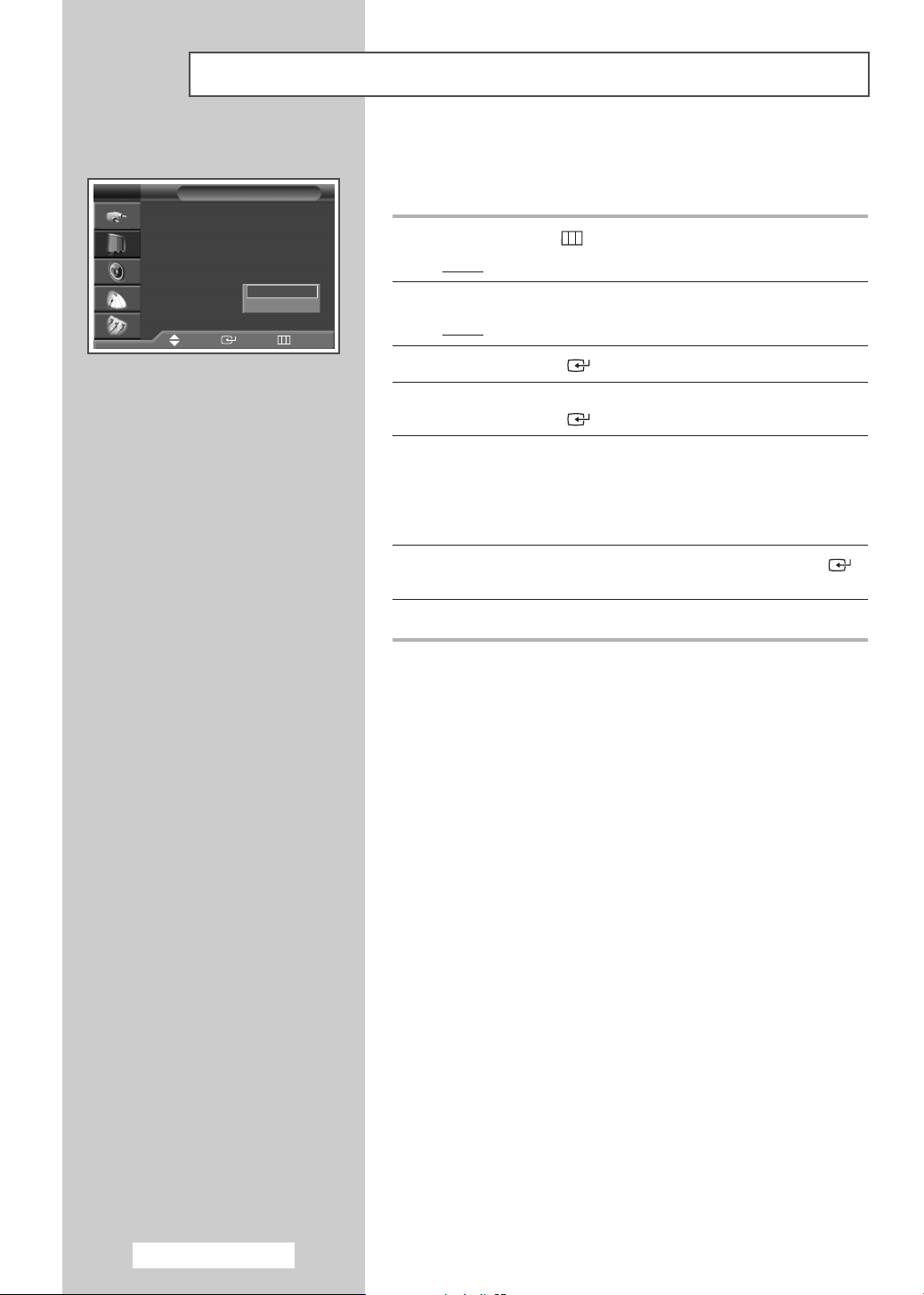

Setting the Film Mode
TV
Mode : Standard
Size : Auto Wide
Digital NR : On
DNIe Demo : Off
My Colour Control
Film Mode : Off
PIP
Move Enter Return
Off
On
You can automatically sense and process film signals from all sources
and adjust the picture for optimum quality.
1 Press the MENU ()button.
Result
: The main menu is displayed.
2 Press the ▲ or ▼ button to select Picture.
Result
: The Picture menu is displayed.
3 Press the ENTER () button.
4 Press the ▲ or ▼ button to select Film Mode .
Press the
ENTER () button.
5 Select Off or On by pressing the ▲ or ▼ button.
◆ Off Switches off the film mode.
◆ On Automatically senses and processes film signals from
all sources and adjusts the picture for optimum quality.
6 When you are satisfied with your setting, press the ENTER ()
button.
7 Press the EXIT button to exit.
◆ The Film Mode is not available in PC, Component (except 480i,
➢
576i), or HDMI mode.
English - 34
Viewing the Picture in Picture (PIP)
You can display a sub picture within the main picture of a TV program or
external A/V devices. In this way you can monitor the video input from any
connected devices while watching TV or other video input.
1 Press the MENU ()button.
Result
: The main menu is displayed.
2 Press the … or † button to select Picture.
Result
: The Picture menu is displayed.
3 Press the ENTER () button.
4 Press the … or † button to select PIP.
Press the
Result
5 Press the ENTER () button again.
To activate, set
Press the
➢
6 Press the … or † button to select Source.
Press the
Result
➢
7 Select a source of the sub picture by pressing the … or † button.
Press the
8 Press the … or † button to select Swap.
Press the
Result
➢
9 Press the … or † button to select Size.
Press the
Result
➢
10 Select a size of the sub picture by pressing the … or † button.
Press the
ENTER () button.
: The PIP is selected.
PIP to on by pressing the … or † button.
ENTER () button.
You can select these options by simply pressing the
PIP () button on the remote control.
ENTER () button.
: The following options are available.
TV - Ext.1 - Ext.2 - AV - S-Video
The same source cannot be selected on both the main and
sub screens.
ENTER () button.
ENTER () button.
: The main picture and sub picture are interchanged.
You cannot use the Swap function for PC, HDMI or
Component.
ENTER () button.
: The following options are available.
- - -
You cannot use the Double size ( , ) function for
PC or HDMI mode.
ENTER () button.
TV
Mode : Standard
Size : Auto Wide
Digital NR : On
DNIe Demo : Off
My Colour Control
Film Mode : Of f
PIP
Move Enter Return
TV
PIP : On
Source : TV
Swap
Size
Position
Programme : P 1
Move Enter Return
TV
PIP : On
Source : TV
Swap
Size
Position
Programme : P 1
Move Enter Return
TV
PIP : On
Source : TV
Swap
Size
Position
Programme : P 1
Move Enter Return
TV
PIP : On
Source : TV
Swap
Size
Position
Programme : P 1
Move Enter Return
PIP
:
:
PIP
:
:
PIP
:
:
PIP
:
:
Off
On
TV
Ext.1
Ext.2
AV
S-Video
continued...
English - 35

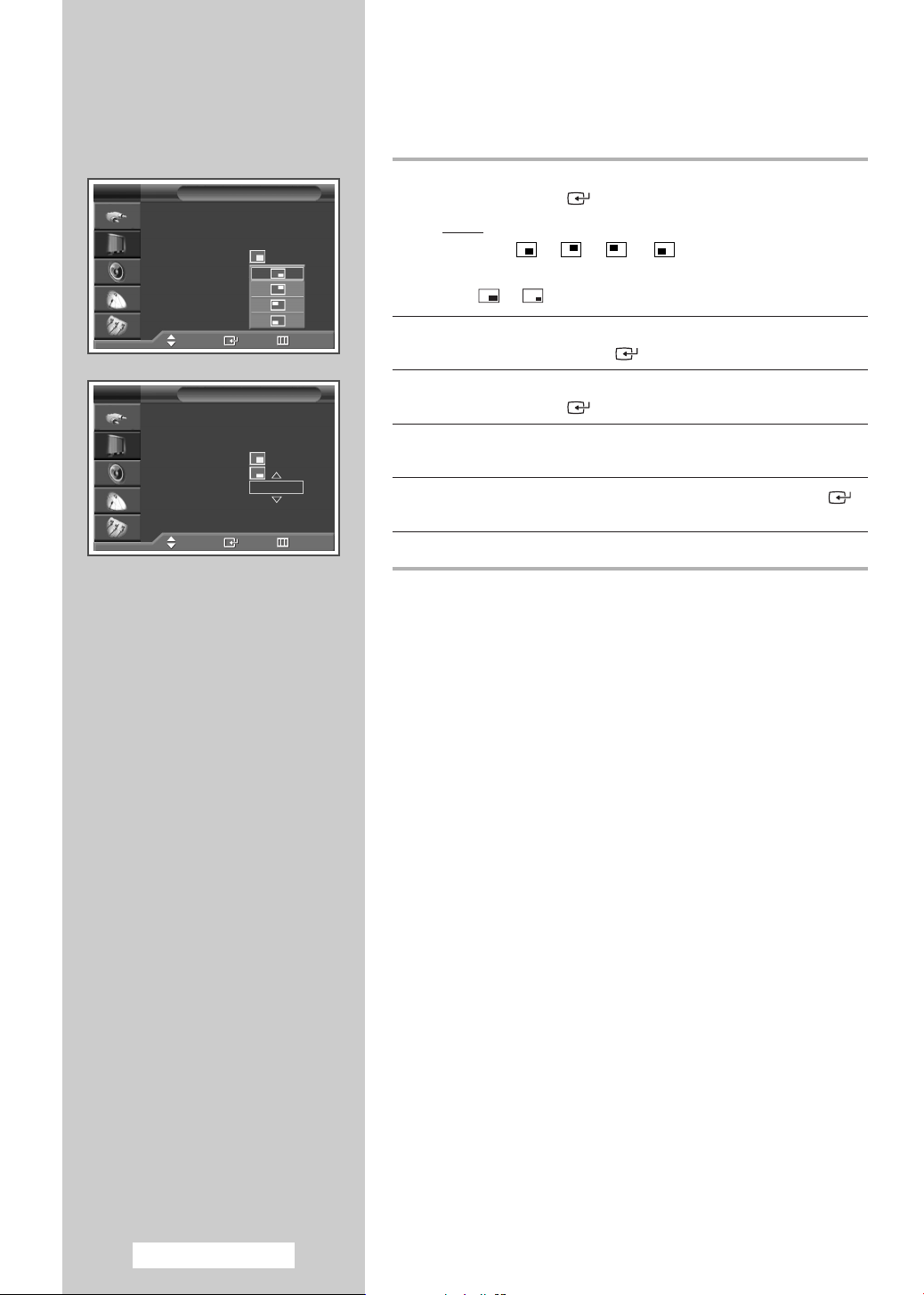

TV
PIP : On
Source : TV
Swap
Size
Position
Programme : P 1
PIP
:
:
11 Press the … or † button to select Position.
Press the
Result
➢
ENTER () button.
: The following options are available.
---
The Position menu is available when the Size is
or mode.
Move Enter Return
TV
PIP : On
Source : TV
Swap
Size
Position
Programme : 01
Adjust Enter Return
PIP
:
:
12 Select a position of the sub picture by pressing the … or †
button. Press the ENTER () button.
13 Press the … or † button to select Programme.
Press the
ENTER () button.
14 Select the channel that you want to view through sub picture by
pressing the
… or † button.
15 When you are satisfied with your setting, press the ENTER ()
button.
16 Press the EXIT button to exit.
English - 36
continued...
Easy functions of the remote control.
Buttons Feature
PIP () Used to activate or deactivate the PIP function
directly.
SWAP () Used to interchange the main picture and the sub
picture.
When the main picture is in the Video mode and
➢
the sub picture is in the TV mode, you might not
hear the sound of main picture when pressing
the
SWAP () button after changing the sub
picture channel. At this time, reselect the channel
of main picture.
SOURCE ()Used to assign a source of the sub picture (TV, Ext.1,
Ext.2, AV , or S-Video).
Table of PIP Settings
Main
Sub
TV
Ext.1
Ext.2
AV
S-Video
Component
PC
HDMI
TV
X
O
O
O
O
X
X
X
Ext.1
O
X
O
O
O
X
X
X
Ext.2
O
O
X
O
O
X
X
X
X - This PIP combination is not available.
O - This PIP combination is available.
S-Video
AV
O
O
O
O
O
O
O
X
X
O
X
X
X
X
X
X
Component
O
O
O
O
O
X
X
X
PC
O
O
O
O
O
X
X
X
HDMI
O
O
O
O
O
X
X
X
English - 37
Using the Digital NR (Noise Reduction) Feature
TV
Mode : Standard
Size : Auto Wide
Digital NR : On
DNIe Demo : Off
My Colour Control
Film Mode : Of f
PIP
Move Enter Return
If the signal received by your television is weak, you can activate this
feature to help reduce any static and ghosting that may appear on the
screen.
1 Press the MENU ()button.
Result
: The main menu is displayed.
2 Press the … or † button to select Picture.
Result
: The Picture menu is displayed.
TV
Mode : Standard
Size : Auto Wide
Digital NR : On
DNIe Demo : Off
My Colour Control
Film Mode : Of f
PIP
Move Enter Return
Off
On
3 Press the ENTER () button.
4 Press the … or † button to select Digital NR .
Press the
ENTER () button.
5 Select Off or On by pressing the … or † button.
Press the
ENTER () button.
6 Press the EXIT button to exit.
English - 38
Changing the Sound Standard
You can select the type of special sound effect to be used when
watching a given broadcast.
1 Press the MENU ()button.
Result
: The main menu is displayed.
2 Press the ▲ or ▼ button to select Sound .
Result
: The Sound menu is displayed.
3 Press the ENTER () button.
Result
: The Mode is selected.
4 Press the ENTER () button again.
5 Select the required option by pressing the ▲ or ▼ button.
Result
: The following options are available.
Standard - Music - Movie - Speech - Custom
◆ Choose Standard for the standard factory settings.
➢
◆ Choose Music when watching music videos or concerts.
◆ Choose Movie when watching movies.
◆ Choose Speech when watching a show that is mostly
dialog (i.e., news).
◆ Choose Custom to recall your personalized settings
(see “Customizing the Sound Settings”, page 40).
TV
Mode : Custom
Equalizer
SRS TSXT : Off
Auto Volume : Off
Internal Mute : Off
Move Enter Return
TV
Mode : Standard
Equalizer
SRS TSXT : Off
Auto Volume : Off
Internal Mute : Off
Move Enter Return
Sound
Sound
Standard
Music
Movie
Speech
Custom
6 When you are satisfied with your setting, press the ENTER ()
button.
7 Press the EXIT button to exit.
You can select these options by simply pressing the
➢
S.MODE (: Sound Mode) button on the remote control.
Custom
English - 39
TV
Mode : Custom
Equalizer
SRS TSXT : Off
Auto Volume : Off
Internal Mute : Off
Move Enter Return
Customizing the Sound Settings
Your television has several settings which allow you to control the
Sound
sound quality.
1 Press the MENU ()button.
Result
: The main menu is displayed.
2 Press the … or † button to select Sound.
Result
The
:
Sound menu is
3 Press the ENTER () button.
displayed.
TV
R
L
Equalizer
+
0
-
100Hz 300Hz 1KHz 3KHz 10KHz
Move Adjust Return
+
0
-
4 Press the … or † button to select Equalizer.
Press the
Result
ENTER () button.
:
The
Equalizer menu is
displayed.
5 Select the required option (balance or equalizer) by pressing the
œ or √ button.
6 Press the … or † button until you reach the
Press the
ENTER () button.
optimal
setting.
7 Press the EXIT button to exit.
If you make any changes to the sound settings, the sound
➢
standard is automatically switched to
◆ L/R Sound Balance Adjustment
➢
To adjust the sound balance of the L/R speakers.
◆ Bandwidth Adjustment (100Hz, 300Hz, 1KHz, 3KHz, 10KHz)
To adjust the level of different bandwidth frequencies.
Custom.
English - 40
Setting the TruSurround XT
TruSurround XT is a patented SRS technology that solves the problem of playing 5.1
multichannel content over two speakers. TruSurround delivers a compelling, virtual
surround sound experience through any two-speaker playback system, including
internal television speakers. It is fully compatible with all multichannel formats.
1 Press the MENU ()button.
Result
: The main menu is displayed.
2 Press the … or † button to select Sound.
Result
:
The
Sound menu is
displayed.
TV
Sound
Mode : Custom
Equalizer
SRS TSXT : Off
Auto Volume : Off
Internal Mute : Off
Move Enter Return
3 Press the ENTER () button.
4 Press the … or † button to select SRS TSXT.
Press the ENTER () button.
5 Select the required option by pressing the … or † button.
Result: The following options are available.
Off - 3D Mono - Stereo
6 When you are satisfied with your setting, press the ENTER ()
button.
7 Press the EXIT button to exit.
You can select these options simply by pressing the
➢
SRS () button on the remote control.
TruSurround XT, SRS and Symbol are
➢
trademarks of SRS Labs, Inc. TruSurround XT
technology is incorporated under license from
SRS Labs, Inc.
Adjusting the Volume Automatically
Each broadcasting station has its own signal conditions, the volume level
differs between stations, therefore it is an inconvenience to adjust the
volume every time the channel is changed. This feature lets you
automatically adjust the volume of the desired channel by lowering the
sound output when the modulation signal is high or by raising the sound
output when the modulation signal is low.
TV
Mode : Custom
Equalizer
SRS TSXT : Off
Auto Volume : Off
Internal Mute : Off
Move Enter Return
TV
Mode : Custom
Equalizer
SRS TSXT : Off
Auto Volume : Off
Internal Mute : Off
Sound
Off
3D Mono
Stereo
Sound
1 Press the MENU ()button.
Result
: The main menu is displayed.
2 Press the … or † button to select Sound.
Result
: The Sound menu is displayed.
3 Press the ENTER () button.
4 Press the … or † button to select Auto Volume.
Press the
ENTER () button.
5 Select Off or On by pressing the … or † button.
Press the
ENTER () button.
6 Press the EXIT button to exit.
Move Enter Return
TV
Mode : Custom
Equalizer
SRS TSXT : Off
Auto Volume : Off
Internal Mute : Off
Move Enter Return
English - 41
Sound
Off
On
TV
Mode : Custom
Equalizer
SRS TSXT : Off
Auto Volume : Off
Internal Mute : Off
Move Enter Return
Selecting the Internal Mute
If you want to hear the sound through separate speakers,
Sound
cancel the internal amplifier.
1 Press the MENU ()button.
Result
: The main menu is displayed.
2 Press the … or † button to select Sound.
Result
:
The
Sound menu is
3 Press the ENTER () button.
displayed.
TV
Mode : Custom
Equalizer
SRS TSXT : Off
Auto Volume : Off
Internal Mute : Off
Move Enter Return
TV
Plug & Play
Language : English
Time
Child Lock
Blue Screen : Off
Melody : On
Panel Lock : Off
PC
Move Enter Return
TV
Plug & Play
Language : English
Time
Child Lock
Blue Screen : Off
Melody : Off
Panel Lock : Off
PC
Move Enter Return
Sound
4 Press the … or † button to select Internal Mute.
Press the
ENTER () button.
5 Select Off or On by pressing the … or † button.
Off
On
Press the
6 Press the EXIT button to exit.
➢
ENTER () button.
The VOL +, VOL - and MUTE () buttons do not operate when
the
Internal Mute is set to On .
Setting the Melody Sound
You can hear melody sound when you switch the television on
Setup
Setup
Off
On
or off.
1 Press the MENU ()button.
Result
: The main menu is displayed.
2 Press the … or † button to select Setup.
Result
: The Setup menu is displayed.
3 Press the ENTER () button.
4 Press the … or † button to select Melody.
Press the
ENTER () button.
5 Select Off or On by pressing the … or † button.
Press the
ENTER () button.
6 Press the EXIT button to exit.
English - 42

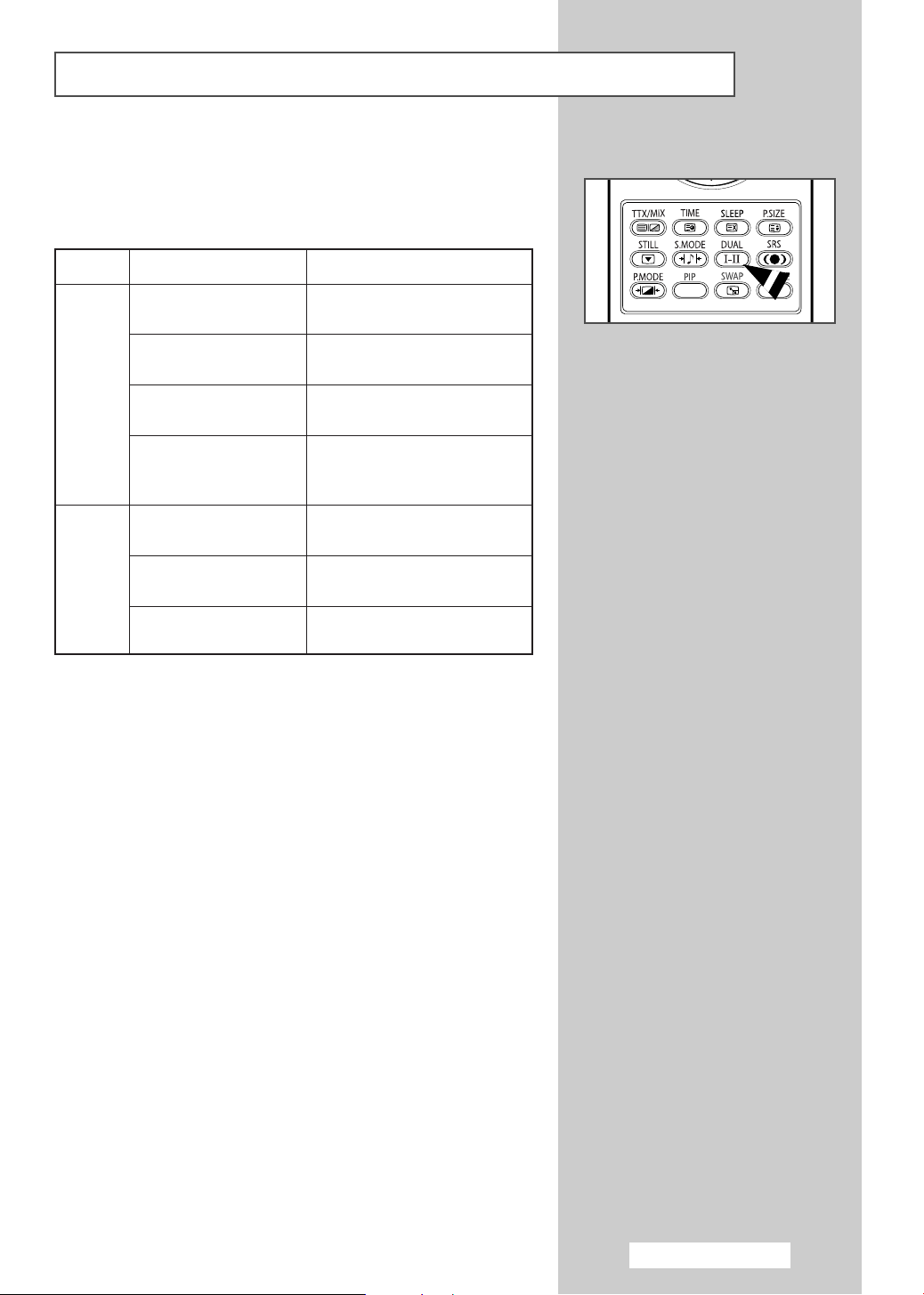

Selecting the Sound Mode (depending on the model)
The DUAL I-II button displays/controls the processing and output
of the audio signal. When power is switched on, the mode is
automatically preset to either “DUAL-I” or “Stereo”, depending on
the current transmission.
Type of broadcast
Regular broadcast
(Standard audio)
Regular +
NICAM
Stereo
A2
Stereo
◆ If the receiving conditions deteriorate, listening will be
➢
◆ If the stereo signal is weak and automatic switching
◆ When receiving mono sound in AV mode, connect to the
NICAM Mono
NICAM stereo
NICAM DUAL-I/II
Regular broadcast
(Standard audio)
Bilingual or DUAL-I/II
Stereo
easier if the mode is set to
occurs, switch to
AUDIO-L input connector on the panel (front or side,
depending on the model). If mono sound only comes out
of the left speaker, press the
Mono.
On-screen indication
(Normal use)
Mono
NICAM Mono↔Mono
NICAM stereo↔Mono
NICAM DUAL-I
NICAM DUAL-II
Mono
Mono
I↔DUAL-II
DUAL-
Stereo↔Mono
Mono.
DUAL I-II button.
(Forced mono)
→
→
(Forced mono)
English - 43
TV
Plug & Play
Language : English
Time
Child Lock
Blue Screen : Off
Melody : On
Panel Lock : Off
PC
Move Enter Return
Setting and Displaying the Current Time
You can set the television’s clock so that the current time is displayed
Setup
by pressing the INFO
wish to use the automatic on or off timers.
1 Press the MENU () button.
Result
: The main menu is displayed.
2 Press the … or † button to select Setup .
Result
: The Setup menu is displayed.
()
button. You must also set the time if you
TV
Clock Set 00 : 00
Sleep Timer : Off
On Timer
Off Timer
Move Enter Return
TV
Hour
Move Adjust Return
Time
--: --
--: --
Clock Set
Minute
00 00
Off
Off
3 Press the ENTER () button.
4 Press the … or † button to select Time .
Press the
Result
ENTER () button.
: The Clock Set is selected.
5 Press the ENTER () button again.
6 Press the œ or √ button to select Hour or Minute.
Set these by pressing the
You can set the hour and minute directly by pressing
➢
the numeric buttons on the remote control.
… or † button.
7 When you are satisfied with your setting, press the ENTER ()
button.
8 Press the EXIT button to exit.
In the event of a power interruption or the set being turned off at
➢
the supply, the settings for the Clock will be lost.
English - 44
Setting the Sleep Timer
You can select a time period of between 30 and 180 minutes after
which the television automatically switches to Standby mode.
1 Press the MENU () button.
Result
: The main menu is displayed.
2 Press the … or † button to select Setup.
Result
: The Setup menu is displayed.
3 Press the ENTER () button.
4 Press the … or † button to select Time.
Press the
Result
5 Press the … or † button to select Sleep Timer.
Press the
ENTER () button.
: The Time menu is displayed.
ENTER () button.
TV
Plug & Play
Language : English
Time
Child Lock
Blue Screen : Off
Melody : On
Panel Lock : Off
PC
Move Enter Return
TV
Clock Set 00 : 00
Sleep Timer : Off
On Timer
Off Timer
Setup
Time
--: --
--: --
Off
Off
6 Select the preset time interval (Off, 30 , 60 , 90 , 120, 150, or 180)
for staying on by pressing the
Press the
ENTER () button.
▲ or ▼ button.
7 Press the EXIT button to exit.
◆ You can select these options simply by pressing the
➢
SLEEP button on the remote control.
◆ If the sleep timer is not yet set, Off is displayed.
If the sleep timer is already set, the remaining time before
which the television switches to standby mode is displayed.
Move Enter Return
TV
Clock Set : 00 : 00
Sleep Timer : Off
On Timer : 00 : 00 Off
Off Timer : 00 : 00 Off
Move Enter Return
Sleep Timer : Off
Time
Off
30
60
90
120
150
180
English - 45
Switching the Television On and Off Automatically
TV
Plug & Play
Language : English
Time
Child Lock
Blue Screen : Off
Melody : On
Panel Lock : Off
PC
Move Enter Return
TV
Clock Set 00 : 00
Sleep Timer : Off
On Timer
Off Timer
Move Enter Return
TV
Hour
00 00
Programme
01
Volume
10
Move Adjust Return
Setup
Time
--: --
--: --
On Timer
Minute
Activation
No
Off
Off
You can set the on or off timers so that the television will:
◆ Switch on automatically and tune to the channel of your
choice at the time you select.
◆ Switch off automatically at the time you select.
The first step is to set the television’s clock (refer to
➢
“Setting and Displaying the Current Time” on page 44).
1 Press the MENU () button.
Result
: The main menu is displayed.
2 Press the … or † button to select Setup.
Result
: The
Setup menu is displayed.
3 Press the ENTER () button.
4 Press the … or † button to select Time.
Press the
Result
ENTER () button.
: The Time menu is displayed.
5 Press the … or † button to select On Timer.
Press the
Result
ENTER () button.
: The
On Timer menu is displayed.
6 Select Hour, Minute , Programme, or Volume by pressing the œ or √
button.
Set these by pressing the
You can set the hour and minute directly by pressing
➢
the numeric buttons on the remote control.
… or † button.
TV
Hour
00
Programme
Volume
10
On Timer
Minute
00
01
Activation
Yes
Move Adjust Return
7 Press the œ or √ button to select Activation.
8 To activate On Timer with the setting entered, select Yes by
pressing the
… or † button.
9 Press the ENTER () button.
Result
: The Time menu is displayed again.
continued...
English - 46
10 Press the … or † button to select Off Timer.
Press the
Result
ENTER () button.
: The Off Timer menu is displayed.
11 Select Hour or Minute by pressing the œ or √ button.
Set these by pressing the
You can set the hour and minute directly by pressing
➢
the numeric buttons on the remote control.
… or † button.
12 Press the œ or √ button to select Activation.
13 To activate Off Timer with the setting entered, select Yes by
pressing the
… or † button.
14 When you are satisfied with your setting, press the ENTER ()
button.
15 Press the EXIT button to exit.
Auto Power Off
➢
When you set the timer “On”, the television will eventually turn
off, if no controls are operated for 3 hours after the TV was turned
on by timer. This function is only available in timer “On” mode
and prevents overheating or leakages, which may occur if a TV is
on for too long (when you are on vacation, for example).
If no signal is received for 15 minutes, the TV will be
➢
automatically turned off.
TV
Clock Set 00 : 00
Sleep Timer : Off
On Timer 00 : 00 On
Off Timer
Move Enter Return
TV
Hour
00
Move Adjust Return
TV
Hour
00 00
Move Adjust Return
Time
--: --
Off Timer
Minute
00
Off Timer
Minute
Off
Activation
No
Activation
Yes
English - 47
TV
Source List : TV
Edit Name
Viewing an External Signal Source
Use the remote control to switch between viewing signal from
Input
Move Enter Return
connected equipment, such as VCR, DVD, Set-Top box, and the TV
source (broadcast or cable).
1 Press the MENU () button.
Result
: The main menu is displayed.
2 Press the ENTER () button to select Input.
Result
: The Input menu is displayed.
TV
TV
Ext.1 :
Ext.2 :
AV :
S-Video :
Component :
PC :
More
TV
Source List : TV
Edit Name
TV
Ext.1 :
Ext.2 :
AV :
S-Video :
Component :
PC :
HDMI :
Source List
----
----
----
----
----
----
Move Enter Return
Input
Move Enter Return
Edit Name
----
----
----
VCR
----
DVD
----
D-VHS
----
Cable STB
----
----
Move Enter Return
3 Press the ENTER () button.
Result
: The Source List is selected.
4 Press the … or † button to select the signal source, press the
ENTER () button.
Result
: The available signal sources are listed.
◆
➢
TV, Ext.1, Ext.2, Component, PC , or HDMI :
on the TV’s rear panel.
◆
AV, S-Video : on the TV’s side panel.
◆
You can also set these options simply by pressing the
SOURCE ()button on the remote control.
◆
Only connected devices can be selected
5 Press the MENU () button.
Result
: The main menu is displayed.
6 Press the ENTER () button to select Input.
Result
: The
Input menu is displayed agian.
7 Press the … or † button to select Edit Name.
Press the
ENTER () button.
8 Press the … or † button to select external source to be edited.
Press the
Result
ENTER () button.
: The available device names are listed.
VCR, DVD , D-VHS, Cable STB, HD STB, Satellite
STB
, AV Receiver, DVD Receiver , Game, Camcorder,
DVD Combo, DHR (DVD HDD Recorder), or PC
9 Select the required device by pressing the … or † button.
Press the
ENTER () button.
10 Press the EXIT button to exit.
If you change the external source while viewing, pictures
➢
might take a short period of time to switch.
English - 48
Teletext Feature
Most television channels provide written information services via
teletext. Information provided includes:
◆
Television programme times
◆
News bulletins and weather forecasts
◆
Sports results
◆
Travel information
The teletext pages are organized according to six categories:
Part Contents
A Selected page number.
B Broadcasting channel identity.
C Current page number or search indications.
D Date and time.
E Text.
F Status information.
FASTEXT information.
Teletext information is often divided between several pages
➢
displayed in sequence, which can be accessed by:
◆ Entering the page number
◆ Selecting a title in a list
◆ Selecting a coloured heading (FASTEXT system)
English - 49

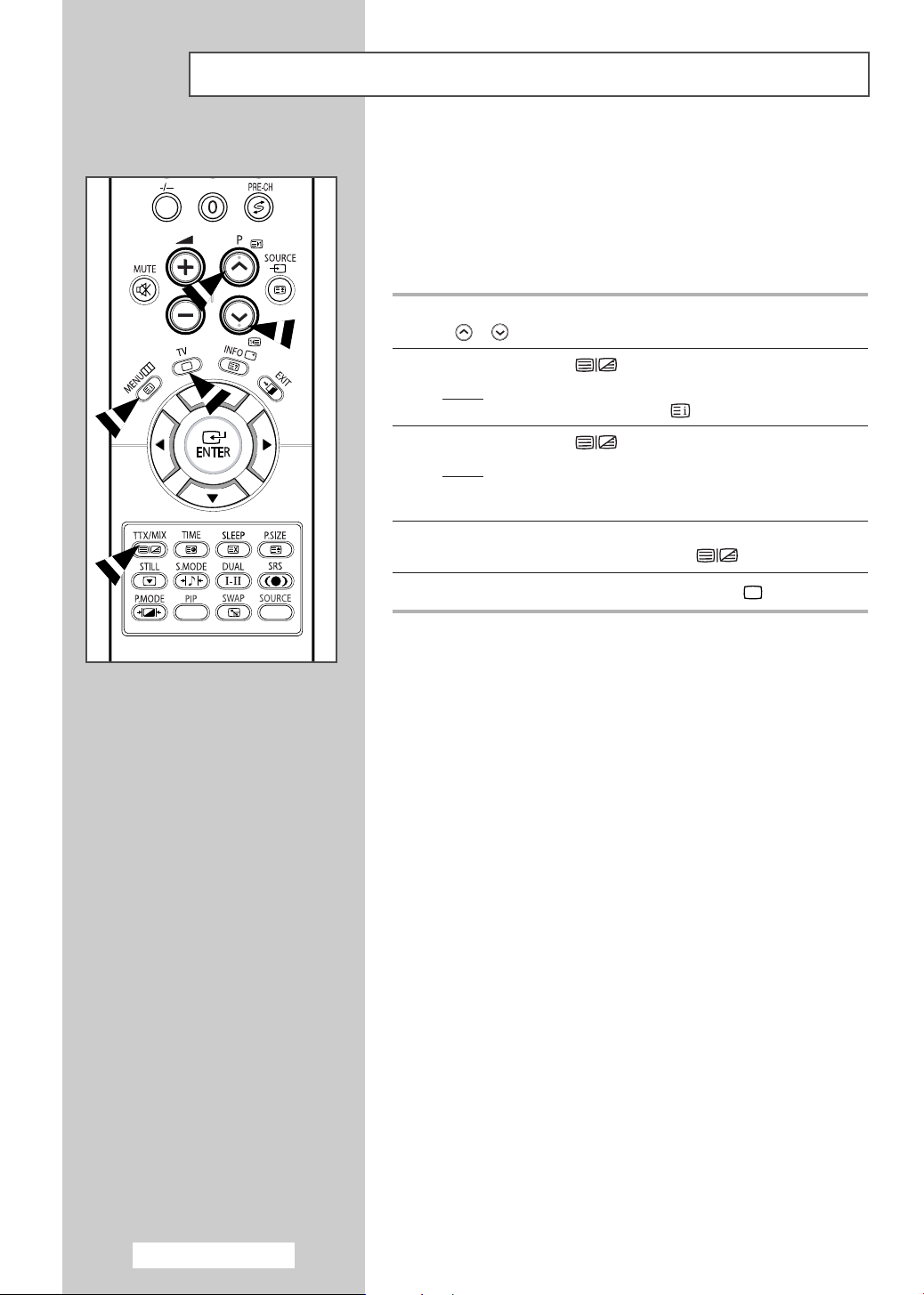

Displaying the Teletext Information
You can display Teletext information at any time on your television.
For Teletext information to be displayed correctly,
☛
channel reception must be stable; otherwise:
◆ Information may be missing
◆ Some pages may not be displayed
1 Select the channel providing the Teletext service by pressing the
P or button.
2 Press the TTX/MIX () button to activate the teletext mode.
Result
:
The contents page is displayed. It can be redisplayed at
any time by pressing the (index) button.
3 Press the TTX/MIX () button again.
Result
:
The screen will be split into two. This Double Teletext
feature lets you view the
information separately on the screen.
4 If you wish to display the actual broadcast and teletext information
on a single screen, press the
5 To exit from the teletext display, press the TV () button.
TTX/MIX ()button again.
actual broadcast
and teletext
English - 50
Selecting Display Options
When you have displayed a Teletext page, you can select various
options to suit your requirements.
To display... Press the...
◆ Hidden text (reveal)
(answers to quiz games, for example)
◆ The normal screen (reveal) again
◆ A secondary page (sub-page)
◆ The broadcast when searching for a page (cancel)
◆ The next page (page up)
◆ The previous page (page down)
◆ Double-size letters in the: (size)
• Upper half of the screen • Once
• Lower half of the screen • Twice
◆ Normal screen • Three times
To return to the normal display after using the reveal or
➢
size feature, press the
TV
()button.
English - 51
Selecting a Teletext Page
You can enter the page number directly by pressing the numeric
buttons on the remote control.
1 Enter the three-digit page number given in the content by
pressing the corresponding numeric buttons.
Result
: The current page counter is incremented and the page
2 If the FASTEXT system is used by a broadcasting company, the
different topics covered on a Teletext page are colour-coded and
can be selected by pressing the coloured buttons on the remote
control.
Press the coloured button corresponding to the topic that you wish
to select; the available topics are given in the status line.
Result
: The page is displayed with other coloured information
3 To display the previous or next page, press the corresponding
coloured button.
is then displayed. If the selected page is linked with
several secondary pages, the secondary pages are
displayed in sequence. To freeze the display on a
given page, press the (hold) button. Press it again
to resume.
that can be selected in the same way.
4 To display the sub-page, see the following steps.
◆
Press the (sub-page) button.
Result
: The available sub-pages appear.
◆
Select the required sub-page. Sub-pages can be scrolled by
pressing the or button.
5 When you have finished, press the TV () button to return to
your normal broadcast.
English - 52
Connecting to the External Input/Output
“EXT 1” is used for the equipment with an RGB output, such as video game consoles or Cable/Satellite
sources
VCR
Rear of the TV
①
②
③
or
or
DVD
Decoder /
Video Game Device
Video Disc Player
Satellite Receiver
④
①
This end can be fitted with:
◆ A SCART connector
◆ An S-Video connector and two audio RCA connectors (L+R); EXT 2
◆ Three RCA connectors (VIDEO + AUDIO-L and R)
②
If you have a second VCR and wish to copy cassette tapes, connect the source VCR to EXT 1 and the
target VCR to
③
If you have a decoder, connect the decoder to the VCR and the VCR to the television.
➃
When you wish to record a programme, connect the receiver to EXT 1 and the VCR to EXT 2 so that
you can redirect the signal from
EXT 2 so that you can redirect the signal from EXT 1 to EXT 2.
EXT 1 to EXT 2.
Please be sure to match the colour coded input terminals and cable jacks.
➢
Input/Output Specification
Connector
EXT 1 ✔✔ ✔✔ Only TV output is available.
EXT 2 ✔✔ ✔ Monitor output
Whenever you connect an audio or video system to your
☛
television, ensure that all
Refer to the documentation supplied with your equipment
for detailed connection instructions and associated safety
precautions.
Video Audio (L/R) S-Video RGB Video + Audio (L/R)
elements are switched off.
Input Output
English - 53
Connecting to the RCA Input
➢ The RCA (VIDEO + AUDIO L /R) connectors are used for equipment, such as camcorders, video disc
players, and some video game devices.
Camcorder
Side of the TV
Video game device
Video disc player
Please be sure to match the colour coded input terminals and cable jacks.
➢
Connecting to the S-Video Input
➢ The S-VIDEO and AUDIO L /R connectors are used for equipment with an S-Video output, such as a
camcorder or VCR.
Side of the TV
and
①
To play pictures and sound, both the S-VIDEO and AUDIO L /R
connectors must be used.
Please be sure to match the colour coded input terminals and cable jacks.
➢
Whenever you connect an audio or video system to your television,
☛
ensure that all elements are switched off. Refer to the documentation
supplied with your equipment for detailed connection instructions
and associated safety precautions.
①
Camcorder
VCR
English - 54
Connecting to the Component Input
Rear of the TV
①
DVD
DTV receiver
②
①
The COMPONENT IN connectors are used for equipment with a DVD or DTV receiver output.
(480i, 480p, 576i, 576p, 720p, 1080i)
Please be sure to match the colour coded input terminals and cable jacks.
➢
Connecting to the PC Input
The PC IN (video) and AUDIO connectors are used for interfacing with your PC.
➢
Rear of the TV
and
Personal Computer
English - 55
Connecting to the HDMI (High Definition Multimedia Interface) Input
The HDMI/DVI IN connector is used for equipment with an HDMI out.
➢
Rear of the TV
Connecting to the HDMI/DVI Compatible
DTV Set-Top Box
The HDMI/DVI IN connector is used for equipment with a DVI out.
➢
Rear of the TV
and
(HDMI/DVI cable)
DTV Set-Top Box
English - 56
Connecting Home Theater System
Use the AUDIO OUT ports of the TV for Home Theater System Connections.
Rear of the TV
①
Connecting the Home Theater System
①
Connect the monitoring audio out L and R jacks of the AUDIO
OUT
on the rear-side connection panel of the TV to the AUDIO
IN jacks of the DVD Home Theater System (or AV Receiver)
using the audio cable.
②
Press the SOURCE ()button to select the desired external
device connected to the TV.
③
If you want to hear the sound through separate speakers,
cancel the internal amplifier.
Please be sure to match the colour coded input terminals and cable jacks.
➢
◆ Refer to corresponding user’s manual from the manufacturer for wiring the
☛
To Display the DVD Home Theater
!
Turn the TV on and press the SOURCE ()button to select the Ext.1, Ext.2 or Component.
@
Be sure to connect the video cable properly if desired external input (Ext.1, Ext.2 or Component)
cannot be selected.
#
Play the DVD after activating the DVD Home Theater System.
$
Use the volume control of the Home Theater System while watching the TV using the DVD Home
Theater, where the TV does not produce the audio.
speakers to the DVD Home Theater System (or AV Receiver).
◆ Disable the TV internal speaker to enjoy the rich sound through the
speakers of your Home Theater System.
DVD Home Theater
②
AV Receiver Amplifier
English - 57
Setting up Your PC Software (Windows only)
The Windows display-settings for a typical computer are shown below. But the actual screens on your
PC will probably be different, depending upon your particular version of Windows and your particular
video card. But even if your actual screens look different, the same, basic set-up information will apply
in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.)
1 Right click the mouse on the Windows Desktop,
then click on
The
Display Properties will be displayed.
2 Click on Settings tab, then set the Display Mode
with reference to the Display Modes Table.
You do not need to change the Colours settings.
Properties.
3 Click on Advanced. A new settings dialog box
will be displayed.
2
3
4 Click on the Monitor tab, then set the Screen
refresh rate
Table. Set the Vertical Frequency and Horizontal
Frequency individually if you can do so instead of
setting the
with reference to the Display Modes
Screen refresh rate.
5 Click on OK to close the window, then Click on
OK button to the Display Properties window.
Automatic re-booting may commence at this
moment.
6 Shutdown the PC, and connect it to your TV.
(“Connecting to the PC Input” on page 55)
◆
4
➢
5
The actual screens on your PC may look
different, depending on your particular
version of Windows and the type of your
PC.
◆
When you use your TV as a PC monitor, it
supports Colours up to 32 bits.
◆
In this case, the display on the TV may look
different depending on your particular
version of Windows or the PC
manufacturer.
◆
When connecting a PC you must set it to
the display settings that are supported by
the TV. Otherwise, the message
input range
will be displayed.
Out of
English - 58
PC Input Mode
Both screen position and size will vary depending on the type of PC monitor and its resolution.
The table below shows all of the display modes that are supported:
Standard
VGA
SVGA
XGA
SXGA
◆ The interlace mode is not supported.
Resolution
720 x 400
640 x 480
800 x 600
832 x 624
1024 x 768
1280 x 720
Horizontal
frequency (kHz)
31.47
31.47
35.00
37.86
37.50
43.27
35.16
37.88
48.08
46.87
53.67
49.73
48.36
56.40
57.80
60.02
44.70
Notes
Vertical
frequency (Hz)
70.00
60.00
66.70
72.80
75.00
85.00
56.30
60.30
72.20
75.00
85.10
74.60
60.00
70.10
72.00
75.00
59.80
Pixel Clock
(MHz)
28.322
25.175
30.24
31.50
31.50
36.00
36.00
40.00
50.00
49.50
56.25
57.284
65.00
75.00
74.99
78.75
74.50
Sync Polarity
(H/V)
-//+
-
-//
-
/
-
/
-
-
+/
-
+/+
+/+
+/+
+/+
-
/+
-//
-
/
-
-
+/
-
/+
-
◆ 1280 x 720 mode is 16:9 mode.
◆ When this television is used as a PC display, 24-bit colour is supported (over 16 million colours).
◆ Your PC display screen might appear different depending on the manufacturer (and your particular version of
Windows). Check your PC instruction book for information about connecting your PC to a television.
◆ If a vertical and horizontal frequency-select mode exists, select 60Hz (vertical) and 31.5kHz (horizontal).
In some cases, abnormal signals (such as stripes) might appear on the screen when the PC power is turned
off (or if the PC is disconnected). If so, press the
sure that the PC is connected.
◆ When connecting a notebook PC to the television, make sure that the PC screen is displayed through only the
television (Otherwise, random signals might appear). It depends on the note PC model.
◆ When horizontal synchronous signals seem irregular in PC mode, check PC power saving mode or cable
connections.
SOURCE ()button to enter the Video mode. Also, make
English - 59
Replacing the Lamp
1 Unplug TV, then use a screwdriver to remove the screw.
2 Remove the Lamp cover.
3 Remove the screws securing the Lamp by using a screwdriver.
4 Separate the Lamp from the engine by holding the handle and
pulling it out
5 To reinstall the Lamp, follow these steps in reverse order.
◆ Why do I need to replace the lamp?
The lamp used in a projection TV has a limited lifespan. For
the best screen quality it needs to be replaced
periodically. After replacing the lamp, the screen quality will
be bright and clear as new.
◆ When do I need to replace it?
It should be replaced when the screen becomes darker, less
clear or when all three LEDs on the front (TIMER, LAMP and
STAND BY/TEMP) are flashing.
◆ Check before lamp replacement
- Turn the power off and wait for 30 minutes before
replacing the lamp as it will be hot.
- The lamp must be the same code to avoid damage to the
TV. The lamp code is indicated on the lamp case or the
side of TV.
- After checking the lamp code, give to the store where you
purchased the TV or to a Samsung Service Center.
◆ Caution
- Do not touch the glass part of the lamp with your bare
hands nor insert any foreign object inside the cover as it
may cause poor screen quality, electric shock or fire.
- Do not place the old lamp near flammable objects or
within the reach of children.
- Don't allow dirt or dust to accumulate inside the lamp
cover or on the lamp. A dirty cover or lamp can catch fire,
explode and cause electric shock.
- If a new lamp is improperly handled, the screen quality
can be affected and the expected lifespan of the lamp can
be reduced.
- Be sure to tighten the lamp cover on the TV after changing
the lamp. Note that the TV will not function if the lamp
cover is not securely attached. Please tighten the holding
screw on the lamp cover after it has been attached to the
TV.
English - 60
Troubleshooting: Before Contacting Service Personnel
Before contacting Samsung after-sales service, perform the following simple checks.
If you cannot solve the problem using the instructions below, note the model and serial number of the
television and contact your local dealer.
No sound or picture
Normal picture but no sound
No picture or black and white picture
Sound and picture interference
Blurred or snowy picture,
distorted sound
Remote control malfunctions
Screen is black and power indicator
light blinks steadily
◆ Check that the mains lead has been connected to a wall socket.
◆ Check that you have pressed the power button (On/Off) and the
POWER () button.
◆ Check the picture contrast and brightness settings.
◆ Check the volume.
◆ Check if Internal Mute is set to ON.
◆ Check the volume.
◆ Check whether the volume MUTE () button on the remote control
has been pressed.
◆ Adjust the colour settings.
◆ Check that the broadcast system selected is correct.
◆ Try to identify the electrical appliance that is affecting the television,
then move it further away.
◆ Plug your television into a different mains socket.
◆ Check the direction, location and connections of your aerial.
This interference often occurs due to the use of an indoor aerial.
◆ Replace the remote control batteries.
◆ Clean the upper edge of the remote control (transmission window).
◆ Check the battery terminals.
◆ On your computer check; Power, Signal Cable.
◆ The TV is using its power management system.
◆ Move the computer’s mouse or press any key on the keyboard.
◆ On your equipment check (STB, DVD, etc) ; Power, Signal Cable.
◆ The TV is using its power management system.
◆ Press the SOURCE () button on the panel or remote control.
◆ Turn the TV off and on.
English - 61
Technical Specifications
The descriptions and characteristics in this booklet are given for information purposes only and are
subject to modification without notice.
Model name
Colour systems
TV standards
Audio output power
Dimensions
(W x D x H)
Weights
SP46L6HV
1088 x 342.5 x 814.2 mm
28.8 kg
SP50L6HV
AUTO, PAL, SECAM, NTSC4.43
1182 x 354 x 869.7 mm
31.5 kg
SP61L6HV
BG, DK, I, L
15 W + 15 W
1446 x 466.5 x 1056.2 mm
41.4 kg
SP67L6HV
1584 x 502.5 x 1144.5 mm
47.5 kg
English - 62
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with
separate collection systems)
This marking shown on the product or its literature, indicates that it should not
be disposed with other household wastes at the end of its working life. To
prevent possible harm to the environment or human health from uncontrolled
waste disposal, please separate this from other types of wastes and recycle it
responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this
product, or their local government office, for details of where and how they can
take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and
conditions of the purchase contract. This product should not be mixed with
other commercial wastes for disposal.
Contact SAMSUNG WORLD-WIDE
If you have any questions or comments relating to Samsung products,
please contact the SAMSUNG customer care centre.
Country
BELGIUM
CZECH REPUBLIC
DENMARK
FINLAND
FRANCE
GERMANY
HUNGARY
ITALIA
LUXEMBURG
NETHERLANDS
NORWAY
POLAND
PORTUGAL
RUSSIA
SLOVAKIA
SPAIN
SWEDEN
U.K
UKRAINE
Customer Care Centre
02 201 2418
844 000 844
38 322 887
09 693 79 554
08 25 08 65 65 (
01805 - 121213 (
06 40 985 985
199 153 153
02 261 03 710
0900 20 200 88 (
231 627 22
0 801 801 881
80 8 200 128
8-800-200-0400
0850 123 989
902 10 11 30
08 585 367 87
0870 242 0303
8-800-502-0000
€ 0,15/Min)
€ 0,12/Min)
€ 0,10/Min)
Web Site
www.samsung.com/be
www.samsung.com/cz
www.samsung.com/dk
www.samsung.com/fi
www.samsung.com/fr
www.samsung.de
www.samsung.com/hu
www.samsung.com/it
www.samsung.lu
www.samsung.com/nl
www.samsung.com/no
www.samsung.com/pl
www.samsung.com/pt
www.samsung.ru
www.samsung.com/sk
www.samsung.com/es
www.samsung.com/se
www.samsung.com/uk
www.samsung.com/ur
BP68-00584A-00
Loading...
