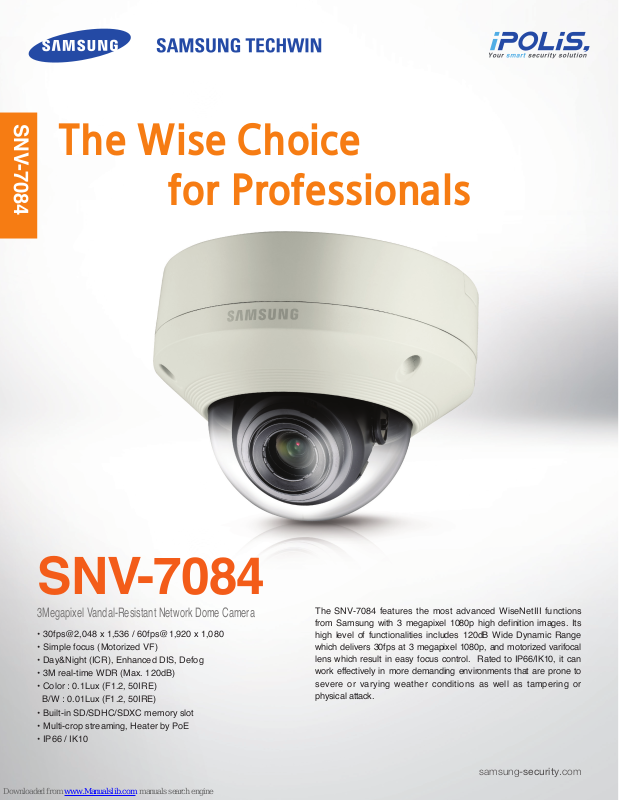

Page 1
SNV-7084
The Wise Choice
for Professionals
SNV-7084
3Megapixel Vandal-Resistant Network Dome Camera
• 30fps@2,048 x 1,536 / 60fps@1,920 x 1,080
• Simple focus (Motorized VF)
• Day&Night (ICR), Enhanced DIS, Defog
• 3M real-time WDR (Max. 120dB)
• Color : 0.1Lux (F1.2, 50IRE)
B/W : 0.01Lux (F1.2, 50IRE)
• Built-in SD/SDHC/SDXC memory slot
• Multi-crop streaming, Heater by PoE
• IP66 / IK10
The SNV-7084 features the most advanced WiseNetIII functions
from Samsung with 3 megapixel 1080p high definition images. Its
high level of functionalities includes 120dB Wide Dynamic Range
which delivers 30fps at 3 megapixel 1080p, and motorized varifocal
lens which result in easy focus control. Rated to IP66/IK10, it can
work effectively in more demanding environments that are prone to
severe or varying weather conditions as well as tampering or
physical attack.
samsung-security.com
Page 2
3Megapixel Vandal-Resistant Network Dome Camera
SNV-7084
Key Features
• 30fps@2,048 x 1,536 / 60fps@1,920 x 1,080
• Simple focus (Motorized VF)
• Day&Night (ICR), Enhanced DIS, Defog
• 3M real-time WDR (Max. 120dB)
• Color : 0.1Lux (F1.2, 50IRE)
B/W : 0.01Lux (F1.2, 50IRE)
• Built-in SD/SDHC/SDXC memory slot
• Multi-crop streaming, Heater by PoE
• IP66 / IK10
Dimensions
118.5 (4.67")
118.5 (4.67")
Ø100.0 (3.94") Ø160.0 (6.3")
Unit : mm (inch)
Ø160.0 (6.3")Ø100.0 (3.94")
Accessory
SBP-301HM3
SBP-300CM SBP-300WM1 SBP-300WM
SBP-300B SBP-300PM SBP-300KM
SBP-300LMSHD-3000F
VIDEO
Imaging Device
Total Pixels
Effective Pixels
Scanning System
Min. Illumination
S / N Ratio
Video Output
LENS
Focal Length (Zoom Ratio)
Max. Aperture Ratio
Angular Field of View
Min. Object Distance
Focus Control
Lens Type / Mount Type
PAN / TILT / ROTATE
Pan / Tilt / Rotate Range
OPERATIONAL
Camera Title
Day & Night
Backlight Compensation
Wide Dynamic Range
Contrast Enhancement
Digital Noise Reduction
Digital Image Stabilization
Defog
Motion Detection
Privacy Masking
Gain Control
White Balance
Electronic Shutter Speed
Flip / Mirror
Intelligent Video Analytics
Alarm I/O
Alarm Triggers
Alarm Events
NETWORK
Ethernet
Video Compression Format
Resolution
Max. Framerate
Smart Codec
Video Quality Adjustment
Bitrate Control Method
Streaming Capability
Audio I/O
Audio Compression Format
Audio Communication
IP
Protocol
Security
Streaming Method
Max. User Access
Memory Slot
Application Programming Interfac
Webpage Language
Web Viewer
Central Management Software
ENVIRONMENTAL
Operating Temperature / Humidity
Storage Temperature / Humidity
Ingress Protection
Vandal Resistance
ELECTRICAL
Input Voltage / Current
Power Consumption
MECHANICAL
Color / Material
Dimensions (WxH)
Weight
SNV-7084N/P
1/2.8" PS Exmor 3.2M CMOS
2,065(H) x 1,565(V)
2,065(H) x 1,553(V)
Progressive
Color : 0.1Lux (F1.2, 50IRE), 0.01Lux (30fps, 1sec, 50IRE), B/W : 0.01Lux (F1.2, 50IRE)
50dB
CVBS : 1.0 Vp-p / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation
DIP connector type
3 ~ 8.5mm (2.8x) motorized varifocal
F1.2
H : 100.12°(Wide) ~ 35.38°(Tele) / V : 73.76°(Wide) ~ 26.58°(Tele)
0.5m (1.64ft)
Simple focus / Manual, Remote control via network (Manual, Simple focus, Day & Night)
DC auto iris / Board-in type
0° ~ 354° / 0° ~ 67° / 0° ~ 355°
Off / On (Displayed up to 45 characters)
Auto (ICR) / Color / B/W / External / Schedule
Off / BLC
120dB
SSDR (Samsung Super Dynamic Range) (Off / On)
SSNRIII (2D+3D noise filter) (Off / On)
Off / On
Off / Auto / Manual
Off / On (4 zones with 4 points polygonal)
Off / On (32zones with 4points of polygonal)
Off / Low / Middle / High
ATW / AWC / Manual / Indoor / Outdoor
Minimum / Maximum / Anti flicker (1 ~ 1/12,000sec)
Off / On
Tampering, Virtual line, Enter / Exit, Appear / Disappear, Audio detection, Face detection with metadata
Input 1ea / Output 1ea
Motion detection, Tampering, Audio detection, Face detecton, Video analytics, Alarm input
File upload via FTP and E-mail, Notification via E-mail, TCP and HTTP
Local storage (SD/SDHC/SDXC) recording at Network disconnected & Event (Alarm triggers), External output
RJ-45 (10/100BASE-T)
H.264 (MPEG-4 part 10/AVC), MJPEG
2048 x 1536, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720,
1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
H.264 : Max. 30fps@2048 x 1536, Max 60fps@the other resolutions
MJPEG :
Max. 10fps@2048 x 1536, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768
Max. 30fps@800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
Built-in (Area-based : 5ea, Face detection mode)
H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control
H.264 : CBR or VBR, MJPEG : VBR
Multiple streaming (Up to 10 profiles)
Mic(Line)-in / Built-in mic selectable via UI, Line-out (Mono, 1Vrms)
2.5V DC (4mA) powered 2K Ohm
G.711 u-law /G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz
G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
Bi-directional audio
IPv4, IPv6
TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP,
IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1x authentication
Unicast / Multicast
15 users at unicast mode
micro SD/SDHC/SDXC
Motion images recorded in the SDXC/SDHC/SD memory card can be downloaded
ONVIF profile S, HTTP API v2.0, SVNP 1.2
English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese,
Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Norwegian, Finnish
Supported OS : Windows XP / VISTA / 7 / 8, MAC OS X 10.7
Supported Browser : Microsoft Internet Explorer (Ver. 11, 10, 9, 8),
Mozilla Firefox (Ver. 19, 18, 17, 16, 15, 14, 13, 12, 11, 10, 9),
Google Chrome (Ver. 25, 24, 23, 22, 21, 20, 19, 18, 17,16, 15),
Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 only), 5.1.7) * Mac OS X only
SmartViewer
-40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH
*Start up should be done at above -35°C
-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
IP66 grade
IK10
24V AC, 12V DC, PoE (IEEE802.3af class 3)
Max. 9.0W / 11.5W (12V DC, Heater off / on), Max. 10.0W / 12.5W (PoE, Heater off / on)
Max. 11.0W / 13.0W (24V AC, Heater off / on)
Ivory / Aluminum
Ø160.0 x 118.5mm (Ø6.3" x 4.67")
1.32Kg (2.91 lb)
