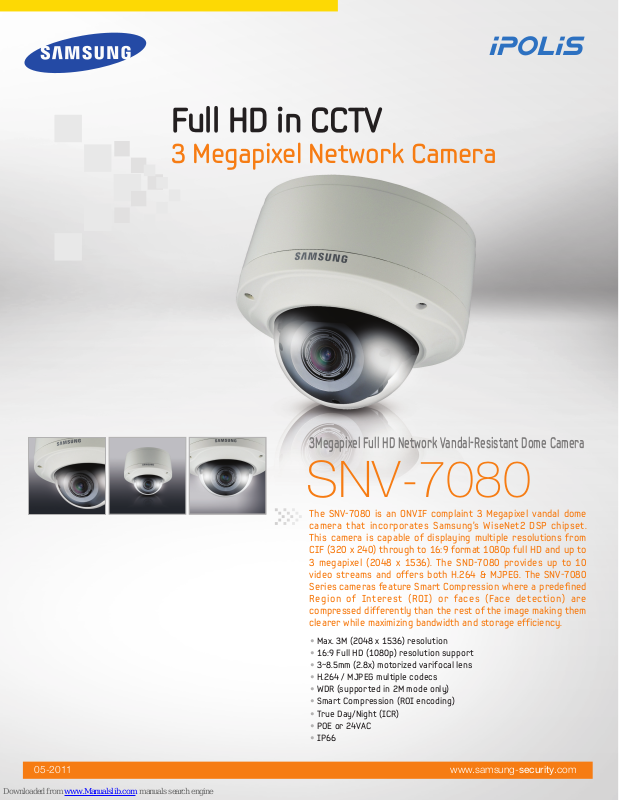

Page 1
Full HD in CCTV
3 Megapixel Network Camera
3Megapixel Full HD Network Vandal-Resistant Dome Camera
SNV-7080
The SNV-7080 is an ONVIF complaint 3 Megapixel vandal dome
camera that incorporates Samsung’s WiseNet2 DSP chipset.
This camera is capable of displaying multiple resolutions from
CIF (320 x 240) through to 16:9 format 1080p full HD and up to
3 megapixel (2048 x 1536). The SND-7080 provides up to 10
video streams and offers both H.264 & MJPEG. The SNV-7080
Series cameras feature Smart Compression where a predefined
Region of Interest (ROI) or faces (Face detection) are
compressed differently than the rest of the image making them
clearer while maximizing bandwidth and storage efficiency.
• Max. 3M (2048 x 1536) resolution
• 16:9 Full HD (1080p) resolution support
• 3~8.5mm (2.8x) motorized varifocal lens
• H.264 / MJPEG multiple codecs
• WDR (supported in 2M mode only)
• Smart Compression (ROI encoding)
• True Day/Night (ICR)
• POE or 24VAC
• IP66
05-2011
www.samsung-security.com
Page 2
Ø160.0 (6.3")
134.5 (5.3")
3Megapixel Full HD Network Vandal-Resistant Dome Camera
SNV-7080
Dimensions
Ø160.0 (6.3")
134.5 (5.3")
Ø160.0 (6.3")
125.0 (4.92")
Accessories (Optional)
SBP-300WM1
SBP-300LM
SBP-300WM
SBP-300CM
SBP-300PM
Unit : mm (inch)
SBP-300HM1
SBP-300KM
3M
2.8x
Motorized lens
Specifications
VIDEO
Imaging Device
Total Pixels
Effective Pixels
Scanning System
Min. Illumination (TBD)
S / N Ratio
Video Output
LENS
Focal Length (Zoom Ratio)
Max. Aperture Ratio
Angular Field of View
Min. Object Distance
Focus Control
Lens Type
Mount Type
PAN / TILT / ROTATE
Pan Range
Tilt Range
Rotate Range
OPERATIONAL
Camera Title
Day & Night
Backlight Compensation
Wide Dynamic Range
Contrast Enhancement
Digital Noise Reduction
Motion Detection
Privacy Masking
Sens-up (Frame Integration)
Gain Control
White Balance
Electronic Shutter Speed
Flip / Mirror
Alarm I/O
NETWORK
Ethernet
Video Compression Format
Resolution
Max. Framerate
Smart Codec
Video Quality Adjustment
Bitrate Control Method
Streaming Capability
Audio I/O
Audio Compression Format
Audio Communication
IP
Protocol
Security
Streaming Method
Max. User Access
Memory Slot
ONVIF Conformance
Webpage Language
Web Viewer
Central Management Software
ENVIRONMENTAL
Operating Temperature / Humidity
Ingress Protection
ELECTRICAL
Input Voltage
Power Consumption
MECHANICAL
Color / Material
Dimensions (WxH)
Weight
High
Low
Smart Compression
D&N ICR
SNV-7080N/P
1/2.8" 3M PS CMOS
2,144(H) x 1,588(V)
2,096(H) x 1,561(V)
Progressive
Color : 1Lux (F1.2, 50IRE), 0.017Lux (Sens-up 60x)
B/W : 0.08Lux (F1.2, 50IRE), 0.001Lux (Sens-up 60x)
50dB
CVBS : 1.0 Vp-p / 75Ω composite, 704 x 480(N), 704 x 576(P), for installation
3 ~ 8.5mm (2.8x) Motorized vari-focal
F1.2
H : 100°(Wide) ~ 35.3°(Tele), V : 74.6°(Wide) ~ 26°(Tele)
0.5m (1.64ft)
Remote control via network (Manual, One-shot AF)
DC auto iris
Board-in type
0° ~ 355°
0° ~ 90°
0° ~ 355°
Off / On (Displayed up to 15 characters)
Auto (ICR) / Color / B/W / External B/W
Off / BLC / HLC / WDR
(* 2M mode only), 52dB
SSDR (Samsung Super Dynamic Range) (Off / On)
SSNR
III
(2D+3D noise filter) (Off / On)
Off / On (4 programmable zones)
Off / On (1ea 4 point polygonal + 16ea rectangular zones)
Off / Auto (2x ~ 60x)
Off / Low / Medium / High
ATW / AWC / Manual / Indoor / Outdoor
Auto / A.FLK / Manual (1/30 ~ 30,000sec)
Off / On
Input 1ea / Output 1ea (Relay)
RJ-45 (10/100BASE-T)
H.264, MJPEG
3M mode -
H.264 : Max. 20fps at all resolutions
MJPEG : 800 x 600 ~ 320 x 180 - 20fps
1280 x 1024 ~1600 x 1200 - 15fps
2M mode -
3M mode : Max. 20fps, 2M mode : Max. 30fps
* When WDR on, Max. framerate is Max. 15fps
Yes (Area based method, Face detection method)
H.264 : Compression level, Target bitrate level control
MJPEG : Quality level control
H.264 : CBR or VBR, MJPEG : VBR
Multiple streaming (Up to 6 profiles)
Mic / Line in, Line out
G.711 u-law
Bi-directional audio
IPv4, IPv6
TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE
FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, ONVIF
HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1x authentication
Unicast / Multicast
10 users at unicast mode
SD/SDHC memory slot
Yes
English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish,
Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek
Supported OS : Windows XP / VISTA / 7, MAC OS
Supported Browser : Internet Explorer 7.0 or Higher, Firefox, Google Chrome, Apple Safari
NET-i viewer
-40°C ~ +50°C (-40°F ~ +122°F) / Less than 90% RH
IP66 Grade (Waterproof)
12V DC, 24V AC, PoE (IEEE802.3af)
Max. 7W (Heater off), Max. 11W (Heater on) *Heaters work with 24VAC only
Ivory / Aluminum
Ø160.0 x 134.5mm (Ø6.3" x 5.3")
1.4Kg (3.09 lb)
1920 x 1080 ~ 2048 x 1536 - 10fps
H.264 : Max. 30fps at all resolutions (When WDR on, Max. framerate is Max. 15fps.)
MJPEG : 800 x 600 ~ 320 x 180 - 30fps
1280 x 1024 ~ 1920 x 1080 : 15fps
DISTRIBUTED BY
SAMSUNG TECHWIN AMERICA Inc.
100 Challenger Road, Suite 700, Ridgefield Park, NJ 07660, UNITED STATES
Tol Free : 1-877-213-1222 Fax : 1-201-373-0124
www.samsungsecurityusa.com
The Eco mark represents
Samsung Techwin’s will to create
environment-friendly products,and indicates
that the product satisfies the EU RoHS Directive.
Design and specifications are subject to change without notice.
