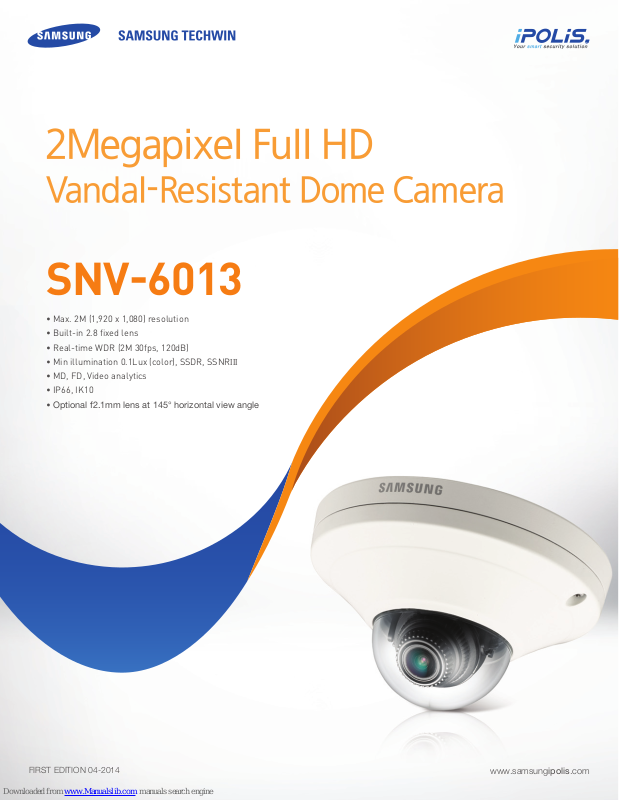

Page 1
2Megapixel Full HD
Vandal-Resistant Dome Camera
SNV-6013
• Max. 2M (1,920 x 1,080) resolution
• Built-in 2.8 fixed lens
• Real-time WDR (2M 30fps, 120dB)
• Min illumination 0.1Lux (color), SSDR, SSNR
MD, FD, Video analytics
•
• IP66, IK10
•
Optional f2.1mm lens at 145° horizontal view angle
III
FIRST EDITION 04-2014
www.samsungipolis.com
Page 2
2Megapixel Full HD Vandal-Resistant Dome Camera
63.7 (2.51")
37.2 (1.46")
Ø112.8 (4.44")
Ø52.0 (2.05")
SNV-6013
Dimensions
Ø52.0 (2.05")
The Eco mark represents
Samsung Techwin’s will to create
environment-friendly products,and indicates
that the product satisfies the EU RoHS Directive.
37.2 (1.46")
63.7 (2.51")
Unit : mm (inch)
Ø112.8 (4.44")
VIDEO
Imaging Device
Total Pixels
Effective Pixels
Scanning System
Min. Illumination
Video Output
LENS
Focal Length (Zoom Ratio)
Max. Aperture Ratio
Angular Field of View
Min. Object Distance
Lens Type
Mount Type
OPERATIONAL
Camera Title
Day & Night
Backlight Compensation
Wide Dynamic Range
Contrast Enhancement
Digital Noise Reduction
Digital Image Stabilization
Defog
Motion Detection
Privacy Masking
Gain Control
White Balance
Electronic Shutter Speed
Digital Zoom
Flip / Mirror
Intelligent Video Analytics
Alarm Triggers
Alarm Events
NETWORK
Ethernet
Video Compression Format
Resolution
Max. Framerate
Smart Codec
Video Quality Adjustment
Bitrate Control Method
Streaming Capability
IP
Protocol
Security
Streaming Method
Max. User Access
Memory Slot
Application Programming Interfac
Webpage Language
Web Viewer
Central Management Software
ENVIRONMENTAL
Operating Temperature / Humidity
Storage Temperature / Humidity
Ingress Protection
Vandal Resistance
ELECTRICAL
Input Voltage / Current
Power Consumption
MECHANICAL
Color / Material
Dimensions (WxH)
Weight
SNV-6013N/P
1/2.8" PS Exmor 2.38M CMOS
1,952(H) x 1,116(V)
1,944(H) x 1,104(V)
Progressive
Color : 0.1Lux (1/30sec, F1.2, 50IRE), 0.0017Lux (2sec, F1.2, 50IRE)
B/W : 0.01Lux (1/30sec, F1.2, 50IRE)
CVBS : 1.0 Vp-p / 75Ω composite, 704 x 480(N), 704 x 576(P), for installation
DIP connector type
2.8mm fixed
F1.8
H : 112° / V : 62°
0.2m (0.66ft)
Fixed
Board-in type
Off / On (Displayed up to 45 characters)
Auto (Electrical) / Color / B/W
Off / BLC
120dB
SSDR (Samsung Super Dynamic Range) (Off / On)
SSNRIII (2D+3D noise filter) (Off / On)
Off / On
Off / Auto / Manual
Off / On (4ea 4points polygonal zones)
Off / On (32zones with 4points of polygonal)
Off / Low / Middle / High
ATW / AWC / Manual / Indoor / Outdoor
Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
16x
Off / On
Tampering, Virtual line, Enter / Exit, Appear / Disappear, Face detection
Motion detection, Tempering, Face detection, Video analytics, Network disconnection
File upload via FTP and E-mail, Notification via E-mail, TCP and HTTP
Local storage (SD/SDHC/SDXC) recording at Event
RJ-45 (10/100BASE-T)
H.264 (MPEG-4 part 10/AVC), MJPEG
1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768,
800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
H.264 : Max. 60fps at all resolutions
MJPEG : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 : Max. 15fps
800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 : Max.30fps
Yes (Area Based Method)
H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control
H.264 : CBR or VBR, MJPEG : VBR
Multiple streaming (Up to 10 profiles)
IPv4, IPv6
TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP,
SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1x authentication
Unicast / Multicast
15 users at unicast mode
Micro SD/SDHC/SDXC
Motion images recorded in the SDXC/SDHC/SD memory card can be downloaded
ONVIF profile S, SUNAPI 2.0, SVNP 1.2
English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,
Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch,
Croatian, Hungarian, Greek, Finnish, Norwegian
Supported OS : Windows XP / VISTA / 7 / 8, MAC OS X 10.7 or higher
Supported Browser : Microsoft Internet Explorer (Ver. 10, 9, 8, 7) or higher,
Mozilla Firefox (Ver. 19, 18, 17, 16, 15, 14, 13, 12, 11, 10, 9) or higher,
Google Chrome (Ver. 25, 24, 23, 22, 21, 20, 19, 18, 17,16, 15) or higher,
Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 only), 5.1.7) or higher * Mac OS X only
SmartViewer
-30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH
-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
IP66 grade
IK10
PoE (IEEE802.3af class3)
Max. 7.5W
Ivory / Aluminum
Ø112.8 x 63.7mm (Ø4.44" x 2.51")
550g (1.21 lb)
Design and specifications are subject to change without notice.
