Page 1

SNC-C6225 SNC-C7225

10x Network Mini Smart

Dome Camera

User Manual

imagine the possibilities

Thank you for purchasing this Samsung product. To receive more complete service, Please visit our website.

www.samsungsecurity.com

Page 2

safety information

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates that dangerous voltage consisting a risk of electric shock is present within this unit.

This exclamation point symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING

To reduce the risk of ﬁ re or electric shock, do not expose this appliance to rain or moisture.

•

To prevent injury, this apparatus must be securely attached to the ﬂ oor/wall in accordance with the installation

•

instructions. If this power supply is used at 12V DC, a suitable plug adapter should be used.

•

WARNING

Be sure to use only the standard adapter that is speciﬁ ed in the speciﬁ cation sheet. Using any other adapter could cause ﬁ re, electrical shock, or damage to the product.

Incorrectly connecting the power supply or replacing battery may cause explosion, ﬁ re, electric shock, or damage to the product.

Do not connect multiple cameras to a single adapter. Exceeding the capacity may cause abnormal heat generation or ﬁ re.

Securely plug the power cord into the power receptacle. Insecure connection may cause ﬁ re.

When installing the camera, fasten it securely and ﬁ rmly. The fall of camera may cause personal injury.

Do not place conductive objects (e.g. screwdrivers, coins, metal parts, etc.) or containers ﬁ lled with water on top of the camera. Doing so may cause personal injury due to ﬁ re, electric shock, or falling objects.

Do not install the unit in humid, dusty, or sooty locations. Doing so may cause ﬁ re or electric shock.

If any unusual smells or smoke come from the unit, stop using the product. In such case, immediately disconnect the power source and contact the service center. Continued use in such a condition may cause ﬁ re or electric shock.

If this product fails to operate normally, contact the nearest service center. Never disassemble or modify this product in any way. (SAMSUNG is not liable for problems caused by unauthorized modiﬁ cations or attempted repair.)

10.

When cleaning, do not spray water directly onto parts of the product. Doing so may cause ﬁ re or electric shock If the camera is installed or rebooted after power failure when ambient temperature is below the freezing point, the

11.

dome cover is frosted. In this case, the frost will be disappeared after 3 hours after turning on the power. (It is noted that lowest guaranteed operating temperature is -45ºC(-49ºF) without wind.).

2 – 10x Network Mini Smart Dome Camera

Page 3

safety information

Do not expose the product to the direct airﬂ ow from an air conditioner.

12.

Otherwise, it may cause moisture condensation inside the Clear Dome due to temperature difference between internal and external of the dome camera.

13.

If you install this product in a low-temp area such as inside a cold store, you must seal up the wiring pipe with silicon, so that the external air can not ﬂ ow inside the housing. Otherwise, external high, humid air may ﬂ ow inside the housing, pooling moisture or vapor inside the product due to a difference between internal and external temperature.

CAUTION

Do not drop objects on the product or apply strong blows to it. Keep away from a location subject to excessive

vibration or magnetic interference. Do not install in a location subject to high temperature (over 140°F), low temperature (below -49°F), or high humidity.

Doing so may cause ﬁ re or electric shock. If you want to relocate the already installed product, be sure to turn off the power and then move or reinstall it.

Remove the power plug from the outlet when there is a lighting storm. Neglecting to do so may cause ﬁ re or

damage to the product. Keep out of direct sunlight and heat radiation sources. It may cause ﬁ re.

Install it in a place with good ventilation.

Avoid aiming the camera directly towards extremely bright objects such as sun, as this may damage the CCD image

sensor. Apparatus shall not be exposed to dripping or splashing and no objects ﬁ lled with liquids, such as vases, shall be

placed on the apparatus. The Mains plug is used as a disconnect device and shall stay readily operable at any time.

FCC Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions :

1) This device may not cause harmful interference, and

2) This device must accept any interference received including interference that may cause undesired operation.

Caution

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

IC Compliance Notice

This Class A digital apparatus meets all requirements of the Canadian Interference.-Causing Equipment Regulations of ICES-003.

English – 3

Page 4

important safety instructions

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

Do not use this apparatus near water.

Clean only with dry cloth.

Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

Do not install near any heat sources such as radiators, heat registers, or other apparatus (including ampliﬁ ers) that produce heat.

Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not ﬁ t into your outlet, consult an electrician for replacement of the obsolete outlet.

10.

Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11.

Only use attachments/accessories speciﬁ ed by the manufacturer.

12.

Use only with cart, stand, tripod, bracket, or table speciﬁ ed by the manufacturer, or sold with the apparatus.

13.

Unplug this apparatus when a card is used. Use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

14.

Refer all servicing to qualiﬁ ed service personnel. Servicing is required when the apparatus has been damaged in any way, such as powersupply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Apparatus shall not be exposed to dripping or splashing and no objects ﬁ lled with liquids, such as vases, shall be placed on the apparatus

4 – 10x Network Mini Smart Dome Camera

Page 5

contents

Introduction

Features 7 Recommended PC Speciﬁ cations 8 Compatible IP Routers 8 Product & Accessories 9 Parts Name & Functions 11

Installation

DIP Switch Setup 13 Installation Using Surface Mount On The Ceiling 14 Installation Using Ceiling Mount Bracket 15 Installation Using Wall Mount Bracket 16 Cabling 17 Inserting/Removing an micro SDHC Memory Card 19 Memory Card Information (not included) 20

Operation

Check points before operation 21 Preset and Pattern Function Pre-Check 21 Auto Calibration 21 Starting OSD Menu 21 Reserved Preset 21 Preset 22 Auto Pan 22 Pattern 22 Scan 23 Schedule 23 Other Functions 23 OSD Display of Main Screen 24 General Rules of Key Operation for Menu 24

How to use OSD menu

Structure of the Setup Menu 25 Main Menu 27 System Information 27 Display Setup 27 Privacy Zone Mask Setup 27 Motion Setup 28 Function Setup 29 Preset Setup 30 Auto Pan Setup 31 Pattern Setup 31 Scan Setup 32 Schedule Setup 34 Camera Setup 35 System Setup 36 System Initialize 38

English – 5

Page 6

contents

Network connection & Setup

Connecting the camera to an IP router with the xDSL/Cable modem 39 Connecting the camera to an IP router with local area networking 41 Connecting the camera directly to a DHCP-based xDSL/Cable modem 43 Connecting the camera directly to local area networking 44 Searching for the camera 45

Setting Static IP

Manual Network Setting 46 Automatic Network Setting 48

Setting Dynamic IP

Dynamic IP Setting 49 Port Forwarding (Port Mapping) Setting 49

Using the camera

Connecting to the camera 50 Installing ActiveX 51

Web Viewer

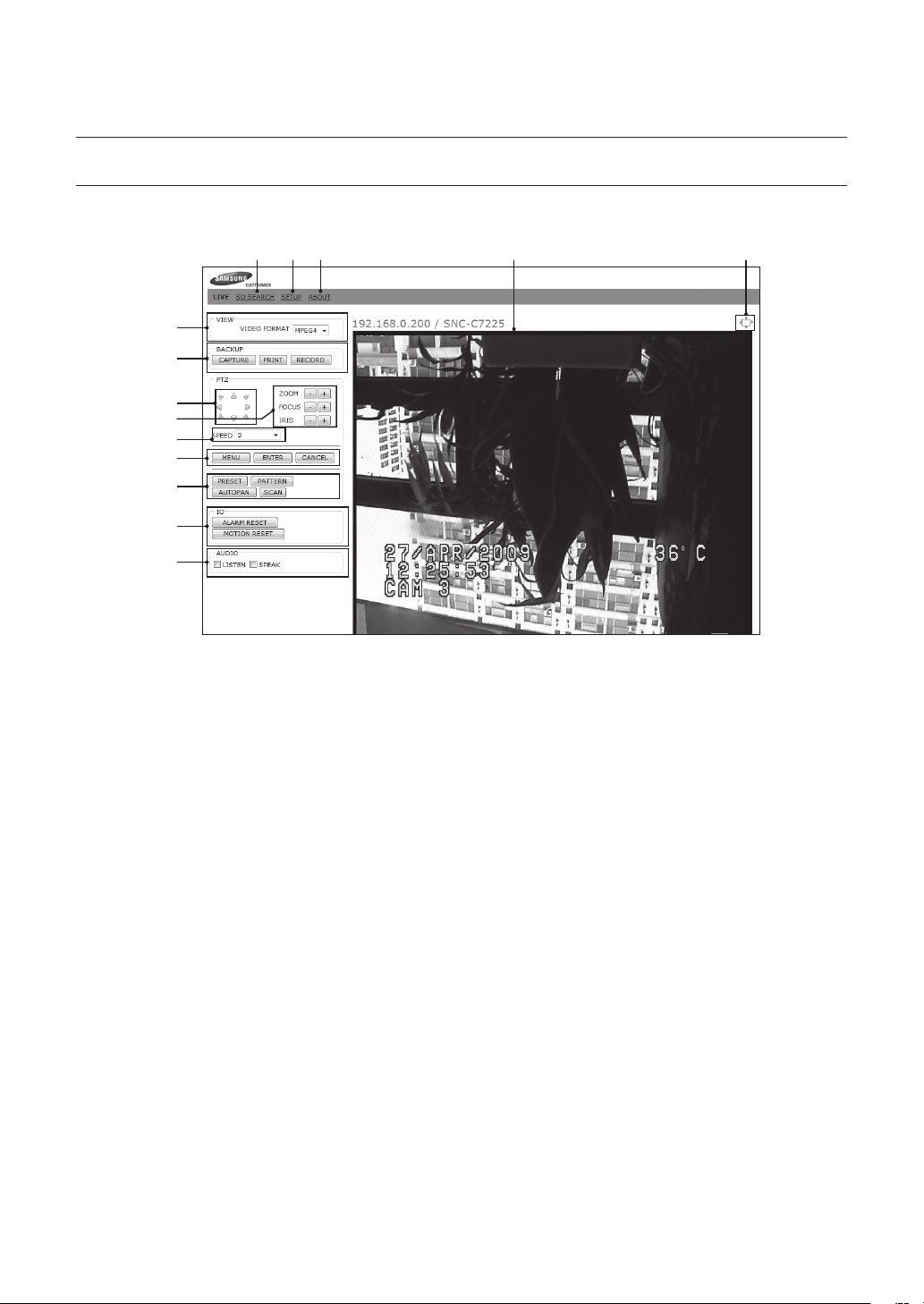

Main Screen 53 using the camera 54 Using the SD Search Viewer Screen 56

Setup Tool

Setting the camera 57 Video & Audio Conﬁ guration 58 IP 59 User 60 Language 60 Digital Image Stabilizer 60 Date/Time 61 Log 61 Software Update 61 Reset 62 HTTPS 62 Transfer Setup 62 Record Setup 63 Alarm Image Setup 64 Alarm Input Setup 64 Motion 65 Schedule 66 Streaming Setup 66 DDNS 67 SNMP 68

Appendix

Troubleshooting 69 Speciﬁ cations 71 Dimension 74

6 – 10x Network Mini Smart Dome Camera

Page 7

FEATURES

Network Speciﬁ cations

❖

•

Powerful Dual Stream by using DSP based MPEG4, MJPEG compression

Superior Video Quality and System Stability.

• High speed : Up to 30 fps at 720x480, 25 fps at

• 720x576.

•

Web Browser based viewer support. Remote Pan/Tilt/Zoom control.

• Bidirectional Audio support.

• Support with DDNS Service (Samsung DDNS,

• Public DDNS) for Dynamic IP.

Various protocol support. (ARP, HTTP, HTTPS,

• DHCP, TCP/IP, UDP, RTP/RTSP, SMTP, FTP, SNMP, etc)

IPv4/IPv6 support.

• Alarm Function

• Motion Detection Function

• Micro SD Card Backup

•

Camera Speciﬁ cations

❖

CCD Sensor : 1/4" Interline Transfer CCD

• Zoom Magniﬁ cation : × 10 Optical Zoom, × 10

• Digital Zoom (Max × 100 Zoom)

Day & Night Function : ICR (IR Cut ﬁ lter Removal)

•

Various Focus Mode : Auto Focus / Manual Focus / ONEAF Focus.

Independent or Global camera settings for each

• Preset locations.

Powerful Pan/Tilt Functions

❖

Max. 360°/sec high speed Pan/Tilt Motion

• Using Vector Drive Technology, Pan/Tilt motions

• are accomplished in the shortest path. As a result, time to target view is reduced dramatically and the video on the monitor is very natural to watch.

Ultra low speed (0.05°/sec) enables operator to

• locate camera to desired target view with accuracy and ease.

Zoom-proportional pan/tilt speed helps operator to

• move the camera easily.

Preset, Pattern, Auto Pan, Scan, Privacy

❖

Mask, Schedule and More…

Max. 127 Presets are assignable. All of them have

• independent characteristics such as White Balance, Auto Exposure, Label, Alarm Input/Output and so on.

introduction

•

Max. 8 set of Auto Pan can be stored. This enables to move camera repetitively between two preset positions with designated speed.

•

Max. 4 of Patterns can be recorded and played back. This enables to move camera to follow any trajectory operated by joystick as closely as possible.

•

Max. 8 set of Scan action can be stored. This enables to move camera repetitively with combination of Preset or Pattern or Auto Pan. A Scan is composed of max. 20 entities of Preset/ Pattern/Auto Pans.

•

Max. 4 Masks are settable independently to protect privacy zone. The mask is arbitrary-sized rectangular and locate any location in view space.

•

7 rules of Schedule can be assigned by day and time. Appropriate actions (such as Home, Preset, Scan, Pattern and Auto Pan) can be deﬁ ned for each rule. Also, it is possible to use Weekday and All days to simplify the rule.

PTZ(Pan/Tilt/Zoom) Control

❖

With RS-485 communication, max. 255 of cameras

• can be controlled at the same time.

OSD(On Screen Display) Menu

❖

OSD menu is provided to display the status of

• camera and to conﬁ gure the functions interactively.

Currently, 7 Languages are supported for

• OSD Menu: [ENGLISH/ESPAÑOL/FRANÇAIS/ DEUTSCH/ITALIANO/РУССКИЙ/PORTUGUÊS]

The information such as Camera ID, Pan/Tilt/

• Zoom/Direction, Alarm Input & Output, date/time, Current temperature and Preset can be displayed on screen.

Each display item can be turned on or off

• independently.

Alarm I/O Functions

❖

2 alarm sensor Inputs and 1 relay output are

• available.

•

To reject external electric noise and shock perfectly, alarm sensor Input is decoupled with photo coupler.

If an external sensor is activated, camera can be

• set to move to the corresponding Preset position.

Relay outputs can be assigned to work with a

• certain preset.

Reserved Presets for Special Purpose

❖

Most of camera settings are directly changed by

• calling Reserved Presets, not entering into OSD menu. For more information, refer to “Reserved Preset” (page 21) in this manual.

English – 7

Page 8

introduction

RECOMMENDED PC SPECIFICATIONS

CPU : Pentium4/2.4GHz or higher

• Operating System : Windows XP(Service Pack 2) /

• Windows Vista

Resolution : 1024x768 pixels or higher

• RAM : 512MB or higher

• Web Browser : Internet Explorer 6.0 or higher

• Video Card : Radeon, Nvidia

• Video Memory : 128MB

• DirectX 8.1 or higher

•

COMPATIBLE IP ROUTERS

Linksys

• D-Link

• Netgear

•

8 – 10x Network Mini Smart Dome Camera

Page 9

PRODUCT & ACCESSORIES

SNC-C6225

❖

Product

•

Main Body Surface Mount Bracket

Accessories

•

introduction

Terminal Block Torx Screw Driver Surface Mount Gasket

Screw & Plastic Anchor (4pcs)

User Manual / IP Installer CD Cross Cable Core Filter

Mount Bracket Option : Please use SADT-937WM for this purpose.



Quick Guide Audio Cable

English – 9

Page 10

introduction

SNC-C7225

❖

Product

•

Main Body Sun Shield Housing

Accessories

•

Terminal Block Torx Screw Driver Audio Cable Cross cable

Quick Guide User Manual / IP Installer CD Core Filter

•

Mount Bracket Option

Wall Mount Bracket

(SADT-732WM)

Ceiling Mount Bracket

(SADT-732CM)

10 – 10x Network Mini Smart Dome Camera

Page 11

PARTS NAME & FUNCTIONS

SNC-C6225❖

Surface Mount Bracket

Mounting Hole

introduction

Main Body

Lockup Screw

Dome Cover

Main Unit / Surface Mount Bracket Back of Main Unit

Dome Cover

•

Do not remove the protection vinyl from dome cover before ﬁ nishing all installation process to protect dome cover from scratches or dust.

Surface Mount Bracket

•

This is used to install the camera directly on the ceiling. After separating this cover, mount this bracket on to ceiling. Main body of the camera is going to be assembled again in the last stage.

Do not use this bracket with wall mount bracket or ceiling mount bracket.

Cabling Terminal Block

DIP Switch

Lockup Screw

•

Fixes main unit brackets like surface, wall, and ceiling.

Cabling Terminal Block

•

During installation, Power, Video, Communication, Alarm Input cables are connected on to this cabling terminal block.

DIP Switch

•

Adjusts camera ID and protocols.

English – 11

Page 12

introduction

SNC-C7225❖

Sun Shield Housing

Main Body

Lockup Screw

Dome Cover

Main Unit / Sun Shield Housing Back of Main Unit

Dome Cover

•

Do not remove the protection vinyl from dome cover before ﬁ nishing all installation process to protect dome cover from scratches or dust.

Cabling Terminal Block

DIP Switch

Cabling Terminal Block

•

During installation, Power, Video, Communication, Alarm Input cables are connected on to this cabling terminal block.

Sun Shield Housing

•

Lockup Screw

•

Fixes main unit brackets like surface, wall, and ceiling.

12 – 10x Network Mini Smart Dome Camera

DIP Switch

•

Adjusts camera ID and protocols.

Page 13

DIP SWITCH SETUP

Installation

Communication Protocol Setup

❖

Before you install the camera, you should set the DIP switches to conﬁ gure the camera ID, Baud Rate and communication protocol.

Protocol Baud Rate

w WWWGaGhGw

0x00 : Auto Protocol 0x03 : SAMSUNG

WWZGaGzhtz|un

❖

Camera ID Setup



ID Setting (1~255)

pkGzGOX¥Y\\P

iGy

0x00 : 2400

WWWGaGY[WW

0x01 : 4800

WWXGaG[_WW

0x02 : 9600

WWYGaG`]WW

0x03 : 19200

WWZGaGX`YWW

0x04 : 38400

WW[GaGZ_[WW

RS-485

yzT[_\

Terminate

{



123456

Select the appropriate Protocol with DIP switch

•

combination.

Switch State

Pin1 Pin2 Pin3 Pin4

OFF OFF OFF OFF Auto Protocol

ON ON OFF OFF SAMSUNG

If you set the protocol as Auto Protocol, camera will

•

Protocol

automatically recognize the kind of Protocol. If you want to control using DVR or system

• keyboard, their protocol must be identical to camera. Otherwise, you can not control the camera.

If you changed camera protocol by changing DIP

• S/W, the change will be effective after you reboot the camera.

Factory default of protocol is “Auto” Protocol.

•

Communication Baud rate Setup

❖



123456

ID number of camera is set using binary number.

•

The example is shown bellow.

Pin 12345678

ID Value 1 2 4 8 16 32 64 128

ex) ID=5

ex) ID=10ONOFF

•

The range of ID is 0~255. Factory default of

OFFONON

OFF

OFFONOFF

OFF

OFF OFF

Camera ID is 1.

•

If you want to control a certain camera, you must match the camera ID with Cam ID setting of DVR or Controller.

OFF OFF

123456

Select the appropriate Baud rate with DIP switch

•

combination.

Switch State

Pin5 Pin6 Pin7

OFF OFF OFF 2400 BPS

ON OFF OFF 4800 BPS

OFF ON OFF 9600 BPS

ON ON OFF 19200 BPS

OFF OFF ON 38400 BPS

Factory default of Baud rate is “9600 BPS”

•

Protocol

English – 13

Page 14

installation

RS-485 Termination Resistor

❖



Wire cables to terminal block and connect the terminal blocks to main unit.

123456

Pin 8 is used for ON/OFF of RS-485 Termination.

• Normally, it must be OFF state. Especially when you have trouble with long Daisy chain style connection, turn ON this termination switch of last camera.

Pin 8 : RS-485 Termination Resistor (ON/OFF)

–

INSTALLATION USING SURFACE MOUNT ON THE CEILING

SNC-C6225

❖

1. To pass cables to upside of ceiling, please, make about ø60mm hole on the ceiling panel.

Screw main unit to surface mount bracket with 4 lock-up screws.

2. Screw surface mount bracket to ceiling with 4 screws.

14 – 10x Network Mini Smart Dome Camera

Detach protection vinyl from dome cover.

Page 15

INSTALLATION USING CEILING MOUNT BRACKET

SNC-C7225

❖

1. Install ceiling mount bracket on the ceiling using 4 screws provided.

installation

After wiring cables to terminals, plug the terminals into the bottom of main unit. Then, ﬁ x the main unit with sunshield with 4 screws.

2. Turn sunshield clockwise after locating it in the pipe head of ceiling mount properly.

4. Detach protection vinyl from dome cover.

English – 15

Page 16

installation

INSTALLATION USING WALL MOUNT BRACKET

SNC-C7225

❖

1. Use the 4 screws (provided) to secure the wall mount bracket to the wall.

2. Turn sunshield clockwise after locating it in the pipe head of wall mount properly.

3. After wiring cables to terminals, plug the terminals into the bottom of main unit. Then, ﬁ x the main unit with sunshield with 4 screws.

4. Detach protection vinyl from dome cover.

16 – 10x Network Mini Smart Dome Camera

Page 17

CABLING

SNC-C6225/SNC-C7225

❖

installation

DC 12V

Controller/DVR

BNC Video

Power Connection

❖

Please, check the voltage and current capacity of rated power carefully.

•

Rated Power Input Voltage Range

Audio In

Audio Out

Power Consumption

SNC-C6225 SNC-C7225

Microphone

Speaker

IrDA Sensor

Door Switch

Sensors

Lamp

Relay Out

Network

DC 12V

RS-485 Communication

❖

For PTZ control, connect this line to keyboard and DVR. To control multiple cameras at the same time, RS-485

• communication lines of them is connected in parallel as shown below.

Keyboard Controller / DVR

RS-485

DC 11V ~ 15V 15W

15W(Heater Off) /

25W(Heater On)

English – 17

Page 18

installation

Video Connection

❖

Connect with BNC coaxial cable.

•

Audio Input/Ouput Connection

❖

Connect the AUDIO IN port of the camera with the microphone directly or LINE OUT port of the ampliﬁ er that the

microphone is connected to direct Mic Connection: Set Audio Input Gain high (10). Line Out Connection: Set Audio Input Gain low (1). Refer to page 58 in this Manual.

Connect the AUDIO OUT port of the camera with the LINE IN port of the speaker.

If the microphone is connected directly to AUDIO OUT terminal, the speaker will not produce sound. The MIC IN function is not supported.

Alarm Input Connection

❖

IN 1

INTERNAL

Sensor Input

•

It is noted that short circuit between COM and Input pin means alarm activation.



If you want to use Alarm Input, the types of sensor must be selected in SETUP menu. Refer to "ALARM INPUT SETUP" (Page 64) in this Manual. The sensor types are Normal Open and Normal Close If sensor type is not

selected properly, the alarm can be activated reversely.

IN 1

IN 2

IN COM

IN 3

Relay Output

•

Internal

There is 1 Alarm Output and Relay contact type. You do not have to care about polarity, AC/DC, and isolations between channels. Care must be taken for the power capacity of relay contact written above.

Relay Out

Max DC30V / 1A

AC 125V / 0.5A

Power

18 – 10x Network Mini Smart Dome Camera

Page 19

installation

INSERTING/REMOVING AN MICRO SDHC MEMORY CARD

Inserting an Micro SDHC Memory Card

❖

Push the Micro SDHC memory card in the direction of the arrow shown in the diagram.

•

Do not force the memory card in. If you can’t insert the memory card into the slot with ease, you might be inserting the card in



the wrong direction. Forcibly inserting a memory card could lead to its damage.

Removing an Micro SDHC Memory Card

❖

Gently press down on the exposed end of the memory card as shown in the diagram to eject the memory card

• from the slot.

Pressing too hard on the Micro SDHC memory card can cause the card to shoot out uncontrollably from the slot when



released.

When removing the Micro SDHC memory card, disable the SD Card Recording feature (refer to page 63 for

• instructions on disabling SD Card Recording). Removing the Micro SDHC memory card while recording is in progress can damage the data.

English – 19

Page 20

installation

MEMORY CARD INFORMATION (NOT INCLUDED)

What is a memory card?

❖

The memory card is an external data storage device that has been developed to offer an entirely new way to record and share video, audio, and text data using digital devices.

Selecting a memory card that’s suitable for you

❖

Your camera supports Micro SDHC memory cards. You may, however, experience compatibility issues depending on the model and make of the memory card.

Your camera supports Micro SD memory cards. However, the maximum supported Micro SD memory card capacity is 2GB and ver 1.1, 4GB or above SD memory cards are incompatible.

For your camera, we recommend you use a memory card from the following manufacturers: Micro SDHC/SD Memory Card: Kingston®, Panasonic®, SanDisk®, and Toshiba®

Your camera supports 128MB to 8GB of memory card capacity. Playback performance can be affected depending on the speed of memory card, so use the high-speed memory card. To ensure proper recording of video data, we recommend you use a memory card that supports at least read/ write speed 10Mbps and Class 6.

20 – 10x Network Mini Smart Dome Camera

Page 21

operation

CHECK POINTS BEFORE OPERATION

Before power is applied, please check the cables

• carefully.

The camera ID of the controller must be identical to

• that of the camera to be controlled. The camera ID can be checked in the System Information of OSD Menu.

If your controller supports multi-protocols, the protocol

• must be changed to match to that of the camera.

If you changed camera protocol by changing DIP

• switch, the change will be effective after you reboot the camera.

Since the operation method can be different for

• each controller available, refer to the manual for your controller if camera can not be controlled properly.

PRESET AND PATTERN FUNCTION PRE-CHECK

•

Check how to operate Preset, Scan, Auto Pan and Pattern function with controller or DVR in advance to operate camera function using them. (refer to your System keyboard Manual)

•

If controller or DVR has no pattern button or function, use shortcut keys with preset numbers. For more information, refer to “Reserved Preset” in this manual.

AUTO CALIBRATION

•

If the camera is continuously subjected to very high temperature (over 50°C or 122°F) environment for a long time, it is possible for the camera to lose focus. As a result, you will get blurry image. In this case, it is recommended to turn on “Auto Calibration” by running Preset 165.

If you execute AUTO CALIBRATION, camera will

• calibrate its focus at every 6 hours. To turn off this function, please, run Preset 166.

STARTING OSD MENU

Function

• Using the OSD menu, Preset, Pattern, Auto Pan,

Scan and Alarm Input function can be conﬁ gured for each application.

Enter Menu

• <Go Preset> [95]

RESERVED PRESET

•

Description Some Preset numbers are reserved for direct access

to speciﬁ c functions in OSD menu. These direct commands via preset provide quick execution of various functions using keyboard controller as well as simplify the interface with DVR and IP equipments.

•

Function

<Go Preset> [95] : Enters into OSD menu <Go Preset> [131~134] : Runs Pattern Function 1~4 <Go Preset> [141~148] : Runs Auto Pan Function 1~8 <Go Preset> [151~158] : Runs Scan Function 1~8 <Go Preset> [161] : Sets Relay Output to OFF <Set Preset> [161] : Sets Relay Output to ON <Go Preset> [165] : Auto Calibration ON. <Go Preset> [166] : Auto Calibration OFF. <Go Preset> [167] : Zoom Proportional Jog ON <Set Preset>[167] : Zoom Proportional Jog OFF <Go Preset> [170] : Sets Camera BLC Mode to OFF <Go Preset> [171] : Sets Camera BLC Mode to HIGH <Go Preset> [174] : Sets Camera Focus Mode to AUTO <Go Preset> [175] : Sets Camera Focus Mode to Manual <Go Preset> [176] : Sets Camera Focus Mode to SEMI-

AUTO <Go Preset> [177] : Sets Day & Night Mode to AUTO1 <Go Preset> [178] : Sets Day & Night Mode to NIGHT <Go Preset> [179] : Sets Day & Night Mode to DAY <Go Preset> [190] : Sets OSD Display Mode to AUTO

(Except Privacy Mask) <Go Preset> [191] : Sets OSD Display Mode to OFF

(Except Privacy Mask) <Go Preset> [192] : Setting OSD Display Mode to ON

(Except Privacy Mask) <Go Preset> [193] : Sets all Privacy Mask Display to OFF <Go Preset> [194] : Sets all Privacy Mask Display to ON <Go Preset>[200] : Digital Zoom ON <Go Preset>[201] : Digital Zoom OFF

English – 21

Page 22

operation

PRESET

Function

• Max. 127 positions can be stored as Preset position.

The Preset number can be assigned from 1 to 128, but 95 is reserved for starting OSD menu.

Camera characteristics (i.e. White Balance, Auto Exposure) can be set up independently for each preset and they are adjusted by using OSD menu. Four relay outputs can be reacted in conjunction with one Preset.

Set Preset

• <Set Preset> [1~128] Run Preset

• <Go Preset> [1~128] Delete Preset

• To delete Preset, use OSD menu.

Delete Auto Pan

• To delete Auto Pan, use OSD menu.

PATTERN

•

Function Pattern Function is that a camera memorizes the path

(mostly curve path) by joystick of controller for assigned time and revives the path exactly as it memorized.

4 Patterns are available and Maximum 1200 communication commands can be stored in a pattern.

Set Pattern

• Pattern can be created by one of following two

methods. Method 1) <Set Pattern> [Pattern NO.]

Pattern editing screen is displayed as bellow.

–

AUTO PAN

Function

• By using Auto Pan function, you can make camera

to move between 2 Preset positions repeatedly. When Auto Pan function runs, camera moves from the preset assigned as the 1st point to the preset assigned as the 2nd point in CW(Clockwise) direction. Then camera moves from the preset assigned as the 2nd point to the preset assigned as the 1st point in CCW(Counterclockwise) direction.

2nd Preset

CW Direction

CCW Direction

1st Preset

In case that the preset assigned as the 1st point is same as the preset assigned as the 2nd point, camera turns on its axis by 360° in CW(Clockwise) direction and then it turns on its axis by 360° in CCW(Counterclockwise) direction.

Speed can be set up from 1°/sec to 180°/sec. Set Auto Pan

• To set Auto Pan, use OSD menu.

•

Run Auto Pan Method1) <Run Auto Pan> [Auto Pan NO.]

ex) Run Auto Pan 2 : <Run Auto Pan> [2] Method2) <Go Preset> [Auto Pan NO.+140]

ex) Run Auto Pan 2 : <Go Preset> [142]

EDIT PATTERN 1

[ENTER:SAVE]

Movement by Joystick and preset movement

–

can be memorized in a pattern. The rest memory size is displayed in progress

–

bar. To save the recording, press ENTER key.

–

Method 2) OSD Using OSD Menu: See the section “How to use OSD Menu”.

Run Pattern

• Method 1) <Run Pattern> [Pattern NO.]

ex) Run Pattern 2 : <Run Pattern> [2] Method 2) <Go Preset> [Pattern NO.+130]

ex) Run Pattern 2: <Go Preset> [132] Delete Pattern

• Use OSD menu to delete a Pattern.

When the PATTERN is saved/executed, the PAN/TILT is



operated with D-FLIP OFF.

0/0/X1/N

22 – 10x Network Mini Smart Dome Camera

Page 23

operation

SCAN

Function

• The Scan function allows running sequence of

Presets, Pattern and/or Auto Pans. Max 8 Scan can be stored. Each Scan can have max 20 action entities which can be preset, pattern or Auto Pan. Preset speed can be set up and the repeat number of Pattern & Auto Pan can be set up in Scan setup. Dwell time between actions can be set up also.

Dwell Time

Preset 1

Set Scan

• Use OSD Menu to create a Scan. Run Scan

• Method1) <Run Scan> [Scan NO]

ex) Run Scan 2 : <Run Scan> [2] Method2) <Go Preset> [Scan NO.+150]

ex) Run Scan 7 : <Go Preset> [157] Delete Scan

• Use OSD Menu to delete.

Pattern 1

Max 20 Entities

Scan 1

SCHEDULE

Function

• The Schedule function allows running an appropriate

function like Preset, Auto Pan, Scan, Pattern, Home move at designated day and time. For example, if you setup a rule Tuesday at 9:00AM and Preset 1 (say Main Gate), the camera will move to main gate every Tuesday at 9:00AM. If you choose Weekday, camera will move to Main gate everyday except weekend.

It is noted that due to the real time clock, the time data will be kept regardless of blackout. The initial time and day setup is essential to proper Schedule function.

Set Schedule

• Use OSD Menu to create a Schedule. Run Schedule

• Use OSD Menu of Schedule Master Enable.

•

Delete Schedule Use OSD Menu to delete.

OTHER FUNCTIONS

Preset Lock

• This function is made to protect preset data from

unauthorized overwriting. If Preset Lock is ON, Preset save command using Hot Key is disabled while Preset save using OSD Menu is acceptable.

Power Up Action

• This function enables to resume the last action executed

before power down. Most of actions such as Preset, Pattern, Auto Pan and Scan are available for this function but Jog actions are not available to resume. if there are no setup for those functions like Preset, Pattern, Auto Pan and Scan, Camera will automatically move to Home position after rebooting. If Power Up Action is set to be ON, camera will continue the function which is executed lastly after rebooting.

D-FLIP

• In case that tilt angle arrives at the top of tilt orbit

(90°), zoom module camera keep moving to opposite tilt direction (180°) to keep tracing targets. As soon as zoom module camera passes through the top of tilt direction (90°), images should be reversed automatically and F appears in screen. If this function is set to OFF, tilt movement range is 0 ~ 90°.

Parking Action

• This function enables to locate the camera to speciﬁ c

position automatically if operator doesn’t operate the controller for a while. The Park Time can be deﬁ ned as an interval from 5 seconds to 4 hours.

Alarm Input

• 2 Alarm Inputs are used. If an external sensor

is activated, camera can be set to move to corresponding preset position. It is noted that the latest alarm input is effective if multiple sensors are activated.

Privacy Zone Mask

• To protect privacy, Max. 4 Privacy Masks can be

created on the arbitrary position to hide objects such as windows, shops or private house. With Spherical Coordinates system, powerful Privacy Zone Mask function is possible.

English – 23

Page 24

operation

GENERAL/SPECIAL Image Setup

• WB (White Balance) and AE (Auto Exposure) can

be set up independently for each preset. There are 2 modes, “General” mode & “Special” mode. The General mode means that WB or AE can be set up totally and simultaneously for all presets in “CAMERA SETUP” menu. The Special mode means that WB or AE can be set up independently or separately for each preset in each preset setup menu. Each Special WB/AE value should activate correspondingly when camera arrives at each preset location.

During jog operation, General WB/AE value should be applied. All Special WB/AE value will not be changed although General WB/AE value change.

ONEAF Focus

• This mode exchanges focus mode automatically

between Manual Focus mode and Auto Focus mode by operation. Manual Focus mode activates in preset operation and Auto Focus mode activates during jog operation. With Manual mode at presets, Focus data is memorized in each preset in advance and camera calls focus data in correspondence with presets as soon as camera arrives at a preset. It should shorten time to get focuses.

Focus mode changes to Auto Focus mode automatically when jog operation starts.

OSD DISPLAY OF MAIN SCREEN

Preset Lable 1

LABEL12345

PRESET1

Action Title

•

Action Title

Followings are possible Action Titles and their meaning. “SET PRESET ×××” When Preset ××× is stored “PRESET ×××” When camera reach to

Preset ××× “PATTERN ×” When Pattern × is in action “AUPx/PRESET XXX” When Auto Pan x is in action “UNDEFINED” When undeﬁ ned function is

called to run

•

Preset Label

The Label stored for speciﬁ c Preset.

•

Alarm Information

This information shows current state of Alarm Input.

The “I” means Input and “O” is output. If an Input is

ON state it will show the number of input. If an Input is

OFF state, ‘-’ will be displayed. In the same way

“O :1” means output 1 is ON “O :-“ is OFF.

ex) When Point 2 of inputs are ON, and Output 1 is

On, OSD will show as below

I:-2 0:1

•

Image Flip

Shows that images are currently reversed by D-Flip

Function.

•

Temperature

Current Temperature: Boxed “C” and “F” means

Celsius and Fahrenheit respectively.

•

Date/Time

Displays Current Date and Time.

Image Flip

Camera ID

01/MAY/2009 00:00:01 CAM 1

P/T/Z Information

Date/Time

Camera ID

P/T/Z Information

• Current Pan/Tilt angle in degree, zoom magniﬁ cation

and a compass direction. Camera ID

• Current Camera ID (Address).

24 – 10x Network Mini Smart Dome Camera

Temperature Alarm

Information

GENERAL RULES OF KEY OPERATION FOR MENU

•

The menu items surrounded with < > always has its sub menu.

•

For all menu level, to go into sub menu, press ENTER key.

•

To go to up-one-level menu, select BACK button.

•

To move from items to item in the menu, use joystick in the Up/Down or Left/Right.

•

To change a value of an item, use Up/Down of the joystick in the controller.

•

Press ENTER key to save values.

Page 25

how to use osd menu

STRUCTURE OF THE SETUP MENU

SYSTEM INFORMATION

DISPLAY SETUP

MOTION SETUP

SNC-C6225_v1.XX_XXXXXX COLOR SYSTEM PROTOCOL BAUD RATE ADDRESS MAC

CAMERA ID PTZ INFORMATION

ACTION TITLE PRESET LABEL ALARM I/O DATE/TIME <PRIVACY ZONE>

TEMPERATURE

PRESET LOCK PWR UP ACTION D-FLIP JOG MAX SPEED JOG DIRECTION IMAGE HOLD <PARKING ACTION SETUP>

NTSC/PAL AUTO/SAMSUNG 4800/9600/19200/38400 1~255 XX:XX:XX:XX:XX:XX

ON/OFF AUTO/OFF/ON AUTO/OFF/ON AUTO/OFF/ON AUTO/OFF/ON ON/OFF MASK NO. DISPLAY

CLEAR <EDIT MASK> CELSIUS/FAHRENHEIT/

OFF

OFF/ON ON/OFF ON/OFF 2~360/SEC INVERSE/NORMAL OFF/ON PARK ENABLE WAIT TIME PARK ACTION

1~4 ON/OFF

OK/CANCEL …

OFF/ON 00:00:05~04:00:00 HOME/PRESET1~128/

SCAN1~8/PATTERN1~4/APAN1~8

FUNCTION SETUP

PRESET SETUP

AUTO PAN SETUP

PATTERN SETUP

SCAN SETUP

SCHEDULE SETUP

PRESET NO. <EDIT SCENE> <LABEL> CLR PRESET CAM ADJUST

ALARM OUT

APAN NO. 1ST POS. 2ND POS. APAN SPEED CLEAR APAN

PATTERN NO. CLEAR PATTERN <EDIT PATTERN> SCAN NO. CLEAR SCAN <EDIT SCAN> …

1~128 … …

CANCEL/OK GENERAL

OFF/ON

1~8 NOT USED/PRESET1~128 NOT USED/PRESET1~128 1~180/SEC CANCEL/OK 1~4 CANCEL/OK … 1~8 CANCEL/OK …

English – 25

Page 26

how to use osd menu

CAMERA SETUP

SYSTEM SETUP

FOCUS MODE DIGITAL ZOOM IMAGE FLIP <WHITE BALANCE SETUP>

<RELAY TYPE> <PASSWORD> <SET HOME POSITION> <SET NORTH DIRECTION> LANGUAGE

AUTO/ONEAF/MANUAL ON/OFF OFF/ON WB MODE RED ADJUST BLUE ADJUST BACKLIGHT DAY/NIGHT BRIGHTNESS IRIS

SHUTTER

AGC DNR

SENS-UP

RELAY 1 … … … ENGLISH/ ESPAÑOL/

FRANÇAIS/ DEUTSCH/ ITALIANO/ РУССКИЙ/ PORTUGUÊS

FAN RUN TEMP HEATER RUN TEMP

AUTO/MANUAL 0 ~ 255 0 ~ 255 OFF/LOW/MIDDLE/HIGH AUTO1/AUTO2/DAY/NIGHT 0 ~ 100 AUTO <MANUAL> AUTO A.FLICKER <MANUAL>

NORMAL/HIGH/OFF OFF/LOW/MIDDLE/HIGH OFF <AUTO>

NORMAL OPEN / NORMAL CLOSE

IRIS LEVEL

SHUTTER SPD

SENS-UP LIMIT

30°C ~ 80°C (86°F ~ 176°F)

-10°C ~ 20°C (14°F ~ 68°F)

0 ~ 100

×128 ~1/120000

x2 ~ x128

SYSTEM INITIALIZE

CLEAR ALL DATA * CLR DISPLAY SET * CLR CAMERA SET * CLR MOTION SET * CLR FUNCTION SET REBOOT CAMERA REBOOT SYSTEM

26 – 10x Network Mini Smart Dome Camera

NO/YES NO/YES NO/YES NO/YES NO/YES NO/YES NO/YES

Page 27

how to use osd menu

MAIN MENU

ROOT MENU

EXIT

SYSTEM INFORMATION

• Shows info and current conﬁ guration. DISPLAY SETUP

• Enable/Disable of OSD display on Main Screen. MOTION SETUP

• Setup for motion related settings. FUNCTION SETUP

• Setup for various functions such as Preset, Auto Pan,

Pattern, Scan and Schedule. CAMERA SETUP

• Conﬁ gure Camera related functions and data. SYSTEM SETUP

• Conﬁ gure for Basic system setup. SYSTEM INITIALIZE

• Initializes system conﬁ guration and sets all data to

factory default conﬁ guration.

ADDRESS Shows current Camera ID for PTZ

• control.

•

MAC Shows current Mac address.

DISPLAY SETUP

CAMERA ID ON PTZ INFORMATION AUTO ACTION TITLE AUTO PRESET LABEL AUTO ALARM I/O AUTO DATE/TIME ON <PRIVACY ZONE> TEMPERATURE CELSIUS BACK EXIT

This menu deﬁ nes Enable/Disable of OSD display on Main Screen. If an item is set to be AUTO, the item is displayed only when the value of it is changed.

•

CAMERA ID [ON/OFF]

•

PTZ INFORMATION [ON/OFF/AUTO]

•

ACTION TITLE [ON/OFF/AUTO]

•

PRESET LABEL [ON/OFF/AUTO]

•

ALARM I/O [ON/OFF/AUTO]

•

DATE/TIME [ON/OFF]

•

<PRIVACY ZONE> Start Privacy Zone Mask

setup Menu.

•

TEMPERATURE

[CELSIUS/FAHRENHEIT/OFF]

SYSTEM INFORMATION

SNC-C6225_v1.XX_XXXXXX COLOR SYSTEM NTSC PROTOCOL AUTO BAUD RATE 9600 ADDRESS 1 MAC 00:0D:F1:30:00:00

BACK EXIT

•

SNC-C6225_v1.XX_XXXXXX Shows current ﬁ rmware version of camera.

•

COLOR SYSTEM Shows current analog video system of the camera

•

PROTOCOL Shows current Protocol for PTZ control

•

BAUD RATE Shows current Baud rate of PTZ control.

PRIVACY ZONE MASK SETUP

PRIVACY ZONE

MASK NO. 1 UNDEFINED DISPLAY OFF CLEAR CANCEL <EDIT MASK>

BACK EXIT

Select area in image to mask.

MASK NO. [1~4]

•

Select Mask number. If the selected mask has already data, camera moves as it was set. Otherwise, “UNDEFINED” will be displayed under “MASK NO.”.

English – 27

Page 28

how to use osd menu

DISPLAY [ON/OFF]

• Sets if camera makes mask shows or not on images. CLEAR [CANCEL/OK]

• Deletes data in the selected mask NO.

Privacy Zone Area Setup

❖

EDIT MASK 1

MOVE TO TARGET POSITION [ENTER : SELECT]

Move camera to area to mask. Then the menu to adjust mask size will be displayed.

Privacy Zone Size Adjustment

❖

EDIT MASK 1

[◄►:ADJUST MASK WIDTH] [▲▼:ADJUST MASK HEIGHT] [ENTER : SELECT]

Adjust mask size. Use joystick or arrow buttons to adjust mask size.

◄ ► (Left/Right) Adjusts mask width.

•

▲▼ (Up/Down) Adjusts mask height.

•

To hide a certain zone completely regardless of high speed PT



motions, it is recommended that the size of mask must be 20% bigger than original target size.

It is noted that during PAN/TILT control like jog action, the



object behind the privacy mask can be disclosed in a short period of time.

0/0/x1/N

MOTION SETUP

PRESET LOCK OFF PWR UP ACTION ON D-FLIP ON JOG MAX SPEED 140/SEC JOG DIRECTION NORMAL IMAGE HOLD OFF <PARKING ACTION SETUP>

BACK EXIT

Setup the general functions of Pan/Tilt motions.

PRESET LOCK [ON/OFF]

• If Preset Lock is set to ON, it is impossible to set up

and delete Preset. It is possible only to run those functions. To set up and delete those functions, enter into OSD menu.

PWR UP ACTION [ON/OFF]

• Refer to “Other Functions”(page 23) section. D-FLIP [ON/OFF]

• Refer to “Other Functions”(page 23) section. JOG MAX SPEED [2°/sec ~200°/sec]

• Sets maximum jog speed. Jog speed is inversely

proportional to ratio of zoom. As zoom magniﬁ cation goes up, pan/tilt speed goes down.

JOG DIRECTION [INVERSE/NORMAL]

• If you set this to ‘Normal’, the view in the screen is

moving same direction with jog tilting. If ‘Inverse’ is selected, the view in the screen is moving reversely.

IMAGE HOLD [ON/OFF]

• At start point of preset movement, camera starts

freezing the image of start point. Camera keeps displaying the image of start point during preset movement and does not display the images which camera gets during preset movement. As soon as camera stops at preset end point, camera starts displaying live images which it gets at preset end point.

28 – 10x Network Mini Smart Dome Camera

Page 29

how to use osd menu

Parking Action Setup

❖

PARKING ACTION SETUP

PARK ENABLE OFF WAIT TIME 00:10:00 PARK ACTION HOME

BACK EXIT

If Park Enable is set to ON, camera runs assigned function automatically if there is no PTZ command during assigned “WAIT TIME”.

PARK ENABLE [ON/OFF]

• WAIT TIME [5 sec ~ 4 hour]

• The time is displayed with “hh:mm:ss” format and

you can change this by 1 sec unit. PARK ACTION

• [HOME/PRESET/PATTERN/AUTOPAN/SCAN] ex) If HOME is selected for Park Action, camera

will move to home position when there is no PTZ command during assigned “WAIT TIME”.

PATTERN SETUP

• Up to 4 patterns can be stored in the dome. In this function, path data created by manual move

of Joystick are recorded and you can playback the identical path automatically whenever required.

SCAN SETUP

• Up to 8 Scans can be deﬁ ned. In a Scan, max 20 entities are assigned from any

combinations of Preset/Auto Pan/Pattern. If you run a Scan, camera will execute each entry sequentially.

SCHEDULE SETUP

• 7 rules of Schedule can be assigned by day and time.

Appropriate actions (such as Home, Preset, Auto Pan, Pattern and Scan) can be deﬁ ned for each rule. Also, it is possible to use Weekday and Weekend in a rule to make it simple.

FUNCTION SETUP

BACK EXIT

Conﬁ gure 5 Special Functions with this menu.

PRESET SETUP

• 127 Presets from the number 1 to 128 can be

assigned excluding preset 95 reserved for Menu. AUTO PAN SETUP

• Up to 8 Auto Pans are available, which makes camera

to move slowly between two preset points.

English – 29

Page 30

how to use osd menu

Edit Preset Scene

PRESET SETUP

❖

PRESET SETUP

PRESET NO. 1

<EDIT SCENE> <LABEL> CLR PRESET CANCEL CAM ADJUST GENERAL ALARM OUT ----

BACK EXIT

PRESET NO. [1~128]

• If a selected preset is already deﬁ ned, camera moves

to pre-deﬁ ned position and preset characteristics such as Label and Relay Outputs show on monitor. If a selected preset is not deﬁ ned, “UNDEFINED” shows on monitor.

EDIT PRESET SCENE

• Redeﬁ ne current Preset scene position (i.e. PTZ). EDIT PRESET LABEL

• Edits Label to show on monitor when preset runs.

Max. 10 alphabets are allowed. CLR PRESET [CANCEL/OK]

• Delete current Preset data CAM ADJUST [GENERAL/SPECIAL]

• WB(White Balance) and AE(Auto Exposure) can be set

up independently for each preset. There are 2 modes, “GENERAL” mode & “SPECIAL” mode. The General mode means that WB or AE can be set up totally and simultaneously for all presets in “CAMERA SETUP” menu.

The Special mode means that WB or AE can be set up independently or separately for each preset in each preset setup menu. Each Special WB/AE value should activate correspondingly when camera arrives at each preset location. During jog operation, General WB/AE value should be applied.

All Special WB/AE value should not change although General WB/AE value changes. If “SPECIAL” is selected, Menu to set WB/AE shows on monitor.

ALARM OUT

• Relay Output can be linked with Preset run.

The character “-” means disable while the number “1” representing each bit means ON.

ex) If it is set to “1”, Output relay will be ON whenever you call this Preset.

EDIT SCENE - PRESET 1

MOVE TO TARGET POSITION [ENTER : SELECT]

0/0/x1/N

c Using joystick, move camera to desired position.

d By pressing ENTER key, save current PTZ data.

Edit Preset Label

❖

LABEL - PRESET 1

[█ ]

--------- 1234567890 OK ABCDEFGHIJ CANCEL KLMNOPQRST UVWXYZabcd efghijklmn opqrstuvwx yz<>-/:.

Edits label to show on monitor when camera arrives at presets. In Edit Label menu, a reverse rectangular is cursor. As soon as ﬁ nishing selecting alphabet, cursor moves to the next digit.

[ ]



Current Cursor Position

d Using Left/Right/Up/Down of joystick, move to

an appropriate character from the Character set. To choose that character, press the ENTER key.

30 – 10x Network Mini Smart Dome Camera

Page 31

how to use osd menu

Back Space Char. Space Char.

If you want to use blank, choose Space character (“ ”). If you want to delete a character before, use back space character (“”).

If you complete the Label editing, move cursor to

“OK” and press ENTER key to save completed label. To abort current change, move cursor to “CANCEL” and press ENTER key.

When Auto Pan function runs, camera moves from the preset assigned as the 1st point to the preset assigned as the 2nd point in CW(Clockwise) direction. Then camera moves from the preset assigned as the 2nd point to the preset assigned as the 1st point in CCW(Counterclockwise) direction. In case that the preset assigned as the 1st point is same as the preset assigned as the 2nd point, camera turns on its axis by 360° in CW direction and then it turns on its axis by 360° in CCW direction.

APAN SPEED [1°/sec ~180°/sec]

• Sets Auto Pan speed from 1°/sec to 180°/sec. CLEAR APAN [CANCEL/OK]

• Deletes current Auto Pan data.

PATTERN SETUP

AUTO PAN SETUP

APAN NO. 1 1ST POS. NOT USED 2ND POS. NOT USED

APAN SPEED CLEAR APAN CANCEL

BACK EXIT

APAN NO. [1~8]

• Selects Auto Pan number to edit. If a selected Auto

Pan has not deﬁ ned, “NOT USED” is displayed in 1st Position and 2nd Position.

•

1ST POS. / 2ND POS. [PRESET 1~128] Set up the 2 position for Auto Pan function. If a

selected preset is not deﬁ ned, “UNDEFINED” will be displayed as shown below.

AUTO PAN SETUP

APAN NO. 1 1ST POS. PRESET5 2ND POS. NOT USED UNDEFINED

30/SEC

PATTERN SETUP

PATTERN NO. 1 UNDEFINED CLEAR PATTERN CANCEL <EDIT PATTERN>

BACK EXIT

PATTERN NO. [1~4 ]

• Selects Pattern number to edit. If a selected pattern number is not deﬁ ned,

“UNDEFINED” will be displayed under selected pattern number.

CLEAR PATTERN [CANCEL/OK]

• Deletes data in current pattern. EDIT PATTERN

• Starts editing pattern.

English – 31

Page 32

how to use osd menu

Edit Pattern

❖

SCAN SETUP

c By using Joystick, move to start position with

appropriate zoom. To start pattern recording, press ENTER key.

EDIT PATTERN 1

MOVE TO START POSITION [ENTER : START]

0/0/x1/N

d Move camera with joystick of controller or run

preset function to memorize the path (mostly curve path) in a selected pattern. The total memory size and the rest memory size is displayed in the form of bar. Maximum 1,200 communication commands can be stored in a pattern.

EDIT PATTERN 1

[ENTER : SAVE]

0/0/X1/N

SCAN SETUP

SCAN NO. 1 UNDEFINED CLEAR SCAN CANCEL <EDIT SCAN>

BACK EXIT

SCAN NO. [1~8]

• Selects Scan number to edit. If a selected Scan number is not deﬁ ned,

“UNDEFINED” will be displayed under selected Scan number.

CLEAR SCAN [CANCEL/OK]

• Deletes data in current Scan EDIT SCAN Starts editing Scan.

•

Edit Scan

❖

c Press ENTER key in “NO.” list to start Scan

setup.

EDIT SCAN 1

NO. ACTION NO. DWELL OPT

1 NONE 2 NONE 3 NONE 4 NONE 5 NONE

SAVE CANCEL [ENTER : EDIT]

e To save data and exit, press ENTER key.

32 – 10x Network Mini Smart Dome Camera

d Note that Max. 20 Functions are allowed in a

Scan. Move cursor up/down and press ENTER key to set up.

EDIT SCAN 1

NO. ACTION NO. DWELL OPT

1 NONE 2 NONE 3 NONE 4 NONE 5 NONE

SAVE [ENTER : EDIT ACT] CANCEL [LEFT : EDIT END]

Page 33

how to use osd menu

e Set up Action, Dwell time and Option. Note that

selected item is displayed in reverse. Move cursor

Left/Right to select items and move cursor Up/Down to change each value.

EDIT SCAN 1

NO. ACTION NO. DWELL OPT

1 NONE 2 NONE 3 NONE 4 NONE 5 NONE

SAVE [◄►:MOVE CURSOR] CANCEL [▲▼:CHANGE VAL.]

•

ACTION NO. [NONE/PRESET/AUTO PAN/PATTERN]

•

DWELL [1 second ~ 4 minutes] Sets Dwell Time between functions

•

OPT Option. It represents preset speed (2~360)

when preset is selected. It should be the number of repetition (1~255) when Pattern or Auto Pan is selected for Action

f Set up items such as ACTION NO., DWELL and

OPT.

EDIT SCAN 1

NO. ACTION NO. DWELL OPT

1 PRESET 1 00:03 360 2 NONE 3 NONE 4 NONE 5 NONE

SAVE [◄►:MOVE CURSOR] CANCEL [▲▼:CHANGE VAL.]

g After ﬁ nishing setting up an Action, press ENTER

key to one-upper-level menu (Step d). Move cursor Up/Down to select Action number and repeat Step d ~ Step f to edit selected Scan.

EDIT SCAN 1

NO. ACTION NO. DWELL OPT

1 PRESET 1 00:03 360 2 NONE 3 NONE 4 NONE 5 NONE

SAVE [ENTER : EDIT ACT] CANCEL [LEFT : EDIT END]

h After ﬁ nishing setting up all Actions, press LEFT

key to exit. Then cursor should be moved to “SAVE”. Press ENTER key to save data.

EDIT SCAN 1

NO. ACTION NO. DWELL OPT

1 PRESET 1 00:03 360 2 NONE 3 NONE 4 NONE 5 NONE

SAVE CANCEL

English – 33

Page 34

how to use osd menu

SCHEDULE SETUP

MASTER ENABLE ON DAY TIME ACT NO ON 1 UNDEFINED 2 UNDEFINED 3 UNDEFINED 4 UNDEFINED 5 UNDEFINED 6 UNDEFINED 7 UNDEFINED

BACK

MASTER ENABLE [ON/OFF]

• Decide whether Schedule function is active or not. CLEAR SCHEDULE [CANCEL/OK]

• Delete all data in current Menu EDIT SCHEDULE Start editing Schedule.

•

Edit Schedule

❖

c After move the Cursor to the number by using

Up/Down keys, press ENTER Key to edit.

SCHEDULE SETUP

MASTER ENABLE ON DAY TIME ACT NO ON 1 UNDEFINED 2 UNDEFINED 3 UNDEFINED 4 UNDEFINED 5 UNDEFINED 6 UNDEFINED 7 UNDEFINED

BACK

d Each ﬁ eld can be selected by Left/Right keys

and the values in the ﬁ eld are changed using Up/Down keys.

SCHEDULE SETUP

MASTER ENABLE ON DAY TIME ACT NO ON 1 MON 00:00 HOM OFF 2 UNDEFINED 3 UNDEFINED 4 UNDEFINED 5 UNDEFINED 6 UNDEFINED 7 UNDEFINED

BACK

The meaning of each value: DAY Days: MON  TUE  WED  THU 

FRI  SAT  SUN WKD: Weekday ALL: All days(Everyday) TIME 24hour Format ACT PRS(Preset), AUP(Auto Pan),

PTN(Pattern), SCN(Scan),

HOM(Home) ON/OFF Decide to make this rule effective or

not If you ﬁ nish a rule, press ENTER key to select

another rule. Repeat this procedure to ﬁ ll up the schedule in

mind.

e Example

The second rule means camera will move

–

to Preset 12 position at 7:35 on every Wednesday.

SCHEDULE SETUP

MASTER ENABLE ON DAY TIME ACT NO ON 1 MON 01:20 HOM ON 2 WED 07:35 PRS 12 ON 3 THU 11:40 SCN 3 ON 4 SAT 15:17 PTN 1 ON 5 WKD 23:00 HOM ON 6 UNDEFINED 7 UNDEFINED

BACK

* Note: If there are rules conﬂ icts to each other, the

higher number is, the higher priority has.

* Note: If you assign undeﬁ ned function, there will be

no action.

* Hint: Using reserved Preset, you can make various

schedules. For example, PRS179 are PRS178 are Day and Night mode respectively. (Refer to Reserved Preset(page 21) List in this manual.)

34 – 10x Network Mini Smart Dome Camera

Page 35

CAMERA SETUP

how to use osd menu

White Balance Setup

❖

Setup the general functions of zoom camera module

ZOOM CAMERA SETUP

FOCUS MODE ONEAF DIGITAL ZOOM ON IMAGE FLIP OFF <WHITE BALANCE SETUP> <AUTO EXPOSURE SETUP>

BACK EXIT

FOCUS MODE [AUTO/MANUAL/ONEAF]

• Sets camera focus mode.  ONEAF

This mode exchanges focus mode automatically between Manual Focus mode and Auto Focus mode. Manual Focus mode activates in preset operation and Auto Focus mode activates when jog operation starts.

With Manual mode at presets, Focus data is memorized in each preset in advance and camera calls focus data in correspondence with presets as soon as camera arrives at a preset.

DIGITAL ZOOM [ON/OFF]

• Sets digital zoom function to ON/OFF. If this is set to

OFF, optical zoom function runs but zoom function stops at the end of optical zoom magniﬁ cation.

IMAGE FLIP [ON/OFF]

• To display Upside down image.

WB SETUP

WB MODE AUTO

- RED ADJUST ---

- BLUE ADJUST ---

BACK EXIT

WB MODE [AUTO/MANUAL]

• In Manual mode, Red and Blue level can be set up

manually RED ADJUST [10~60]

• BLUE ADJUST [10~60]

•

Auto Exposure Setup

❖

AE SETUP

BACKLIGHT OFF DAY/NIGHT AUTO1 BRIGHTNESS 25 IRIS AUTO SHUTTER ESC AGC NORMAL DNR MIDDLE SENS-UP OFF

BACK EXIT

BACKLIGHT [OFF/LOW/MIDDLE/HIGH]

• Sets Backlight Compensation DAY/NIGHT [AUTO1/AUTO2/DAY/NIGHT]

• The illumination condition for switching between Day

and Night modes of AUTO1 is brighter than that of AUTO2.

BRIGHTNESS [0~100]

• Adjusts brightness of images. Iris, Shutter Speed and

Gain are adjusted automatically in correspondence with this value.

IRIS [AUTO/MANUAL(0~100)]

• If Iris is set to Auto, Iris should have highest priority in

adjusting AE and Shutter Speed should be ﬁ xed. If Iris is set to Manual, Iris should be ﬁ xed and Iris

has lower priority in adjusting AE, in comparison with others.

English – 35

Page 36

how to use osd menu

SHUTTER

• [ESC/A. Flicker/Manual(×128~1/120000 sec)] If Iris is set to Manual and Shutter Speed is set to

ESC, Shutter Speed should have highest priority. If Shutter Speed is set to A. Flicker, to remove Flicker, Shutter Speed should be set to 1/100 sec. for NTSC and 1/120 for PAL.

•

AGC [OFF/NORMAL/HIGH] Enhances image brightness automatically in case that

luminance level of image signal is too low.

•

DNR [OFF/LOW/MIDDLE/HIGH] Enhances images by deducting noises when gain level

of images is too high.

•

SENS-UP [AUTO(2~128)/OFF] Activates Slow Shutter function when luminance of

image (signal) is too dark. It is possible to set up the maximum number of frames

piled up one on another by Slow Shutter function.

SYSTEM SETUP

<RELAY TYPE> <PASSWORD> <SET HOME POSITION> <SET NORTH DIRECTION> LANGUAGE ENGLISH <FAN/HEATER SETUP>

RELAY TYPE SETUP

• Contact type of 1 Ch, RELAY OUTPUT is deﬁ ned.

[NORMAL OPEN / NORMAL CLOSE]

EDIT PASSWORD

[█ ]

--------- 1234567890 OK ABCDEFGHIJ CANCEL KLMNOPQRST UVWXYZabcd DISABLE efghijklmn opqrstuvwx yz<>-/:.

EDIT PASSWORD

• You can deﬁ ne 4 characters long password. If this

function is set to ENABLE, it is required to type this password whenever to enter OSD MENU.

It is noted that DEFAULT PASSWORD : “4321”

BACK EXIT

SYSTEM SETUP

• You can set up RELAY TYPE, PASSWORD, HOME

POSITION, NORTH DIRECTION, LANGUAGE.

<FAN/HEATER SETUP> menu is only available in



C7225 model.

RELAY TYPE SETUP

RELAY1 NORMAL OPEN

BACK EXIT

36 – 10x Network Mini Smart Dome Camera

Page 37

how to use osd menu

SET HOME POSITION

MOVE TO TARGET POSITION [ENTER : SELECT]

SET HOME POSITION

• HOME position means the origin of PAN angle

calculation. The value of PAN angle displayed on the screen is based on this HOME position.

By using Joystick, move the camera to the desired position and press ENTER.

It is noted that Home is not effective to Tilt angle.

If you change the location of Home position, all horizontal



locations of functions such as preset, pattern, scan, auto pan, and privacy zone mask will be shifted based on changed Home position.

If there are no setup for those functions like Preset, Pattern, Auto



Pan and Scan, Camera will automatically move to Home position after rebooting. If Power Up Action is set to be ON, camera will continue the function which is executed lastly after rebooting.

* Set Home Position?

When you replace the camera block or the orientation of camera is changed due to maintenance operations, it is very difﬁ cult to maintain same pan orientation. Therefore, all function data depending on pan orientation such as preset, pattern, scan, auto pan, and privacy zone mask are not useful any more accordingly. However, even in this case, you can reuse the data if you redeﬁ ne Set Home Position on the previous Home position. It is recommendable to memorize the target scene of current Home position.

0/0/x1/N

SET NORTH DIRECTION

MOVE TO TARGET POSITION [ENTER : SELECT]

SET NORTH DIRECTION

• You can set up North direction. By using Joystick, move the camera to the desired

NORTH position and press ENTER key. The direction will be displayed in the screen [PAN AXIS / TILT AXIS / ZOOM / DD] DD is direction and will be displayed from: [N/NE/E/SE/S/SW/W/NW] LANGUAGE

• You can select a preferred Language of OSD display

from 7 choices. [ENGLISH/ ESPAÑOL/ FRANÇAIS/ DEUTSCH/

ITALIANO/ РУССКИЙ/ PORTUGUÊS] After selecting a language, press the ENTER key.

FAN/HEATER SETUP

FAN RUN TEMP 40°C HEATER RUN TEMP 5°C

BACK EXIT

FAN RUN TEMP

• Above this temperature, the blower fan will start

automatically. [Range: 30°C ~ 80°C (86°F ~ 176°F)] HEATER RUN TEMP

• Bellow this temperature, the Heater will be tuned on

automatically. [Range: -10°C ~ 20°C (14°F ~ 68°F)]

FAN and HEATER are only available in C7225 model.



0/0/x1/N

English – 37

Page 38

how to use osd menu

SYSTEM INITIALIZE

Motion Conﬁ guration

SYSTEM INITIALIZE

CLEAR ALL DATA NO

 CLR DISPLAY SET NO  CLR CAMERA SET NO  CLR MOTION SET NO  CLR FUNCTION SET NO

REBOOT CAMERA NO REBOOT SYSTEM NO

BACK EXIT

CLEAR ALL DATA

• Deletes all conﬁ guration data such as display, camera,

motion setup and so on. CLR DISPLAY SET

• Initializes Display Conﬁ guration CLR CAMERA SET

• Initializes Camera Conﬁ guration CLR MOTION SET

• Initializes Motion Conﬁ guration CLR FUNCTION SET

• Deletes Preset Data, Auto Pan Data, Pattern Data,

Scan Data and Schedule Data REBOOT CAMERA

• Reboots Zoom Camera module REBOOT SYSTEM

• Reboots Smart Dome Camera

Initial Conﬁ guration Table

❖

•

Preset Lock OFF Power Up Action ON D-Flip ON Jog Max Speed 140°/sec Jog Direction NORMAL Image Hold OFF Park Action OFF

Communication Setup

•

Protocol AUTO Baud Rate 9600

Camera Conﬁ guration

•

Focus Mode ONEAF Digital Zoom ON Image Flip OFF White Balance AUTO Back Light OFF Day/Night AUTO1 Brightness 25 IRIS AUTO Shutter ESC AGC NORMAL DNR MIDDLE Sens-Up OFF

Display Conﬁ guration

•

Camera ID ON PTZ Information AUTO Action Title AUTO Preset Label AUTO Alarm I/O AUTO Date/Time ON Temperature CELSIUS Set North Direction Pan 0˚ Privacy Zone Undeﬁ ned

38 – 10x Network Mini Smart Dome Camera

Function Data

•

Preset 1~128 Undeﬁ ned Auto Pan 1~8 Undeﬁ ned Pattern 1~4 Undeﬁ ned Scan 1~8 Undeﬁ ned Schedule 1~7 Undeﬁ ned

Page 39

network connection & setup

You can set up the network settings according to your network conﬁ gurations.

Network connection and setup processes are given as follows.

❖

Connect the camera to an IP router with a xDSL/Cable modem. (Page 39~40)

• Connect the camera to an IP router with local area networking. (Page 41~42)

• Connect the camera directly to a DHCP-based xDSL/Cable modem. (Page 43)

• Connect the camera directly to local area networking. (Page 44)

•

Compliant IP routers are as listed below.



- Linksys

- D-Link

- Netgear Using non-recommended IP router may cause the network connection error.



Depending on the performance of the PC (Viewer installed) or the network, the video transmission can be delayed or even



disconnected. For soft video transmission, you can set the bandwidth in <NETWORK> → <STREAMING SETUP> in the setup menu.

The IP and MAC addresses used in this manual are for illustrative purposes only.



Therefore, you must refer to Notice the network settings of your PC and do not enter the addresses presented in this manual.

CONNECTING THE CAMERA TO AN IP ROUTER WITH THE XDSL/ CABLE MODEM

SNC-C6225

xDSL or Cable Modem

External Remote PC

SNC-C6225

Local PC

IP Router

xDSL or Cable Modem

DDNS Server

(Data Center, KOREA)

Conﬁ guring the network settings of the local PC connected to an IP router

Conﬁ guring the network settings of the local PC connected to an IP router, follow the instructions below.

Select : <Network Neighborhood> → <Properties> → <Local Area Connection> → <Properties> →

• <General> → <Internet Protocol (TCP/IP)> → <Properties> → <Obtain an IP address automatically> or <Use the following IP address>

Follow the instructions below if you select <Use the following IP address>:

• ex1) If the address (LAN IP) of the IP router is 192.168.1.1 IP address: 192.168.1.100 Subnet Mask: 255.255.255.0 Default Gateway: 192.168.1.1

English – 39

Page 40

network connection & setup

ex2) If the address (LAN IP) of the IP router is 192.168.0.1 IP address: 192.168.0.100 Subnet Mask: 255.255.255.0 Default Gateway: 192.168.0.1

ex3) If the address (LAN IP) of the IP router is 192.168.xxx.1 IP address: 192.168.xxx.100 Subnet Mask: 255.255.255.0 Default Gateway: 192.168.xxx.1

For the address of the IP router, refer to the product’s documentation.



Checking if the IP router is connected to the xDSL/Cable modem properly

Select <Status> from the Settings menu of the IP Router.

If it is properly connected, <IP Address>, <Subnet Mask> and <Gateway> provided by your ISP are displayed.

• Please remember these values because they are required so that an external remote computer of the IP router connects to the camera. However, note that certain ISPs change the settings of <IP Address>, <Subnet Mask> and <Gateway> on a regular basis.

If the IP router is not properly connected, press the [Connect] button to try to reconnect or check if the settings of

• the IP router are correct.

Setting the IP address

Refer to "Setting Static IP" on page 46 or "Setting Dynamic IP" on page 49.

•

Connecting a local PC in the IP router to the camera

Run the IP Installer on your local PC and search for the camera.

If found, double-click the camera to start the Internet browser and

try to connect to the camera. Alternately, launch the Internet browser manually and enter the IP address of the camera found in the address bar to connect to it. ex) http://192.168.1.2

Connecting to the camera from a remote PC

You can’t use the IP Installer on a remote PC that is not connected to the IP router. This is because the IP Installer does not work on the Internet.

You can use DDNS URL of the camera to connect to the IP router internal camera.

However, you must set the port-forwarding for the IP router before you can connect to the IP router internal camera from a remote PC. For more information on the port-forwarding, refer to “Port Forwarding (Port Mapping) Setting” on page 49.

When the port forwarding is done, run the Internet browser on the remote PC and enter the DDNS URL address or, the Internet IP address of the IP router in the address bar for connecting to the camera. ex) http://e30002c.websamsung.net

•

For the DDNS URL address, refer to “Checking the DDNS address” on page 51.

40 – 10x Network Mini Smart Dome Camera

Page 41

network connection & setup

CONNECTING THE CAMERA TO AN IP ROUTER WITH LOCAL AREA NETWORKING

This is for a large network environment such as corporate ofﬁ ce, building, public ofﬁ ce and factory.

SNC-C6225

Local PC

IP Router

Local PC

Firewall

External Remote PC

DDNS Server

(Data Center, KOREA)

Conﬁ guring the network settings of the local PC connected to an IP router

Conﬁ guring the network settings of the local PC connected to an IP router, follow the instructions below.

•

Select : <Network Neighborhood> → <Properties> → <Local Area Connection> → <Properties> → <General> → <Internet Protocol (TCP/IP)> → <Properties> → <Obtain an IP address automatically> or <Use the following IP address>

•

Follow the instructions below if you select <Use the following IP address>: ex1) If the address (LAN IP) of the IP router is 192.168.1.1 IP address: 192.168.1.100 Subnet Mask: 255.255.255.0 Default Gateway: 192.168.1.1

ex2) If the address (LAN IP) of the IP router is 192.168.0.1 IP address: 192.168.0.1 Subnet Mask: 255.255.255.0 Default Gateway: 192.168.0.1

ex3) If the address (LAN IP) of the IP router is 192.168.xxx.1 IP address: 192.168.xxx.1 Subnet Mask: 255.255.255.0 Default Gateway: 192.168.xxx.1

For the address of the IP router, refer to the product’s documentation.



Setting the IP address

Refer to "Setting Static IP" on page 46 or "Setting Dynamic IP" on page 49.

•

English – 41

Page 42

network connection & setup

Connecting a local PC in the IP router to the camera

Run the IP Installer on your local PC and search for the camera.

If found, double-click the camera to start the Internet browser and

try to connect to the camera. Alternately, launch the Internet browser manually and enter the IP address of the camera found in the address bar to connect to it. ex) http://192.168.1.2

Connecting to the camera from an IP router external PC

An IP router external PC can’t use the IP Installer to search for an IP router internal camera. This is because the IP Installer does not work in a network where the gateway is different.

In this case, you can use the DDNS URL of the camera or the Internet IP address of the IP router to connect to the IP router internal camera.

Mapping) Setting” on page 49.

When the port forwarding is done, run the Internet browser on the IP router External PC and enter the DDNS URL address or, the Internet IP address of the IP router in the address bar for connecting to the camera. ex) http://e30002c.websamsung.net

•

For the DDNS URL address, refer to “Checking the DDNS address” on page 51.

A remote PC in an external Internet out of the LAN network may not be able to connect to the camera installed in the intranet if



the port-forwarding is not properly set or a ﬁ rewall is set. In this case, to resolve the problem, contact your network administrator.

42 – 10x Network Mini Smart Dome Camera

Page 43

network connection & setup

CONNECTING THE CAMERA DIRECTLY TO A DHCP-BASED XDSL/ CABLE MODEM

This is enabled for a modem using DHCP.

Setting the IP Router

Set the IP address referring to "Setting Static IP" on page 46 or "Setting Dynamic IP" on page 49.

Launch an Internet browser on the local PC connected to the IP Router.

Enter the IP Router’s address in the address bar of the browser.

ex) http://192.168.1.1 ,http://192.168.0.1 or http://192.168.xxx.1

For the DDNS URL address, refer to “Checking the DDNS address” on page 51.

•

When the IP Router is connected, the login window appears and prompts you to enter the password.

For the login IP and the password, refer to the IP router’s documentation.



When done, you will see the setup window of the IP router. In the setup menu, select <Automatic

Conﬁ guration-DHCP> for <Internet Connection Type>.

For the menu location of <Internet Connection Type> or DHCP selection, refer to the IP router’s documentation.



When done, click the [Save] or [Apply] button to save the settings.

xDSL or Cable Modem

SNC-C6225

DDNS Server

(Data Center, KOREA)

Connecting to the camera from a remote PC

Launch an Internet browser on the remote PC.

Enter the DDNS URL address in the address bar of the browser for connecting to the camera.

ex) http://e30002c.websamsung.net

For the DDNS URL address, refer to “Checking the DDNS address” on page 51.

•

To check if your xDSL / Cable modem uses DHCP, contact your Internet Service Provider.



External Remote PC

English – 43

Page 44

network connection & setup

CONNECTING THE CAMERA DIRECTLY TO LOCAL AREA NETWORKING

SNC-C6225

Local PC

Firewall

Connecting to the camera from a local PC in the LAN

Launch an Internet browser on the local PC.

Enter the IP address of the camera in the address bar of the browser.

A remote PC in an external Internet out of the LAN network may not be able to connect to the camera installed in the intranet if



the port-forwarding is not properly set or a ﬁ rewall is set. In this case, to resolve the problem, contact your network administrator.

External Remote PC

DDNS Server (Data Center, KOREA)

44 – 10x Network Mini Smart Dome Camera

Page 45

network connection & setup

SEARCHING FOR THE CAMERA

IP Installer screen layout

❖

1 23 456 7

98 10 11 12

Device Name : Model name of the connected device.

Mode : Shows the current selection between <Static> and <Dynamic>.

MAC Address : The Mac address of the network interface of the camera.

IP Address : The IP address of the camera. (Default setting is '192.168.1.200'.)

Protocol : Indicates if the camera network environment is IPv4 or IPv6

UPnP Status : This is unavailable for this camera.

URL : This is DDNS address that can be used to connect from an external Internet. However, if the DDNS update

fails, it will be displayed as an IP address of the camera.

IPv4, IPv6 Check Box : Searches for cameras only in the selected network environment.

Search Button : Searches for the camera connected to the current network.

Auto Set Button : Sets up the camera network settings automatically using the <IP Installer>.

Manual Set Button : Allows the user to set up the camera network settings manually.

Exit Button : Exits the IP Installer program.

On Windows Vista, the settings should be conﬁ gured by the Administrator to use the IP installer normally.



English – 45

Page 46

setting static ip

MANUAL NETWORK SETTING

Run the <IP Installer.exe> program and display the camera list found on the screen. For the initial run, the [Auto Set] and [Manual Set] button are all disabled.

Select a camera you want from the camera list.

Conﬁ rm the MAC Address of the camera on its base panel.

•

Check the MAC address in System Information under the

•

Setup menu of the camera. The [Auto Set] and [Manual Set] button are activated.

•

Click the [Manual Set] button.

The Manual Set window appears.

•

The <IP Address>, <Subnet Mask>, <Gateway> and <HTTP

•

Port> values of the camera are displayed in their default values. The password is set to “4321” by factory default.

•

Set up the IP related settings in the <ADDRESS> ﬁ eld.

<MAC Address>: The MAC Address is automatically

•

displayed. No additional setting is required.

If using an IP router :

<IP Address>: Set it according to the private IP address range

•

provided by the IP Router. ex) 192.168.1.2~254, 192.168.0.2~254, or 192.168. XXX.2~254

<Subnet Mask>: The IP Router’s <Subnet Mask> becomes

•

camera’s <Subnet Mask> value. <Gateway>: The IP Router’s <Local IP Address> becomes

•

camera’s <Gateway> value.

If not using an IP router :

For the <IP Address>, <Gateway> and <Subnet Mask> settings,

•

contact your network administrator.

For the menu location of Internet Connection Type or DHCP selection, refer



to the IP router’s documentation.

46 – 10x Network Mini Smart Dome Camera

Page 47

setting static ip

In the <PORT> ﬁ elds, set up port numbers.

•

<HTTP Port>: A HTTP port used to connect to a camera using the

Internet browser. The default value is 80. The HTTP port value can be changed by using the up/down button to the right. The HTTP port number starts with 80 and increases/decreases to 10000, 10006, 10012…

•

<Device Port>: A port used to control video transmission. The

default value is 60001(TCP).

•

<TCP Port>: A port used to transfer video using TCP protocol.

The default value is 60002(TCP).

•

<UDP Port>: A port used to transfer video using UDP protocol. The default value is 60003(UDP).

•

<Upload Port>: A port used to upgrade software. The default value is 60004(TCP).

•

<Multicast Port>: Shows UDP port set for video transmission using UDP Multicast. The default value is

60005(UDP).

Enter your password.

•

The default password is “4321”.

•

The password is the camera login password of the root user.

Click the [OK] button.

•

The manual network setting is ﬁ nished.

The camera is set to the manually entered IP and is restarted

If more than one camera are connected to an IP Router

❖

Set the IP and port settings for camera differently.

5 6

IP Related Items

Port Related Items

If <HTTP Port> is not set to 80,the user must specify the port number as well as the IP address in the Address input box of



an Internet browser to connect to the camera. ex) http://IP Address: HTTP Port

e.g.) http://192.168.1.201: 10000

Items 1st Camera 2nd Camera

IP Address Subnet Mask Gateway

HTTP Port Device Port TCP Port UDP Port Upload Port Multicast Port

192.168.1.200

255.255.255.0

192.168.1.1

80 60001 60002 60003 60004 60005

192.168.1.201

255.255.255.0

192.168.1.1

10000 10001 10002 10003 10004 10005

English – 47

Page 48

setting static ip

AUTOMATIC NETWORK SETTING

Run the <IP Installer.exe> program and display the camera list found on the screen. For the initial run, the [Auto Set] and [Manual Set] button are all disabled.

Select a camera you want from the camera list.

The [Auto Set] and [Manual Set] button are activated.

•

Click the [Auto Set] button.

The Auto Set window appears.

•

The automatically found <IP Address>, <Subnet Mask> and

•

<Gateway> are displayed.

Enter your password.

The password is the camera login password of the root user.

•

The default password is “4321”.

•

Click the [OK] button.

The automatic network setting is ﬁ nished.

•

The camera automatically restarts when the network setting is

complete.

For the menu location of Internet Connection Type or DHCP selection, refer



to the IP router’s documentation.

4 3

48 – 10x Network Mini Smart Dome Camera

Page 49

setting dynamic ip

DYNAMIC IP SETTING

Examples of using Dynamic IP

❖

If the camera is installed on an IP router and obtains an IP using

• DHCP.

If the camera is connected directly to a xDSL/Cable modem using

• DHCP.

If an IP is allocated by the internal DHCP server in local area

• networking.

Dynamic IP Check

❖

When you run the IP Installer on your local PC, the camera with a

dynamic IP allocated is listed. Select the camera in the list and click the [Manual Set] button to check

the camera for the current dynamic IP.

In this case, the ADDRESS ﬁ eld is automatically ﬁ lled and you can’t

•

change it. However, you can still change the port settings.

PORT FORWARDING (PORT MAPPING) SETTING

With the camera installed on an IP router, you must set the port forwarding for the IP router before an IP router external remote PC can connect to the IP router internal camera.

Manual Port Forwarding

❖

Click <Applications & Gaming> → <Port Range Forward> from

the Settings menu of the IP Router.

For the menu location and the setting of Port Forwarding, refer

•

to the IP router’s documentation.

Select the <TCP> and <UDP Port> for each camera connected

to the IP Router.

Each of the port numbers for the IP Router must be according

•

to those presented in <BASIC> → <IP> of the SETUP screen of the camera.

If the setting is complete, click the [Save Settings] button.

The changes are saved.

•

2 3

English – 49

Page 50

using the camera

CONNECTING TO THE CAMERA

Connecting to the camera

❖

General

Run an Internet browser.

• Enter the IP address for the camera in the Address input box.

• ex) IP Address: 192.168.1.200 → http://192.168.1.200

- The login window appears.

If the HTTP port number is not 80

Run an Internet browser.

• Enter the IP address and the HTTP port number for the camera in the Address input box.

• ex) IP Address: 192.168.1.200:Port Number(10000) → http://192.168.1.200:10000

- The login window appears.

Connection using URL

Run an Internet browser.

• Enter the DDNS URL for the camera in the Address input box.

• ex) URL Address: http://e30002c.websamsung.net

- The login window appears.

Connection using URL (If the HTTP port number is not 80)

Run an Internet browser.

• Enter the DDNS URL and the HTTP port number for the camera in the Address input box.

• ex) URL Address: http://e30002c.websamsung.net:Port Number(10000) →

http://e30002c.websamsung.net:10000

- The login window appears.

50 – 10x Network Mini Smart Dome Camera

Page 51

using the camera

Checking the DDNS address

❖

A DDNS address consists of <e> + <Last 6 digits of the MAC address> + <websamsung.net>.

• ex) - If the MAC address of the camera is 00: 0D : f1 : 30 : 00 : 2c → e + 30002c + websamsung.net = e30002c.

websamsung.net

The IP and MAC addresses are used in this manual for illustrative purposes only. Therefore, you must not enter Notice the



addresses presented in this manual when you setting your equipment.

Connecting to the camera using the IP Installer program

❖

Double-click a camera you want from the search result screen.

The login window appears.

• If the ActiveX installation dialog appears, follow the instructions below to

• install it.

INSTALLING ACTIVEX

If you connect the camera to the Internet and conﬁ gure the network settings, you can monitor the picture of the connected camera in real-time.

For Windows XP Service Pack 2

❖

If the following screen appears, click the Install button.

Click the <Install ActiveX Control>.

If the Security Warning window appears, click the [Install]

button.

For successful installation, disable the pop-up blocker by going to the



option below.

Internet Explorer → Tools → Pop-up blocker → Always Allow Pop-ups from This Site

English – 51

Page 52

using the camera

Logging to the camera

❖

For the ﬁ rst login, the username is “root” and password is “4321”.

Type “root” in the <User name> input box.

Type “4321” in the <Password> input box.

If you have changed the old password, type the new

•

password here.

Click the [OK] button.

When the login is complete, the camera Viewer screen

•

appears.

For the security purposes, make sure to change the password by clicking <BASIC> → <USER> in the SETUP screen.



The administrator ID, root is ﬁ xed and cannot be changed. If you check the <Remember my password>, the username and password are saved and will be entered automatically in



the login window.

21 3

You are required to install DirectX 8.1 or later on your Windows-based PC.



You can download DirectX for free at http://www.microsoft.com/download.



When using Internet Explorer 7, the viewer screen is optimized with page zoom to 100%.



Changing the size of the page zoom will only show portion of the page.

52 – 10x Network Mini Smart Dome Camera

Page 53

MAIN SCREEN

In this section, the main GUI of the Network Smart Dome will be explained.

* (

) _

{

web viewer

! Click this menu to enter the search screen. @ Click this menu to enter Setup Tool. # Click this menu to view Network Smart Dome Camera Information. $ Live video Display. % Display the live screen in full screen. ^ Set the video format. & Capture : Captures the recorded image on the screen and saves it as a .jpg or .bmp ﬁ le.

Print : Prints the recorded image on the screen. Record : Saves the recorded video as a .avi video ﬁ le.

* Move the image in eight directions including up/down/left/right.

Press a direction button to move the image; release it to hold the position.

( Press this button to zoom in/out; release it to stop zooming.

Focus -/+ : While pressing this button, the image stays focused; release it to stop focusing. This feature is available only in manual focus mode. Iris -/+ : Press this button to open or close the iris; release it to hold the position.

) Decide Pan/Tilt speed. _ Start OSD menu of Smart Dome Camera. In the OSD Menu, Enter/Cancel buttons are used as enter and cancel

respectively. To move between different menu items, the Tile buttons in * is used.

To refer detail explanation of Camera OSD menu, see “How to use OSD Menu” (Page 27).



English – 53

Page 54

web viewer

+ Preset / Pattern / Auto Pan / Scan Buttons

Preset: Run, Save or Delete the Preset positions memorized in the camera. Pattern: Run the Pattern function programmed in the camera. (To create this function, use OSD Menu.) Auto Pan: Run the Auto Pan function stored in the camera. (To create this function, use OSD Menu.) Scan: Run the Scan function programmed in the camera. (To create this function, use OSD Menu.)

| Reset currently activated alarm events (alarm input/output, motion detection).

(The Alarm Reset forces all Alarm Output to be OFF state and the Motion Reset will remove the icon displayed when motion is detected.)

{ Check the Listen or Speak check box for Audio.

POWER PTZ

You can use the cursor to manipulate PTZ of the camera in the Web Viewer.

- Click the Live Screen to position the cursor area in the center of the screen.

- Click and drag the Live Screen to the lower right corner to zoom in the image.

- Click and drag the Live Screen to the upper left corner to zoom out the image.

USING THE CAMERA

To Capture a Video

❖

At a desired scene, click the [CAPTURE] button.

The capture conﬁ rmation window appears.

•

Click [OK].

The captured screen image is saved in the speciﬁ ed folder path.

•

Default save paths are provided for each version of Windows.



Windows XP: C:\Program Files\Samsung\SNC-C6225\SnapShot\Live To change the saving path, click [SAVE PATH] button( ) and then select the path you want. Windows Vista: C:\users\[user ID]\AppData\LocalLow\Samsung\SNC-C6225\SnapShot\Live The save path cannot be changed if you are using Windows Vista.

The ﬁ le is automatically named as follows: <IP address_Port number_YYMMDD_camera number_index>



ex) 192.168.0.200_60001_20000130_165546_00

❖

To Print a Video

At a desired scene, click the [PRINT] button.

The print setup window appears.

•

Click [OK].

The captured screen image is printed.

•

54 – 10x Network Mini Smart Dome Camera

Page 55

❖

To Record a Video

At desired scene, click the [RECORD] button.

Set up the AVI save.

•

2-1 Destination Folder: Allows you to change the ﬁ le save path.

•

2-2 File Name: Allows you to change the name of the ﬁ le.

•

2-3 Insufﬁ cient Disk Space Setting: Recording automatically stops if the amount of space available on the hard disk falls below the amount designated under this setting.

Click [OK].

•

On the viewer screen, <REC> indicator appears and the recording is started.

•

The captured screen image is saved in the speciﬁ ed saving path.

To stop a recording, click the [RECORD] button once again.

When plays stored avi ﬁ les, use player where supports avi playing.

Default save paths are provided for each version of Windows.



Windows XP: C:\Program Files\Samsung\SNC-C6225\VidedClip\Live To change the saving path, click [SAVE PATH] button ( ) and then select the path you want. Windows Vista: C:\users\[user ID]\AppData\LocalLow\Samsung\SNC-C6225\SnapShot\Live The save path cannot be changed if you are using Windows Vista.

The ﬁ le is automatically named as follows: <IP address_Port number_YYMMDD_camera number_index>



ex) 192.168.0.200_60001_20000130_165656_00 For AVI Save, you need the DivX codec for playing saved ﬁ les. You can download the free version of the Divx codec at http://



sourceforge.net/projects/ffdshow/.

web viewer

2-1

2-2

2-3

REC

English – 55

Page 56

web viewer

USING THE SD SEARCH VIEWER SCREEN

If you connect to the camera, the following SD Search Viewer screen appears.

SD Search Viewer Screen Layout

❖

Name Function and Description

Date

Thumbnail Size

Refresh

SCHEDULE

ALARM INPUT

MOTION

You can select the desired date to search for events generated.

The thumbnail images are displayed based on the selected size.

If a new event occurred and the event image is saved, pressing [Refresh] will add the event to the list.

You can select the desired time to search the schedule events.

You can select the desired time to search the alarm events.

You can select the desired time to search the motion detection events.

56 – 10x Network Mini Smart Dome Camera

Page 57

setup tool

SETTING THE CAMERA

You can set various functions such as Basic Setting, System, Event, Network, etc.

To setup the camera

❖

In the viewer screen, click the [SETUP] tab.

The setup window appears.

SETUP Screen Layout❖

SETUP

BASIC

SYSTEM

EVENT

NETWORK

VIDEO & AUDIO IP USER LANGUAGE DIS

DATE/TIME LOG SOFTWARE UPDATE RESET HTTPS

TRANSFER SETUP RECORD SETUP ALARM IMAGE ALARM INPUT1 ALARM INPUT2 MOTION SCHEDULE

STREAMING SETUP DDNS SNMP

English – 57

Page 58

setup tool

This section is provided to familiarize the user with the setup tools. Intuitive options are not explained in detail.

All the changes on Setup Tools take effect immediately. These settings will be global, affecting the view of all users currently logged on.

All settings are always saved in the Network Smart Dome Camera even when you close the viewer program or you turn off the Power of the Network Smart Dome Camera.

VIDEO & AUDIO CONFIGURATION

Compression

❖

Set the compression ratio of an image in MPEG4

• format. Adjust it from 5 to 100, where closing to 100 will increase the compression ratio.

GOP Size

❖

You can select a GOP size between 1 and 15.

• The default is 15, and if set to 15, one I-Frame will be output per 15 frames as one I-Frame and 14 P-Frames constitute the GOP. The lower the GOP size is, the better the quality is; however, the bitrate as well as the data size will increase, causing a lower of the fps.

De-Interlace

❖

You will view a sharper image when controlling the

• PTZ operation of a camera.

❖

Input Gain

Select the audio ampliﬁ cation level between 0 and

•

10. (* You will not be able to hear the audio data if the audio input gain is at zero.)

Output Gain

❖

Adjust the audio output ampliﬁ cation strength from

• 0 and 10.

Image Control

❖

You can adjust the brightness and contrast from 1

• to 100.

Resolution

❖

Select a video size from D1, VGA and CIF.

• NTSC : D1(720x480), VGA(640x480), CIF(352x240) PAL : D1(720x576), VGA(640x480), CIF(352x288)

Image Quality

❖

Select a video quality level between 1 and 10.

•

Frame Rate

❖

Select a frame rate.

• NTSC : 30fps, 15fps, 8fps, 3fps, 1fps PAL : 25fps, 13fps, 6fps, 3fps, 1fps

Target Bitrate

❖

Adjust it from 1 to 10 according to the network

• environment. If you select 10, the video quality is much improved, but the network connection may be lost depending on the network environment, as your setting will increase network trafﬁ c.

What is GOP?



GOP(Group of Pictures) is a collection of video frames between the initial I-Frame (key frame) and the next I-Frame for MPEG4 video compression. GOP contains three types of frames: I-Frame, P-Frame, B-Frame. (SNC-C6225, C7225 uses only I-Frame and P-Frame.) I-Frame is the default frame for video compression, also known as key frame, which contains one complete frame of an image. P-Frame is a frame that contains data of only changes (removed portion) to the I-Frame.

58 – 10x Network Mini Smart Dome Camera

Page 59

setup tool

HTTP Webserver Port

❖

Show the HTTP port used to connect to the

• camera using the web browser. The default port number is 80(TCP).

Device Port (TCP)

❖

A port used to control video transmission. The

• default value is 60001(TCP).

TCP Streaming Port

❖

A port used to transfer video using the TCP

• protocols. The default value is 60002(TCP).

❖

UDP Streaming Port

A port used to transfer video using the UDP

• protocols. The default value is 60003(UDP).

Upload Port(TCP)

❖

A port used to upgrade software. Default value is

• 60004(TCP).

IPv6 Enable

❖

IPv4 and IPv6 may be enabled simultaneously.

• When IPv6 is enabled, your camera will receive an IP address according to the conﬁ guration in the network router.

IP Type

❖

Select the IP setting type from <Static IP>,

• <Dynamic IP> or <PPPoE IP>.

MAC Address

❖

Shows the Ethernet MAC Address. Since this value

• is used to create a DDNS address, conﬁ rm the value.

IP Address

❖

Shows the currently conﬁ gured IP address. If the

• <IP Type> is set to <Static IP>, you can change the IP address.

Subnet Mask

❖

Show the <Subnet Mask> address for the

• conﬁ gured IP address.

Gateway

❖

Show the <Gateway> address for the conﬁ gured

• IP address.

DNS Server

❖

Shows the IP address of the DNS (Domain Name

• Service) server.

Multicast Address

❖

Shows IP address set for video transmission using

• UDP Multicast. The default value is 225.128.1.128. It is recommended to set it to between 224.0.0.0 and 239.255.255.255.

Multicast Port

❖

Shows UDP port set for video transmission using

• UDP Multicast. The default value is 60005(UDP).

TTL

❖

•

TTL stands for “Time To Live” that allows you to set the number of routers so that the packet can pass through. Each router decreases the TTL value one by one when a packet passes it through. If the TTL value reaches 0, the packet cannot pass through a router. The default value is 63. It is recommended to set it to between 0 and 255.

RTSP Port

❖

Set up the RTSP port number to use. The default

• value is 554.

English – 59

Page 60

setup tool

RTP Port Range

❖

Set up the range of port number to use for RTP

• Protocol. The Start number of RTP Port has to be even number and the last number must be greater than the start number +4. I.e. the difference should be at least 4.

RTP Multicast Address

❖

Set up IP Address for RTP/UDP Multicast.

•

RTP Multicast Port

❖

Set up Port number used in RTP/UDP Multicast.

• It is noted that RTP Multicast Port must be a even number.

RTP Multicast TTL

❖

Set up TTL for RTP/UDP Multicast. TTL is a

• number between 0 ~ 255.

About User Level

Administrator The Administrator can use all functions and

change the PTZ control, setup or search.

Operator The Operator can use all function except

setup and search functions.

User The User can monitor video only.

LANGUAGE

USER

❖

You can determine whether to require login

• authentication for users. If it is set to <Enable>, the users can connect to the system through login authentication, while it is set to <Disable>, the users can connect to the system without login authentication. However, users connected to the system without login have USER permission. When the setting is complete, click the [Apply] button.

User Login ID/Password List

❖

Shows user ID, password and level (permissions)

• in a list. You can register up to 10 users. The default administrator ID is “root”. <Administrator> cannot be deleted or added and you can change the password only.

You can select once from 7 languages (English/Korean/ Chinese/French/Italian/Spanish/German).

DIGITAL IMAGE STABILIZER

DIS Function

❖

DIS (Digital Image Stabilizer) is a function to

• compensate the shaken image. Owing to DIS function, clear image can be obtained regardless of vibration or shaking from the environment. Especially, this function can be powerful when camera is mounted on long pole, in the bridge, beside freeways, or in the windy region.

DIS Function is not effective to analog video form BNC



Video Out but only effective in the digital video though IP networks. (i.e. Web viewer or NVR)

DIS Setup

❖

Select one from Weak, Medium, and Strong. If you

• select Strong, you can obtain a sharper, but higher vibrating or shaky image comparing to Weak, and Medium.

For the ID and password, up to 9 alphanumeric and some



special characters are allowed. You cannot register a duplicated user ID.



You cannot register root or guest user ID.



60 – 10x Network Mini Smart Dome Camera

Page 61

DATE/TIME

Current System Time

❖

Shows the time according to the setting of System

• Time Setup.

setup tool

System Log List

❖

Shows the log information about the system

• changes along with time and IP address.

User Log In : Shows current camera login user.

–

Video Conﬁ guration Change : Show video setting

–

changes. System Time Change : Shows time changes.

–

System Start : Shows time when the camera is

–

turned on.

Up to 2000 logs can be recorde.



If the log number is over 2000, a log in the bottom of



log list will be deleted and added new log information.

System Time Setup

❖

You can set the time synchronized with NTP server

• (Time Server) or PC, or manually setup. (Ú The date can be conﬁ gured between 1 January 2000 and 31 December 2037)

NTP Server IPs are provided by a public agency

–

and their list is therefore subject to change. In a local network, a separate NTP server must

–

be manually deﬁ ned.

–

The current time can vary depending on the computers regional (GMT and DST) and country (PC time conﬁ guration) settings.

LOG

SOFTWARE UPDATE

Current Version

❖

Shows the current ﬁ rmware version.

•

How to upgrade

❖

Click [Browse…] button and select the latest

• version of the ﬁ rmware. Its ﬁ le name should be ex) SNC-C6225-WEB_v1.XX_XXXXXX.tgz

Click [Install] button. The ﬁ le is uncompressed and

• the software update begins. Software update may take tens of minutes. To cancel an update, click the [CANCEL] button.

When the software update is done, the system will

• automatically restart. Since the current connection is disconnected, you have to connect to the system again.

Since, if the network is disconnected, the power fails or



the PC abnormally operates during a software update, the system may not work afterwards. Care must be taken not to cause a problem during an update.

English – 61

Page 62

setup tool

RESET

Restart

❖

Re-boots Network Smart Dome Camera.

•

Factory Default

❖

Reset system conﬁ gurations to the factory defaults

• with following two options. Except Network Parameter: Reset except values on Network Parameters. (IP Address, Gateway, Subnet Mask, DNS Server and Ports) All: Reset all system conﬁ gurations

After reset and restart, you have to connect to the system



again. It takes a few minutes until the system booting is



completed. You cannot connect to the system until the system booting is complete.

After running <Factory Default> ➝ <All>, you have to



run <IP Installer.exe> program and setup network settings such as IP address, Subnet mask, Gateway, etc., to connect to the Internet.

HTTPS

❖

Install a public certiﬁ cate

To install the certiﬁ cate to camera, you need type

• Certiﬁ cate Name (it can be arbitrarily assigned by user), Certiﬁ cate ﬁ le issued from authority and a key ﬁ le. After completion, press [Install] button. If certiﬁ cate is installed successfully, the summarized status of Installed Certiﬁ cate will be displayed. Also, the option button written as <HTTPS(Secure connection mode using the public certiﬁ cate)> in the above becomes activated to be selected.

To connect the camera using HTTPS mode, you have to



type IP address of camera as “https://<Camera_IP>”.

TRANSFER SETUP

You can set an FTP/E-mail(SMTP) server to send the prior/posterior alarm image saved in the camera when an alarm is generated.

FTP Transfer

You can transfer an alarm image to an FTP server. When the initial FTP server setting and connection are not veriﬁ ed, the <Not veriﬁ ed> messenger appears.

Secure Connection System

❖

Connection policy can be selected from

• <HTTP (Do not use secure connection)>, <HTTPS(Secure connection mode using a

unique certiﬁ cate)>, <HTTPS(Secure connection mode using the public certiﬁ cate)>.

To use HTTPS with Certiﬁ cate from Authority for connection policy, you need to install a signed certiﬁ cate issued from certiﬁ cate authority in advance.

62 – 10x Network Mini Smart Dome Camera

Use Passive Mode

❖

Select this option when the passive mode

• connection is necessary due to ﬁ rewall or FTP server setting.

FTP Server Address

❖

•

Enter the IP address of an FTP server to which an alarm image will be sent.

Upload Path

❖

You can set the path of the FTP account to transfer

• an alarm image. You can set a path by just typing </directory name> or <directory name> in this ﬁ eld. If you do not specify a path, alarm ﬁ les are sent to the root directory of the FTP account.

Port

❖

Although FTP server port is 21 as a default, you

• can change the port number according to the FTP server settings.

Page 63

User ID

❖

Enter a user account ID to connect to login the FTP

• server.

Password

❖

Enter a user account password to login the FTP

• server.

Test

❖

To test FTP transmission, Click [Test] button.

• Connect to the conﬁ gured FTP server and conduct image transmission test automatically. When the FTP server connection and transmission tests are complete, the <Veriﬁ ed> message will be displayed. If the test fails, an error message appears. In this case, check the FTP server status and the conﬁ gured settings once again.

E-mail(SMTP) Transfer

setup tool

User ID

❖

Enter a user account ID to connect to connect the

• SMTP server.

Password

❖

Enter a user account password to the SMTP

• server.

E-Mail Sender

❖

Enter the address of the Email sender. If the sender

• address is incorrect, the Email from the sender may be classiﬁ ed into SPAM mail by the SMTP server and may not be sent.

E-Mail Receiver

❖

Enter the address of the Email recipient.

•

Title

❖

Enter the title of the Email.

•

Message

❖

Enter the contents of the Email. An alarm image is

• attached to the Email as an attached ﬁ le.

Test

❖

To test SMTP transmission, Click [Test] button.

• Connect to the conﬁ gured SMTP server and conduct image transmission test automatically. When the SMTP server connection and transmission tests are complete, the <Veriﬁ ed> message will be displayed. If the test fails, an error message appears. In this case, check the SMTP server status and the conﬁ gured settings once again.

You can transfer an alarm image through Email. This function supports SMTP Email server only. When the initial SMTP server setting and connection are not veriﬁ ed, the <Not veriﬁ ed> message appears.

Use SSL/TLS

❖

Choose whether SSL/TLS secure e-mail will be

• used. To use this, corresponding SMTP Server must support SSL/TLS.

SMTP Server Address

❖

Enter the IP address of an SMTP server to be used

• to send an Email. ex) smtp.hotmail.com

Port

❖

Although SMTP server port is 25 as a default, you

• can change the port number according to the SMTP server settings. (Default port number for SSL/TLS is 465.)

RECORD SETUP

SD Card

❖

Enables you to verify data saved on the Micro

• SDHC memory card and format the memory card itself. It is possible to set to automatically delete movie clips recorded before a certain period of time (e.g. 1 week, 1 month, or 1 year).

English – 63

Page 64

setup tool

Options

❖

Determine whether or not you wish to receive Email

• notiﬁ cation of insufﬁ cient capacity warnings.

ALARM IMAGE SETUP

Transfer Mode

❖

You can select a method to send an alarm image



from the <FTP Transfer>, <E-Mail Transfer> and <SD Card Record>. <FTP Transfer>: The image is sent to the speciﬁ ed FTP address. <E-Mail Transfer>: The image is sent to the speciﬁ ed Email address. < SD Card Record>

Insert an Micro SDHC memory card.

►

Conﬁ gure the Micro SDHC memory card (refer to

►

page 19 for details).

Check the SD Card Recording option and then

►

click on the [Apply] button. The SD indicator will then turn on and recording will commence.

To remove the Micro SDHC memory card, ﬁ rst

►

uncheck the SD Card Recording option and then click on the [Apply] button.

Removing the Micro SDHC memory card while



recording is in progress can damage the data.

Transferred Image Naming Setup

❖

You can set the ﬁ le name of an alarm image to

• be sent when an alarm is generated or during the scheduled transfer.

Pre/Post Alarm Image

❖

You can determine which of previous or posterior

• image is to be sent. <Number of Image>: Determines number of images to be sent per second. You can select 1, 2, 3 and 5 images per second. <Pre-Alarm Duration>: Determines time of prior images to be sent. You can select one from <5 sec>, <10 sec>, <15 sec> and <30 sec>. You can send

a prior image of up to 30 seconds after an alarm is generated. (The maximum time is determined by the number of images to be sent per second.) <Post-Alarm Duration>: posterior images to be sent. You can select one from <5 sec>, <10 sec>, <15 sec> and <30 sec>. You can send a posterior image of up to 30 seconds after an alarm is generated. (The maximum time is determined by the number of images to be sent per second.)

Determines time of

ALARM INPUT SETUP

Various functions of 8 Alarm Inputs can be set up independently.

Input Device Setup

❖

Select an input type from the <Off>, <NO> and

• <NC>. <NO>(Normal Open): It is normally open, but if it is close, an alarm will be generated. <NC>(Normal Close): It is normally close, but if it is open, an alarm will be generated.

Activation Time

❖

You can set time to accept an alarm to take an

• action. <Always>: Always conducts the <Action> setting when an alarm is generated. <Only Scheduled Time>: Conducts the <Action> setting for an alarm only when it occurs during the speciﬁ ed time period on the speciﬁ ed day of the week. The Start Time must prior to and must differ from the End Time.

Action

❖

You can set an operation to be conducted when an

• alarm is generated. <Alarm Output>: Determines alarm output port to which the alarm signal is to be sent. <Output Duration>: Determines the period of time to output alarm signal to the speciﬁ ed alarm output port when an alarm is generated. If another alarm

64 – 10x Network Mini Smart Dome Camera

Page 65

setup tool

event is generated during the alarm output, the delay time is recalculated on the basis of the most recently generated an alarm. <Alarm Image Transfer>: If <On> is selected, a JPG image is transmitted through FTP or Email(SMTP) or saved on the Micro SDHC memory card according to the <EVENT> ➝ <TRANSFER SETUP> settings. <Camera Action>: Counteraction of camera when Alarm Input event occurs can be selected from <None>, <Preset 1 ~ 128>, <Pattern 1 ~ 4>, <AutoPan 1 ~ 8>, <Scan 1 ~ 8>, <Home Position>.

MOTION

Activation Time

❖

You can set time to accept a motion detection to

• take an action. <Always>: Always conducts the <Action> setting when a motion is detected. <Only Scheduled Time>: Conducts the <Action> setting for a motion detection only when it occurs during the speciﬁ ed time period on the speciﬁ ed day of the week. The Start Time must prior to and must differ from the End Time.

Action

❖

You can set an operation to be conducted when a

• motion is detected. <Alarm Output>: Determines a motion detection output port to which the alarm signal is to be sent. <Output Duration>: Determines the period of time to output the alarm signal to the speciﬁ ed alarm output port when a motion is detected. If another detection event is generated during the alarm output, the delay time is recalculated on the basis of the most recently generated motion detection. <Alarm Image Transfer>: If <On> is selected, a JPG image is transmitted through FTP or Email (SMTP) according to the <EVENT> ➝ <Transfer

Setup> settings.

M.D. Function

❖

Enable/Disable

•

Even though Motion Detection is set to be enabled,



this function is not working during PTZ, focus or Iris operations.

For reliable performance, it takes about 1 or 2



seconds for Motion Detection to return to work after PTZ, Focus, Iris operation.

Even if camera is subjected to external shocks or



winds, those can be considered as motion detection.

M.D. Conﬁ guration

❖

Set the motion detection area and the sensitivity.

•

Motion Sensitivity

❖

Select a motion detection function sensitivity from

• <High>, <Medium> and <Low>. The <High> option provides high sensitivity of motion detection and generates motion detection event if a small motion is detected.

Motion Area

❖

You can set an area to detect motion.

•

English – 65

Page 66

setup tool

To set a motion detection target area

You can set a speciﬁ c area to detect a motion in.

1) In the MOTION window, click the [Motion Area] button.

- The Motion Area window appears.

- You can set a speciﬁ c area to detect a motion in.

2) Click over square boxes corresponding to your desired motion detection target area.

- The selected area is colored in yellow.

3) To cancel a selection, click over the square box once again.

- The square box returns to its original color.

4) Click the [Apply] button of Motion Area window.

5) To complete the setting, click the [Apply] button of Motion Setup.

- If you don't click the [Apply] button of Motion

Setup, Motion Area isn't saved.

- The motions in the selected area will be detected.

Transfer Interval

❖

You can set the time interval to transmit images.

• You can select a unit of time from <Seconds> or <Minutes>. You can set the time interval so that an image is transmitted every 5/15/30/45/60 seconds or minutes.

Activation Time

❖

You can set the time to execute the scheduled

• transmission function. <Always>: Always transmits images according to the speciﬁ ed interval. <Only Scheduled Time>: Transmits images according to the speciﬁ ed interval during the speciﬁ ed time period on the speciﬁ ed day of the week.

The Start Time must be prior to and must differ from



the End Time.

STREAMING SETUP

You can control the data transfer rate according to the camera video streaming type and network bandwidth.

SCHEDULE

You can have a JPEG image sent through FTP and Email periodically.

Schedule Transfer Function

❖

<Enable> activates the scheduled transmission

• function, while <Disable> disables the function.

66 – 10x Network Mini Smart Dome Camera

Streaming Protocol

❖

You can select a protocol for video transmission

• from the <TCP>, <UDP(Unicast)> and <UDP(Multicast)>. <TCP>: It is a general purpose protocol used for a transmission that requires reliability. Since it provides a connection based communication between the sender and recipient, it provides high reliability against transmission data loss. However, it is inappropriate to transmit a large amount of data in real-time because of its transmission overhead. It enables reliable data transmission over xDSL and cable network at a relatively slow speed. <UDP(Unicast)>: It refers to transmitting data to only one receiver (1:1). <UDP(Multicast)>: It refers to the data transfer protocol in one-to-many (1:N) between the transmitting and receiving terminals. Although it alleviates the network load, it requires <Multicast> router. For more information such as whether the network over which the camera is installed supports <Multicast>, ask your network administrator.

Page 67

setup tool

UDP: It is a protocol appropriate to transmit a large amount of data such as multimedia data in short time. However, it provides higher transmission efﬁ ciency than TCP especially over high speed connections faster than 100Mbps.

With multicast activated, it is not possible to perform



video recording search. Audio cannot be transmitted to the camera through



the microphone. Multicast backbone (MBone) is not supported, and



the camera can only be used in a LANbased multicast environment.

Streaming Control

You need to set the bandwidth to an appropriate value according to the data rate of your network for smooth video streaming.

You can set the <Bandwidth> by selecting one

• from <Unlimited / 5Mbps / 3Mbps / 1Mbps / 600Kbps / 300Kbps / 150Kbps>.

If your network provides data rate equal to or

• higher than 100Mbps, it is recommended to set the <Bandwidth> to <Unlimited> or <5Mbps>. If you are using a broadband Internet connection, set the <Bandwidth> to <3Mbps> or <1Mbps>.

If you are using low speed xDSL network, set the

• <Bandwidth> to <600Kbps> or lower for smooth video streaming.

The maximum number of images per second in

• the video setting menu is automatically determined depending on the selected <Bandwidth> value.

RTP Streaming Protocol

❖

You can select a protocol for RTP streaming from

• the <UDP(Unicast)>, <UDP(Multicast)>.

DDNS

DDNS is an abbreviation of Dynamic Domain Name Service that converts the IP address of a camera into a general Host Name so that the user can easily remember it and enables connecting a camera with a ﬁ xed Host Name even if the IP address of the camera may be dynamically changed.

DDNS SETUP

❖

Select your DDNS Update function from Disable/

• Samsung DDNS/Public DDNS.

Samsung DDNS

❖

For Samsung DDNS service, Host Name is

• assigned using last 3 bytes of MAC Address. For example, your host name will be “e + fffe42 + .websamsung.net = efffe42.websamsung.net” when your MAC address of camera is 00:0D:F1: FF:FE:42. Type Host Name (efffe42.websamsung.net) in the address widow of Internet Explorer to connect.

Public DDNS

❖

For Public DDNS, you can select one from dyndns.

• com or no-ip.com. To use public DDNS service, sign up a DDNS site that is supported by a camera and use it with the user ID and password you have speciﬁ ed when you sign up the site.

Host Name

❖

Type the host name registered in DDNS service (i.e.

• Host name in Dyndns).

❖

User Name

Type user name used for DDNS service (i.e. User

• Name(ID) registered in Dyndns).

Password

❖

Type the password used for DDNS service (i.e.

• Password registered in Dyndns).

English – 67

Page 68

setup tool

SNMP

The system information of the cam can be monitored and changed by SNMP. SNMPv1 or SNMPv2 are utilized to monitor of the system information and SNMPv3 enables to change the system information.

SNMP User Setup

❖

The version3 can set up the account information for

• SNMPv3 owing to authentiﬁ cating the account and the password.

<User Name>: Possible to input under 20 English

letters of numbers to authenticate the user.

<Authentication Password (MD5)>: Possible to

input at least 8~20 to authentiﬁ cate the user.

<Privacy Password (DES)>: Possible to input at

least 8~20 to encode.

68 – 10x Network Mini Smart Dome Camera

Page 69

TROUBLESHOOTING

PROBLEM SOLUTION

appendix

I can’t access the camera from a web browser.

Viewer got disconnected during monitoring.

I cannot connect to the system using a tab browser of Internet Explorer

7.0.

The camera connected to the network is not detected in the IP installer program.

Images overlap.

• Check to make sure that the camera’s Network settings are appropriate.

• Check to make sure that all network cables have been connected properly.

• If connected using DHCP, verify that the camera is able to acquire dynamic IP addresses without any problem.

• If connected using a DDNS URL, verify that the MAC address has been properly entered.

• If the camera is connected to an xDSL network, ensure that Bandwidth is set to less than 600Kbps. Because xDSL offers slow connection speed, setting Bandwidth high results in network load and hinder network connection.

• If the camera is connected to a router, verify that port forwarding is properly conﬁ gured.

• Connected Viewers become disconnected upon any change to camera or network conﬁ gurations.

• Check all network connections.

• If the camera is connected over an xDSL network, it’s possible for Viewer to disconnect under poor network conditions.

• When you try to connect to the system using a tab browser, the same cookie information is shared, resulting in errors when connected. Therefore, instead of using a tab browser, open a new browser window to connect to the system.

• Turn off the ﬁ rewall settings on your PC and then search the camera again.

• Check whether two or more cameras are set to a single multicast address instead of different addresses. If a single address is used for multiple cameras, the images may overlap.

No image appears.

I enabled Motion Detection Feature under Motion Detection, but .jpg ﬁ les are not getting sent over FTP/SMTP even after motion detection occurs at the camera.

Is it possible to conﬁ gure Motion Zone with Motion Detection Feature disabled?

A motion event took place but didn’t trigger an alarm.

• If the transmission method is set to multicast, check whether there is a router that supports multicast in the LAN the camera is connected to.

• Verify the settings in the following sequence: A. NTP must be properly conﬁ gured. B. Motion Detection Feature must be enabled. C. Alarm Video Transmission must be enabled. D. Check for scheduling conﬂ ict.

• Yes. Motion Zone can be conﬁ gured independently of whether or not Motion Detection Feature is in use.

• Check alarm output port settings.

English – 69

Page 70

appendix

PROBLEM SOLUTION

Data is not getting recorded on the Micro SDHC memory card.

SD Indicator will not turn on after inserting an Micro SDHC memory card.

I inserted an Micro SDHC memory card, but the camera isn’t working properly.

• Make sure that the memory card is not defective.

• Go to Conﬁ gurations → Events → Alarm Image Settings and verify that SD Card Recording option is checked.

• Make sure that the memory card has been inserted correctly in the right direction. With memory cards that have been formatted from a different device, their performance cannot be guaranteed when used in the camera. Go to Conﬁ gurations → Events → Recording Settings and format the memory card again.

70 – 10x Network Mini Smart Dome Camera

Page 71

SPECIFICATIONS

SNC-C6225N/P

❖

appendix

Item

CCD 1/4" Interline Transfer CCD Max. Pixels 811(H) x 508(V) 410K Effective Pixels 768(H) x 494(V) 380K Horizontal Resolution Color : 520 / BW : 570 TV Line S/N Ratio 50 dB (AGC Off) Zoom x10 Optical Zoom, x10 Digital Zoom Focal length F1.8, f=3.8~38mm

Camera

Pan/Tilt

General

✽ Speciﬁ cations of this product can be subjected to change without notice.

Min. illumination

Day & Night Auto 1 / Auto 2 / Day / Night(ICR) Focus Auto / Manual / ONEAF Iris Auto / Manual Shutter Speed x128 ~ 1/120000 sec, Flikerless AGC Normal / High / Off White Balance Auto / Manual(Red, Blue Gain Adjustable) BLC, DNR Low / Middle / High / Off

Range

Pan/Tilt Speed

Preset 127 Preset (Label, Camera Image Setting) Pattern 4 Pattern, 1200 Commands(About 5 Minute)/Pattern Auto Pan 8 Auto Pan Scan 8 Scan (20 action entities per Scan) Other Functions D-Flip, Auto Parking, Power Up Action etc. Communication RS-485 Protocol Auto, Samsung selectable Privacy Zone 4 Zone Alarm Input 2 Input Alarm Output 1 Relay Output

OSD

Rated Power** DC 12V Power Consumption DC 12V (15W)

Dimension

Weight about 1.85 kgf Operating Temp. -10°C ~50°C

Support 7 Languages: [ENGLISH /ESPAÑOL /FRANÇAIS /DEUTSCH /ITALIANO /РУССКИЙ /PORTUGUÊS]

NTSC

illumination Sens-up Color B/W 50 IRE No 0.60 Lux 0.06 Lux 30 IRE No 0.36 Lux 0.036 Lux 15 IRE No 0.18 Lux 0.018 Lux 50 IRE 128 times 0.0047 Lux 0.00047 Lux 30 IRE 128 times 0.0028 Lux 0.00028 Lux 15 IRE 128 times 0.0014 Lux 0.00014 Lux

Tilt : 0~180° (Auto Flip Mode) , 90°(Normal)

Manual : 0.05 ~ 360°/sec (Proportional to Zoom)

Dome ø115

Housing ø165 × 162(H) mm

Details

PAL

795(H) x 596(V) 470K 752(H) x 582(V) 440K

Pan : 0~360°(Endless)

Preset : 360°/sec

Auto Pan : 1 ~ 180°/sec

Menu / PTZ Information etc

English – 71

Page 72

appendix

SPECIFICATIONS

SNC-C7225N/P

❖

Item

Camera

Pan/Tilt

General

✽ Speciﬁ cations of this product can be subjected to change without notice.

Min. illumination

Range

Pan/Tilt Speed

OSD

Rated Power** DC 12V Power Consumption DC 12V: Heater Off(15W)/On(25W)

Dimension

Weight about 2.4 kgf Operating Temp. -40°C ~50°C (Fan&Heater Built-in type)

Support 7 Languages: [ENGLISH /ESPAÑOL /FRANÇAIS /DEUTSCH /ITALIANO /РУССКИЙ /PORTUGUÊS]

NTSC

Tilt : 0~180° (Auto Flip Mode) , 90°(Normal)

Manual : 0.05 ~ 360°/sec (Proportional to Zoom)

Dome ø115

Housing ø200 × 206(H) mm

Details

PAL

795(H) x 596(V) 470K 752(H) x 582(V) 440K

Pan : 0~360°(Endless)

Preset : 360°/sec

Auto Pan : 1 ~ 180°/sec

Menu / PTZ Information etc

72 – 10x Network Mini Smart Dome Camera

Page 73

SPECIFICATIONS

appendix

Item

OS Embedded Linux

Flash memory 32M byte

Network Board

Video

Audio

DIS Digital Image Stabilizer Yes (Network Only)

Motion Detection Sensitivity High, Medium, Low

Protocol

Connection

Event

Client Viewer

Language Web Viewer UI Language English/한국어/中國語/Français/Italiano/Español/Deutsch

Upgrade S/W upgrade Using Web viewer

SDK

Hardware

Compression MPEG4 / MJPEG Dual Codec

Resolution

Frame Rate 30, 15, 8, 3, 1fps 25, 13, 6, 3, 1fps

Quality 1 ~ 10 level

Compression G.711

Bi-Directional Communication Yes

Network Protocol

Streaming Unicast, Multicast

Security HTTPS(SSL), Digest Authentication (ID/PW)

DDNS Supporting Samsung DDNS and Public DDNS servers

Maximum User Access

User Access

Level

Alarm Input

Motion Detection

Schedule JPEG Image transfer : FTP, E-mail, Micro SDHC Card Record

Web browser viewer (Default) Internet Explorer 6.0 or Higher

Video Player Quicktime, VLC player (RTP/RTSP)

HTTP API CGI Command

RTP/RTSP API RTP Header, RTSP Command Document

ActiveX SDK ActiveX API for viewing data streams from network camera.

RAM 256M byte

DSP TI Davinci

Ethernet RJ-45 (10/100BASE-T)

D1 720x480 720x576

VGA 640x480 640x480

CIF 352x240 352x288

IP IPv4 / IPv6

IPv4

IPv6 TCP/IP, HTTP, HTTPS, SSL, DHCP

Administrator Live Monitoring, PTZ control, SETUP

Operator Live Monitoring, PTZ control

User Live Monitoring

OS Windows XP, VISTA

Provides functionality to control cameras and set/retrieve internal parameter values.

NTSC PAL

TCP/IP, UDP/IP, RTP/RTSP, NTP, HTTP, HTTPS, SSL,

DHCP, PPPoE, FTP, SMTP, ICMP, IGMP,

SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS

Max 20 Users at Multicast Mode

JPEG Image transfer : FTP, E-mail, Micro SDHC Card Record

Notiﬁ cation : notify to viewer Alarm Out

JPEG Image transfer : FTP, E-mail, Micro SDHC Card Record

Notiﬁ cation : notify to viewer Alarm Out

Get JPEG image or MJPEG stream Alarm In/Out control, PTZ control

Details

Max 10 Users at Unicast Mode

English – 73

Page 74

appendix

DIMENSION

SNC-C6225❖

Unit (mm)

3/4" PIPE THREAD

74 – 10x Network Mini Smart Dome Camera

Page 75

DIMENSION

SNC-C7225❖

•

Wall Mount Bracket

appendix

Ceiling Mount Bracket

•

Unit (mm)

English – 75

Page 76

Correct Disposal of This Product

(Applicable in the European Union and other European countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable)

should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government ofﬁ ce, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

(Waste Electrical & Electronic Equipment)

Rev. 01

Samsung SNC-C6225, SNC-C7225 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
