4. Exploded View and Parts List

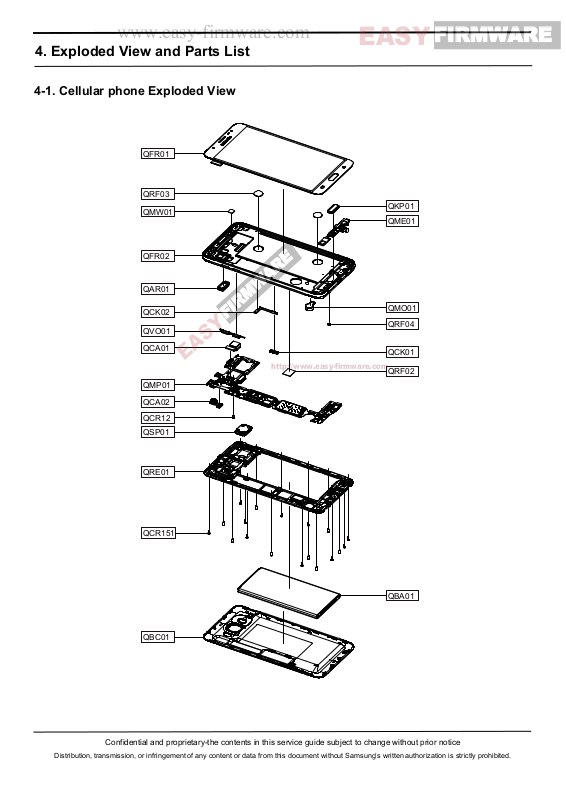

4-1. Cellular phone Exploded View

QFR01

QRF03

QMW01

QFR02

QAR01

QCK02

QVO01

QCA01

QMP01

QCA02

QCR12

QSP01

QKP01

QME01

QMO01

QRF04

QCK01

QRF02

QRE01

QCR151

QBC01

Confidential and proprietary-the contents in this service guide subject to change without prior notice

Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

QBA01

http://www.easy-firmware.com

EASY

F

IRMWARE

EASY

F

IRMWARE

www.easy-firmware.com

www.easy-firmware.com

4. Exploded View and Parts List

4-2. Cellular phone Parts list

Design LOC Description SEC CODE

QMP01 A/S ASSY-PBA MAIN(COMM)SM-J710FN/DS,SVC GH82-11757A
QCA01
QCA02

QBA01

QBC01

QSP01
QRE01
QAR01
QMO01
QME01
QCK02

QKP01

QFR02

QMW01

QVO01
QCK01

QRF02

QRF03

QRF04

QCR151

QFR01 SVC LCD ASSY-OCTA,(E/GOLD) GH97-18855A
QCR12

QRT01 A/S-TAPE OCTA-TSP SVC GH81-13799A

QRT02 A/S-TOUCH KEY AS TAPE1 GH81-13792A

QRT03 CONDUCTIVE GASKET-OCTA CU SHEET GH02-12504A

QRT04 A/S-OCTA COVER PANEL TAPE GH81-13809A

QRT05 A/S-TOUCH KEY AS TAPE8 GH81-13797A

ASSY CAMERA-1/3.06"_13M (SM-J710FN) GH96-09778A

ASSY CAMERA-LSI 1/5" 5M CMOS_SM-A510F GH96-09573A

INNER BATTERY PACK-EB-BJ710CBE,3300MAH GH43-04599A

ASSY COVER-BATT GLOBAL_NON NFC (ZD) GH98-39699A

MICRO SPEAKER 3001-002824

ASSY CASE-REAR_GLOBAL GH98-39387A

AUDIO-RECEIVER 3009-001705

MOTOR DC-VIBRATION (SM-G600FY) GH31-00746A

ASSY MODULE-TOUCH KEY(SM-J7108) GH96-09606A

POWER_KEY FPCB ASSY-SM-J7108 GH96-09675A

ASSY KEY-HOME GH98-39525A

ASSY CASE-FRONT UNIT_GLOBAL (GD) GH98-39495A

WINDOW DISPLAY-FLASHB FRONT GH64-05693A

KEY-VOLUME GH64-05696A

KEY-POWER CH GH64-05740A

TIM PAD-AP GH67-03128A

RUBBER-DUMMY GH67-03131A

ASSY RUBBER-MIC GH98-37607A

SCREW-MACHINE 6001-003226

SCREW-MACHINE 6001-001530
