Samsung SM340 Users Manual

COMBO DRIVE

SM-340

User's Guide

FCC Compliance

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be deter-mined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Re-orient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Contents

Safety Precautions	3
Your COMBO Drive	4
Upgrading the Firmware Flash Memory	5
System Requirements	5
Installing the COMBO Drive	6
Connecting the Cables	6
Installing the CD Record Utility	9
Installing the Device Driver	9
Setting Up the Device Driver	10
Recommended Disc Types	10
Using the COMBO Drive	11
Storing and Cleaning Your Discs	11
Solving Recording Problems	12
Caution with errors	14
Term Description	15
Recommended Disc Type	15
General DMA Installation Guide	15
Solving Technical Problems	16
Technical Specifications	18

*All product names mentioned in this document are trademarks or registered trademarks of their respective owners.

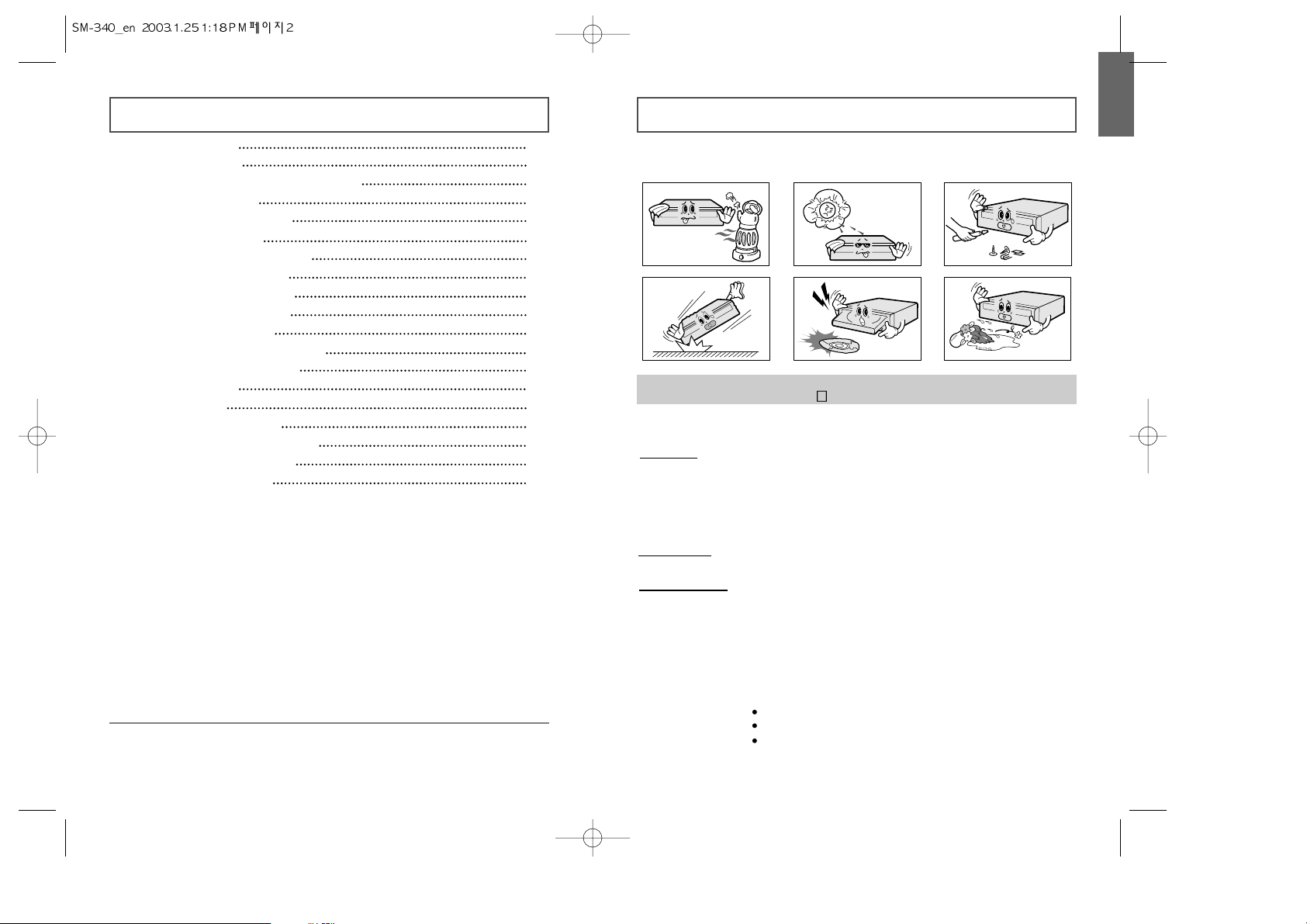

Safety Precautions

ENGLISH

The following diagrams illustrate the precautions to be taken when using your COMBO drive.

Changes or modifications not expressly approved by the party responsible for compliance could void the user authority to operate the equipment.

You must not use the drive in any manner other than that specified in this guide.

CAUTION	Do not attempt to repair the COMBO drive yourself.
	Contact your dealer or local SAMSUNG representative for all repairs.
	If you make any adjustments or perform any operations other than those
	specified in this guide, you run the risk of exposure to hazardous radiation.
	Avoid exposing your eyes or skin to direct or scattered radiation.
WARRANTY	Please refer to the Samsung limited warranty statements.

PRECAUTIONS 1. To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

2.Always check each disc for cracks before using it. If there are cracks on the surfaces, especially around the border of the center hole, we recommend that you make a copy of the disc immediately and then stop using it. If you continue using the disc, it will probably develop more cracks and eventually cause irreparable damage.

3.Do not use poor quality discs:

Without any copyright

Scratched or damaged in any way

Your COMBO Drive

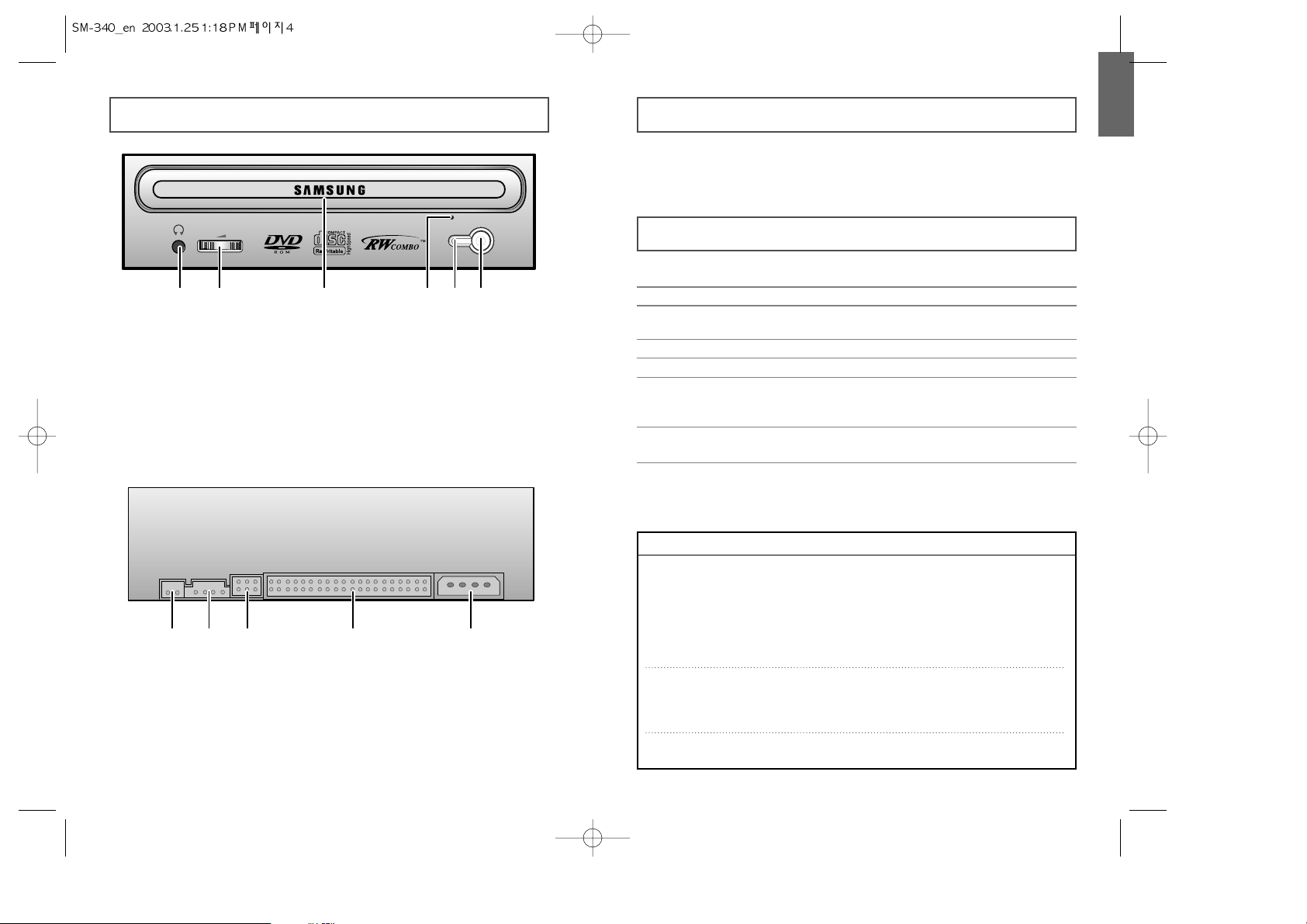

1.Connector for stereo headphones with a 3.6 mm stereo mini-jack

2.Headphone volume control

3.Disc compartment (the compartment opens and closes automatically when you press the Eject button)

4.Emergency eject hole (if the compartment does not open when you press the Eject button, power off the computer, insert a pin or unfolded paper clip in the hole and push firmly)

5.Indicator light

6.Eject button

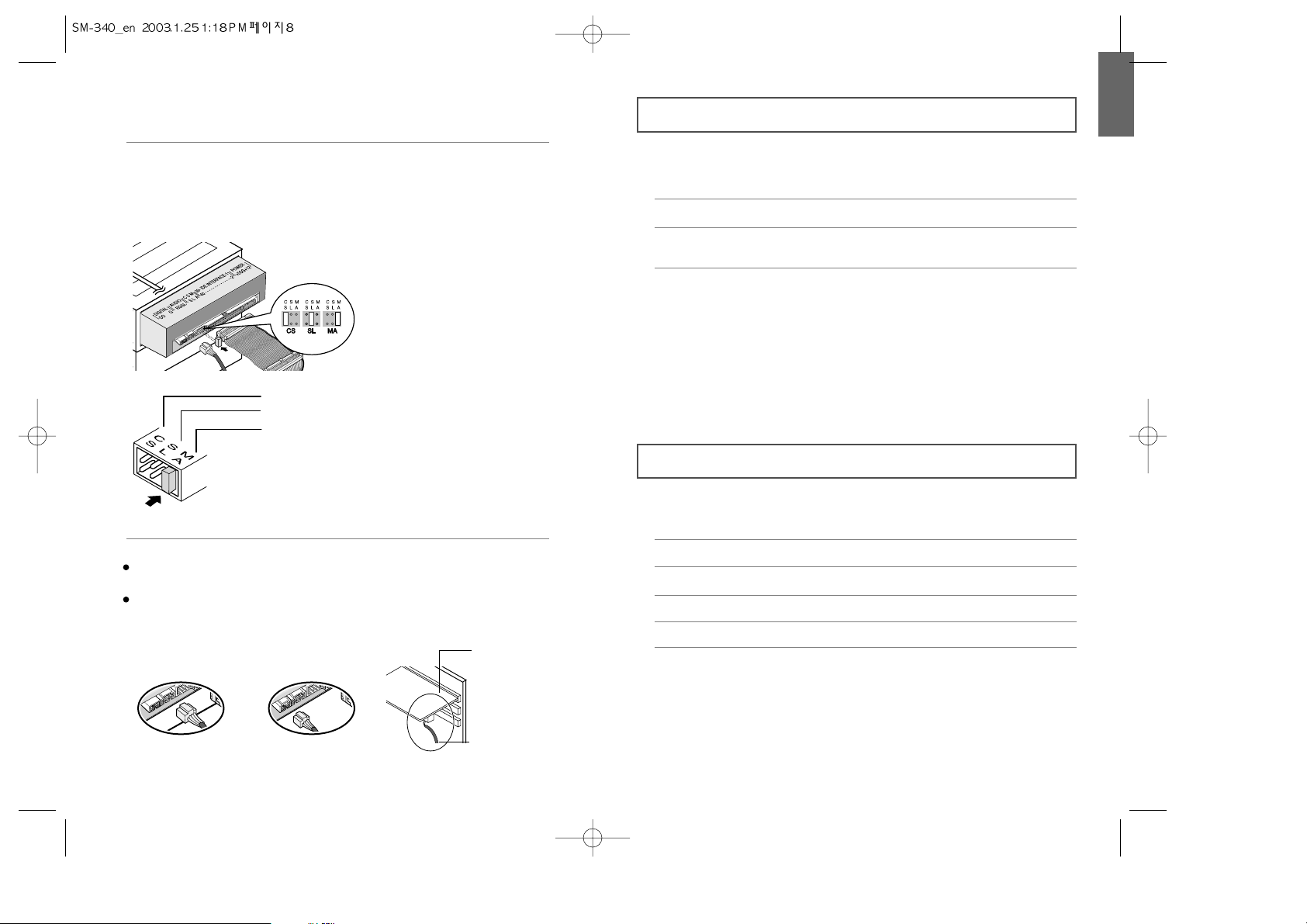

1.Two-pin digital audio output terminal for use with a sound or MPEG card supporting digital audio features

2.Four-pin sound output terminal for use with a sound card (refer to the sound card documentation for further details)

3.Master/slave select terminal

4.40pin host E-IDE interface connector

5.4pin power terminal

Upgrading the Firmware Flash Memory

The product firmware can be upgraded by downloading the updated file from the following Web site:

http:// www.samsung-ODD.com www.samsungelectronics.com

System Requirements

Before you install the COMBO drive, we strongly recommend that you check that your setup meets the system requirements listed below.

Item	Description

Computer	Intel Pentium II 300MHz/Celeron 333A(or higher),
	32 MB of RAM (or higher) with an IDE interface

Free expansion unit	5.25 inch

Disk space	700 MB minimum
Windows version	Windows 98/2000/ME/XP/NT4.0 (or higher)
	(For Windows NT, we recommend Service Pack2,
	and Version is over 4.00.1381)

MS-DOS	5.0 or higher (For MS-DOS, The CD-R/CD-RW driver
	can only read a disc without premaster Software.)

DVD Video playback	PC with Windows 98/2000/ME/XP/NT4.0
	DVD-Video playback software and appropriate
	hardware (the Power DVD MPEG software is
	included in the COMBO drive package)

DVD Region Protection Coding (RPC):

The RPC feature is supported on DVD players and is used with DVD-video discs (such as movies). Currently, the motion picture industry has divided the world into different regions or zones that correspond to the regional markets into which the motion picture industry releases movies. Simply put, RPC codes are placed on movies marketed throughout the world, based on the region of the world in which they are being sold. These RPC codes help control and prevent pirating of new movies into other motion picture regions prior to their true release dates within those markets.

The SM-340 COMBO drive supports RPC phase II. In the RPC-2 mode, the local code can be changed by users.

RPC-2 is selected by default for the SM-340 COMBO drive.

You can change the region code up to five times via an MPEG application.

Please contact your dealer or local SAMSUNG representative if you wish to change the local code more than five times.
