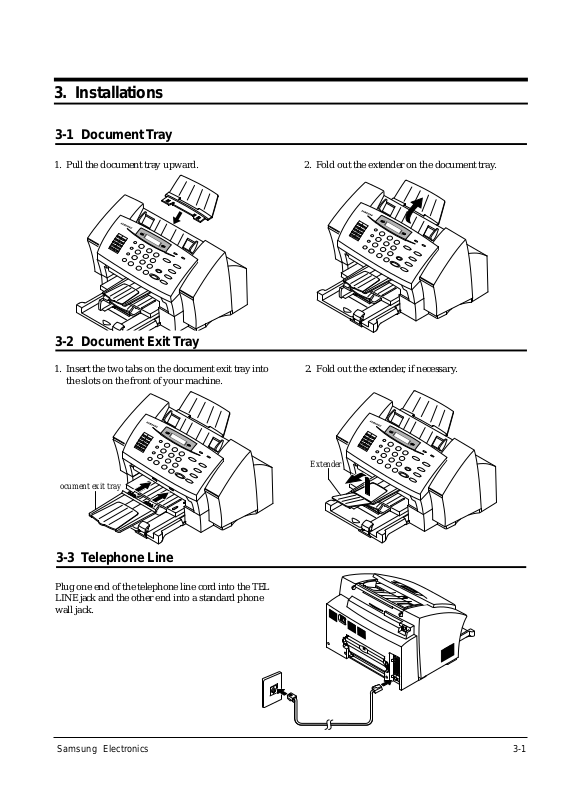

3-1
3. Installations
1. Pull the document tray upward. 2. Fold out the extender on the document tray.
3-1 Document Tray
3-2 Document Exit Tray
1. Insert the two tabs on the document exit tray into
the slots on the front of your machine.
2. Fold out the extender, if necessary.
ocument exit tray
Extender
3-3 Telephone Line
Plug one end of the telephone line cord into the TEL
LINE jack and the other end into a standard phone
wall jack.
Samsung Electronics
3-2
Installations
3-4 Extension Phone (Optional)
Plug one end of the modular cord into the EXT.TEL
jack on the back of your machine.
Plug the other end of the cord into a modular
jack on a telephone answering device or a regular
telephone to use as an extension.
3-5 AC Power Cord
Plug one end of the cord into the back of the
machine and the other end into a standard,
grounded 3-prong AC power outlet.
The machine turns on. All lamps on the control
panel light up and the LCD displays ‘SYSTEM
INITIAL’ then ‘PAPER OUT’. Load the paper as
described on page 3-4.
If you want to turn it off, unplug the power cord.
Note : If documents are deleted from memory due
to a power failure, the machine automatically
prints out a Power failure report after power is
supplied.
Samsung Electronics
3-4
3-7-1 Print Cartridge
1. When you install a new print cartridges.
Press SETUP,MENU & START button.
Lift the control panel 1 with your hand and open
the cartridge compartment cover 2.
2. If you are replacing used cartridges, remove the old
cartridges.
Press SETUP,MENU & START button.
Pull the print cartridges handle toward you until
you hear a click, then remove the print cartridges.
3. Remove the new print cartridges from its packaging. Hold the print cartridges by the black areas or
colored top only. Do not touch the copper area.
4. Carefully remove the tape covering the printhead.
Be sure to remove all the tape.
5. Insert the print cartridges in the carrier.
3-7 Installing Print Cartridge
Installations
Cartriidge compartment cover
Control panel
Cartridge handle
