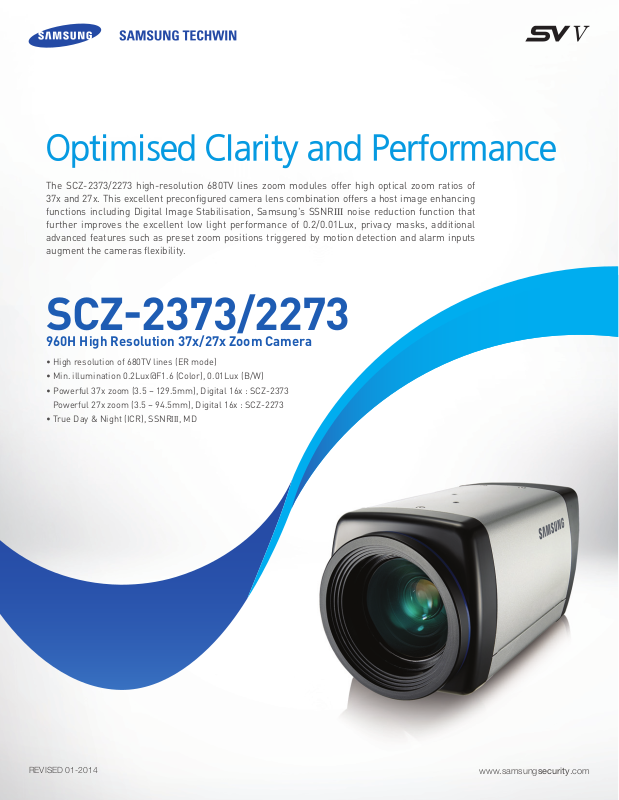

Samsung SCZ-2373, SCZ-2273 Specsheet

Optimised Clarity and Performance

The SCZ-2373/2273 high-resolution 680TV lines zoom modules offer high optical zoom ratios of
37x and 27x. This excellent preconfigured camera lens combination offers a host image enhancing
functions including Digital Image Stabilisation, Samsung's SSNRIII noise reduction function that
further improves the excellent low light performance of 0.2/0.01Lux, privacy masks, additional
advanced features such as preset zoom positions triggered by motion detection and alarm inputs
augment the cameras flexibility.

SCZ-2373/2273

960H High Resolution 37x/27x Zoom Camera

• High resolution of 680TV lines (ER mode)

• Min. illumination 0.2Lux@F1.6 (Color), 0.01Lux (B/W)

• Powerful 37x zoom (3.5 ~ 129.5mm), Digital 16x : SCZ-2373
Powerful 27x zoom (3.5 ~ 94.5mm), Digital 16x : SCZ-2273

• True Day & Night (ICR), SSNR

III

, MD

REVISED 01-2014

www.samsungsecurity.com

960H High Resolution 37x/27x Zoom Camera

67.6 (2.66")

144.3 (5.68")

67.6 (2.66")

67.6 (2.66")

122.2 (4.81")

67.6 (2.66")

SCZ-2373/2273

Dimensions

67.6 (2.66")

67.6 (2.66")

Accessories (Optional)

SHB-4300H1

/4300H2/4300H3

use with or

STB-400

The Eco mark represents
Samsung Techwin’s will to create
environment-friendly products,and indicates
that the product satisfies the EU RoHS Directive.

SHB-4200/4200H STB-4150V

STH-500 STH-200

Unit : mm (inch)

146.7 (5.78")

680TVL

0.2Lux

37x
27x

Specifications

VIDEO

Imaging Device

Total Pixels

Effective Pixels

Scanning System

Synchronization

Frequency

Horizontal Resolution

Min. Illumination

S / N Ratio

Video Output

LENS

Focal Length (Zoom Ratio)

Max. Aperture Ratio

Angular Field of View

Min. Object Distance

Focus Control

Zoom Movement Speed

OPERATIONAL

On Screen Display

Camera Title

Day & Night

Backlight Compensation

Contrast Enhancement

Digital Noise Reduction

Digital Image Stabilization

Motion Detection

Privacy Masking

Sens-up (Frame Integration)

Gain Control

White Balance

Electronic Shutter Speed

Digital Zoom

Reverse

Preset

Communication

Protocol

ENVIRONMENTAL

Operating Temperature / Humidity

ELECTRICAL

Input Voltage / Current

Power Consumption

MECHANICAL

Color / Material

Dimensions (WxH)

Weight

D&N ICR

SCZ-2373N/2273N SCP-2373P/2273P

1/4" Sony 960H Ex-view HAD CCD

II

1,020(H) x 508(V) 1,020(H) x 596(V)

976(H) x 494(V) 976(H) x 582(V)

2 : 1 Interlace

Internal / Line lock

H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz

680TV lines (ER mode)

Color : 0.2Lux@F1.6 (50IRE), 0.0004Lux (Sens-up, 512x)
B/W : 0.01Lux@F1.6 (50IRE), 0.00002Lux (Sens-up, 512x)

52dB (AGC off, Weight on)

CVBS : 1.0 Vp-p / 75Ω composite

3.5 ~ 129.5mm (Optical 37x) : SCZ-2373, 3.5 ~ 94.5mm (Optical 27x) : SCZ-2273

1 : 1.6(Wide) ~ 3.9(Tele) : SCZ-2373, 1 : 1.6(Wide) ~ 2.8(Tele) : SCZ-2273

H : 56.26°(Wide) ~ 1.62°(Tele) / V : 43.28°(Wide) ~ 1.22°(Tele) / D : 67.56°(Wide) / 2.02°(Tele) : SCZ-2373
H : 56.26°(Wide) ~ 2.24°(Tele) / V : 43.28°(Wide) ~ 1.67°(Tele) / D : 67.56°(Wide) / 2.8°(Tele) : SCZ-2273

1.5m (4.92ft)

Auto / Manual / One push

3.1sec (Wide to tele) : SCZ-2373, 2.7sec (Wide to tele) : SCZ-2273

English, Japanese, Spanish, French,
Portuguese, Korean

English, French, German, Italian, Spanish, Chinese,
Portuguese, Danish, Swedish, Russian, Serbian, Polish,
Czech, Turkish, Romanian

Off / On (Displayed 15 characters)

Auto (ICR) / External / Color / B/W

Off / BLC / HLC

SSDR (Level adjustable)

SSNRIII (Off / Low / Medium / High)

Off / On

Off / On (4 programmable zones)

Off / On (12 rectangular zones)

Off / Auto (Selectable limit ~ 512x)

Off / Low / Medium / High / Manual

ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K) / Mercury

Esc / A.FLK / Manual

Off / On (1x ~ 16x)

Off / H-Rev / V-Rev / HV-Rev

128 Position (Store with internal EEPROM)

Coaxial control (SPC-300 compatible), RS-485

Coax : Pelco-C (Coaxitron)
RS-485 : Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon, AD

-10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH

Dual (24V AC & 12V DC ±10%)

Max. 5.8W

Black, Silver / Plastic, Steel

67.6 x 67.6 x 146.7mm (2.66" x 2.66" x 5.78")

540g (1.19 lb)

Design and specifications are subject to change without notice.
