Page 1

67.6 (2.66")

144.3 (5.68")

67.6 (2.66")

122.2 (4.81")

67.6 (2.66")

122.2 (4.81")

67.6 (2.66")

118.5 (4.67")

67.6 (2.66")

142.5 (5.61")

67.6 (2.66")

118.5 (4.67")

67.6 (2.66")

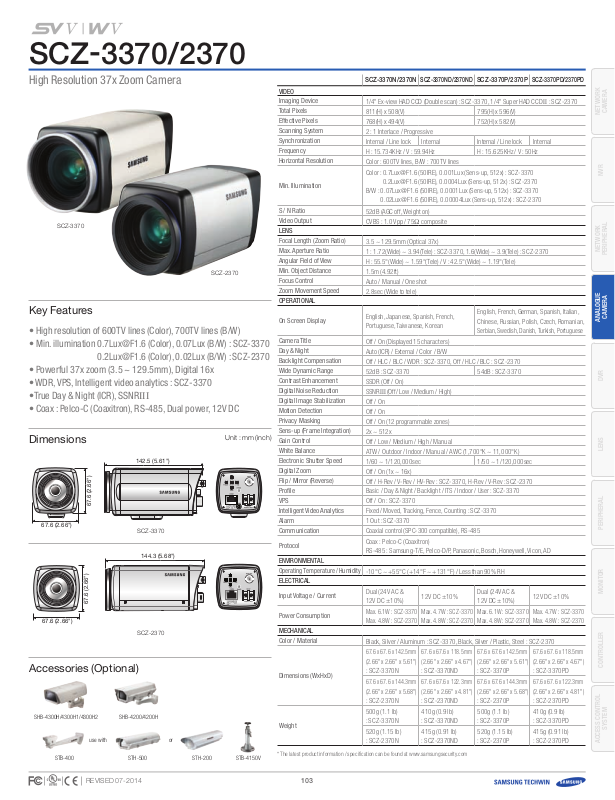

SCZ-3370/2370

High Resolution 37x Zoom Camera

SCZ-3370

SCZ-2370

Key Features

• High resolution of 600TV lines (Color), 700TV lines (B/W)

•

Min. illumination [email protected] (Color), 0.07Lux (B/W) : SCZ-3370

[email protected] (Color), 0.02Lux (B/W) : SCZ-2370

• Powerful 37x zoom (3.5 ~ 129.5mm), Digital 16x

• WDR, VPS, Intelligent video analytics : SCZ-3370

•True Day & Night (ICR), SSNRIII

• Coax : Pelco-C (Coaxitron), RS-485, Dual power, 12V DC

Dimensions

67.6 (2.66")

Accessories (Optional)

SHB-4300H/4300H1/4300H2

use with or

REVISED 07-2014

SHB-4200/4200H

142.5 (5.61")

SCZ-3370

144.3 (5.68")

SCZ-2370

STH-500 STH-200STB-400

Unit : mm (inch)

STB-4150V

SCZ-3370N/2370N

SCZ-3370ND/2370ND

VIDEO

Imaging Device Total Pixels

Effective Pixels

Scanning System Synchronization Frequency Horizontal Resolution

1/4" Ex-view HAD CCD (Double scan) : SCZ-3370, 1/4" Super HAD CCD 811(H) x 508(V) 795(H) x 596(V) 768(H) x 494(V) 752(H) x 582(V) 2 : 1 Interlace / Progressive Internal / Line lock Internal Internal / Line lock Internal H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz Color : 600TV lines, B/W : 700TV lines

Color : [email protected] (50IRE), 0.001Lux (Sens-up, 512x)

Min. Illumination

[email protected] (50IRE), 0.0004Lux (Sens-up, 512x)

B/W : [email protected] (50IRE), 0.0001Lux (Sens-up, 512x)

[email protected] (50IRE), 0.00004Lux (Sens-up, 512x)

S / N Ratio Video Output

52dB (AGC off, Weight on) CVBS : 1.0 Vpp / 75Ω composite

LENS

Focal Length (Zoom Ratio) Max. Aperture Ratio

Angular Field of View

Min. Object Distance Focus Control Zoom Movement Speed

3.5 ~ 129.5mm (Optical 37x) 1 : 1.72(Wide) ~ 3.94(Tele) : SCZ-3370, 1.6(Wide) ~ 3.9(Tele) : SCZ-2370 H : 55.5°(Wide) ~ 1.59°(Tele) / V : 42.5°(Wide) ~ 1.19°(Tele)

1.5m (4.92ft) Auto / Manual / One shot

2.8sec (Wide to tele)

OPERATIONAL

On Screen Display

Camera Title Day & Night

Backlight Compensation

Wide Dynamic Range Contrast Enhancement Digital Noise Reduction Digital Image Stabilization Motion Detection

Privacy Masking

Sens-up (Frame Integration) Gain Control

White Balance

Electronic Shutter Speed Digital Zoom Flip / Mirror (Reverse)

Profile

VPS Intelligent Video Analytics Alarm Communication

Protocol

English, Japanese, Spanish, French, Portuguese, Taiwanese, Korean

Off / On (Displayed 15 characters) Auto (ICR) / External / Color / B/W Off / HLC / BLC / WDR : SCZ-3370, Off / HLC / BLC : SCZ-2370 52dB : SCZ-3370 54dB : SCZ-3370 SSDR (Off / On) SSNR

III

(Off/ Low / Medium / High) Off / On Off / On Off / On (12 programmable zones) 2x ~ 512x Off / Low / Medium / High / Manual ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K) 1/60 ~ 1/120,000sec 1/50 ~ 1/120,000sec Off / On (1x ~ 16x) Off / H-Rev / V-Rev / HV-Rev : SCZ-3370, H-Rev / V-Rev : SCZ-2370 Basic / Day & Night / Backlight / ITS / Indoor / User : SCZ-3370 Off / On : SCZ-3370 Fixed / Moved, Tracking, Fence, Counting : SCZ-3370 1 Out : SCZ-3370 Coaxial control (SPC-300 compatible), RS-485 Coax : Pelco-C (Coaxitron) RS-485 : Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon, AD

ENVIRONMENTAL

Operating Temperature / Humidity

-10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH

ELECTRICAL

Input Voltage / Current

Power Consumption

Dual (24V AC & 12V DC ±10%)

Max. 6.1W : SCZ-3370 Max. 4.8W : SCZ-2370

12V DC ±10%

Max. 4.7W : SCZ-3370 Max. 4.8W : SCZ-2370

MECHANICAL

Color / Material

Dimensions (WxHxD)

Weight

* The latest product information / specification can be found at www.samsungsecurity.com

Black, Silver / Aluminum : SCZ-3370, Black, Silver / Plastic, Steel : SCZ-2370

67.6 x 67.6 x 142.5mm (2.66" x 2.66" x 5.61") : SCZ-3370N

67.6 x 67.6 x 144.3mm (2.66" x 2.66" x 5.68") : SCZ-2370N

500g (1.1 lb) : SCZ-3370N

520g (1.15 lb) : SCZ-2370N

67.6 x 67.6 x 118.5mm (2.66" x 2.66" x 4.67") : SCZ-3370ND

67.6 x 67.6 x 122.3mm (2.66" x 2.66" x 4.81") : SCZ-2370ND

410g (0.9 lb) : SCZ-3370ND

415g (0.91 lb) : SCZ-2370ND

103

SCZ-3370P/2370P

SCZ-3370PD/2370PD

: SCZ-3370

: SCZ-2370

: SCZ-3370

: SCZ-2370

English, French, German, Spanish, Italian, Chinese, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish, Portuguese

Dual (24V AC & 12V DC ±10%)

Max. 6.1W : SCZ-3370 Max. 4.8W : SCZ-2370

67.6 x 67.6 x 142.5mm (2.66" x 2.66" x 5.61") : SCZ-3370P

67.6 x 67.6 x 144.3mm (2.66" x 2.66" x 5.68") : SCZ-2370P

500g (1.1 lb) : SCZ-3370P

520g (1.15 lb) : SCZ-2370P

12V DC ±10%

Max. 4.7W : SCZ-3370 Max. 4.8W : SCZ-2370

67.6 x 67.6 x 118.5mm (2.66" x 2.66" x 4.67") : SCZ-3370PD

67.6 x 67.6 x 122.3mm (2.66" x 2.66" x 4.81") : SCZ-2370PD

410g (0.9 lb) : SCZ-3370PD

415g (0.91 lb) : SCZ-2370PD
