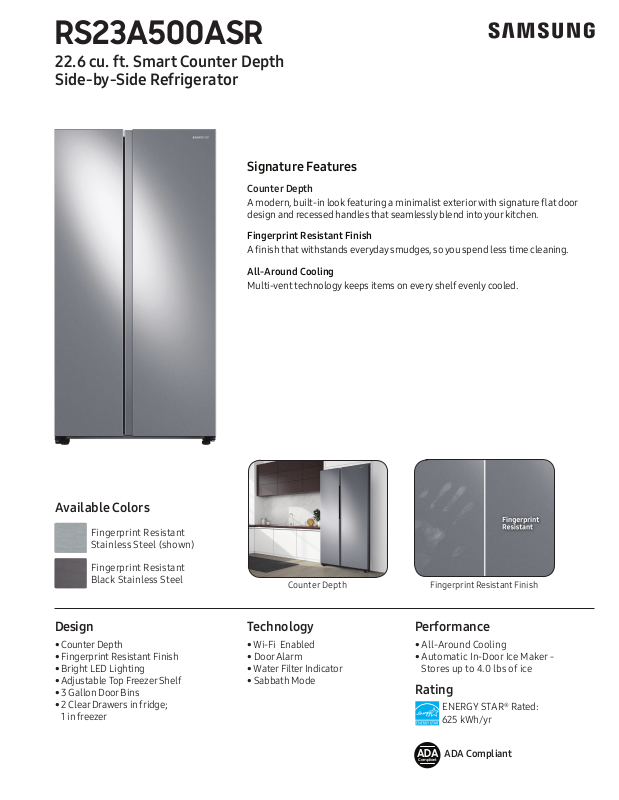

Samsung RS23A500ASR Specification Sheet

RS23A500ASR

Stainless Steel

22.6 cu. ft. Smart Counter Depth Side-by-Side Refrigerator

Signature Features

Counter Depth

A modern, built-in look featuring a minimalist exterior with signature at door

design and recessed handles that seamlessly blend into your kitchen.

Fingerprint Resistant Finish

A nish that withstands everyday smudges, so you spend less time cleaning.

All-Around Cooling

Multi-vent technology keeps items on every shelf evenly cooled.

Available Colors

Fingerprint Resistant Stainless Steel (shown)

Fingerprint Resistant Black Stainless Steel

Design

• Counter Depth

• Fingerprint Resistant Finish

• Bright LED Lighting

• Adjustable Top Freezer Shelf

• 3 Gallon Door Bins

• 2 Clear Drawers in fridge;

1 in freezer

Counter Depth

Technology

• Wi-Fi Enabled

• Door Alarm

• Water Filter Indicator

• Sabbath Mode

Fingerprint Resistant Finish

Performance

• All-Around Cooling

• Automatic In-Door Ice Maker -

Stores up to 4.0 lbs of ice

Rating

ENERGY STAR® Rated: 625 kWh/yr

ADA

ADA Compliant

Compliant

RS23A500ASR

22.6 cu. ft. Smart Counter Depth Side-by-Side Refrigerator

Installation Specifications

1. Measure the height, width and depth of the opening, making sure to include baseboards, molding tile, countertop overhang, etc. Check to be sure there is enough room to open the door (consider walls, islands or other obstacles when measuring).

2. Refer to illustration below to determine dimensions.

3. Allow 2.5" of clearance on hinge side of refrigerator when installing next to a wall

where handle may make contact.

4. Allow 1" minimum clearance at rear for proper air circulation and water/electrical

connections. Allow a 3/8" minimum clearance at sides and top for ease of installation.

5. Ensure each door and entryway in the home is wide enough for the refrigerator

to be moved through easily.

For optimal usage and ability to open refrigerator doors completely,

do not install next to a wall.

Please note: The following dimension and cutout information is for planning purposes only. For complete installation details, consult manual packed with product or download manual

online at samsung.com.

Measure height including flooring. Be sure to allow for hinge clearance height if needed.

Measure width including countertop overhang.

Measure depth including molding or trim.

Dimensions

357/8"

Total Capacity: 22.6 cu. ft.

Refrigerator: 14.6 cu. ft.

• 4 Tempered Glass Shelves

• 2 Drawers

• 5 Door Bins – 3 Gallon Bins – 2 Door Bins

• Top LED Lighting

Freezer: 8.0 cu. ft.

• Automatic In-Door Ice Maker

• 5 Tempered Glass Shelves

• 1 Drawer

• 4 Door Bins

• Top LED Lighting

Accessories

Water Filter: HAF-QIN

Warranty

One (1) Year Parts and Labor on Refrigerator Five (5) Years Parts and Labor on

Sealed Refrigeration System Only* Ten (10) Years Parts and Five (5) Years

Labor on Digital Inverter Compressor

*Compressor, evaporator, condenser, drier and connecting tubing.

Product Dimensions & Weight

Dimensions (WxHxD with hinges, recessed handles, and doors): 357/8" x 701/16" x 285/8"

Dimensions (WxHxD without hinges and door):

357/8" x 685/8" x 24"

Weight: 229 lbs

Shipping Dimensions & Weight (WxHxD)

Dimensions: 373/4" x 753/8" x 301/8"

Weight: 238 lbs

357/8"

Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.

24"22

Color Model # UPC Code

Fingerprint Resistant Stainless Steel

Fingerprint Resistant

Black Stainless Steel

RS23A500ASR 887276467801

RS23A500ASG 887276467795
