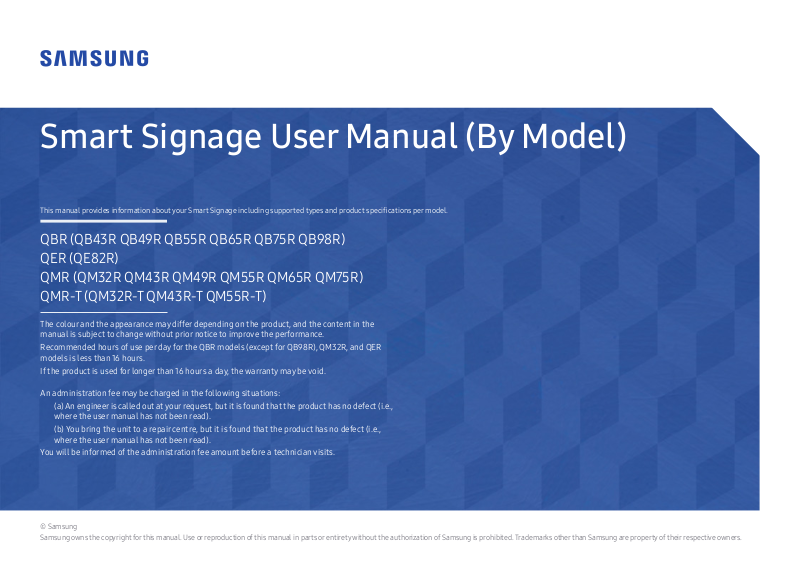

Smart Signage User Manual (By Model)
ThismanualprovidesinformationaboutyourSmartSignage includingsupportedtypesandproductspecificationspermodel.
QBR (QB43R QB49R QB55R QB65R QB75R QB98R)
QER (QE82R)
QMR (QM32R QM43R QM49R QM55R QM65R QM75R)
QMR-T (QM32R-T QM43R-T QM55R-T)
The colour and the appearance may differ depending on the product, and the content in the manual is subject to change without prior notice to improve the performance.
Recommended hours of use per day for the QBR models (except for QB98R), QM32R, and QER models is less than 16 hours.
If the product is used for longer than 16 hours a day, the warranty may be void.
An administration fee may be charged in the following situations:
(a)An engineer is called out at your request, but it is found that the product has no defect (i.e., where the user manual has not been read).
(b)You bring the unit to a repair centre, but it is found that the product has no defect (i.e., where the user manual has not been read).
You will be informed of the administration fee amount before a technician visits.
© Samsung
Samsung owns the copyright for this manual. Use or reproduction of this manual in parts or entirety without the authorization of Samsung is prohibited. Trademarks other than Samsung are property of their respective owners.
Table of contents
Preparations
Checking the Components |
3 |
|
|
Parts |
4 |
QM32R/Q*43R/Q*49R/Q*55R/Q*65R/ |
|
Q*75R/QE82R/QM32R-T/QM43R-T/ |
4 |
QM55R-T |
|
QB98R |
5 |
Anti-theft Lock |
6 |
|
|
Ports |
7 |
Q*43R/Q*49R/Q*55R/Q*65R/Q*75R/ |
7 |
QE82R |
|
QM32R |
8 |
QB98R |
9 |
QM32R-T |
10 |
QM43R-T/QM55R-T |
11 |
|
|
Control menu |
12 |
|
|
Administrator menu (Supported models: |
|
QMR-T) |
13 |
|
|
Precautions when handling the panel |
14 |
|
|
Before Installing the Product (Installation |
|
Guide) |
15 |
Tilting Angle and Rotation |
15 |
Ventilation |
15 |
|
|
Installing the Wall Mount |
16 |
Preparing before installing Wall-Mount |
16 |
Installing the Wall Mount |
16 |
Wall Mount Kit Specifications (VESA) |
17 |
Using a touchscreen monitor (Supported models: QMR-T)
Touchscreen monitor |
18 |
Read below before using the product |
18 |
|
|
Connecting the touch overlay |
18 |
|
|
Connecting the touchscreen monitor |
19 |
Connecting to a PC |
19 |
Connecting to a laptop or tablet PC |
19 |
|
|
Configuring the touchscreen monitor |
|
settings |
20 |
Calibration |
20 |
Specifications
General |
22 |
|
|
Preset Timing Modes |
24 |
Appendix
Licence |
25 |
2
Chapter 01
"" Contact the vendor where you purchased the product if any components are missing.
"" The appearance of the components may differ from the images shown.
"" A stand is not provided with the product. To install a stand, you can purchase one separately.
"" The RS232C adapter can be used to connect to another monitor using the D-SUB (9-pin) type RS232C cable.
Quick Setup Guide
Batteries (AAA x 2)
(Not available in some locations)
Holder-Ring x 4
(Supported models: Q*43R, Q*49R, Q*55R, Q*65R, Q*75R, QM43R-T, QM55R-T)
Warranty card
(Not available in some locations)
Remote Control
TOUCH OUT cable x 2 (Supported models: QMR-T)
|
|
|
|
|
Regulatory guide |
|
|
Power cord |
|
|
|
|
|
|
|
|
HOLDER-CABLE |
RS232C adapter |
|
(Supported models: Q*65R, |
|
|
Q*75R, QB98R, QE82R) |
|
|
|
3
QM32R/Q*43R/Q*49R/Q*55R/Q*65R/ Q*75R/QE82R/QM32R-T/QM43R-T/ QM55R-T
Remote sensor
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
30° |
30° |
|
|
|
|
|
|
|
||
|
|
|
2.5 m |
2.5 m |
|||
|
|
|
|
|
|||
|
|
|
|
|
|
||
Power button |
4 m |
|
Power indicator
"" The colour and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality.
Parts |
Description |
|
|
|
|
|
Press a button on the remote control pointing at the sensor on the front of the product |
|
Remote sensor |
to perform the corresponding function. |
|
"" Using other display devices in the same space as the remote control of this product |
||
|
||
|
can cause the other display devices to be inadvertently controlled. |
|
|
|
|
Power button |
Turns the product on or off. |
|
|
|
Use the remote control within 2.5 m to 4 m from the sensor on the product at an angle of 30° from the left and right.
"" To enhance the IR receiver performance, connect an external IR cable (sold separately) to the IR IN port.
Speaker
4
QB98R
ON/OFF
Speaker
Spacer logo
Remote sensor & Power button
"" The colour and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality.
Parts |
Description |
Spacer logo |
Do not pull on the spacer logo using force. The logo may tear or break off. |
|
Press a button on the remote control pointing at the bottom of the product face to |
|
perform the function. The remote control sensor is located on the bottom of the product. |
|
"" Using other display devices in the same space as the remote control of this product |
|
can cause the other display devices to be inadvertently controlled. |
Remote sensor |
|
|
To use remote/eco sensor, make sure the sliding power button |
|
is protruding from the bottom of the product. |
Power button |
To use the power button, make sure the sliding power button |
|
is not protruding from the bottom of the product. |
||
|
Use the remote control within 7 m to 10 m from the sensor on the product at an angle of 30° from the left and right. "" To enhance the IR receiver performance, connect an external IR cable (sold separately) to the IR IN port.
5
"" An anti-theft lock allows you to use the product securely even in public places.
"" The locking device shape and locking method depend on the manufacturer. Refer to the user guide provided with your anti-theft locking device for details. "" The following images are for reference only. Real-life situations may differ from what is shown in the images.
"" Supported model: QB98R
To lock an anti-theft locking device:
1Fix the cable of your anti-theft locking device to a heavy object such as a desk.
2Put one end of the cable through the loop on the other end.
3Insert the locking device into the anti-theft lock slot at the back of the product.
4Lock the locking device.
––An anti-theft locking device can be purchased separately.
––Refer to the user guide provided with your anti-theft locking device for details.
––Anti-theft locking devices can be purchased at electronics retailers or online.
6
Q*43R/Q*49R/Q*55R/Q*65R/Q*75R/
QE82R
"" The colour and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality.
QB43R / QB49R / |
|
QE82R |
|
|
|
|
QM43R / QM49R / |
|
||||||||||||||||||||
QB55R / QB65R / |
|
|
|
|
|
|
|
|
|
QM55R / QM65R / |
|
|||||||||||||||||
QB75R |
|
|
|
|
|
|
|
|
|
QM75R |
|
|||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Port |
Description |
|
|
|
|
|
Connect to a USB memory device. |
|
USB1 ¨(1.0A) |
"" The USB ports on the product accept a maximum constant current of 1.0A. |
|
|
If the maximum value is exceeded, USB ports may not work. |
|
|
|
|
|
Connects to MDC and the Internet using a LAN cable. (10/100 Mbps) |
|
RJ45 |
"" Use Cat7(*STP Type) cable for the connection. |
|
|
*Shielded Twist Pair. |
|
|
|
|
RS232C IN |
Connects to MDC using an RS232C adapter. |
|
|
|
|
DVI/MAGICINFO IN |
DVI IN: Connects to a source device using a DVI cable or HDMI-DVI cable. |
|
|
||
DVI IN |
MAGICINFO IN: Connects to a network box using DP-DVI cable to use Magicinfo. |
|
|
||
|
|
|
HDMI IN1 (ARC) |
Connects to a source device using a HDMI cable or HDMI-DVI cable. |
|
|
||
HDMI IN 2 |
||
|
||
|
|
|
HDMI IN 2 (DAISY CHAIN IN) |
•• Connects to a source device using a HDMI cable or HDMI-DVI cable. |
|
•• Connects to another product using a HDMI cable. |
||
|
||
|
|
|
DP IN (DAISY CHAIN IN) |
Connects to a PC using a DP cable. |
|
|
|
|
HDMI OUT (DAISY CHAIN OUT) |
Connects to another product using a HDMI cable. |
|
|
|
|
|
Connect to a USB memory device. |
|
USB 2(0.5A) |
"" The USB ports on the product accept a maximum constant current of |
|
|
0.5A. If the maximum value is exceeded, USB ports may not work. |
|
|
|
|
DVI/HDMI AUDIO IN |
Receives sound from a source device via an audio cable. |
|
|
|
|
AUDIO OUT |
Outputs sound to an audio device via an audio cable. |
|
|
|
|
IR IN |
Connects to an external IR cable that receives signals from the remote control. |
|
|
|
|
RS232C OUT |
Connects to MDC using an RS232C adapter. |
|
|
|
7
QM32R
"" The colour and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality.
Port |
Description |
|
|
|
|
|
Connect to a USB memory device. |
|
USB1 ¨(1.0A) |
"" The USB ports on the product accept a maximum constant current of 1.0A. |
|
|
If the maximum value is exceeded, USB ports may not work. |
|
|
|
|
HDMI IN1 (ARC) |
Connects to a source device using a HDMI cable or HDMI-DVI cable. |
|
|
|
|
|
Connects to MDC and the Internet using a LAN cable. (10/100 Mbps) |
|
RJ45 |
"" Use Cat7(*STP Type) cable for the connection. |
|
|
*Shielded Twist Pair. |
|
|
|
|
RS232C IN |
Connects to MDC using an RS232C adapter. |
|
|
|
|
HDMI IN 2 (DAISY CHAIN IN) |
•• Connects to a source device using a HDMI cable or HDMI-DVI cable. |
|
•• Connects to another product using a HDMI cable. |
||
|
||
|
|
|
DP IN (DAISY CHAIN IN) |
Connects to a PC using a DP cable. |
|
|
|
|
HDMI OUT (DAISY CHAIN OUT) |
Connects to another product using a HDMI cable. |
|
|
|
|
|
Connect to a USB memory device. |
|
USB 2(0.5A) |
"" The USB ports on the product accept a maximum constant current of |
|
|
0.5A. If the maximum value is exceeded, USB ports may not work. |
|
|
|
|
AUDIO OUT |
Outputs sound to an audio device via an audio cable. |
|
|
|
|
IR IN |
Connects to an external IR cable that receives signals from the remote control. |
|
|
|
|
RS232C OUT |
Connects to MDC using an RS232C adapter. |
|
|
|
8
